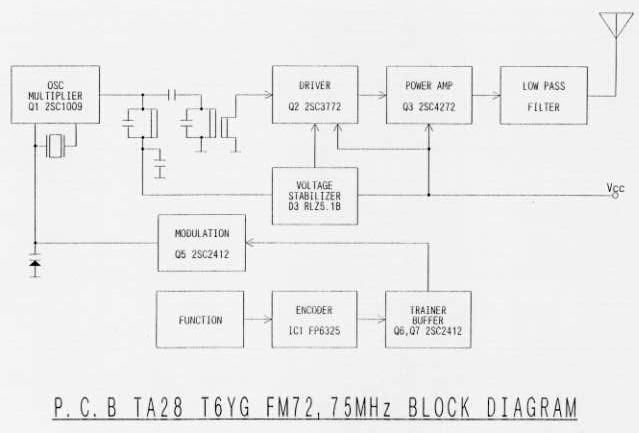

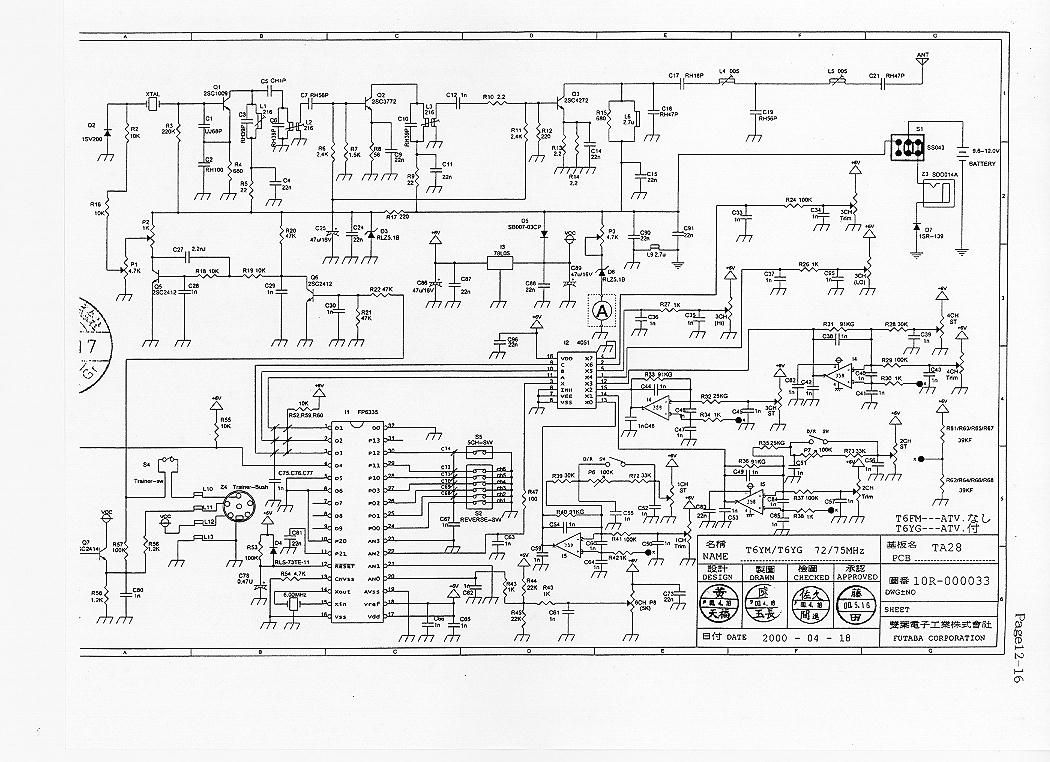

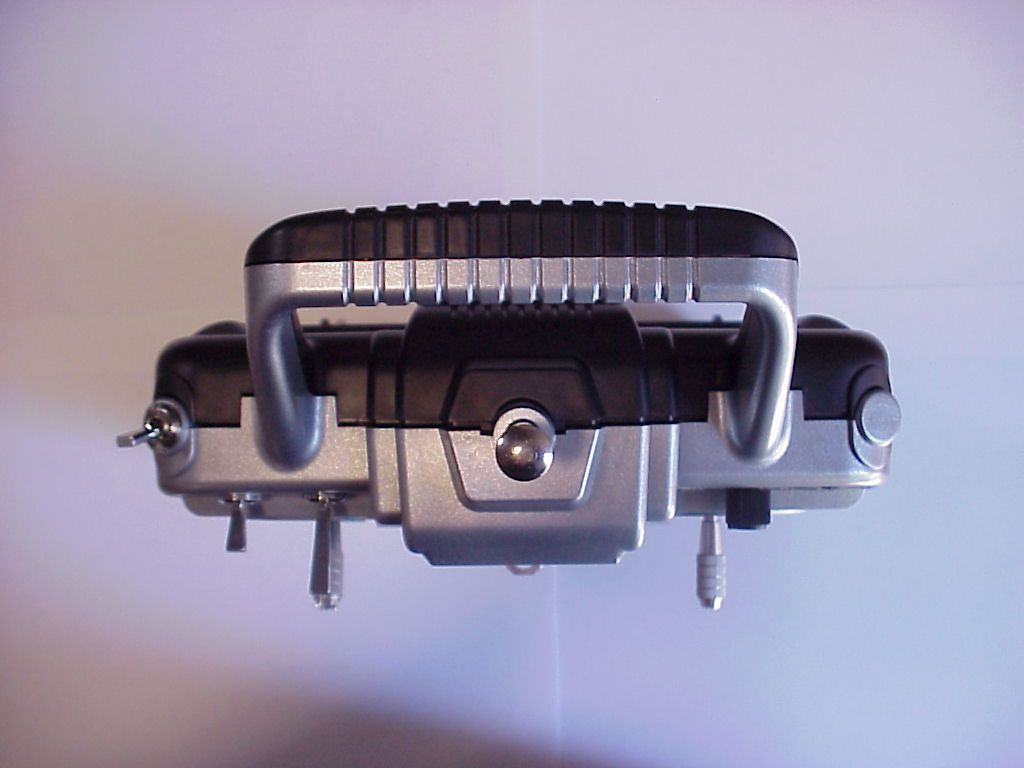

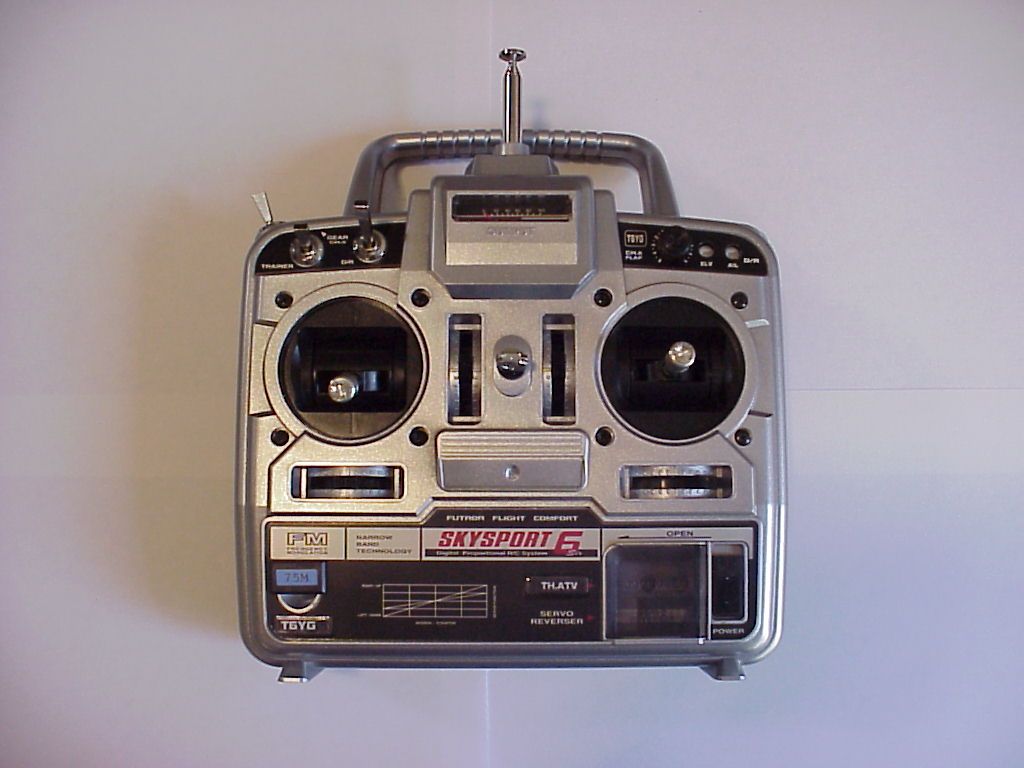

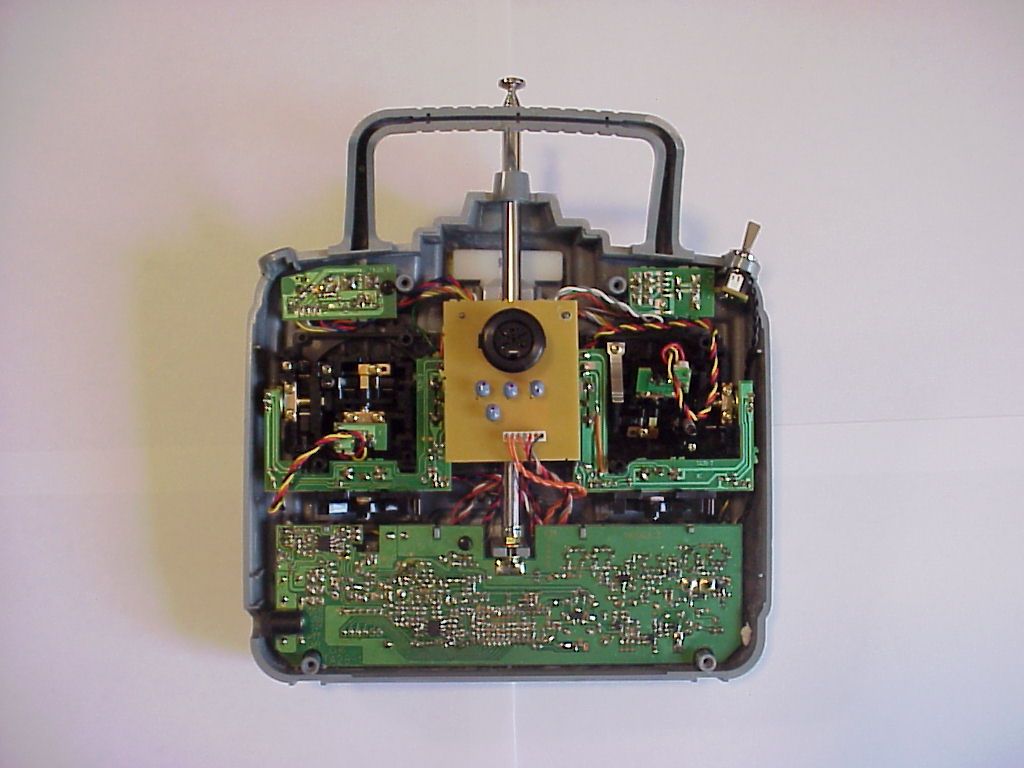

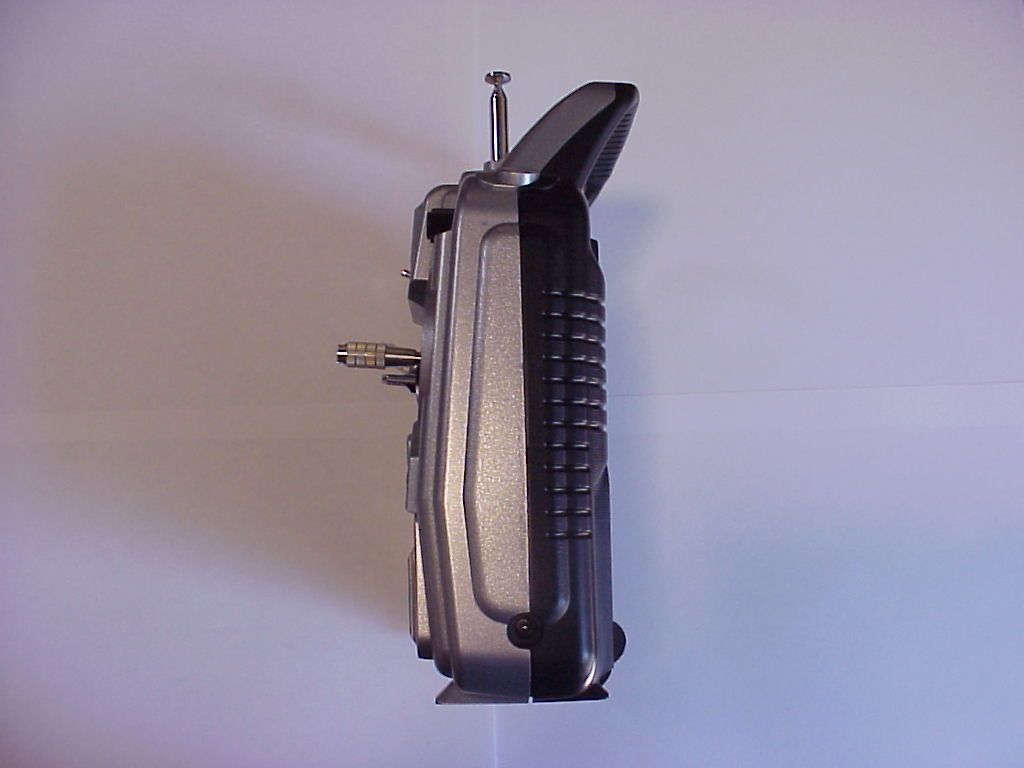

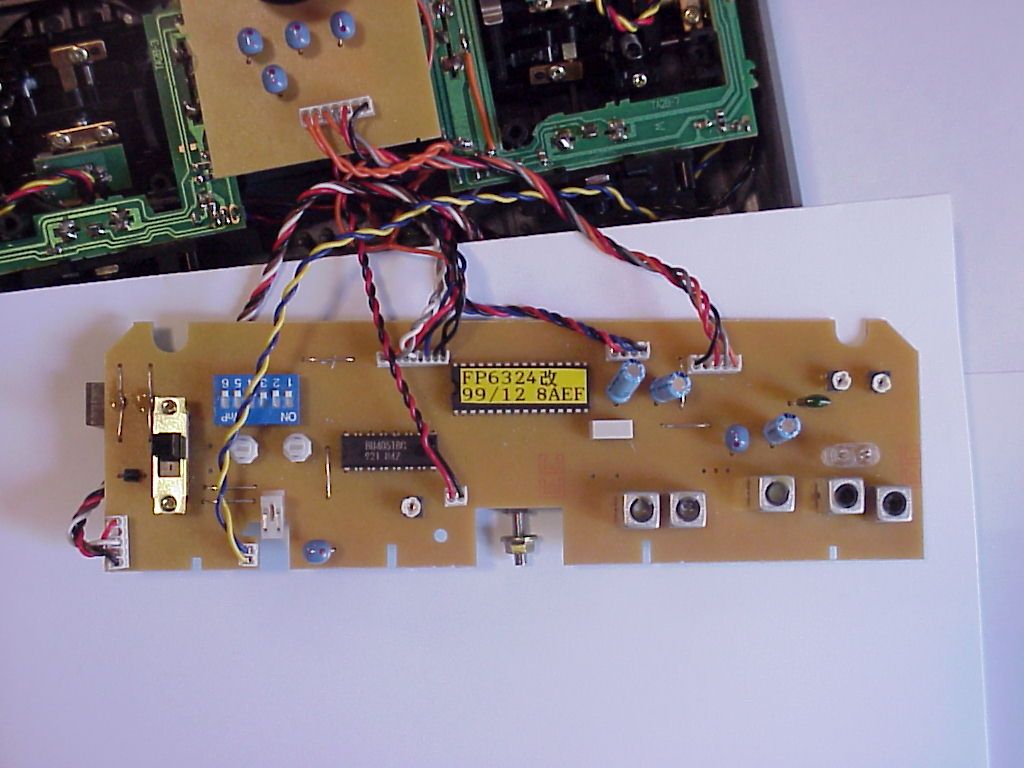

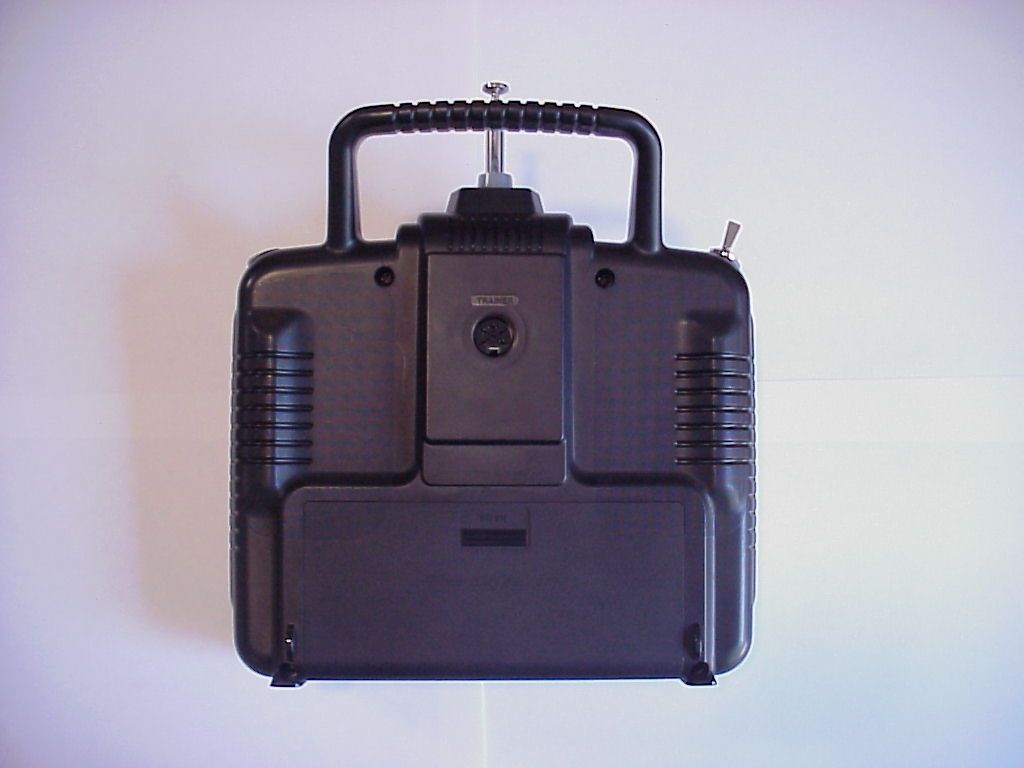

AZPT6YG-72T6YG Radio Control System

FCC ID Label FCC ID: AZPT6YG-72 Location of Label on the EUT FCC Label Locati on

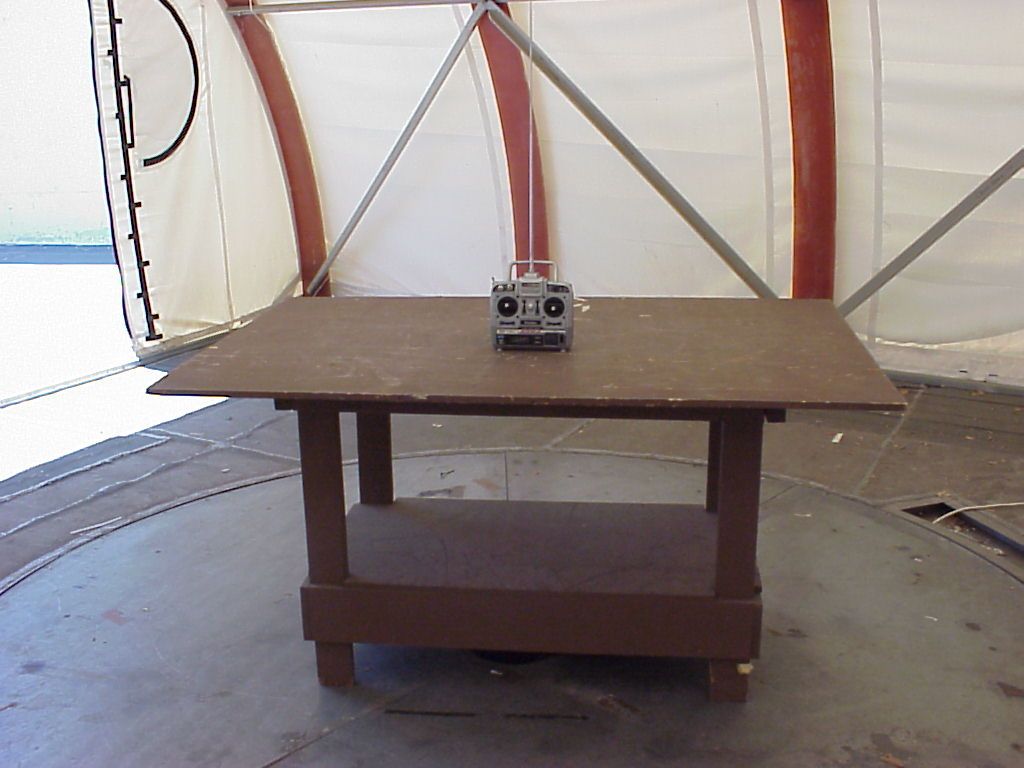

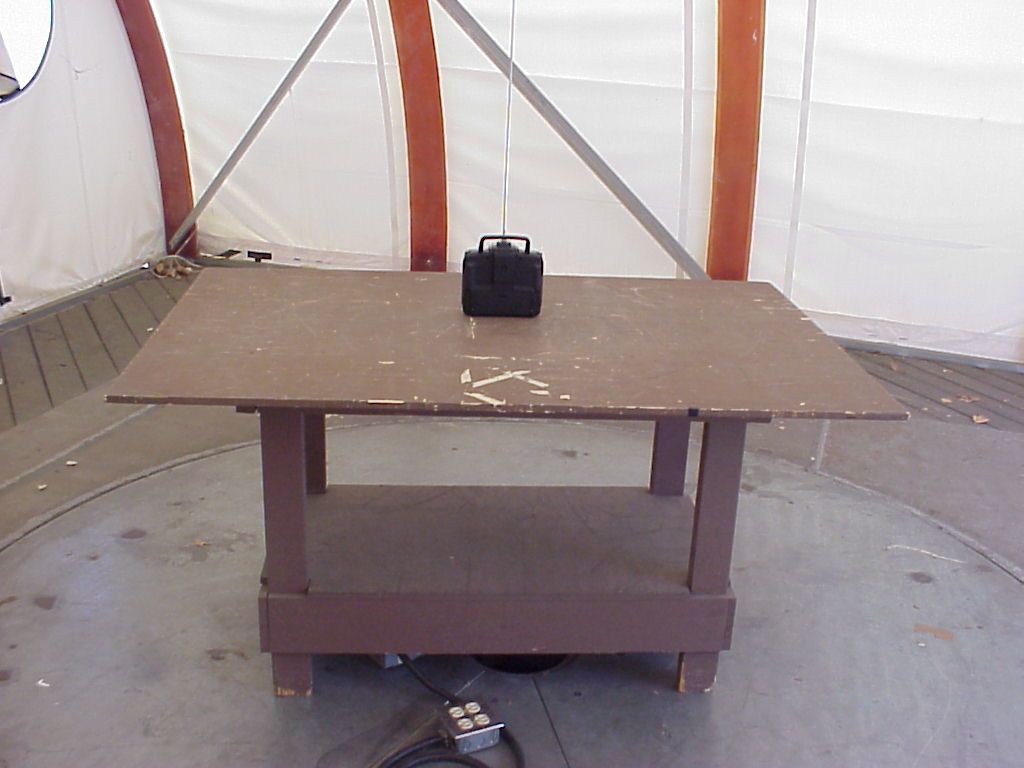

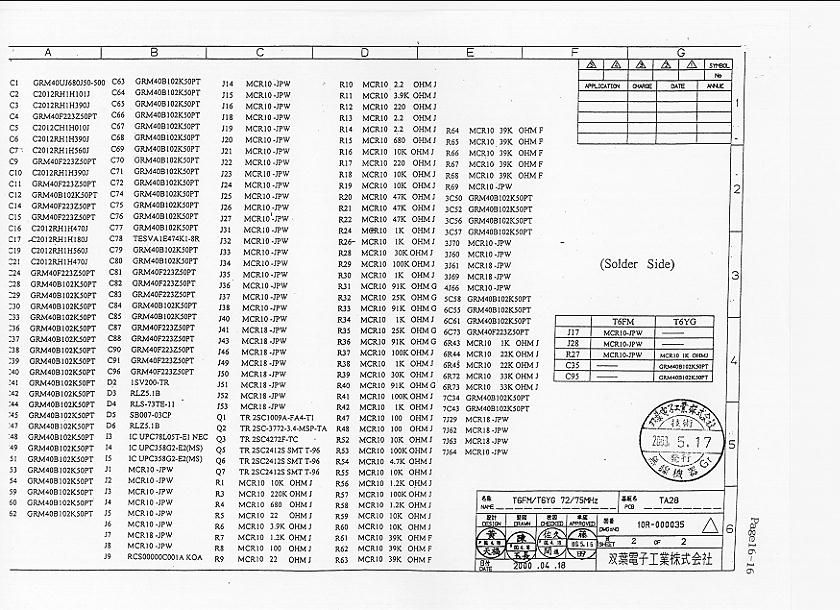

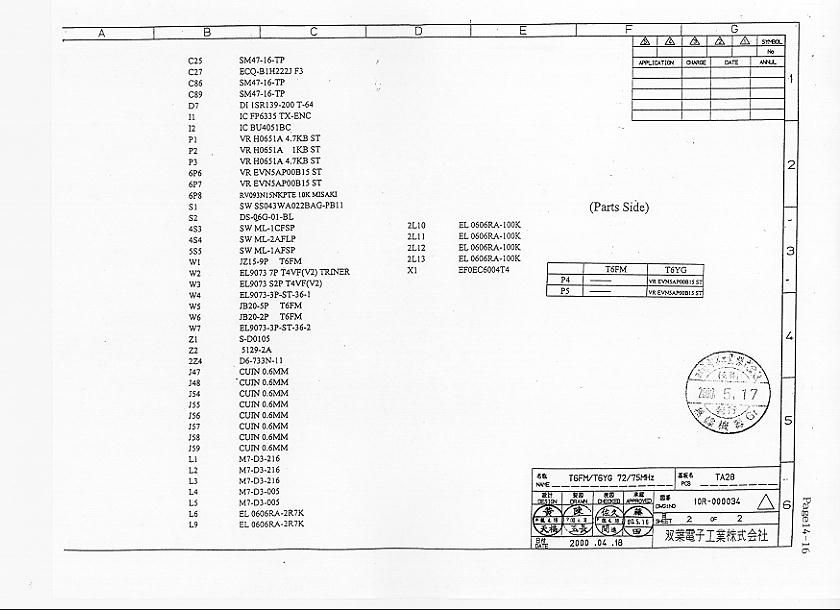

Garwood Laboratories, Inc. Garwood Laboratories, Inc.Garwood Laboratories, Inc. Garwood Laboratories, Inc. - World Compliance Division Electromagnetic Compatibility Document No. FR1461 EUT: R/C Transmitter Model T6YG Date: June 12, 2000 Page 1 of 32 EMC Measurement / Technical Report FCC Test Specification : FCC Part 95, Subpart C Radio Control (R/C) Radio Service Equipment Authorization : Certification Manufacturer : Futaba Corporation of America Equipment Under Test : 72 & 75 MHz Radio Control Transmitter Model T6YG Test Report No. : FR1461 Purchase Order No. : HPF00708 Document History Revision Issue Date Affected Pages Description of Modifications Revised By Approved By N/C June 12, 2000 Initial release Garwood Laboratories, Inc. Garwood Laboratories, Inc.Garwood Laboratories, Inc. Garwood Laboratories, Inc. - World Compliance Division Electromagnetic Compatibility Document No.FR1461 EUT: R/C Transmitter Model T6YG Date: June 12, 2000 Page 2 of 32 EMC Measurement / Technical Report Document No. FR1461 From Garwood Laboratories, Inc. World Compliance Division Test for Futaba Corporation of America 72 & 75 MHz Radio Control Transmitter Model T6YG Test Personnel Test Dates Arnulfo Tapia- EMC Technician 5 June 2000 Test Facility Address City, State, Zip Code Phone Fax Garwood Laboratories, Inc.-OC 565 Porter Way Placentia, CA 92870 (714) 572-2027 (714) 572-2025 This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the equipment tested. This report may not be used to claim product endorsement by NVLAP or any agency of the U.S. government . Garwood Laboratories, Inc. Garwood Laboratories, Inc.Garwood Laboratories, Inc. Garwood Laboratories, Inc. - World Compliance Division Electromagnetic Compatibility Document No.FR1461 EUT: R/C Transmitter Model T6YG Date: June 12, 2000 Page 3 of 32 TABLE OF CONTENTS MEASUREMENT/TECHNICAL REPORT SUMMARY ............................................................. 4 1. GENERAL INFORMATION ......................................................................................................... 5 1.1 Product Description .................................................................................................................... 5 1.2 Configuration of Tested System ................................................................................................. 5 1.3 Test Facility................................................................................................................................. 6 2. TECHNICAL INFORMATION ..................................................................................................... 7 2.1 Circuit Diagram ......................................................................................................................... 7 2.2 Function of Each Active Device .................................................................................................. 7 3. PRODUCT LABELING ................................................................................................................. 8 3.1 FCC ID Label.............................................................................................................................. 8 3.2 Location of Label on the EUT ..................................................................................................... 8 3.3 Information to the User ............................................................................................................... 8 4. BLOCK DIAGRAMS OF EUT ....................................................................................................... 9 5. TEST RESULTS ........................................................................................................................... 10 5.1 Transmitter Power ................................................................................................................... 10 5.2 Emission Bandwidth.................................................................................................................. 11 5.3 Field Strength of Spurious Radiation........................................................................................ 12 5.4 Frequency Stability .................................................................................................................. 14 5.5 Modulation Characteristics ..................................................................................................... 17 5.6 Crystal Access Restrictions ....................................................................................................... 18 6. PHOTOGRAPHS OF TEST ARRANGEMENTS & EUT CONSTRUCTION ......................... 19 APPENDIX A - TEST EQUIPMENT USED ................................................................................. 26 APPENDIX B -SUPPLEMENTAL TEST DATA ........................................................................... 27 ATTACHMENTS ...............................................................................................................................32 Garwood Laboratories, Inc. Garwood Laboratories, Inc.Garwood Laboratories, Inc. Garwood Laboratories, Inc. - World Compliance Division Electromagnetic Compatibility Document No.FR1461 EUT: R/C Transmitter Model T6YG Date: June 12, 2000 Page 4 of 32 M EASUREMENT / T ECHNICAL R EPORT S UMMARY Manufacturer Company Address City, State, Zip Country Contact Name Phone Fax Futaba Corp…
