AZPTMSS2-24GRadio Control

1 TMSS-2.4G/R617FS Radio Control Instruction Manual INTRODUCTION Thank you for purchasing a FutabaR digital proportional R/C system. In order for you to make the best use of your system and to use it safely, please read this manual carefully. If you have any difficulties while using your system, please consult the manual, our online Frequently Asked Questions (on the web pages referenced below), your hobby dealer, or the Futaba Service Center. Owner’s Manual and Additional Technical Help This manual has been carefully written to be as helpful to you, the new owner, as possible. There are many pages of setup procedures and examples. However, it need not be your sole resource of setup guidelines. For example, the back cover includes a quick-start set of instructions and the Frequently Asked Questions web page referenced below includes this type of step-by-step setup instructions for a variety of other model types. Due to potential unforeseen changes in production procedures, the information contained in this manual is subject to change without notice. No part of this manual may be reproduced in any form, at any time, without prior permission. Support and Service: It is recommended to have your Futaba equipment serviced annually during your hobby’s “off season” to ensure safe operation. IN NORTH AMERICA Please feel free to contact the Futaba Service Center for assistance in operation, use and programming. Please be sure to regularly visit the Frequently Asked Questions web site referenced below. This page includes extensive programming, use, set up and safety information on your radio system and is updated regularly. Any technical updates and US manual corrections will be available on this web page. If you do not find the answers to your questions there, please see the end of our F.A.Q. area for information on contacting us via email for the most rapid and convenient response. 2 Futaba Service Center 3002 N. Apollo Drive Suite 1 Champaign, IL 61822 TEL(217)398-8970, FAX(217)398-7721 HOW TO ACCESS to FAQ: http://www.futaba-rc.com/ OUTSIDE NORTH AMERICA Please contact your Futaba importer in your region of the world to assist you with any questions, problems or service needs. Please recognize that all information in this manual, and all support availability, is based upon the systems sold in North America only. Products purchased elsewhere may vary. Always contact your region’s support center for assistance. The product is subject to regulations of the FCC and is restricted under United States law to such purposes. (See end of this manual for detail) 3 Physical Description PIN ASSIGNMENT Fig.1 Serial Communication Connector Location Table 1 Pin Assignment(W202) Pin Abbreviation I/O Function 1 GND in GND 2 Vcc in Vcc:9.6V 3 NC 4 Data-in In Serial data input Serial data= 50kbps(asynchronous) 4 R617FS(Receiver) Frequency Allocation Table 2 Frequency Channel Channel Frequency (MHz) Channel Frequency (MHz) 5 Specification TMSS2-2.4G SPECIFICATIONS 1 Radio Characteristics RF power output 100mW EIRP Modulation Direct-Sequence Spread-Spectrum Frequency band 2405.376MHz - 2479.104MHz Channel 36/22 Antenna 1/2Pencil type antenna 1.6dBi 2 Radio communication control Error checking CRC-CCITT 3 Terminal interface Physical interface 4 pins(for data transmission port (W202) 4 Power Supplying Supply voltage 9.6VDC Current consumption 150 mA(Approx.) 5 Environmental Operating temperature -10 to +60 Storage temperature -20 to +70 6 Miscellaneous Indicator 2 color LED Frequency setting Slide SW R617FS SPECIFICATIONS 1 Radio Characteristics Frequency band 2405.376MHz - 2479.104MHz Channel 36/22 2 Radio communication control Error checking CRC-CCITT 3 Power Requirement Supply voltage 4.8 or 6.0VDC Current consumption 80 mA 5 Environmental Operating temperature -10 to +60 Storage temperature -20 to +70 6 Miscellaneous Indicator 2 color LED Case Plastic Weight Aprox. 9.8g INSTRUCTIONS MANUAL FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which it found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet other than the receiver’s -- Consult the dealer or an experienced radio/TV technician for assistance. CAUTION: To assure continued FCC compliance: (1) Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC Label Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Exposure to Radio Frequency Radiation To comply with FCC RF exposure compliance requirements, a separation distance of at least 20cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter.

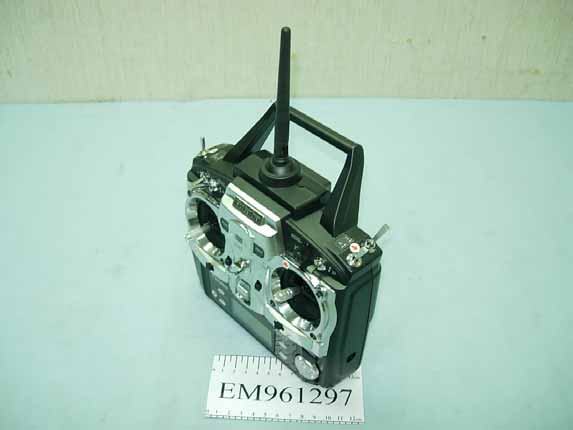

Futaba Corporation Radio Control FCC ID. : AZPTMSS2-24G EUT External Photos Figure 1 General Appearance (Front View) Figure 2 General Appearance (Front & Side View) Futaba Corporation Radio Control FCC ID. : AZPTMSS2-24G Figure 3 General Appearance (Back & Side View) Figure 4 General Appearance (Back View) Futaba Corporation Radio Control FCC ID. : AZPTMSS2-24G Figure 5 General Appearance (Bottom View)

Futaba Corporation Radio Control FCC ID. : AZPTMSS2-24G FCC ID Label Location z Label Placement Location z FCC Label Format FCC Label Placement Location

Futaba Corporation Radio Control FCC ID. : AZPTMSS2-24G EUT Internal Photos Figure 6 Internal View (Removed Battery Cover) Figure 7 Internal View (Battery Label View) Futaba Corporation Radio Control FCC ID. : AZPTMSS2-24G Figure 8 Internal View (Removed Cover) Figure 9 Internal View (Antenna View) Futaba Corporation Radio Control FCC ID. : AZPTMSS2-24G Figure 10 Internal View (RF Board/Front View and Control Board) Figure 11 Internal View (RF Board, Back View) Futaba Corporation Radio Control FCC ID. : AZPTMSS2-24G Figure 12 Internal View (Control Board, Front View) Figure 13 Internal View (Control Board, Back View) Futaba Corporation Radio Control FCC ID. : AZPTMSS2-24G Figure 14 Internal View (Main Board, Back View) Figure 15 Internal View (Main Board, Front View) Futaba Corporation Radio Control FCC ID. : AZPTMSS2-24G Figure 16 Internal View (Control Board, Back View) Figure 17 Internal View (Control Board, Front View)

FCC ID. AZPTMSS2-24G Page 1 of 61 Audix Technology Corporation Report No. EM-F960461 APPLICATION FOR CERTIFICATION On Behalf of Futaba Corporation Radio Control Model No.TMSS2-2.4G FCC IDAZPTMSS2-24G Brand : Futaba Prepared for : Futaba Corporation 1080 Yabutsuka Chosei-son Chosei-gun Chiba, 299-4395 Japan. Prepared by : Audix Technology Corporation EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou, Taipei, Taiwan Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number EM961297 Report Number EM-F960461 Date of Test Sep. 20, 2007 Date of Report Oct. 01, 2007 FCC ID. AZPTMSS2-24G Page 2 of 61 Audix Technology Corporation Report No. EM-F960461 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION .......................................................................................................4 1. GENERAL INFORMATION .........................................................................................................5 1.1. Description of Device (EUT).................................................................................................................. 5 1.2. Tested Supporting System Details .......................................................................................................... 6 1.3. Description of Test Facility .................................................................................................................... 7 1.4. Measurement Uncertainty....................................................................................................................... 8 2. CONDUCTED EMISSION MEASUREMET...............................................................................9 3. RADIATED EMISSION MEASUREMENT ..............................................................................10 3.1. Test Equipment ..................................................................................................................................... 10 3.2. Test Setup ............................................................................................................................................. 10 3.3. Radiated Emission Limits (§15.209) .................................................................................................... 12 3.4. Operating Condition of EUT ................................................................................................................ 12 3.5. Test Procedure ...................................................................................................................................... 12 3.6. Test Results........................................................................................................................................... 13 4. 6dB BANDWIDTH MEASUREMENT .......................................................................................37 4.1. Test Equipment ..................................................................................................................................... 37 4.2. Block Diagram of Test Setup................................................................................................................ 37 4.3. Specification Limits (§15.247(a)(2)) .................................................................................................... 37 4.4. Operating Condition of EUT ................................................................................................................ 37 4.5. Test Procedure ...................................................................................................................................... 37 4.6. Test Results........................................................................................................................................... 38 5. MAXIMUM PEAK OUTPUT POWER MEASUREMENT .....................................................41 5.1. Test Equipment ..................................................................................................................................... 41 5.2. Block Diagram of Test Setup................................................................................................................ 41 5.3. Specification Limits (§15.247(b)-(3))................................................................................................... 41 5.4. Operating Condition of EUT ................................................................................................................ 41 5.5. Test Procedure ...................................................................................................................................... 41 5.6. Test Results........................................................................................................................................... 42 6. EMISSION LIMITATIONS MEASUREMENT ........................................................................43 6.1. Test Equipment ..................................................................................................................................... 43 6.2. Block Diagram of Test Setup................................................................................................................ 43 6.3. Specification Limits (§15.247(c))......................................................................................................... 43 6.4. Operating Condition of EUT ................................................................................................................ 43 6.5. Test Procedure ...................................................................................................................................... 43 6.6. Test Results........................................................................................................................................... 44 7. BAND EDGES MEASUREMENT...............................................................................................47 7.1. Test Equipment ...........................................................................…

Text truncated - open the document above for the full version.

FCC ID. AZPTMSS2-24G Page 53 of 61 Audix Technology Corporation Report No. EM-F960461 10. PHOTOGRAPHS 10.1. Photos of Radiated Measurement at Semi-Anechoic Chamber 10.1.1. Frequency Range 30MHz~1GHz Position: Stand FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. AZPTMSS2-24G Page 54 of 61 Audix Technology Corporation Report No. EM-F960461 Position: Side FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. AZPTMSS2-24G Page 55 of 61 Audix Technology Corporation Report No. EM-F960461 Position: Lie FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. AZPTMSS2-24G Page 56 of 61 Audix Technology Corporation Report No. EM-F960461 10.1.2. Frequency Above 1GHz Position: Stand FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. AZPTMSS2-24G Page 57 of 61 Audix Technology Corporation Report No. EM-F960461 Position: Side FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. AZPTMSS2-24G Page 58 of 61 Audix Technology Corporation Report No. EM-F960461 Position: Lie FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. AZPTMSS2-24G Page 59 of 61 Audix Technology Corporation Report No. EM-F960461 10.2. Photo of 6dB Bandwidth Measurement 10.3. Photo of Maximum Peak Output Measurement FCC ID. AZPTMSS2-24G Page 60 of 61 Audix Technology Corporation Report No. EM-F960461 10.4. Photo of Emission Limitations Measurement 10.5. Photo of Band Edges Measurement FCC ID. AZPTMSS2-24G Page 61 of 61 Audix Technology Corporation Report No. EM-F960461 10.6. Photo of Power Spectral Density Measurement
