AZQPT1188Media Recorder

External
storage→DVD AV
IN→External
storage
DVD
→External
storage

















Media
Play




















Setting
Media

RecorderMedia

RecorderMedia

Recorder User manual PT1188 To reduce the risks of fire or electric shock, protect the equipment from rain or damp, To avoid fire or electric shock, do not place the containers like vase containing liquid on the equipment Do not install the equipment within the small spaces like bookcase or the like. Notices: the use of the product with the optical devices may increase the risk of eye injuries. As the laser beam of the multi- functional does harmMedia Recorder to the eyes, any attempt to remove the casing is not allowed. And this must be done by the professionals. The equipment is a class-1 laser product, and the sign is on the casing of the optical disc drive of the product. And the sign is also on the laser shield within the package. Notices about AC Power Supply Adapter ● Make sure that the power supply socket is installed near the equipment and easy to be pushed and pulled. ● Be sure to use the AC power supply adapter and power line supplied. ● Do not use any other AC power supply adapter, or else the failures may result. ● Connect the AC power supply adapter to the power supply socket that is easy to be pushed and pulled. ● Do not touch the AC power supply adapter with wet hands. ● If you find something wrong with the AC power supply adapter, please immediately disconnect it from the power supply socket. ● Even if the power supply of the equipment itself is off, it remains connected to the AC power supply, if it is connected to the power supply socket. The nameplate is on the bottom of the equipment. 2 Safety Rules Safety Rules Safety Rules Warning CLASS
3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED AVOID EXPOSURE TO THE BEAM. RADIATIONS LASER VISIBLES ET INVISIBLES DE CLASSE 3B EN CAS DOUVERTURE EVITER TOUTE EXPOSMON DIRECTE AU FAISCEAU. KLASSE 3B SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN GEOFFNET DIREKTEN KONTAKT MIT DEM STRAHL WERMEIDEN. KLASS 3B SYNLIG OCH OSYNUG LASERSTRALNNG NAR DENNA DEL AR OPPNAD UNDVIK ATT DIREKT EXPONERA DIG FOR STRALNNGEN. The

TV

programs,


fi1ms,



videos,


CDs


and

other


materials



are


under copyright

protection.


Recording

of


these

materials



in

question

without approval

is

in

violation

of

the

copyright

law.

Furthermore.
the
use

or

the product
With
the
CATV
transmission
devices

shall

be

approved
by

the

CATV
transmitter

and/
or

the
program

owner.




The
warranty

is

valid

only

when
the

accessories
supplied

are

used

in the
designated

or

suggested
system
environment
as
per
the
document,
and it
only
applies
to
the
.
Our
customer
service
and
user
supplyMedia

Recorder apply
only
when
these
conditions
for
warranty
are
met.




Please
note
that
our
company
disclaims
any
liability
for
the
cases
as follows:
failures

of

computer

or

other

devices,

incompatibility

with special

hardware,

operating

problems

caused

by

improper

software application,

date

loss,

accidental

or

unexpected

damages

to

the

optical disc

or

others

arising

from

the

use

of

the

product.




The

guaranty

of

the

product

and

user

supply

are

valid

only

in

the
nations

or

sales

regions

as

specified

in

the

warranty

card.





The

specification

is

subject

to

changes

with

improvement

of

the product,
without

prior

notice. 343 CopyrightCopyrightCopyright space Whole-unit Power supply working temperatur e Power 5V 3A 15W 0-40°C .....................................................................2Safety
RulesSafety
Rules .....................................................................5
IntroductionIntroduction ...................................................6 I.

External
storage→DVDI.

External
storage→DVD
.............................................14 II.


AV
IN→External
storageII.


AV
IN→External
storage

.............................................19 III.


DVD→External
storageIII.


DVD→External
storage
...............................................................24
IV.

Media
PlayIV.

Media
Play
............................................................26V.

Setting

MenuV.

Setting

Menu .....................31 VI.


HDMI
for
Connecting
to
video
EquipmentVI.


HDMI
for
Connecting
to
video
Equipment



......................................................32 VII.


TroubleshootingVII.


Troubleshooting





















.....................................................................2Safety
Rules .....................................................................5
Introduction ...................................................6I.

External
storage→DVD






1.

AV

in

onto
DVD
ROM
.............................................6












2.

USB
onto
DVD-ROM
................................................9






3.

Memory
Card
onto
DVD-ROM
.................................12
.............................................14II.


AV
IN→External
storage






1.

AV

in

onto
USB

...................................................14











2.

AV

in

onto
Memory
Card
.......................................16

.............................................19III.


DVD→External
storage






1.

DVD
onto
USB

......................................................21






2.

DVD
onto
Memory
Card
..........................................21
...............................................................24
IV.

Media
Play






1.

Media
play
.........................................................24











2.
Operations
during
playing
....................................25
............................................................26V.

Setting

Menu






5.
1
Change
CD
settings
on
the
setting
menu..................26






5.
2
Recoreing
Format................................................26






5.
3
Recording
quality...........…

Text truncated - open the document above for the full version.

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 02.01.2012 Datum: 00.00.0000 Seite 1 von 1 Long/Short-term Confidentiality Request PHOENIX TESTLAB GmbH Date: 17 March 2015 Product Certification Königswinkel 10 D 32825 Blomberg FCC ID: AZQPT1188 To Whom it may concerns, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby requests long-term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Tune-Up Info Operational Description In addition we hereby request the following exhibits contained in this application to be temporarily (short-term confidentilality) withheld from the public disclosure for an initial period of days until: not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. Applicant’s Company: Shenzhen KOHO Technology Co., Ltd address : Building3,Jin Yuda Industrial Park , ShangLiao ,Shajin , Baoan ,Shenzhen Signature : _______ _____________________ Job Title and Dept. : Engineer

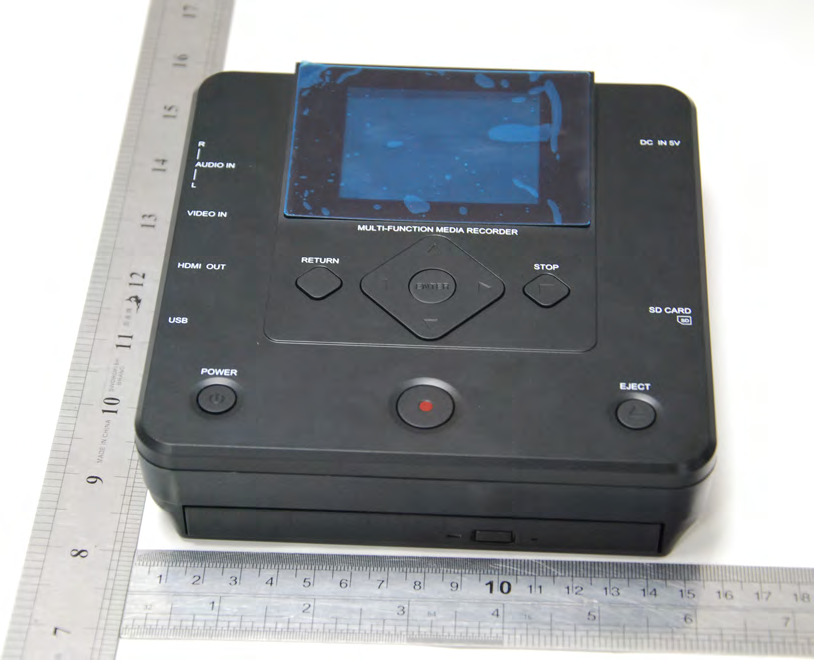

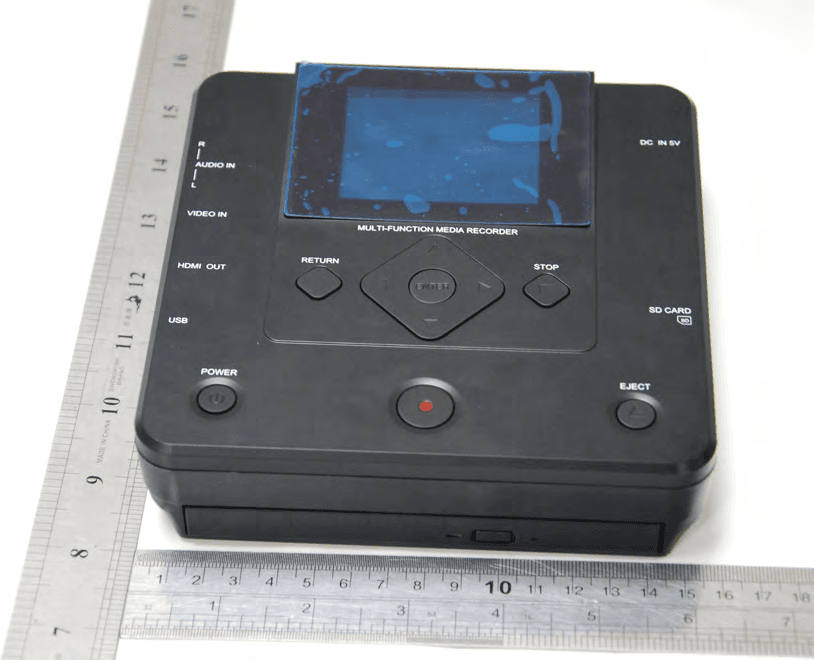

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID LABELING AND LOCATION FCC ID Label Media Recorder Model NO.: PT1188 Input Rating: DC 5V/3A FCC ID: AZQPT1188 FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15

Page 1 of 42 Report No.: ISOT15031102F Shenzhen ISOTek Standards Technical Services Co.,Ltd. FCC ID:AZQ PT1188 Http://www.ISOTek.com.cn FCC Test Report FCC ID:AZQPT1188 Product： Media Recorder Trade Name： N/A Model Number： PT1188 Serial Model： KR02 Report No.： ISOT15031102F Prepared for Shenzhen KOHO Technology Co., Ltd Building3,Jin Yuda Industrial Park , ShangLiao ,Shajin ,Baoan ,Shenzhen, China Prepared by Shenzhen ISOTek Standards Technical Services Co.,Ltd. 13/F, HuaFengRui Building, XinHu Rd., XiXiang, Bao’an District,Shenzhen,China Tel.: +86-755- 23087378 Fax.: +86-755-23087278 Http://www.ISOTek.com.cn Page 2 of 42 Report No.: ISOT15031102F Shenzhen ISOTek Standards Technical Services Co.,Ltd. FCC ID:AZQ PT1188 Http://www.ISOTek.com.cn TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen KOHO Technology Co., Ltd Address ................................. : Building3,Jin Yuda Industrial Park , ShangLiao ,Shajin ,Baoan , Shenzhen, China Manufacturer's Name .......... : Shenzhen KOHO Technology Co., Ltd Address ................................. : Building3,Jin Yuda Industrial Park , ShangLiao ,Shajin ,Baoan , Shenzhen, China Product description Product name ........................... : Media Recorder Model and/or type reference : PT1188 Standards ............................. : FCC Part15B:01 Oct.2014 ANSI C63.4:2003 This device described above has been tested by Shenzhen ISOTek, and the test results show that the equipment under test (EUT) is in compliance with Part 15 of FCC Rules. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Shenzhen ISOTek, this document may be altered or revised by Shenzhen ISOTek, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 03 Mar. 2015 ~12 Mar. 2015 Date of Issue ........................................... : 12 Mar. 2015 Test Result ............................................... : Pass Compiled by: Approved by: Lisa Huang/ Project Engineer Richard Chen/ Manager Page 3 of 42 Report No.: ISOT15031102F Shenzhen ISOTek Standards Technical Services Co.,Ltd. FCC ID:AZQ PT1188 Http://www.ISOTek.com.cn Table of Contents Page 1 . TEST SUMMARY 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST SETUP 7 2.3 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 8 2.4 MEASUREMENT INSTRUMENTS LIST 9 3 . EMC EMISSION TEST 10 3.1 CONDUCTED EMISSION MEASUREMENT 10 3.1.1 POWER LINE CONDUCTED EMISSION 10 3.1.2 TEST PROCEDURE 11 3.1.3 TEST SETUP 11 3.1.4 EUT OPERATING CONDITIONS 11 3.1.5 TEST RESULTS 12 3.2 RADIATED EMISSION MEASUREMENT 24 3.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT 24 3.2.2 TEST PROCEDURE 24 3.2.3 TEST SETUP 25 3.2.4 EUT OPERATING CONDITIONS 26 3.2.5 TEST RESULTS 27 3.2.6 TEST RESULTS(1000~6000MHz) 39 Page 4 of 42 Report No.: ISOT15031102F Shenzhen ISOTek Standards Technical Services Co.,Ltd. FCC ID:AZQ PT1188 Http://www.ISOTek.com.cn 1. TEST SUMMARY Test procedures according to the technical standards: EMC Emission Standard Test Item Limit Judgment Remark FCC Part15.107 Conducted Emission Class B PASS FCC Part15.109 Radiated Emission Class B PASS Page 5 of 42 Report No.: ISOT15031102F Shenzhen ISOTek Standards Technical Services Co.,Ltd. FCC ID:AZQ PT1188 Http://www.ISOTek.com.cn 1.1 TEST FACILITY All the tests were performed at: Shenzhen Huance Wei Testing Lab at 10th Floor West Logistics Information Center Build, Shenzhen, China Shenzhen Huance Wei Testing LabEMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration 369037 , Nov 07, 2016. 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %. A. Conducted Measurement : Method Measurement Frequency Range U，(dB) NOTE ANSI 150 KHz ~ 30MHz 3.2 B. Radiated Measurement : Method Measurement Frequency Range U，(dB) NOTE ANSI 30MHz ~ 1000MHz 4.7 1GHz ~12.4GHz 5.0 Page 6 of 42 Report No.: ISOT15031102F Shenzhen ISOTek Standards Technical Services Co.,Ltd. FCC ID:AZQ PT1188 Http://www.ISOTek.com.cn 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Media Recorder Model Name PT1188 Serial Model KR02 Model Difference All the names are the same circuit, except the model names. Product Description Connecting I/O port:USB, HDMI,AV IN,DC IN, Crystal oscillator 12MHz; 24MHz,32.768kHz, 14.31818MHz highest operating frequency 120MHz Hardware Version HVDR_MB_PCB_V1.0 Software Version fiber_a31st-eng 4.4.2 KOT49H 20150302test-keys Serial Number KH15000001 Power Source DC Voltage Adapter Input: AC 100V-240V, 50/60Hz, 0.6A MAX Output: DC 5V, 3A Battery N/A 2.1.1 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. For Conducted Test Final Test Mode Description Mode 1 AV IN recording to DISC Mode 2 USB Playing Mode 3 DVD Playing Mode 4 Card Playing Mode 5 CARD recording to DISC Mode 6 USB recording to DISC For Radiated Test Final Test Mode Description Mode 1 Recording Mode 2 USB Playing Mode 3 DVD Playing Mode 4 Card Playing Mode 5 CARD recording to DISC Mode 6 USB recording to DISC Page 7 of 42 Report No.: ISOT15031102F Shenzhen ISOTek Standards Technical Services Co.,Ltd. FCC ID:AZQ PT1188 Http://www.ISOTek.com.cn 2.2 DESCRIPTION OF TEST SETUP 0…

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photos
