AZW-CWT8037TXRemote Control

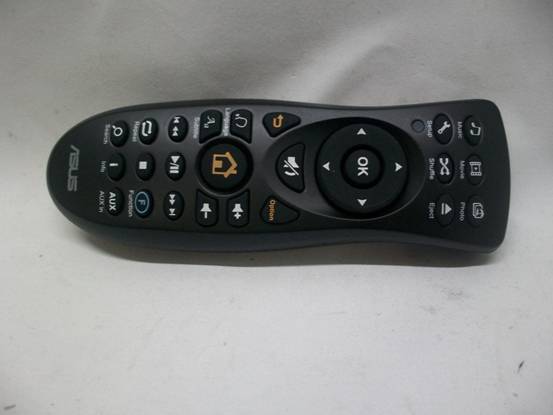

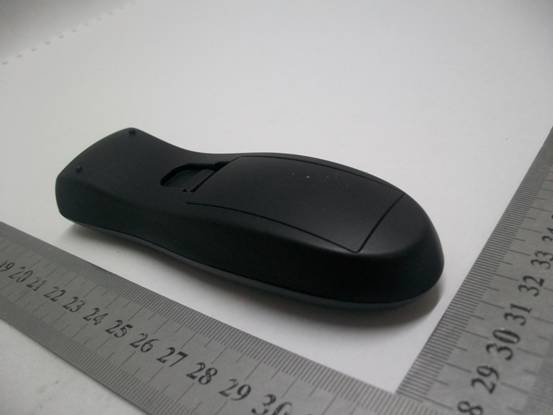

1 OF 5 1 Overview This product includes an RF remote control and receiver PCB module, remote control and receiver PCB module uses 2.4 GHz wireless data transmission module one. 28 remote control buttons and a red status indicator, using two AAA batteries. Receiver PCB module is made in accordance with specific size requirements, the interface has a USB interface This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. 2 operating instructions 2．1 Remote control and receiver connections. Power off the host, while holding the remote control Return and Option keys, the two AAA batteries into the remote control marked by positive and negative inside, LED flash, then release the button, the remote control is connected to the code. During this power on the host, the remote control receiver with this host connection. If successful the remote control to enter the work state, the LED stops flashing the remote control. Note: The code to connect to the remote control to enter the state, if not two minutes to complete the work on the code or press any key to connect, the exit status of the code. If you want to re- enter the code to connect to the connection status of the code. Remote control and receiver connected to the code once, it will be one to one control, with no need to code after the operation. Unless the remote control to change the new terminal and re- code new control side after. Will lose the original remote control side of the connection. 2 ． 2 remote control and receiver PCB interface Remote control

55 44 33 22 11 D D C C B B A A 6x8 keypad RFModule EM78P451AQ SPI Remote Controller OSC4MHz OSC12MHz 3VBAT MCU PCB ANTENNA ASUS-8037-TX V0 2.4GHz Rf remote controller A4 11 Monday, February 06, 2012 TitleSize Document Number Rev Date: Sheet of D1 LED R1470

55 44 33 22 11 D D C C B B A A RF MODULE ASUS- 8037-TX V1.1 2.4GHz Rf remote conctroller A3 11 Monday, February 06, 2012 TitleSize Document Number Rev Date: Sheet of RF_CE# SW_OUT1 SPI_MOSI_RF SPI_CS_RF# SW_OUT2 RF_DR SW_IN3 SDASDA SPI_SCK_RF RF_DR SW_OUT4 SPI_SCK_RF SPI_CS_RF# SW_IN1 RF_CE# SW_OUT6 SCL SDA LED SW_IN7 SPI_MISO_RF SW_IN1 SW_IN8 SPI_MISO_RF SW_IN5 SW_OUT5 SPI_MOSI_RF SW_IN2 SW_IN3 SW_OUT3 SW_IN2 SCL SW_IN4 SW_IN6 SW_OUT3 SW_OUT4 SW_OUT6 SW_OUT1 SW_OUT2SW_OUT5 SW_IN7 SW_IN4 SW_IN5 SW_IN6 SW_IN8 LED VDD VDD VDD VDD VDD VDD VDD R3 10K U3 24C02 1234 5678 A0A1A2GND SDA SCL WP VCC Y1 4MHz R5 10K K27 K34 K35 R6 10K + C8 47uF TP8 BT1BATTERY K22 R2 10K + C2 10uF K20 K8 K23 C1104 K41K17 K7 + C7 100uF TP10 K30 K9 R1470 C3 104 K11 SPI_SDI K15K31 R4 10K TP2 K37K13 K25 D1 TP5 K40 K21 K6 K1 K33 K44 C415P K10 TP3 K12 C9 104 K36 U1 EM78P451AQ 1 2 3 4 5 6 7 8 9 10 11 1213141516171819202122 23 24 25 26 27 28 29 30 31 32 33 3435363738394041424344 P90 P91 P92/SDI P93/SDO P94/SCK P95/SS P50 P51 P52 P53 P54 P55P56P57P80P81 NC P82P83P84P85P86 P87 P60 P61 P62 P63 P64 P65 P66 P67 P72 P71 P70/RESETNCNCNCVDDR-OSCIOSCOVSS/INTDATACLK R8 0 K29 K43 K4 K18 K24 K26 K19 C6100nF K5 K16 SPI_SCK U2 EM198850 12345678910 11 EXT12M VDD MISO CE SCLK MOSI CSn RSSI DR GND GND C515P K45 K28 SPI_SDO R7 0 K42 K32 K2 K14K38 K39 K3 55 44 33 22 11 D D C C B B A A EM198850 V0 RF Module A 11 Wednesday, February 22, 2012 TitleSize Document Number Rev Date: Sheet of

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant: CYTEK CO., LTD. Address: 104 of No.101 Mabu new Village Xixiang Street Baoan Shenzhen Guangdong, China Product Name: RF remote controller Model Name: ASUS-8037-TX Brand Name: N/A FCC ID: AZW-CWT8037TX Report No.: MTE/EAH/D12020142 Date of Issue: Jan. 20, 2012 Issued by : Most Technology Service Co., Ltd. Address : No.5, Langshan 2nd Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 26 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: AZW-CWT8037TX Report No.: MTE/EAH/D12020142 Page 2 of 26 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY.......................................................................................... 3 2. GENERAL INFORMATION....................................................................................................... 4 2.1 Product Information ................................................................................................................ 4 2.2 Objective ................................................................................................................................ 5 2.3 Test Standards and Results .................................................................................................... 5 2.4 Environmental Conditions....................................................................................................... 5 3. TEST FACILITY........................................................................................................................ 6 3.1TEST FACILITY....................................................................................................................... 6 3.2 GENERAL TEST PROCEDURES .......................................................................................... 6 3.3 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS............................................... 7 4. SETUP OF EQUIPMENT UNDER TEST.................................................................................. 8 4.1 SUPPORT EQUIPMENT ........................................................................................................ 8 4.2 TEST EQUIPMENT LIST........................................................................................................9 5. 47 CFR Part 15C 15.249 Requirements................................................................................. 10 5.1 Spurious Emission Test ........................................................................................................ 10 5.1.1 Requirement...................................................................................................................... 10 5.1.2 Test Description ..................................................................................................................11 5.1.3 Test Description ................................................................................................................. 12 5.1.4 Test Result......................................................................................................................... 14 5.2 Band Edge............................................................................................................................ 20 5.2.1 Requirement...................................................................................................................... 20 5.2.2 Test Description ................................................................................................................. 20 5.2.3Test Result.......................................................................................................................... 20 5.3 20 dB Bandwidth .................................................................................................................23 5.3.1 Definition ........................................................................................................................... 23 5.3.2 Block Diagram Of Test Setup ............................................................................................ 23 5.3.3 Test Result......................................................................................................................... 23 APPENDIX 1 .............................................................................................................................. 25 PHOTOGRAPHS OF TEST SETUP........................................................................................... 25 FCC ID: AZW-CWT8037TX Report No.: MTE/EAH/D12020142 Page 3 of 26 1. VERIFICATION OF CONFORMITY Equipment Under Test: RF remote controller Brand Name: N/A Model Number: ASUS-8037-TX FCC ID: AZW-CWT8037TX CYTEK CO., LTD Applicant: 104 of No.101 Mabu new Village Xixiang Street Baoan Shenzhen Guangdong, China CYTEK CO., LTD Manufacturer: 104 of No.101 Mabu new Village Xixiang Street Baoan Shenzhen Guangdong, China Technical Standards: 47 CFR Part 15 Subpart C File Number: MTE/EAH/D12020142 Date of test: Jan. 17, 2012 -Jan. 20, 2012 Deviation: None Condition of Test Sample: Normal Test Result: PASS The above equipment was tested by MOST for compliance with the requirements set forth in FCC rules and the Technical Standards mentioned above. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment and the level of the immunity endurance of the equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Tested by (+ signatu…
