AZXHDK-2000HD KARAOKE SYSTEM (MAIN STATION)

HDK-2000 / CW224K HDTV with speakers built in HDMI cable : Connect one end of the cable to the HDMI output on the backside of the main device and the other end of the cable to the HDMI input on your HDTV. HDTV without speakers built in For video output, follow the same instruction as 1. above. For audio, use the tri-color RCA cable. Connect the cable to the audio/video output on the backside of the main device and connect Red(right) end and White(left) end of the cable to corresponding audio inputs on speakers or other audio devices. TV with speakers built in Connect the Tri-Color RCA cable from the audio/video output on the backside of the main device to the corresponding audio/video inputs on your TV. TV without speakers built in For the video output, connect Yellow(Video) end of the cable to the TV video inputAudio. For the audio out put, connect Red(right) end and White(left) end of the cable to audio inputs on speakers or other audio devices. 1 2 4 3 ※ Please make sure that the external input setting on your HDTV corresponds to the external input on your HDTV, to which the karaoke device will be connected. ※ Please make sure that the external input setting on your HDTV corresponds to the external input on your HDTV, to which the karaoke device will be connected. How to use digital wireless MIC 5 HDK2000 QUICK GUIDE | 02 HOW TO INSTALL How to power on/off 6 Connect the power adaptor as shown in the picture. And turn on the power switch on the right side of the main device.To turn it off, press button on the remote controller and turn off the power switch on the right side of the main device. Buttons on the MIC will function similarly to those on the remote controller provided. Press and hold to turn ON or OFF the MIC. / Press to reserve the songs on the song search panel. Press to move to configuration and delete input on the song search panel. / Press and hold to exit from the song search panel. Press to search for songs you would like to sing. Press to search for all the functions of the karaoke. MIC turns off automatically, if there is no voice input or other button inputs for 10 minutes. HDK2000 QUICK GUIDE | 03 ● [F ACTORY RESET] Reset all settings to the factory default settings. ● [WIRELESS MIC CHANNEL] Choose the channel for the wireless MIC. For example, if you want to select [channel 3], please turn off the MIC and then press button [3] and the power button simultaneously until the color of LED becomes red. ● [SCORE CHECK] Set the scoring mode to None, Beginner, Amateur or Professional. ● [L YRICS POSITION] Select the position of the lyrics on the screen. ● [L YRICS] Turn on/off the lyrics on the screen. ● [SONG COUNTDOWN] Turn on/off the song countdown “4, 3, 2, 1” which indicates the starting point of a song. ● [AUTO MIC EFFECT] Automatically uses the MIC effect (Echo) only when you start a song. ● [MIC EFFECT] Select from Echo (short), Echo, Echo (long), Reverb (room) or Reverb (hall). Press or to open a page for . Adjust tempoAdjust keyAdjust melody volume Adjust music volume Adjust MIC volume Adjust echo Adjust volume of guide vocal Turn on/off guide vocal Change melody instrument Change male/female key Adjust octave Set a part of song to be repeated Play songs continuously Change background Turn on/off the musical note Change settings for score ● [L YRICS LINE] Choose the number of lines to be displayed in 2 LINES or 3 LINES. A → B → C → 2 → A → Circulate (Press repeatedly.) Press to open the search panel 9. Press to pause / resume. 8. Press to play (resume) / stop. 7. Press to select a song. 6. Press to delete the letter. G → H → I → 4 → G → Circulate (Press repeatedly.) J → K → L → 5 → J → Circulate (Press repeatedly.) M → N → O → 6 → M → Circulate (Press repeatedly.) P → Q → R → S → 7 → P → Circulate (Press repeatedly.) T → U → V → 8 → T → Circulate (Press repeatedly.) W → X → Y → Z → 9 → W → Circulate (Press repeatedly.) → 0 → Circulate (Press repeatedly.) D → E → F → 3 → D → Circulate (Press repeatedly.) 1 TITLE → SINGER → LYRIC → NUMBER → TITLE → Circulate (Press repeatedly.) ALL → GUIDE VOCAL → Listing by Country → ALL → Circulate (Press repeatedly.) Alphabet → Other Languages Available → Alphabet → Circulate (Press repeatedly.) 5. Press to move the cursor to the right (or after 2 seconds the cursor will move to the right without pressing .) 2. 1. 3. 4. CONFIGURATION III Butto nLetter Input Song Search I II MENU SONG SEARCH, MENU, CONFIGURATION FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected. • Consult the dealer or an experienced radio/TV technician for help. Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation IMPORTANT …

Text truncated - open the document above for the full version.

COREWILL CO.,LTD. 602, London Bldg, 1484-1, Sillim-dong, Gwanak-gu, Seoul, Korea Tel. +82-2-863-0155 Fax +82-2-863-0154 March 20, 2012 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : COREWILL CO.,LTD. FCC Application for FCC ID: AZXHDK-2000 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Hyoun-Soo, JANG / General Manager COREWILL CO.,LTD.

COREWILL CO.,LTD. 602, London Bldg, 1484-1, Sillim-dong, Gwanak-gu, Seoul, Korea Tel. +82-2-863-0155 Fax +82-2-863-0154 March 20, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: AZXHDK-2000 including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from COREWILL CO.,LTD. LTA Co.,LTD. (Contact Person) Contact name: Lee, Kyu-Hyun Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Hyoun-Soo, JANG / General Manager COREWILL CO.,LTD.

COREWILL CO.,LTD. 602, London Bldg, 1484-1, Sillim-dong, Gwanak-gu, Seoul, Korea Tel. +82-2-863-0155 Fax +82-2-863-0154 March 20, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : COREWILL CO.,LTD. FCC ID : AZXHDK-2000 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, COREWILL CO.,LTD.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give COREWILL CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name Schematics CONF APPENDIX AZXHDK-2000 SCH DIA.pdf Parts list CONF APPENDIX AZXHDK-2000 PL.pdf Block diagram CONF APPENDIX AZXHDK-2000 BLK DIA.pdf CONFIDENTIAL Operational description CONF APPENDIX AZXHDK-2000 OpDes.pdf External Photos SHORT-TERM CONF AZXHDK-2000 EXT Photo.pdf Internal Photos SHORT-TERM CONF AZXHDK-2000 INT Photo.pdf Test-Setup Photos SHORT-TERM CONF AZXHDK-2000 Test Photo.pdf SHORT-TERM CONFIDENTIAL User’s Manual SHORT-TERM CONF AZXHDK-2000 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Hyoun-Soo, JANG / General Manager COREWILL CO.,LTD.

COREWILL CO.,LTD. 602, London Bldg, 1484-1, Sillim-dong, Gwanak-gu, Seoul, Korea Tel. +82-2-863-0155 Fax +82-2-863-0154 ATTESTATION STATEMENT In re : COREWILL CO.,LTD. FCC ID: AZXHDK-2000 Date : March 20, 2012 15.247(a)(1) The hopping sequence must be pseudorandom all Channels are used equally on average the receiv er input bandwidth is approximately equal to the transmit bandwidth the receiver hops in sequence with the transmitted signal 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequ encies by multiple transmitters. Sincerely, Hyoun-Soo, JANG / General Manager COREWILL CO.,LTD.

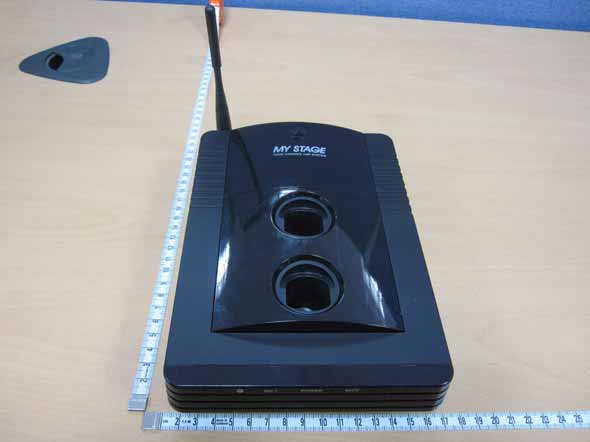

FCC ID: AZXHDK-2000 Copyright c 2012, LTA Co., Ltd. Page 1 of 3 M/N: HDK-2000 Upper FCC ID: AZXHDK-2000 Copyright c 2012, LTA Co., Ltd. Page 2 of 3 Front FCC ID: AZXHDK-2000 Copyright c 2012, LTA Co., Ltd. Page 3 of 3

FCC ID: AZXHDK-2000 Copyright 2012, LTA Co., Ltd. SAMPLE LABEL & LOCATION (Main Station) FCC ID: AZXHDK-2000 M/N: HDK-2000 Made in Korea

FCC ID: AZXHDK-2000 Copyright c 2012, LTA Co., Ltd. Page 1 of 3 MainBoard - Front MainBoard - Rear FCC ID: AZXHDK-2000 Copyright c 2012, LTA Co., Ltd. Page 2 of 3 RF Board - Front RF Board - Rear FCC ID: AZXHDK-2000 Copyright c 2012, LTA Co., Ltd. Page 3 of 3 Sub Board - Front Sub Board - Rear

FCC ID: AZXHDK-2000 ATTACHMENT ** MPE Calculations (2.4GHz)** The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 11.49dBm + 3.29dBi EIRP = 14.78 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 ) S = (14.09 *2.13) / (4 * 20 2 * S = 0.006 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = (PG / 4) R = (14.09* 2.13 / 4) R = 1.55Cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (3.29 / 10) G = 2.13

Ref. No.: LR500111203E Copyright c 2012, LTA Co., Ltd. Page 1 of 33 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: Mar 09 ~19, 2012 Test Report S/N: LR500111203E Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Equipment Class : Part 15 Spread Spectrum Transmitter (DSS) Manufacturing Description : HD Karaoke System (Main Station) Manufacturer : COREWILL CO., LTD. Model name : HDK-2000 Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 2402 ~ 2478MHz RF power : 11.49 dBm - Conducted Data of issue : Mar 20, 2012 This test report is issued under the authority of: The test was supervised by: Kyu-Hyun Lee, Manager Ki-Hun Cho, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. AZXHDK-2000 COREWILL CO., LTD. Ref. No.: LR500111203E Copyright c 2012, LTA Co., Ltd. Page 2 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TRANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND – EDGE & SPURIOUS ----------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.8 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 10 14 16 20 26 29 32 Ref. No.: LR500111203E Copyright c 2012, LTA Co., Ltd. Page 3 of 33 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2012-09-30 ECT accredited Lab. RRL KOREA KR0049 2013-04-24 EMC accredited Lab. FCC U.S.A 610755 2014-04-27 FCC filing FCC U.S.A 649054 2013-04-13 FCC CAB VCCI JAPAN R2133(10m), C2307 2014-06-21 VCCI registration VCCI JAPAN T-2009 2013-12-23 VCCI registration IC CANADA IC5799 2012-05-14 IC filing Ref. No.: LR500111203E Copyright c 2012, LTA Co., Ltd. Page 4 of 33 2. Information’s about test item 2-1 Client & Manufacturer Company name : COREWILL CO., LTD. Address : 602, London Bldg, 1484-1, Sillim-dong, Gwanak-gu, Seoul, 151-894, Korea. Tel / Fax : +82-2-863-0155 / +82-2-863-0154 2-2 Equipment Under Test (EUT) Trade name : HD Karaoke System (Main Station) FCC ID : AZXHDK-2000 Model name : HDK-2000 Serial number : Identical prototype Date of receipt : Mar 5, 2012 EUT condition : Pre-production, not damaged Antenna type : Dipole Antenna Max Gain 3.29 dBi (M/N: AN2400-5320BO) Frequency Range : 2402 ~ 2478MHz RF output power : Max. 11.49dBm - Conducted Number of channels : 16 Channel spacing : 5MHz Channel Access Protocol : Frequency Hopping Type of Modulation : GFSK Power Source : 9Vdc (by AC/DC Adaptor: M/N : PS18K1901600U5) Firmware version : V1.0.0 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 2402 2440 2478 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer - - - - Ref. No.: LR500111203E Copyright c 2012, LTA Co., Ltd. Page 5 of 33 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies > 15 hops C 15.247(a) 20 dB Bandwidth > 1.5 MHz C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 250 mWatt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) C 15.109 Field Strength - Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards.  Antenna Requirement The COREWILL CO., LTD. FCC ID: AZXHDK-2000 unit complies with the requirement of §15.203. The antenna is connected to inside of EUT. And type is Dipole antenna. The sample was tested according to the following specification: FCC Parts 15.247, ANSI C-63.4-2003 Ref. No.: LR500111203E Copyright c 2012, LTA Co., Ltd. Page 6 of 33 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping functi…

Text truncated - open the document above for the full version.

FCC ID: AZXHDK-2000 Copyright c 2012, LTA Co., Ltd. Page 1 of 3 Radiated Emission (30MHz – 1GHz) FCC ID: AZXHDK-2000 Copyright c 2012, LTA Co., Ltd. Page 2 of 3 Radiated Emission (Above 1GHz) FCC ID: AZXHDK-2000 Copyright c 2012, LTA Co., Ltd. Page 3 of 3 Conducted Emission
