B44262-RFIRFID TAG REMOTE CONTROL TRANSMITTER

RFID TAG USER GUIDE One Amtel Plaza, 1691 NW 107th Ave, Miami, Florida 33172 Phone: 305-591-8200 Fax: 305-470-2683 www.amtel-security.com Page 1 of 6 RFID TAG User’s Manual RFID TAG USER GUIDE One Amtel Plaza, 1691 NW 107th Ave, Miami, Florida 33172 Phone: 305-591-8200 Fax: 305-470-2683 www.amtel-security.com Page 2 of 6 Table of Content Table of Content 2 of 2 About Installation Guide 3 of 3 Introduction Integration of RFID Reader Tags, PDA and Barrier Gate 4 to 4 Features Functions & Benefits (FFB) 5 to 7 Unpacking 8 to 8 Technical Specification XPIP Control Panel 9 to 9 RFID Reader 10 to 10 RFID CC Tags 11 to 11 RFID Metal Tags 12 to 12 Barrier Gate 13 to 14 PDA 15 to 15 Pre-Installation Planning 16 to 17 Installation XPIP Control Panel 18 to 18 XPIP Control Panel Connection Diagram 19 to 19 Asset Tracking & Parking Reader 20 to 20 MM, CC & Binder Tags 21 to 21 PDA 22 to 22 Barrier Gate 23 to 23 Cable / Wiring Connection & Specification 24 to 26 Quick Test Procedure 27 to 27 Help & Technical Support 28 to 28 Integrated RFID Master & Slave Control RFID TAG USER GUIDE One Amtel Plaza, 1691 NW 107th Ave, Miami, Florida 33172 Phone: 305-591-8200 Fax: 305-470-2683 www.amtel-security.com Page 3 of 6 Introduction Of all the technologies available for automatic identification systems, RF-ID offers the most user-friendly, high speed and reliable operation. Radio Frequency Identification (RFID) technology uses the radio waves to communicate between the Transmitter (Tag), The RF-ID technology used in this controller can offer read range of up to 200 feet as per the requirement and substantial hardware, can read multiple tags simultaneously. RFID is the genuine wireless access technology and is growing leaps and bounds in Gate Entry, Tracking Asset Monitoring Applications through PDA. This RFID controller is designed to minimize these and provide an integrated, factory-tested module that can allow for simple installation and easy commissioning of complex systems. It includes XP/IP control panel with a high-speed processor, TCP/IP connectivity, memory capacity for 20,000 tags and 3000 transactions and many other critical features. In addition to this universal control panel, the RFID controller includes the RFID reader, a directional antenna that minimizes reading tags that are not in the specified coverage zone, an interlock sensor to minimize random reads and interference, 3 calibration LED’s for field testing the system and power supply/battery backup circuits. The RFID controller is designed with a metal back and a fiberglass front to provide optimum RF operation and comes with a universal mounting bracket that will fit any wall, pole or ceiling installation. It is designed for use in most indoor or outdoor application. It is available in several configurations for Master or Master/Slave operations in gate control systems and can also be used on doors for tracing elderly patients or in ceiling mount applications in warehouses, dock doors and hangers. RFID TAG USER GUIDE One Amtel Plaza, 1691 NW 107th Ave, Miami, Florida 33172 Phone: 305-591-8200 Fax: 305-470-2683 www.amtel-security.com Page 4 of 6 RFID CC TAG Technical Specification Specification, Product Code 262-RFI-CSVAN Environmental Operational temperature 10º C to +60º C Storage temperature -20º C to +70º C Humidity 5% to 90% (non condensing) Physical Size 86mm x 54mm x 5mm (Slimline Enclosure) Weight 15 grams Color Grey (Clariant 04-600 2%) Type of material PVC (ultrasonically sealed) IP 65 RF Specifications Tx Frequency 433.92Mhz ERP < 300μW (72 dB μV) Typical Transmission Range 8 Meters (24 feet) Power Output -14 dBm. 72 db μV. 4300 Modulation ASK Bandwidth 1 MHz Stability Saw Stabilized Electrical Specifications Power Internally powered Lithium Battery 3V, 1000 mAH Certification: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interface, and (2) This device must accept any interference received , including interference that may cause undesired operation. Changes or modifications not expressly approved by AMTEL could void the user's authority to operate the equipment. The following standards applied in accordance with Article 5 of the directive. 1999/5/EC: EN 300 220-1 V1.2.1 (1997-11) ETS 300 683 (1997-03). Summary of tests: Effective radiated power 25MHz-4GHz Range of modulation bandwidth for wideband equipment. Frequency stability under low voltage conditions EN55022 Radiated emissions 30MHz – 1GHz EN61000 Radiated immunity 80MHz – 1GHz, excl 433.92MHz..20MHz EN61000 Electrostatic discharge RTCA/DO-160C sec21 catZ Aircraft safety specification RFID TAG USER GUIDE One Amtel Plaza, 1691 NW 107th Ave, Miami, Florida 33172 Phone: 305-591-8200 Fax: 305-470-2683 www.amtel-security.com Page 5 of 6 Installation of RFID TAG (MM, CC, Binder & Pouch) The system shall use Active RFID Tags that can be read from long or short distances. Two different types of tags are provided to meet the varying, tracking and assessment as per the applications requirement whether Man or Machine. Following are essential steps to be taken at the time of installation. 1. Before installing the TAG check whether Battery connection is okay or not. 2. Check the TAG condition it is not broken or open. 3. Check that if TAG is working then Reader LED blink at the time of shaking the TAG. 1. CC TAGS: Hard-Shelled tags for normal windshield mounting: These are credit card sized tags ready for mounting with double sided tape or Velcro-spots under the rear- view mirror. They maybe adequate for most vehicles. 2. MM TAGS: Hard-Shelled tags for mounting in cases where the windshield has embedded metal elements in it: These are slightly larger than the CC sized tags but are designed to work on metal surfaces (like license plates) and on metallized windshields in some expensive vehicles. They will be located in the same area, under the rearview mirror of the vehicle. 3. BINDER TAGS: Bi…

Text truncated - open the document above for the full version.

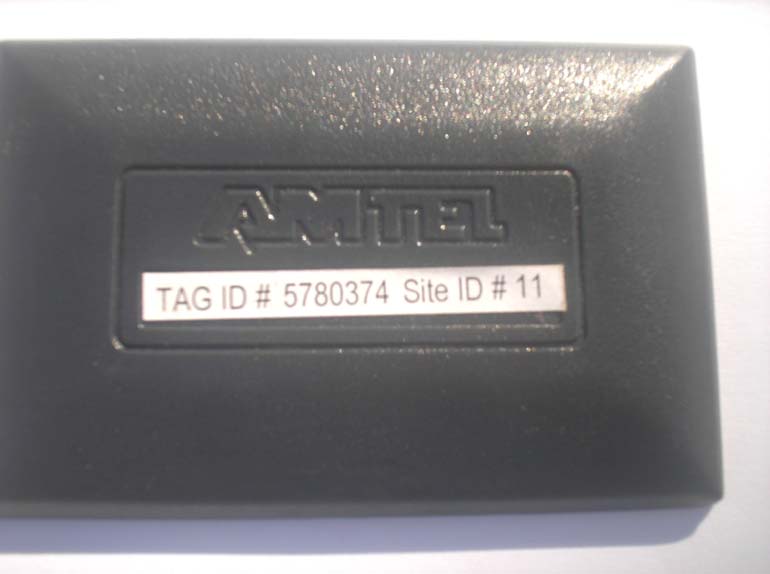

Project 3430UT6 FCC ID: B44262-RFI External Photos

Project 3430UT6 FCC ID: B44262-RFI FCC ID Label and Sketch of Location Back Side of DUT Manufacture: Amtel Security FCC ID: B44262-RFI This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Here

Project 3430UT6 FCC ID: B44262-RFI Internal Photos

FCC PART 15.231 TEST REPORT LOW POWER UNLICENSED TRANSMITTER Applicant Amtel Security Systems Address 1691 NW 107 Avenue Miami, FL 33172 USA FCC ID B44262-RFI Product Description RFID Transmitter Date Sample Received December 19, 2006 Date Tested January 3, 2007 Tested By Richard Block Approved By Mario de Aranzeta Timco Report No. 3430UT6TestReport.PDF Test Results Pass Fail THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: Amtel Securitys FCC ID: B44262-RFI REPORT: V:\A\Amtel_Sec\3430UT6\3430UT6TestReport.doc Page 2 of 16 TABLE OF CONTENTS STATEMENT OF COMPLIANCE.................................................................................. 3 REPORT SUMMARY................................................................................................... 4 TEST ENVIRONMENT AND SYSTEM .......................................................................... 4 DUT SPECIFICATION................................................................................................. 5 COMPLIANCE WITH PART 15.231(A).......................................................................... 6 EMC EQUIPMENT LIST ............................................................................................. 7 TEST PROCEDURE ................................................................................................... 9 RADIATION INTERFERENCE ................................................................................... 10 CALCULATION OF DUTY CYCLE ............................................................................. 12 OCCUPIED BANDWIDTH ......................................................................................... 15 POWER LINE CONDUCTED INTERFERENCE........................................................... 16 APPLICANT: Amtel Security Systems FCC ID: To Be Determined REPORT: V:\A\Amtel_Sec\3430UT6\3430UT6TestReport.doc Page 3 of 16 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate compliance with the appropriate standards. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Certificate #0955-01 Authorized by: Mario de Aranzeta Signature: On file Function: Engineer Date: January 8, 2007 Tested by: Richard Block Signature: on file Date: January 3, 2006 APPLICANT: Amtel Security Systems FCC ID: To Be Determined REPORT: V:\A\Amtel_Sec\3430UT6\3430UT6TestReport.doc Page 4 of 16 REPORT SUMMARY Disclaimer The test result only related to the item tested. Purpose of Test Report To demonstrate the DUT compliance with FCC Par15.231 requirements. Applicable Rule(s) FCC Part 15.231, ANSI C63.4 2003 Related Report 3431UT6TestReport.PDF TEST ENVIRONMENT AND SYSTEM Test Facility The test sites used by Timco Engineering Inc. is located at 849 NW State Road 45 Newberry, FL 32669 USA. Timco Engineering accreditations are on file with regulatory agencies. Test Condition: The DUT was tested in the laboratory in an environment with normal temperature and humidity. The temperature was 26ºC with a relative humidity of 50%. Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Supporting Peripheral Equipment Not applicable. The device is a stand-alone remote control radio. Deviation from the standard(s) No deviation from the standard(s) Modification to the DUT: No modification was made to the DUT. APPLICANT: Amtel Security Systems FCC ID: To Be Determined REPORT: V:\A\Amtel_Sec\3430UT6\3430UT6TestReport.doc Page 5 of 16 DUT SPECIFICATION Manufacturer Amtel Security System Description RFID Transmitter FCC ID Model Name TGCL02 Operating Frequency 433.92 MHz 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Integrated APPLICANT: Amtel Security Systems FCC ID: To Be Determined REPORT: V:\A\Amtel_Sec\3430UT6\3430UT6TestReport.doc Page 6 of 16 COMPLIANCE WITH PART 15.231(A) Part 15.231(a): • Continuous operation: Yes No • Control signal only: Yes No • Data transmission with a control signal: Yes No N/A Part 15.231(a)(1): • Manually operated device: Yes No • If yes, does it meet the 5s deactivation requirement after the switch is released: Yes No Part 15.231(a)(2): • Automatically operated device: Yes No • If yes, does it meet the 5s deactivation requirement after being activated: Yes No Part 15.231(a)(3): • Periodic transmission at regular predetermined intervals: Yes No N/A • Polling or supervision transmissions, including data, to check system integrity check requires a total transmission time not exceeding 2s per hour: Yes No N/A Part 15.231(a)(4): Operation involving fire, security, or safety of life, when activated to signal an alarm, may operate during the pendency of the alarm condition. Does the transmitter meet the condition? Yes No N/A APPLICANT: Amtel Security Systems FCC ID: To Be Determined REPORT: V:\A\Amtel_Sec\3430UT6\3430UT6TestReport.doc Page 7 of 16 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 Analyzer Tan Tower RF Preselector HP…
