B4HEPXRMFull Duplex 900 MHz Transceiver-Main

EPXR-M/EPXR-R User Manual 1. Power On/Off After installing the battery, short press the power button until the green LED blinks, then release to complete power on. In the powered-on state, long press the power button until the red LED blinks, then release to power off. 2. Intercom Mode Headset Mode: Insert the headset to enter headset mode. Bluetooth Mode: Remove the headset to enter Bluetooth mode. 3. Pairing How to Enter: With the Master or Remote in the normal working state after power on, press the "Vol-" key three times consecutively, then long press the "Vol+" key until the red and green LEDs flash alternately, then release to enter pairing mode. Pairing Process: The Master enters pairing mode first, with the red and green LEDs flashing alternately. Then same operation to make the Remote enter pairing mod. When the Remote's green LED flashes quickly several times and then the red LED stays on, pairing is complete (short press the power button to save and exit). Then proceed to pair the next Remote. After all Remotes that need to be paired are completed, press the power button to save and turn off the Master. You can long press the "Vol-" key of the Master to clean all previous pairing records during the pairing mode. 4. Bluetooth Mode How to Enter: With the Master or Remote in the normal working state after power on, and the headset unplugged (i.e., working in Bluetooth mode), the blue LED flashes slowly. Long press the Bluetooth pairing key until the blue LED flashes quickly, then release to enter Bluetooth pairing mode and wait for pairing with Bluetooth headphones. After pairing is complete, the blue LED stays on, indicating successful pairing. 5. Working In Headset Mode: After power on, both the Master and Remote will actively search. During the search process, the green LED blinks once every 3 seconds. After finding a paired device, it automatically connects and enters intercom mode, with the green LED staying on. During intercom, volume can be adjusted through the "Vol-" and "Vol+" keys, with 5 levels from high to low. There are corresponding prompt tones when adjusting. During intercom, when the Remote goes out of range of the Master, the green LED blinks once every 3 seconds with a prompt tone. When it returns to communication range, it automatically reconnects. In Bluetooth Mode: After power on, both the Master and Remote will actively search for paired Bluetooth headphones. If connection is successful, the blue LED stays on. After successful connection, volume can be adjusted through the "Vol-" and "Vol+" keys, with 15 levels from high to low. There are corresponding prompt tones in the Bluetooth headphones when adjusting. 6. Low Battery When the battery voltage is low, the red LED blinks twice every 10 seconds, with a prompt tone "Battery Low" every 10 seconds. 7. Mute Function For devices that can participate in intercom, press the mute key once — the red LED stays on, and the device will automatically mute its own voice transmission, entering receive-only mode. Press the mute key again — the red LED turns off, and the device returns to normal intercom mode. 8. Product Button FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 1. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: The device has been tested and comply with FCC SAR limits. ISED Warning This device complies with Innovation, Science, and Economic Development Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device has been tested and comply with IC SAR limits. L'appareil a été testé et est conforme aux limites IC SAR.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RFB TR-EM-RF009 Page 29 of 90 Version 4.2 RF EXPOSURE EVALUATION RF EXPOSURE EVALUATION Applicable Standard According to FCC §2.1093 and §1.1307(b) (1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance v06. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f(GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Measurement Result For worst case: Mode Frequency (MHz) Max tune-up conducted power # (dBm) Max tune-up conducted power # (mW) Distance (mm) Calculated value Threshold (1-g SAR) SAR Test Exclusion BT2402-248011.2650.43Yes Result: Compliant

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RF-TSPA Page 1 of 3 TEST SETUP PHOTOGRAPHS Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RF-TSPA Page 2 of 3 Radiated Emissions View (1-10 GHz) RF Conducted Test – FSU26 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RF-TSPA Page 3 of 3 RF Conducted Test – FSV40N

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RF-TSPB Page 1 of 3 TEST SETUP PHOTOGRAPHS Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RF-TSPB Page 2 of 3 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RF-TSPB Page 3 of 3 RF Conducted Test

制造商 Manufacturer：SHEN ZHEN VISUAL ELECTRONIC CO.LTD 地址Address：Henfeng industrial Park,Baoan District，Shenzhen, Guangdong,China 天线型号 Antenna Type/Style No.：RX1213-915-M 频率范围 Frequency Range ：900MHz-930MHz 频带宽度 Bandwidth ：30 MHz 输入阻抗 Input Impendence ：50Ω 增益 Gain ：1.43dBi Antenna size chart (UNIT : mm) 电 压驻波比V.S.W.R： Return Loss Characteristics Measured Input Impedance on a Smith Chart Radiation Pattern

制造商 Manufacturer：SHEN ZHEN VISUAL ELECTRONIC CO.LTD 地址Address：Henfeng industrial Park,Baoan District，Shenzhen, Guangdong,China 天线型号 Antenna Type/Style No.：RX1213-BT-MIFA 频率范围 Frequency Range ：2400MHz-2500MHz 频带宽度 Bandwidth ：100MHz 输入阻抗 Input Impendence ：50Ω 增益 Gain ：1dBi Antenna Photo 电压驻波比V.S.W.R： Return Loss Characteristics Measured Input Impedance on a Smith Chart Radiation Pattern

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF013 Page 1 of 46 Version 3.1 TEST REPORT Applicant Name:FCC: Porta Phone Company Inc IC: PORTA PHONE CO., INC. Address:FCC: 145 Dean Knauss Drive Narragansett, Rhode Island 02882 United States IC: 145 Dean Knauss Drive Narragansett, RI 02882, United States of America Report Number:2601U67570E-RFA FCC ID:B4HEPXRM IC:3064A-EPXRM Test Standard (s) FCC PART 15.247; RSS-GEN ISSUE 5, FEBRUARY 2021 AMENDMENT 2; RSS-247, ISSUE 4, JULY 2025 Sample Description Product Type:Full Duplex 900 MHz Transceiver-Main Model No.:EPXR-M Multiple Model(s) No.:N/A Trade Mark:E Pak Xtra Range Wireless Date Received:2026/07/01 Issue Date:2026/09/15 Test Result:Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By:Approved By: Wing K JiNancy Wang RF EngineerRF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RFA TR-EM-RF013 Page 2 of 46 Version 3.1 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ..........................................................................................................................4 GENERAL INFORMATION ........................................................................................................................................5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................5 OBJECTIVE ....................................................................................................................................................................5 TEST METHODOLOGY....................................................................................................................................................5 MEASUREMENT UNCERTAINTY .....................................................................................................................................6 TEST FACILITY ..............................................................................................................................................................6 SYSTEM TEST CONFIGURATION ...........................................................................................................................7 DESCRIPTION OF TEST CONFIGURATION .......................................................................................................................7 EUT EXERCISE SOFTWARE ...........................................................................................................................................7 SPECIAL ACCESSORIES ..................................................................................................................................................7 EQUIPMENT MODIFICATIONS ........................................................................................................................................7 SUPPORT EQUIPMENT LIST AND DETAILS .....................................................................................................................7 EXTERNAL I/O CABLE...................................................................................................................................................8 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................8 SUMMARY OF TEST RESULTS ................................................................................................................................9 TEST EQUIPMENT LIST ..........................................................................................................................................10 RF EXPOSURE .............................................................................................................................................................11 APPLICABLE STANDARD .............................................................................................................................................11 TEST RESULT...............................................................................................................................................................11 ANTENNA REQUIREMENT .....................................................................................................................................12 APPLICABLE STANDARD .............................................................................................................................................12 ANTENNA CONNECTOR CONSTRUCTION .....................................................................................................................12 RADIATED EMISSIONS ............................................................................................................................................13 APPLICABLE STANDARD ...........................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RFB TR-EM-RF009 Page 85 of 90 Version 4.2 3DH1_Hopping 3DH1_Hopping 3DH3_Hopping 3DH3_Hopping 3DH5_Hopping 3DH5_Hopping Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RFB TR-EM-RF009 Page 86 of 90 Version 4.2 Conducted Spurious Emission Test Information: Sample No.:3P5Q-3Test Date:2026/08/27 Test Site:RFTest Mode:Transmitting Tester:Barry FengTest Result:Pass Environmental Conditions: Temperature: (°C) 25.5 Relative Humidity: (%) 54 ATM Pressure: (kPa) 100.9 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RFB TR-EM-RF009 Page 87 of 90 Version 4.2 Test Data: DH1_Low DH1_Middle DH1_High 2DH1_Low 2DH1_Middle 2DH1_High Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RFB TR-EM-RF009 Page 88 of 90 Version 4.2 3DH1_Low 3DH1_Middle 3DH1_High Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RFB TR-EM-RF009 Page 89 of 90 Version 4.2 EUT PHOTOGRAPHS Please refer to the attachment 2601U67570E-RF-EXP External photo and 2601U67570E-RF-INP Internal photo. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RFB TR-EM-RF009 Page 90 of 90 Version 4.2 TEST SETUP PHOTOGRAPHS Please refer to the attachment 2601U67570E-RF-TSPB Test Setup photo. ***** END OF REPORT *****

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF009 Page 1 of 90 Version 4.2 TEST REPORT Applicant Name:FCC: Porta Phone Company Inc IC: PORTA PHONE CO., INC. Address:FCC: 145 Dean Knauss Drive Narragansett, Rhode Island 02882 United States IC: 145 Dean Knauss Drive Narragansett, RI 02882, United States of America Report Number:2601U67570E-RFB FCC ID:B4HEPXRM IC:3064A-EPXRM Test Standard (s) FCC PART 15.247; RSS-GEN ISSUE 5, FEBRUARY 2021 AMENDMENT 2; RSS-247 ISSUE 4, JULY 2025 Sample Description Product Type:Full Duplex 900 MHz Transceiver-Main Model No.:EPXR-M Multiple Model(s) No.:N/A Trade Mark:E Pak Xtra Range Wireless Date Received:2026/07/01 Issue Date:2026/09/04 Test Result:Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By:Approved By: Wing K JiNancy Wang RF EngineerRF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RFB TR-EM-RF009 Page 2 of 90 Version 4.2 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ..........................................................................................................................3 GENERAL INFORMATION ........................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................4 OBJECTIVE ....................................................................................................................................................................4 TEST METHODOLOGY....................................................................................................................................................4 MEASUREMENT UNCERTAINTY .....................................................................................................................................5 TEST FACILITY ..............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ...........................................................................................................................6 SUMMARY OF TEST RESULTS ................................................................................................................................8 TEST EQUIPMENT LIST ............................................................................................................................................9 REQUIREMENTS AND TEST PROCEDURES ......................................................................................................10 AC LINE CONDUCTED EMISSIONS...............................................................................................................................10 RADIATED EMISSIONS .................................................................................................................................................12 20 DB EMISSION BANDWIDTH & 99% OCCUPIED BANDWIDTH ..................................................................................15 CHANNEL SEPARATION TEST ......................................................................................................................................17 QUANTITY OF HOPPING CHANNEL TEST .....................................................................................................................19 TIME OF OCCUPANCY (DWELL TIME) .........................................................................................................................21 PEAK OUTPUT POWER MEASUREMENT .......................................................................................................................23 BAND EDGES ...............................................................................................................................................................25 CONDUCTED SPURIOUS EMISSION...............................................................................................................................27 RF EXPOSURE EVALUATION ................................................................................................................................29 ANTENNA REQUIREMENT .....................................................................................................................................32 TEST DATA AND RESULTS .....................................................................................................................................34 RADIATED EMISSIONS .................................................................................................................................................34 20 DB EMISSION BANDWIDTH .....................................................................................................................................62 99% OCCUPIED BANDWIDT…

Text truncated - open the document above for the full version.

CFR 47 §2.911(d)(5)(i) Attestation Letter Porta Phone Company Inc 145 Dean Knauss Drive Narragansett, Rhode Island 02882 United States Tel: +1 401-789-8700 Fax: +1 401-789-7300 E-Mail: [email protected] Attestation Letter Date: 2026-07-31 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: B4HEPXRM Porta Phone Company Inc certifies that the equipment for which authorization is soughtis not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature ： Printed Name: John Hooper Title: Jr., Vice President

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018Fax: +86-755-33320008www.baclcorp.com.cn TR-EM-SA005 Page 1 of 70 Version 3.0 TEST REPORT Applicant Name: Porta Phone Company Inc Address: 145 Dean Knauss Drive Narragansett, Rhode Island 02882 United States Report Number: 2601U67570E-SAA FCC ID: B4HEPXRM Test Standard (s) FCC 47 CFR part 2.1093 Sample Description Product Name: Full Duplex 900 MHz Transceiver-Main Model No.: EPXR-M Multiple Model(s) No.: N/A Trade Mark: E Pak Xtra Range Wireless Serial Number: 3P6F-1 Date Received: 2026/06/29 Date of Test: 2026/09/14 Issue Date: 2026/09/15 Test Result: Pass ▲ ▲In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Danil Qiu Jimmy Xiao SAR Engineer EMC Manager Bay Area Compliance Laboratories Corp.(Shenzhen) Report No.: 2601U67570E-SAA TR-EM-SA005 Page 2 of 70 Version 3.0 Attestation of Test Results MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) 900MHz FHSS 1g Body SAR 0.96 1.6 Simultaneous(tx) 1g Body SAR 1.01 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp.(Shenzhen) Report No.: 2601U67570E-SAA TR-EM-SA005 Page 3 of 70 Version 3.0 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION ................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUILDELINES .............................................................................................. 6 SAR LIMITS ................................................................................................................................................................ 6 FACILITIES ................................................................................................................................................................. 7 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 8 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 15 EQUIPMENT’S LIST & CALIBRATION INFORMATION .................................................................................................. 15 SAR MEASUREMENT SYSTEM VERIFICATION ............................................................................................. 16 LIQUID VERIFICATION ............................................................................................................................................... 16 SYSTEM ACCURACY VERIFICATION .......................................................................................................................... 17 SAR SYSTEM VALIDATION DATA .................................................................................................................... 18 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 19 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ............................................................................. 19 TEST DISTANCE FOR SAR EVALUATION ................................................................................................................... 19 SAR EVALUATION PROCEDURE ................................................................................................................................ 20 CONDUCTED OUTPUT POWER MEASUREMENT .......................................................................................... 21 TEST PROCEDURE ...................................................................................................................................................... 21 MAXIMUM TARGET…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RF-INP Page 1 of 8 EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RF-INP Page 2 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RF-INP Page 3 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RF-INP Page 4 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RF-INP Page 5 of 8 BT ANT Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RF-INP Page 6 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RF-INP Page 7 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RF-INP Page 8 of 8 SRD Antenna

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2601U67570E-RF FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

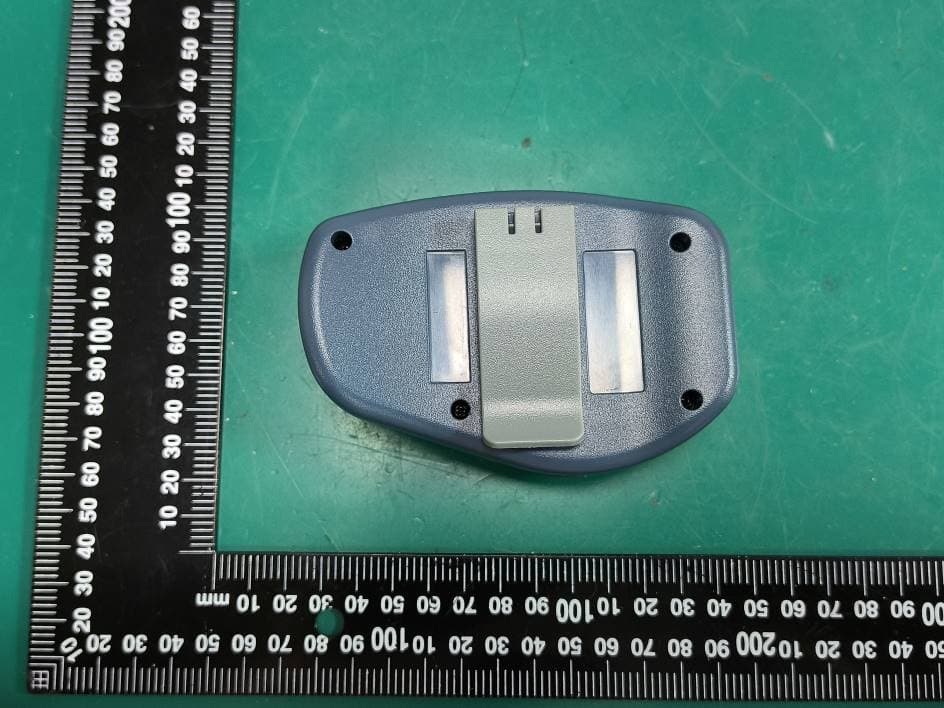

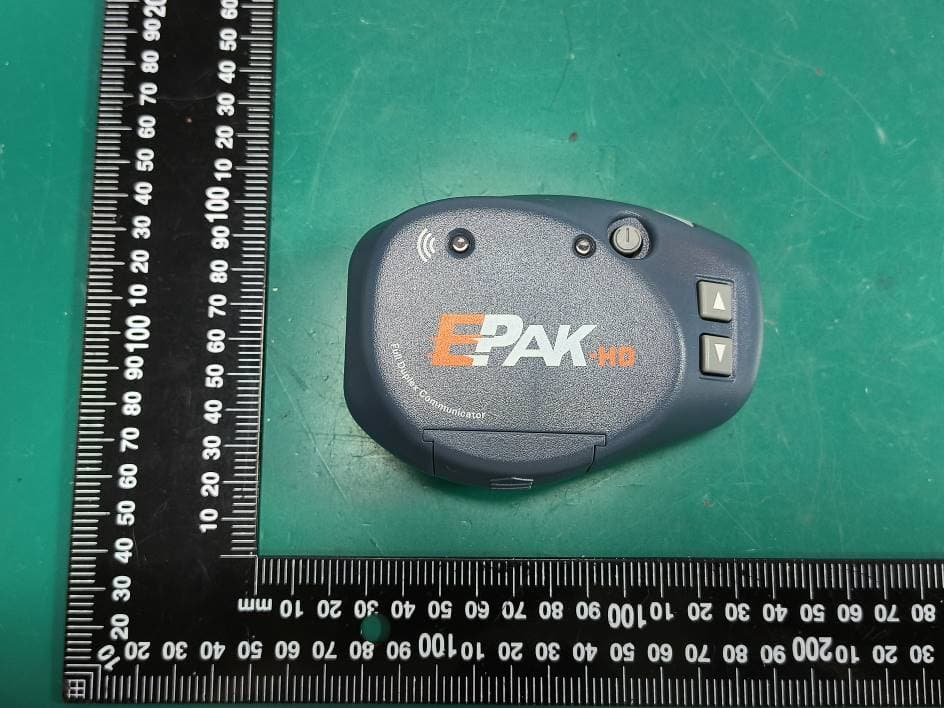

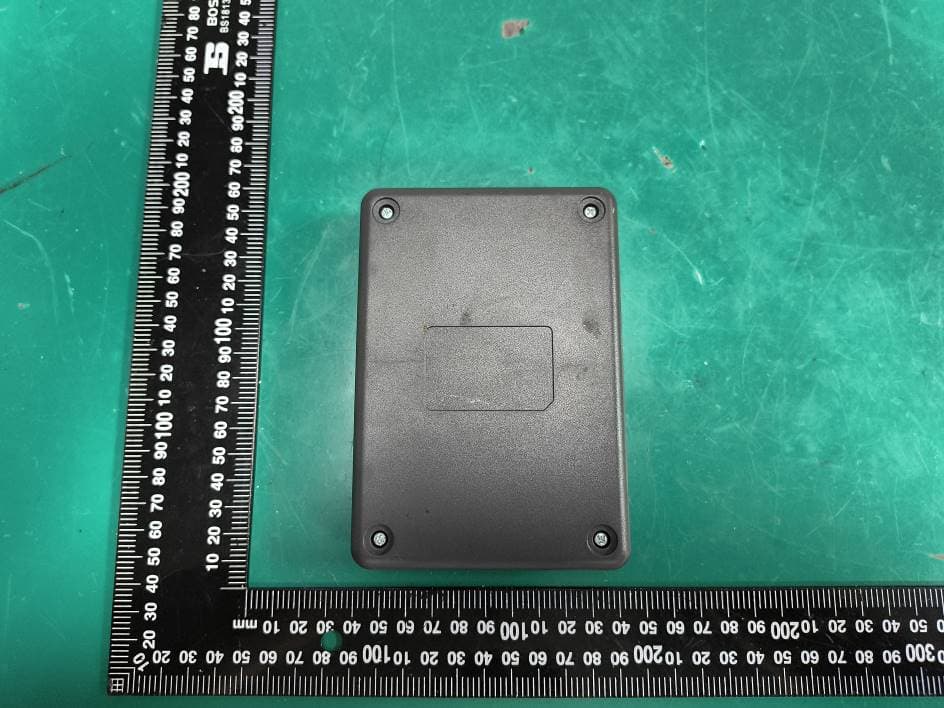

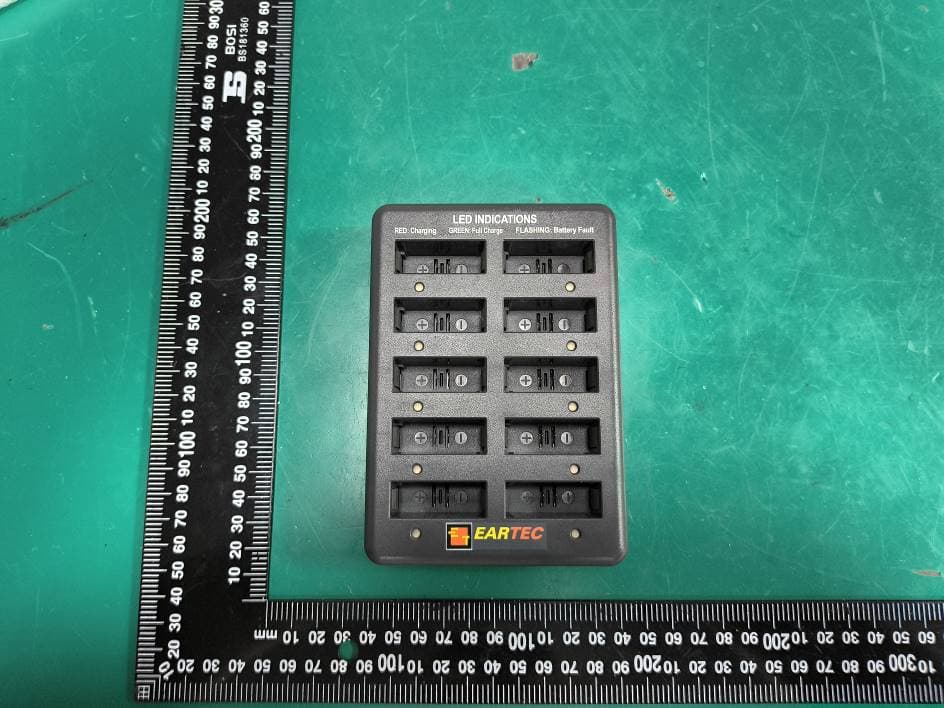

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U67570E-RF-EXP …
