B4Z-815A-2WTPTwo Way RF Touch Pad

1 9vhy‚tU‚ˆpu‡hyx!Xh’ SAU‚ˆpuƒhq ITI Part No. 60-xxx Installation Instructions Document Number: 466-19xx Rev. A PRELIMINARY March 2002 Preliminary 3/14/02 Product Summary The wall-mounted wireless Dialog Touchtalk 2-Way RF Touchpad combines a conventional ITI Learn Mode ™ touch- pad with an RF receiver, speech chip, and voice amplifica- tion circuit for your Simon 3 ™ security system. The Touchtalk 2-Way RF Touchpad is an alkaline battery- powered, wireless touchpad designed to provide users a convenient option for the following system operations: ❑Arm the system (doors, windows, and motion sensors). ❑Arm the system with No Entry Delay. ❑Disarm the system. ❑Activate a panic alarm and call the central monitoring station in a non-medical emergency. ❑Check system status. ❑Turn system controlled lights on or off (all or individ- ual). ❑Enables the user to hear the same voice feedback that is heard at the Simon 3 Control Panel. Note The voice feedback is heard only at the touchpad that is in use. If the touchpad is talking, the panel is silent. When the panel is talking, the touchpad is silent. The touchpad is not a siren and will not make any alarm sounds or sta- tus beeps. This feature extends battery life to the touch- pad and gives feedback only to the user who needs it. The Dialog Touchtalk 2-Way RF Touchpad is not super- vised and has no tamper detection. A low battery condition is automatically detected by the touchpad and communi- cated to the control panel. Installation Guidelines Use the following guidelines when adding this touchpad to your Simon 3 system: ❑Dialog Touchtalk 2-Way RF Touchpads are learned into the control panel as sensors. ❑They are programmed as non-supervised sensors using sensor type 01, 03, 06, or 07. ❑Each learned touchpad uses one of the available sensor numbers (24 total sensors/zones can be used with the Simon 3 panel). ❑The Dialog Touchtalk 2-Way RF Touchpad is mounted on the wall. Programming For complete programming instructions, refer to your Simon 3 installation instructions. General guidelines for programming this touchpad are: 1.Open the control panel cover. 2.Enter Utility Access Code 1 or 2 using the numbered keys. 3.Press Add. The panel announces “Select from Main Menu.” 4.Press Sensor/Remote. The panel announces “Press button on sensor.” 5.Press the sensor program button or release sensor tamper switch. The panel announces “Keychain Remote. Press sensor again for next name or press Done to select.” 6.Press Sensor/Remote repeatedly until you hear the name or item you want to use. Each name may be used more than once. Note For a more specific location name, press Option # for compass directions (north, northeast, east, southeast, south, southwest, west, northwest). 7.Press DONE when you hear the desired name. The panel announces “Use numbered keys to enter sensor group.” 8.Enter the 2-digit sensor group. The panel announces the sensor group and the first available sensor number, then prompts you to press DONE to accept. Note If you wish to use a sensor number other than the next one available, use the numbered keys to enter a 2 digit sensor number immediately after entering the sensor type. 9.Press DONE. The panel confirms programming by announcing the sensor number, name, and group. Performing a Sensor Test The touchpad is sensitive to its orientation to the control panel. For that reason, it is recommended that you test the touchpad prior to mounting it on the wall. The following steps describe the guidelines for testing sen- sors used in a Simon 3 system. 1.Place all sensors in their secured (non-alarm) state. 2.Open the panel cover. 3.Enter the appropriate access code. 4.Press Te s t. The panel responds with Sensor test, press again to change or DONE to select. 5.Press DONE. Preliminary 3/14/02 2 The panel will prompt you to trip each sensor one at a time. You may follow the panel voice prompting or test the sen- sors in any order. Use the “Sensor Tripping Instructions” table in your Simon 3 Installation Manual to trip sensors We recommend that you test the touchpad after all program- ming is completed and whenever a touchpad-related prob- lem occurs. If a Touchpad Fails the Sensor Test If sirens do not beep when a touchpad is tripped, use an ITI RF Sniffer (60-401) test tool to verify that the touchpad is transmitting. Constant beeps from the RF Sniffer indicate a runaway (faulty) touchpad. If the touchpad is faulty, replace it. How to Improve Sensor Communication ❑Relocate the touchpad. ❑If necessary, replace the touchpad. To Relocate a Touchpad: 1.Test the touchpad a few inches from the original posi- tion. 2.Increase the distance from the original position and retest until an acceptable location is found. 3.Mount the touchpad in the new location (see Mounting the Dialog Touchtalk 2-Way RF Touchpad section). 4.If no location is acceptable, replace the touchpad. To Replace a Touchpad: 1.Test a known good touchpad at the same location. 2.If the transmission beeps remain below the minimum level, avoid mounting a touchpad at the location. 3.If the replacement touchpad functions, contact GE Interlogix for repair or replacement of the problem touchpad. Mounting the Dialog Touchtalk 2- Way RF Touchpad To mount the touchpad on a wall, do the following: 1.Open the door of the touchpad. 2.Gently pull down on the tab at the bottom of the touch- pad to separate the touchpad body from the touchpad mounting plate. 3.Use the two screws (included with the touchpad) to attach the touchpad to the wall. 4.Reattach the touchpad to the mounting plate. Testing the Touchpad After Mounting Repeat the steps listed in the “Performing a Sensor Test” section in this manual. Note While the sensor test is a valuable installation and ser- vice tool, it only tests sensor operation for the current conditions. You should perform a sensor test after any change in environment, equipment, or programming. Test touchpad operation by pressing the buttons as described below; 1.…

Text truncated - open the document above for the full version.

Interactive Technologies Inc 03/20/02 10:10 AM FCC ID: B4Z-815A-2WTP C:\WINNT\Profiles\Kenl.Nelson\Desktop\FCC Documintation\Submittles\2-way TP\peices\BLOCK.DOC EXHIBIT C Block Diagram of Product 2 Way Touch Pad Circuitry 106.5 MHz Osc RF Amp Micro Controller Two Way Touch PadTransmitter

Interactive Technologies Inc 03/20/02 10:05 AM FCC ID: B4Z-815A-2WTP C:\WINNT\Profiles\Kenl.Nelson\Desktop\FCC Documintation\Submittles\2-way TP\peices\id_label.DOC EXHIBIT A ID Label / Location

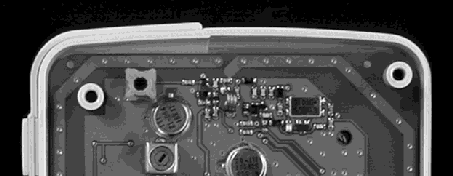

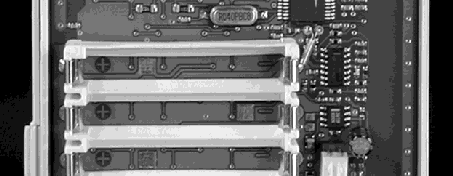

Interactive Technologies Inc 03/20/02 10:11 AM FCC ID: B4Z-815A-2WTP C:\WINNT\Profiles\Kenl.Nelson\Desktop\FCC Documintation\Submittles\2-way TP\peices\intern.DOC EXHIBIT H Internal Photographs

Interactive Technologies Inc 03/20/02 10:11 AM FCC ID: B4Z-815A-2WTP C:\WINNT\Profiles\Kenl.Nelson\Desktop\FCC Documintation\Submittles\2-way TP\peices\OP_DESC.DOC Product Description The product is a wireless Two Way Touch Pad used in conjunction with a wireless security alarm system. The Two Way Touch Pad can be used to arm, disarm, and check the status of the security alarm system. This product is a transmitter manufactured by ITI. ITI has code imbedded in the microcontroller of the Two Way Touch Pad to control the transmitter. The microcontroller used is a Mitsubishi, M38513E4FP. The RF circuit consists of a 106.5 MHz oscillator followed by an amplifier. The amplifier is turned on and off to modulate the carrier. EXHIBIT I Operational Description

Interactive Technologies Inc 03/20/02 10:13 AM FCC ID: B4Z-815A-2WTP Page 1 of 23 C:\WINNT\Profiles\Kenl.Nelson\Desktop\FCC Documintation\Submittles\2-way TP\peices\FCC_REPT.DOC Interactive Technologies, Inc. 2-Way Talking Touch Pad B4Z-815A-2WTP Certification Interactive Technologies Inc FCC_REPT.DOC 03/20/02 10:13 AM FCC ID: B4Z-815A-2WTP Page 2 of 23 Telephone Interface Module B4Z-815A-2WTP 3/20/2002 Interactive Technologies, Inc. 2266 North Second Street North Saint Paul, MN 55109 (651) 777-2690 Interactive Technologies Inc FCC_REPT.DOC 03/20/02 10:13 AM FCC ID: B4Z-815A-2WTP Page 3 of 23 1. INTRODUCTION4 2. STATEMENT OF COMPLIANCE4 3. LAB MEASUREMENTS DISCUSSION / TEST NOTES7 3.1 Test Notes7 3.1.1 Transmissions shall cease within 5 seconds of activation [ §15.231(a)(2) ]7 3.1.2 Duty Cycle Correction Factor [§15.231(b)(2) and §15.35(c)]9 3.1.3 Bandwidth Measurement [ §15.231(c) ]12 3.1.4 Emissions Measurements16 3.1.4.1 Radiated Emissions Summary16 3.1.4.2 FCC Emissions Calculation16 3.1.4.2.1 Terms16 3.1.4.2.2 Example Calculation17 3.1.4.3 Radiated Emissions17 3.1.4.4 Forbidden Bands17 Interactive Technologies Inc FCC_REPT.DOC 03/20/02 10:13 AM FCC ID: B4Z-815A-2WTP Page 4 of 23 1. Introduction This device is a wireless Two Way Touch Pad transmitter for use in a wireless security system. The unit is self-contained and powered by three 1.5 Volt Alkaline batteries. The transmitter’s frequency is crystal controlled and is not adjustable by the user. The device measures approximately 3.5” in width, 5.5” in length, and 1′′ in height. The unit weighs approximately 7.6 ounces with the batteries. We are requesting Certification under FCC Rules, Part 15, Subpart C, Paragraph 15.231. Please send comments/suggestions on the report format to: [email protected] 2. Statement of Compliance §2.907Certification This is an application for certification §2.911Application a)This is an application and has been filed electronically with form 731. b)All information required has been supplied. c)The applicant has signed the application (electronically). d)The technical data has been signed. (See Radiated Emissions) e)Applicant signature block on electronic form 731 completed by officer of the company or authorized company personnel. f) The appropriate fee has been paid electronically with VISA on 3/20/02. §2.915Grant This application demonstrates that all applicable technical standards have been met and a grant of this application will serve the public interest. §2.925Label Each piece of equipment for which authorization will be granted will be uniquely identified with “FCC ID: B4Z-815A-2WTP” The required statement will appear with the FCC ID on the product and, although not required, in the installation instructions. See Exhibit A, PDF file id_label.pdf Interactive Technologies Inc FCC_REPT.DOC 03/20/02 10:13 AM FCC ID: B4Z-815A-2WTP Page 5 of 23 §2.947Measurement Procedure a)The measurement procedure follows ANSI C63.4 procedure. Procedural notes are contained in the laboratory report. d)A list of test equipment used is contained in the laboratory report. §2.948Description of Measurement Facilities Measurements were performed at TUV Testing Services Open Test Site. The FCC keeps a full description of the measurement facilities on file. TUV’s acceptance and approval is dated as December 5, 1993 in a letter received from the FCC. The address of the test facility is: TUV Product Service 19035 Wild Mountain Road Taylors Falls, MN 55084-1758 Phone: 651-638-0297 Contact:Joel Schneider Test Engineer in Charge See Exhibit F, PDF file test_pho.pdf for sketch of measurement setup §2.1033Application for Certification a)Form 731 has been electronically filed on 3/20/02. Items that did not apply were left blank. b)This technical report contains the following information where applicable. 1)Full name and mailing address of manufacturer and applicant for certification: Interactive Technologies Inc 2266 North Second Street North Saint Paul, MN 55109 2)FCC Identifier: B4Z-815A-2WTP 3)Copy of installation instructions: See Exhibit G, PDF file: user_man.pdf 4)Brief Description of circuit functions and device operation: See Exhibit I, PDF file op_desc.pdf See Exhibit D, PDF file schemat.pdf for schematics (page 1) and parts placement (page 2) diagrams. Interactive Technologies Inc FCC_REPT.DOC 03/20/02 10:13 AM FCC ID: B4Z-815A-2WTP Page 6 of 23 5) Block Diagram See Exhibit C, PDF file block.pdf. 6)Report of the measurements of radiation and conducted emissions: This document. 7)Photographs External: See Exhibit B, PDF file extern.pdf Internal: See Exhibit H, PDF file intern.pdf 8)Peripheral or Accessory devices: This is not applicable since this device is stand-a- lone product. 9) Transition Rules This application is not pursuant to the transition rules of §15.37 10)Emergency Broadcast decoding: This is not applicable to device in this application. 11)Application for direct sequence spread spectrum devices... This is not applicable to device in this application. 12)Application for scanning receivers... This is not applicable to device in this application. c)Composite Systems This is not applicable to device in this application. Interactive Technologies Inc FCC_REPT.DOC 03/20/02 10:13 AM FCC ID: B4Z-815A-2WTP Page 7 of 23 3. Lab Measurements Discussion / Test Notes 3.1 Test Notes 3.1.1 Transmissions shall cease within 5 seconds of activation [ §15.231(a)(2) ] In the event of an alarm condition, 2 packets are sent in the transmission. The packet duration is, at most, 30 mS, see Duty Cycle Correction Factor [§15.231(b)(2) and §15.35(c)]. The time between packets random between 100 mS and 450 mS so the length of the longest transmission is: 2*30mS + 450mS = .51 seconds. The following plot shows a 2-packet transmission that concludes in less than 5 seconds. Interactive Technologies Inc FCC_REPT.DOC 03/20/02 10:13 AM FCC ID: B4Z-815A-2WTP Page 9 of 23 3.1.2 Duty Cycle Correction Factor [§15.231(b)(2) and §15.35(c)] T…

Text truncated - open the document above for the full version.

Interactive Technologies Inc 05/17/02 2:16 PM FCC ID: B4Z-815A-2WTP Page 1 of 23 W:\iti2vol2\PRJ\DEG\ACTIVE\55-815 80 bit 2-way talking touchpad\Approvals-Listings-Technical File\FCC\Part 15 Submittle\peices\FCC_REPT.DOC Interactive Technologies, Inc. 2-Way Talking Touch Pad B4Z-815A-2WTP Certification Interactive Technologies Inc FCC_REPT.DOC 05/17/02 2:16 PM FCC ID: B4Z-815A-2WTP Page 2 of 23 Telephone Interface Module B4Z-815A-2WTP 3/20/2002 Interactive Technologies, Inc. 2266 North Second Street North Saint Paul, MN 55109 (651) 777-2690 Interactive Technologies Inc FCC_REPT.DOC 05/17/02 2:16 PM FCC ID: B4Z-815A-2WTP Page 3 of 23 1. INTRODUCTION4 2. STATEMENT OF COMPLIANCE4 3. LAB MEASUREMENTS DISCUSSION / TEST NOTES7 3.1 Test Notes7 3.1.1 Transmissions shall cease within 5 seconds of activation [ §15.231(a)(2) ]7 3.1.2 Supervisory Calculations9 3.1.3 Duty Cycle Correction Factor [§15.231(b)(2) and §15.35(c)]9 3.1.4 Bandwidth Measurement [ §15.231(c) ]12 3.1.5 Emissions Measurements16 3.1.5.1 Radiated Emissions Summary16 3.1.5.2 FCC Emissions Calculation16 3.1.5.2.1 Terms16 3.1.5.2.2 Example Calculation17 3.1.5.3 Radiated Emissions18 3.1.5.4 Forbidden Bands18 Interactive Technologies Inc FCC_REPT.DOC 05/17/02 2:16 PM FCC ID: B4Z-815A-2WTP Page 4 of 23 1. Introduction This device is a wireless Two Way Touch Pad transmitter for use in a wireless security system. The unit is self-contained and powered by three 1.5 Volt Alkaline batteries. The transmitter’s frequency is crystal controlled and is not adjustable by the user. The device measures approximately 3.5” in width, 5.5” in length, and 1′′ in height. The unit weighs approximately 7.6 ounces with the batteries. We are requesting Certification under FCC Rules, Part 15, Subpart C, Paragraph 15.231. Please send comments/suggestions on the report format to: [email protected] 2. Statement of Compliance §2.907Certification This is an application for certification §2.911Application a)This is an application and has been filed electronically with form 731. b)All information required has been supplied. c)The applicant has signed the application (electronically). d)The technical data has been signed. (See Radiated Emissions) e)Applicant signature block on electronic form 731 completed by officer of the company or authorized company personnel. f) The appropriate fee has been paid electronically with VISA on 3/20/02. §2.915Grant This application demonstrates that all applicable technical standards have been met and a grant of this application will serve the public interest. §2.925Label Each piece of equipment for which authorization will be granted will be uniquely identified with “FCC ID: B4Z-815A-2WTP” The required statement will appear with the FCC ID on the product and, although not required, in the installation instructions. See Exhibit A, PDF file id_label.pdf Interactive Technologies Inc FCC_REPT.DOC 05/17/02 2:16 PM FCC ID: B4Z-815A-2WTP Page 5 of 23 §2.947Measurement Procedure a)The measurement procedure follows ANSI C63.4 procedure. Procedural notes are contained in the laboratory report. d)A list of test equipment used is contained in the laboratory report. §2.948Description of Measurement Facilities Measurements were performed at TUV Testing Services Open Test Site. The FCC keeps a full description of the measurement facilities on file. TUV’s acceptance and approval is dated as December 5, 1993 in a letter received from the FCC. The address of the test facility is: TUV Product Service 19035 Wild Mountain Road Taylors Falls, MN 55084-1758 Phone: 651-638-0297 Contact:Joel Schneider Test Engineer in Charge See Exhibit F, PDF file test_pho.pdf for sketch of measurement setup §2.1033Application for Certification a)Form 731 has been electronically filed on 3/20/02. Items that did not apply were left blank. b)This technical report contains the following information where applicable. 1)Full name and mailing address of manufacturer and applicant for certification: Interactive Technologies Inc 2266 North Second Street North Saint Paul, MN 55109 2)FCC Identifier: B4Z-815A-2WTP 3)Copy of installation instructions: See Exhibit G, PDF file: user_man.pdf 4)Brief Description of circuit functions and device operation: See Exhibit I, PDF file op_desc.pdf See Exhibit D, PDF file schemat.pdf for schematics (page 1) and parts placement (page 2) diagrams. Interactive Technologies Inc FCC_REPT.DOC 05/17/02 2:16 PM FCC ID: B4Z-815A-2WTP Page 6 of 23 5) Block Diagram See Exhibit C, PDF file block.pdf. 6)Report of the measurements of radiation and conducted emissions: This document. 7)Photographs External: See Exhibit B, PDF file extern.pdf Internal: See Exhibit H, PDF file intern.pdf 8)Peripheral or Accessory devices: This is not applicable since this device is stand-a- lone product. 9) Transition Rules This application is not pursuant to the transition rules of §15.37 10)Emergency Broadcast decoding: This is not applicable to device in this application. 11)Application for direct sequence spread spectrum devices... This is not applicable to device in this application. 12)Application for scanning receivers... This is not applicable to device in this application. c)Composite Systems This is not applicable to device in this application. Interactive Technologies Inc FCC_REPT.DOC 05/17/02 2:16 PM FCC ID: B4Z-815A-2WTP Page 7 of 23 3. Lab Measurements Discussion / Test Notes 3.1 Test Notes 3.1.1 Transmissions shall cease within 5 seconds of activation [ §15.231(a)(2) ] In the event of an transmit condition, 2 packets are sent in the transmission. The packet duration is, at most, 30 mS, see Supervisory Calculation [ §15.231(a)(3) ] The 2 Way Touch Pad does not perform any supervisory transmissions, so 15.231(a)(3) does not apply. Duty Cycle Correction Factor [§15.231(b)(2) and §15.35(c)]. The time between packets random between 100 mS and 450 mS so the length of the longest transmission is: 2*30mS + 450mS = .51 seconds. A transmit condition occurs when a …

Text truncated - open the document above for the full version.

Interactive Technologies Inc 03/20/02 10:11 AM FCC ID: B4Z-815A-2WTP C:\WINNT\Profiles\Kenl.Nelson\Desktop\FCC Documintation\Submittles\2-way TP\peices\TEST_PHO.DOC 0.8 Meters EUT Receiving Antenna 3 Meters EXHIBIT F Test Setup Sketch for Radiated Emissions 1 Meter
