B4Z-855-NODENode Repeater

1 D†‡hyyh‡v‚ D†‡…ˆp‡v‚† B@D‡r…y‚tv‘ 9 Product Summary The Node Repeater reduces wireless traffic and extends the range of GE Interlogix wireless sys- tems. It receives signals from GE Interlogix 319.5MHz sensors, then retransmits them if neces- sary. The Node Repeater incorporates a 900MHz transmitter for increased range. The Repeater allows enrollment of up to 128 sensors. Only enrolled sensors are monitored and repeated. Sensors are enrolled into the Node Repeater using either a personal computer interface or a pair of on-board DIP switches. Power is supplied to the Node Repeater via a 16.5VAC Class 2 transformer. A 12V lead acid battery provides backup power. Repeater Features: •Regular supervisory reports to the panel •A tamper switch that causes an alarm transmission if the cover is removed. •A tamper switch that causes an alarm transmission if the unit is removed from the •wall. •Antenna tamper monitoring, causing an alarm transmission if the antennas are cut. •Dual receive antennas, which provides improved reception through spatial •diversity. •Receiver jam detection, with an alarm transmission if jam is detected. •Sensor enrollment using either a PC or DIP switch interface. •Support for a rechargeable lead acid backup battery. •Battery monitoring, with an alarm transmission if the battery is low. •AC power monitoring, with an alarm transmission if the power has failed for •more than 15 minutes. •Encryption of sensitive data. Compatibility •All GE Interlogix 80-bit sensors at 319.5MHz •GE Interlogix Learn Mode panic sensors at 319.5MHz Tools and Accessories Needed Included with Repeater •• Mounting screws and anchors •• Antenna shrouds •• Battery cables •• Multi-Purpose Housing (60-928) Not Included with Repeater •• Phillips screwdriver •• Small standard screwdriver •• 2-conductor, 12–18 gauge, stranded wire •• Backup battery (optional) such as the Panasonic LCD 12V1.3P rechargeable battery •• RF Sniffer (60-401, optional) 0RGHO1R;;; 9‚pˆ€r‡ Iˆ€ir…) #%%!YY Sr‰ 6 Eˆy’ !" PRELIMINARY 7/24/03 Rˆvx7…vqtr I‚qr …rƒrh‡r… 2 QuikBridge Node repeater Installation Instructions Overview of Repeater Components Operation DIP Switches There are two DIP switches in the lower left corner of the board. These switches are used for enrollment and deletion of sensors. The following table shows the modes of operation based on switch settings, with 0 = Off and 1 = On. These modes are discussed further in the section on enrollment below. Table 1: Dip Switch Settings SW 1 SW 2 Mode 0 0 Normal Operation 0 1 Delete Individual Sensor 1 0 Enroll Individual Sensor 1 1 Delete All Sensors LED Indications The purpose of the LEDs is to describe certain actions of the repeater. Tables 1 and 2 describe all possible LED indications. Table 2: Green LED Indications Green LED Indication On Repeater is powered up and passed self tests Off Repeater is not powered or failed to power up successfully Short Blink Off Repeater received a packet from a sensor Table 3: Red LED Indications Dip Switches 1,2 Setting Red LED Indication Any On Node is not configured. Enrollment of sensors is prohibited. 00 3 QuikBridge Node repeater Installation Instructions Off No Activity 00 Short Blink On Repeater received a packet from an enrolled sensor 01 Off No Activity 01 Long Blink On Repeater received an enrollment-type packet from an enrolled sensor and has deleted that sensor from memory. 10 Off No Activity 10 Long Blink On Repeater received an enrollment-type packet from an unenrolled sensor and has enrolled that sensor into memory. 11 Constant Blinking DIP switches are set to “delete all” mode, but repeater is awaiting a press and release of the tamper switch before it does the deletion. 11 Long Blink On Repeater has detected a press and release of the tamper switch and deleted all sensors from memory Installation Overview There are two basic installation methods, depending on whether the enrollment of sensors is to be done using a personal computer (PC) or the DIP switches. Note that a PC is required for initial configuration regardless of the method of sensor enrollment. The following are the basic steps of each method. The steps are described more fully in later sections. Installation using a PC 1. Mount the repeater board in the enclosure. 4 QuikBridge Node repeater Installation Instructions 2. Assemble the antenna shrouds and snap into place. 3. Connect the AC transformer leads and power the board. 4. Connect the USB cable from the PC to the repeater board. 5. Using the PC software, perform the initial configuration of the repeater. 6. Use the PC software to enter enrollment mode. Enroll the desired sensors into the repeater. 7. Mount the repeater in its final location. 8. Connect the AC transformer leads and power the board. 9. Connect the battery (if applicable). 10. Install the tamper switch. 11. Mount the enrolled sensors in their final locations. 12. Test the communication between the repeater and the base station receiver. 13. Test the communication between the enrolled sensors and the repeater. Installation Using the On-board DIP Switches 1. Mount the repeater board in the enclosure. 2. Assemble the antenna shrouds and snap into place. 3. Connect the AC transformer leads and power the board. 4. Connect the USB cable from the PC to the repeater board. 5. Using the PC software, perform the initial configuration of the repeater. 6. Mount the repeater in its final location. 7. Connect the AC transformer leads and power the board. 8. Connect the battery (if applicable). 9. Install the tamper switch. 10. Use the DIP switches to enter Enrollment Mode. Enroll the desired sensors into 11. the repeater. 12. Set the DIP switches back to Normal Mode. 13. Mount the enrolled sensors in their final locations. 14. Test the communication between the repeater and the base station receiver. 15. Test the communication between the enrolled sensors and the repeater. Mounting the Repeater For complete mounting instructions see th…

Text truncated - open the document above for the full version.

9/5/2003 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality for FCC ID# B4Z-855-NODE Gentlemen: On initial filing, we inadvertently omitted our request for confidentiality regarding several sections of this application. If possible, we would like the following sections of this application to be placed in the nonpublic file. This is necessary to protect proprietary information in these documents. 1) Block Diagram 2) Schematics 3) Operational Description 4) Main Test Report Document Thank you for your help. Sincerely, Paul Saldin Senior Engineer

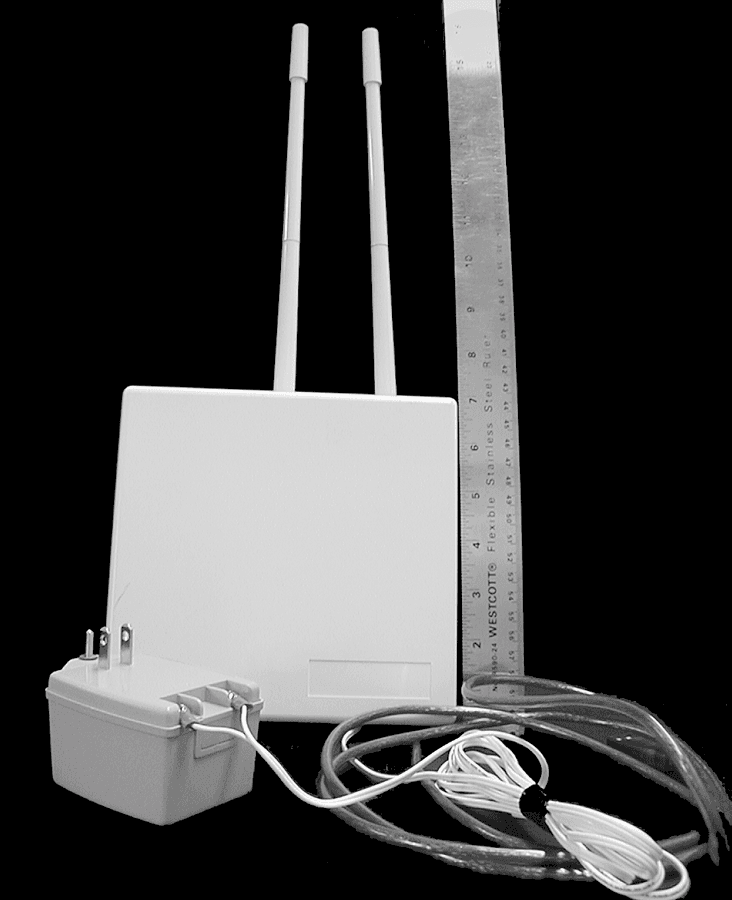

GE Interlogix, Inc 07/21/03 12:49 PM FCC ID: B4Z-855-NODE C:\Documents and Settings\Diane.Baker.000\Local Settings\Temporary Internet Files\OLK2D\extern.DOC EXHIBIT H External Photograph

GE Interlogix, Inc 07/18/03 9:37 AM FCC ID: B4Z-855-NODE C:\Documents and Settings\Diane.Baker.000\Local Settings\Temporary Internet Files\OLK2D\id_label.DOC EXHIBIT A ID Label

GE Interlogix, Inc 07/18/03 9:42 AM FCC ID: B4Z-855-NODE C:\Documents and Settings\Diane.Baker.000\Local Settings\Temporary Internet Files\OLK2D\intern.DOC EXHIBIT I Internal Photograph

GE Interlogix, Inc 09/10/03 3:30 PM FCC ID: B4Z-855-NODE C:\Documents and Settings\Diane.Baker.000\Local Settings\Temporary Internet Files\OLK2D\detailed intern.doc With Shield: Without Shield Back Side: Addendum A Detailed Internal Photographs GE Interlogix, Inc detailed intern.doc 09/10/03 3:30 PM FCC ID: B4Z-855-NODE Page 2 of 2

GE Interlogix, Inc 09/11/03 2:37 PM FCC ID: B4Z-855-NODE Page 1 of 4 C:\Documents and Settings\Diane.Baker.000\Local Settings\Temporary Internet Files\OLK2D\RF Exposure Addendum.doc GE Interlogix, Inc. Node Repeater B4Z-855-NODE Certification Report Addendum RF Exposure Compliance Statement GE Interlogix, Inc RF Exposure Addendum.doc 09/11/03 2:37 PM FCC ID: B4Z-855-NODE Page 2 of 4 Node Repeater B4Z-855-NODE 9/11/2003 GE Interlogix, Inc. 2266 North Second Street North Saint Paul, MN 55109 (651) 777-2690 GE Interlogix, Inc RF Exposure Addendum.doc 09/11/03 2:37 PM FCC ID: B4Z-855-NODE Page 3 of 4 1. RF Exposure Compliance Statement The following discussion will establish compliance of this transmitter with FCC MPE regulations. It may be viewed as an addendum to §3.6.3 of the original report. 1.1 Peak Radiated Power for Purposes of RF Exposure Compliance Exhibit U of the original report shows that the peak output power of the transmitter is 23.6dBm. §3.3.3 of the original report shows that the gain of the DUT antenna is 1.95dBi. The transmitter peak radiated power is therefore obtained as follows: Peak Radiated Power = 23.6dBm + 1.95dB = 25.55dBm As allowed in §2.1091(d)(2), source-based time averaging may be used to reduce the declared RF exposure level. This transmitter has inherent duty cycle properties that may not be modified by the user and therefore fall under the source-based time averaging provision. The following is the derivation of the allowed correction factor for this transmitter. The transmitter employs amplitude modulation and transmits 208 bits. Each bit has an “ON” time of 122 μS. The total on time of a single packet is: 208 * 122 μS = 25.376 msec. The interpacket delay time of 45mS, enforced by the software, ensures that only one packet is sent in any given 100mS window. The duty cycle correction factor is therefore: 20*LOG( 25.376/100) = -11.91 dB Using the above peak radiated power and duty cycle correction factor, the peak power of this transmitter for determination of RF exposure levels is: P = 25.55dBm – 11.91dB = 13.64dBm = 23.12mW 1.2 FCC RF Exposure Limit For the purposes of demonstrating RF exposure compliance, the limits for general population/uncontrolled exposure in §1.1310 will be used. Table 1B of this section gives the allowed power density as: Power Density Limit = f/1500 = 915/1500 = 0.61mW/cm 2 GE Interlogix, Inc RF Exposure Addendum.doc 09/11/03 2:37 PM FCC ID: B4Z-855-NODE Page 4 of 4 1.3 Calculation of Distance from Transmitter to Reach FCC Exposure Limit The distance from the transmitter at which the allowed power density limit is reached may be calculated using the general relation: Power Density = (Power Transmitted)/4πr 2 Solving for r, the distance from the transmitter, we have r = sqrt(P t /4πP d ) Substituting the allowed FCC Exposure limit for P d and the transmitter peak power for P t , we have: r = sqrt(23.12mW/4π(.61mW/cm 2 )) = 1.74 cm 1.4 Discussion and Conclusion This result shows that a person must be within 1.74 cm of this transmitter in order to be exposed to the FCC RF exposure limit as given in §1.1310. Note also that this analysis assumes that the transmitter would be sending data packets continuously, which is not a realistic mode of operation. In an actual installation with 128 sensors installed, the on- time of the transmitter would be reduced from this number by a factor of 100 or more. This device is intended to be permanently mounted in a fixed location. The preceding analysis shows that a person must essentially be touching the device in order to be exposed to the FCC RF exposure limit. Because of the unlikelihood of this situation and its incongruence with the intended use of the product, warning or caution labels regarding RF exposure are not necessary and will not be affixed to the device.

GE Interlogix, Inc 07/24/03 11:42 AM FCC ID: B4Z-855-NODE Page 1 of 11 C:\Documents and Settings\Diane.Baker.000\Local Settings\Temporary Internet Files\OLK2D\FCC_REPT.DOC GE Interlogix, Inc. Node Repeater B4Z-855-NODE Certification GE Interlogix, Inc FCC_REPT.DOC 07/24/03 11:42 AM FCC ID: B4Z-855-NODE Page 2 of 11 Node Repeater B4Z-855-NODE 7/24/2003 GE Interlogix, Inc. 2266 North Second Street North Saint Paul, MN 55109 (651) 777-2690 GE Interlogix, Inc FCC_REPT.DOC 07/24/03 11:42 AM FCC ID: B4Z-855-NODE Page 3 of 11 1. INTRODUCTION 4 2. STATEMENT OF COMPLIANCE 4 3. LAB MEASUREMENTS DISCUSSION / TEST NOTES 7 3.1 Frequencies to be Examined [§15.31(m)] 7 3.2 Antenna Requirement [ §15.203 ] 7 3.3 Antenna Characteristics [ §15.204 ] 7 3.3.1 Antenna Type 7 3.3.2 Antenna Manufacturer 7 3.3.3 Antenna Gain 7 3.4 Public Utility Power Line Measurements [ §15.207 ] 8 3.5 Frequency Hopping System Description[ §15.247(a) ] 8 3.5.1 Carrier Frequency Separation 8 3.5.2 Randomization of Hopping Frequencies 8 3.5.3 System Receiver Description 8 3.5.4 Number of Hopping Frequcncies 8 3.5.5 Time of Occupancy 8 3.5.6 20dB Bandwidth 9 3.6 Output Power [§15.247(b)] 9 3.6.1 Peak Output Power 9 3.6.2 De Facto EIRP Limit 9 3.6.3 RF Exposure Compliance Requirements 9 3.7 Spurious Emissions [ §15.247(c) ] 10 3.7.1 Band-Edge Compliance 10 3.7.2 Spurious RF Conducted Emissions 10 3.7.3 Spurious RF Radiated Emissions 10 3.7.3.1 Calculation of allowed limit 10 3.7.3.2 Radiated Emissions Results 11 3.8 True Frequency Hopping Compliance [ §15.247(g) ] 11 3.9 Coordination of Systems [ §15.247(h) ] 11 GE Interlogix, Inc FCC_REPT.DOC 07/24/03 11:42 AM FCC ID: B4Z-855-NODE Page 4 of 11 1. Introduction This device is a radio repeater. It receives and processes data from existing GE Interlogix 319.5MHz sensors. If required, it transmits information via a 902 - 928MHz Frequency Hopping Spread Spectrum (FHSS) link to a base station receiver, which may in turn be connected to a personal computer or security panel via a hardwired connection. The transmitter uses the 902-928MHz ISM band, operating as a FHSS device. We are requesting Certification under FCC Rules, Part 15, Subpart C, Paragraph 15.247. Power is supplied to the device via a 16.5VAC Class 2 transformer. A 12V lead acid battery provides backup power. The enclosure measures approximately 6.75′′ by 6.25′′ by 2.25′′. The antennas protrude approximately 9.25” above the enclosure. The unit weighs approximately 3 pounds, 4 ounces, including battery and transformer. Please send comments/suggestions on the report to [email protected]. Grantee Code: B4Z 2. Statement of Compliance §2.907 Certification This is an application for certification §2.911 Application a) This is an application and has been filed electronically with form 731. b) All information required has been supplied. c) The applicant has signed the application (electronically). d) The technical data has been signed. e) Applicant signature block on electronic form 731 completed by officer of the company or authorized company personnel. f) The appropriate fee has been paid electronically with VISA on 7/24/2003. §2.915 Grant This application demonstrates that all applicable technical standards have been met and a grant of this application will serve the public interest. GE Interlogix, Inc FCC_REPT.DOC 07/24/03 11:42 AM FCC ID: B4Z-855-NODE Page 5 of 11 §2.925 Label Each piece of equipment for which authorization will be granted will be uniquely identified with “FCC ID: B4Z-855-NODE.” The required statement will appear with the FCC ID on the product. See Exhibit A, “id_label.pdf”. §2.947 Measurement Procedure a) The scan of the restricted bands was made in a radiated manner, with AC cord and USB cable connected. The radiated measurement procedure follows ANSI C63.4 procedure. b) All other RF measurements were made in a conducted manner. c) Procedural notes are contained in the laboratory report. d) A list of test equipment used is contained in the laboratory report. §2.948 Description of Measurement Facilities Measurements were performed at TUV Testing Services Open Test Site. The FCC keeps a full description of the measurement facilities on file. TUV’s acceptance and approval is dated as December 5, 1993 in a letter received from the FCC. The address of the test facility is: TUV Product Service 19035 Wild Mountain Road Taylors Falls, MN 55084-1758 Phone: 651-638-0297 Contact: Joel Schneider Test Engineer in Charge See Exhibit B, “test_pho.pdf”, for sketch of radiated measurement setup. §2.1033 Application for Certification a) Form 731 has been electronically filed on 7/24/03. Items that did not apply were left blank. b) This technical report contains the following information where applicable. 1) Full name and mailing address of manufacturer and applicant for certification: GE Interlogix, Inc. 2266 North Second Street North Saint Paul, MN 55109 GE Interlogix, Inc FCC_REPT.DOC 07/24/03 11:42 AM FCC ID: B4Z-855-NODE Page 6 of 11 2) FCC Identifier: B4Z-855-NODE 3) Copy of installation instructions: See Exhibit C, “install_man.pdf” 4) Brief Description of circuit functions and device operation: See Exhibit D, “op_desc.pdf” for operational description. See Exhibit E, “schematic.pdf” for schematic. See Exhibit F, “ppd.pdf” for parts placement diagram. 5) Block Diagram See Exhibit G, “block.pdf”. 6) Report of the measurements of radiated and conducted emissions: Exhibits P through Z show data and plots, and are discussed later in this report. 7) Photographs External: See Exhibit H, “extern.pdf”. Internal: See Exhibit I, “intern.pdf”. 8) Peripheral or Accessory devices: This device is designed to interface to a personal computer over the USB. It obtains initial configuration information from the personal computer. This link is used only for a brief time during installation of the device. 9) Transition Rules This application is not pursuant to the transition rules of §15.37. 10) Application for scanning receivers: Not applica…

Text truncated - open the document above for the full version.

Radiated Electromagnetic Emissions Test Report #: 2402 Run 01 Test Area: LTS 3m Test Method: N/A Test Date: 29-May-2003 EUT Model #: BS576X2 EUT Power: 16VAC EUT Serial #: Temperature: 23 °C Manufacturer: GE INTERLOGIX Relative Humidity: 25 % EUT Description: NODE REPEATER Air Pressure: 99 kPa Notes: Page: 1 of 3 FREQ LEVEL CABLE / ANT / PREAMP FINAL POL / HGT / AZ DELTA1 DELTA2 (MHz) (dBuV) (dB) (dBuV) (m) (DEG) N/A N/A Tested by: RMJ Printed Signature Reviewed by: Printed Signature LOW CHANNEL 2706.18 54.1 Pk 4.9 / 31.1 / 27.6 62.4 V / 1.0 / 0.0 N/A N/A 3608.26 47.3 Pk 5.8 / 33.3 / 27.0 59.3 V / 1.0 / 0.0 N/A N/A MIDDLE CHANNEL 2745.71 49.4 Pk 4.9 / 31.2 / 27.6 57.9 V / 1.0 / 0.0 N/A N/A 3660.95 49.0 Pk 5.9 / 33.4 / 27.1 61.1 V / 1.0 / 0.0 N/A N/A HIGH CHANNEL 2783.65 47.5 Pk 4.9 / 31.3 / 27.6 56.1 V / 1.0 / 0.0 N/A N/A 3711.54 47.5 Pk 6.0 / 33.5 / 27.2 59.8 V / 1.0 / 0.0 N/A N/A 4639.46 55.9 Pk 6.6 / 34.1 / 40.3 56.3 V / 1.0 / 0.0 N/A N/A 5567.36 37.9 Pk 7.5 / 36.0 / 40.0 41.4 V / 1.0 / 0.0 N/A N/A MIDDLE CHANNEL 4576.20 56.4 Pk 6.5 / 33.9 / 40.3 56.5 V / 1.0 / 0.0 N/A N/A 5491.45 43.3 Pk 7.5 / 35.9 / 40.0 46.7 V / 1.0 / 0.0 N/A N/A LOW CHANNEL 4510.33 55.8 Pk 6.4 / 33.7 / 40.3 55.7 V / 1.0 / 0.0 N/A N/A 5412.40 43.9 Pk 7.4 / 35.8 / 39.9 47.2 V / 1.0 / 0.0 N/A N/A 7216.40 39.6 Pk 9.4 / 37.2 / 41.0 45.2 V / 1.0 / 0.0 N/A N/A MIDDLE CHANNEL 7321.82 37.6 Pk 9.4 / 37.4 / 41.0 43.5 V / 1.0 / 0.0 N/A N/A HIGH CHANNEL Radiated Electromagnetic Emissions Test Report #: 2402 Run 01 Test Area: LTS 3m Test Method: N/A Test Date: 29-May-2003 EUT Model #: BS576X2 EUT Power: 16VAC EUT Serial #: Temperature: 23 °C Manufacturer: GE INTERLOGIX Relative Humidity: 25 % EUT Description: NODE REPEATER Air Pressure: 99 kPa Notes: Page: 2 of 3 FREQ LEVEL CABLE / ANT / PREAMP FINAL POL / HGT / AZ DELTA1 DELTA2 (MHz) (dBuV) (dB) (dBuV) (m) (DEG) N/A N/A Tested by: RMJ Printed Signature Reviewed by: Printed Signature 7422.98 38.7 Pk 9.5 / 37.6 / 40.9 44.9 V / 1.0 / 0.0 N/A N/A 8350.94 44.8 Pk 9.7 / 37.8 / 43.7 48.6 V / 1.0 / 0.0 N/A N/A 9280.39 44.1 Pk 10.2 / 38.9 / 44.5 48.8 V / 1.0 / 0.0 N/A N/A MIDDLE CHANNEL 9150.00 42.6 Pk 10.1 / 39.2 / 44.4 47.5 V / 1.0 / 0.0 N/A N/A 8237.08 45.0 Pk 9.7 / 37.7 / 43.6 48.8 V / 1.0 / 0.0 N/A N/A LOW CHANNEL 8118.53 43.2 Pk 9.7 / 37.6 / 43.6 46.9 V / 1.0 / 0.0 N/A N/A 9020.00 42.7 Pk 10.0 / 39.5 / 44.3 47.9 V / 1.0 / 0.0 N/A N/A END OF SCAN. Radiated Electromagnetic Emissions Test Report #: 2402 Run 01 Test Area: LTS 3m Test Method: N/A Test Date: 29-May-2003 EUT Model #: BS576X2 EUT Power: 16VAC EUT Serial #: Temperature: 23 °C Manufacturer: GE INTERLOGIX Relative Humidity: 25 % EUT Description: NODE REPEATER Air Pressure: 99 kPa Notes: Page: 3 of 3 FREQ LEVEL CABLE / ANT / PREAMP FINAL POL / HGT / AZ DELTA1 DELTA2 (MHz) (dBuV) (dB) (dBuV) (m) (DEG) N/A N/A Tested by: RMJ Printed Signature Reviewed by: Printed Signature ********** MEASUREMENT SUMMARY ********** 2706.18 54.1 Pk 4.9 / 31.1 / 27.6 62.4 H / 1.0 / 0.0 N/A N/A 2745.71 49.4 Pk 4.9 / 31.2 / 27.6 57.9 V / 1.0 / 0.0 N/A N/A 2783.65 47.5 Pk 4.9 / 31.3 / 27.6 56.1 V / 1.0 / 0.0 N/A N/A 3608.26 47.3 Pk 5.8 / 33.3 / 27.0 59.3 V / 1.0 / 0.0 N/A N/A 3660.95 49.0 Pk 5.9 / 33.4 / 27.1 61.1 V / 1.0 / 0.0 N/A N/A 3711.54 47.5 Pk 6.0 / 33.5 / 27.2 59.8 V / 1.0 / 0.0 N/A N/A 4510.33 55.8 Pk 6.4 / 33.7 / 40.3 55.7 V / 1.0 / 0.0 N/A N/A 4576.20 56.4 Pk 6.5 / 33.9 / 40.3 56.5 V / 1.0 / 0.0 N/A N/A 4639.46 55.9 Pk 6.6 / 34.1 / 40.3 56.3 V / 1.0 / 0.0 N/A N/A 5412.40 43.9 Pk 7.4 / 35.8 / 39.9 47.2 V / 1.0 / 0.0 N/A N/A 5491.45 43.3 Pk 7.5 / 35.9 / 40.0 46.7 V / 1.0 / 0.0 N/A N/A 5567.36 37.9 Pk 7.5 / 36.0 / 40.0 41.4 V / 1.0 / 0.0 N/A N/A 7216.40 39.6 Pk 9.4 / 37.2 / 41.0 45.2 V / 1.0 / 0.0 N/A N/A 7321.82 37.6 Pk 9.4 / 37.4 / 41.0 43.5 V / 1.0 / 0.0 N/A N/A 7422.98 38.7 Pk 9.5 / 37.6 / 40.9 44.9 V / 1.0 / 0.0 N/A N/A 8118.53 43.2 Pk 9.7 / 37.6 / 43.6 46.9 V / 1.0 / 0.0 N/A N/A 8237.08 45.0 Pk 9.7 / 37.7 / 43.6 48.8 V / 1.0 / 0.0 N/A N/A 8350.94 44.8 Pk 9.7 / 37.8 / 43.7 48.6 V / 1.0 / 0.0 N/A N/A 9020.00 42.7 Pk 10.0 / 39.5 / 44.3 47.9 V / 1.0 / 0.0 N/A N/A 9150.00 42.6 Pk 10.1 / 39.2 / 44.4 47.5 V / 1.0 / 0.0 N/A N/A 9280.39 44.1 Pk 10.2 / 38.9 / 44.5 48.8 V / 1.0 / 0.0 N/A N/A

GE Interlogix, Inc 07/18/03 9:23 AM FCC ID: B4Z-855-NODE C:\Documents and Settings\Diane.Baker.000\Local Settings\Temporary Internet Files\OLK2D\random freq list.DOC Exhibit J Random Frequency List Randomized frequency list, based on (6,1,0) maximal length shift register with values > 50 discarded. Channel Number Channel Frequency (MHz) 0 902.074 31 918.411 47 926.843 30 917.884 46 926.316 22 913.668 42 924.208 20 912.614 41 923.681 25 915.249 12 908.398 37 921.573 24 914.722 43 924.735 28 916.83 45 925.789 26 915.776 44 925.262 21 913.141 10 907.344 36 921.046 17 911.033 8 906.29 35 920.519 49 927.897 27 916.303 13 908.925 6 905.236 34 919.992 16 910.506 39 922.627 29 917.357 14 909.452 38 922.1 18 911.56 40 923.154 19 912.087 9 906.817 4 904.182 33 919.465 48 927.37 23 914.195 11 907.871 Interactive Technologies Inc random freq list.DOC 07/18/03 9:23 AM FCC ID: B4Z-760A-EFOB Page 2 of 2 5 904.709 2 903.128 32 918.938 15 909.979 7 905.763 3 903.655 1 902.601
