B4Z-861-HTTPHi-Tech Touchpad

1 D†‡hyyh‡v‚ D†‡…ˆp‡v‚† ZZZ*(6HFXULW\FRP B@Trpˆ…v‡’ 9 1 2 3 6 9 8 5 4 7 ST 0 BY OFF STAYAWAY NO DELAY CHIME STATUS BYPASS COMMAND 8341G01A.DS4 Product Summary The HiTech Handheld Wireless Touchpad is a lightweight, portable touchpad that lets you con- trol compatible security systems (see “Specifications”). The touchpad lets you arm/disarm the system, bypass sensors, control lights, activate emergency alarms, and check the systems status. The touchpad features include the following: •Automatic low battery reports to the panel •Red/Green indicator light that responds differently to regular keypresses and panic button keypresses •Police, Fire, and Auxiliary panic buttons •Automatic supervisory reports to the panel every 64 minutes •Long life (5–8 years) 3 VDC lithium battery •Wall-mounting option InstallationInstallation Guidelines Observe the following guidelines when using and mounting the touchpad: •Refer to the appropriate installation instructions for guidelines on typical range for using this and other wireless devices. •Avoid moist areas. •Avoid excessive metal or electrical wiring, including furnace and utility rooms. •Avoid exceeding the touchpad’s operating temperature limits of 10° to 120°F (-12° to 49°C) Note If the touchpad is wall mounted or always kept at the installation site, set upper sensor number 89 to ON. If the touchpad will occasionally be removed from the site (i.e. kept in an automobile), set upper sensor number 89 to OFF. Installing the Battery
To install the battery: Follow the diagrams in Figure 1. 9‚pˆ€r‡ Iˆ€ir…) #%%  ! Sr‰ 8 Ari…ˆh…’ !# CvUrpuChquryqXv…ryr†† U‚ˆpuƒhq Model No. 60-597 2 HiTech Handheld Wireless Touchpad Installation Instructions Preliminary 2/20/04 Figure 1.Installing the Battery Adding the Touchpad to the Panel Before the touchpad can communicate with a panel, you must add the touchpad to panel memory.
To add the Touchpad to panel memory: 1. Refer to the appropriate panel’s installation instructions on “entering program mode” and “adding” or “programming a wireless touchpad.” 2. Press BYPASS when the procedure prompts for the touchpad activation. Mounting the Touchpad
To mount the Touchpad: 1. Test the touchpad at the desired location before mounting and evaluate the touchpad’s performance. 2. Secure the mounting bracket to the desired surface, using the two screws from the accessory pack. 3. Place the bottom end of the touchpad into the bottom of the mounting bracket and press the touchpad into place. TestingRemind the user to test their system and this touchpad weekly. The Owner’s Manual describes how to test the system. Note Refer to the appropriate Owner’s Manual for instruc- tions on using the touchpad with a specific panel.
To test the Touchpad after installation: 1. To avoid an emergency response, notify the central station that you will be testing. 2. Arm and disarm the panel from various points to determine the touchpad’s range in the instal- lation site. Note The green light flashes with each press of a number key or function key. The red/green light flashes with each press of a panic button. 3. Press STATUS to check the current arming level. 4. Bypass sensors using direct and indirect bypass. 1 2 3 6 9 8 5 4 7 ST 0 BY OFF STAYAWAY NO DELAY CHIME STATUS BYPASS COMMAND 1 2 3 6 9 8 5 4 7 ST 0 BY OFF STAYAWAY NO DELAY CHIME STATUS BYPASS COMMAND 8341G03A DS4 AB 1 2 3 6 9 8 5 4 7 ST 0 BY OFF STAYAWAY NO DELAY CHIME STATUS BYPASS COMMAND 8341G04A DS4 EXPOSED TAB TOUCHPAD SEAM EXPOSED TAB C s Mounting Holes 3HiTech Handheld Wireless Touchpad Installation Instructions Preliminary 2/20/04 5. Press and hold each panic button for two seconds, until the red/green indicator light stops flashing and the appropriate alarm sounds. 6. To mute the touchpad: press the 1 and 2 buttons at the same time, until you hear confirma- tion beeps. 7. Press various buttons to test the mute feature. 8. Turn off mute by pressing the 1 and 2 buttons at the same time, until you hear confirma- tion beeps. 9. Turn all lights on or off by pressing COMMAND + 0 with the Security Pro 2000 or by pressing LIGHTS-ON or LIGHTS-OFF twice with the Security Pro 4000. 10. Turn individual lights on or off with the Security Pro 4000 by pressing LIGHTS-ON or LIGHTS-OFF + [unit number]. Unit numbers range from 1 to 9. Note:Refer to the appropriate Owner’s Manual for instructions on using the touchpad with a spe- cific panel. SpecificationsCompatibility:..........................All GE Interlogix Learn Mode Panels Power Requirements:..............3.0 VDC lithium battery Storage Temperature:..............-40° to 140° F (-34° to 60° C) Operating Temperature:.........10° to 120° F (-12° to 49° C) Maximum Humidity:...............90% relative humidity, non-condensing Dimensions:..............................2.1 x 0.86 x 6.1 in. (W x D x H) Installation:...............................Wall mounting Listings: FCC Notice 7 KLVG H YLFH FRP S OLH VZLW K )& &5XOH V3 DUW  2SH U DWLRQ LVVXEMHFW WR WK H I ROORZ LQ JW ZR FRQ GLW LRQ V 1.This device may not cause harmful interference. 2.This device must accept any interference that may be received, including interference that may cause undes- ired operation. & KDQ J HVRU P RG LI LFDWLR QVQ RW H[S UH VVO\DSS URYH G E\* (6 HFXU LW\FDQ YRLGW K HXVH U·VDXWK RU LW\W RR SH UDW H W K HH TX LS P HQ W  )&&,'1R%=+773 Notices   5 HG ) R[ 5RD G $ UGH Q+ LOOV 0 LQ Q HV RWD    7HF K QLF DO6X S SRUW      A B@Trpˆ…v‡’ ‹  *( 6H FX ULW\ $ OOWUD GH PD UNV D UH S URSH UWLH V R IWK HLUR ZQ HUV  $OOULJKWVUHVHUYHG 4HiTech Handheld Wireless Touchpad Installation Instructions Preliminary 2/20/04

GE Security, Inc 02/19/04 3:49 PM FCC ID: B4Z-861-HTTP C:\DATA\PROJECTS\RELEASED BOARDS\HI-TECH TP\56-861-95 REVB\fcc\fcc_rpt_hi- tech\block.DOC EXHIBIT C Block Diagram of Product 319.5 MHz Osc RF Amp Key Pad PIC16LF84A Flash based Microprocessor

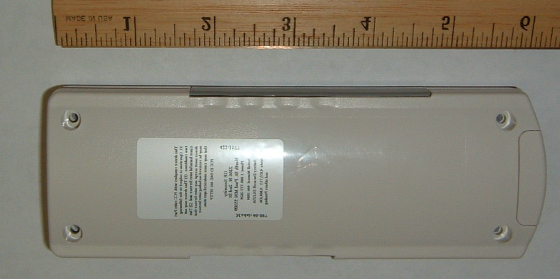

GE Security, Inc 02/19/04 4:29 PM FCC ID: B4Z-861-HTTP C:\DATA\PROJECTS\RELEASED BOARDS\HI-TECH TP\56-861-95 REVB\fcc\fcc_rpt_hi- tech\extern.DOC EXHIBIT B External Photographs

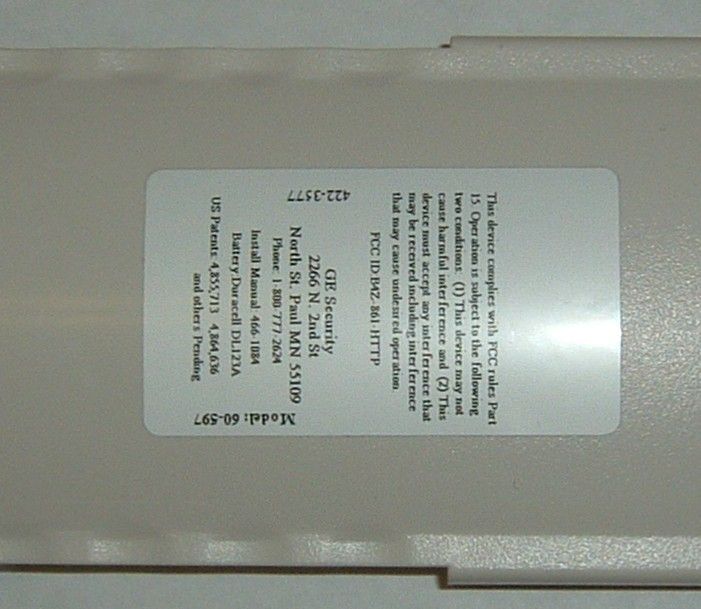

GE Security, Inc 02/19/04 3:51 PM FCC ID: B4Z-861-HTTP C:\DATA\PROJECTS\RELEASED BOARDS\HI-TECH TP\56-861-95 REVB\fcc\fcc_rpt_hi- tech\id_label.DOC EXHIBIT A ID Label / Location

GE Security, Inc 02/19/04 4:03 PM FCC ID: B4Z-861-HTTP C:\DATA\PROJECTS\RELEASED BOARDS\HI-TECH TP\56-861-95 REVB\fcc\fcc_rpt_hi- tech\intern.DOC EXHIBIT H Internal Photographs GE Security, Inc intern.DOC 02/19/04 4:03 PM FCC ID: B4Z-861-HTTP Page 2 of 2

GE Security, Inc 02/19/04 4:31 PM FCC ID: B4Z-861-HTTP C:\DATA\PROJECTS\RELEASED BOARDS\HI-TECH TP\56-861-95 REVB\fcc\fcc_rpt_hi- tech\op_desc.DOC Product Description The product is a touch pad with a wireless transmitter. This device wirelessly transmits key presses for the purposes of arming or disarming a security alarm system. The microprocessor monitors the keypad and controls the transmitter operation. Once every 68 minutes the device wakes up the transmitter and sends a supervisory message. The RF circuit consists of a 319.5 MHz oscillator followed by an amplifier. The amplifier is turned on and off to modulate the carrier. EXHIBIT I Operational Description

GE Security, Inc 02/20/04 11:02 AM FCC ID: B4Z-861-HTTP Page 1 of 19 C:\DATA\PROJECTS\RELEASED BOARDS\HI-TECH TP\56-861-95 REVB\fcc\fcc_rpt_hi- tech\FCC_REPT.DOC GE Security, Inc. Wireless Hi-Tech Hand Held One Way Touchpad B4Z-861-HTTP Certification GE Security, Inc FCC_REPT.DOC 02/20/04 11:02 AM FCC ID: B4Z-861-HTTP Page 2 of 19 Wireless Hi-Tech Hand Held One Way Touchpad B4Z-861-HTTP 02/19/04 GE Security, Inc. 2266 North Second Street North Saint Paul, MN 55109 (651) 777-2690 GE Security, Inc FCC_REPT.DOC 02/20/04 11:02 AM FCC ID: B4Z-861-HTTP Page 3 of 19 1. INTRODUCTION 4 2. STATEMENT OF COMPLIANCE 4 3. LAB MEASUREMENTS DISCUSSION / TEST NOTES 7 3.1 Test Notes 7 3.1.1 Transmissions shall cease within 5 seconds of activation [ §15.231(a)(2) ] 7 3.1.2 Supervisory Calculation [ §15.231(a)(3) ] 9 3.1.3 Duty Cycle Correction Factor [§15.231(b)(2) and §15.35(c)] 9 3.1.4 Bandwidth Measurement [ §15.231(c) ] 12 3.1.5 Emissions Measurements 16 3.1.5.1 Radiated Emissions Summary 16 3.1.5.2 FCC Emissions Calculation 16 3.1.5.2.1 Terms 16 3.1.5.2.2 Example Calculation 17 3.1.5.3 Radiated Emissions 17 3.1.5.4 Forbidden Bands 18 GE Security, Inc FCC_REPT.DOC 02/20/04 11:02 AM FCC ID: B4Z-861-HTTP Page 4 of 19 1. Introduction This device transmits key presses for the purposes of arming or disarming the security alarm system. If a key is pressed a transmission is sent to the panel containing information on what key was pressed. The power for the transmitter is supplied from one 2/3A lithium battery. The transmitter’s frequency is controlled by a crystal device, and is not adjustable by the user. The device measures approximately 6′′ in length, 2” in width and 1” in height.′′ The unit weighs about 3.7 ounces. We are requesting Certification under FCC Rules, Part 15, Subpart C, Paragraph 15.231. Please send comments/suggestions on the report format to [email protected]. Grantee Code: B4Z 2. Statement of Compliance §2.907 Certification This is an application for certification §2.911 Application a) This is an application and has been filed electronically with form 731. b) All information required has been supplied. c) The applicant has signed the application (electronically). d) The technical data has been signed. (See Radiated Emissions) e) Applicant signature block on electronic form 731 completed by officer of the company or authorized company personnel. f) The appropriate fee has been paid electronically with VISA on **/**/**. §2.915 Grant This application demonstrates that all applicable technical standards have been met and a grant of this application will serve the public interest. GE Security, Inc FCC_REPT.DOC 02/20/04 11:02 AM FCC ID: B4Z-861-HTTP Page 5 of 19 §2.925 Label Each piece of equipment for which authorization will be granted will be uniquely identified with “FCC ID: B4Z-861-HTTP.” The required statement will appear with the FCC ID on the product and, although not required, in the installation instructions. See Exhibit A, PDF file id_label.pdf §2.947 Measurement Procedure a) The measurement procedure follows ANSI C63.4 procedure. Procedural notes are contained in the laboratory report. d) A list of test equipment used is contained in the laboratory report. §2.948 Description of Measurement Facilities Measurements were performed at TUV Testing Services Open Test Site. The FCC keeps a full description of the measurement facilities on file. TUV’s acceptance and approval is dated as December 5, 1993 in a letter received from the FCC. The address of the test facility is: TUV Product Service 19035 Wild Mountain Road Taylors Falls, MN 55084-1758 Phone: 651-638-0297 Contact: Joel Schneider Test Engineer in Charge See Exhibit F, PDF file test_pho.pdf for sketch of measurement setup §2.1033 Application for Certification a) Form 731 has been electronically filed on **/**/**. Items that did not apply were left blank. b) This technical report contains the following information where applicable. 1) Full name and mailing address of manufacturer and applicant for certification: GE Security, Inc. 2266 North Second Street North Saint Paul, MN 55109 2) FCC Identifier: B4Z-861-HTTP GE Security, Inc FCC_REPT.DOC 02/20/04 11:02 AM FCC ID: B4Z-861-HTTP Page 6 of 19 3) Copy of installation instructions: See Exhibit G, PDF file: user_man.pdf 4) Brief Description of circuit functions and device operation: See Exhibit I, PDF file op_desc.pdf See Exhibit D, PDF file schemat.pdf for schematics (page 1) and parts placement (page 2) diagrams. 5) Block Diagram See Exhibit C, PDF file block.pdf. 6) Report of the measurements of radiation and conducted emissions: See Exhibit E, PDF file emissions_tuv.pdf 7) Photographs External: See Exhibit B, PDF file extern.pdf Internal: See Exhibit H, PDF file intern.pdf 8) Peripheral or Accessory devices: This is not applicable to device in this application. 9) Transition Rules This application is not pursuant to the transition rules of §15.37 10) Emergency Broadcast decoding: This is not applicable to device in this application. 11) Application for direct sequence spread spectrum devices... This is not applicable to device in this application. 12) Application for scanning receivers... This is not applicable to device in this application. c) Composite Systems This is not applicable to device in this application. GE Security, Inc 02/20/04 11:02 AM FCC ID: B4Z-861-HTTP Page 7 of 19 C:\DATA\PROJECTS\RELEASED BOARDS\HI-TECH TP\56-861-95 REVB\fcc\fcc_rpt_hi- tech\FCC_REPT.DOC 3. Lab Measurements Discussion / Test Notes 3.1 Test Notes 3.1.1 Transmissions shall cease within 5 seconds of activation [ §15.231(a)(2) ] Alarm transmissions consist of 8 packets. The packet duration is, at most, 30 mS, see Duty Cycle Correction Factor [§15.231(b)(2) and §15.35(c)]. The time between packets is 100 mS so the length of the longest transmission is: 8*30mS + 7*100mS = 940 mS. The following plot shows an 8-packet transmission that concludes in less than 5 seconds. GE Security, Inc FCC_REPT.DOC 02/…

Text truncated - open the document above for the full version.

RADIATED EMISSIONS Test Report #: 0590 Run 1 Test Area: LTS EUT Model #: 57-861-95 REV. B Date: 2/10/04 EUT Serial #: EUT Power: 3 VDC Temperature: 24.0 °C Test Method: FCC B Air Pressure: 98.0 kPa Customer: GE INTERLOGIX Rel. Humidity: 22.0 % EUT Description: HI-TECH HAND HELD ONE WAY TOUCHPAD Notes: Data File Name: 0590.dat Page: 1 of 3 Tested by: J. T. SCHNEIDER Printed Signature Reviewed by: T. K. Swanson Printed Signature List of measurements for run #: 1 FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) POL / HGT / AZ (m)(DEG) DELTA1 DELTA2 319.467 MHz 87.2 Pk 1.5 / 14.1 / 24.6 / 0.0 78.2 V / 1.00 / 0 n/a n/a 319.467 MHz 102.2 Pk 1.5 / 14.1 / 24.6 / 0.0 93.2 H / 1.00 / 60 n/a n/a LAST READINGS WITH EUT LAYING ON ITS BACK 319.469 MHz 102.2 Pk 1.5 / 14.1 / 24.6 / 0.0 93.2 H / 1.00 / 0 n/a n/a 319.466 MHz 86.9 Pk 1.5 / 14.1 / 24.6 / 0.0 77.9 V / 1.00 / 0 n/a n/a LAST READINGS WITH EUT ON ITS SIDE 319.466 MHz 97.4 Pk 1.5 / 14.1 / 24.6 / 0.0 88.4 V / 1.60 / 0 n/a n/a 319.472 MHz 75.2 Pk 1.5 / 14.1 / 24.6 / 0.0 66.2 H / 4.00 / 0 n/a n/a LAST READINGS WITH EUT ON ITS BOTTOM SIDE - EUT WILL BE PLACED ON ITS BACK FOR REST OF TEST 106.469 MHz 42.4 Pk 0.81 / 9.46 / 25.41 / 0.0 27.26 H / 1.00 / 0 n/a n/a 212.959 MHz 72.1 Pk 1.21 / 11.0 / 24.99 / 0.0 59.32 H / 1.00 / 0 n/a n/a 425.967 MHz 60.2 Pk 1.71 / 16.92 / 24.61 / 0.0 54.22 H / 1.00 / 0 n/a n/a 532.469 MHz 59.8 Pk 1.93 / 18.6 / 24.53 / 0.0 55.8 H / 1.00 / 0 n/a n/a 638.973 MHz 65.0 Pk 2.1 / 20.0 / 24.5 / 0.0 62.6 H / 1.00 / 0 n/a n/a 745.474 MHz 53.8 Pk 2.32 / 21.79 / 24.5 / 0.0 53.41 H / 1.00 / 0 n/a n/a 851.975 MHz 43.6 Pk 2.51 / 22.5 / 24.48 / 0.0 44.14 H / 1.00 / 0 n/a n/a 958.484 MHz 53.4 Pk 2.68 / 23.3 / 24.3 / 0.0 55.09 H / 1.00 / 0 n/a n/a 745.494 MHz 54.9 Pk 2.32 / 21.79 / 24.5 / 0.0 54.51 H / 1.00 / 180 n/a n/a 638.968 MHz 68.8 Pk 2.1 / 20.0 / 24.5 / 0.0 66.4 H / 1.30 / 0 n/a n/a ABOVE READINGS WITH 100 KHZ RBW. 1.172 GHz 51.7 Pk 2.97 / 26.5 / 40.11 / 0.0 41.06 H / 1.00 / 0 n/a n/a 1.278 GHz 69.6 Pk 3.1 / 26.57 / 40.56 / 0.0 58.71 H / 1.00 / 0 n/a n/a 1.385 GHz 59.2 Pk 3.23 / 26.63 / 41.11 / 0.0 47.94 H / 1.00 / 0 n/a n/a 1.491 GHz 61.1 Pk 3.42 / 26.69 / 41.53 / 0.0 49.69 H / 1.00 / 0 n/a n/a 1.598 GHz 63.1 Pk 3.52 / 27.27 / 41.83 / 0.0 52.06 H / 1.00 / 0 n/a n/a RADIATED EMISSIONS Test Report #: 0590 Run 1 Test Area: LTS EUT Model #: 57-861-95 REV. B Date: 2/10/04 EUT Serial #: EUT Power: 3 VDC Temperature: 24.0 °C Test Method: FCC B Air Pressure: 98.0 kPa Customer: GE INTERLOGIX Rel. Humidity: 22.0 % EUT Description: HI-TECH HAND HELD ONE WAY TOUCHPAD Notes: Data File Name: 0590.dat Page: 2 of 3 Tested by: J. T. SCHNEIDER Printed Signature Reviewed by: T. K. Swanson Printed Signature List of measurements for run #: 1 FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) POL / HGT / AZ (m)(DEG) DELTA1 DELTA2 1.704 GHz 59.4 Pk 3.62 / 27.88 / 42.1 / 0.0 48.8 H / 1.00 / 0 n/a n/a 1.811 GHz 55.5 Pk 3.8 / 28.5 / 42.42 / 0.0 45.38 H / 1.00 / 0 n/a n/a 1.917 GHz 57.4 Pk 3.88 / 29.12 / 42.71 / 0.0 47.69 H / 1.00 / 0 n/a n/a 2.024 GHz 54.3 Pk 3.9 / 29.65 / 43.15 / 0.0 44.7 H / 1.00 / 0 n/a n/a 2.13 GHz 51.1 Pk 3.97 / 29.89 / 43.37 / 0.0 41.58 H / 1.00 / 0 n/a n/a 2.237 GHz 58.9 Pk 4.11 / 30.12 / 43.52 / 0.0 49.61 H / 1.00 / 0 n/a n/a 2.343 GHz 57.4 Pk 4.24 / 30.35 / 43.63 / 0.0 48.37 H / 1.00 / 0 n/a n/a 2.45 GHz 58.0 Pk 4.34 / 30.59 / 43.69 / 0.0 49.23 H / 1.00 / 0 n/a n/a 2.556 GHz 53.6 Pk 4.4 / 30.81 / 43.7 / 0.0 45.11 H / 1.00 / 0 n/a n/a 2.663 GHz 49.5 Pk 4.46 / 31.03 / 43.75 / 0.0 41.23 H / 1.00 / 0 n/a n/a 1.385 GHz 62.2 Pk 3.23 / 26.63 / 41.11 / 0.0 50.94 H / 1.00 / 90 n/a n/a 2.343 GHz 59.7 Pk 4.24 / 30.35 / 43.63 / 0.0 50.67 H / 1.00 / 90 n/a n/a 2.45 GHz 61.6 Pk 4.34 / 30.59 / 43.69 / 0.0 52.83 H / 1.00 / 90 n/a n/a 1.172 GHz 53.9 Pk 2.97 / 26.5 / 40.11 / 0.0 43.26 H / 1.00 / 270 n/a n/a 1.278 GHz 72.8 Pk 3.1 / 26.57 / 40.56 / 0.0 61.91 H / 1.10 / 30 n/a n/a 1.598 GHz 67.5 Pk 3.52 / 27.27 / 41.83 / 0.0 56.46 H / 1.00 / 120 n/a n/a 1.811 GHz 56.9 Pk 3.8 / 28.5 / 42.42 / 0.0 46.78 V / 1.00 / 270 n/a n/a 1.811 GHz 59.4 Pk 3.8 / 28.5 / 42.42 / 0.0 49.28 V / 1.00 / 90 n/a n/a 1.81 GHz 62.8 Pk 3.8 / 28.5 / 42.42 / 0.0 52.68 V / 1.30 / 90 n/a n/a READINGS ABOVE 1 GHZ WITH 1 MHZ RBW. SCANNED 30-3200 MHZ, 360 DEGREES, 1-4 METERS HIGH, VERT. AND HOR. POLARIZATION RADIATED EMISSIONS Test Report #: 0590 Run 1 Test Area: LTS EUT Model #: 57-861-95 REV. B Date: 2/10/04 EUT Serial #: EUT Power: 3 VDC Temperature: 24.0 °C Test Method: FCC B Air Pressure: 98.0 kPa Customer: GE INTERLOGIX Rel. Humidity: 22.0 % EUT Description: HI-TECH HAND HELD ONE WAY TOUCHPAD Notes: Data File Name: 0590.dat Page: 3 of 3 Tested by: J. T. SCHNEIDER Printed Signature Reviewed by: T. K. Swanson Printed Signature Graph: 100M H z1GHz10GHz 20 30 40 50 60 70 80 90 100 Pk-m easurem ents

GE Security, Inc 02/19/04 4:04 PM FCC ID: B4Z-861-HTTP C:\DATA\PROJECTS\RELEASED BOARDS\HI-TECH TP\56-861-95 REVB\fcc\fcc_rpt_hi- tech\test_pho.DOC 0.8 Meters EUT Receiving Antenna 3 Meters EXHIBIT F Test Setup Sketch for Radiated Emissions 1 Meter
