B4Z-869-FOB319.5MHz AM 4-BUTTON DESIGNER FOB

1 D†‡hyyh‡v‚ D†‡…ˆp‡v‚† B@Trpˆ…v‡’ 9 ZZZ*(6HFXULW\FRP PRELIMINARY 12/30/04 Product Summary The Flip Top KeyChain Touchpad enables the user to turn the system on and off after exiting or before entering the home or to turn on the siren and to call the central monitoring station if there is an emergency. If lamp modules have been installed, the KeyChain Touchpad can be used to turn all lights using the lamp modules on or off. Installation Overview General Information The KeyChain Touchpad is a lithium ba ttery- powered, wireless touchpad designed to fit on a keychain, in a pocket or purse. It provides users a convenient option for the following system opera- tions: •Arm the system (doors, windows, and motion sensors) •Arm the system with no entry delay (if pro- grammed) •Disarm the system •Trigger Panic alarms •Turn system controlled lights on or off •Open the garage door or turn outside lights on (if programmed) Installation Guidelines Use the following guidelines when adding Key- chain Touchpads to the system: •KeyChain Touchpads are learned into the Con- trol Panel as sensors or touchpads. •KeyChain Touchpads when programmed as sensors are programmed as a non-supervised sensor. •Each learned KeyChain Touchpad uses one of the available sensor numbers. •KeyChain Touchpads can be programmed with no entry delay. Programming Follow these instructions to program the touch- pad: 1. Open the control panel cover. 2. Enter Utility Access Code 1 or 2 using the red- numbered buttons. 3. Press Add from the Start Menu. 4. Press the Sensor/Remote button from the Main menu and you will hear keychain remote. Note: When adding sensors, if you wish to use a more descriptive location you may press the option button to use the compass directions (north, north east, east, south east, south, south west, west, north west). 5. Press DONE. 6. Enter the sensor type number (01, 03, 06, or 07) with the red numbered keys . Note: If you wish to use a sensor number other than the next available, enter a 2 digit sensor number with the red numbered keys immediately after entering the sensor type. 7. Press the lock and unlock buttons simulta- neously until the transmitter LED is lit. Testing Flip Top KeyChain Touchpads Used with the SIMON ® Control Panel Perform Sensor Test The following steps describe the guidelines for testing sensors. 1. Open the Control Panel cover. 2. Enter the Utility Access Code 1 or 2 using the red-numbered buttons. 3. Press the Test button once. 4. Press DONE. 5. Trip the sensor by pressing the Lock and Unlock buttons simultaneously until the LED is lit. " ($HC“6H#7ˆ‡‡‚ 9r†vtr…A‚i Document No. 466-2207 Rev. A December 2004 2 6. Note the number of siren beeps indicating how many RF packets the Control Panel received from the sensor. You should hear 7-8 beeps. Specifications Model No.: 600-1003-95R RF Frequency: 319.5 MHz Compatibility: Simon and Concord™ control panels Battery Type: 3 V lithium battery Estimated Battery Life: 5 to 8 years Dimensions (mm): 58 x 37 x 12 (L x W x H) FCC NOTICE This device complies with FCC Rules Part 15. operation is subject to the following two conditions: 1) This may not cause harmful interference. 2) This device must accept any interference that may be received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Inter- active Technologies, Inc. can void the user’s authority to operate the equipment. FCC ID: B4Z-869-FOB    5 HG )R[5 RDG$U G HQ +LOOV01    86 $& DQDG D       7 H FK Q LF DO6 XSS RU W         ‹   *( 6H FXULW \,Q F6LP RQ LVDU HJ LVWH U HG WU DG HP DUNR I*( 6H FXU LW\&R QFR UG LVD7 U DG H  P DU NRI *( 6H FXULW \$ OOR WK H UW UDG HP DU NVDU H SU RS HU W LHVRI W KH RZ QH U V$OOU LJK W VUH VH UYH G A B@Trpˆ…v‡’

17 December 2004 To: Federal Communications Commission Re: Confidentiality Request Please withhold documents marked Confidential in our application for B4Z-869-FOB from the general public. Confidential documents are • block_diagram.doc • operational_description.doc • schematics.doc These documents contain company proprietary and sensitive information. Thank you, John Bergman Vice President of Wireless Engineering GE Security

GE Security, Inc. FCC ID: B4Z-869-FOB File Replacement Explanation Please delete this file: “FCC_ID_B4Z-869-FOB_report.doc” Instead use this file: “TO REPLACE FCC_ID_B4Z-869-FOB_report.doc” Please delete this file: “confidentiality_request.doc” Instead use this file: “TO REPLACE confidentiality_request.doc” Reason for file replacement: the files to be deleted make incorrect references to “schematics.tif”. The new files correctly reference “schematics.doc”.

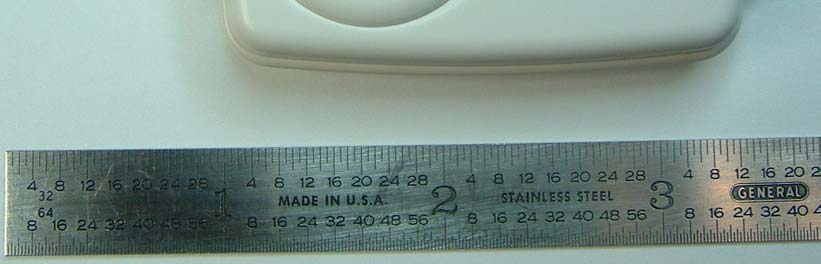

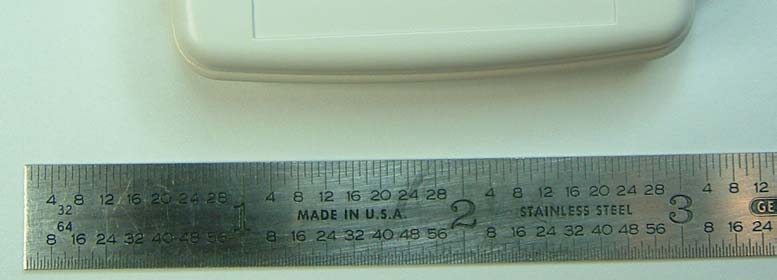

GE Security, Inc. 12/29/04 2:36 PM FCC ID: B4Z-869-FOB Page 1 of 3 EXHIBIT B External Photographs GE Security, Inc. 12/29/04 2:36 PM FCC ID: B4Z-869-FOB Page 2 of 3 GE Security, Inc. 12/29/04 2:36 PM FCC ID: B4Z-869-FOB Page 3 of 3

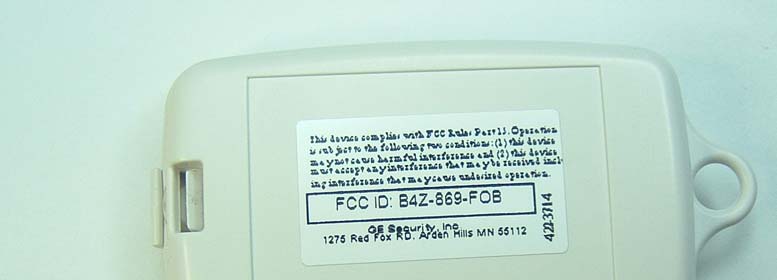

GE Security, Inc. 12/29/04 2:55 PM FCC ID: B4Z-869-FOB Page 1 of 2 EXHIBIT A FCC ID Label GE Security, Inc. 12/29/04 2:55 PM FCC ID: B4Z-869-FOB Page 2 of 2 This picture shows the placement of the label: Here’s the label text:

GE Security, Inc. 12/29/04 2:40 PM FCC ID: B4Z-869-FOB EXHIBIT H Internal Photographs GE Security, Inc. 12/29/04 2:40 PM FCC ID: B4Z-869-FOB Page 2 of 3 GE Security, Inc. 12/29/04 2:40 PM FCC ID: B4Z-869-FOB Page 3 of 3

RADIATED EMISSIONS Test Report #: WC405471 Run 1 Test Area: LTS EUT Model #: 56-869-95R A3 Date: 11/29/04 EUT Serial #: 1 EUT Power: BATTERY Temperature: 20.0 °C Test Method: FCC PART 15 - C Air Pressure: 99.0 kPa Customer: GE SECURITY Rel. Humidity: 25.0 % EUT Description: 319.5MHz AM 4 BUTTON DESIGNER FOB Notes: FCC ID# B4Z-869-FOB Data File Name: 5471.dat Page: 1 of 2 Tested by: RMJ Printed Signature Reviewed by: Printed Signature List of measurements for run #: 1 FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) POL / HGT / AZ (m)(DEG) DELTA1 DELTA2 MAXIMIZED. 319.417 MHz 94.7 Pk 1.5 / 13.76 / 26.67 / 0.0 83.29 V / 1.50 / 135 n/a n/a 638.917 MHz 69.1 Pk 2.1 / 19.39 / 27.05 / 0.0 63.54 V / 1.50 / 135 n/a n/a 958.423 MHz 45.55 Pk 2.68 / 22.61 / 26.52 / 0.0 44.33 V / 1.00 / 70 n/a n/a 1.278 GHz 52.7 Pk 3.1 / 24.86 / 26.3 / 0.0 54.36 V / 1.00 / 0 n/a n/a 1.598 GHz 42.05 Pk 3.52 / 26.11 / 26.5 / 0.0 45.18 V / 1.00 / 0 n/a n/a 1.917 GHz 56.0 Pk 3.88 / 27.64 / 43.28 / 0.0 44.24 V / 1.30 / 270 n/a n/a 2.237 GHz 66.65 Pk 4.11 / 28.34 / 44.04 / 0.0 55.06 V / 1.10 / 0 n/a n/a 2.556 GHz 73.5 Pk 4.4 / 28.84 / 44.5 / 0.0 62.24 V / 1.10 / 228 n/a n/a 2.876 GHz 65.7 Pk 4.63 / 29.71 / 44.92 / 0.0 55.12 V / 1.00 / 218 n/a n/a 3.195 GHz 59.95 Pk 4.94 / 30.46 / 45.15 / 0.0 50.2 H / 1.00 / 0 n/a n/a END OF SCAN. RADIATED EMISSIONS Test Report #: WC405471 Run 1 Test Area: LTS EUT Model #: 56-869-95R A3 Date: 11/29/04 EUT Serial #: 1 EUT Power: BATTERY Temperature: 20.0 °C Test Method: FCC PART 15 - C Air Pressure: 99.0 kPa Customer: GE SECURITY Rel. Humidity: 25.0 % EUT Description: 319.5MHz AM 4 BUTTON DESIGNER FOB Notes: FCC ID# B4Z-869-FOB Data File Name: 5471.dat Page: 2 of 2 Tested by: RMJ Printed Signature Reviewed by: Printed Signature Graph: 100MHz1GHz10GHz 40 45 50 55 60 65 70 75 80 85 Pk -m e as ure m ents

RADIATED EMISSIONS Test Report #: WC405471 Run 4 Test Area: LTS EUT Model #: 56-876-43 A1 / 56-869-43 A2 / 56-869-95R A3 Date: 11/29/04 EUT Serial #: 1 EUT BATTERY Temperature: 20.0 °C Test Method: EN300-220 Air Pressure: 99.0 kPa Customer: GE SECURITY Rel. Humidity: 25.0 % EUT Description: 433MHz SAW SMOKE / B4Z-869-FOB / 433.92 D-FOB Notes: STANDBY MODE SCAN. 3 UNITS ON THE TABLE Data File Name: 5471.dat Page: 1 of 2 Tested by: RMJ Printed Signature Reviewed by: Printed Signature List of measurements for run #: 4 FREQ LEVEL (dBuV) CABLE / ANT / PREAMP / ATTEN (dB) FINAL (dBuV / m) POL / HGT / AZ (m)(DEG) DELTA1 DELTA2 NO EMISSIONS FOUND WITH V OR H POLARIZATION AT ALL AZIMUTHS 1 - 4 METERS. END OF SCAN 30MHz - 4.3GHz. RADIATED EMISSIONS Test Report #: WC405471 Run 4 Test Area: LTS EUT Model #: 56-876-43 A1 / 56-869-43 A2 / 56-869-95R A3 Date: 11/29/04 EUT Serial #: 1 EUT BATTERY Temperature: 20.0 °C Test Method: EN300-220 Air Pressure: 99.0 kPa Customer: GE SECURITY Rel. Humidity: 25.0 % EUT Description: 433MHz SAW SMOKE / B4Z-869-FOB / 433.92 D-FOB Notes: STANDBY MODE SCAN. 3 UNITS ON THE TABLE Data File Name: 5471.dat Page: 2 of 2 Tested by: RMJ Printed Signature Reviewed by: Printed Signature Graph: 1Hz10Hz 0 1 2 3 4 5 6 7 8 9 10

GE Security, Inc. 01/04/05 3:34 PM FCC ID: B4Z-869-FOB Page 1 of 19 GE Security, Inc. 319.5MHz AM 4-BUTTON DESIGNER FOB B4Z-869-FOB Certification GE Security, Inc. 01/04/05 3:34 PM FCC ID: B4Z-869-FOB Page 2 of 19 319.5MHz AM 4-BUTTON DESIGNER FOB B4Z-869-FOB 12/17/2004 GE Security, Inc. 1275 Red Fox Road Arden Hills, MN 55112 (651) 777-2690 GE Security, Inc. 01/04/05 3:34 PM FCC ID: B4Z-869-FOB Page 3 of 19 1. INTRODUCTION 4 2. STATEMENT OF COMPLIANCE 4 3. LAB MEASUREMENTS DISCUSSION / TEST NOTES 7 3.1 Test Notes 7 3.1.1 Transmissions shall cease within 5 seconds of activation [ §15.231(a)(2) ] 7 3.1.2 Supervisory Calculation [ §15.231(a)(3) ] 9 3.1.3 Duty Cycle Correction Factor [§15.231(b)(2) and §15.35(c)] 9 3.1.4 Bandwidth Measurement [ §15.231(c) ] 12 3.1.5 Emissions Measurements 16 3.1.5.1 Radiated Emissions Summary 16 3.1.5.2 FCC Emissions Calculation 16 3.1.5.2.1 Terms 16 3.1.5.2.2 Example Calculation 17 3.1.5.3 Radiated Emissions 17 3.1.5.4 Forbidden Bands 18 GE Security, Inc. 01/04/05 3:34 PM FCC ID: B4Z-869-FOB Page 4 of 19 1. Introduction This device detects button presses and sends corresponding keycodes to a receiver. The transmitter is powered by a single 3V lithium coin cell. Transmitter frequency is controlled by a SAW device and is not adjustable by the user. The device measures approximately 1.4 x 2.7 x 0.5 inches and weighs approximately 0.7 ounces. We are requesting certification under FCC Rules, Part 15, Subpart C, Paragraph 15.231. Please send comments or suggestions on the report format to [email protected]. Grantee Code: B4Z 2. Statement of Compliance §2.907 Certification This is an application for certification §2.911 Application a) This is an application and has been filed electronically with form 731. b) All information required has been supplied. c) The applicant has signed the application electronically. d) The technical data has been signed. See TUV Radiated Emissions Microsoft Word files: 5471-1RE 56-869-95R.doc 5471-4RE group unintentional emission scan.doc (“56-869-95R” and “B4Z-869-FOB” refer to the same hardware.) e) Applicant signature block on electronic form 731 completed by officer of the company or authorized company personnel. f) The appropriate fees were paid online with VISA on 01/04/05. Pay.gov Tracking ID: 24TEE8EM Agency Tracking ID: 638785 §2.915 Grant This application demonstrates that all applicable technical standards have been met and a grant of this application will serve the public interest. GE Security, Inc. 01/04/05 3:34 PM FCC ID: B4Z-869-FOB Page 5 of 19 §2.925 Label Each piece of equipment for which authorization will be granted will be uniquely identified with “FCC ID: B4Z-869-FOB.” The required statement will appear in the installation instructions and on the back of each transmitter. See exhibit A, Microsoft Word file: id_label.doc. §2.947 Measurement Procedure a) The measurement procedure follows ANSI C63.4. Procedural notes are contained in the laboratory report. d) A list of test equipment used is contained in the laboratory report. §2.948 Description of Measurement Facilities Measurements were performed at TUV Testing Services Open Test Site. The FCC keeps a full description of the measurement facilities on file. TUV’s acceptance and approval is dated as December 5, 1993 in a letter received from the FCC. The address of the test facility is: TUV Product Service 19035 Wild Mountain Road Taylors Falls, MN 55084-1758 Phone: 651-638-0297 Contact: Joel Schneider Test Engineer in Charge See Exhibit F, Microsoft Word file: test_setup.doc, for sketch of measurement setup. §2.1033 Application for Certification a) Form 731 has been electronically filed on 01/04/05. Items that did not apply were left blank. b) This technical report contains the following information where applicable. 1) Full name and mailing address of manufacturer and applicant for certification: GE Security, Inc. 1275 Red Fox Road Arden Hills, MN 55112 2) FCC Identifier: B4Z-869-FOB 3) Copy of installation instructions: GE Security, Inc. 01/04/05 3:34 PM FCC ID: B4Z-869-FOB Page 6 of 19 See Exhibit G, PDF file: user_manual.pdf 4) Brief Description of circuit functions and device operation: See Exhibit I, Microsoft Word file operational_description.doc See Exhibit D, TIFF file schematics.tif for schematics and parts placement diagrams. 5) Block Diagram: See Exhibit C, Microsoft Word file block_diagram.doc. 6) Report of the measurements of radiation and conducted emissions: This document. 7) Photographs: External: See Exhibit B, Microsoft Word file external_photos.doc Internal: See Exhibit H, Microsoft Word file internal_photos.doc 8) Peripheral or Accessory devices: This is not applicable to device in this application. 9) Transition Rules: This application is not pursuant to the transition rules of §15.37 10) Emergency Broadcast decoding: This is not applicable to device in this application. 11) Application for direct sequence spread spectrum devices: This is not applicable to device in this application. 12) Application for scanning receivers: This is not applicable to device in this application. c) Composite Systems This is not applicable to device in this application. GE Security, Inc. 01/04/05 3:34 PM FCC ID: B4Z-869-FOB Page 7 of 19 3. Lab Measurements Discussion / Test Notes 3.1 Test Notes 3.1.1 Transmissions shall cease within 5 seconds of activation [ §15.231(a)(2) ] Alarm transmissions consist of 8 packets. The packet duration is, at most, 30 mS, see Duty Cycle Correction Factor [§15.231(b)(2) and §15.35(c)]. Packets are sent every 100 milliseconds. The following plot shows an 8-packet transmission that concludes in less than 5 seconds. GE Security, Inc. 01/04/05 3:34 PM FCC ID: B4Z-869-FOB Page 8 of 19 GE Security, Inc. 01/04/05 3:34 PM FCC ID: B4Z-869-FOB Page 9 of 19 3.1.2 Supervisory Calculation [ §15.231(a)(3) ] This transmitter does not send supervisory packets. 3.1.3 Duty Cycle Correction Factor [§15.231(b)(2) and §15.35(c)] The transmitter employs…

Text truncated - open the document above for the full version.

GE Security, Inc. 01/05/05 8:26 AM FCC ID: B4Z-869-FOB Page 1 of 19 GE Security, Inc. 319.5MHz AM 4-BUTTON DESIGNER FOB B4Z-869-FOB Certification GE Security, Inc. 01/05/05 8:26 AM FCC ID: B4Z-869-FOB Page 2 of 19 319.5MHz AM 4-BUTTON DESIGNER FOB B4Z-869-FOB 12/17/2004 GE Security, Inc. 1275 Red Fox Road Arden Hills, MN 55112 (651) 777-2690 GE Security, Inc. 01/05/05 8:26 AM FCC ID: B4Z-869-FOB Page 3 of 19 1. INTRODUCTION 4 2. STATEMENT OF COMPLIANCE 4 3. LAB MEASUREMENTS DISCUSSION / TEST NOTES 7 3.1 Test Notes 7 3.1.1 Transmissions shall cease within 5 seconds of activation [ §15.231(a)(2) ] 7 3.1.2 Supervisory Calculation [ §15.231(a)(3) ] 9 3.1.3 Duty Cycle Correction Factor [§15.231(b)(2) and §15.35(c)] 9 3.1.4 Bandwidth Measurement [ §15.231(c) ] 12 3.1.5 Emissions Measurements 16 3.1.5.1 Radiated Emissions Summary 16 3.1.5.2 FCC Emissions Calculation 16 3.1.5.2.1 Terms 16 3.1.5.2.2 Example Calculation 17 3.1.5.3 Radiated Emissions 17 3.1.5.4 Forbidden Bands 18 GE Security, Inc. 01/05/05 8:26 AM FCC ID: B4Z-869-FOB Page 4 of 19 1. Introduction This device detects button presses and sends corresponding keycodes to a receiver. The transmitter is powered by a single 3V lithium coin cell. Transmitter frequency is controlled by a SAW device and is not adjustable by the user. The device measures approximately 1.4 x 2.7 x 0.5 inches and weighs approximately 0.7 ounces. We are requesting certification under FCC Rules, Part 15, Subpart C, Paragraph 15.231. Please send comments or suggestions on the report format to [email protected]. Grantee Code: B4Z 2. Statement of Compliance §2.907 Certification This is an application for certification §2.911 Application a) This is an application and has been filed electronically with form 731. b) All information required has been supplied. c) The applicant has signed the application electronically. d) The technical data has been signed. See TUV Radiated Emissions Microsoft Word files: 5471-1RE 56-869-95R.doc 5471-4RE group unintentional emission scan.doc (“56-869-95R” and “B4Z-869-FOB” refer to the same hardware.) e) Applicant signature block on electronic form 731 completed by officer of the company or authorized company personnel. f) The appropriate fees were paid online with VISA on 01/04/05. Pay.gov Tracking ID: 24TEE8EM Agency Tracking ID: 638785 §2.915 Grant This application demonstrates that all applicable technical standards have been met and a grant of this application will serve the public interest. GE Security, Inc. 01/05/05 8:26 AM FCC ID: B4Z-869-FOB Page 5 of 19 §2.925 Label Each piece of equipment for which authorization will be granted will be uniquely identified with “FCC ID: B4Z-869-FOB.” The required statement will appear in the installation instructions and on the back of each transmitter. See exhibit A, Microsoft Word file: id_label.doc. §2.947 Measurement Procedure a) The measurement procedure follows ANSI C63.4. Procedural notes are contained in the laboratory report. d) A list of test equipment used is contained in the laboratory report. §2.948 Description of Measurement Facilities Measurements were performed at TUV Testing Services Open Test Site. The FCC keeps a full description of the measurement facilities on file. TUV’s acceptance and approval is dated as December 5, 1993 in a letter received from the FCC. The address of the test facility is: TUV Product Service 19035 Wild Mountain Road Taylors Falls, MN 55084-1758 Phone: 651-638-0297 Contact: Joel Schneider Test Engineer in Charge See Exhibit F, Microsoft Word file: test_setup.doc, for sketch of measurement setup. §2.1033 Application for Certification a) Form 731 has been electronically filed on 01/04/05. Items that did not apply were left blank. b) This technical report contains the following information where applicable. 1) Full name and mailing address of manufacturer and applicant for certification: GE Security, Inc. 1275 Red Fox Road Arden Hills, MN 55112 2) FCC Identifier: B4Z-869-FOB 3) Copy of installation instructions: GE Security, Inc. 01/05/05 8:26 AM FCC ID: B4Z-869-FOB Page 6 of 19 See Exhibit G, PDF file: user_manual.pdf 4) Brief Description of circuit functions and device operation: See Exhibit I, Microsoft Word file operational_description.doc See Exhibit D, Microsoft Word file schematics.doc for schematics and parts placement diagrams. 5) Block Diagram: See Exhibit C, Microsoft Word file block_diagram.doc. 6) Report of the measurements of radiation and conducted emissions: This document. 7) Photographs: External: See Exhibit B, Microsoft Word file external_photos.doc Internal: See Exhibit H, Microsoft Word file internal_photos.doc 8) Peripheral or Accessory devices: This is not applicable to device in this application. 9) Transition Rules: This application is not pursuant to the transition rules of §15.37 10) Emergency Broadcast decoding: This is not applicable to device in this application. 11) Application for direct sequence spread spectrum devices: This is not applicable to device in this application. 12) Application for scanning receivers: This is not applicable to device in this application. c) Composite Systems This is not applicable to device in this application. GE Security, Inc. 01/05/05 8:26 AM FCC ID: B4Z-869-FOB Page 7 of 19 3. Lab Measurements Discussion / Test Notes 3.1 Test Notes 3.1.1 Transmissions shall cease within 5 seconds of activation [ §15.231(a)(2) ] Alarm transmissions consist of 8 packets. The packet duration is, at most, 30 mS, see Duty Cycle Correction Factor [§15.231(b)(2) and §15.35(c)]. Packets are sent every 100 milliseconds. The following plot shows an 8-packet transmission that concludes in less than 5 seconds. GE Security, Inc. 01/05/05 8:26 AM FCC ID: B4Z-869-FOB Page 8 of 19 GE Security, Inc. 01/05/05 8:26 AM FCC ID: B4Z-869-FOB Page 9 of 19 3.1.2 Supervisory Calculation [ §15.231(a)(3) ] This transmitter does not send supervisory packets. 3.1.3 Duty Cycle Correction Factor [§15.231(b)(2) and §15.35(c)] The transmitt…

Text truncated - open the document above for the full version.

GE Security, Inc. 12/22/04 9:08 AM FCC ID: B4Z-869-FOB 0.8 Meters EUT Receiving Antenna 3 Meters EXHIBIT F Test Setup Sketch for Radiated Emissions 1 Meter
