B4Z-924-2WTTSTwo Way Talking Touch Screen

GE Security XXXXXX Touch Screen Installation Sheet Description The Simon XT Two-Way Talking Touch Screen (model XXXXXXXXX) features a color 3.5 inch LCD screen with a graphical user interface designed to control basic functionality of the Simon XT (v1.3 or later) control panel. The touch screen provides a convenient option for the following system operations: • Arm the system (doors, windows, and motion sensors). • Arm the system with no entry delay. • Disarm the system. • Activate a panic alarm to call the central monitoring station in a nonmedical emergency. • Check system status. • Turn system controlled lights on or off (all or individual). • Hear the voice feedback from the Simon XT control panel. • Low battery condition is automatically detected by the touch screen and communicated to the control panel. Installation Use the following guidelines when adding this touch screen to the Simon XT system: • Program (learn) the touch screen into the control panel as a sensor. • Program touch screens using sensor groups 01, 03, 06, or 07 for nonsupervised use. • Each programmed (learned) touch screen uses one of the available sensor numbers (40 total sensors/zones are available with the Simon XT panel). • The touch screen will work best if mounted greater than 3 ft. (1.0 m) from the Simon XT panel. Avoid mounting the touch screen directly behind the Simon XT panel on the opposite side of the wall. Always do a sensor test before attaching the touch screen to the wall. To program (learn) the touch screen into the panel: 1. Press the down arrow button on the panel and scroll to System Programming. 2. Press OK. The panel displays Enter Code. 3. Enter the installer access code and press OK. 4. Scroll to Sensors and press OK. 5. When the panel displays Learn Sensor, press OK. The panel blinks Trip Sensor nn (where nn is the next available zone number. You can enter a different zone number if desired. 6. XXXXXXXXXXXXXXXXXXXXXXXXXXXXX to trip the touch screen. The touch screen should announce Okay. If the touch screen does not say Okay, press Status on the panel to cancel the attempt and repeat the process. 7. You can now program the group number. Enter a number for a nonsupervised group and press OK. 8. Select a name for the touch screen and press OK. You can select something simple, such as “Touch Screen”, or use additional descriptors, such as “Bedroom Touch Screen”. 9. To verify that the touch screen is programmed (learned), press the Status button on the panel repeatedly to leave system programming and return to normal panel operation. 10. Press the Status icon on the touch screen. The touch screen should announce the panel arming level and status, such as Disarmed System Okay. Refer to your Simon XT panel documentation for other programming options. Sensor test The touch screen is sensitive to its orientation to the control panel. For that reason, we recommend you test the touch screen before you mount it on the wall. To test the touch screen with the Simon XT panel: 1. Make sure the panel is disarmed. 2. Press the down arrow button on the panel and scroll to System Programming. 3. Press OK. © 2009 GE Security, Inc. 1 of 2 P/N 000000 • REV 00.01 • ISS 11DEC09 Draft 4. When the panel displays Enter Code, enter the appropriate code and press OK. 5. When the panel displays Sensor Test, press OK to start the sensor test. The panel will prompt you to trip each sensor one at a time. 6. To trip the touch screen, XXXXXXXXXXX. You can follow the panel voice prompting to test the sensors in any order. We recommend that you test the touch screen after all programming is completed and whenever a touch screen related problem occurs. To verify communication between the panel and the touch screen, close the panel’s cover to put the panel in run mode and then press the System Status icon on the touch screen. The touch screen should announce the correct system status. Sensor test failure If panel sirens do not beep when a touch screen is tripped, use a GE RF sniffer (60-401) test tool to verify that the touch screen is transmitting. Constant beeps from the RF sniffer indicate a faulty touch screen. Two or three beeps from the RF sniffer indicate the touch screen is functioning but may have to be relocated. To relocate the touch screen: 1. Test the touch screen a few inches from the original position. 2. Increase the distance from the original position. Retest until an acceptable location is found. 3. Mount the touch screen in the new location (see Mounting). Test a known good touch screen at the same location. • If transmission beeps remain below the minimum level, avoid mounting a touch screen at that location. • If the replacement touch screen functions, contact GE Security for repair or replacement of the faulty touch screen. Mounting To mount the touch screen: 1. XXXXXXXXXXXXXXXXXXX 2. XXXXXXXXXXXXXXXXXX 3. XXXXXXXXXXXXXXXXXXX Operation Refer to the touch screen Quick Operation Guide for operation information. Battery replacement When the touch screen batteries are low, the touch screen announces Touch Screen Low Battery. The panel announces (sensor name) Low Battery . Remove the touch screen from the mounting plate and replace all batteries. Avoid touching the touch screen face while you are replacing the batteries. After replacing the batteries, do a sensor test to realign the touch screen with the panel. Specifications Compatibility Simon XT (version 1.3 and later) Power XXXXX Battery Type Replace with Voltage, chemistry, form factor Manufacturer P/N, Manufacturer P/N, or GE approved equivalent Dimensions (W × H × D) 0.0 × 0.0 × 0.0 in. (000 × 000 × 000 mm) Operating environment Temperature Relative humidity 00 to 00°F (00 to 00°C) 0 to 00% noncondensing Regulatory information FCC This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interfere…

Text truncated - open the document above for the full version.

1/27/2010 Attention: Application Examiner Re: Request for confidentiality Applicant: GE Security FCC ID: B4Z-924-2WTTS To whom it may concern, Permanent Confidentiality Request is hereby submitted by GE Security to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description • Parts list Rationale for request for confidentiality: GE Security has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Rick Conner Regulatory Compliance Leader GE Security 1275 Red Fox Road Arden Hills, MN 55112 Ph 651-779-4824 Fx 651-779-4884 1(1)

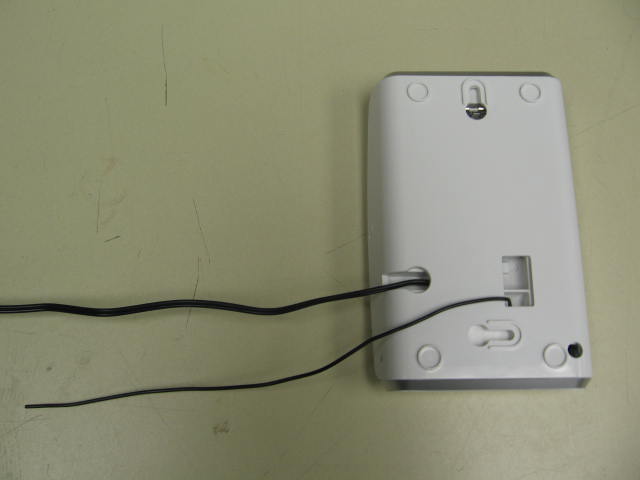

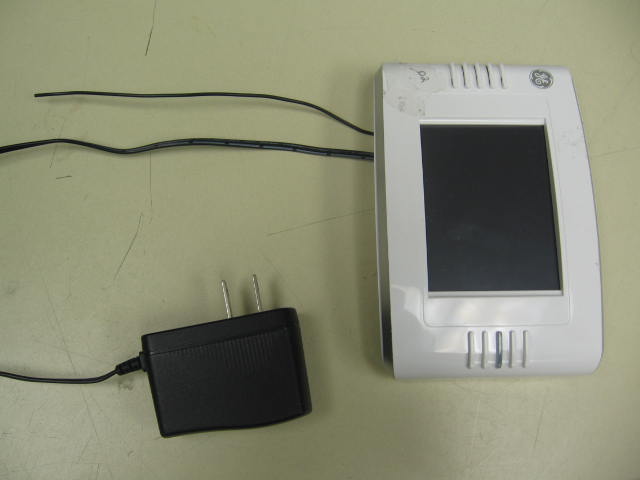

External Photos

TEST REPORT Report Number: 100024851MIN-001 Project Number: G100024851 Testing performed on the 2WTTS FCC ID: B4Z-924-2WTTS Industry Canada ID: 1175C-9242WTTS to 47 CFR Part 15. 231:2008 RSS- 210, Issue 7, 2007 GE Security Inc. Test Performed by: Test Authorized by: Intertek Testing Services NA, Inc. 7250 Hudson Blvd., Suite 100 Oakdale, MN 55128 GE Security Inc. 1275 Red Fox Road Arden Hills, MN 55112 Prepared by: Date: January 27, 2010 Norman Shpilsher Reviewed by: Date: January 27, 2010 Simon Khazon This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report No: 100024851MIN-001 FCC ID: B4Z-924-2WTTS IC ID: 1175C-9242WTTS Page 2 of 31 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION.............................................................................. 3 1.1 Product Description; Test Facility......................................................................................4 1.3 Environmental conditions ..................................................................................................5 1.4 Measurement uncertainty..................................................................................................6 1.5 Field Strength Calculation .................................................................................................6 2.0 TEST SUMMARY.......................................................................................... 7 3.0 TEST CONDITIONS AND RESULTS................................................................. 8 3.1 Transmitter deactivation time ............................................................................................8 3.2 Transmitter field strength of emissions .............................................................................9 3.2.1 Average correction factor calculation .............................................................. 13 3.3 Bandwidth of Emissions ..................................................................................................18 3.4 Transmitter power line conducted emissions ..................................................................21 3.5 Receiver/digital device radiated emissions .....................................................................24 3.6 Digital device conducted emissions ................................................................................28 4.0 TEST EQUIPMENT.......................................................................................31 EMC Report No: 100024851MIN-001 FCC ID: B4Z-924-2WTTS IC ID: 1175C-9242WTTS Page 3 of 31 1.0 GENERAL DESCRIPTION Model: 2WTTS Type of EUT: Transmitter FCC ID: B4Z-924-2WTTS Industry Canada ID: 1175C-9242WTTS Related Submittal(s) Grants: None Company: GE Security Inc. Customer: Mr. Rick Conner Address: 1275 Red Fox Road Arden Hills, MN 55112 Phone: 651-779-4824 Fax: 651-779-4884 e-mail: [email protected] Test Standards: 47 CFR, Part 15:2008, §15.231 RSS–210, Issue 7, 2007 RSS-Gen, Issue 2, 2007 47 CFR, Part 15:2008, §15.107 and §15.109, Class B Other Type of radio: Stand -alone Module Hybrid Date Sample Submitted: January 25, 2010 Test Work Started: January 25, 2010 Test Work Completed: January 27, 2010 Test Sample Conditions: Damaged Poor (Usable) Good EMC Report No: 100024851MIN-001 FCC ID: B4Z-924-2WTTS IC ID: 1175C-9242WTTS Page 4 of 31 1.1 Product Description; Test Facility Product Description: Two Way Talking Touch Screen Security Remote Control Transmitter Operating Frequency 319.5 MHz Modulation: FSK Emission Designator: K1D Antenna(s) Info: Transmitter antenna: integral antenna Receiver antenna: permanently attached soldered wire antenna Antenna Installation: User Professional Factory Transmitter power configuration: Internal battery, 6VDC (4 x 1.5V AA-size batteries) External power source, 6VDC via 100-240VAC, 50/60Hz / 6VDC Power Adapter, model MGT-6500SPS Special Test Arrangement: The EUT is a wall-mounted device, therefore was tested as a table top equipment with normal (vertical) position Test Facility Accreditation: A2LA (Certificate No. 1427.01) Test Methodology: Measurements performed according to the procedures in ANSI C63.4- 2003 EMC Report No: 100024851MIN-001 FCC ID: B4Z-924-2WTTS IC ID: 1175C-9242WTTS Page 5 of 31 1.2 EUT Configuration The equipment under test was operated during the measurement under the following conditions: - Standby / receiving mode - Continuous transmitting mode - Test program (customer specific) - Operating modes of the EUT: No. Description 1 Two units were tested: - a “regular” unit was tested in standby / receiving mode and for average correction factor calculations - a wired to transmit continuously unit was tested for other tests 2 Cables: No. Type Length Designation Note 1 N/A 2 Support equipment/Services: No. Item Description 1 Generator R&S SMR20 Signal source for the EUT testing in standby / receiver mode 2 General notes: None 1.3 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pr…
