B4Z-944E-3GGSM Transceiver

UTC Fire & Security Americas Corporation, Inc.
GSM Transceiver - FCC ID B4Z-944E-3G - UTC Fire & Security Americas Corporation, Inc.
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Jul 11, 2013
Application Purpose
Original Equipment
Date of Application
Jul 11, 2013
Equipment Note
GSM Transceiver
Frequency Range
1712.40000000 - 1752.60000000
Company
UTC Fire & Security Americas Corporation, Inc.
Country
United States

Documents & Files

Select a file to view

Cover Letter(s)

↗
↗

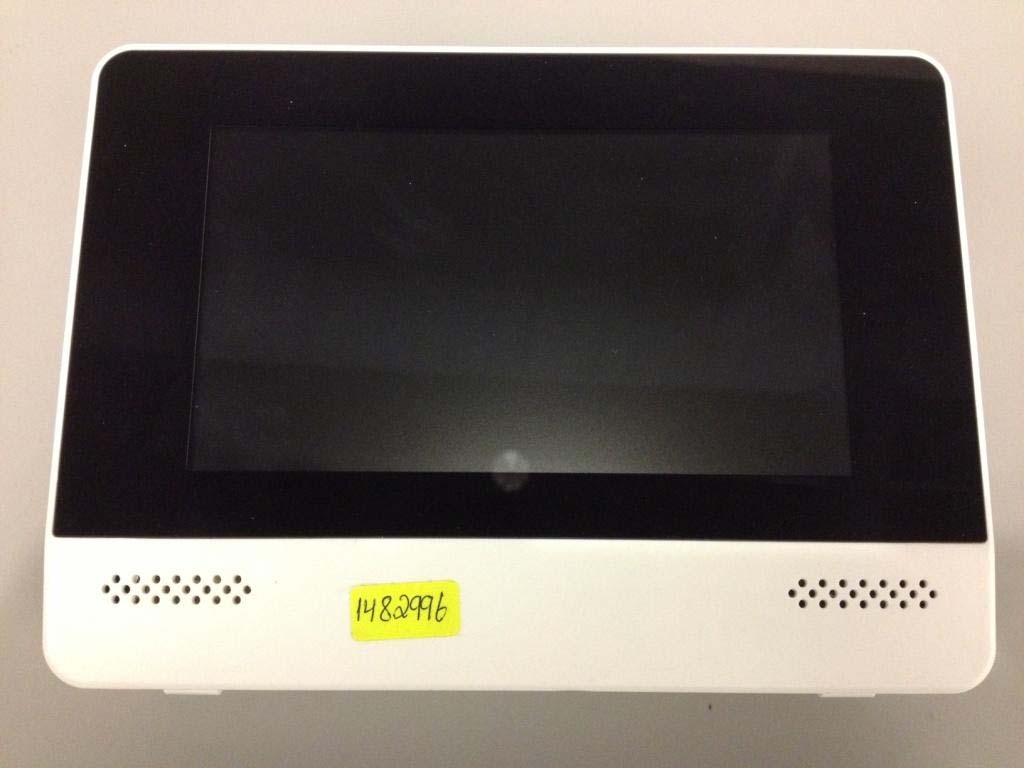

External Photos

↗

ID Label/Location Info

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

Letter of Agency I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 1995) to this application, including myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853A. Equipment: AdvisorOne GSM Module Model: AVO-GSM3 FCC ID: B4Z-944E-3G Dated this 29 th day of May, 2013. Kevin Flanders Global Product Compliance Leader - Intrusion UTC Fire & Security Americas Corporation, Inc. T: 651.773.4663 eFax: 1.860.353.5400 E: [email protected] 1275 Red Fox Rd Arden Hills, MN 55112

Cover Letter(s)

1(1) Attention: Application Examiner Re: Request for confidentiality Applicant: UTC Fire and Security FCC ID:B4Z-944E-3G To whom it may concern, Request is hereby submitted by UTC Fire and Security to withhold permanently from public review certain portions of this application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description • Tune up procedure • Parts list • Internal photos o Device is not sold to end user. • User manual o Professional installation required so the manual is not provided to the consumer since the consumer cannot service the device Rationale for request for confidentiality: UTC Fire and Security has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely, Kevin Flanders Global Product Compliance Leader UTC Fire and Security

RF Exposure Info

RF EXPOSURE COMPLIANCE Report Number: 101039189MIN-001H Project Number: G101039189 RF Exposure Compliance: MPE Requirements For Simultaneous Transmission Operations The following are transmitters that qualify for simultaneous transmission: AVO-GSM3 1900MHz Radio (see report 101039189MIN-001D) - maximum calculated MPE of 0.11mW/cm 2 AVO-BTWI, WiFi Radio (see report 101039189MIN-001B) - maximum calculated MPE of 0.052mW/cm 2 AVO-ZW, Z-Wave Radio – see calculations below: The Maximum Radiated Field Strength for AVO-ZW, Z-Wave Radio at Fundamental Frequency is 93.4dBμV/m = 46.774μV/m = 0.047V/m (see report 101039189MIN-001A) Antenna Gain = 1dBi or 1.26 numeric gain ERP= (E x d) 2 /30G= (0.047 V/m * 3m) / 30 * 1.26 = 0.54mW or -2.7dBm Maximum Permissible Exposure (MPE) calculation: S(mW/cm 2 ) = EIRP(mW) / 4πD 2 , or S = 0.54 / (4πx400) = 0.0001mW/cm 2 Therefore, the sum of the MPE for all three radios operating simultaneously based on calculation is: ΣS(mW/cm 2 ) = 0.11mW/cm 2 + 0.0052mW/cm 2 + 0.0001mW/cm 2 = 0.163mW/cm 2 that is less then 1mW/cm 2 . Prepared by: Date: May 24, 2013 Uri Spector Reviewed by: Date: May 24, 2013 Simon Khazon

Test Report

TEST REPORT Report Number: 101039189MIN-001C Project Number: G101039189 Testing performed on the AdvisorOne AVO-GSM3 850MHz Radio FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G to 47 CFR Part 22:2010 47 CFR Part 15:2010, §15.107 and §15.109, Class B RSS-132 Issue 3, 2013 ICES-003, Issue 5, 2012 For UTC Fire & Security Americas Corporation, Inc. Test Performed by: Test Authorized by: Intertek Testing Services NA, Inc. 7250 Hudson Blvd., Suite 100 Oakdale, MN 55128 UTC Fire & Security Americas Corporation, Inc. 1275 Red Fox Road Arden Hills, MN 55112 Prepared by: Date: May 20, 2013 Uri Spector Reviewed by: Date: May 20, 2013 Simon Khazon This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Report No: 101039189MIN-001C FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G Page 2 of 62 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION.......................................................................................................... 3 1.1 Product Description; Test Facility ....................................................................................... 4 1.3 Environmental conditions.................................................................................................... 5 1.4 Measurement uncertainty ................................................................................................... 6 1.5 Field Strength Calculation................................................................................................... 6 2.0 TEST SUMMARY.......................................................................................................................... 7 3.0 TEST CONDITIONS AND RESULTS........................................................................................ 8 3.1 RF Output Power ERP ........................................................................................................ 8 3.2 Modulation Characteristics................................................................................................ 16 3.3 Frequency Stability ........................................................................................................... 18 3.4 99% Occupied Bandwidth................................................................................................. 19 3.5 Antenna conducted spurious emissions ........................................................................... 29 3.6 Enclosure Radiated spurious emissions.......................................................................... 39 3.7 Spurious emissions at antenna terminal at Block Edges .................................................47 3.8 RF Exposure Compliance ................................................................................................. 54 3.9 Receiver/digital device radiated emissions, FCC Part 15.109 ......................................... 55 3.10 AC Power line conducted emissions, FCC Part 15.107 ................................................... 59 4.0 TEST EQUIPMENT..................................................................................................................... 62 Report No: 101039189MIN-001C FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G Page 3 of 62 1.0 GENERAL DESCRIPTION Model: AdvisorOne Type of EUT: Wireless Security System FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G Related Submittal(s) Grants: N/A Company: UTC Fire & Security Americas Corporation, Inc. Customer: Mr. Kevin Flanders Address: 1275 Red Fox Road Arden Hills, MN 55112 Phone: 651-773-4663 Fax: (651) 779-4884 e-mail: [email protected] Test Standards: 47 CFR, Part 22:2010 RSS–132, Issue 3, 2013 ICES-003, Issue 5, 2012 47 CFR, Part 15:2009, §15.107 and §15.109, Class B Other Type of radio: Stand -alone Module Hybrid Date Sample Submitted: February 15, 2013 Test Work Started: February 15, 2013 Test Work Completed: April 22, 2013 Test Sample Conditions: Damaged Poor (Usable) Good Report No: 101039189MIN-001C FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G Page 4 of 62 1.1 Product Description; Test Facility Product Description: AVO-GSM3 850MHz Radio Board Revision: 55-944 Transmitter Type: FHSS Digital Modulation WiFi Blue Tooth Operating Frequency Range(s): From 824.2 to 848.8 MHz Modulation: GMSK-GPRS 8-PSK-EGPRS DQPSK-WCDMA Emission Designator: 242KGXW for GSM GPRS 248KG7W for GSM EGPRS 4M1F9W for WCDMA Antenna Gain: 2.4dBi Antenna Installation: User Professional Factory Transmitter power configuration: Internal battery External power source 120VAC 230VAC 400VAC VDC Other: Amp. 50Hz 60Hz Test Facility Accreditation: A2LA (Certificate No. 1427.01) Test Methodology: Measurements performed according to the procedures in ANSI C63.10- 2009 and FCC DTS Measurement Guide, ANSI/TIA-603-C: 2004 Report No: 101039189MIN-001C FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G Page 5 of 62 1.2 EUT Configuration The equipment under test was operated during the measurement under the following conditions: - Standby - Continuous transmissions (modulated signal) - Continuous transmissions (un-modulated signal) - Continuous receiving - Test program (customer specific) - Operating modes of the EUT: No.…

Text truncated - open the document above for the full version.

Test Report

TEST REPORT Report Number: 101039189MIN-001D Project Number: G101039189 Testing performed on the AdvisorOne AVO-GSM3 1900MHz Radio FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G to 47 CFR Part 24:2010 47 CFR Part 15:2010, §15.107 and §15.109, Class B RSS-133 Issue 6, 2013 ICES-003, Issue 5, 2012 For UTC Fire & Security Americas Corporation, Inc. Test Performed by: Test Authorized by: Intertek Testing Services NA, Inc. 7250 Hudson Blvd., Suite 100 Oakdale, MN 55128 UTC Fire & Security Americas Corporation, Inc. 1275 Red Fox Road Arden Hills, MN 55112 Prepared by: Date: May 21, 2013 Uri Spector Reviewed by: Date: May 21, 2013 Simon Khazon This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Report No: 101039189MIN-001D FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G Page 2 of 65 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION.......................................................................................................... 3 1.1 Product Description; Test Facility ....................................................................................... 4 1.3 Environmental conditions.................................................................................................... 5 1.4 Measurement uncertainty ................................................................................................... 6 1.5 Field Strength Calculation................................................................................................... 6 2.0 TEST SUMMARY.......................................................................................................................... 7 3.0 TEST CONDITIONS AND RESULTS........................................................................................ 8 3.1 RF Output Power ERP ........................................................................................................ 8 3.2 Modulation Characteristics................................................................................................ 16 3.3 Frequency Stability ........................................................................................................... 18 3.4 99% Occupied Bandwidth................................................................................................. 19 3.5 Antenna conducted spurious emissions ........................................................................... 29 3.6 Enclosure Radiated spurious emissions.......................................................................... 39 3.7 Spurious emissions at antenna terminal at Block Edges .................................................52 3.8 RF Exposure Compliance ................................................................................................. 57 3.9 Receiver/digital device radiated emissions, FCC Part 15.109 ......................................... 58 3.10 AC Power line conducted emissions, FCC Part 15.107 ................................................... 62 4.0 TEST EQUIPMENT..................................................................................................................... 65 Report No: 101039189MIN-001D FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G Page 3 of 65 1.0 GENERAL DESCRIPTION Model: AdvisorOne Type of EUT: Wireless Security System FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G Related Submittal(s) Grants: N/A Company: UTC Fire & Security Americas Corporation, Inc. Customer: Mr. Kevin Flanders Address: 1275 Red Fox Road Arden Hills, MN 55112 Phone: 651-773-4663 Fax: (651) 779-4884 e-mail: [email protected] Test Standards: 47 CFR, Part 24:2010 RSS–133, Issue 6, 2013 ICES-003, Issue 5, 2012 47 CFR, Part 15:2009, §15.107 and §15.109, Class B Other Type of radio: Stand -alone Module Hybrid Date Sample Submitted: February 15, 2013 Test Work Started: February 15, 2013 Test Work Completed: April 22, 2013 Test Sample Conditions: Damaged Poor (Usable) Good Report No: 101039189MIN-001D FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G Page 4 of 65 1.1 Product Description; Test Facility Product Description: AVO-GSM3 1900MHz Radio Board Revision: 55-944 Transmitter Type: FHSS Digital Modulation WiFi Blue Tooth Operating Frequency Range(s): From 1850.2 to 1910.0MHz Modulation: GMSK-GPRS 8-PSK-EGPRS DQPSK-WCDMA Emission Designator: 242KGXW for GSM GPRS 248KG7W for GSM EGPRS 4M1F9W for WCDMA Antenna Gain: 0.55dBi Antenna Installation: User Professional Factory Transmitter power configuration: Internal battery External power source 120VAC 230VAC 400VAC VDC Other: Amp. 50Hz 60Hz Test Facility Accreditation: A2LA (Certificate No. 1427.01) Test Methodology: Measurements performed according to the procedures in ANSI C63.10- 2009 and FCC DTS Measurement Guide, ANSI/TIA-603-C: 2004 Report No: 101039189MIN-001D FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G Page 5 of 65 1.2 EUT Configuration The equipment under test was operated during the measurement under the following conditions: - Standby - Continuous transmissions (modulated signal) - Continuous transmissions (un-modulated signal) - Continuous receiving - Test program (customer specific) - Operating modes of the EUT:…

Text truncated - open the document above for the full version.

Test Report

TEST REPORT Report Number: 101039189MIN-001E Project Number: G101039189 Testing performed on the AdvisorOne AVO-GSM3 1700MHz Radio FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G to 47 CFR Part 27:2010 47 CFR Part 15:2010, §15.107 and §15.109, Class B RSS-139 Issue 2, 2009 ICES-003, Issue 5, 2012 For UTC Fire & Security Americas Corporation, Inc. Test Performed by: Test Authorized by: Intertek Testing Services NA, Inc. 7250 Hudson Blvd., Suite 100 Oakdale, MN 55128 UTC Fire & Security Americas Corporation, Inc. 1275 Red Fox Road Arden Hills, MN 55112 Prepared by: Date: May 21, 2013 Uri Spector Reviewed by: Date: May 21, 2013 Simon Khazon This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Report No: 101039189MIN-001E FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G Page 2 of 52 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION.......................................................................................................... 3 1.1 Product Description; Test Facility ....................................................................................... 4 1.3 Environmental conditions.................................................................................................... 5 1.4 Measurement uncertainty ................................................................................................... 6 1.5 Field Strength Calculation................................................................................................... 6 2.0 TEST SUMMARY.......................................................................................................................... 7 3.0 TEST CONDITIONS AND RESULTS........................................................................................ 8 3.1 RF Output Power ERP ........................................................................................................ 8 3.3 Frequency Stability ........................................................................................................... 12 3.4 99% Occupied Bandwidth................................................................................................. 13 3.5 Antenna conducted spurious emissions ........................................................................... 17 3.6 Enclosure Radiated spurious emissions.......................................................................... 27 3.7 Spurious emissions at antenna terminal at Block Edges .................................................41 3.8 RF Exposure Compliance ................................................................................................. 44 3.9 Receiver/digital device radiated emissions, FCC Part 15.109 ......................................... 45 3.10 AC Power line conducted emissions, FCC Part 15.107 ................................................... 49 4.0 TEST EQUIPMENT..................................................................................................................... 52 Report No: 101039189MIN-001E FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G Page 3 of 52 1.0 GENERAL DESCRIPTION Model: AdvisorOne Type of EUT: Wireless Security System FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G Related Submittal(s) Grants: N/A Company: UTC Fire & Security Americas Corporation, Inc. Customer: Mr. Kevin Flanders Address: 1275 Red Fox Road Arden Hills, MN 55112 Phone: 651-773-4663 Fax: (651) 779-4884 e-mail: [email protected] Test Standards: 47 CFR, Part 27:2010 RSS–139, Issue 2, 2009 ICES-003, Issue 5, 2012 47 CFR, Part 15:2009, §15.107 and §15.109, Class B Other Type of radio: Stand -alone Module Hybrid Date Sample Submitted: February 15, 2013 Test Work Started: February 15, 2013 Test Work Completed: April 22, 2013 Test Sample Conditions: Damaged Poor (Usable) Good Report No: 101039189MIN-001E FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G Page 4 of 52 1.1 Product Description; Test Facility Product Description: AVO-GSM3 1700MHz Radio Board Revision: 55-944 Transmitter Type: FHSS Digital Modulation WiFi Blue Tooth Operating Frequency Range(s): From 1712.4 to 1752.6MHz Modulation: DQPSK-WCDMA Emission Designator: 4M1F9W Antenna Gain: 1.8dBi Antenna Installation: User Professional Factory Transmitter power configuration: Internal battery External power source 120VAC 230VAC 400VAC VDC Other: Amp. 50Hz 60Hz Test Facility Accreditation: A2LA (Certificate No. 1427.01) Test Methodology: Measurements performed according to the procedures in ANSI C63.10- 2009 and FCC DTS Measurement Guide Report No: 101039189MIN-001E FCC ID: B4Z-944E-3G Industry Canada ID: 1175C-944E3G Page 5 of 52 1.2 EUT Configuration The equipment under test was operated during the measurement under the following conditions: - Standby - Continuous transmissions (modulated signal) - Continuous transmissions (un-modulated signal) - Continuous receiving - Test program (customer specific) - Operating modes of the EUT: No. Description 1 Continuous communication with Radio Communication Tester. Test was performed at low channel, middle channel, and upper channel. Cables: No. Type Length Designation Note 1 RJ45, not shielded <100ft Ethernet WAN…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Konstantin Khrustov(Compliance Leader)
[email protected]949-737-7815Fax: 949-737-7882

Technical Contact

UTC Fire and SecurityKevin Flanders
[email protected]651.773.4663

1275 Red Fox Road · Arden Hills, Minnesota · United States

Non-Technical Contact

UTC Fire and SecurityKevin Flanders
[email protected]651.773.4663

Test Firm

Intertek Testing Services NA, Inc.Andrew Waytulonis
[email protected]651-730-1188Fax: 651 702 9132

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
7271.71 GHz - 1.75 GHz470.00 mW4M1F9W0.038 ppm
Confidentiality
Long Term
Grant Notes
Output power is ERP/EIRP. The antenna(s) used with this transmitter must be installed to provide a minimum separation distance of 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter than as shown in the filing. Only those antenna(s) or similar tested in this filing may be used with the transmitter. End users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
