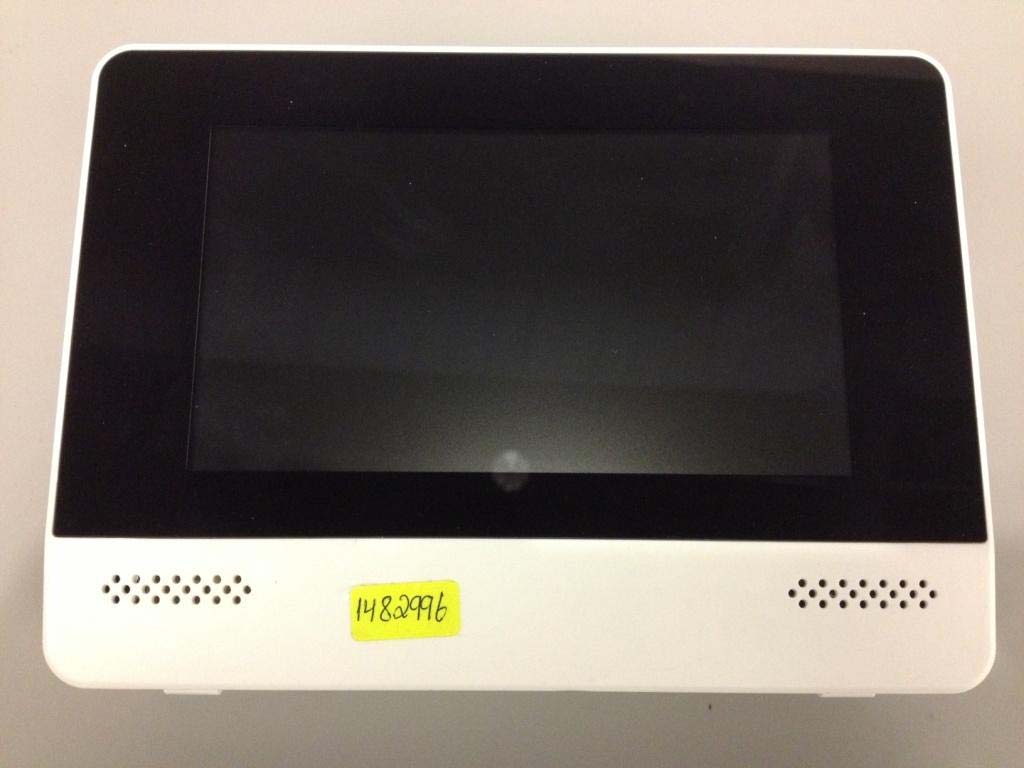

B4Z-959B-ZWZ-wave transceiver

Letter of Agency I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 1995) to this application, including myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853A. Equipment: AdvisorOne Z-Wave Module, Model # AVO-ZW FCC ID: B4Z-959B-ZW Dated this 30 th day of May, 2013. Signature Kevin Flanders Global Product Compliance Leader - Intrusion UTC Fire & Security Americas Corporation, Inc. T: 651.773.4663 eFax: 1.860.353.5400 E: [email protected] 1275 Red Fox Rd Arden Hills, MN 55112

1(1) Attention: Application Examiner Re: Request for confidentiality Applicant: UTC Fire and Security FCC ID:B4Z-959B-ZW To whom it may concern, Request is hereby submitted by UTC Fire and Security to withhold permanently from public review certain portions of this application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description • Tune up procedure • Parts list • Internal photos o Device is not sold to end user. • User manual o Professional installation required so the manual is not provided to the consumer since the consumer cannot service the device Rationale for request for confidentiality: UTC Fire and Security has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely, Kevin Flanders Global Product Compliance Leader UTC Fire and Security

RF EXPOSURE COMPLIANCE Report Number: 101039189MIN-001H Project Number: G101039189 RF Exposure Compliance: MPE Requirements For Simultaneous Transmission Operations The following are transmitters that qualify for simultaneous transmission: AVO-GSM3 1900MHz Radio (see report 101039189MIN-001D) - maximum calculated MPE of 0.11mW/cm 2 AVO-BTWI, WiFi Radio (see report 101039189MIN-001B) - maximum calculated MPE of 0.052mW/cm 2 AVO-ZW, Z-Wave Radio – see calculations below: The Maximum Radiated Field Strength for AVO-ZW, Z-Wave Radio at Fundamental Frequency is 93.4dBμV/m = 46.774μV/m = 0.047V/m (see report 101039189MIN-001A) Antenna Gain = 1dBi or 1.26 numeric gain ERP= (E x d) 2 /30G= (0.047 V/m * 3m) / 30 * 1.26 = 0.54mW or -2.7dBm Maximum Permissible Exposure (MPE) calculation: S(mW/cm 2 ) = EIRP(mW) / 4πD 2 , or S = 0.54 / (4πx400) = 0.0001mW/cm 2 Therefore, the sum of the MPE for all three radios operating simultaneously based on calculation is: ΣS(mW/cm 2 ) = 0.11mW/cm 2 + 0.0052mW/cm 2 + 0.0001mW/cm 2 = 0.163mW/cm 2 that is less then 1mW/cm 2 . Prepared by: Date: May 24, 2013 Uri Spector Reviewed by: Date: May 24, 2013 Simon Khazon

TEST REPORT Report Number: 101039189MIN-001A Project Number: G101039189 Testing performed on the AdvisorOne AVO-ZW FCC ID: B4Z-959B-ZW Industry Canada ID: 1175C-959BZW to 47 CFR Part 15.249:2010 RSS- 210, Issue 8, 2010 RSS-Gen, Issue 3, 2010 47 CFR, Part 15:2010, §15.107 and §15.109, Class / ICES-003, Issue 5:2012 For UTC Fire & Security Americas Corporation, Inc. Test Performed by: Test Authorized by: Intertek Testing Services NA, Inc. 7250 Hudson Blvd., Suite 100 Oakdale, MN 55128 USA UTC Fire & Security Americas Corporation, Inc. 1275 Red Fox Road Arden Hills, MN 55112 USA Prepared by: Date: May 30, 2013 Uri Spector Reviewed by: Date: May 30, 2013 Simon Khazon This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report No: 101039189MIN-001A FCC ID: B4Z-959B-ZW IC ID: 1175C-959BZW Page 2 of 27 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION.......................................................................................................... 3 1.1 Product Description; Test Facility ....................................................................................... 4 1.3 Environmental conditions.................................................................................................... 5 1.4 Measurement uncertainty ................................................................................................... 6 1.5 Field Strength Calculation................................................................................................... 6 2.0 TEST SUMMARY.......................................................................................................................... 7 3.0 TEST CONDITIONS AND RESULTS........................................................................................ 8 3.1 Field strength of fundamental ............................................................................................. 8 3.2 Field strength of harmonics and spurious emissions ....................................................... 10 3.3 Bandwidth of Emissions.................................................................................................... 14 3.4 Transmitter power line conducted emissions ................................................................... 17 3.5 Receiver/digital device radiated emissions....................................................................... 20 3.6 Digital device conducted emissions.................................................................................. 24 4.0 TEST EQUIPMENT..................................................................................................................... 27 EMC Report No: 101039189MIN-001A FCC ID: B4Z-959B-ZW IC ID: 1175C-959BZW Page 3 of 27 1.0 GENERAL DESCRIPTION Models: AdvisorOne Type of EUT: Security Alarm FCC ID: B4Z-959B-ZW Industry Canada ID: 1175C-959BZW Related Submittal(s) Grants: None Company: UTC Fire & Security Americas Corporation, Inc. Customer: Mr. Kevin Flanders Address: 1275 Red Fox Road Arden Hills, MN 55112 USA Phone: (651) 773-4663 Fax: (651) 779-4884 email: [email protected] Test Standards: 47 CFR, Part 15:2010, §15.249 RSS–210, Issue 8, 2010 RSS-Gen, Issue 3, 2010 47 CFR, Part 15:2010, §15.107 and §15.109, Class B ICES-003, Issue 5:2012 Other Type of radio: Stand -alone Module Hybrid Date Sample Submitted: February 22, 2013 Test Work Started: February 22, 2013 Test Work Completed: April 31, 2013 Test Sample Conditions: Damaged Poor (Usable) Good EMC Report No: 101039189MIN-001A FCC ID: B4Z-959B-ZW IC ID: 1175C-959BZW Page 4 of 27 1.1 Product Description; Test Facility Product Description: Z-Wave Board Revision: 55-959 Operating Frequency 908.40MHz Modulation: FSK Emission Designator: 133KFXD Antenna(s) Info: Antenna Type: Integral Antenna Installation: User Professional Factory Transmitter Power Configuration: Internal battery External power source 120VAC 230VAC 400VAC 3.0VDC Other: Amp. 50Hz 60Hz Special Test Arrangement: None Test Facility Accreditation: A2LA (Certificate No. 1427.01) Test Methodology: Measurements performed according to the procedures in ANSI C63.10- 2009 EMC Report No: 101039189MIN-001A FCC ID: B4Z-959B-ZW IC ID: 1175C-959BZW Page 5 of 27 1.2 EUT Configuration The equipment under test was operated during the measurement under the following conditions: - Standby - Continuous - Continuous un-modulated - Test program (customer specific) - Operating modes of the EUT: No. Description 1 Samples wired to provide continuous transmitting mode or receiving/standby mode were tested Cables: No. Type Length Designation Note 1 RJ45, not shielded <100ft Ethernet WAN cable 2 RJ45, not shielded <100ft Ethernet LAN cable 3 RJ45, not shielded >100ft Home telephone connection cable 4 2-wire not shielded DC power 6ft Battery Connection 5 2-wire not shielded DC power >100ft Telephone bell 6 Zones 1, 2, 3, 4,5 >100ft Superbus 7 External antenna cable <6ft 319.5MHz receive antenna 8 External antenna cable <6ft GSM-GPRS antenna Support equipment/Services: No. Item Description 1 None General notes: None 1.3 Environmental conditions During the measurement the environmental conditions were within the liste…
