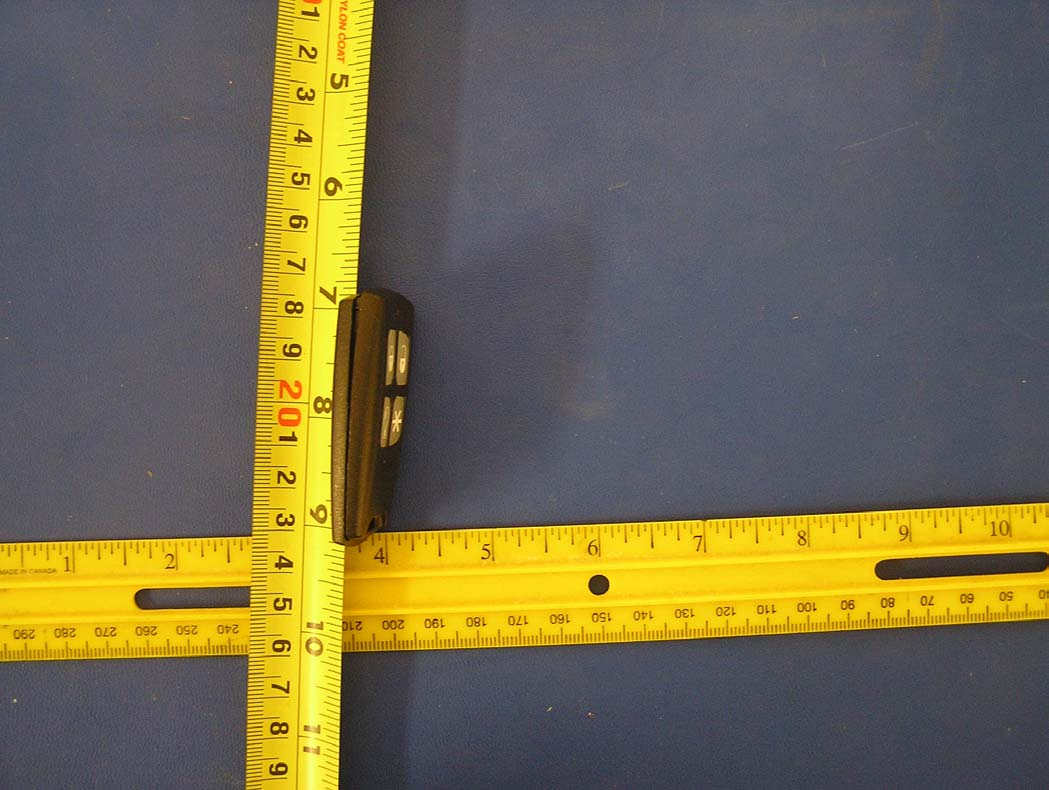

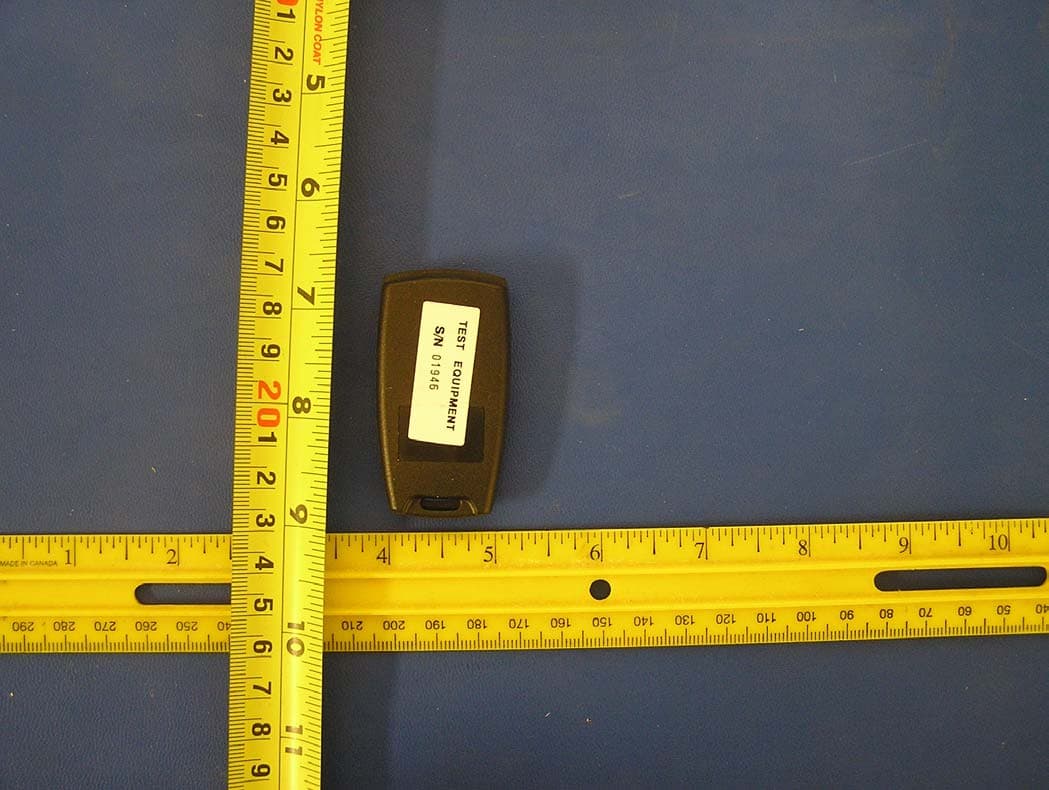

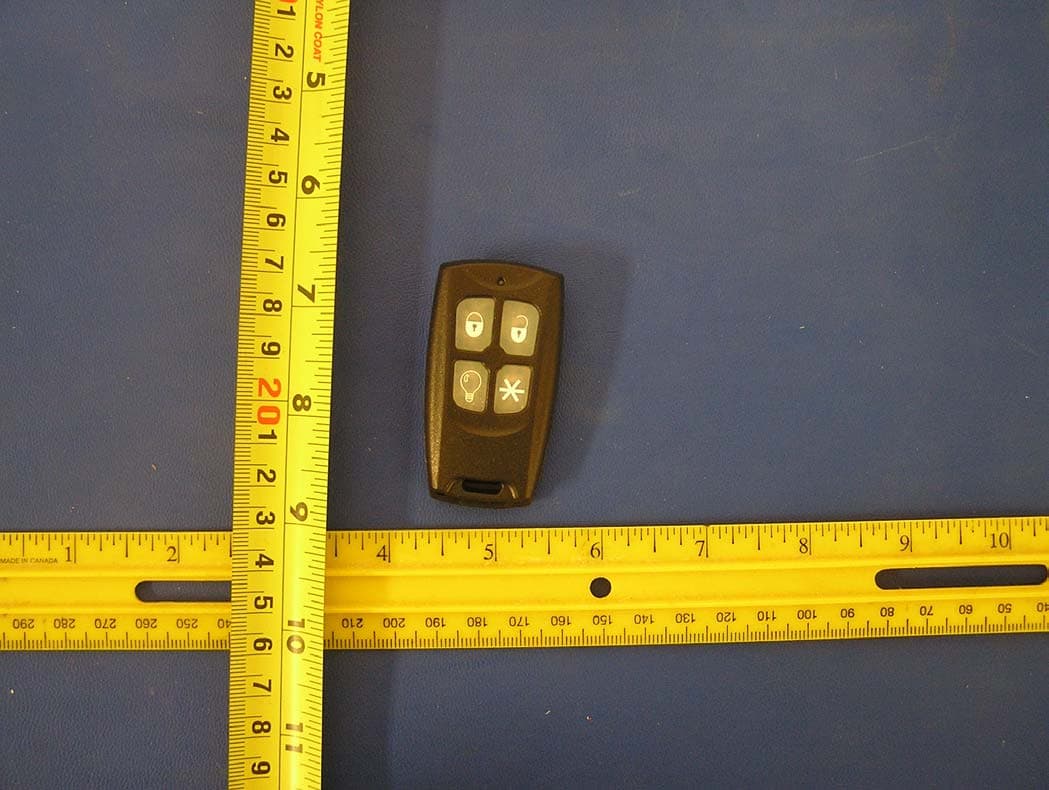

B4Z-RF4004-01-2GE 4 Button TX 5003-01

466-2283A • June 2007 Copyright © 2007, GE Security Inc. 4-Button Slimline Keyfob Installation Instructions Introduction This is the GE 4-Button Slimline Keyfob Installation Instruc- tions. The keyfob enables you to turn the system on and off after exiting or before entering the home or to turn on the siren and call the central monitoring station if there is an emergency. If lamp modules have been installed, you can use the keyfob to turn all system-controlled lights on or off. The keyfob is a lithium coin battery-powered, wireless keyfob designed to fit on a keychain, in a pocket, or in a purse. It provides a convenient option for the following system operations: • Arm the system (doors, windows, and motion sensors). • Arm the system with no entry delay (if programmed). • Disarm the system. • Trigger panic alarms. • Turn system-controlled lights on or off. • Open the garage door or turn outside lights on (if programed). Programming guidelines Refer to your control panel documentation for instructions on programming and sensor testing your keyfob. Use the following guidelines to add keyfobs to the system: • Program (learn) the keyfobs into the control panel as nonsu- pervised sensors. • Each learned keyfob uses one of the available sensor numbers. • Use sensor group number 01, 03, 06, or 07. Keyfob test Refer to your control panel documentation to initiate panel test mode, then test the keyfob by pressing the keyfob buttons (Figure 1): Unlock button. Disarms the control panel. The doors, windows, and motion sensors are disarmed. Lock button. The following key presses will depend on your control panel configuration. • If pressed once, the control panel arms doors and windows (stay mode). • If pressed twice, the control panel arms motion sensors, doors, and windows (away mode). • If pressed three times, the control panel activates the latchkey feature when this option is off (Simon 3 and Simon XT only). Lock and Unlock buttons. If the keyfob is programmed (learned) as an intrusion, silent alarm, or emergency sensor type, when you press the Lock and Unlock buttons simulta- neously, the keyfob will activate alarm reports to the central station. These two buttons are also used to test the sensor. Light button. Toggles system-controlled lights on/off. Star button. If used with the X-10 universal module, the control panel will cause the garage door to open or close. Figure 1. Keyfob buttons FCC compliance This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment . Specifications Power sourceCR2025 3V, 165 mAh lithium coin battery Dimensions (L x W x H)2.2 x 1.2 x 0.4 in. (57 x 32 x 11 mm) Typical battery life5 to 8 years Operating temperature32 to 120°F (0 to 49°C) Unlock button Star button Lock button Light button LED Technical support Toll-free: 888.GESECURity (888.437.3287 in the US, including Alaska and Hawaii; Puerto Rico; Canada). Outside the toll-free area: Contact your local dealer. www.gesecurity.com

Antenna Specification RF4004-01-2 Rev 1 The RF4004-01-2 transmitter uses and internal -15 dBi printed PCB loop antenna which not replaceable by the user.

FCC CFR47 PART 15 SUBPART C IC RSS-210 CERTIFICATION TEST REPORT FOR GE 4 BUTTON TX 5003-01 MODEL NUMBER: RF4004-01-2 FCC ID: B4Z-RF4004-01-2 IC: 1175C-RF400401 REPORT NUMBER: 07U11049-1 ISSUE DATE: MAY 17, 2007 Prepared for GE SECURITY 1275 RED FOX ROAD ARDEN HILLS, MN 55112 Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U11049-1 DATE: MAY 17, 2007 EUT : GE 4 BUTTON TX 5003-01 FCC ID: B4Z-RF4004-01-2/ IC: 1175C-RF400401 Page 2 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By --- 05/17/07 Initial Issue T. Chan REPORT NO: 07U11049-1 DATE: MAY 17, 2007 EUT : GE 4 BUTTON TX 5003-01 FCC ID: B4Z-RF4004-01-2/ IC: 1175C-RF400401 Page 3 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................................ 4 2. TEST METHODOLOGY..................................................................................................................... 5 3. FACILITIES AND ACCREDITATION .............................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ............................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST .............................................................................................................. 6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.3. MODIFICATIONS ........................................................................................................................ 6 5.4. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.5. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT .................................................................................... 9 7. LIMITS AND RESULTS ................................................................................................................... 10 7.1. 20dB BANDWIDTH .................................................................................................................... 10 7.2. MAXIMUM MODULATION PERCENTAGE (M %) ................................................................. 12 7.3. LESS THAN 5 SECONDS PLOT ................................................................................................ 18 7.4. RADIATED EMISSIONS.............................................................................................................20 7.4.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 20 7.4.2. RECEIVER SPURIOUS EMISSIONS LIMIT................................................................... 23 8. SETUP PHOTOS................................................................................................................................ 24 REPORT NO: 07U11049-1 DATE: MAY 17, 2007 EUT : GE 4 BUTTON TX 5003-01 FCC ID: B4Z-RF4004-01-2/ IC: 1175C-RF400401 Page 4 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: GE SECURITY 1275 RED FOX ROAD ARDEN HILLS, MN 55112 EUT DESCRIPTION: GE 4 BUTTON TX 5003-01 MODEL: RF4004-01-2 SERIAL NUMBER: 01947 DATE TESTED: MAY 17, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED IC RSS-210 ISSUE 5 NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN DOUG ANDERSON EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 07U11049-1 DATE: MAY 17, 2007 EUT : GE 4 BUTTON TX 5003-01 FCC ID: B4Z-RF4004-01-2/ IC: 1175C-RF400401 Page 5 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 77…

Text truncated - open the document above for the full version.

REPORT NO: 07U11049-1 DATE: MAY 17, 2007 EUT : GE 4 BUTTON TX 5003-01 FCC ID: B4Z-RF4004-01-2/ IC: 1175C-RF400401 Page 24 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS REPORT NO: 07U11049-1 DATE: MAY 17, 2007 EUT : GE 4 BUTTON TX 5003-01 FCC ID: B4Z-RF4004-01-2/ IC: 1175C-RF400401 Page 25 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Y-AXIS REPORT NO: 07U11049-1 DATE: MAY 17, 2007 EUT : GE 4 BUTTON TX 5003-01 FCC ID: B4Z-RF4004-01-2/ IC: 1175C-RF400401 Page 26 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT Z-AXIS
