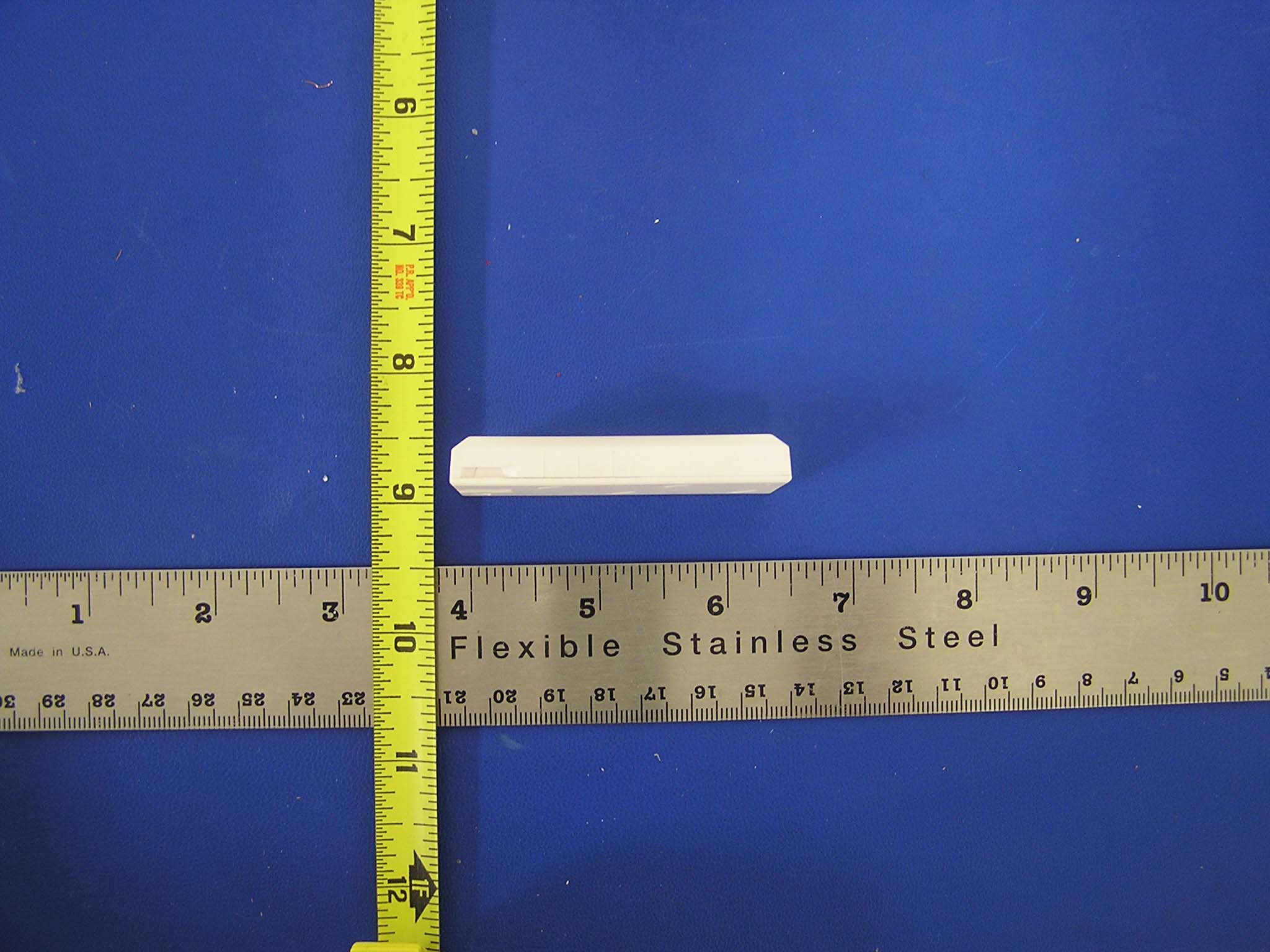

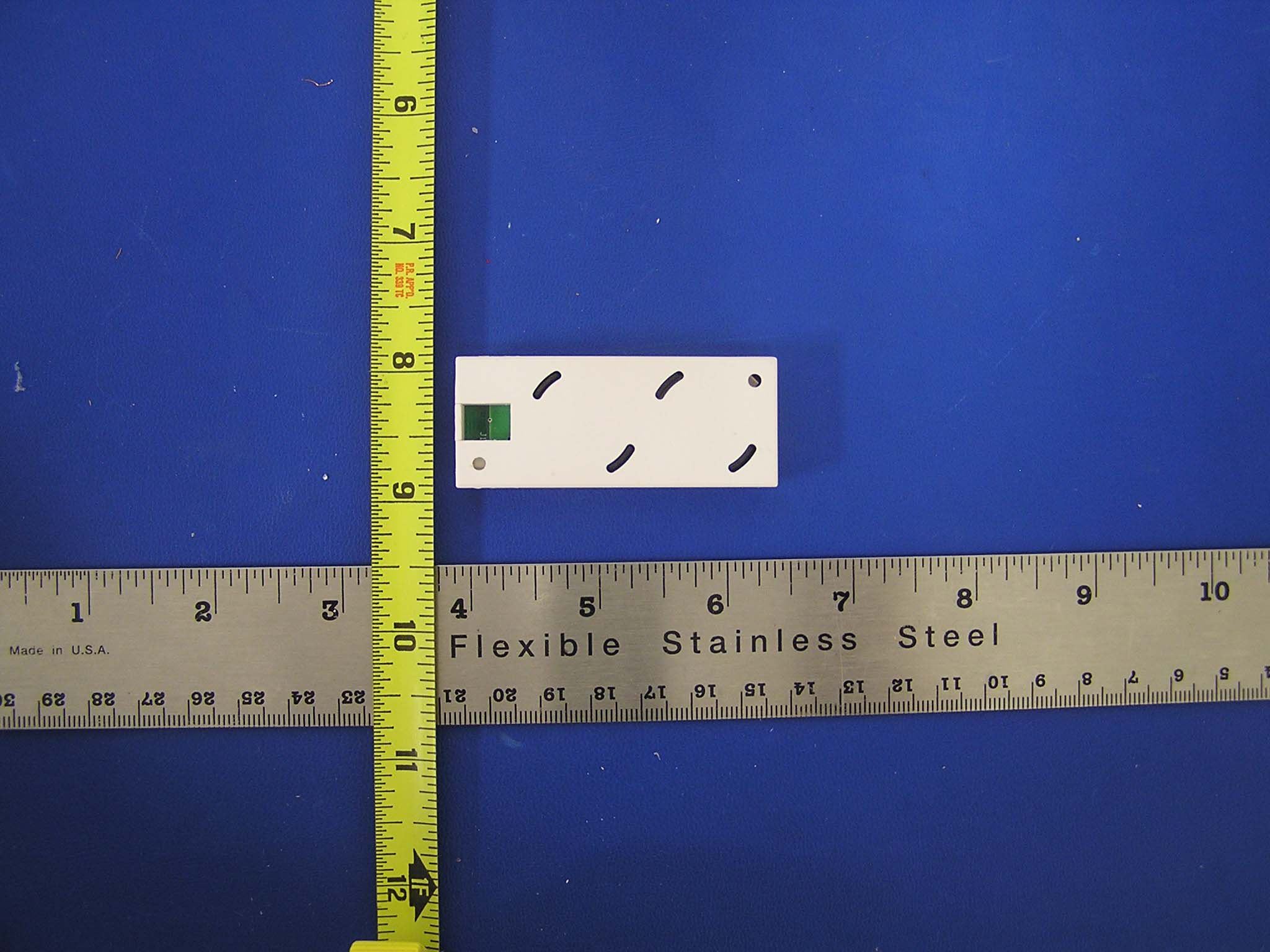

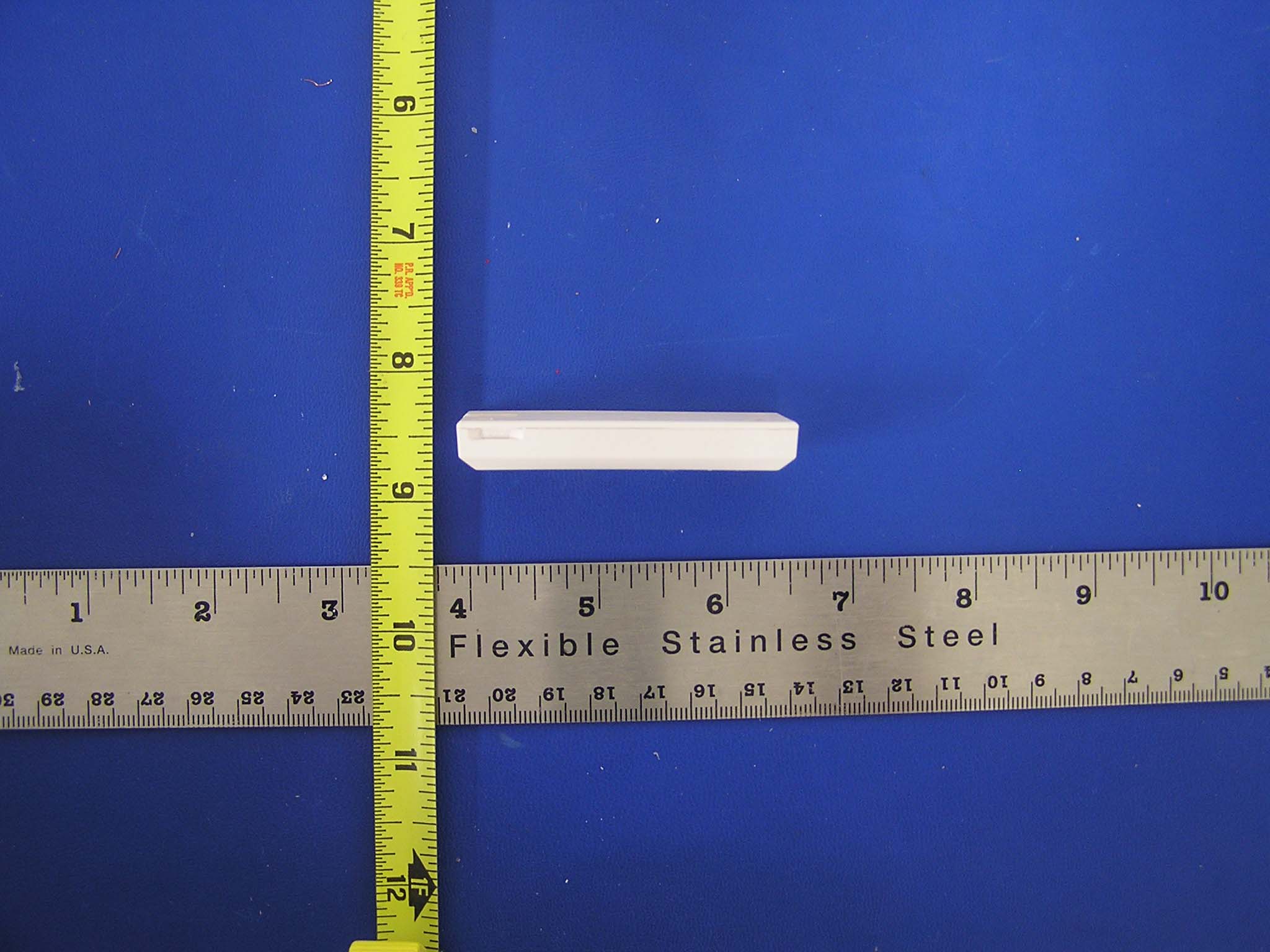

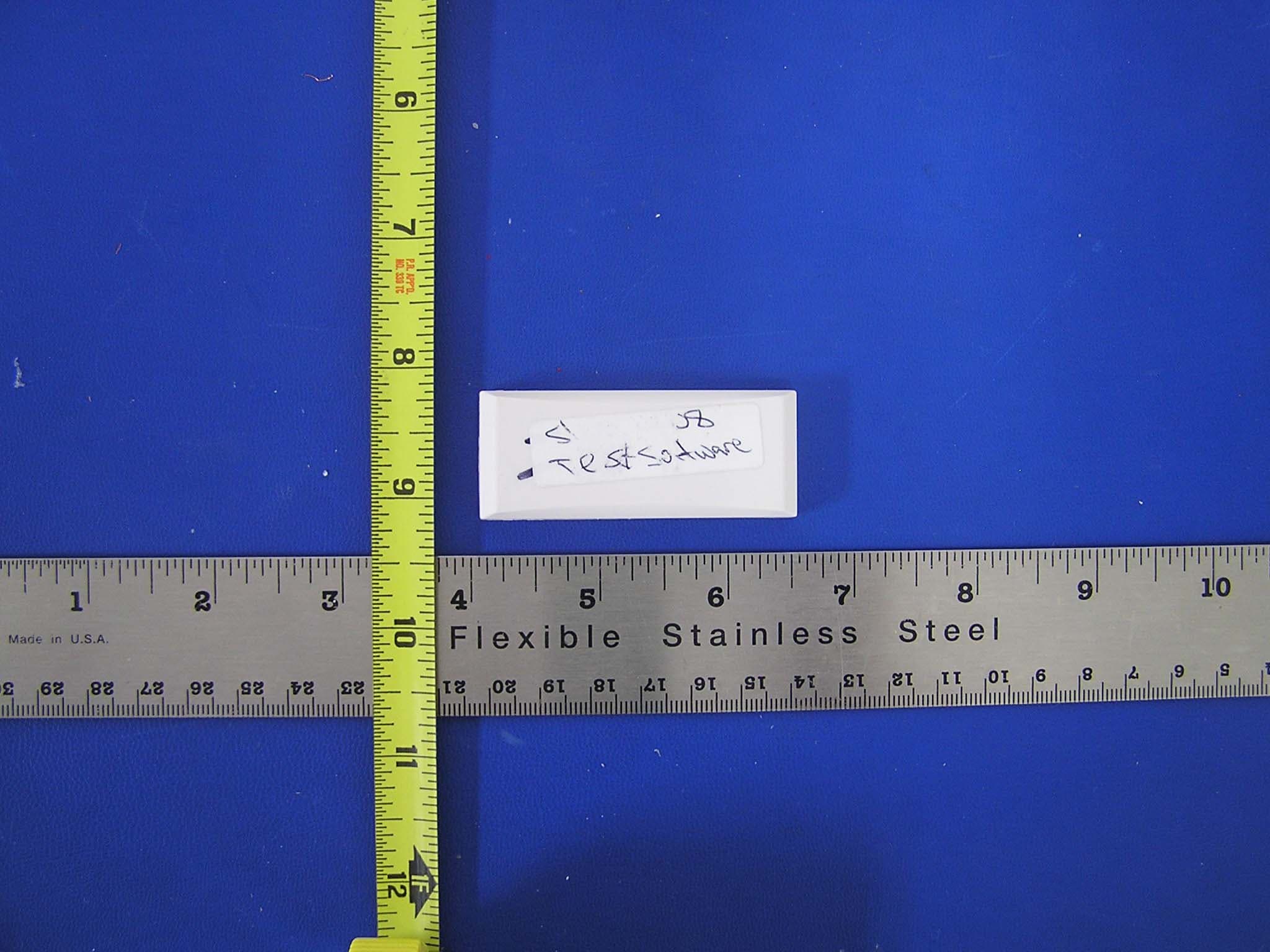

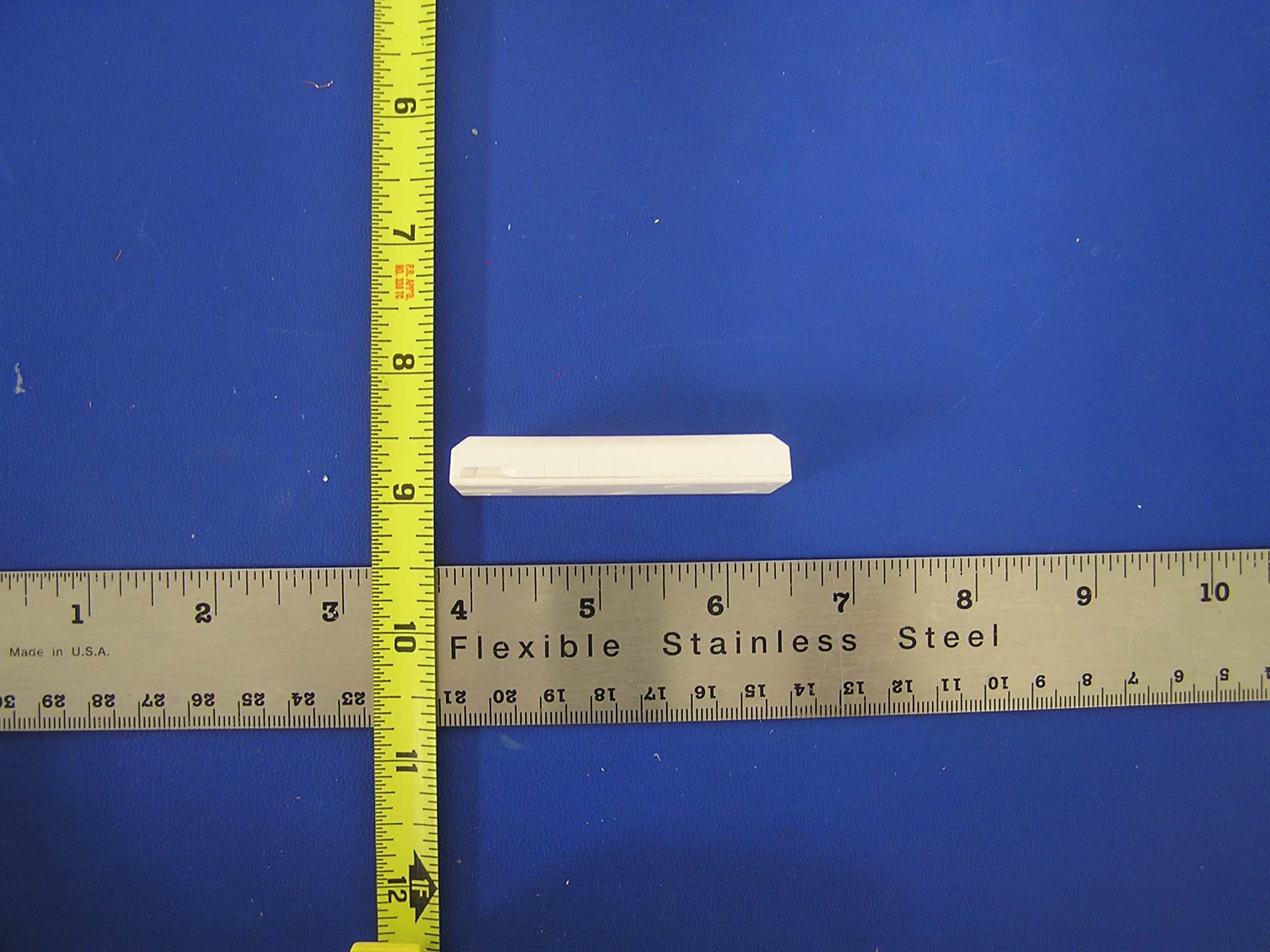

466-2297A • November 2007 Copyright © 2007, GE Security Inc. DesignLine Slim Door/Window Sensor Installation Instructions Introduction This is the GE DesignLine Slim Door/Window Sensor Installa- tion Instructions for models TX-1010-01-1 (white) and TX- 1010-01-3 (brown). You can install the sensor on doors, windows, and many other objects that open and close. The sensor transmits signals to the control panel when a magnet mounted near the sensor is moved away from or closer to the sensor. The sensor is equipped with a cover tamper for added security. Installation guidelines Use the following installation guidelines: • Mount the sensor on the door frame and the magnet on the door. If the sensor is used on double doors, mount the sensor on the least-used door and the magnet on the most-used door. • If possible, locate sensors within 100 ft. (30 m) of the panel. While a transmitter may have a range of 500 ft. (150 m) or more out in the open, the environment at the installation site can have a significant effect on transmitter range. Some- times a change in sensor orientation can help overcome adverse wireless conditions. • Make sure the alignment arrow on the magnet points to the alignment mark on the sensor (Figure 2). • Place sensors at least 4.7 in. (12 cm) above the floor to avoid damaging them. • Avoid mounting sensors in areas where they will be exposed to moisture or where the sensor operating temperature range of 0 to 120°F (0 to 49°C) will be exceeded. • Use spacers (not included) to keep sensors and magnets away from metal or metallic surfaces such as foil wallpaper. • Avoid mounting sensors in areas with a large quantity of metal or electrical wiring, such as a furnace or utility room. Programming The following steps describe general guidelines for programming (learning) the sensor into panel memory. Refer to the specific panel’s installation instructions for complete programming details. 1.To remove the sensor cover, press a small flathead screw- driver into the slot on both sides of the sensor and turn the screwdriver 90 degrees. This will disengage the clips holding the cover and base. (Figure 1). Figure 1. Sensor 2.Set the panel to program mode. 3.Refer to the panel/module documentation for learning sensors. 4.Press and release the tamper switch on the sensor until the panel responds (Figure 1). 5.Replace the base of the sensor. 6.Exit program mode. Verify programming and RF communication Before mounting the sensor, verify that the sensor mounting location provides good RF communication to the panel. To verify, do the following: 1.Put the panel/receiver into sensor test mode. 2.Take the sensor to the mounting location. 3.Hold the magnet next to the alignment mark on the side of the sensor and then pull the magnet away from the sensor. 4.Listen for siren or keypad beeps to determine appropriate response (refer to the specific panel/receiver installation instructions). 5.Exit sensor test mode. Mounting To mount the sensor, do the following: 1.Remove the backing of a large piece of double-sided tape to expose an adhesive surface. Place the exposed adhesive surface on the base of the sensor. 2.Remove the backing from the remaining side of the double- sided tape. Mount the sensor according to the installation guidelines. 3.Use the remaining double-sided tape for the sensor magnet. When mounting the magnet, line up the arrow on the magnet with the middle line on one side of the sensor (Figure 2). Mount the magnet no more than 0.4 in. (1 cm) away from the sensor. F igure 2. Mounting the magnet + + SlotSlot Tamper switch Battery Battery Cover onCover off MagnetSensor Alignment mark Maximum gap of 0.4 in. (1 cm) DesignLine Slim Door/Window Sensor Installation Instructions 2 Battery replacement When the system indicates the sensor battery is low, replace it immediately. Use the recommended replacement batteries (see Specifications) or contact technical support for more information. To replace the batteries, do the following: 1.To remove the sensor cover, press a small flathead screw- driver into the slot on both sides of the sensor and turn the screwdriver 90 degrees. This will disengage the clips holding the cover and base (Figure 1 on page 1). 2.Place a small flathead screwdriver in the slot between the metal clip and the battery and twist the screwdriver slightly while holding back one of the black plastic edges holding the battery. Dispose of the old battery as required by local laws. 3.Insert the replacement battery with the + sign facing out. 4.Verify programming and RF communication with the panel. See Verify programming and RF communication on page 1. External contact The sensor ships with a six-inch external contact lead. To use the external contact, open the transmitter, plug in the external contact header (J1), and connect the brown and blue leads to the external contact. Note: The external wire cannot be longer than 3.3 ft . (1 m). FCC compliance This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment . FCC ID: B4Z-TX-1010-01 Industry Canada ID: 1175C-TX101001 Specifications BatteryPanasonic 2032, 3 VDC, 225 mAh, lithium coin battery (5-year typical battery life) Transmitter frequency319.508 MHz (crystal controlled) Transmitter frequency tolerance ± 8 kHz Transmitter bandwidth24 kHz Modulation typeAmplitude shift key (ASK) Unique ID codes16 million Peak field strengthTypical 30,000 uV/m at 3m External input sampling current 20 uA Reed switch magnetic sensitivity 10 to 20 amp turns Reed sensitivity0.38-in. (0.97-cm) gap Magnet typeNd-Fe-B, N45 Magnet dimensions (WxHxD)1.3 x 0.435 x 0.312 in. (3.3 x 1.1x 0.79 cm) Supervisory in…

Text truncated - open the document above for the full version.

12/10/2007 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality Gentlemen, In reference to the application under FCC ID: B4Z-TX-1010-01 and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagrams Theory of Operation . These documents contain detailed system and equipment description and related information about the product that GE Security considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, GE Security considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Rick Conner Regulatory Liaison GE Security Ph 651-779-4824 Fx 651-779-4884 [email protected]

Antenna Specification TX-1010-01-1 Rev 1 The TX-1010-01-1 transmitter uses and internal -15 dBi printed PCB loop antenna which is not replaceable by the user.

FCC CFR47 PART 15 SUBPART C IC RSS-210 CERTIFICATION TEST REPORT FOR GE SLIM DOOR WINDOW SENSOR 5008-01 MODEL NUMBER: TX-1010-01-1 & TX-1010-01-3 FCC ID: B4Z-TX-1010-01 IC: 1175C-TX101001 REPORT NUMBER: 07U11131-1, REVISION C ISSUE DATE: JANUARY 14, 2008 Prepared for GE SECURITY 1275 RED FOX ROAD ARDEN HILLS, MN 55112, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U11131-1C DATE: JANUARY 14, 2008 FCC ID: B4Z-TX-1010-01 IC: 1175C-TX101001 Page 2 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By --- 09/17/07 Initial Issue T. Chan B 10/02/07 Modified EUT name T. Hong C 01/14/08 Revised model name, FCC ID, and IC #; added section 5.2: Model Differences; and corrected applicant address T. Chan REPORT NO: 07U11131-1C DATE: JANUARY 14, 2008 FCC ID: B4Z-TX-1010-01 IC: 1175C-TX101001 Page 3 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................................ 4 2. TEST METHODOLOGY..................................................................................................................... 5 3. FACILITIES AND ACCREDITATION .............................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ............................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST .............................................................................................................. 6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MODEL DIFFERENCES..............................................................................................................6 5.3. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.4. MODIFICATIONS ........................................................................................................................ 6 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.7. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT .................................................................................... 9 7. LIMITS AND RESULTS ................................................................................................................... 10 7.1. 20dB BANDWIDTH .................................................................................................................... 10 7.2. MAXIMUM MODULATION PERCENTAGE (M %) ................................................................. 13 7.3. LESS THAN 5 SECONDS PLOT ................................................................................................ 19 7.4. RADIATED EMISSIONS.............................................................................................................21 7.4.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 21 7.4.2. RECEIVER SPURIOUS EMISSIONS LIMIT................................................................... 26 8. SETUP PHOTOS................................................................................................................................ 27 REPORT NO: 07U11131-1C DATE: JANUARY 14, 2008 FCC ID: B4Z-TX-1010-01 IC: 1175C-TX101001 Page 4 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: GE SECURITY 1275 RED FOX ROAD ARDEN HILLS, MN 55112, U.S.A. EUT DESCRIPTION: GE SLIM DOOR WINDOW SENSOR 5008-01 MODEL: TX-1010-01-1 & TX-1010-01-3 SERIAL NUMBER: 1973 DATE TESTED: JUNE 11 - 12, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED IC RSS-210 ISSUE 5 NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN CHIN PANG EMC SUPERVISOR EMC ENGINEER COM…
