B4Z-TX-4015-01GE TORCH REMOTE 5002-01

UTC Fire & Security Americas Corporation, Inc.
GE TORCH REMOTE 5002-01 - FCC ID B4Z-TX-4015-01 - UTC Fire & Security Americas Corporation, Inc.
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Mar 25, 2008
Application Purpose
Original Equipment
Date of Application
Mar 25, 2008
Equipment Note
GE TORCH REMOTE 5002-01
Frequency Range
319.50800000 - 319.50800000
Company
UTC Fire & Security Americas Corporation, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

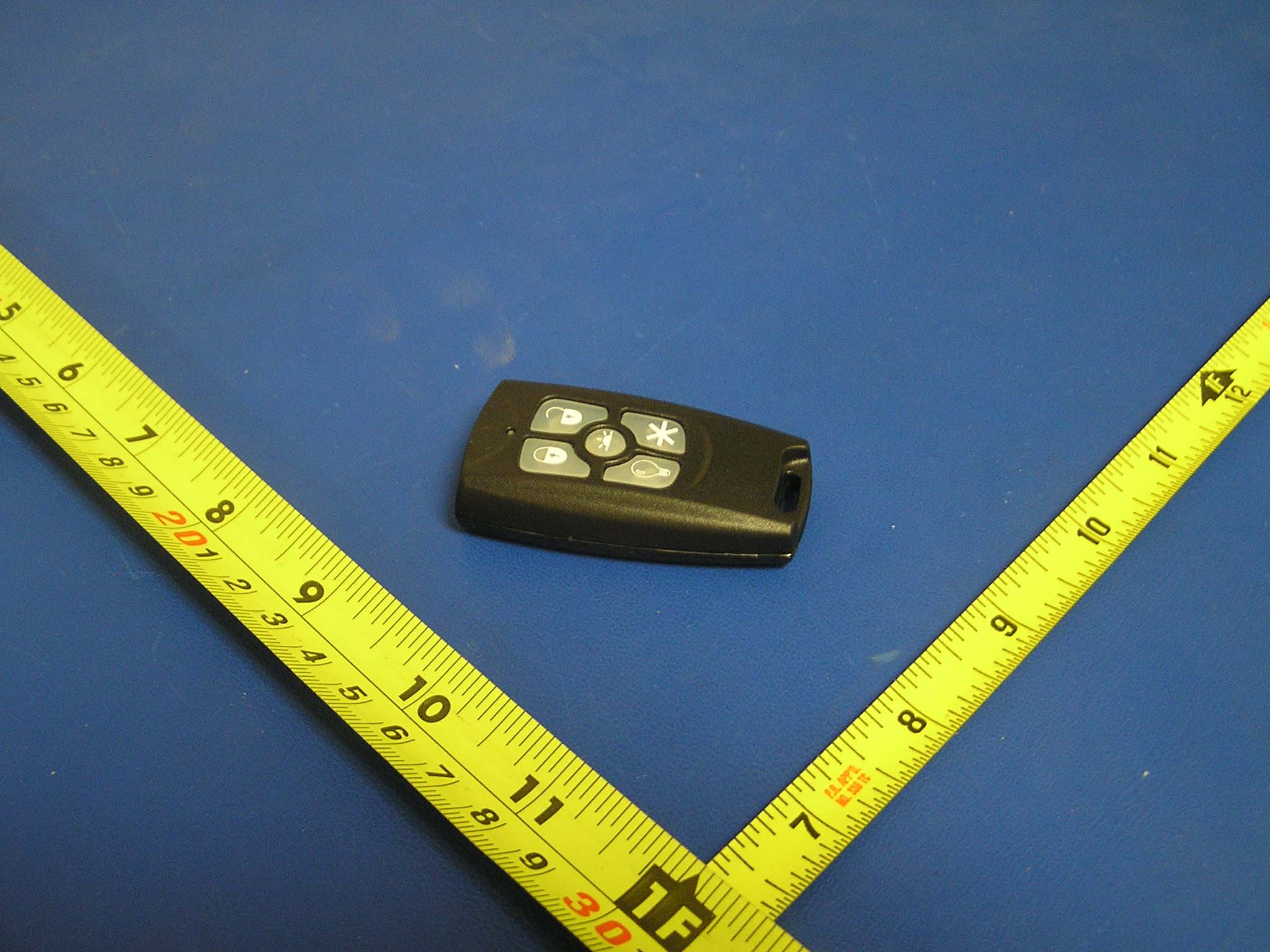

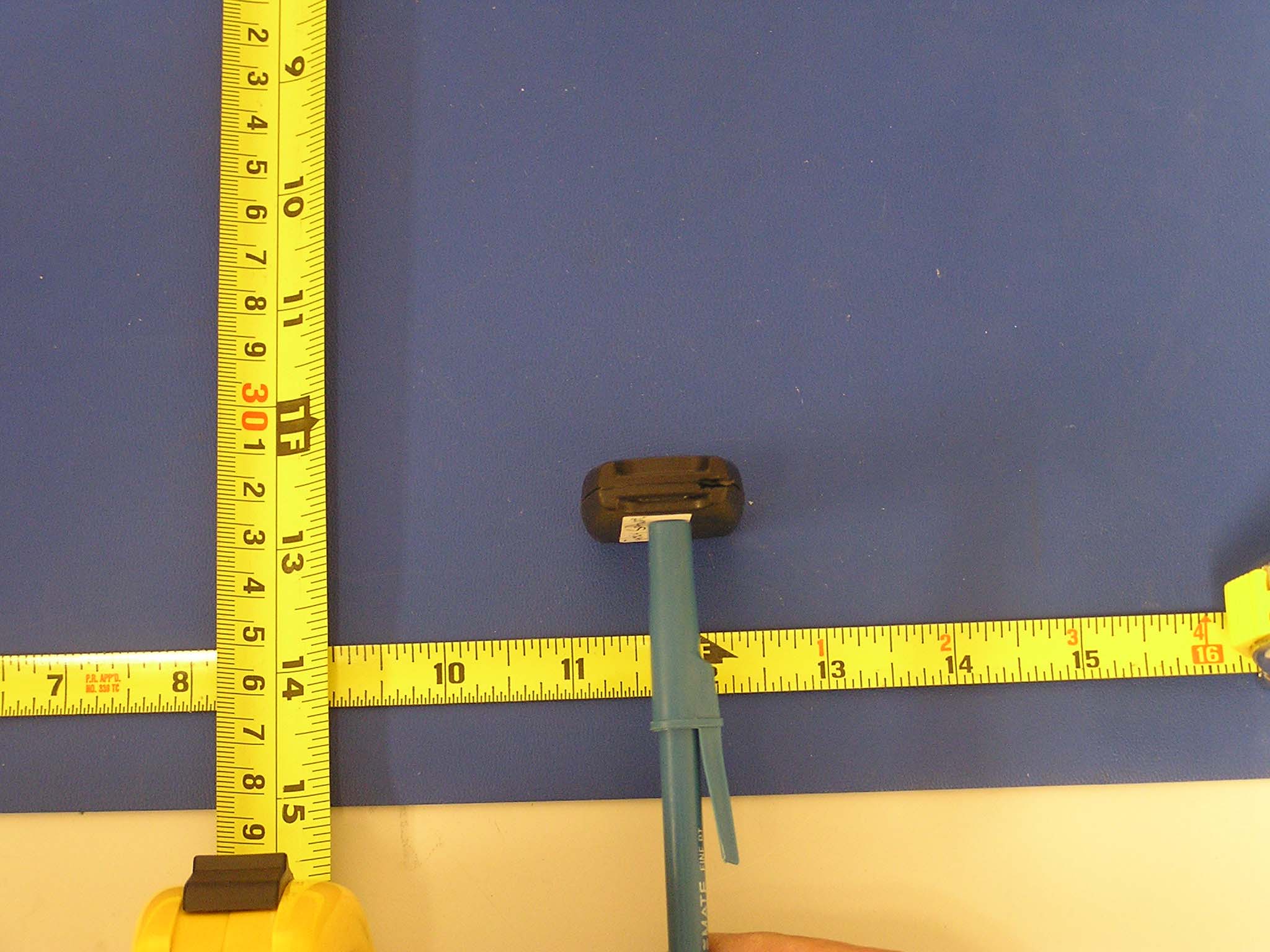

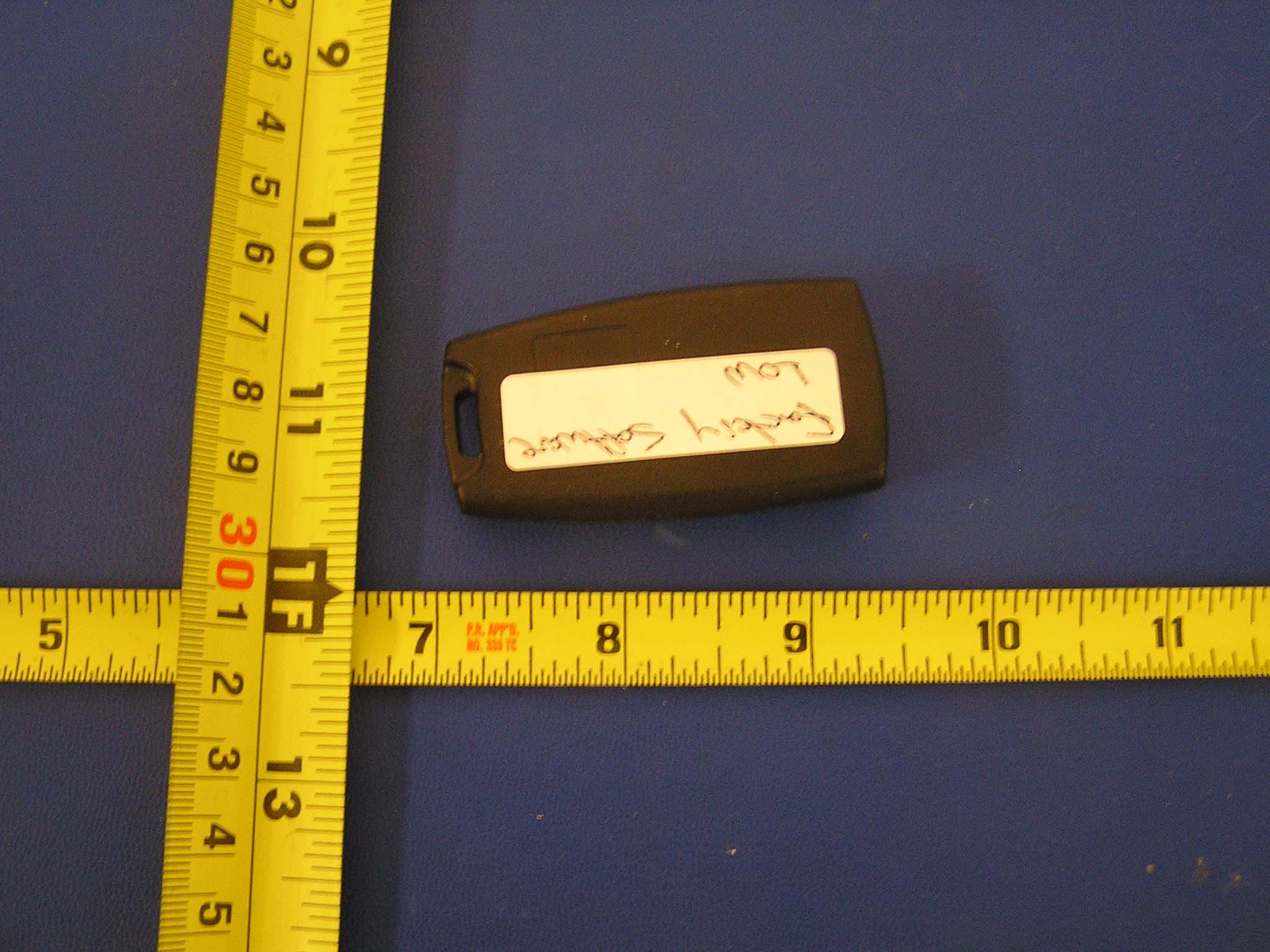

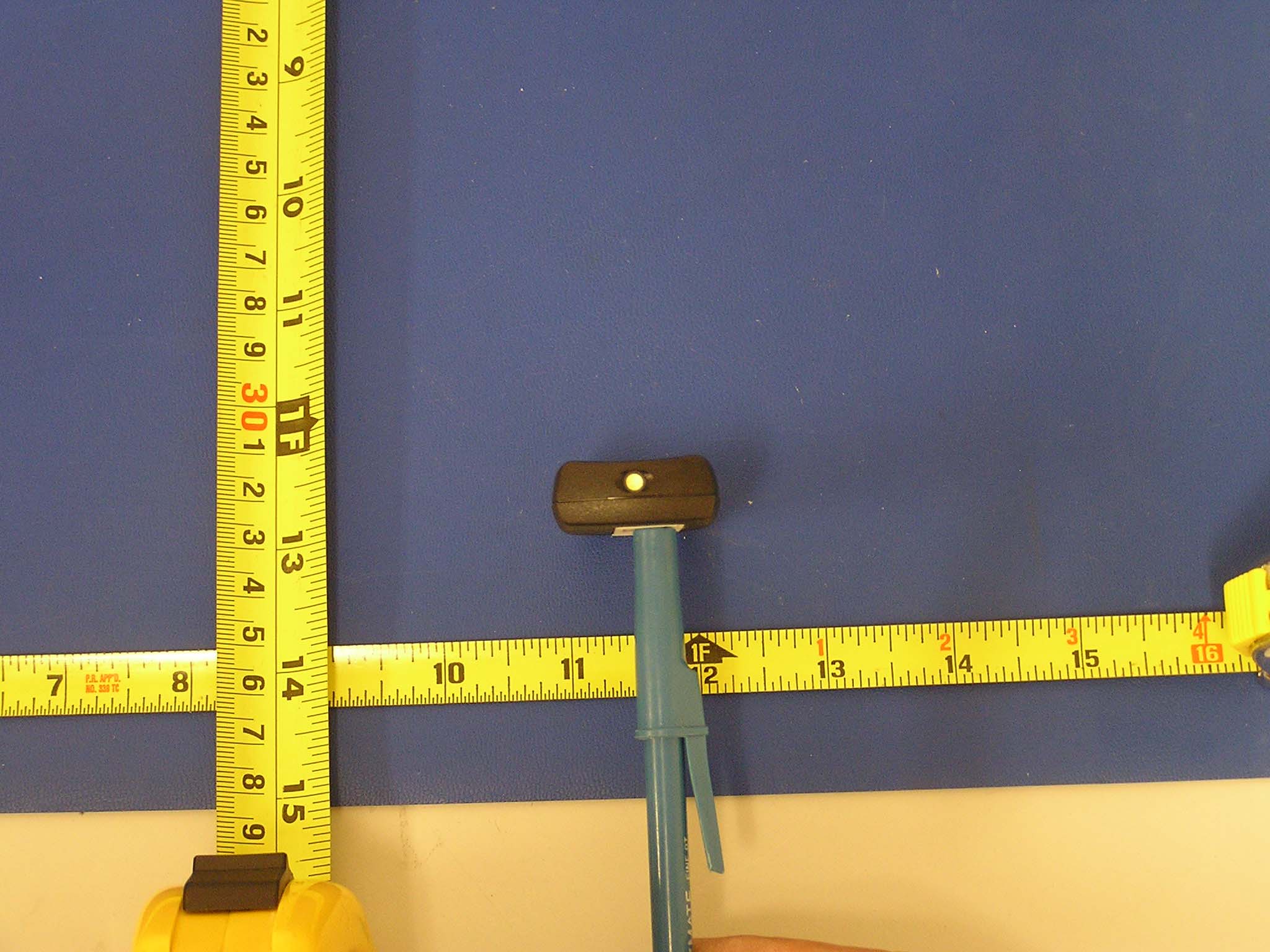

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Parts List/Tune Up Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

466-2295A • November 2007 Copyright © 2007, GE Security Inc. DesignLine 5-Button Keyfob Installation Instructions Introduction This is the GE DesignLine 5-Button Keyfob Installation Instruc- tions for model TX-4015-01-2. The keyfob enables you to turn the system on before exiting and off before entering the home or to turn on the siren and call the central monitoring station if there is an emergency. If lamp modules have been installed, you can use the keyfob to turn system-controlled lights on or off. The keyfob is a lithium coin battery-powered, wireless keyfob designed to fit on a keychain, in a pocket, or in a purse. It provides a convenient option for the following system operations: • Arm the system (doors, windows, and motion sensors). • Arm the system with no entry delay (if programmed). • Disarm the system. • Trigger panic alarms. • Turn system-controlled lights on or off. • Open the garage door (if programed). Programming guidelines Refer to your control panel documentation for instructions on programming and sensor testing your keyfob. Use the following guidelines to add keyfobs to the system: • Program (learn) the keyfobs into the control panel as unsu- pervised sensors. • Each learned keyfob uses one of the available zones. • Use sensor group number 01, 03, 06, or 07 (all Concord, Simon 3, and Simon XT panels only). Keyfob operation The keyfob buttons (Figure 1) should operate as follows: Unlock button. Disarms the control panel. The doors, windows, and motion sensors are disarmed. Lock button. The following key presses will depend on your control panel configuration. • If pressed once, the control panel arms doors and windows (stay mode). • If pressed twice, the control panel arms motion sensors, doors, and windows (away mode) (all Concord, Simon 3, and Simon XT panels only). • If pressed three times, the control panel activates the latchkey feature if programmed (all Concord, Simon 3, and Simon XT panels only). Lock and Unlock buttons. If the keyfob is programmed (learned) as a panic or portable auxiliary group number, when you press the Lock and Unlock buttons simulta- neously, the keyfob will activate alarm reports to the central station. Depending on the group number, it may activate an audible or silent alarm. Light button. For all Concord, Simon 3, and Simon XT panels, it toggles system-controlled lights on/off. For NetworX panels the default is stay, but it can be changed to operate a relay. Star button. For all Simon 3 and Simon XT panels, if used with the X-10 universal module, the control panel will cause the garage door to open or close. For NetworX panels it performs the same function as pressing the Star button on the keypad and may be programmed to operate a relay. Flashlight button. Press this button to activate the LED flashlight. Figure 1. Keyfob buttons FCC compliance This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment . FCC ID: B4Z-TX-4015-01 Industry Canada ID: 1175C-TX401501 Specifications BatteryPanasonic CR2032 3 VDC, 225 mAh, lithium coin battery (5-year typical battery life) Transmitter frequency319.508 MHz (crystal controlled) Transmitter frequency tolerance ± 8 kHz Transmitter bandwidth24 kHz Modulation typeAmplitude shift key (ASK) Unique ID codes16 million Peak field strengthTypical 40,000 uV/m at 3m Operating temperature32 to 120°F (0 to 49°C) EnclosureABS PA-765 Weight0.61 oz. (17 g) Dimensions (WxHxD)1.26 x 2.35 x 0.53 in. (3.20 x 5.97 x 1.35 cm) ColorBlack Unlock button Star button Lock button Light button LED Flashlight button Flashlight Technical support Toll-free: 888.GESECURity (888.437.3287 in the US, including Alaska and Hawaii; Puerto Rico; Canada). Outside the toll-free area: Contact your local dealer. www.gesecurity.com

Cover Letter(s)

12/10/2007 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality Gentlemen, In reference to the application under FCC ID: B4Z-TX-4015-01 and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagrams Theory of Operation . These documents contain detailed system and equipment description and related information about the product that GE Security considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, GE Security considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Rick Conner Regulatory Liaison GE Security Ph 651-779-4824 Fx 651-779-4884 [email protected]

Parts List/Tune Up Info

Antenna Specification RF4015-01-2 Rev 1 The RF4015-01-2 transmitter uses and internal -15 dBi printed PCB loop antenna which not replaceable by the user.

Test Report

FCC CFR47 PART 15 SUBPART C IC RSS-210 CERTIFICATION TEST REPORT FOR GE TORCH REMOTE 5002-01 MODEL NUMBER: TX-4015-01-2 FCC ID: B4Z-TX-4015-01 IC: 1175C-TX401501 REPORT NUMBER: 07U11355-1, REVISION B ISSUE DATE: NOVEMBER 13, 2007 Prepared for GE SECURITY 1275 RED FOX ROAD ARDEN HILLS, MN 55112 Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U11355-1B DATE: NOVEMBER 13, 2007 FCC ID: B4Z-TX-4015-01 IC: 1175C-TX401501 Page 2 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By --- 10/01/07 Initial Issue T. Chan B 11/13/07 Revised model name, p.24 EUT description, FCC ID, and IC # T. Hong REPORT NO: 07U11355-1B DATE: NOVEMBER 13, 2007 FCC ID: B4Z-TX-4015-01 IC: 1175C-TX401501 Page 3 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................................ 4 2. TEST METHODOLOGY..................................................................................................................... 5 3. FACILITIES AND ACCREDITATION .............................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ............................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST .............................................................................................................. 6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.3. MODIFICATIONS ........................................................................................................................ 6 5.4. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.5. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT .................................................................................... 9 7. LIMITS AND RESULTS ................................................................................................................... 10 7.1. 20dB BANDWIDTH .................................................................................................................... 10 7.2. MAXIMUM MODULATION PERCENTAGE (M %) ................................................................. 13 7.3. LESS THAN 5 SECONDS PLOT ................................................................................................ 19 7.4. RADIATED EMISSIONS.............................................................................................................21 7.4.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 21 7.4.2. RECEIVER SPURIOUS EMISSIONS LIMIT................................................................... 26 8. SETUP PHOTOS................................................................................................................................ 27 REPORT NO: 07U11355-1B DATE: NOVEMBER 13, 2007 FCC ID: B4Z-TX-4015-01 IC: 1175C-TX401501 Page 4 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: GE SECURITY 1275 RED FOX ROAD ARDEN HILLS, MN 55112 EUT DESCRIPTION: GE TORCH REMOTE 5002-01 MODEL: TX-4015-01-2 SERIAL NUMBER: 02044 DATE TESTED: SEPTEMBER 28, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED RSS-210 Issue 7 NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN THANH NGUYEN EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 07U11355-1B DATE: NOVEMBER 13, 2007 FCC ID: B4Z-TX-4015-01 IC: 1175C-TX401501 Page 5 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 77…

Text truncated - open the document above for the full version.

Test Setup Photos

REPORT NO: 07U11355-1B DATE: NOVEMBER 13, 2007 FCC ID: B4Z-TX-4015-01 IC: 1175C-TX401501 Page 27 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS REPORT NO: 07U11355-1B DATE: NOVEMBER 13, 2007 FCC ID: B4Z-TX-4015-01 IC: 1175C-TX401501 Page 28 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Y-AXIS REPORT NO: 07U11355-1B DATE: NOVEMBER 13, 2007 FCC ID: B4Z-TX-4015-01 IC: 1175C-TX401501 Page 29 of 29 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT Z-AXIS

Contact Information

Applicant

Konstantin Khrustov(Compliance Leader)
[email protected]949-737-7815Fax: 949-737-7882

Test Firm

Compliance Certification ServicesThu Chan
[email protected]510-771-1122Fax: 510-661-0888

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231319.508 MHz - 319.508 MHz-
