B6BGZ-1XXP

Nihon Kohden Corporation

SDIO Wireless Module

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Aug 25, 2014
Application Purpose: Original Equipment
Date of Application: Aug 03, 2014
Equipment Note: SDIO Wireless Module
Frequency Range: 5180.00000000 - 5320.00000000
Company: Nihon Kohden Corporation
Country: Japan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

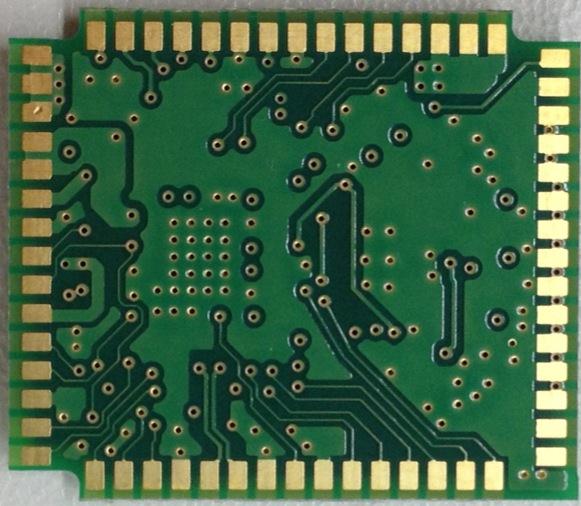

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Yoshifumi Tokunaga

[email protected]81(50)3684-6247Fax: 81(50)3684-6774

Technical Contact

UL Japan, Inc.Takahiro Hatakeda

[email protected]81-596-24-8999

4383-326 Asama-cho, Ise-shi · Mie-ken · Japan

Test Firm

UL Japan, Inc. Head office EMC Lab.Tetsuya Hashimoto

[email protected]+81-596-24-8116Fax: +81-596-24-8095

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15E	5.18 GHz - 5.32 GHz	24.70 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Limited Modular Approval. Output power listed is Conducted. For professional installation only. Device shall not be sold to general public. Separate evaluation must be required for any portable configuration except the conditions shown in this filing controlled by low duty factor. Device must operate with a maximum duty factor not exceeding 20 %. This configuration controls the module not to use Bluetooth function and 802.11n-HT40 mode. Compliance of this device in all final host configurations is the responsibility of the Grantee. OEM integrators and end-users must be provided with specific information required to satisfy RF exposure compliance for the final host device. OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. The antenna of this device must not be co-located or used in conjunction with any other antenna or transmitter except the conditions shown in this filing and/or in accordance with FCC multi-transmitter product guidelines. OEM integrators must be provided with antenna installation instructions. Only those antennas tested with the device or similar antennas with equal or lesser gain may be used with this transmitter. This device should be operated indoor for not only 5.15-5.25 GHz but also 5.25-5.35 GHz band. This device complies with the Dynamic Frequency Selection (DFS) requirements of Report and Order FCC 03-287 as a Client only without Radar Detection.
