B94-5185-3843Digital Transmission System

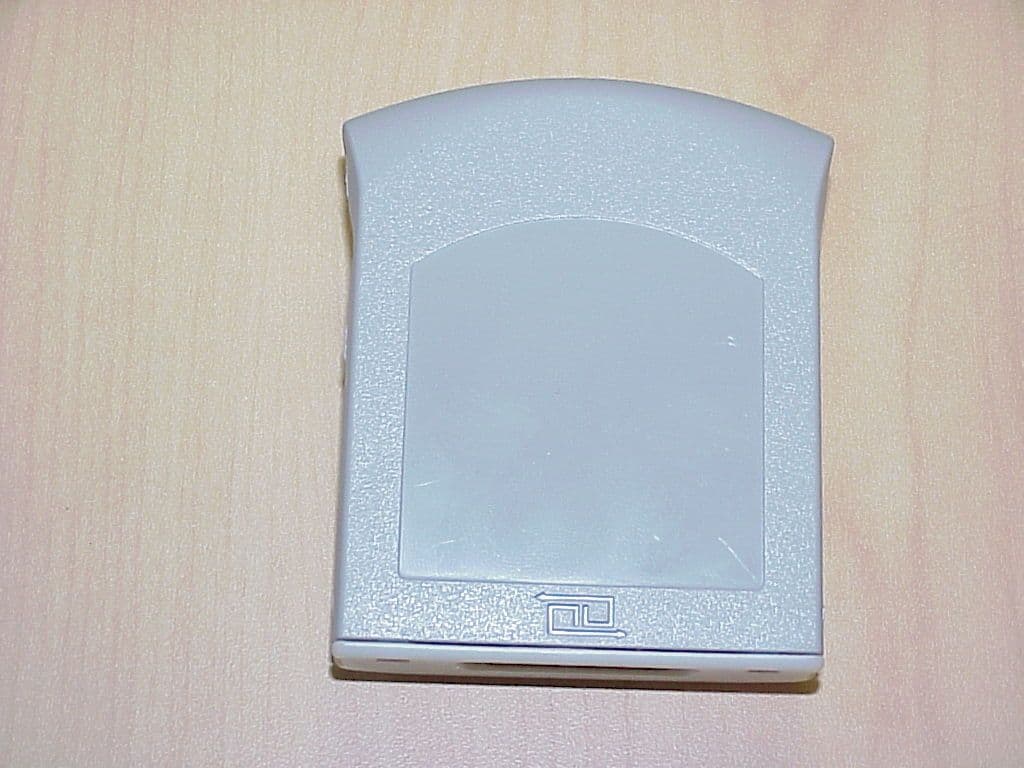

setup guide hp jetdirect 380x 802.11b wireless external print server (usb) ©Copyright Hewlett-Packard Company 2002. All rights reserved. Reproduction, adaptation or translation with- out prior written permission is prohibited, except as allowed under the copyright laws Publication Number:. J6061-9xxxx First Edition xxxxxxx 2002 Applicable Products:. J6061A Trademark Credits. Microsoft ® , MS- DOS ® , Windows ® , Microsoft Windows NT ® are trademarks or U.S. registered trademarks of Microsoft Corporation. NetWare ® and Novell ® are registered trademarks of Novell Corporation. IBM ® , AIX ® are registered trademarks of International Business Ma- chines Corp. Ethernet is a registered trade- mark of Xerox Corporation. PostScript ® is a trademark of Adobe Systems, Incorporated. UNIX ® is a registered trademark of the Open Group. Warranty. The information contained in this document is subject to change without notice. HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMIT- ED TO, THE IMPLIED WARRANTIES OF MER- CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or conse- quential damages in connection with the fur- nishing, performance or use of this material. For the specific warranty terms applicable to your HP product, and for warranty service information, see the appendices in this guide. Safety Considerations. Prior to the in- stallation and use of this product, review all safety markings and instructions. Instruction Manual Symbol. If the product is marked with this symbol, refer to the product manuals to protect the product from damage. WARNING: Denotes a hazard that can cause injury. CAUTION: Denotes a hazard that can damage equipment or data. Do not proceed beyond a WARNING or CAUTION notice until you have understood the hazard and have taken appropriate steps. Grounding. This product is installed in a safety class 1 product that has a protective earthing terminal. There must be an uninter- rupted safety earth ground from the main power source to the product’s input wiring terminals, power cord or supplied power cord set. Whenever it is likely that the protec- tion has been impaired, disconnect the power cord until the ground has been restored. Hewlett-Packard Company 8000 Foothills Boulevard Roseville, California 95747-6588 www.hp.com ! 3 Contents 1. Introduction What’s in the Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1 For the Details... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2 What You Need to Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3 Wireless LAN Terms and Concepts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4 Network Printing Terms and Concepts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10 If You Need Help... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13 2. Installing the Print Server Hardware Steps to Install the Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1 3. Making a Wireless Network Connection Before You Begin... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1 Using a Microsoft Windows Wireless PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 Using an Apple Macintosh Wireless Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 Optional Wireless Connection Setup Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7 4. Installing the Printer on a Network System or Server Before You Begin... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1 Microsoft or Novell NetWare Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 UNIX Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6 Apple MacOS networks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6 To View Documents on the CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7 4 5. Troubleshooting Problems Status Light (LED) Indications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2 Wireless/Status Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2 USB Light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3 Configuration (Test) Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4 If the Configuration Page Does Not Print, or is Unreadable . . . . . . . . . . . . . . . . . 5-4 Different Configured Channel Shown on Configuration Page. . . . . . . . . . . . . . . . 5-7 Unable to Communicate with the Wireless Print Server . . . . . . . . . . . . . . . . . . . . . . . 5-8 —During Initial Setup: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8 —After Initial Setup:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9 Wireless Signal Weak or Failed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10 Firmware Upgrade Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12 Resetting to Factory Defaults (“Cold Reset”) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14 A. Getting Support and Service HP Support by Phone. . . . . .…

Text truncated - open the document above for the full version.

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 November 15, 2001 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Hewlett Packard requests confidentiality for the following products: FCC ID B94-5185-3843 For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Block diagrams 3) Technical description No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Hewlett Packard trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Lothar Schmidt Technical Manager EMC/Radio

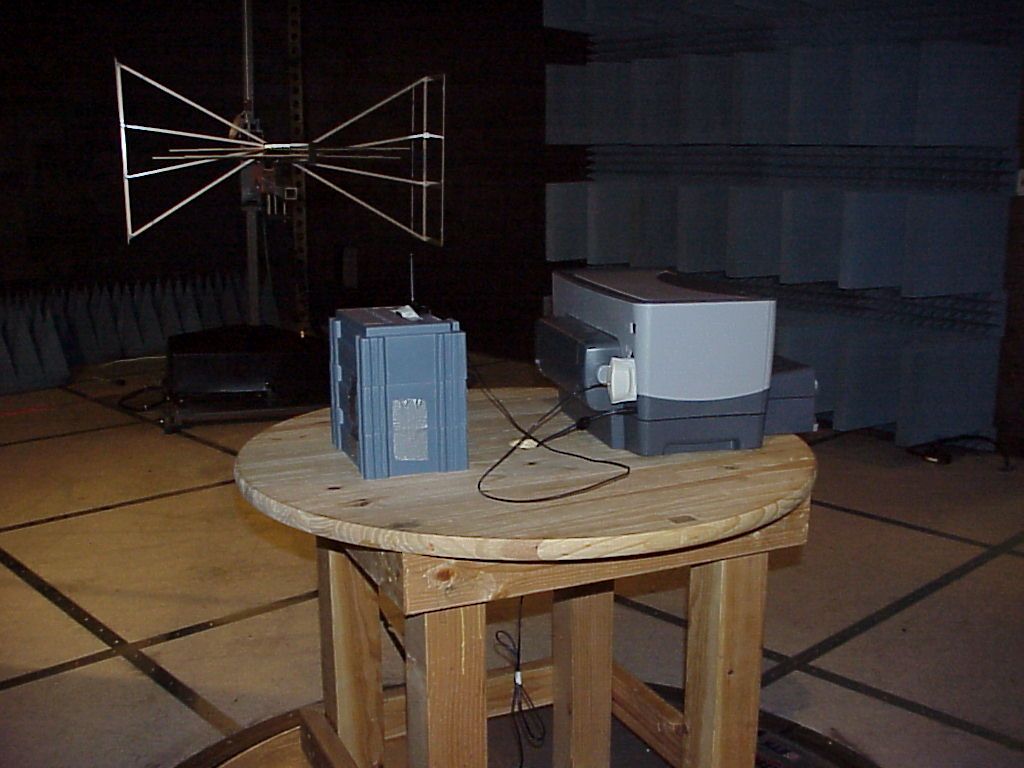

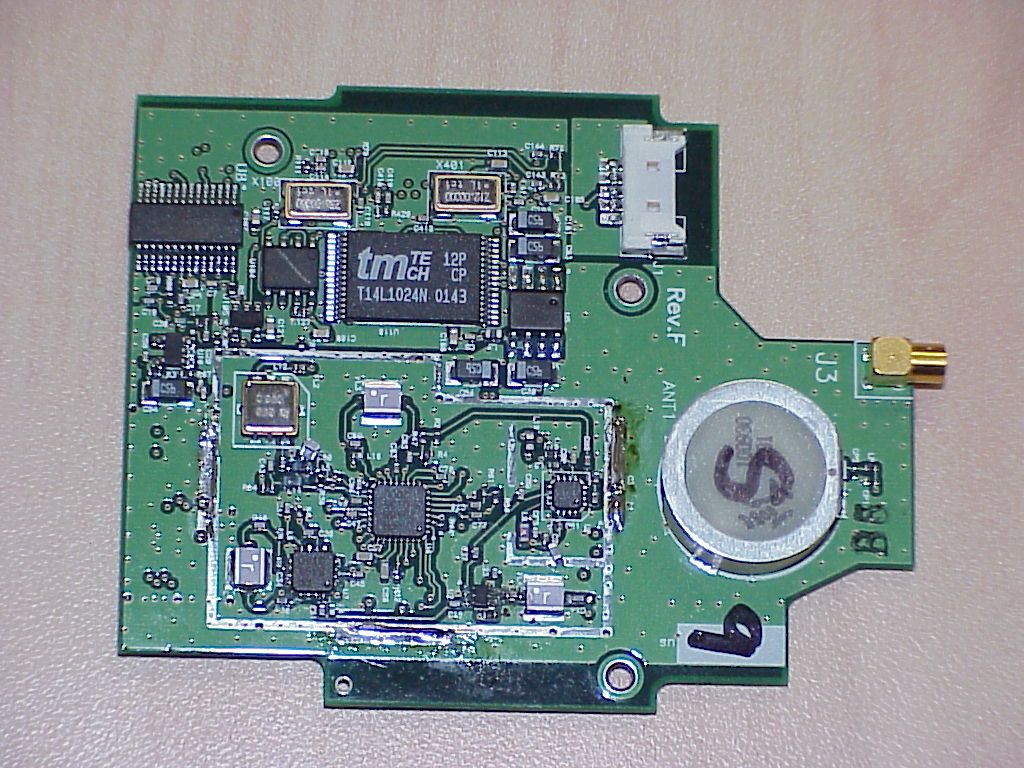

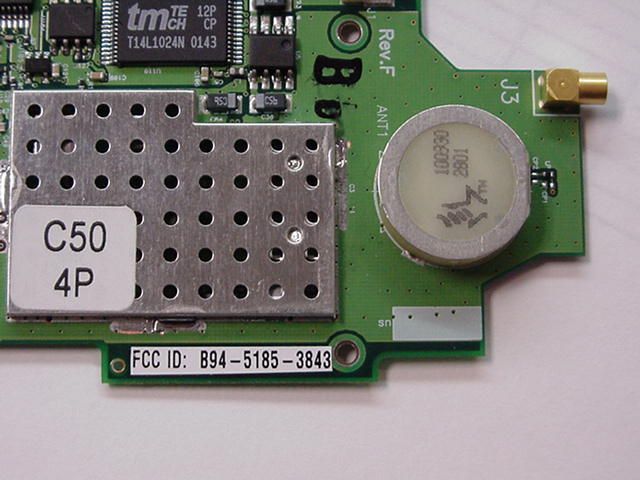

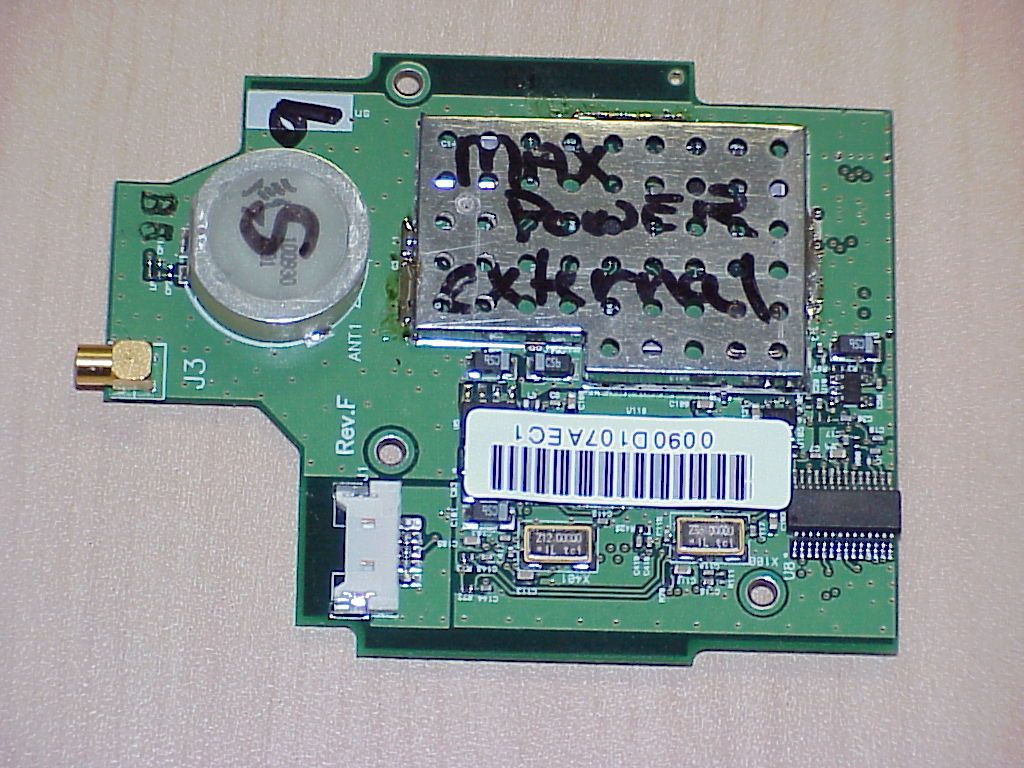

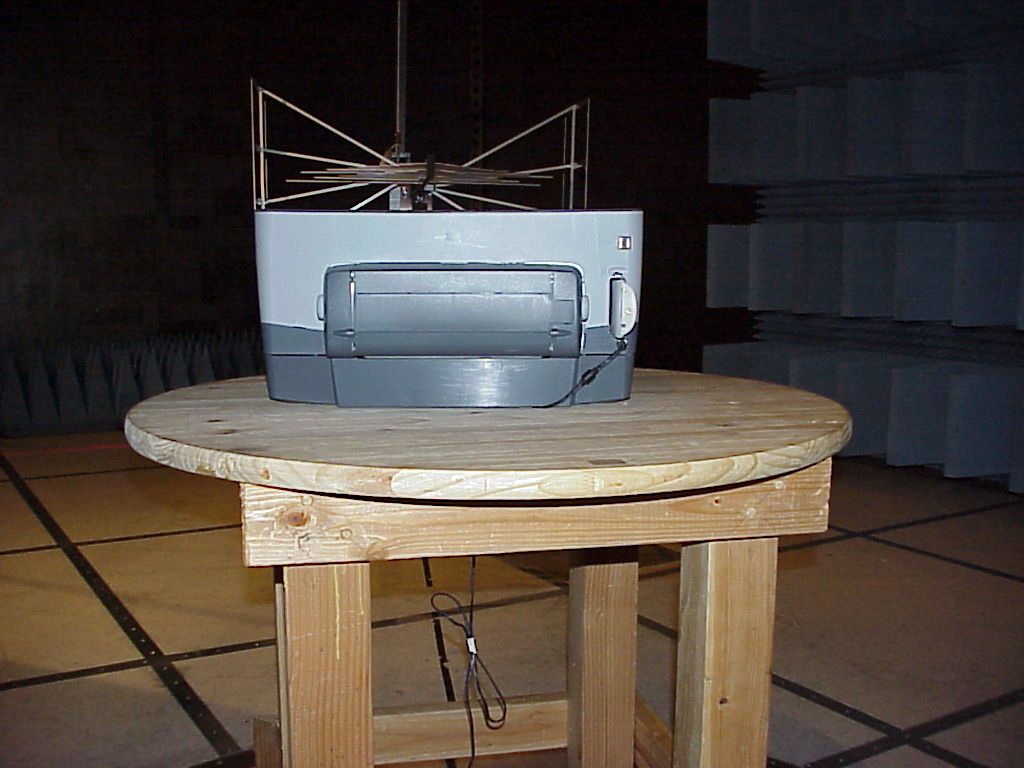

CETECO M Inc. 411 Dixon Landing Road Milpitas, CA 95035 U. S . A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] UR L: www .c etec om.c om FCC ID: B94-5185-3843 The HP 5185-3843 is a WLAN board used in different HP print servers and can be used in different other HP applications. The board uses an internal USB interface to connect to the main application. HP ensures in all applications that the board the power supply is within the limits the board was originally tested. The board was tested in two different print server applications, with the optional external antenna. The max gain the application was tested with is 2.1 dBi. The internal antenna has 0 dBi gain and wasn’t tested but checked to verify the lower EIRP values. Lothar Schmidt Technical Manager EMC/Radio

Radio module Print server board Internal USB

CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention: Reviewing Engineer The WLAN card used in the HP print servers, notebooks etc is a regular 802.11b Wireless LAN Card using spread spectrum technique for wireless access of a PC, printer or similar equipment to a LAN. Due to the construction and the intended use of this card in HP equipment, the radio installation is done in the factory and not user installed. Due to the construction of the devices and the location of the antennas (TX and RX) a minimum distance under normal operating conditions of more than 3.5 cm to the antenna has to be guaranteed. The manual contains a relevant statement. The calculation was made for this worst case. The maximum peak output power for this device is 149 mW (21.75 dBm). Calculation of EIRP of the equipment for 20.17 dBm (0.0149 W); equivalent to 60.53 V/m in 3.5 cm distance Regarding MPE limits, GPUC environment limits maximum exposure to 1 mW/cm 2. The power density is: at 3.5 centimeters from an antenna S = E 2 /3770=-13 H 2 = 0.972 mW/cm 2 < 1 mW/cm 2 Where: S = Power density (mW/cm 2) E = electrical field strength (V/m) Calculations are based on standard formula for calculating field strength at a distance and converting power density using free space impedance. Compliance is shown for the built in radio, with has an external antenna with a unique connector. The radio however has also a built in antenna but in this case the EIRP is lower than 20 dBm due to the lower antenna gain. The minimum distance of 3.5 cm for the external antenna (gain 2.5 dBi) is also guaranteed by the fact that for normal operation the distance should be at least 20 cm, which is also stated in the manual. For the internal antenna a 3cm distance is guaranteed do to the construction of the devices, which is equivalent to 0.885 mW/cm 2 . If you should have any questions regarding this submission, please feel free to contact the undersigned. Yours truly, Lothar Schmidt Technical Manager EMC/Radio CETECOM Inc.

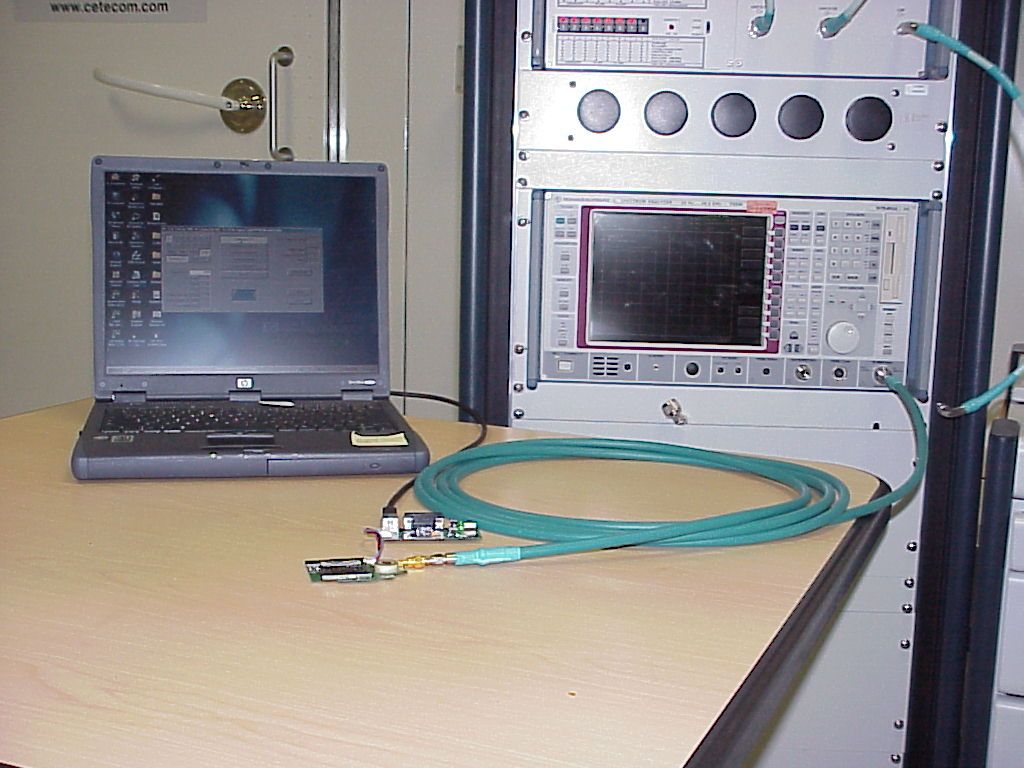

CETECOM Inc. CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 www.cetecom.com Issued test report consists of 58 Pages Page 1 (58) Test report no.: 217FCC/2001 FCC Part 15.247 (HP Jetdirect 280m) FCC LISTED, REG. NO.: 101450 & RECOGNIZED BY INDUSTRY CANADA IC – 3925 CETECOM Inc. Test report no.: 217FCC/2001 Issued date:2002-01-04 Page 2 (58) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. USA. TEST REPORT PREPARED BY: EMC & Radio Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: 217FCC/2001 Issued date:2002-01-04 Page 3 (58) 1.3 Details of applicant Name : Hewlett Packard Street : 8000 Foothills Blvd.. City : Roseville, CA 95747 Country : Contact : USA Glenn Beckett Telephone : +1 916 785 4668 Telefax : e-mail : [email protected] 1.4 Application details Date of receipt of application : 2001-11-15 Date of receipt of test item : 2001-12-10 Date of test : 2001-12-10/11 1.5 Test item Manufacturer : applicant Name of EUT : HP Jetdirect 280m Description : 5185-3843 WLAN (802.11b) built in RSVLD-0102 Print Server Model No. : RSVLD-0102 Serial No. : FCC ID : N/A Additional informations Frequency : 2412MHz – 2472MHz Type of modulation : DSSS Number of channels : 13 Antenna : Diversity Internal & Dipole External Power supply : 3.3VDC Output power : Extreme Vol. Limits : Extreme Temp. Limits : 3.3VDC ±10% +9°C to +55°C 1.6 Test standards : FCC Part 15 §15.247 CETECOM Inc. Test report no.: 217FCC/2001 Issued date:2002-01-04 Page 4 (58) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. Technical responsibility for area of testing : 2002-01-07 EMC & Radio Lothar Schmidt Date Section Name Signature CETECOM Inc. Test report no.: 217FCC/2001 Issued date:2002-01-04 Page 5 (58) 2.2 Testreport TEST REPORT Testreport no. : 217FCC/2001 (HP Jetdirect 280m) CETECOM Inc. Test report no.: 217FCC/2001 Issued date:2002-01-04 Page 6 (58) TEST REPORT REFERENCE LIST OF MEASUREMENTS Paragraph PARAMETER TO BE MEASURED PAGE Transmitter parameters § 15.247 (a)(2) Spectrum Bandwith of a DSSS System 7 § 15.247 (b)(1) Maximum peak output power 11 § 15.247 (c)(1) Emission limitations 19 § 15.247 (d) Power Spectral Density 48 § 15.107 Conducted emissions 52 Receiver parameters § 15.209 Receiver Spurious Radiation 53 Test equipment listing 58 CETECOM Inc. Test report no.: 217FCC/2001 Issued date:2002-01-04 Page 7 (58) SPECTRUM BANDWITH OF DSSS-SYSTEM SUBCLAUSE § 15.247 (a)(2) TEST CONDITIONS 6 dB BANDWIDTH ( kHz ) Frequency (MHz) 2412 2442 2472 T nom ( 23 )° °° °C V nom ( 3.3)V 9969.93 9969.93 9969.93 Measurement uncertainty ±3dB LIMIT SUBCLAUSE §15.247(a) (2) The minimum 6dB bandwith shall shall be at least 500 KHz CETECOM Inc. Test report no.: 217FCC/2001 Issued date:2002-01-04 Page 8 (58) SPECTRUM BANDWITH OF DSSS-SYSTEM SUBCLAUSE § 15.247 (a)(2) Low Channel: 2412 MHz LIMIT SUBCLAUSE §15.247(a) (2) The minimum 6dB bandwith shall shall be at least 500 KHz ANALYZER SETTINGS: RBW=100KHz , VBW=1MHz CETECOM Inc. Test report no.: 217FCC/2001 Issued date:2002-01-04 Page 9 (58) SPECTRUM BANDWITH OF DSSS-SYSTEM SUBCLAUSE § 15.247 (a)(2) Mid Channel: 2442 MHz LIMIT SUBCLAUSE §15.247(a) (2) The minimum 6dB bandwith shall shall be at least 500 KHz ANALYZER SETTINGS: RBW=100KHz , VBW=1MHz CETECOM Inc. Test report no.: 217FCC/2001 Issued date:2002-01-04 Page 10 (58) SPECTRUM BANDWITH OF DSSS-SYSTEM SUBCLAUSE § 15.247 (a)(2) High Channel: 2472 MHz LIMIT SUBCLAUSE §15.247(a) (2) The minimum 6dB bandwith shall shall be at least 500 KHz ANALYZER SETTINGS: RBW=100KHz , VBW=1MHz CETECOM Inc. Test report no.: 217FCC/2001 Issued date:2002-01-04 Page 11 (58) MAXIMUM PEAK OUTPUT POWER SUBCLAUSE § 15.247 (b) (1) (CONDUCTED) TEST CONDITIONS MAXIMUM PEAK OUTPUT POWER (dBm) Frequency (MHz) 2412 2442 2472 Pk 20.61 Pk 20.50 Pk 20.28 T nom ( 23 )° °° °C V nom (3.3)V Av 12.17 Av 12.60 Av 12.04 Measurement uncertainty ±3dB LIMIT SUBCLAUSE § 15.247 (b) (1) Frequency range RF power output 2400-2483.5 MHz / 5725 – 5850 MHz 1.0 Watt CETECOM Inc. Test report no.: 217FCC/2001 Issued date:2002-01-04 Page 12 (58) MAXIMUM PEAK OUTPUT POWER SUBCLAUSE § 15.247 (b) (1) (CONDUCTED) Low Channel: 2412 MHz CETECOM Inc. Test report no.: 217FCC/2001 Issued date:2002-01-04 Page 13 (58) MAXIMUM PEAK OUTPUT POWER SUBCLAUSE § 15.247 (b) (1) (CONDUCTED) Mid Channel: 2442 MHz CETECOM Inc. Test report no.: 217FCC/2001 Issued date:2002-01-04 Page 14 (58) MAXIMUM PEAK OUTPUT POWER SUBCLAUSE § 15.247 (b) (1) (CONDUCTED) High Channel: 2472 MHz CETECOM Inc. Test report no.: 217FCC/2001 Issued date:2002-01-04 Page 15 (58) MAXIMUM PEAK OUTPUT POWER (EIRP) SUBCLAUSE § 15.247 (b) (1) (RADIATED) TEST CONDITIONS MAXIMUM PEAK OUTPUT POWER (dBm) Frequency (MHz) 2412 2442 2472 T nom ( 23 )° °° °C V nom (3.3)V 21.75 21.03 21.64 Measurement uncertainty ±3dB Note: Radiated measurements done with the 2 dBi gain external antenna. LIMIT SUBCLAUSE § 15.247 (b) (1) Frequency range RF power output 2400-2483.5 MHz / 5725 – 5850 MHz 1.0 Watt ANALYZER SETTINGS: RBW=10MHz , VBW=10MHz CETE…
