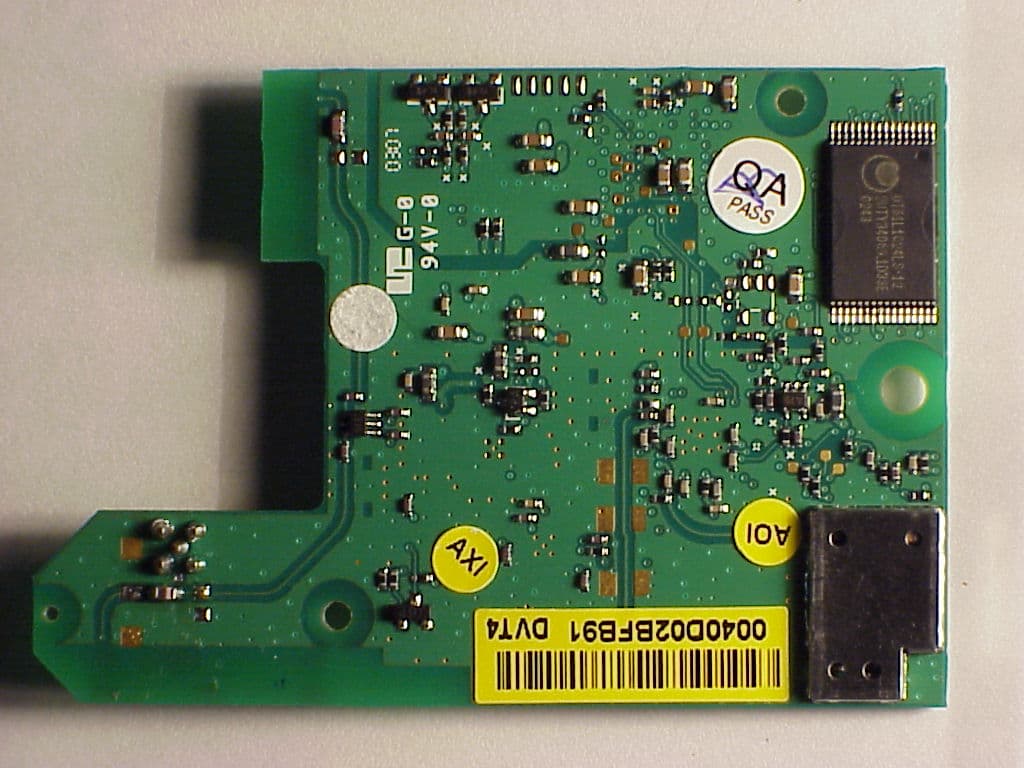

B9450920115USB WLAN Module

OEM information NOTICE TO OEM’S This is a template of the instructions that are provided with the module to OEM’s that clearly state their obligations to include the following Statements including RF Exposure information in their manual provided to the end-user. This information below has to be included in the manuals for the devices this module is included. Regulatory information The Hewlett Packard <device name of the OEM product> wireless network device must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. <Company name> is not responsible for any radio or television interference caused by unauthorized modification of the devices included with this <company name> <device name> kit, or the substitution or attachment of connecting cables and equipment other than specified by <company name>. The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user. <company name> and its authorized resellers or distributors are not liable for any damage or violation of government regulations that may arise from failing to comply with these guidelines. Canada—Industry Canada (IC) This device complies with RSS210 of Industry Canada. USA—Federal Communications Commission (FCC) This device complies with Part 15 of FCC Rules. Operation of the device is subject to the following two conditions: ● This device may not cause harmful interference. ● This device must accept any interference that may cause undesired operation. USA WARNING—Exposure to radio frequency radiation The radiated output power of this <company name> <device name> wireless network device is far below the FCC radio frequency exposure limits. Nevertheless, the <company name> <device name> wireless network device shall be used in such a manner that the potential for human contact during normal operation is minimized. To avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall be not less than 20 cm (8 inch) human contact during normal operation. Interference statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the distance between the equipment and the receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. NOTE—This <company name> <device name> wireless network device must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. Any other installation or use will violate FCC Part 15 regulations. Lothar Schmidt Technical Manager CETECOM Inc.

Document4 Page 1 of 1 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] URL: www.cetecom.com Statement FCC ID: B945092-0115 Modular approval for the HP 5092-0115 1. The modular transmitter has its own RF shielding. See photos 2. The modular transmitter has buffered modulation/data inputs. 3. The modular transmitter has its own power supply regulation on board. 4. The modular transmitter has an on board antenna. 5. The modular transmitter was tested in a stand-alone configuration; the compliance with the AC line conducted requirements found in Section 15.207 was tested in a typical application as printer server plugged into a printer (see test setup photo). 6. The modular transmitter will labeled with its own FCC ID number (See photo). The intended mobile applications will be labeled with “Radio with FCC ID: B945092-0115 included”. 7. The modular transmitter will be used and installed in specific applications. Example manual for the printer server application is included in the application 8. The modular transmitter complies with the applicable RF exposure requirements. The spread spectrum transmitters operating under Section 15.247 can be used for mobile applications, which guarantee a minimum distance of 20 cm. However the MPE calculation shows the minimum distance for compliance with the RF exposure limits. Technical Manager

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 May 14, 2003 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Hewlett Packard Co. requests confidentiality for the following products: FCC ID Number Product Title/Model B9450920115 5092-0115 For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) BOM 3) PBC layout 4) Operational description 5) Block diagram No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Hewlett Packard Co. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Lothar Schmidt Technical Manager

CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention: Reviewing Engineer The HP 5092-0115 is a WLAN card with USB interface for use in printer server or similar mobile applications. In the user manual it is called USB module . Due to the construction and the position of the antenna (TX and RX) a minimum distance under normal operating conditions of more than 20 cm to the antenna is guaranteed. The manual contains a relevant statement. The calculation was made for this worst case. The maximum peak output power for this device is 86.5 mW (19.37 dBm). Regarding MPE limits, GPUC environment limits maximum exposure to 1 mW/cm 2. The power density is: S = E 2 /3770=-13 H 2 < 1 mW/cm 2 Where: S = Power density (mW/cm 2) E = electrical field strength (V/m) This formula converted using the EIRP is P out *G/4π*r 2 (mW/cm 2 ) 86.5/4π*20 2 = 0.0172 mW/cm 2 Calculations are based on standard formula for calculating field strength at a distance and converting power density using free space impedance. If you should have any questions regarding this submission, please feel free to contact the undersigned. Yours truly, Lothar Schmidt Technical Manager EMC/Radio CETECOM Inc.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CTECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_423FCC15.247_2003 FCC Part 15.247 for DSSS systems / CANADA RSS-210 (5092-0115) FCC ID: B9450920115 Test report no.: EMC_423FCC15.247_2003 Issue date: 2003-03-10 Page 2 (59) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. TEST REPORT PREPARED BY: EMC Engineer: Philip Kim 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_423FCC15.247_2003 Issue date: 2003-03-10 Page 3 (59) 1.3 Details of applicant Name : Hewlet Packard Street : 8000 Foothills Blvd., Bldg R3U, ms 5677 City / Zip Code : Roseville, CA 95747 Country : USA Contact : Jim Henry Telephone : 916-785-5417 Tele-fax : 916-785-2885 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2002-12-12 Date of receipt test item : 2003-01-23 Date of test : 2003-02-27 ~ 2003-02-28 1.5 Test item Manufacturer : MITAC Computer (Kunshan) Ltd. Street : Changjiang South Road, Export Processing Zone City / Zip Code : Kunshan/Jiangsu Country : Peoples Republic of China Marketing Name : USB WLAN module Model No. : 5092-0115 Description : (802.11b) WLAN module fro use in printservers an similar applications FCC-ID : B9450920115 Additional information Frequency : 2.4GHz ISM Type of modulation : Number of channels : 13 Antenna : Internal SMD Power supply : Host (3.3Vdc) Output power : Channels 1-12 Max output = 20Bm (Avg) Channel 13 Max output = 13.5dBm(Avg) Extreme temp. Tolerance : 0 o ~ 35 o 1.6 Test standards: FCC Part 15 §15.247 / CANADA RSS-210 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. Test report no.: EMC_423FCC15.247_2003 Issue date: 2003-03-10 Page 4 (59) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2003-03-10 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2003-03-10 EMC & Radio Philip Kim (EMC Engineer) Date Section Name Signature Test report no.: EMC_423FCC15.247_2003 Issue date: 2003-03-10 Page 5 (59) 2.2 Test report TEST REPORT Test report no.: EMC_423FCC15.247_2003 (5092-0115) Test report no.: EMC_423FCC15.247_2003 Issue date: 2003-03-10 Page 6 (59) TEST REPORT REFERENCE LIST OF MEASUREMENTS PAGE ANTENNA GAIN § 15.204 7 SPECTRUM BANDWIDTH OF DSSS SYSTEM §15.247(a) (2) 8 MAXIMUM PEAK OUTPUT POWER § 15.247 (b) (1) 12 POWER SPECTRAL DENSITY §15.247 (d) 20 BAND EDGE COMPLIANCE §15.247 (c) 28 EMISSION LIMITATIONS § 15.247 (c) (1) 32 CONDUCTED EMISSIONS § 15.107/207 51 RECEIVER SPURIOUS RADIATION § 15.209 52 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 57 BLOCK DIAGRAMS 58 Test report no.: EMC_423FCC15.247_2003 Issue date: 2003-03-10 Page 7 (59) ANTENNA GAIN § 15.204 The antenna gain of the complete system is calculated by the difference of conducted power of the module and the radiated power in EIRP. The antenna with the highest gain was used for all measurements. Low channel Mid channel High channel Conducted Power 23.91 dBm 24.17 dBm 18.24 dBm Radiated Power (EIRP) 19.07 dBm 19.37 dBm 13.92 dBm Antenna Gain -4.84 dBi -4.8 dBi -4.32 dBi The calculated antenna gain is between –4.84dBi and –4.32dBi. Test report no.: EMC_423FCC15.247_2003 Issue date: 2003-03-10 Page 8 (59) SPECTRUM BANDWIDTH OF DSSS SYSTEM §15.247(a) (2) 6 dB bandwidth TEST CONDITIONS 6 dB BANDWIDTH (MHz) Frequency (MHz) 2412 2442 2472 T nom (23)°C V nom (3.3) VDC 9.96 10.17 10.67 LIMIT SUBCLAUSE §15.247(a) (2) The minimum 6dB bandwidth shall be at least 500 KHz Test report no.: EMC_423FCC15.247_2003 Issue date: 2003-03-10 Page 9 (59) SPECTRUM BANDWIDTH OF DSSS SYSTEM §15.247(a) (2) 6 dB bandwidth Lowest Channel: 2412MHz Test report no.: EMC_423FCC15.247_2003 Issue date: 2003-03-10 Page 10 (59) SPECTRUM BANDWIDTH OF DSSSS SYSTEM §15.247(a) (2) 6 dB bandwidth Mid Channel: 2442MHz Test report no.: EMC_423FCC15.247_2003 Issue date: 2003-03-10 Page 11 (59) SPECTRUM BANDWIDTH OF DSSS SYSTEM §15.247(a) (2) 6 dB bandwidth Highest Channel: 2472MHz Test report no.: EMC_423FCC15.247_2003 Issue date: 2003-03-10 Page 12 (59) MAXIMUM PEAK OUTPUT POWER § 15.247 (b) (1) (Conducted) TEST CONDITIONS MAXIMUM PEAK OUTPUT POWER (dBm) Frequency (MHz) 2412 2442 2472 Pk 23.91 24.17 18.24 T nom (23)°C V nom (3.3) VDC Av 19.73 20.11 13.54 Measurement uncertainty ±0.5dBm RBW / VBW: 10MHz LIMIT SUBCLAUSE § 15.247 (b) (1) Frequency range RF power output 2400-2483.5 M…
