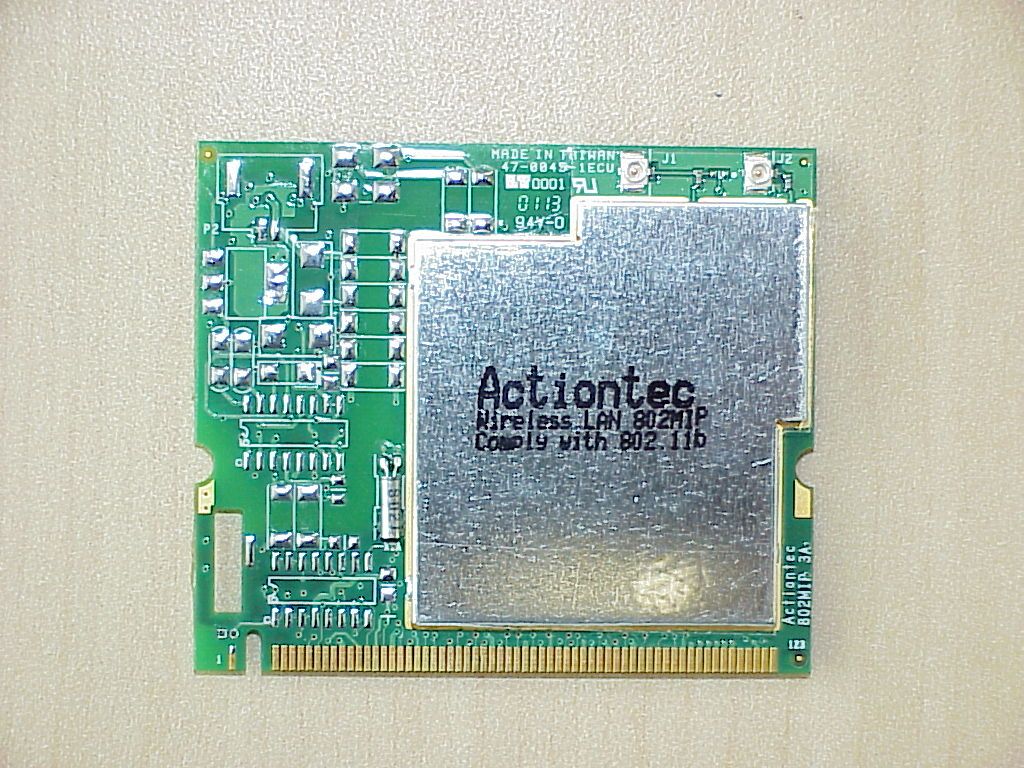

B946000WLANWireless LAN card for HP Notebook Omnibook 6000

HP Notebook PC Reference GuideStartup Guide 2Reference GuideStartup Guide Notice This manual and any examples contained herein are provided “as is” and are subject to change without notice. Hewlett-Packard Company makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard Co. shall not be liable for any errors or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or the examples herein. Consumer transactions in Australia and the United Kingdom: The above disclaimers and limitations shall not apply to Consumer transactions in Australia and the United Kingdom and shall not affect the statutory rights of Consumers. © Copyright Hewlett-Packard Company 2001. All rights reserved. Reproduction, adaptation, or translation of this manual is prohibited without prior written permission of Hewlett-Packard Company, except as allowed under the copyright laws. The programs that control this product are copyrighted and all rights are reserved. Reproduction, adaptation, or translation of those programs without prior written permission of Hewlett-Packard Co. is also prohibited. Portions of the programs that control this product may also be copyrighted by Microsoft Corporation, SystemSoft Corp., Phoenix Technologies, Ltd., ATI Technologies Inc., and Adobe Systems Incorporated. See the individual programs for additional copyright notices. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Microsoft®, MS-DOS®, and Windows® are U.S. registered trademarks of Microsoft Corporation. Pentium® and the Intel Inside logo are U.S. registered trademarks and Celeron™ and SpeedStep™ are U.S. trademarks of Intel Corporation. TrackPoint™ is a U.S. trademark of International Business Machines. Adobe® and Acrobat® are trademarks of Adobe Systems Incorporated. Hewlett-Packard Company HP Notebook Customer Care 1000 NE Circle Blvd., MS 425E Corvallis, OR 97330 Reference GuideStartup Guide3 Important Safety Information CAUTION To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line cord to connect a modem to the telephone wall jack. When using your computer with a telephone connection, always follow basic safety precautions to reduce the risk of fire, electric shock, and injury to persons: • Do not use this product with a telephone connection near water (for example, near a bathtub, sink, swimming pool, or in a wet basement). • Avoid using a telephone connection (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lighting. • Do not use a telephone connection to report a gas leak in the vicinity of the leak. • Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. HP Software Product License Agreement Your HP product contains software programs. CAREFULLY READ THIS LICENSE AGREEMENT BEFORE PROCEEDING TO OPERATE THIS EQUIPMENT. RIGHTS IN THE SOFTWARE ARE OFFEREDONLY ON THE CONDITION THAT THE CUSTOMER AGREES TO ALL TERMS AND CONDITIONS OF THE LICENSE AGREEMENT. PROCEEDING TO OPERATE THE EQUIPMENT INDICATES YOUR ACCEPTANCE OF THESE TERMS AND CONDITIONS. IF YOU DO NOT AGREE WITH THE TERMS OF THE LICENSE AGREEMENT, YOU MUST NOW EITHER REMOVE THE SOFTWARE FROM YOUR HARD DISK DRIVE AND DESTROY THE MASTER DISKETTES, OR RETURN THE COMPLETE HP PRODUCT AND SOFTWARE FOR A FULL REFUND. PROCEEDING WITH CONFIGURATION SIGNIFIES YOUR ACCEPTANCE OF THE LICENSE TERMS. UNLESS OTHERWISE STATED BELOW, THIS HP SOFTWARE LICENSE AGREEMENT SHALL GOVERN THE USE OF ALL SOFTWARE THAT IS PROVIDED TO YOU AS PART OF THE HP PRODUCT AND SHALL SUPERSEDE ANY OTHER SOFTWARE WARRANTY STATEMENT THAT MAY BE INCLUDED IN THIS HP PRODUCT OR MAY BE FOUND ONLINE. Operating system and software applications by Microsoft are licensed to you under the Microsoft License Agreement contained in the Microsoft documentation or displayed on your screen when Microsoft Software Products are launched. Other non-HP Software and Operating Systems are covered by the appropriate vendor license. The following License Terms govern the use of the HP software: 4Reference GuideStartup Guide USE. Customer may use the software on any one HP product. Customer may not network the software or otherwise use it on more than one HP product. Customer may not reverse assemble or decompile the software unless authorized by law. COPIES AND ADAPTATIONS. Customer may make copies or adaptations of the software a) for archival purposes or (b) when copying or adaptation is an essential step in the use of the software with an HP product so long as the copies and adaptations are used in no other manner. OWNERSHIP. Customer agrees that he/she does not have any title or ownership of the software, other than ownership of the physical media. Customer acknowledges and agrees that the software is copyrighted and protected under the copyright laws. Customer acknowledges and agrees that the software may have been developed by a third party software supplier named in the copyright notices included with the software, who shall be authorized to hold the Customer responsible for any copyright infringement or violation of this Agreement. PRODUCT RECOVERY CD-ROM. If your HP product was shipped with a product recovery CD-ROM: (i) The product recovery CD-ROM and/or support utility software may only be used for restoring the ha…

Text truncated - open the document above for the full version.

DECLARATION OF CONFORMITY According to ISO/IEC Guide 22 and EN 45014 Manufacturer’s Name: Manufacturer’s Address: Hewlett Packard Co mpany Hewlett Packard Co mpany Mobile Computing Division 19310 Pruneridge Ave. Cupertino, CA 95014 Declares, that the product(s): Product Name: Notebook PC Model Numbe r(s): OmniBook 6100 and Pavilion series Notebook PC Product Options: Includes modemless, 3Com modems and 802.11b RF device Conforms to the following Product Specifications: Safety : IEC 60950: 1991 +A1,A2,A3,A4 / EN 60950: 1992 +A1,A2,A3,A4,A11 IEC 60825-1:1993 +A1 / EN 60825-1:1994 +A11 Class 1 LED GB4943-1995 EMC : CISPR 22:1997 / EN 55022: 1998 Class B [1] CISPR 24:1997 / EN 55024: 1998 IEC 61000-3-2:1995 / EN 61000-3-2:1995 +A1: 1998 +A2: 1998 IEC 61000-3-3:1994 / EN 61000-3-3:1995 GB9254-1998 FCC Title 47 CFR, Part 15 Class B/ANSI C63.4: 1992 AS/NZS 3548: 1995 Rules and Regulations of Class B Telecom: Notified Body Numbe r: 0682 TBR 21: 1998, EG 201 121: 1998 Notified Body Address: Radio: Equipme nt Class 2 CETECOM ICT Services GmbH ETS 300-826 General EMC requirements for Radio equipment Untertuerkheimer Str. 6-10 ETS 300-328 Technical requirements for Radio equipment D-66117 Saarbruecken Supplementary Information : The product herewith complies with the requirements of the R&TTE Directive 1999/5/EC and carries the CE marking accordingly. [1] The product was tested in a typical configuration with Hewlett Packard Personal Computer peripherals. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may no t cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The HP F1454A and F1781A AC/DC adapter used with this product is designed to operate on all power systems, other than IT power systems. Corvallis, OR, May 15, 2001 European Contact for regulatory topics only: Hewlett Packard GmbH, HQ-TRE, Herrenberger StraBe 130, 71034 Boeblingen, Germany. (FAX:+49-7031-143143). USA Contact: Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, C A 94304. Phone: (650) 857-1501.

HFA3783 QUAD IF ISL3685IR RF/IF CONV ISL3984 RFPA PLL RF LO REF IN PLL I/Q LO I ADC Q ADC RX ADC IF DAC RX DAC TX DAC Q DAC I DAC IF LO REF IN TX ADC REF_OUT TX ALC MOD DEMOD AGC CTL I/O ANT_SEL 6 1 1 1 6 6 6 6 6 REF IN 44 MHz CLOCK PHY I/O CONTROL PROCESSOR MEMORY ARBITER RADIO I/O HOST I/O WEP ENGINE CAL_EN T/R Optional Parallel FLASH miniPCI HOST Intf Differential signals ISL3874 MAC/BBP 128Kx16 SRAM RF VCO ISL3183 IF VCO 32KHz Sleep SAW External Antenna Optional Diversity Switch External Status LEDs Serial EEPROM BLOCK DIAGRAM

ctc_gn_01_00.doc (General);2/11/02 Page 1 of 1 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] URL: www.cetecom.com Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 October 16, 2000 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Hewlett Packard Company requests confidentiality for the following products: FCC ID Number Product Title/Model B946100 HP OmniBook 6000 series is also the HP pavilion z1xxx series (where x= any digit from 0-9) For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) BOM 3) Gerber files No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Hewlett Packard Company trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Lothar Schmidt Technical Manager

CETECOM Inc. Test report no.:141FCC/2001/A Issued date:2001-05-25 Page 48 (52) TEST SITE Radiated Emissions HP OMNIBOOK 6100 CETECOM Inc. Test report no.:141FCC/2001/A Issued date:2001-05-25 Page 49 (52) Conducted Emissions HP OMNIBOOK 6100

COMPLIES WITH CANADIAN EMC CLASS B REQUIREMENTS. Conforme à la classe B des normes Canadiennes de compatibilité électromagnétiques <<CEM>>. 3.16A (3,16A) INPUT: + - Rev.A 19V Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and 4,907,093 licensed for limited viewing uses only. SEE MANUAL FOR BATTERY AND AC ADAPTER INFORMATION. hp omnibook 500 CM Rev.A COMPLIES WITH CANADIAN EMC CLASS B REQUIREMENTS. Conforme à la classe B des normes Canadiennes de compatibilité électromagnétiques <<CEM>>. 3.16A (3,16A) INPUT: + - Rev.A 19V Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and 4,907,093 licensed for limited viewing uses only. SEE MANUAL FOR BATTERY AND AC ADAPTER INFORMATION. hp omnibook 500 CM Rev.A Bar-Code Label, Stepped Recess24.0 x 57mm Stepped Recess Bar-Code Label, Stepped Recess24.0 x 57mm Stepped Recess #2 Microsoft COA Label NEW = 28mm X 70mm (on-demand COA label available in September 2001) ALTERNATIVE LOCATION: (1) On Demand COA Label; fits as shown, but very tight. NOT Recommended! #1 Microsoft COA Label NEW = 28mm X 70mm (on-demand COA label available in September 2001) PROPOSED LOCATION: (1) On Demand COA Label; fits as shown #2 Microsoft COA Label NEW = 28mm X 70mm (on-demand COA label available in September 2001) ALTERNATIVE LOCATION: (1) On Demand COA Label; fits as shown, but very tight. NOT Recommended! #1 Microsoft COA Label NEW = 28mm X 70mm (on-demand COA label available in September 2001) PROPOSED LOCATION: (1) On Demand COA Label; fits as shown View 6: Bottom Case, JAWs 1.0 & 1.5 non-wireless Regulatory Label (generic content) HP Regulatory Symbol Label & HP Prime Label location Telecom Label = 60.0 x 62.0mm (reces = + 0.3mm tolerance each side) JAWS COA Label Fit (dwg #2 of 2) 05.14.01 _________________________________ NEW COA LABEL SIZE (available September 2001, per Microsoft) (1) Print on-demand COA label = 28mm X 70mm hp restricted Regulatory Symbol Label Telecom Symbol/Sticker Label Taiwan Recycle Label (12mm X 15mm) View 6: Bottom Case, JAWs 1.5 wireless Regulatory Label (generic content) HP Regulatory Symbol Label & HP Prime Label location Telecom Label = 60.0 x 62.0mm (reces = + 0.3mm tolerance each side) WIRELESS Regulatory Symbol Label 64.0mm WIDE x 38.5mm TALL (NO recess; label to a be applied to the surface of the product RAM door in this location) THIS SPACE MUST BE RESERVED FOR THE APPLICATION OF A WIRELESS MARKING REGULATORY LABEL. Regulatory Symbol Label Telecom Symbol/Sticker Label Taiwan Recycle Label (12mm X 15mm) Wireless Symbol Label (64.0mm X 38.5mm) Bar-Code Label

D D 1 2 3 4 5 6 7 ABCE 7 6 5 4 3 2 1 ECBA LTR NAM E M O DEL M ATERIAL FINISH DATE SC ALE UNIT M M DWG . NO . APPRO VED DESIG NED DRAWN REV 3F 3A 3C TO L. + - 1 PLC2 PLCANG LE 7F, 116 HO U KANG ST. SHIN LIN, TAIPEI, TAIWAN, R. O . C . ITEMDESC RIPTIO N REVISIO NS DESC RIPTIO N DATEAPP THE 3RD PRO JEC TIO N PART NO . Q ua nta C om pute r Inc . 2 1 3 FIRST RELEASE Rita S/N HCRT2009 1/1 H C R T 2009013 90. 12. 04 90. 07. 05 R t2 W IR E L E S S L AB E L 3B Rita 0. 15 SEE NO TE SEE NO TE R1. 0 0682 ADD C ZEC H M ARK & IDA 90. 08. 15 Rita 3 8 . 2 63. 7 T his device incorpora tes a tra ns mitter with the following identifica tion: F C C ID : B 946000W L AN C AN ADA : 466104383A Approved by IDA for use in Singapore DB100427 PZ nr CLBT/C/61/2001 Urzad Regulacji Telekomunikacji ADD PO LAND M ARK 90. 08. 28 Rita 90L P 0181 3D ADD TAIWAN DG T 90. 10. 08 Rita 3F Homologacion Mexico RCPAC8001-484 ' ' 3E ADD M EXIC O DG T 90. 11. 05 Rita 802MIP(W) 3F ADD 802M IP DG T 90. 12. 04 Rita hp revised FC C ID: B946000WLAN 02-11-02

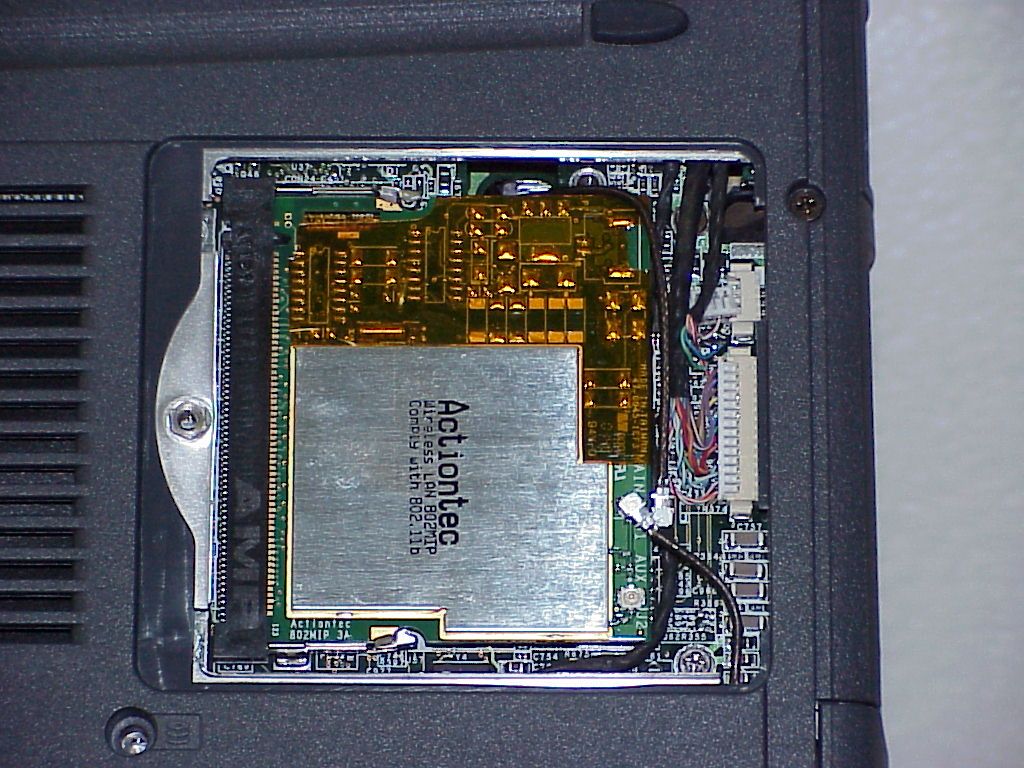

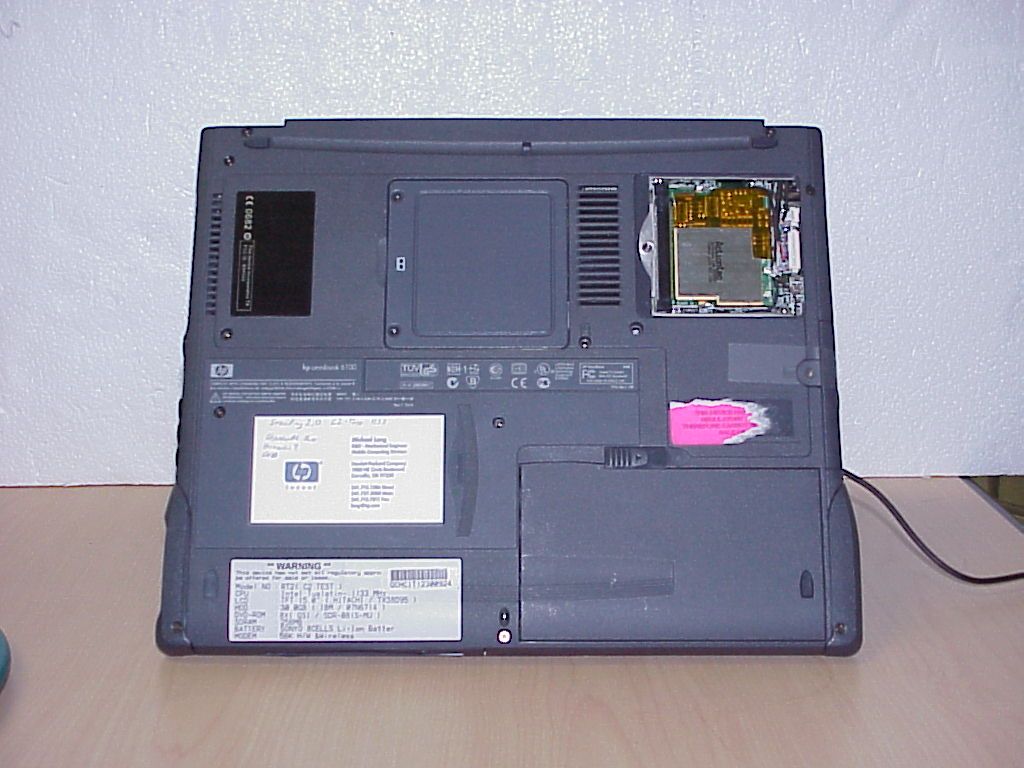

Antennaposition

CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 Industry Canada Attention: Reviewing Engineer The HP OminBook 6000 series is a regular Laptop with a built in 802.11b radio card using spread spectrum technique for portable applications for wireless LAN access. Due to the construction of the Laptop and the position of the antenna inside (it’s placed at the lower end of the screen) which give a distance to the legs, if operated there, of in minimum 2.5 cm as well as to the fingers in normal operation. This will be This information includes the following : A minimum separation distance of 2.5 cm must be maintained between the antenna and the person for this device to satisfy the RF exposure requirements of the FCC. The maximum output power allowed for the Bluetooth radio is 100 mW. Maximum EIRP of the equipment = 16.83 dBm (0.0482 W); equivalent to 48.1 V/m in 2.5 cm distance Regarding MPE limits, GPUC environment limits maximum exposure to 1 mW/cm 2. The power density at 0.2 meters from an antenna is: S = E 2 /3770=-13 H 2 = 0.6253 mW/cm 2 < 1 mW/cm 2 Where: S = Power density (mW/cm 2) E = electrical field strength (V/m) Calculations are based on standard formula for calculating field strength at a distance and converting power density using free space impedance. Compliance is shown for the built in antenna. If you should have any questions regarding this submission, please feel free to contact the undersigned. Yours tr ul y, Lothar Schmidt Technical Manager EMC/Radio CETECOM Inc.

CETECOM Inc. CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 www.cetecomusa.com Issued test report consists of 52 Pages Page 1 (52) Test report no.: 141FCC/2001/A FCC Part 15.247 HP OmniBook 6100 - FCC ID: B946000WLAN RECOGNIZED BY FCC registration # 101450 IC - 3925 CETECOM Inc. Test report no.:141FCC/2001/A Issued date:2001-05-25 Page 2 (57) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. USA. CETECOM Inc. Test report no.:141FCC/2001/A Issued date:2001-05-25 Page 3 (57) 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecomusa.com 1.3 Details of applicant Name : Hewlett Packard Co.; Mobile Computing Division Street : 1000 NE Circle Blvd. City : Corvallis, OR 97330 Country : USA Telephone : +1 541 715 2171 Telefax : +1 541 715 3607 Contact : Kathy Warnock e-mail : [email protected] 1.4 Application details Date of receipt of application : 2001-04-01 Date of receipt of test item : 2001-04-15 Date of test : 2001-04-18/19/20 1.5 Test item Manufacturer : Hewlett Packard. Address : See above Name of EUT : HP OmniBook 6100 Series (with Mini PCI 802.11b wireless card - built in) Type Designation : Model : Additional informations: HP OmniBook 6100 Series 802MIP(W) Frequency : 2.412 – 2.472 GHz Type of modulation : DBPSK at 1Mb/s; DQPSK at 2Mb/s; CCK at 5.5.and 11Mb/s Number of channels : 13 Channels Antenna : Integral Power supply : 5.0V Type of equipment : Temperature range : 0°C - +35°C CETECOM Inc. Test report no.:141FCC/2001/A Issued date:2001-05-25 Page 4 (57) 1.6 Test standards FCC Part 15 §15.247 The tests were done following the public notice DA 00-705 released March 30, 2000 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. Technical responsibility for area of testing : 2001-05-10 EMC& Radio Lothar Schmidt Date Section Name Signature CETECOM Inc. Test report no.:141FCC/2001/A Issued date:2001-05-25 Page 5 (57) 2.2 Testreport TEST REPORT Testreport no. : 141FCC/2001/A HP OmniBook 6100 CETECOM Inc. Test report no.:141FCC/2001/A Issued date:2001-05-25 Page 6 (57) TEST REPORT REFERENCE LIST OF MEASUREMENTS Paragraph PARAMETER TO BE MEASURED PAGE Transmitter parameters § 15.247 (a)(2) Spectrum Bandwith of a DSSS System 7 § 15.247 (b)(1) Maximum peak output power 11 § 15.247 (c)(1) Emission limitations 16 § 15.247 (d) Power Spectral Density 33 § 15.247 (e) Processing Gain of DSSS System 37 Receiver parameters § 15.209 Spurious radiations - Radiated 39 Test equipment listing 47 Test Site 48 Photographs of the equipment 50 ANNEX: Details about processing gain. NOTE: Conducted Emissions as per § 15.107 are not applicable for the EUT since it is a built in a laptop computer. The Laptop was measured in accordance with FCC part 15 B including the Wireless LAN . CETECOM Inc. Test report no.:141FCC/2001/A Issued date:2001-05-25 Page 7 (57) SPECTRUM BANDWITH OF DSSS-SYSTEM SUBCLAUSE § 15.247 (a)(2) TEST CONDITIONS 6 dB BANDWIDTH ( kHz ) Frequency (MHz) 2412 2442 2472 T nom ( 20 )°C V nom (5.0)V 10220 95190 96192 Measurement uncertainty ±3dB LIMIT SUBCLAUSE §15.247(a) (2) The minimum 6dB bandwith shall shall be at least 500 KHz CETECOM Inc. Test report no.:141FCC/2001/A Issued date:2001-05-25 Page 8 (57) SPECTRUM BANDWITH OF DSSS-SYSTEM SUBCLAUSE § 15.247 (a)(2) 2412 MHz LIMIT SUBCLAUSE §15.247(a) (2) The minimum 6dB bandwith shall shall be at least 500 KHz , here 10.02 MHz ANALYZER SETTINGS: RBW=100KHz , VBW=1MHz CETECOM Inc. Test report no.:141FCC/2001/A Issued date:2001-05-25 Page 9 (57) SPECTRUM BANDWITH OF DSSS-SYSTEM SUBCLAUSE § 15.247 (a)(2) 2442 MHz LIMIT SUBCLAUSE §15.247(a) (2) The minimum 6dB bandwith shall shall be at least 500 KHz , here 11.42 MHz ANALYZER SETTINGS: RBW=100KHz , VBW=1MHz CETECOM Inc. Test report no.:141FCC/2001/A Issued date:2001-05-25 Page 10 (57) SPECTRUM BANDWITH OF DSSS-SYSTEM SUBCLAUSE § 15.247 (a)(2) 2472 MHz LIMIT SUBCLAUSE §15.247(a) (2) The minimum 6dB bandwith shall shall be at least 500 KHz , here 10.02 MHz ANALYZER SETTINGS: RBW=100KHz , VBW=1MHz CETECOM Inc. Test report no.:141FCC/2001/A Issued date:2001-05-25 Page 11 (57) MAXIMUM PEAK OUTPUT POWER SUBCLAUSE § 15.247 (b) (1) (CONDUCTED) TEST CONDITIONS MAXIMUM PEAK OUTPUT POWER (dBm) Frequency (MHz) 2412 2442 2472 Pk 13.94 Pk 14.50 Pk 13.05 T nom ( 23 )°C V nom (5.0)V Av 8.29 Av 8.29 Av 7.28 Pk 13.14 Pk 12.60 Pk 12.09 T nom ( 0 )°C V nom (5.0)V Av 7.85 Av 7.16 Av 6.59 Pk 12.43 Pk 11.09 Pk 10.33 T nom ( 35 )°C V nom (5.0)V Av 6.46 Av 5.93 Av 5.12 Measurement uncertainty ±3dB LIMIT SUBCLAUSE § 15.247 (b) (1) Frequency range RF power output 2400-2483.5 MHz / 5725 – 5850 MHz 1.0 Watt CETECOM Inc. Test report no.:141FCC/2001/A Issued date:2001-05-25 Page 12 (57) MAXIMUM PEAK OUTPUT POWER (EIRP) SUBCLAUSE § 15.247 (b) (1) (RADIATED) TEST CONDITIONS MAXIMUM PEAK OUTPUT POWER (dBm) Frequency (MHz) 2412 2442 2472 Pk 11.75 Pk 10.45 Pk 10.46 T nom ( 23 )°C V nom (5.0)V Av 5.85 Av 4.28 Av 3.18 Maximum deviation from output power under extreme test conditions (dBc) not performed not performed not performed Measurement uncertainty ±3dB LIMIT SUBCLAUSE § 15.247 (b) …

Text truncated - open the document above for the full version.

TEST CONDITIONSMAXIMUM PEAK OUTPUT POWER (dBm) Frequency (MHz)241224422472 Pk 16.83 Pk 15.98 Pk 14.66 T nom ( 23 )° °° °C V nom (230)VAC Av 12.7 Av 12.0 Av 10.5 Measurement uncertainty±3dB Measurement with 10 MHz RBW and VBW Power measured with power meter

Processing Gain ISL37400M 11Mbps CHANNEL 6 Processing Gain Gp = (S/N)o + Mj + Lsys Freq.Gp(S/N)oMj=J/SLsysJammerPER (MHz)(dB)(dB)(dB)(dB)(dBm)(%) 2428.5023.916.45.52.0-57.2<=8.0 2428.5523.916.45.52.0-57.2<=8.0 2428.6023.916.45.52.0-57.2<=8.0 2428.6523.816.45.42.0-57.3<=8.0 2428.7023.816.45.42.0-57.3<=8.0 2428.7524.016.45.62.0-57.1<=8.0 2428.8024.116.45.72.0-57.0<=8.0 2428.8524.116.45.72.0-57.0<=8.0 2428.9024.216.45.82.0-56.9<=8.0 2428.9524.116.45.72.0-57.0<=8.0 2429.0024.416.46.02.0-56.7<=8.0 2429.0524.316.45.92.0-56.8<=8.0 2429.1024.316.45.92.0-56.8<=8.0 2429.1524.316.45.92.0-56.8<=8.0 2429.2024.416.46.02.0-56.7<=8.0 2429.2523.716.45.32.0-57.4<=8.0 2429.3023.316.44.92.0-57.8<=8.0 2429.3523.216.44.82.0-57.9<=8.0 2429.4022.216.43.82.0-58.9<=8.0 2429.4521.316.42.92.0-59.8<=8.0 2429.5021.216.42.82.0-59.9<=8.0 2429.5521.116.42.72.0-60.0<=8.0 2429.6021.116.42.72.0-60.0<=8.0 2429.6521.016.42.62.0-60.1<=8.0 2429.7021.016.42.62.0-60.1<=8.0 2429.7520.816.42.42.0-60.3<=8.0 2429.8020.716.42.32.0-60.4<=8.0 2429.8521.116.42.72.0-60.0<=8.0 2429.9021.016.42.62.0-60.1<=8.0 2429.9521.116.42.72.0-60.0<=8.0 2430.0020.916.42.52.0-60.2<=8.0 2430.0520.916.42.52.0-60.2<=8.0 2430.1020.516.42.12.0-60.6<=8.0 2430.1519.516.41.12.0-61.6<=8.0 2430.2019.516.41.12.0-61.6<=8.0 2430.2519.016.40.62.0-62.1<=8.0 2430.3019.016.40.62.0-62.1<=8.0 2430.3518.716.40.32.0-62.4<=8.0 2430.4018.716.40.32.0-62.4<=8.0 2430.4518.516.40.12.0-62.6<=8.0 2430.5018.416.40.02.0-62.7<=8.0 2430.5518.416.40.02.0-62.7<=8.0 2430.6018.416.40.02.0-62.7<=8.0 2430.6518.116.4-0.32.0-63.0<=8.0 2430.7017.916.4-0.52.0-63.2<=8.0 2430.7517.416.4-1.02.0-63.7<=8.0 2430.8017.416.4-1.02.0-63.7<=8.0 2430.8517.116.4-1.32.0-64.0<=8.0 Prepared by: D. KalcikPage 15/23/01 Processing Gain ISL37400M 11Mbps CHANNEL 6 Processing Gain Gp = (S/N)o + Mj + Lsys Freq.Gp(S/N)oMj=J/SLsysJammerPER (MHz)(dB)(dB)(dB)(dB)(dBm)(%) 2430.9017.116.4-1.32.0-64.0<=8.0 2430.9516.916.4-1.52.0-64.2<=8.0 2431.0016.816.4-1.62.0-64.3<=8.0 2431.0516.716.4-1.72.0-64.4<=8.0 2431.1016.716.4-1.72.0-64.4<=8.0 2431.1516.316.4-2.12.0-64.8<=8.0 2431.2016.516.4-1.92.0-64.6<=8.0 2431.2516.416.4-2.02.0-64.7<=8.0 2431.3016.316.4-2.12.0-64.8<=8.0 2431.3516.316.4-2.12.0-64.8<=8.0 2431.4015.816.4-2.62.0-65.3<=8.0 2431.4515.916.4-2.52.0-65.2<=8.0 2431.5015.716.4-2.72.0-65.4<=8.0 2431.5515.516.4-2.92.0-65.6<=8.0 2431.6015.416.4-3.02.0-65.7<=8.0 2431.6515.216.4-3.22.0-65.9<=8.0 2431.7015.116.4-3.32.0-66.0<=8.0 2431.7515.016.4-3.42.0-66.1<=8.0 2431.8015.016.4-3.42.0-66.1<=8.0 2431.8514.916.4-3.52.0-66.2<=8.0 2431.9015.016.4-3.42.0-66.1<=8.0 2431.9515.116.4-3.32.0-66.0<=8.0 2432.0015.116.4-3.32.0-66.0<=8.0 2432.0515.116.4-3.32.0-66.0<=8.0 2432.1015.016.4-3.42.0-66.1<=8.0 2432.1514.816.4-3.62.0-66.3<=8.0 2432.2014.916.4-3.52.0-66.2<=8.0 2432.2514.916.4-3.52.0-66.2<=8.0 2432.3014.816.4-3.62.0-66.3<=8.0 2432.3514.616.4-3.82.0-66.5<=8.0 2432.4014.316.4-4.12.0-66.8<=8.0 2432.4514.516.4-3.92.0-66.6<=8.0 2432.5014.616.4-3.82.0-66.5<=8.0 2432.5514.516.4-3.92.0-66.6<=8.0 2432.6014.316.4-4.12.0-66.8<=8.0 2432.6514.316.4-4.12.0-66.8<=8.0 2432.7014.216.4-4.22.0-66.9<=8.0 2432.7514.116.4-4.32.0-67.0<=8.0 2432.8014.116.4-4.32.0-67.0<=8.0 2432.8513.816.4-4.62.0-67.3<=8.0 2432.9013.516.4-4.92.0-67.6<=8.0 2432.9513.716.4-4.72.0-67.4<=8.0 2433.0013.616.4-4.82.0-67.5<=8.0 2433.0513.516.4-4.92.0-67.6<=8.0 2433.1013.516.4-4.92.0-67.6<=8.0 2433.1513.516.4-4.92.0-67.6<=8.0 2433.2013.616.4-4.82.0-67.5<=8.0 2433.2513.716.4-4.72.0-67.4<=8.0 Prepared by: D. KalcikPage 25/23/01 Processing Gain ISL37400M 11Mbps CHANNEL 6 Processing Gain Gp = (S/N)o + Mj + Lsys Freq.Gp(S/N)oMj=J/SLsysJammerPER (MHz)(dB)(dB)(dB)(dB)(dBm)(%) 2433.3013.716.4-4.72.0-67.4<=8.0 2433.3513.616.4-4.82.0-67.5<=8.0 2433.4013.516.4-4.92.0-67.6<=8.0 2433.4513.416.4-5.02.0-67.7<=8.0 2433.5013.416.4-5.02.0-67.7<=8.0 2433.5513.416.4-5.02.0-67.7<=8.0 2433.6013.416.4-5.02.0-67.7<=8.0 2433.6512.916.4-5.52.0-68.2<=8.0 2433.7012.916.4-5.52.0-68.2<=8.0 2433.7512.916.4-5.52.0-68.2<=8.0 2433.8013.116.4-5.32.0-68.0<=8.0 2433.8512.916.4-5.52.0-68.2<=8.0 2433.9012.716.4-5.72.0-68.4<=8.0 2433.9513.416.4-5.02.0-67.7<=8.0 2434.0013.416.4-5.02.0-67.7<=8.0 2434.0513.416.4-5.02.0-67.7<=8.0 2434.1013.316.4-5.12.0-67.8<=8.0 2434.1513.216.4-5.22.0-67.9<=8.0 2434.2013.016.4-5.42.0-68.1<=8.0 2434.2513.016.4-5.42.0-68.1<=8.0 2434.3013.016.4-5.42.0-68.1<=8.0 2434.3513.016.4-5.42.0-68.1<=8.0 2434.4012.616.4-5.82.0-68.5<=8.0 2434.4512.816.4-5.62.0-68.3<=8.0 2434.5012.916.4-5.52.0-68.2<=8.0 2434.5512.816.4-5.62.0-68.3<=8.0 2434.6012.816.4-5.62.0-68.3<=8.0 2434.6512.716.4-5.72.0-68.4<=8.0 2434.7012.716.4-5.72.0-68.4<=8.0 2434.7512.816.4-5.62.0-68.3<=8.0 2434.8012.816.4-5.62.0-68.3<=8.0 2434.8512.316.4-6.12.0-68.8<=8.0 2434.9012.116.4-6.32.0-69.0<=8.0 2434.9512.416.4-6.02.0-68.7<=8.0 2435.0012.416.4-6.02.0-68.7<=8.0 2435.0512.416.4-6.02.0-68.7<=8.0 2435.1012.616.4-5.82.0-68.5<=8.0 2435.1512.516.4-5.92.0-68.6<=8.0 2435.2012.716.4-5.72.0-68.4<=8.0 2435.2512.716.4-5.72.0-68.4<=8.0 2435.3012.916.4-5.52.0-68.2<=8.0 2435.3512.916.4-5.52.0-68.2<=8.0 2435.4012.916.4-5.52.0-68.2<=8.0 2435.4512.616.4-5.82.0-68.5<=8.0 2435.5012.916.4-5.52.0-68.2<=8.0 2435.5512.916.4-5.52.0-68.2<=8.0 2435.6012.916.4-5.52.0-68.2<=8.0 2435.6512.816.4-5.62.0-68.3<=8.0 Prepared by: D. KalcikPage 35/23/01 Processing Gain ISL37400M 11Mbps CHANNEL 6 Processing Gain Gp = (S/N)o + Mj + Lsys Freq.Gp(S/N)oMj=J/SLsysJammerPER (MHz)(dB)(dB)(dB)(dB)(dBm)(%) 2435.7012.416.4-6.02.0-68.7<=8.0 2435.7512.516.4-5.92.0-68.6<=8.0 2435.8012.516.4-5.92.0-68.6<=8.0 2435.8512.516.4-5.92.0-68.6<=8.0 2435.9012.616.4-5.82.0-68.5<=8.0 2435.9512.816.4-5.62.0-68.3<=8.0 2436.0012.916.4-5.52.0-68.2<=8.0 2436.0513.116.4-5.32.0-68.0<=8.0 2436.1013.116.4-5.32.0-68.0<=8.0 2436.1513.116.4-5.32.0-68.0<=8.0 2436.2013.016.4-5.42.0-68.1<=8.0 2436.2513.216.4-5.22.0-67.9<=8.0 2436.3013.116.4-5.32.0-68.0<=8.0 2436.3513.016.4-5.42.0-68.1<=8.0 2436.4012.416.4-6.02.0-68.7<=8.0 2436.4513.016.4-5.42.0-68.1<=8.0 2436.5013.116.4-5.32.0-68.0<=8.0 2436.5513.016.4-5.42.0-68.1<=8.0 2436.…

Text truncated - open the document above for the full version.

CETECOM Inc. Test report no.:141FCC/2001/A Issued date:2001-05-25 Page 48 (52) TEST SITE Radiated Emissions HP OMNIBOOK 6100 CETECOM Inc. Test report no.:141FCC/2001/A Issued date:2001-05-25 Page 49 (52) Conducted Emissions HP OMNIBOOK 6100
