150wl+170wl-QIG-ed2.book Page -i Friday, March 26, 2004 12:04 PM 150wl+170wl-QIG-ed2.book Page 0 Friday, March 26, 2004 12:04 PM HP ProCurve 802.11b and 802.11g AP Cards Quick Install Guide 150wl+170wl-QIG-ed2.book Page i Friday, March 26, 2004 12:04 PM Disclaimer HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard. Warranty See the Customer Support/Warranty booklet included with the product. A copy of the specific warranty terms applicable to your Hewlett-Packard products and replacement parts can be obtained from your HP Sales and Service Office or authorized dealer. © Copyright 2004 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied, reproduced, or translation into another language without the prior written consent of Hewlett-Packard. Publication Number 5990-6054 Edition 2 March 2004 Applicable Products Trademark Credits Windows NT®, Windows®, and MS Windows® are US registered trademarks of Microsoft Corporation. HP ProCurve 802.11b 150wl Card – 11 Channel (J8135A) HP ProCurve 802.11b 150wl Card – 13 Channel (J8136A) HP ProCurve 802.11b 150wl Card – 14 Channel (J8137A) HP ProCurve 802.11g 170wl Card – 13 Channel (J8430A) HP ProCurve 802.11g 170wl Card – 14 Channel (J8431A) HP ProCurve 802.11g 170wl Card – 11 Channel (J8432A) 150wl+170wl-QIG-ed2.book Page ii Friday, March 26, 2004 12:04 PM iii Contents Introducing the 802.11b and 11g AP Cards . . . . . . . . . . 1 Network Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 802.11b and 11g AP Cards Features . . . . . . . . . . . . . . . . . . . . . . . . 3 802.11b and 11g AP Cards Features (continued) . . . . . . . . . . . . . . 4 Installing and Configuring the 802.11b and 11g AP Cards . . . . . . . . . . . . . . . . . . . . . . . 6 Installing an AP Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Radio Antenna Notes:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Configuring the Basic Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Association Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Common Situations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 LED Activity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Clients Cannot Connect to the Access Point . . . . . . . . . . . . . . . . 11 Configuration Mismatch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Client PC Card Does Not Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Intermittent Loss of Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Client Does Not Receive an IP Address - Cannot Connect to Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Other Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Card Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Radio Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 150wl+170wl-QIG-ed2.book Page iii Friday, March 26, 2004 12:04 PM iv Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . 18 Notice for U.S.A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Notice for Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Notice for European Union . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Notice for Japan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 150wl+170wl-QIG-ed2.book Page iv Friday, March 26, 2004 12:04 PM 1 Introducing the 802.11b and 11g AP Cards Kit Contents The 802.11b and 11g AP Card kit includes the items as pictured in Figure 1: 1. One AP Card, (one of the following): • 802.11b AP Card 150wl 11 Channel (J8135A)–with 11-channel support for use in North America only • 802.11b AP Card 150wl 13 Channel (J8136A)–with 13-channel support for use in Europe and Asia only (except Japan) • 802.11b AP Card 150wl 14 Channel (J8137A)–with 14-channel support for use in Japan only • 802.11g AP Card 170wl 13 Channel (J8430A)–with 13-channel support for use in Europe and Asia only (except Japan) • 802.11g AP Card 170wl 14 Channel (J8431A)–with 14-channel support for use in Japan only • 802.11g AP Card 170wl 11 Channel (J8432A)–with 11-channel support for use in North America only 2. A transparent protective casing for storing your 802.11b and 11g AP Card while not in use. 3. The HP ProCurve 802.11b and 802.11g AP Cards Quick Install Guide (this document). Figure 1. Kit Contents 1 2 3 150wl+170wl-QIG-ed2.book Page …

Text truncated - open the document above for the full version.

Hewlett-Packard Company 8000 Foothills Boulevard Mail Stop 5502 Roseville, CA 95747 www.hp.com _ March 18, 2004 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality Gentlemen: In reference to the application under FCC ID: B94J8432A and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagrams Theory of Operation These documents contain detailed system and equipment description and related information about the product that Hewlett-Packard considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Hewlett-Packard considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Hewlett-Packard Company

Hewlett-Packard Company 8000 Foothills Boulevard Mail Stop 5502 Roseville, CA 95747 www.hp.com _ March 18, 2004 To: Certification Body From: Hewlett-Packard Procurve Networking Business Unit 8000 Foothills Blvd. Roseville, CA 95747 USA Subject: Declaration of Similarity (DoS) We, the undersigned manufacturer, hereby confirm that Proxim’s 802.11 b/g Cardbus, Model G11FNFPC, is identical to the Hewlett-Packard’s 802.11g AP Card, Model J8432A. Sincerely, Hewlett-Packard Company

Hewlett-Packard Company FCC ID: B94J8432A Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 2.5V power regulator from 3.3V host supply. Refer to Schematics 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( u.FL(v)- LP-040) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested in a stand-alone configuration via a PCMCIA adapter card for modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Manual” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Compliance with RF exposure limits.

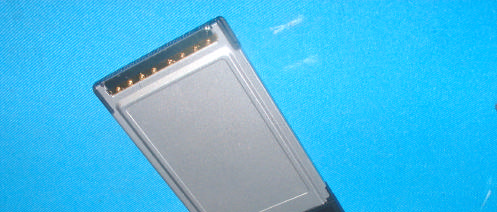

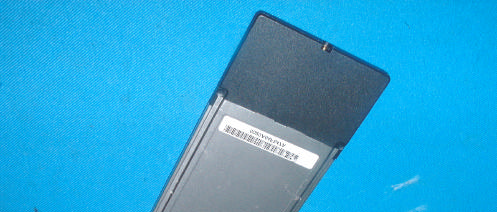

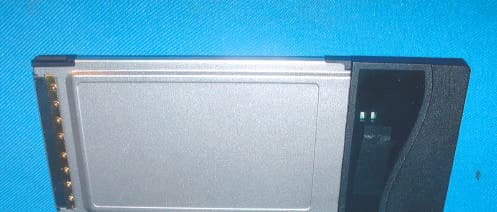

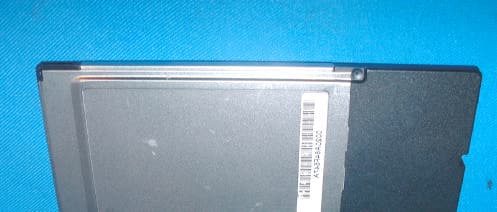

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

PROPOSED FCC ID LABEL AND LOCATION FOR MODULE HEWLETT PACKARD COMPANY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: B94J8432A FCC ID LABEL LOCATION PROPOSED FCC ID LABEL FOR HOST DEVICE HEWLETT PACKARD COMPANY This device contains FCC ID::B94J8432A J8432-80099 Hydra REGULATORY LABEL - FCC PART NUMBER TITLE DRAWN BY K. Klingler DATE 3/5/2004 SCALE 2:1 802.11g ap card 170wl 11CH Product No: J8432A FCC ID: B94J8432A IC: 466F-J8432A 92LP0349 PC Card Artwork Product of Taiwan Proxim Corp G11FNF-PC SN: XXXXXXXXXXXX MAC-Address: XXXXXXXXXXXX Covered by one or more of the following US patents: J8432-80099 65.0 mm 41.0 mm R-LARN-03-0238 J8432-80099 Hydra REGULATORY LABEL - FCC PART NUMBER TITLE DRAWN BY K. Klingler DATE 3/8/2004 SCALE 802.11g ap card 170wl 11CH Product No: J8432A FCC ID: B94J8432A IC: 466F-J8432A 92LP0349 PC Card Artwork Product of Taiwan Proxim Corp G11FNF-PC SN: XXXXXXXXXXXX MAC-Address: XXXXXXXXXXXX Covered by one or more of the following US patents: J8432-80099 R-LARN-03-0238 Notes: 1. Unless otherwise indicated, font is 6pt Arial 2. HP in process of applying for alternative FCC ID with HP Grantee Code. 3. HP in process of applying for alternative IC Approval No. with HP Company Code. 8pt Arial 5pt Arial 5pt Arial 4pt Arial 4pt Arial HP FCC ID HP IC Approval No

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Antenna Model: AOU24-OD-55-B Page 4 Antenna Model: AOU24-OD-0202 Page 5 Surge arrestor Page 6 20FT cable

COMPANY CONFIDETIAL Howard Mei 1 Dual-Band Printed Antenna for IEEE802.11g Project U59H001 Application 1. Electrical specification (a) Left side Frequency range 2.4 GHz – 2.5 GHz Peak Gain 0.83 dBi VSWR 2.0 Max Polarization Linear Impedance 50 ohm (b)Right side Frequency range 2.4 GHz – 2.5 GHz Peak Gain 3.83 dBi VSWR 2.0 Max Polarization Linear Impedance 50 ohm 2. Antenna Location Left side Right side x y z COMPANY CONFIDETIAL Howard Mei 2 3. Left Side Antenna Pattern at 2.4 GHz Horn antenna Polarization : Horizontal X-Y Plane COMPANY CONFIDETIAL Howard Mei 3 Horn antenna Polarization : Vertical X-Y Plane COMPANY CONFIDETIAL Howard Mei 4 Horn antenna Polarization : Horizontal X-Z Plane COMPANY CONFIDETIAL Howard Mei 5 Horn antenna Polarization : Vertical X-Z Plane COMPANY CONFIDETIAL Howard Mei 6 Horn antenna Polarization : Horizontal Y-Z Plane COMPANY CONFIDETIAL Howard Mei 7 Horn antenna Polarization : Vertical Y-Z Plane COMPANY CONFIDETIAL Howard Mei 8 4. Left Side Antenna Pattern at 2.5 GHz Horn antenna Polarization : Horizontal X-Y Plane COMPANY CONFIDETIAL Howard Mei 9 Horn antenna Polarization : Vertical X-Y Plane COMPANY CONFIDETIAL Howard Mei 10 Horn antenna Polarization : Horizontal X-Z Plane COMPANY CONFIDETIAL Howard Mei 11 Horn antenna Polarization : Vertical X-Z Plane COMPANY CONFIDETIAL Howard Mei 12 Horn antenna Polarization : Horizontal Y-Z Plane COMPANY CONFIDETIAL Howard Mei 13 Horn antenna Polarization : Vertical Y-Z Plane COMPANY CONFIDETIAL Howard Mei 14 5. Right Side Antenna Pattern at 2.4 GHz Horn antenna Polarization : Horizontal X-Y Plane COMPANY CONFIDETIAL Howard Mei 15 Horn antenna Polarization : Vertical X-Y Plane COMPANY CONFIDETIAL Howard Mei 16 Horn antenna Polarization : Horizontal X-Z Plane COMPANY CONFIDETIAL Howard Mei 17 Horn antenna Polarization : Vertical X-Z Plane COMPANY CONFIDETIAL Howard Mei 18 Horn antenna Polarization : Horizontal Y-Z Plane COMPANY CONFIDETIAL Howard Mei 19 Horn antenna Polarization : Vertical Y-Z Plane COMPANY CONFIDETIAL Howard Mei 20 6. Right Side Antenna Pattern at 2.5 GHz Horn antenna Polarization : Horizontal X-Y Plane COMPANY CONFIDETIAL Howard Mei 21 Horn antenna Polarization : Vertical X-Y Plane COMPANY CONFIDETIAL Howard Mei 22 Horn antenna Polarization : Horizontal X-Z Plane COMPANY CONFIDETIAL Howard Mei 23 Horn antenna Polarization : Vertical X-Z Plane COMPANY CONFIDETIAL Howard Mei 24 Horn antenna Polarization : Horizontal Y-Z Plane COMPANY CONFIDETIAL Howard Mei 25 Horn antenna Polarization : Vertical Y-Z Plane COMPANY CONFIDETIAL Howard Mei 26 7. Antenna Gain (a) Antenna Peak Gain Frequency range 2.4 GHz 2.5 GHz Antenna side L R L R Peak Gain (dBi ) 0.83 3.83 -3.16 2.50 (b)Antenna Average Gain Y-Z Plane (dBi) 2.4 GHz 2.5 GHz Antenna side L R L R Vertical -5.89 -6.16 -9.26 -6.42 Horizontal -10.81 -6.40 -17.23 -7.46 X-Y Plane (dBi) 2.4 GHz 2.5 GHz Antenna side L R L R Vertical -19.23 -17.09 -19.95 -18.35 Horizontal -3.10 -0.73 -5.83 -2.03 X-Z Plane (dBi) 2.4 GHz 2.5 GHz Antenna side L R L R Vertical -3.47 -2.34 -7.26 -1.30 Horizontal -14.81 -4.20 -12.11 -5.90

71 HP ProCurve Wireless Range Extender Antenna 100wl (J8134A) with 2.5 dBi indoor omnidirectional antenna For use with Access Point Cards 150wl and 170wl Physical characteristics Dimensions: 9.1 x 1.0 x 0.3 in. (23.11 x 2.54 x 0.76 cm) Weight: 0.3 lb. (136.08 g) Base diameter: 2.8 in. (7.11 cm) Mounting Table stand and wall mounting bracket Cable length 59 in. (1.5 m) Connector Proprietary (FCC compliant) Performance Open office: 50% increase over standard range Antenna pattern: omnidirectional Semi-open office: 15% increase over standard range Antenna diversity: yes Environment Operating – Temperature: 32º to 131ºF (0º to 55ºC) – Relative humidity: 10% to 90% non-condensing Non-operating/Storage – Temperature: 14º to 140ºF (–10º to 60ºC) – Relative humidity: 0% to 90% non-condensing Gain 2.5 dBi Frequency range 2400–2484 MHz HP ProCurve Wireless Access Point 520wl Accessories Additional accessories HP ProCurve 6 dBi indoor/outdoor omnidirectional antenna (J8441A) See page 82 for details. HP ProCurve 6 dBi indoor/outdoor directional antenna (J8443A) See page 82 for details. HP ProCurve 8 dBi outdoor omnidirectional antenna (J8444A) See page 83 for details. HP ProCurve 11 dBi indoor/outdoor wide angle directional antenna (J8446A) See page 83 for details. HP ProCurve MC-Card to R-SMA cable (J8447A) See page 84 for details. HP ProCurve 14 dBi yagi antenna (J8448A) See page 84 for details.

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 802.11G AP CARD 170WL MODEL NUMBER: J8432A FCC ID: B94J8432A REPORT NUMBER: 04U2606-1 ISSUE DATE: MARCH 25, 2004 Prepared for HEWLETT-PACKARD COMPANY 8000 FOOTHILLS BLVD., ROSEVILLE, CA 95746 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U2606-1 DATE: MARCH 25,2004 EUT: 802.11g AP Card 170wl FCC ID: B94J8432A Page 2 of 28 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION..........................................................................................3 2. EUT DESCRIPTION...............................................................................................................4 3. TEST METHODOLOGY.........................................................................................................5 4. FACILITIES AND ACCREDITATION...................................................................................5 5. CALIBRATION AND UNCERTAINTY..................................................................................6 5.1. MEASURING INSTRUMENT CALIBRATION......................................................................6 5.2. MEASUREMENT UNCERTAINTY.......................................................................................6 5.3. TEST AND MEASUREMENT EQUIPMENT.........................................................................6 6. SETUP OF EQUIPMENT UNDER TEST................................................................................7 7. APPLICABLE LIMITS AND TEST RESULTS.......................................................................9 7.1. 99% BANDWIDTH.............................................................................................................9 7.2. PEAK OUTPUT POWER..................................................................................................16 7.3. MAXIMUM PERMISSIBLE EXPOSURE............................................................................24 7.4. AVERAGE POWER..........................................................................................................27 8. SETUP PHOTOS...................................................................................................................28 REPORT NO: 04U2606-1 DATE: MARCH 25,2004 EUT: 802.11g AP Card 170wl FCC ID: B94J8432A Page 3 of 28 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: Hewlett-Packard Company 8000 Foothills Blvd., Roseville, CA 95746, USA EUT DESCRIPTION: 802.11g AP Card 170wl MODEL: J8432A DATE TESTED: MARCH 18, 2004 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: MICHAEL HECKROTTE FRANK IBRAHIM EMC MANAGER EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04U2606-1 DATE: MARCH 25,2004 EUT: 802.11g AP Card 170wl FCC ID: B94J8432A Page 4 of 28 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The EUT is an 802.11b/g transceiver module in a Cardbus form factor. The transmitter has a maximum peak conducted output power as follows: Frequency BandModeOutput PowerOutput Power (MHz)(dBm)(mW) 2412 - 2462802.11b17.7459.43 2412 - 2462802.11g20.35108.39 REPORT NO: 04U2606-1 DATE: MARCH 25,2004 EUT: 802.11g AP Card 170wl FCC ID: B94J8432A Page 5 of 28 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4/2001, FCC CFR 47 Part 2 and FCC CFR 47 Part 15. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 561F Monterey Road, Morgan Hill, California, USA. The sites are constructed in conformance with the requirements of ANSI C63.4, ANSI C63.7 and CISPR Publication 22. All receiving equipment con…

Text truncated - open the document above for the full version.

FCC ID: HZB-G11FNFPC Report No.: RF920501R021Issue: May. 16, 2003 ADT No.: 920501R02 FCC TEST REPORT REPORT NO.: RF920501R02 MODEL NO.: G11FNF-PC RECEIVED: May 01, 2003 TESTED: May 08 to 15, 2003 APPLICANT: Proxim Corporation ADDRESS: 935 Stewart Drive, Sunnyvale, CA 94085, USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 101 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: HZB-G11FNFPC Report No.: RF920501R022Issue: May. 16, 2003 ADT No.: 920501R02 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................9 4.1.2TEST INSTRUMENTS.............................................................................................9 4.1.3TEST SETUP..........................................................................................................10 4.1.4EUT OPERATING CONDITIONS........................................................................11 4.1.5TEST RESULTS......................................................................................................12 4.2RADIATED EMISSION MEASUREMENT..........................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................18 4.2.2TEST INSTRUMENTS...........................................................................................19 4.2.3TEST PROCEDURES...........................................................................................20 4.2.4TEST SETUP..........................................................................................................21 4.2.5EUT OPERATING CONDITIONS........................................................................21 4.2.6TEST RESULTS (A)...............................................................................................22 4.2.7TEST RESULTS (A) - DSSS................................................................................23 4.2.8TEST RESULTS (A) -OFDM.................................................................................26 4.2.9TEST RESULTS (B)...............................................................................................29 4.2.10TEST RESULTS (B) - DSSS................................................................................30 4.2.11TEST RESULTS (B) -OFDM.................................................................................33 4.2.12TEST RESULTS (C)...............................................................................................36 4.2.13TEST RESULTS (C) - DSSS................................................................................37 4.2.14TEST RESULTS (C) -OFDM.................................................................................40 4.36dB BANDWIDTH MEASUREMENT..................................................................43 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................43 4.3.2TEST INSTRUMENTS...........................................................................................43 4.3.3TEST PROCEDURE..............................................................................................44 4.3.4TEST SETUP..........................................................................................................44 4.3.5EUT OPERATING CONDITIONS........................................................................44 FCC ID: HZB-G11FNFPC Report No.: RF920501R023Issue: May. 16, 2003 ADT No.: 920501R02 4.3.6TEST RESULTS-DSSS.........................................................................................45 4.3.7TEST RESULTS-OFDM........................................................................................53 4.4MAXIMUM PEAK OUTPUT POWER..................................................................61 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............61 4.4.2TEST INSTRUMENTS...........................................................................................61 4.4.3TEST PROCEDURES...........................................................................................62 4.4.4TEST SETUP..........................................................................................................62 4.4.5EUT OPERATING CONDITIONS........................................................................62 4.4.6TEST RESULTS(A)-DSSS....................................................................................63 4.4.7TEST RESULTS(A)-OFDM...................................................................................63 4.4.8TEST RESULTS(B)-DSSS....................................................................................64 4.4.9TEST RESULTS(B)-OFD…

Text truncated - open the document above for the full version.

FCC ID: HZB-G11FNFPC Report No.: RF920501R0276Issue: May. 16, 2003 ADT No.: 920501R02 4.5.7 TEST RESULTS-OFDM EUT802.11b/g CardbusMODELG11FNF-PC INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 21 deg. C, 62 %RH, 979 hPa TEST MODE Antenna 1&3 TESTED BY Hank Chung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-10.008PASS 62437-10.138PASS 112462-10.588PASS FCC ID: HZB-G11FNFPC Report No.: RF920501R0277Issue: May. 16, 2003 ADT No.: 920501R02 CH1 FCC ID: HZB-G11FNFPC Report No.: RF920501R0278Issue: May. 16, 2003 ADT No.: 920501R02 CH6 FCC ID: HZB-G11FNFPC Report No.: RF920501R0279Issue: May. 16, 2003 ADT No.: 920501R02 CH11 FCC ID: HZB-G11FNFPC Report No.: RF920501R0280Issue: May. 16, 2003 ADT No.: 920501R02 EUT802.11b/g CardbusMODELG11FNF-PC INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 21 deg. C, 62 %RH, 979 hPa TEST MODE Antenna 2 TESTED BY Hank Chung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 22417-10.738PASS 62437-10.138PASS 102457-10.838PASS FCC ID: HZB-G11FNFPC Report No.: RF920501R0281Issue: May. 16, 2003 ADT No.: 920501R02 CH2 FCC ID: HZB-G11FNFPC Report No.: RF920501R0282Issue: May. 16, 2003 ADT No.: 920501R02 CH6 FCC ID: HZB-G11FNFPC Report No.: RF920501R0283Issue: May. 16, 2003 ADT No.: 920501R02 CH10 FCC ID: HZB-G11FNFPC Report No.: RF920501R0284Issue: May. 16, 2003 ADT No.: 920501R02 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges w…
