ProCurve Wireless Access Point 420 Installation and Getting Started Guide Hewlett-Packard Company 8000 Foothills Boulevard, m/s 5552 Roseville, California 95747-5552 http://www.procurve.com © Copyright 2007 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of Hewlett-Packard. Publication Number 5991-6225 March 2007 Applicable Products Disclaimer HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard. Warranty See the Customer Support/Warranty booklet included with the product. A copy of the specific warranty terms applicable to your Hewlett- Packard products and replacement parts can be obtained from your HP Sales and Service Office or authorized dealer. Safety Before installing and operating these products, please read the “Installation Precautions” in chapter 2, “Installing the Access Point 420”, and the safety statements in appendix C, “Safety and Regulatory Statements”. ProCurve Wireless Access Point 420 NA(J8130B) ProCurve Wireless Access Point 420 WW(J8131B) i Contents 1 Introducing the ProCurve Wireless Access Point 420 Top of the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 Back of the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 Network Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7 Access Point Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 2 Installing the Access Point 420 Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 Installation Precautions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 2. Verify the Access Point Passes the Self Test . . . . . . . . . . . . . . . . . . . 2-5 LED Behavior: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6 3. Mount the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 Horizontal Surface Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 4. Connect the Access Point to a Power Source . . . . . . . . . . . . . . . . . . 2-9 5. Connect the Network Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 Using the RJ-45 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 6. Position the Antennas on the Access Point . . . . . . . . . . . . . . . . . . . 2-10 7. (Optional) Connect a Console to the Access Point 420 . . . . . . . . . 2-11 Terminal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11 Direct Console Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12 Sample Network Topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14 Ad Hoc Wireless LAN (no access point) . . . . . . . . . . . . . . . . . . . . . . . 2-14 ii Infrastructure Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15 Infrastructure Wireless LAN for Roaming Wireless PCs . . . . . . . . . . 2-16 3 Getting Started With Access Point Configuration Recommended Minimal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Using the Command Line Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 To Set the Manager User Name and Password . . . . . . . . . . . . . . . 3-2 To Set the Access Point’s IP Address . . . . . . . . . . . . . . . . . . . . . . . 3-3 To Set the Access Point’s Country Code . . . . . . . . . . . . . . . . . . . . . 3-4 To Configure Radio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5 Where to Go From Here . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 Using the IP Address for Remote Access Point Management . . . . . 3-9 Starting a Telnet Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9 Starting an…

Text truncated - open the document above for the full version.

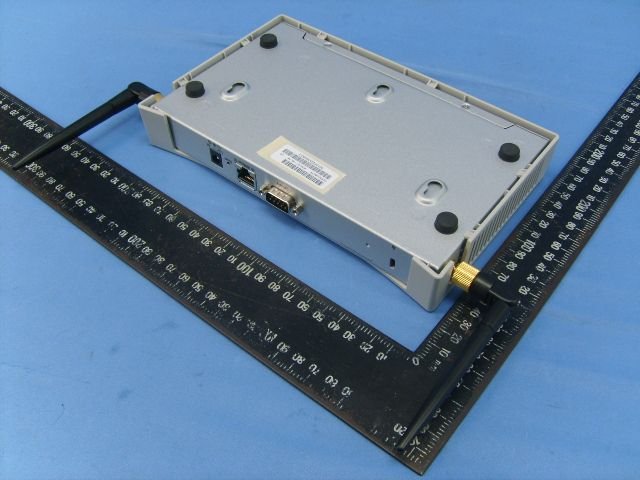

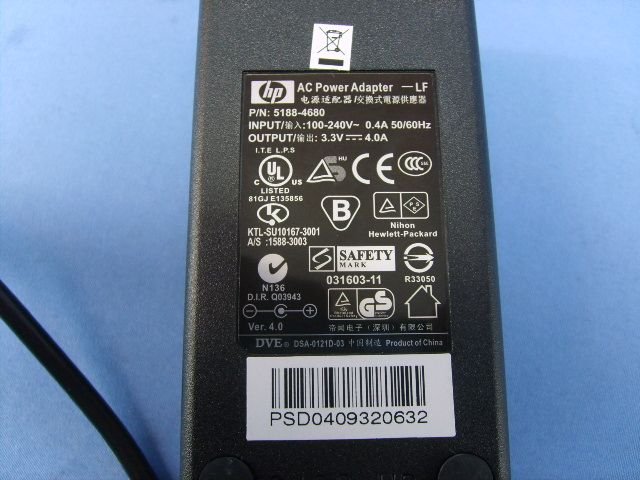

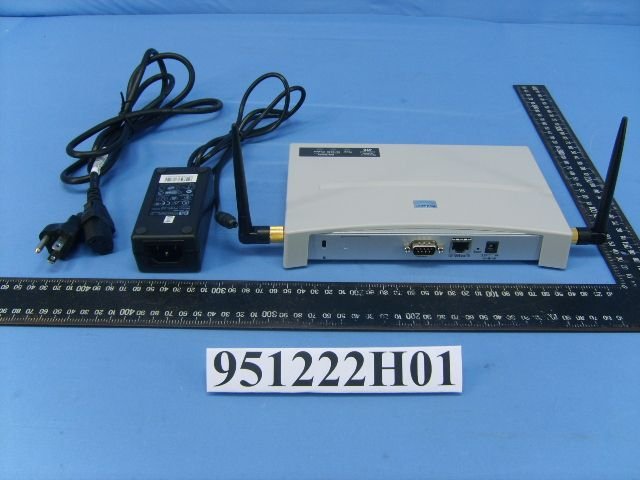

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: B94RSVLC-0301B FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 3 Page 4 Page 5 Page 6 Page 7 For Antenna Model No.: SA2-05005L-A5 Page 8 For Antenna Model No.: J8441A Page 9 For Antenna Model No.: J8442A Page 10 For Antenna Model No.: J8443A Page 11 For Antenna Model No.: J8444A Page 12 For Antenna Model No.: J8445A Page 13 For Antenna Model No.: J8446A Page 14 For Antenna Model No.: J8997A Page 15 For Antenna Model No.: J8999A

Report No.: SA951222H01 1 RF EXPOSURE REPORT REPORT NO.: SA951222H01 MODEL NO.: RSVLC-0301B FCC ID: B94RSVLC-0301B ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Hewlett-Packard Company ADDRESS: 8000 Foothills Blvd. Roseville, CA 95747 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA951222H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA951222H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA951222H01 4 6. Test Results 6.1 Antenna Gain There are nine antennas provided to this EUT, please refer to the following table: No. Model No. Frequency Range (GHz) Antnnna Coverage Antenna Type Gain Connector 1 SA2-05005L-A5 2.4-2.5 Omni Dipole 2.5dBi RP SMA plug 2 J8441A 2.4-2.5 Omni Dipole 4.4 dBi Reverse SMA (male) 3 J8442A 2.4-2.5 Omni Panel 1.5 dBi Reverse SMA (male) 4 J8443A 2.4-2.5 Directional Panel 6.7 dBi Reverse SMA (male) 5 J8444A 2.4-2.5 Omni Dipole 7.4 dBi Reverse SMA (male) 6 J8445A 2.4-2.5 Directional Panel 6.5 dBi Reverse SMA (male) 7 J8446A 2.4-2.5 Directional Panel 10.7 dBi Reverse SMA (male) 8 J8997A 2.4-2.5/4.9-5.99 Omni Panel 3 dBi / 4dBi Reverse SMA (male) 9 J8999A 2.4-2.5/4.9-5.99 Directional Panel 6.9 dBi / 7.7dBi Reverse SMA (male) Report No.: SA951222H01 5 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: ANTENNA 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 40.738 0.014 1.0 6 2437 138.676 0.049 1.0 11 2462 31.117 0.011 1.0 ANTENNA 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 28.510 0.016 1.0 6 2437 138.038 0.076 1.0 11 2462 26.303 0.014 1.0 ANTENNA 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 30.200 0.008 1.0 6 2437 120.226 0.034 1.0 11 2462 31.769 0.009 1.0 ANTENNA 4 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 24.547 0.023 1.0 6 2437 109.648 0.102 1.0 11 2462 21.878 0.020 1.0 Report No.: SA951222H01 6 ANTENNA 5 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 24.547 0.027 1.0 6 2437 117.490 0.128 1.0 11 2462 21.878 0.024 1.0 ANTENNA 6 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 21.878 0.019 1.0 6 2437 57.544 0.051 1.0 11 2462 20.893 0.019 1.0 ANTENNA 7 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 14.125 0.033 1.0 6 2437 28.184 0.066 1.0 11 2462 18.197 0.043 1.0 ANTENNA 8 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 33.729 0.013 1.0 6 2437 138.676 0.055 1.0 11 2462 42.658 0.017 1.0 ANTENNA 9 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 15.488 0.015 1.0 6 2437 46.774 0.046 1.0 11 2462 31.842 0.031 1.0 Report No.: SA951222H01 7 For Part 802.11g: ANTENNA 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 54.954 0.019 1.0 6 2437 231.739 0.082 1.0 11 2462 49.317 0.017 1.0 ANTENNA 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power…

Text truncated - open the document above for the full version.

Report No.: RF951222H01 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF951222H01 MODEL NO.: RSVLC-0301B RECEIVED: Dec. 22, 2006 TESTED: Dec. 26, 2006 to Feb. 04, 2007 ISSUED: Feb. 11, 2007 APPLICANT: Hewlett-Packard Company ADDRESS: 8000 Foothills Blvd. Roseville, CA 95747 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 297 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF951222H01 2 Report Format Version 2.0.5 Table of Contents 1 CERTIFICATION..............................................................................................................5 2 SUMMARY OF TEST RESULTS....................................................................................6 2.1 MEASUREMENT UNCERTAINTY.................................................................................6 3 GENERAL INFORMATION.............................................................................................7 3.1 GENERAL DESCRIPTION OF EUT..............................................................................7 3.2 DESCRIPTION OF TEST MODES................................................................................9 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:...........................10 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS............................................12 3.5 DESCRIPTION OF SUPPORT UNITS........................................................................13 3.6 CONFIGURATION OF SYSTEM UNDER TEST........................................................14 4 TEST TYPES AND RESULTS......................................................................................16 4.1 CONDUCTED EMISSION MEASUREMENT..............................................................16 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................16 4.1.2 TEST INSTRUMENTS..................................................................................................16 4.1.3 TEST PROCEDURES...................................................................................................17 4.1.4 TEST SETUP.................................................................................................................17 4.1.5 EUT OPERATING CONDITIONS.................................................................................18 4.1.6 TEST RESULTS............................................................................................................19 4.2 RADIATED EMISSION MEASUREMENT...................................................................23 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................................23 4.2.2 TEST INSTRUMENTS..................................................................................................24 4.2.3 TEST PROCEDURES...................................................................................................25 4.2.4 TEST SETUP.................................................................................................................26 4.2.5 EUT OPERATING CONDITIONS.................................................................................26 4.2.6 TEST RESULTS (ANTENNA 1)....................................................................................27 4.2.7 TEST RESULTS (ANTENNA 2)....................................................................................42 4.2.8 TEST RESULTS (ANTENNA 3)....................................................................................57 4.2.9 TEST RESULTS (ANTENNA 4)....................................................................................72 4.2.10 TEST RESULTS (ANTENNA 5)....................................................................................87 4.2.11 TEST RESULTS (ANTENNA 6)..................................................................................102 4.2.12 TEST RESULTS (ANTENNA 7)..................................................................................117 4.2.13 TEST RESULTS (ANTENNA 8)..................................................................................132 4.2.14 TEST RESULTS (ANTENNA 9)..................................................................................147 4.3 6DB BANDWIDTH MEASUREMENT........................................................................162 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT....................................................162 4.3.2 TEST INSTRUMENTS................................................................................................162 4.3.3 TEST PROCEDURE...................................................................................................163 4.3.4 TEST SETUP...............................................................................................................163 Report No.: RF951222H01 3 Report Format Version 2.0.5 4.3.5 EUT OPERATING CONDITIONS...............................................................................163 4.3.6 TEST RESULTS (ANTENNA 1)..................................................................................164 4.3.7 TEST RESULTS (ANTENNA 2)..................................................................................168 4.3.8 TEST RESULTS (ANTENNA 3)..................................................................................172 4.3.9 TEST RESULTS (ANTENNA 4)..................................................................................176 4.3.10 TEST RESULTS (ANTENNA 5)..................................................................................180 4.3.11 TEST RESULTS (ANTENN…

Text truncated - open the document above for the full version.

Report No.: RF951222H01 81 Report Format Version 2.0.5 MODE Channel 6 FREQUENCY RANGE 1000~25000MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION & BANDWIDTH Peak (PK) Average (AV) 6 MHz ENVIRONMENTAL CONDITIONS 23 deg. C, 63%RH, 970hPa TESTED BY Tony Chen ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 2233.00 56.90 PK 74.00 -17.10 1.00 H 275 25.60 31.30 1 2233.00 47.90 AV 54.00 -6.10 1.00 H 275 16.60 31.30 2 2320.00 57.00 PK 74.00 -17.00 1.02 H 214 25.30 31.70 2 2320.00 46.10 AV 54.00 -7.90 1.02 H 214 14.40 31.70 3 2390.00 62.10 PK 74.00 -11.90 1.02 H 214 30.20 31.90 3 2390.00 46.30 AV 54.00 -7.70 1.02 H 214 14.40 31.90 4 *2437.00 111.20 PK 1.02 H 207 79.10 32.10 4 *2437.00 100.10 AV 1.02 H 207 68.00 32.10 5 2483.50 61.80 PK 74.00 -12.20 1.02 H 214 29.50 32.30 5 2483.50 47.40 AV 54.00 -6.60 1.02 H 214 15.10 32.30 6 4874.00 45.80 PK 74.00 -28.20 1.05 H 34 9.70 36.10 6 4874.00 34.30 AV 54.00 -19.70 1.05 H 34 -1.80 36.10 7 7311.00 52.10 PK 74.00 -21.90 1.27 H 146 9.60 42.50 7 7311.00 41.80 AV 54.00 -12.20 1.27 H 146 -0.70 42.50 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 2233.00 61.60 PK 74.00 -12.40 1.05 V 190 30.30 31.30 1 2233.00 53.40 AV 54.00 -0.60 1.05 V 190 22.10 31.30 2 2320.00 71.00 PK 74.00 -3.00 1.11 V 3 39.40 31.70 2 2320.00 51.50 AV 54.00 -2.50 1.11 V 3 19.80 31.70 3 2390.00 61.10 PK 74.00 -12.90 1.11 V 3 29.20 31.90 3 2390.00 52.30 AV 54.00 -1.70 1.11 V 3 20.30 31.90 4 *2437.00 120.00 PK 1.14 V 340 87.80 32.10 4 *2437.00 108.90 AV 1.14 V 340 76.80 32.10 5 2483.50 72.50 PK 74.00 -1.50 1.10 V 8 40.30 32.30 5 2483.50 52.40 AV 54.00 -1.60 1.10 V 8 20.10 32.30 6 4874.00 46.90 PK 74.00 -27.10 1.06 V 243 10.80 36.10 6 4874.00 35.20 AV 54.00 -18.80 1.06 V 243 -0.90 36.10 7 7311.00 54.70 PK 74.00 -19.30 1.12 V 164 12.20 42.50 7 7311.00 45.20 AV 54.00 -8.80 1.12 V 164 2.70 42.50 REMARKS: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency Report No.: RF951222H01 82 Report Format Version 2.0.5 MODE Channel 11 FREQUENCY RANGE 1000~25000MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION & BANDWIDTH Peak (PK) Average (AV) 6 MHz ENVIRONMENTAL CONDITIONS 23 deg. C, 63%RH, 970hPa TESTED BY Tony Chen ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *2462.00 104.50 PK 1.23 H 216 72.30 32.20 1 *2462.00 94.20 AV 1.23 H 216 62.00 32.20 2 2483.50 61.70 PK 74.00 -12.30 1.23 H 216 29.50 32.30 2 2483.50 48.00 AV 54.00 -6.00 1.23 H 216 15.70 32.30 3 4924.00 45.30 PK 74.00 -28.70 1.09 H 53 9.10 36.20 3 4924.00 33.40 AV 54.00 -20.60 1.09 H 53 -2.80 36.20 4 7386.00 51.10 PK 74.00 -22.90 1.31 H 256 8.30 42.80 4 7386.00 39.40 AV 54.00 -14.60 1.31 H 256 -3.40 42.80 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 *2462.00 112.10 PK 1.12 V 352 79.90 32.20 1 *2462.00 101.50 AV 1.12 V 352 69.30 32.20 2 2483.50 71.00 PK 74.00 -3.00 1.10 V 6 38.70 32.30 2 2483.50 53.50 AV 54.00 -0.50 1.10 V 6 21.20 32.30 3 4924.00 45.70 PK 74.00 -28.30 1.17 V 238 9.50 36.20 3 4924.00 34.10 AV 54.00 -19.90 1.17 V 238 -2.10 36.20 4 7386.00 51.30 PK 74.00 -22.70 1.04 V 325 8.50 42.80 4 7386.00 39.70 AV 54.00 -14.30 1.04 V 325 -3.10 42.80 REMARKS: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency Report No.: RF951222H01 83 Report Format Version 2.0.5 RESTRICTED BANDEDGE (802.11g MODE,CH1, HORIZONTAL ) Report No.: RF951222H01 84 Report Format Version 2.0.5 RESTRICTED BANDEDGE (802.11g MODE,CH1, VERTICAL ) Report No.: RF951222H01 85 Report Format Version 2.0.5 RESTRICTED BANDEDGE (802.11g MODE,CH11, HORIZONTAL ) Report No.: RF951222H01 86 Report Format Version 2.0.5 RESTRICTED BANDEDGE (802.11g MODE,CH11, VERTICAL ) Report No.: RF951222H01 87 Report Format Version 2.0.5 4.2.10 TEST RESULTS (ANTENNA 5) Below 1GHz Worst-Case Data MODULATION TYPE DSSS CHANNEL Channel 1 INPUT POWER (SYSTEM) 120Vac, 60 Hz FREQUENCY RANGE 30-1000 MHz ENVIRONMENTAL CONDITIONS 23deg. C, 56%RH, 970hPa TRANSFER RATE 1Mbps TESTED BY Wen Yu DETECTOR FUNCTION Quasi-Peak, 120kHz ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 149.00 33.80 QP 43.50 -9.70 1.91 H 88 20.00 13.70 2 171.06 32.10 QP 43.50 -11.40 1.26 H 75 18.60 13.50 3 375.02 30.20 QP 46.00 -15.80 1.00 H 104 12.00 18.20 4 500.02 35.90 QP 46.00 -10.10 1.57 H 72 14.10 21.80 5 679.00 39.40 QP 46.00 -6.60 1.00 H 51 14.00 25.50 6 770.50 36.20 QP 46.00 -9.80 1.00 H 328 8.70 27.40 7 863.00 41.00 QP 46.00 -5.00 1.00 H 347 12.50 28.50 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 153.97 28.20 QP 43.50 -15.30 1.00 V 124 14.30 13.90 2 389.30 25.90 QP 46.00 -20.10 1.00 V 344 7.20 18.70 3 500.02 33.90 QP 46.00 -12.10 1.00 V 325 12.10 21.80 4 677.50 35.80 Q…

Text truncated - open the document above for the full version.

Report No.: RF951222H01 132 Report Format Version 2.0.5 4.2.13 TEST RESULTS (ANTENNA 8) Below 1GHz Worst-Case Data MODULATION TYPE DSSS CHANNEL Channel 1 INPUT POWER (SYSTEM) 120Vac, 60 Hz FREQUENCY RANGE 30-1000 MHz ENVIRONMENTAL CONDITIONS 23deg. C, 56%RH, 970hPa TRANSFER RATE 1Mbps TESTED BY Wen Yu DETECTOR FUNCTION Quasi-Peak, 120kHz ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 139.01 33.30 QP 43.50 -10.20 1.42 H 48 19.90 13.40 2 252.00 32.70 QP 46.00 -13.30 1.03 H 120 18.90 13.80 3 375.01 28.90 QP 46.00 -17.10 1.02 H 336 10.70 18.20 4 500.01 32.00 QP 46.00 -14.00 1.76 H 69 10.30 21.80 5 675.63 36.80 QP 46.00 -9.20 1.20 H 320 11.40 25.40 6 863.87 33.90 QP 46.00 -12.10 1.11 H 125 5.30 28.50 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 134.55 26.60 QP 43.50 -16.90 1.16 V 263 13.60 13.00 2 236.38 23.60 QP 46.00 -22.40 1.36 V 163 10.50 13.20 3 375.01 36.30 QP 46.00 -9.70 1.00 V 246 18.10 18.20 4 500.02 31.20 QP 46.00 -14.80 1.04 V 339 9.40 21.80 5 673.15 38.30 QP 46.00 -7.70 1.00 V 168 12.90 25.40 6 863.87 32.50 QP 46.00 -13.50 1.00 V 1 4.00 28.50 REMARKS: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. Report No.: RF951222H01 133 Report Format Version 2.0.5 802.11b DSSS modulation MODE Channel 1 FREQUENCY RANGE 1000~25000MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION & BANDWIDTH Peak (PK) Average (AV) 1 MHz ENVIRONMENTAL CONDITIONS 23 deg. C, 63%RH, 970hPa TESTED BY Tony Chen ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 2320.00 56.70 PK 74.00 -17.30 1.63 H 261 25.00 31.70 1 2320.00 50.70 AV 54.00 -3.30 1.63 H 261 19.00 31.70 2 2386.00 62.60 PK 74.00 -11.40 1.03 H 303 30.70 31.90 2 2386.00 53.40 AV 54.00 -0.60 1.03 H 303 21.50 31.90 3 *2412.00 111.50 PK 1.27 H 60 79.40 32.00 3 *2412.00 106.90 AV 1.27 H 60 74.90 32.00 4 4824.00 45.00 PK 74.00 -29.00 1.31 H 272 9.00 36.00 4 4824.00 34.30 AV 54.00 -19.70 1.31 H 272 -1.70 36.00 5 7236.00 51.80 PK 74.00 -22.20 1.12 H 151 9.60 42.20 5 7236.00 38.90 AV 54.00 -15.10 1.12 H 151 -3.30 42.20 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 2320.00 49.20 PK 74.00 -24.80 1.35 V 348 17.50 31.70 1 2320.00 44.50 AV 54.00 -9.50 1.35 V 348 12.80 31.70 2 2386.00 59.80 PK 74.00 -14.20 1.47 V 3 27.90 31.90 2 2386.00 50.10 AV 54.00 -3.90 1.47 V 3 18.20 31.90 3 *2412.00 105.90 PK 1.47 V 3 73.90 32.00 3 *2412.00 101.20 AV 1.47 V 3 69.20 32.00 4 4824.00 45.10 PK 74.00 -28.90 1.27 V 282 9.10 36.00 4 4824.00 34.50 AV 54.00 -19.50 1.27 V 282 -1.50 36.00 5 7236.00 52.10 PK 74.00 -21.90 1.28 V 324 9.90 42.20 5 7236.00 39.10 AV 54.00 -14.90 1.28 V 324 -3.10 42.20 REMARKS: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency Report No.: RF951222H01 134 Report Format Version 2.0.5 MODE Channel 6 FREQUENCY RANGE 1000~25000MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION & BANDWIDTH Peak (PK) Average (AV) 1 MHz ENVIRONMENTAL CONDITIONS 23 deg. C, 63%RH, 970hPa TESTED BY Tony Chen ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 2233.00 60.90 PK 74.00 -13.10 1.00 H 225 29.60 31.30 1 2233.00 52.50 AV 54.00 -1.50 1.00 H 225 21.20 31.30 2 2320.00 59.70 PK 74.00 -14.30 1.62 H 282 28.00 31.70 2 2320.00 53.20 AV 54.00 -0.80 1.62 H 282 21.50 31.70 3 2386.00 63.40 PK 74.00 -10.60 1.05 H 307 31.50 31.90 3 2386.00 53.40 AV 54.00 -0.60 1.05 H 307 21.50 31.90 4 *2437.00 115.50 PK 1.14 H 313 83.40 32.10 4 *2437.00 111.50 AV 1.14 H 313 79.40 32.10 5 2484.60 60.20 PK 74.00 -13.80 1.25 H 318 27.90 32.30 5 2484.60 49.30 AV 54.00 -4.70 1.25 H 318 17.00 32.30 6 4874.00 48.30 PK 74.00 -25.70 1.20 H 289 12.20 36.10 6 4874.00 41.50 AV 54.00 -12.50 1.20 H 289 5.40 36.10 7 7311.00 53.20 PK 74.00 -20.80 1.12 H 289 10.70 42.50 7 7311.00 43.50 AV 54.00 -10.50 1.12 H 289 1.00 42.50 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 2233.00 57.60 PK 74.00 -16.40 1.00 V 172 26.30 31.30 1 2233.00 48.00 AV 54.00 -6.00 1.00 V 172 16.70 31.30 2 2320.00 53.10 PK 74.00 -20.90 1.10 V 357 21.40 31.70 2 2320.00 45.50 AV 54.00 -8.50 1.10 V 357 13.80 31.70 3 2386.30 57.10 PK 74.00 -16.90 1.03 V 10 25.20 31.90 3 2386.30 47.30 AV 54.00 -6.70 1.03 V 10 15.40 31.90 4 *2437.00 111.80 PK 1.46 V 4 7…
