B94RSVLC-0501ProCurve Wireless Access Point 530

HP ProCurve RSVLC-0501 Installation and Getting Started Guide Hewlett-Packard Company 8000 Foothills Boulevard, m/s 5552 Roseville, California 95747-5552 http://www.hp.com/go/hpprocurve © Copyright 2006 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of Hewlett-Packard. Publication Number J8986A-90001 January 2006 Applicable Products Disclaimer HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard. Warranty See the Customer Support/Warranty booklet included with the product. A copy of the specific warranty terms applicable to your Hewlett- Packard products and replacement parts can be obtained from your HP Sales and Service Office or authorized dealer. Safety Before installing and operating these products, please read the “Installation Precautions” in chapter 2, “Installing the Access Point RSVLC-0501”, and the safety statements in appendix C, “Safety and Regulatory Statements”. HP RSVLC-0501 NA(J8986A) HP RSVLC-0501 WW(J8987A) i Contents 1 Introducing the HP ProCurve RSVLC-0501 Top of the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 Back of the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 Back Panel Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 Network Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7 Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 Auxiliary Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 Access Point Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 2 Installing the RSVLC-0501 Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 Installation Precautions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 2. Verify the Access Point Passes the Self Test . . . . . . . . . . . . . . . . . . . 2-5 LED Behavior: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6 3. Mount the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 Suspended Ceiling Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 Horizontal Surface Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11 4. Connect the Access Point to a Power Source . . . . . . . . . . . . . . . . . 2-11 5. Connect the Network Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12 Using the RJ-45 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12 6. (Optional) Connect External Antennas to the Access Point . . . . . 2-12 ii 7. (Optional) Connect a Console to the RSVLC-0501 . . . . . . . . . . . . . 2-13 Terminal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 Direct Console Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14 Sample Network Topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16 Ad Hoc Wireless LAN (no access point) . . . . . . . . . . . . . . . . . . . . . . . 2-16 Infrastructure Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17 Infrastructure Wireless LAN for Roaming Wireless PCs . . . . . . . . . . 2-18 3 Getting Started With Access Point Configuration Recommended Minimal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Using the Command Line Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 To Set the Manager User Name and Password . . . . . . . . . . . . . . . 3-2 To Set the Access Point’s IP Address . . . . . . . . . . . . . . . . . . . . . . . 3-3 To Set the Access Point’s Country Code . . . . . . . . . . . . . . . . . . . . . 3-4 To Configure Radio Sett…

Text truncated - open the document above for the full version.

2-10 Installing the RSVLC-0501 Installation Procedures Installing the RSVLC-0501 1. Push T-rail onto bracket clips Mounting the Access Point on a Suspended Ceiling T-Rail 2. Turn access point until clips secure T-rail One side of T-rail held under tab, the other side help by clip 2-11 Installing the RSVLC-0501 Installation Procedures Installing the RSVLC-0501 Horizontal Surface Mounting Place the access point on a table or other horizontal surface. The access point accessory kit provides rubber feet that can be used to help keep the access point from sliding on the surface. Attach the rubber feet to the four corners on the bottom of the access point within the embossed circles. Use a sturdy surface in an uncluttered area. You may want to secure the networking cable and access point’s power cord to the table leg or other part of the surface structure to help prevent tripping over the cords. CautionMake sure the air flow is not restricted around the sides of the access point. 4. Connect the Access Point to a Power Source 1.Plug the included power adapter into the access point’s power connector and into a nearby AC power source. Or, alternatively, connect the Ethernet port on the access point to a switch or other network device that provides Power over Ethernet. 2.Re-check the LEDs during self test. See “LED Behavior” on page 2-6. 2-12 Installing the RSVLC-0501 Installation Procedures Installing the RSVLC-0501 5. Connect the Network Cable Connect the network cable, described under “Cabling Infrastructure” (page 2-4), from the network device or your patch panel to the RJ-45 port on the access point. Using the RJ-45 Connectors To c o nn e c t : Push the RJ-45 plug into the RJ-45 port until the tab on the plug clicks into place. When power is on for the access point and for the connected device, the 10/100Base-TX link LED should light to confirm a powered-on device (for example, a switch) is at the other end of the cable. If the 10/100Base-TX link LED does not go on when the network cable is connected to the port, see “Diag- nosing with the LEDs” in chapter 5, “Troubleshooting”. To disconnect: Press the small tab on the plug and pull the plug out of the port. 6. (Optional) Connect External Antennas to the Access Point If you intend to use optional external antennas with the access point, connect them by following the instructions in chapter 4, “Using an External Antenna with the RSVLC-0501”. 10/100-TX In 8A RJ-45 connector Cable: • Category 3, 4, or 5 for 10 Mbps ports (UTP) • Category 5 or better for 100 Mbps ports (STP) Maximum distance: 100 meters 2-13 Installing the RSVLC-0501 Installation Procedures Installing the RSVLC-0501 7. (Optional) Connect a Console to the RSVLC-0501 The RSVLC-0501 has a full-featured, easy to use console interface for performing access point management tasks, including the following: ■modify the access point’s configuration to optimize access point perfor- mance, enhance network traffic control, and improve network security ■download new software to the access point ■set a Manager password to control access to the access point from the console, Web browser interface, and network management stations The console can be accessed through these methods: ■Out-of-Band: Use a serial cable for connecting a PC or VT-100 terminal to be used as a console directly to the access point. ■In-Band: Access the console using Telnet or Secure Shell (SSH) from a PC on the network, and a VT-100 terminal emulator. This method requires that you first configure the access point with an IP address and subnet mask by using either out-of-band console access or through DHCP. For more information on IP addressing and on starting a Telnet or SSH session, see chapter 3, “Getting Started With Access Point Configuration”, and the Management and Configuration Guide, which is on the Documentation CD-ROM that came with your access point. The RSVLC-0501 can simultaneously support one out-of-band console session through the Console Port and four in-band Telnet or SSH console sessions. NoteFor information on using the Web browser interface to configure the access point, refer to the Management and Configuration Guide. Terminal Configuration To connect a console to the access point, configure the PC terminal emulator as a DEC VT-100 (ANSI) terminal or use a VT-100 terminal, and configure either one to operate with these settings: •9600 baud •8 data bits, 1 stop bit, no parity, and flow control set to None •For the Windows Terminal program, also disable (uncheck) the “Use Function, Arrow, and Ctrl Keys for Windows” option •For the Hilgraeve HyperTerminal program, select the “Terminal keys” option for the “Function, arrow, and ctrl keys act as” parameter You can only attach to the console using these configuration settings. 2-14 Installing the RSVLC-0501 Installation Procedures Installing the RSVLC-0501 Direct Console Access To connect a console to the access point, follow these steps: 1.Connect the PC or terminal to the access point’s Console port using a DB-9 female-to- female serial cable. (If your PC or terminal has a 25-pin serial connector, first attach a 9-pin to 25-pin straight- through adapter at one end of the console cable.) The Console cable is described below. A null- modem cable or an HP serial cable, part number 5184-1894 (shipped with many HP ProCurve switches), may be used. RSVLC-0501 serial port pin and signalling details Connection to PC serial ports also requires a crossover (null-modem) cable with a female DB-9 connector on both ends. Terminal connections will vary, requiring either a DB-9 or DB-25 connector, male or female. Serial cable options between an HP ProCure RSVLC-0501 and a PC terminal are shown in the following table. RSVLC-0501 Pin AssignmentPin NumberAccess Point Signal (DTE) 1 2 3 4 5 6 7 8 9 Reserved RXD (input) TXD (output) Reserved GND Reserved RTS (output) CTS (input) Reserved Auxiliary Port RConsole 10/100-TX In 8A Console port Console cable (not supplied) PC running…

Text truncated - open the document above for the full version.

8000 Foothills Boulevard Roseville, CA 95747-5502 USA Tel: 916-785-3134 Fax: 916-785-5725 www.procurve.com Date: Nov. 28, 2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a)•Comply with the relevant provisions of the certification program; b)•Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)•Make claims regarding certification only in respect of the scope for which certification has been granted; d)•Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)•Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)•Use certification only to indicate the products are certified as being in conformity with specified standards; g)•Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)•Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; • i)•Keep a record of all complaints made known to the us relating to the product• compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; • j)•Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; • k)•Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely yours, Kenneth Klingler Senior Compliance Engineer Hewlett-Packard Company ProCurve Networking Tel: 916-785-3134 Fax: 916-785-5725 Email: [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

8000 Foothills Boulevard Roseville, CA 95747-5502 USA Tel: 916-785-3134 Fax: 916-785-5725 www.procurve.com Date: November 28, 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID: B94RSVLC-0501 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Kenneth Klingler Senior Compliance Engineer Hewlett-Packard Company ProCurve Networking Tel: 916-785-3134 Fax: 916-785-5725 Email: [email protected]

Helen Zhao Subject: FW: Re : RE: Re : FW: Hewlett-Packard Company ProCurve Networking, FCC ID: B94RSVLC-0501, Assessment NO.: AN06T5421, Notice#1 1/23/2006 -----Original Message----- From: amy.lee [mailto:[email protected]]On Behalf Of application Sent: Sunday, January 22, 2006 6:19 PM To: Helen Zhao Subject: Re : RE: Re : FW: Hewlett-Packard Company ProCurve Networking, FCC ID: B94RSVLC-0501, Assessment NO.: AN06T5421, Notice#1 Dear Helen: Please refer to below for the reply. Best Regard Amy -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Friday, January 13, 2006 4:14 PM To: Helen Zhao Subject: Hewlett-Packard Company ProCurve Networking, FCC ID: B94RSVLC-0501, Assessment NO.: AN06T5421, Notice#1 Question #1: The test report shows different conducted power output setting with each test mode (antenna+ module), which means "Certain antennas used with this equipment have output power limitations as documented in the application". So this device requires professional installation. Please modify the user manual to indicate professional installation and list the power output setting with each antenna. Ans: 1. The statement for profession installation is in page 22 of userman 2. 2. The power outpt was listed on page 62 &63 of userman 2. The power listed are the max. output power for 802.11a/b/g modes without separate UNII or DTS. But in future, connecting to HP website for detail setting is required. The selection of output power level will be according to the used external antenna. Question #2: The test report shows antenna #3 (Yagi 13.8dBi) is for point-to-point operation, but confirm whether antenna #7 (Directional 13.3dBi) is also for point-to-point operation. Please update the user manual Table 4-1 to indicate point-to-point, or point-to-multiple points. Ans: Only Yagi antenna is operating as point to point, other types of antennas are all for point to multiple points. User manual revised.(p63 C-14) Question #3: The operational description indicates the device uses module with AR2112 and one module with AR5112. Both chipsets support super G mode or Turbo mode, which enables 108Mbps daterate. But the test report shows turbo mode was not evaluated. Please confirm whether this device has turbo mode, if not, please update operational Description. Ans: The turbo mode is disable in this device, and refer to revised operational description. Question #4: Please extract MPE calculation from the test report and submit as a separate document. In future, please always provide a separate document to address RF exposure requirement for all UNII applications. Ans: The MPE had been separated from the test port for UNII. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 1/23/2006

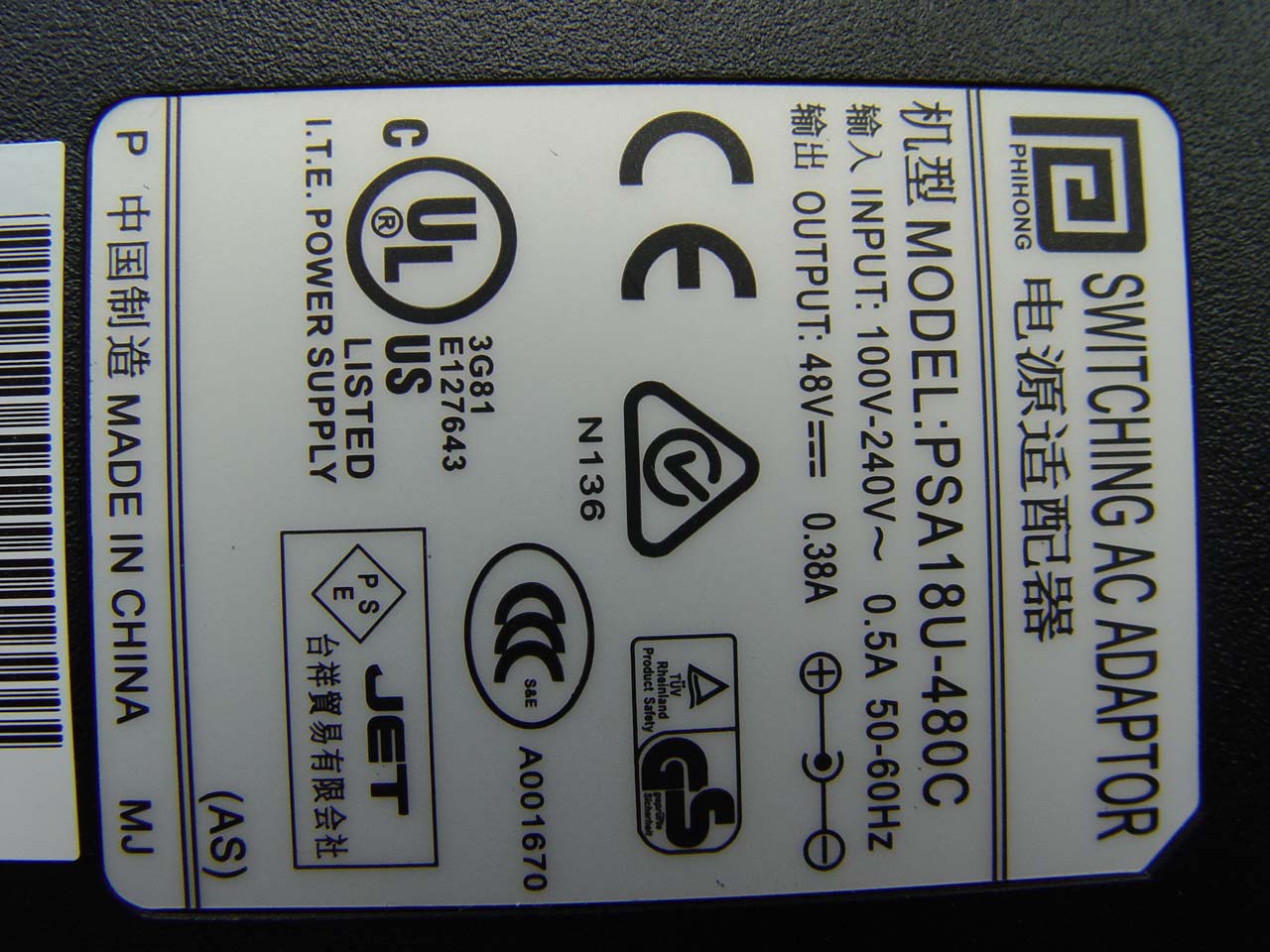

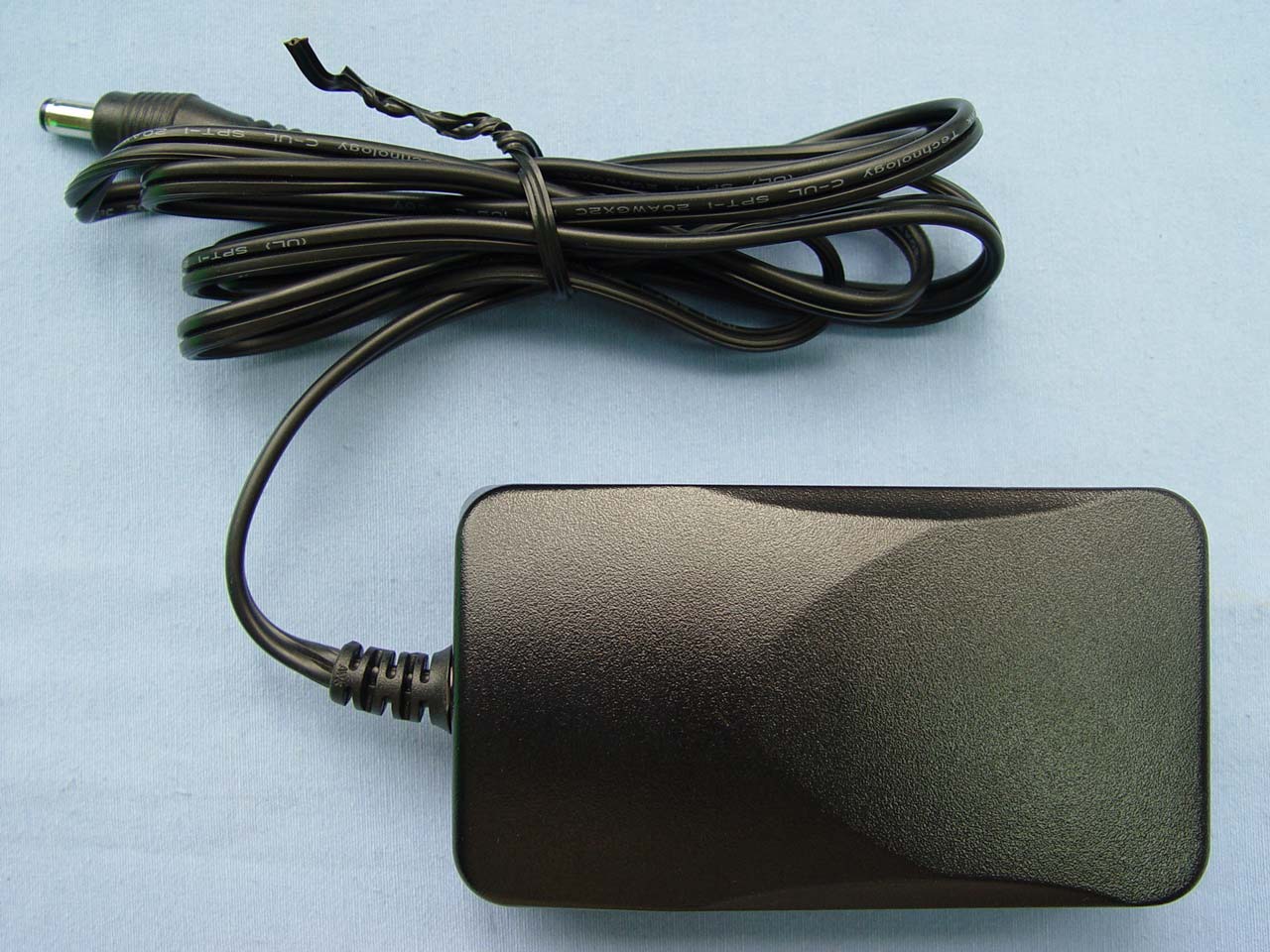

Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 1 Total Page: 16 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 2 Rev.00 Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 3 Rev.00 Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 4 Rev.00 Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 5 Rev.00 Antenna 1: Omni Antenna / J8441A / 2.4 ~ 2.5GHz / 4.4dBi Antenna 2: Omni Antenna / J8444A / 2.4 ~ 2.5GHz / 7.4dBi Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 6 Rev.00 Antenna 3: Yagi Antenna / J8448A / 2.4 ~ 2.5GHz / 13.8dBi Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 7 Rev.00 Antenna 4: Diversity Antenna / J8997A / 2.4 ~ 2.5GHz / 3.0dBi 4.9 ~ 5.9GHz / 4.0dBi Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 8 Rev.00 Antenna 5: Directional Antenna / J8999A / 2.4 ~ 2.5GHz / 6.9dBi 4.9 ~ 5.9GHz / 7.7dBi Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 9 Rev.00 Antenna 6: Omni Antenna / J8998A / 4.9 ~ 5.9GHz / 6.3dBi Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 10 Rev.00 Antenna 7: Directional Antenna / J9000A / 4.9 ~ 5.9GHz / 13.3dBi Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 11 Rev.00 Antenna 8 / 9: INTERNAL PIFA Antenna / 2.4 ~ 2.5GHz / 5.92dBi Antenna 10 / 11: INTERNAL PIFA Antenna / 4.9 ~ 5.9GHz / 5.95dBi

215.0 mm 1.0mm RAD. 27.0 mm THIS DOCUMENT AND ANY ASSOCIATED DATA CONTAIN RESTRICTED INFORMATION THAT IS HEWLETT-PACKARD (HP) PROPERTY. DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS EXCEPT AS AUTHORIZED BY HP. HP RESTRICTED BJN-JSM MAT'L-SPEC. MAT'L-DWG NO. MAT'L-PART NO. PART/MATERIAL-DESCRIPTION QTY. ITEM METRIC ADHERANCE TO DWG A-5951-1561-1(CO.STD.SECTION 608) REQUIRED DO NOT SCALE THIS DRAWING TOLERANCES SHEET OF DRAWN BY DATE ENGINEER/CHECKER RELEASE TO PRODUCTION SUPERSEDES DWG. TITLESCALE PART NUMBER RELEASE TO PRODUCTION FILENAME SYSTEM UNLESS OTHERWISE SPECIFIEDDIMENSIONS ARE IN MILLIMETRESTHIRD ANGLE PROJECTION A- SEE NOTES J8983-80099 K. Klingler DATE APPROVED REVISIONS SYM USERS ENGINEERING RESPONSIBILITY A- D370 AP530 NA Regulatory Label 9/12/05 1:1 AP530NA_12Sep05 FCC ID: B94RSVLC-0501 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may n ot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesire d operation. IC: 466F-RSVLC501This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la normeNMB-003 du Canada. Wireless AccessPoint 530 NA Product: J8986A Regulatory Model: RSVLC-0501 INPUT: 48V xxx mA Suitable for Air-Handling Spaces Product of Taiwan I.T.E. E141136 J8986-80099 Rev: X.X Label ID LF

Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 12 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 13 Rev.00 Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 14 Rev.00 Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 15 Rev.00 Compliance Certification Services Inc. Report No: 51028006 Date of Issue: December 4, 2005 Page 16 Rev.00

CABLE ASSEMBLYLocationCABLECABLE2.4GHz5 GHz DESCRIPTIONLENGTHCOLORcable losscable loss Reverse Polarity SMA to IPEXb/g port B120mm (+-5mm)Black0.42 dB0.7 dB Reverse Polarity SMA to IPEXb/g port A120mm (+-5mm)White0.42 dB0.7 dB Reverse Polarity SMA to IPEXa/b/g port B235mm (+-5mm)Black0.75 dB1.26 dB Reverse Polarity SMA to IPEXa/b/g port A235mm (+-5mm)White0.75 dB1.26 dB EAP6628A-18_HP_Minerva_CABLE ASSY SPECS

ProCurve Networking J8997A 3 dBi dual-band Diversity Antenna Specifications Table of Contents – J8997A Technical Specifications................................................................3 Radiation Patterns .......................................................................4 Illustration & Mounting...............................................................10 Antenna Specifications – J8997A Item Specification HP Product Number J8997A Cushcraft Part Number S24493DSH33RSM Frequency (MHz) 2400-2500 / 4900-5990 Gain w/specified cable (dBi) 3 / 4 VSWR max 2.0:1 E-Plane (3dB beamwidth) 60° / 58° H-Plane (3dB beamwidth) Omnidirectional Polarization Linear (vertical) Impedance (Ohms) 50 Weight lb. (kg) 0.5 (0.23) Front to back ratio (dB) N/A Dimensions in. (cm) 6.16 x 3.66 (15.6 x 9.3) Height in. (cm) 0.89 (2.26) Mounting Style Ceiling grid Wind Surface Area ft 2 (m 2 ) N/A Wind Survival mph (km/hr) N/A Enclosure PVC / Acrylic RF Connector Rev. SMA (m) Pigtail 33-inch CMP Plenum Storage Temperature (min/max) -40° to +65°C Operating Temperature (min/max) -30° to +55°C 48 Perimeter Rd. Manchester, NH (603)627-7877 fax..(603)627-1764 [email protected] S24493DS 0 350 340 330 320 310 300 290 280 270 260 250 240 230 220 210 200 190 180 170 160 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 -40-30-20-10 dB 5.15 GHz H Plane 0 350 340 330 320 310 300 290 280 270 260 250 240 230 220 210 200 190 180 170 160 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 -40-30-20-10 dB 5.50 GHz H-Plane 0 350 340 330 320 310 300 290 280 270 260 250 240 230 220 210 200 190 180 170 160 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 -40-30-20-10 dB 5.875 GHz H-Plane 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 H Plane 2.4 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 H Plane 2.45 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 H Plane 2.5 GHz 48 Perimeter Rd. Manchester, NH (603)627-7877 fax..(603)627-1764 [email protected] S24493DS 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1E90 Plane 2.4GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1E90 Plane 2.45 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1E90 Plane 2.5 GHz 48 Perimeter Rd. Manchester, NH (603)627-7877 fax..(603)627-1764 [email protected] S24493DS 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1E0 Plane 2.4 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1E0 Plane 2.45 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1E0 Plane 2.5 GHz 48 Perimeter Rd. Manchester, NH (603)627-7877 fax..(603)627-1764 [email protected] S24493DS 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 E90 Plane 4.9 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 E90 Plane 5.15 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 E90 Plane 5.50 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 E90 Plane 5.99 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 E90 Plane 6 GHz 48 Perimeter Rd. Manchester, NH (603)627-7877 fax..(603)627-1764 [email protected] S24493DS 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 E0 Plane 4.9 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 E0 Plane5.15 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 E0 Plane 5.5 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 E0 Plane 5.99 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 E0 Plane 6 GHz 48 Perimeter Rd. Manchester, NH (603)627-7877 fax..(603)627-1764 [email protected] S24493DS 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 H Plane 4.9 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 H Plane 5.15 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 H Plane 5.50 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 H Plane 5.99 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-10 dB S24493DS Port 1 H Plane 6 GHz

ProCurve Networking J8998A 6 dBi 5GHz Omni Antenna Specifications Table of Contents – J8998A Technical Specifications................................................................3 Radiation Patterns .......................................................................4 Illustration & Mounting.................................................................6 Antenna Specifications – J8998A Item Specification HP Product Number J8998A Cushcraft Part Number S5153WBPH33RSM Frequency (MHz) 5150-5875 Gain w/specified cable (dBi) 6.3 VSWR max 2.0:1 E-Plane (3dB beamwidth) 17° H-Plane (3dB beamwidth) Omnidirectional Polarization Linear (vertical) Impedance (Ohms) 50 Front to back ratio (dB) N/A Weight lb. (kg) 0.3 (0.135) Dimensions in. (cm) 1.125 (2.85) diameter Height in. (cm) 11.56 (29.36) Mounting Style ceiling, mast, I-beam Wind Surface Area ft 2 (m 2 ) 0.09 (0.0084) Wind Survival mph (km…
