B94RSVLC-0502802.11 b/g WLAN Radio Port 210

http://www.procure.com ProCurve Radio Port 230 P r o C u r v e R a d i o P o r t 2 1 0 Radio Port Install Guide December 2005 DRAFTv.12 © Copyright 2005 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of Hewlett- Packard. Publication Number 5991 3780 Applicable Products Trademark Credits Windows NT®, Windows®, and MS Windows® are US registered trademarks of Microsoft Corporation. Disclaimer HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard. Warranty See the Customer Support/Warranty booklet included with the product. A copy of the specific warranty terms applicable to your Hewlett-Packard products and replacement parts can be obtained from your HP Sales and Service Office or authorized dealer. HP ProCurve Radio Port 230 HP ProCurve Radio Port 210 J9006A J9004A 3 Introduction The ProCurve Radio Port 230 and ProCurve Radio Port 210, components of the ProCurve Wireless LAN System, link wireless 802.11a/b/g devices to the Ethernet network through a wireless services-enabled switch. These devices are to be used with the HP ProCurve Switch 5300xl with a ProCurve Wireless EDGE Services xl Module or other compatible wireless services-enabled switch products. These Radio Ports are designed to be simple plug-and-play devices that require no individual device configuration before being installed into a network. All Radio port configurations, including country-specific settings, radio channels, radio power, SSID settings, security settings, management information, and Radio Port firmware is provided through the wireless services-enabled switch. NOTE: Before installing Radio Ports, a ProCurve wireless services-enabled switch (such as the ProCurve Switch 5300xl with Wireless EDGE Services xl Module installed) should be deployed, configured and operating in a Normal mode. See the “ProCurve Wireless EDGE Services xl Module Getting Started Guide” for details. ProCurve Radio Port 230 and 210 Package Contents • ProCurve Radio Port 230 or Radio Port 210 • Two wall mount screws • Two wall anchors • Radio Port Install Guide • Customer Support/Warranty booklet Description The ProCurve Radio Port 230 is a dual-radio IEEE 802.11-compliant device supporting simultaneous 802.11a and b/g wireless Ethernet connections. It contains two embedded 802.11 b/g (2.4 GHz) omni directional diversity antennas, and two embedded 802.11a (5.4 GHz) omni directional diversity antennas. The ProCurve Radio Port 210 is a single radio IEEE 802.11-compliant device supporting 802.11 b/g wireless Ethernet connections. It contains two embedded 802.11 b/g (2.4 GHz) omni directional diversity antennas. Both Radio Ports are designed for installation in office environments, either using the wall mount or suspended- ceiling T-Bar mountings built into the underside of the plastic case. Each Radio Port has one RJ-45 connector supporting 10/100 Ethernet and requires power from any UL-listed, 802.3af-compatible Power over Ethernet (PoE) switch or power injector. Technical Specifications Dimensions & Weight Features • High-performance 802.11-compliant radios Operating Voltage48VDC (from 802.3af-compliant power source) Operating Current148mA (typical) Power7W (typical) Operating Temperature32 to 104° F (0 to 40° C) Non-Operating/Storage Temperature-40°F to 158°F (-40 to 70°C ) Operating Humidity5 to 95% (non-condensing) Non-Operating/Storage Humidity5 to 95% (non-condensing) Operating Altitude (max)10,000 ft (3,048 m) Non-Operating/Storage Altitude15,000ft.(4,572 m) Length249.2mm (9.81in.) Width174.9mm (56.88in.) Height42.4mm (1.67in.) Radio Port 230 Weight0.55kg (1.214lbs) Radio Port 210 Weight0.50kg (1.096lbs) 4 • Embedded omni directional diversity antennas • Integrated 10/100 Base TX RJ-45 port • Two LED indicators • Safety wire tie point • Lap-style lock port • Slots for wall mounting • Clips for mounting on a suspended ceiling T-Bar Radio Characteristics The ProCurve Radio Port 230 comprises two 802.11 radios: (1) a 802.11 b/g radio operating in the 2.4 to 2.5 GHz band and (2) an 802.11a radio operating in the 4.9 to 5.875 GHz band. The ProCurve Radio Port 210 has a single 802.11b/ g radio. Both units contain two embedded 2.4-2.5GHz omni-directional diversity antennas and the Radio Port 230 also contains two embedded 4.9-5.875 GHz omni-directional diversity antennas. The following table lists the 802.11-compliant operating modes. The three supported 802.11g modes are simultaneous CCK and OFDM, CCK only, or OFDM only. Integrated RJ-45 Port The ProCurve Radio Port 230 and 210 has one RJ-45 connector supporting a full-duplex 10/100 Base-TX Ethernet port and requires IEEE 802.3af-compliant Power-over-Ethernet (PoE) from an external source such as a PoE switch or power injector. This Ethernet port is configured as an MDI port and can be connected to any MDIX switch port using standard straight-through CAT-5 Ethernet cables. For details on cable pinouts, see the Appendices of the 'Installation and Getting Started Guide' for your Pr…

Text truncated - open the document above for the full version.

8000 Foothills Boulevard Roseville, CA 95747-5502 USA Tel: 916-785-3134 Fax: 916-785-5725 www.procurve.com Date: November 28, 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID: B94RSVLC-0502 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram 4. Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Kenneth Klingler Senior Compliance Engineer Hewlett-Packard ProCurve Networking Tel: 916-785-3134 Fax: 916-785-5725 Email: [email protected]

Sporton International Inc. Address：No.52, Hwa Ya 1 st Rd., Kwei-Shan Hsiang, Taoyuan Hsien, 114, Taiwan, R.O.C . Telephone no：886-3-327-3456 Fax no：886-3-328-4978 Dec. 07, 2005 Model name: RSVLC-0502 Marketing name: RSVLC-0502 Short Term Confidentiality Request The Applicant (Hewlett-Packard ProCurve Networking) hereby requests short term confidential treatment of information accompanying this Application as outlined below: 1. RSVLC-0502 User Manual 2. RSVLC-0502 External and Internal Photos The applicant desires the above materials not to be made available until the public release. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. Sincerely, Daniel / Director Sporton International Inc.

FCC TEST REPORT REPORT NO. : 5O2016C-R1-A SPORTON International Inc. Page Number : A1 OF A3 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 APPENDIX A. Photographs of EUT External FCC TEST REPORT REPORT NO. : 5O2016C-R1-A SPORTON International Inc. Page Number : A2 OF A3 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC TEST REPORT REPORT NO. : 5O2016C-R1-A SPORTON International Inc. Page Number : A3 OF A3 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01

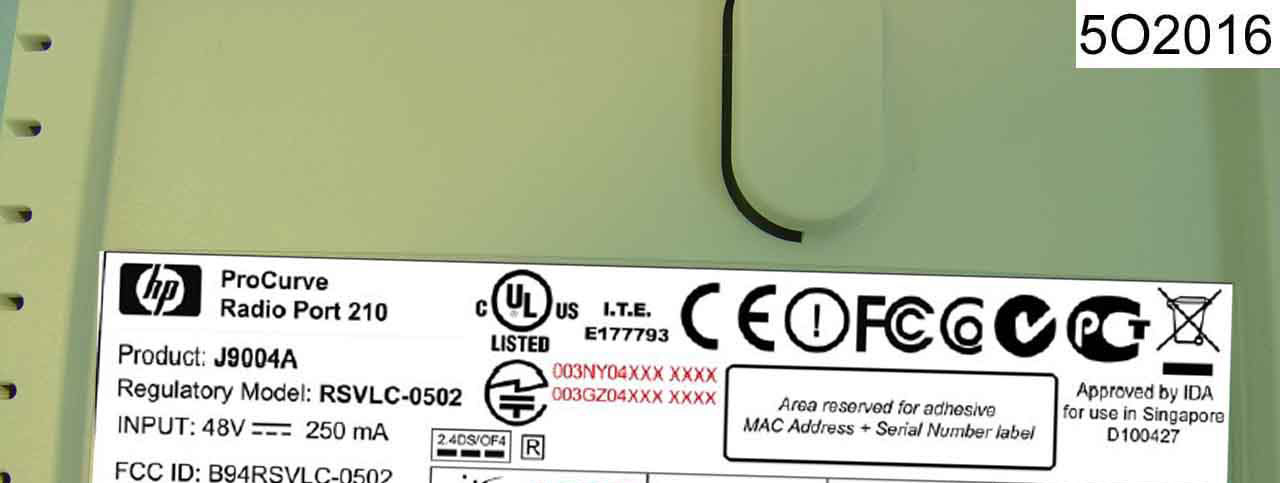

label 0502_210 with state (800x340x16M psd)

FCC TEST REPORT REPORT NO. : 5O2016C-R1-A SPORTON International Inc. Page Number : A3 OF A3 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01

FCC TEST REPORT REPORT NO. : FR5O2016C-R2-A SPORTON International Inc. Page Number : B1 OF B14 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 APPENDIX B. Photographs of EUT Internal FCC TEST REPORT REPORT NO. : FR5O2016C-R2-A SPORTON International Inc. Page Number : B2 OF B14 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC TEST REPORT REPORT NO. : FR5O2016C-R2-A SPORTON International Inc. Page Number : B3 OF B14 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC TEST REPORT REPORT NO. : FR5O2016C-R2-A SPORTON International Inc. Page Number : B4 OF B14 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC TEST REPORT REPORT NO. : FR5O2016C-R2-A SPORTON International Inc. Page Number : B5 OF B14 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC TEST REPORT REPORT NO. : FR5O2016C-R2-A SPORTON International Inc. Page Number : B6 OF B14 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC TEST REPORT REPORT NO. : FR5O2016C-R2-A SPORTON International Inc. Page Number : B7 OF B14 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC TEST REPORT REPORT NO. : FR5O2016C-R2-A SPORTON International Inc. Page Number : B8 OF B14 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC TEST REPORT REPORT NO. : FR5O2016C-R2-A SPORTON International Inc. Page Number : B9 OF B14 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC TEST REPORT REPORT NO. : FR5O2016C-R2-A SPORTON International Inc. Page Number : B10 OF B14 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC TEST REPORT REPORT NO. : FR5O2016C-R2-A SPORTON International Inc. Page Number : B11 OF B14 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC TEST REPORT REPORT NO. : FR5O2016C-R2-A SPORTON International Inc. Page Number : B12 OF B14 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC TEST REPORT REPORT NO. : FR5O2016C-R2-A SPORTON International Inc. Page Number : B13 OF B14 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC TEST REPORT REPORT NO. : FR5O2016C-R2-A SPORTON International Inc. Page Number : B14 OF B14 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01

Document No.: 5O2016-01 RF Exposure Test Report Date: Dec. 09, 2005 FCC ID: B94RSVLC-0502 Sporton International Inc. This report man not be reproduced, expect in full, without the prior written consent of Sporton International Inc. RF Exposure Test Report for Hewlett-Packard ProCurve Networking RSVLC-0502 Equipment : 802.11b/g WLAN Radio Port-210 Trade Name : HP (Hewlett Packard) ProCurve Model No. : RSVLC-0502 FCC ID : B94RSVLC-0502 Filing Type : Certification Applicant : Hewlett-Packard ProCurve Networking 8000 Foothills Boulevard Roseville, CA 95747-5502 USA ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Document No.: 5O2016-01 RF Exposure Test Report Date: Dec. 09, 2005 FCC ID: B94RSVLC-0502 Sporton International Inc. Maximum Permissible Exposure Test Report for RSVLC-0502 1.0 Introduction The report has been prepared on behalf of Hewlett-Packard ProCurve Networking RSVLC-0502 to show compliance with the RF Exposure. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows: ƒ Fixed installation: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Hewlett-Packard ProCurve Networking RSVLC-0502 is being done as a mobile device and the MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Document No.: 5O2016-01 RF Exposure Test Report Date: Dec. 09, 2005 FCC ID: B94RSVLC-0502 Sporton International Inc. Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ƒ Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplcae or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, 802.11b/g WLAN Radio Port-210 is evaluated to the General Population / Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation According to 1.1310 of the FCC rules, the power density limit for General Population/Uncontrolled Exposure is 1mW/cm 2 . As this is a mobile application the MPE shall be calculated at 20cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: Where: Document No.: 5O2016-01 RF Exposure Test Report Date: Dec. 09, 2005 FCC ID: B94RSVLC-0502 Sporton International Inc. S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna For this device, the calculation is as follows: Because the EUT belongs to General Population/ Uncontrolled Exposure, the limit of power density is 1.0 mW/cm². Channel NO. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated RF Exposure at d=20cm (mW/cm²) Limit (mW/cm²) Channel 01 2.00 1.58 18.51 70.96 0.0224 1.00 Channel 06 2.00 1.58 20.55 113.50 0.0358 1.00 Channel 11 2.00 1.58 18.73 74.64 0.0235 1.00 Based on the above calculation, the 802.11b/g WLAN Radio Port-210 is below the Power Density limit of 1mW/cm 2 and it is considered to be compliant with FCC OET Bulletin 65.

Document No.: 5O2016 RF Exposure Test Report Date: Dec. 09, 2005 FCC ID: B94RSVLC-0505 Sporton International Inc. This report man not be reproduced, expect in full, without the prior written consent of Sporton International Inc. RF Exposure Test Report for Hewlett-Packard ProCurve Networking RSVLC-0502, RSVLC-0505 Equipment : 802.11a/b/g WLAN Radio Port-220/230 Trade Name : HP (Hewlett Packard) ProCurve Model No. : RSVLC-0502, RSVLC-0505 FCC ID : B94RSVLC-0505 Filing Type : Certification Applicant : Hewlett-Packard ProCurve Networking 8000 Foothills Boulevard Roseville, CA 95747-5502 USA ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Document No.: 5O2016 RF Exposure Test Report Date: Dec. 09, 2005 FCC ID: B94RSVLC-0505 Sporton International Inc. Maximum Permissible Exposure Test Report for RSVLC-0502, RSVLC-0505 1.0 Introduction The report has been prepared on behalf of Hewlett-Packard ProCurve Networking RSVLC-0502, RSVLC-0505 to show compliance with the RF Exposure. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows: ƒ Fixed installation: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Hewlett-Packard ProCurve Networking RSVLC-0502, RSVLC-0505 is being done as a mobile device and the MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Document No.: 5O2016 RF Exposure Test Report Date: Dec. 09, 2005 FCC ID: B94RSVLC-0505 Sporton International Inc. Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ƒ Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplcae or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, 802.11a/b/g WLAN Radio Port-220/230 is evaluated to the General Population / Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation According to 1.1310 of the FCC rules, the power density limit for General Population/Uncontrolled Exposure is 1mW/cm 2 . As this is a mobile application the MPE shall be calculated at 20cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: Document No.: 5O2016 RF Exposure Test Report Date: Dec. 09, 2005 FCC ID: B94RSVLC-0505 Sporton International Inc. Where: S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna For this device, the calculation is as follows: Because the EUT belongs to General Population/ Uncontrolled Exposure, the limit of power density is 1.0 mW/cm². 802.11a for Antenna 8 Band II Channel NO. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated RF Exposure at d=20cm (mW/cm²) Limit (mW/cm²) Channel 01 13.80 23.99 14.21 26.36 0.1259 1.00 Channel 06 13.80 23.99 19.5 89.13 0.4255 1.00 Channel 11 13.8 23.99 13.84 24.21 0.1156 1.00 802.11a for Antenna 8 Band II Channel NO. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated RF Exposure at d=20cm (mW/cm²) Limit (mW/cm²) Channel 52 13…

Text truncated - open the document above for the full version.

FCC / IC TEST REPORT Report No. :FR5O2016C-R2-A SPORTON International Inc. TEL : 886-2-2696-2468 FCC ID : B94RSVLC-0502 FAX : 886-2-2696-2255 IC ID : 466F-RSVLC502 Report Version: Rev. 01 FCC / IC TEST REPORT for 47 CFR Part 15 Subpart C and RSS-210 Equipment : 802.11b/g WLAN Radio Port-210 Trade Name : HP (Hewlett Packard) ProCurve Model No. : RSVLC-0502 FCC ID : B94RSVLC-0502 IC ID : 466F-RSVLC502 Filing Type : Certification Applicant : Hewlett-Packard ProCurve Networking 8000 Foothills Boulevard Roseville, CA 95747-5502 USA ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. ‚ The data shown in this test report were carried out on Nov. 18, 2005 at Sporton International Inc. LAB. ‚ Report No.: FR5O2016C-R2-A, Report Version: Rev. 01. Dr. Daniel Lee SAR / EMC Director SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC / IC TEST REPORT Report No. :FR5O2016C-R2-A SPORTON International Inc. Page No. : i of 35 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : B94RSVLC-0502 IC ID : 466F-RSVLC502 Table of Contents History of this test report....................................................................................................................................ii 1. General Description of Equipment under Test.............................................................................................1 1.1. Applicant ................................................................................................................................................................................... 1 1.2 Manufacturer............................................................................................................................................................................. 1 1.3 Basic Description of Equipment under Test............................................................................................................................... 1 1.4 Feature of Equipment under Test .............................................................................................................................................. 2 1.5 Antenna List.............................................................................................................................................................................. 3 1.6 Power Table.............................................................................................................................................................................. 3 2 Test Configuration of Equipment under Test ...............................................................................................4 2.1 Test Manner.............................................................................................................................................................................. 4 2.2 Description of Test System ....................................................................................................................................................... 4 2.3 Connection Diagram of Test System ......................................................................................................................................... 4 3 Operation of Equipment under Test ..............................................................................................................5 4 General Information of Test............................................................................................................................6 4.1 Test Voltage.............................................................................................................................................................................. 6 4.2 Standard for Methods of Measurement ..................................................................................................................................... 6 4.3 Test in Compliance with ............................................................................................................................................................ 6 4.4 Frequency Range Investigated.................................................................................................................................................. 6 4.5 Test Distance............................................................................................................................................................................ 6 5 Report of Measurements and Examinations ................................................................................................7 5.1 List of Measurements and Examinations ................................................................................................................................... 7 5.2 6dB Bandwidth.......................................................................................................................................................................... 8 5.3 Power Spectral Density ........................................................................................................................................................... 12 5.4 Band Edges Measurement ...................................................................................................................................................... 16 5.5 Peak Output Power ................................................................................................................................................................. 19 6. Test of Conducted Emission .......................................................................................................…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : FR5O2016C-R2-A SPORTON International Inc. Page No. : C1 of C3 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 FRONT VIEW REAR VIEW APPENDIX C. Photographs of Setup Photographs of Conducted Emission Test Configuration FCC TEST REPORT Report No. : FR5O2016C-R2-A SPORTON International Inc. Page No. : C2 of C3 TEL : 886-2-2696-2468 Report Issued Date : Nov. 25, 2005 FAX : 886-2-2696-2255 Report Version : Rev. 01 SIDE VIEW FCC TEST REPORT Report No. : FR5O2016C-R2-A SPORTON Internatio…

Text truncated - open the document above for the full version.
