B94RSVLD030354g WLAN Transmitter Module

Contents: Company 54g Wireless LAN (WLAN) User Manual 54g Wireless LAN (WLAN) User Manual Introduction Completing the Setup Utility Functions Specifications Regulatory Information Glossary Company Copyright Statement Company Trademark Statement. Microsoft® and Windows® are trademarks owned by Microsoft Corporation. All other trademarks are the property of their respective owners. file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/index.htm [1/30/03 10:11:15 PM] Introduction: Company 54g Wireless LAN (WLAN) User Manual Back to Contents Introduction: 54g Wireless LAN (WLAN) User Manual The 54g WLAN Solution Using the 54g WLAN Features and Requirements The 54g WLAN Solution The 54g WLAN solution accesses wireless local area networks (LANs), enables the sharing of a local printer and files with others in the network, accesses the Internet, and enables roaming about the office—wire-free. This wireless LAN solution is designed for both the home user and small businesses—and it is scalable so that users can be added and new network features can be enabled as networking needs grow. WEP is a security protocol for wireless local area networks (defined in IEEE Std 802.11, 1999 Edition) that encrypts data sent over radio waves. The use of the WEP key is optional and can be enabled or disabled. If the network being connecting to has enabled WEP, WEP must also be enabled in the network profile and the WEP key must be set to match the WEP key used by the network. Otherwise, it is impossible to connect to the network. Enterprise Users file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/intro.htm (1 of 3) [1/30/03 10:11:16 PM] Introduction: Company 54g Wireless LAN (WLAN) User Manual Obtain the following information from the network administrator: l Network names (SSID) of the specific wireless networks to connect to l WEP (Wired Equivalent Privacy) key information (if any) for the networks to connect to l For Microsoft® Windows® networking, the customer name and workgroup name l For a network account, a user name and password l An IP address (if not using a DHCP server) Using the Company 54g WLAN The 54g enabled device is an IEEE 802.11g based wireless LAN device. A LAN is composed of two or more computers that are connected to each other to share files or common equipment such as a printer or an Internet connection. A wireless LAN provides the same functionality of a wired network, but it eliminates the need to install networking cables and other networking equipment. Not only is a wireless LAN easier to deploy, but it also allows for roaming. Features and Requirements An IEEE 802.11 based wireless LAN includes the following features: l Support for IEEE 802.11g draft specification l Support for IEEE 802.11b standard l 2.4-GHz band operation l Network data rate of up to 54 Mbit/s l Wired Equivalent Privacy (WEP) encryption The Company 54g enabled notebook works with any Wi-Fi CERTIFIED® base station or wireless client adapter. file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/intro.htm (2 of 3) [1/30/03 10:11:16 PM] Introduction: Company 54g Wireless LAN (WLAN) User Manual Back to top Back to Contents Ccopyright and Trademark Information. file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/intro.htm (3 of 3) [1/30/03 10:11:16 PM] Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual Back to Contents Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual NOTE—Before starting, obtain the required network information from the network administrator or the wireless access point installer (see The Company 54g WLAN Solution in Introduction). Modes of Operation Modes of Operation A wireless LAN can be configured for two different modes of operation: infrastructure network and computer-to-computer (ad hoc) network. Whereas each mode has its advantages, one mode may be more appropriate than the other, depending on the location and type of network connection. Infrastructure Mode The key difference between the infrastructure type of network and an ad hoc network is that the infrastructure network includes a base station (host) computer that has a built-in wireless network adapter and is connected to a wireless access point (AP). This functionality allows computers on the infrastructure wireless LAN to access the resources and tools of the wired LAN, including Internet access, e-mail, file transfers, and printer sharing. Characteristics Networked computers communicate with each other through a dedicated AP. All data transmitted between the computers on this wireless LAN passes through the AP. Advantages l Extended range. The access point extends the range of the wireless LAN. Each computer can communicate with other computers equipped by wireless networks that are within the range of the access point. l Roaming. As the user moves around the home or office, the Company 54g enabled notebook determines the best access point to use to ensure continuous communication with the network. l Network connectivity. An access point can provide wireless LAN access to an existing wired network by bridging the two networks together. This gives users of the wireless LAN access to all the functions of a wired network—from file server access to e-mail and the Internet. Disadvantages Because the infrastructure mode offers more features, it requires additional components and setup time to deploy. file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (1 of 2 ) [1/30/03 10:11:18 PM] Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual Requirements A base station computer having a wired connection to the Internet, a wireless network adapter, and a connection to an AP. Computer-to-Computer Mode A peer-to-peer (ad hoc) network is the easiest to deploy and is ideal for home use or in small offices. This mode allows the sharing of files with other employees, printing to a shared office printer, and access to the Internet through a shared modem. With ad hoc networking, however, the computer is only able to communicate…

Text truncated - open the document above for the full version.

1 Technical information The technical specifications and international regulatory information for your HP All-in-One are provided in this section. System requirements The following specifications are subject to change without notice. Windows PC requirements ItemMinimumRecommended Processor233 MHz500 MHz Operating System Windows 98 Windows 98SE Windows ME Windows 2000 Windows XP RAM 64 MB RAM 256 MB Disk space needed for installation 100-250 MB500-750 MB Additional disk space needed for scanned images 50 MB Additional disk space needed for Memories Disc 200 MB MonitorSVGA 800 by 60016-bit color Additional hardwareCD-ROM drive I/OAvailable Camera port Internet accessRecommended Sound cardRecommended OtherMicrosoft Internet Explorer 5.01 or higher 1 Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/ Macintosh requirements ItemMinimumRecommended ProcessorSee the Read Me file for details. Operating System Macintosh OS 9 Macintosh OS X RAM 64 MB 128 MB RAM 128 MB 256 MB Disk space needed for installation Macintosh OS 9 Macintosh OS X See the Read Me file for details. Additional disk space needed for scanned images 50 MB Additional disk space needed for Memories Disc 700 MB MonitorSVGA 800 by 600 Additional hardwareCD-ROM drive I/OAvailable Camera port Internet accessRecommended Sound cardRecommended OtherMicrosoft Internet Explorer 5.01 or higher Paper specifications This section contains information about Paper-tray capacities, paper sizes, and print margin specifications. Paper-tray capacities TypePaper weight Input tray 1 Output tray 2 Plain paper16 to 24 lb.(60 to 90 gsm) 150 (20 lb. paper)50 (20 lb. paper) Legal paper20 to 24 lb.(75 to 90 gsm) 150 (20 lb. paper50 (20 lb. paper) Chapter 1 2 Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/ TypePaper weight Input tray 1 Output tray 2 Cards110 lb. index max(200 gsm) 6010 Envelopes20 to 24 lb. (75 to 90 gsm) 2210 Banners16 to 24 lb. (60 to 90 gsm) 2020 or fewer Transparency filmN/A2525 or fewer LabelsN/A2020 4 by 6 inch (10 by 15 cm) Photo Paper 145 lb. (236 gsm) 3030 8.5 by 11 inch (216 by 279 mm) Photo Paper N/A2020 1Maximum capacity. 2Output tray capacity is affected by the type of paper and the amount of ink you are using. HP recommends emptying the output tray frequently. Paper sizes TypeSize PaperLetter: 8.5 by 11 inches (216 by 280 mm) A4: 210 by 297 mm Legal: 8.5 by 14 inches (216 by 356 mm) BannerHP Banner Paper, A4Z-fold Computer Paper: (Tractor Perforations Removed) EnvelopesU.S. #10: 4.125 by 9.5 inches (105 by 241 mm) U.S. #9: 3.9 by 8.9 inches (98 by 225 mm) A2: 4.4 by 5.8 inches (111 by 146 mm) DL: 4.3 by 8.7 inches (110 by 220 mm) C6: 4.5 by 6.4 inches (114 by 162 mm) Transparency filmLetter: 8.5 by 11 inches (216 by 279 mm) A4: 210 by 297 mm Photo paper4 by 6 inches (102 by 152 mm) Cards3 by 5 inches (76 by 127 mm)4 by 6 inches (101 by 152 mm)5 by 7 inches (127 by 178 mm)Hagaki postcard: 100 by 148 mm (continued) 3 Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/ TypeSize LabelsLetter: 8.5 by 11 inches (216 by 279 mm) A4: 210 by 297 mm Custom3 by 5 inches up to 8.5 by 14 inches (76 by 127 mm up to 216 by 356 mm) Print margin specifications Top (leading edge) Bottom (trailing edge) 1 LeftRight paper or transparency film U.S. (Letter, Legal, Executive) 0.07 inches (1.8 mm) 0.46 inches (11.7 mm) 0.25 inches (6.4 mm) 0.25 inches (6.4 mm) ISO (A4, A5) and JIS (B5) 0.07 inches (1.8 mm) 0.46 inches (11.7 mm) 0.13 inches (3.2 mm) 0.13 inches (3.2 mm) envelopes 0.13 inches (3.2 mm) 0.46 inches (11.7 mm) 0.13 inches (3.2 mm) 0.13 inches (3.2 mm) cards 0.07 inches (1.8 mm) 0.46 inches (11.7 mm) 0.13 inches (3.2 mm) 0.13 inches (3.2 mm) 1This margin is not Officejet compatible; however, the total writing area is compatible. The writing area is offset from center by 0.21 inches (5.4 mm), which causes asymmetric top and bottom margins. Print specifications ●600 by 600 dpi black ●1200 by 1200 dpi color with HP PhotoREt III ●Method: drop-on-demand thermal inkjet ●Language: HP PCL Level 3, PCL3 GUI or PCL 10 ●Print speeds vary according to the complexity of the document ●Duty cycle: 500 printed pages per month (average) ●Duty cycle: 5000 printed pages per month (maximum) Mode Resolution (dpi)Speed (ppm) BestBlack1200 by 12002 Chapter 1 (continued) 4 Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/ ModeResolution (dpi)Speed (ppm) Color1200 by 1200 up to 4800 dpi optimized 1 0.5 NormalBlack600 by 6007 Color600 by 6004 FastBlack300 by 30021 Color300 by 30015 1Up to 4800 by 1200 optimized dpi color printing on premium photo papers, 1200 by 1200 input dpi. Copy specifications ●Digital image processing ●Up to 99 copies from original (varies by model) ●Digital zoom from 25 to 400% (varies by model) ●Fit to page, Poster, Many on page ●Up to 21 copies per minute black; 14 copies per minute color (varies by model) ●Copy speeds vary according to the complexity of the document Mode Speed (ppm) Print resolution (dpi) Scan resolution (dpi) 1 BestBlackup to 0.81200 by 12001200 by 2400 Colorup to 0.8 1200 by 1200 2 1200 by 2400 NormalBlackup to 7600 by 1200600 by 1200 Colorup to 4600 by 600600 by 1200 FastBlackup to 21300 by 1200600 by 1200 Colorup to 14600 by 300600 by 1200 1Maximum at 400% scaling. 2On photo paper or premium paper. Fax specifications ●Walk-up black and white and color fax capability ●Up to 60 speed dials (varies by model) ●Up to 60-page memory (varies by model, based on ITU-T Test Image #1 at standard resolution). More complicated pages or higher resolution will take longer and use more memory. ●Manual multiple-page fax (continued) 5 Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/ ●Automatic redial (up to five times) ●Confirmation and activity reports ●CCITT/ITU Group 3 fax with Error Correction Mode ●33.6 Kbps transmission ●6 seconds per page speed at 33.6 Kbps (based on ITU-T Test Image #1 at standard resolution.) More complicated pages…

Text truncated - open the document above for the full version.

Mike Kuo From: Claire Hoque Sent: February23 2004 Monday 3:34 PM To: Mike Kuo Cc: Kathy Yao Subject: FW: Hewlett Packard Company, FCC ID:B94RSVLD0303, AN04T3623 3/1/2004 Hi Mike, Broadcom has revised the manual again, references to notebook are removed. This device is to be approved for mobile use only. Hope there is no further questions. Thanks, Claire -----Original Message----- From: Anne Liang [mailto:[email protected]] Sent: Monday, February 23, 2004 3:26 PM To: Claire Hoque; David Boldy Cc: Kathy Yao Subject: RE: Hewlett Packard Company, FCC ID:B94RSVLD0303, AN04T3623 Hi Claire, Please forward attached manual to Mike. As discussed with Mike, references to notebook are removed. This device is to be approved for mobile use only. If you need anything else, please let us know. Thanks, Anne > -----Original Message----- > From: Mike Kuo > Sent: Friday, February 13, 2004 5:09 PM > To: Claire Hoque > Cc: Steve Cheng; Kathy Yao; Nancy Omron; Michael Heckrotte > Subject: RE: Hewlett Packard Company, FCC ID:B94RSVLD0303, AN04T3623 > > Hi Claire : > > Your reply to question #2 is not acceptable. The antenna used by this > 802.11g module is tested with PCB type antenna which is directly mounted > on the transmitter module. When this device is used in notebook computer, > the 20 cm separation distance will not be able maintained by the end user. > I am questioning the possible location that this module will be installed > in the notebook computer. Due the type of antenna included in this > application, full modular approval will not be granted. This device will > only be reviewed as limited modular approval in specific type of device ( > for example : printer, access point ) where the 20 cm separation distance > can be maintained with PCB type of antenna. > > Based upon above understanding, the revised user manual submitted does not > address question #2. You may only include technical information about the > 802.11g WLAN and the regulatory compliance statement ( including RF > exposure statement ) that should be included in the final system. > > Best Regards > > Mike Kuo > > -----Original Message----- > From: Claire Hoque > Sent: Tuesday, February 10, 2004 3:34 PM > To: Mike Kuo > Cc: Steve Cheng; Kathy Yao; Nancy Omron; Michael Heckrotte > Subject: RE: Hewlett Packard Company, FCC ID:B94RSVLD0303, AN04T3623 > > Hi Mike, > > Here are the answers. > > Question #1: The proposed FCC ID label format does not agree with the > statement made in the request for modular approval letter. Please provide > FCC ID label format to show the label on the module and the label will be > used on outside of printer. > <Claire>pls see the revised FCC ID label format. > << File: FCC ID LABEL(revised).pdf >> > Question #2: The user manual submitted is a generic manual for 802.11g > module and it is not for printer use. Please provide user manual for this > 802.11g WLAN USB printer module. > <Broadcom> > This application is for full modular approval. The module can be used in > notebooks as well as printers. The following statement was added in the > manual: > > "NOTE-This equipment complies with FCC RF radiation exposure limits set > forth for an uncontrolled environment. To avoid the possibility of > exceeding the FCC radio frequency exposure limits, when installed in end > applications, a distance of at least 20cm from users must be ensured. > This device must be installed by authorized personnel's or service > centers. " > > This device and its antenna must not be co-located or operating in > conjunction with any other antenna or transmitter. > << File: User Guide Revised.pdf >> > Question #3: In the submitted document, there is no installation > instruction to the OEM and installer. Will this device only be installed > in the HP printer by HP authorized OEM installer ? Will this module be > offered for sale to allow end user installation ? If this module will be > sold to other than HP authorized OEM installer ? > <HP> > This radio will be installed at the factory only. It will not be sold as a > trade product. > > Question #4: Based upon the theory of operation and user manual, the max. > rated output power is 20dBm ( 100mW ). However, the max. measured output > power is 26.17dBm ( 414mW ). Please explain the differences. > <MH>the lower number is an average power and the higher number is a peak > power. > > Question #5: Page 40 of user manual contains information to address > regulatory requirement. As indicated in the user manual, the separation > distance of 0.5 cm is mentioned. Such RF exposure statement does not > agree with this filing for mobile device per section 2.1091 of fcc rules. > In addition, there is no co-located restriction mentioned in the user > manual. Please provide revised user manual to comply this requirement. > <Broadcom>pls refer to Q2 for revised user's manual. > > Thanks, > > Claire > 3/1/2004

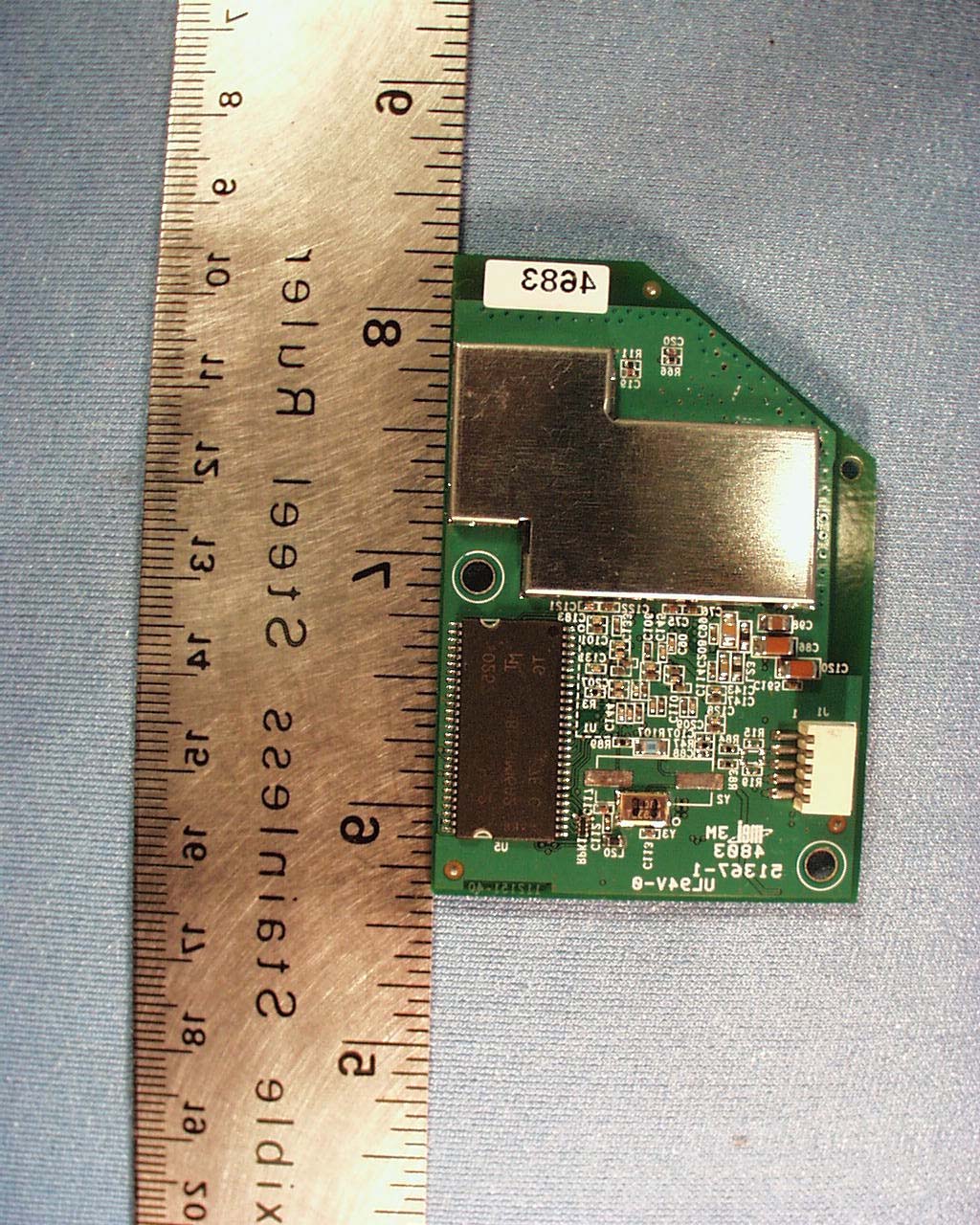

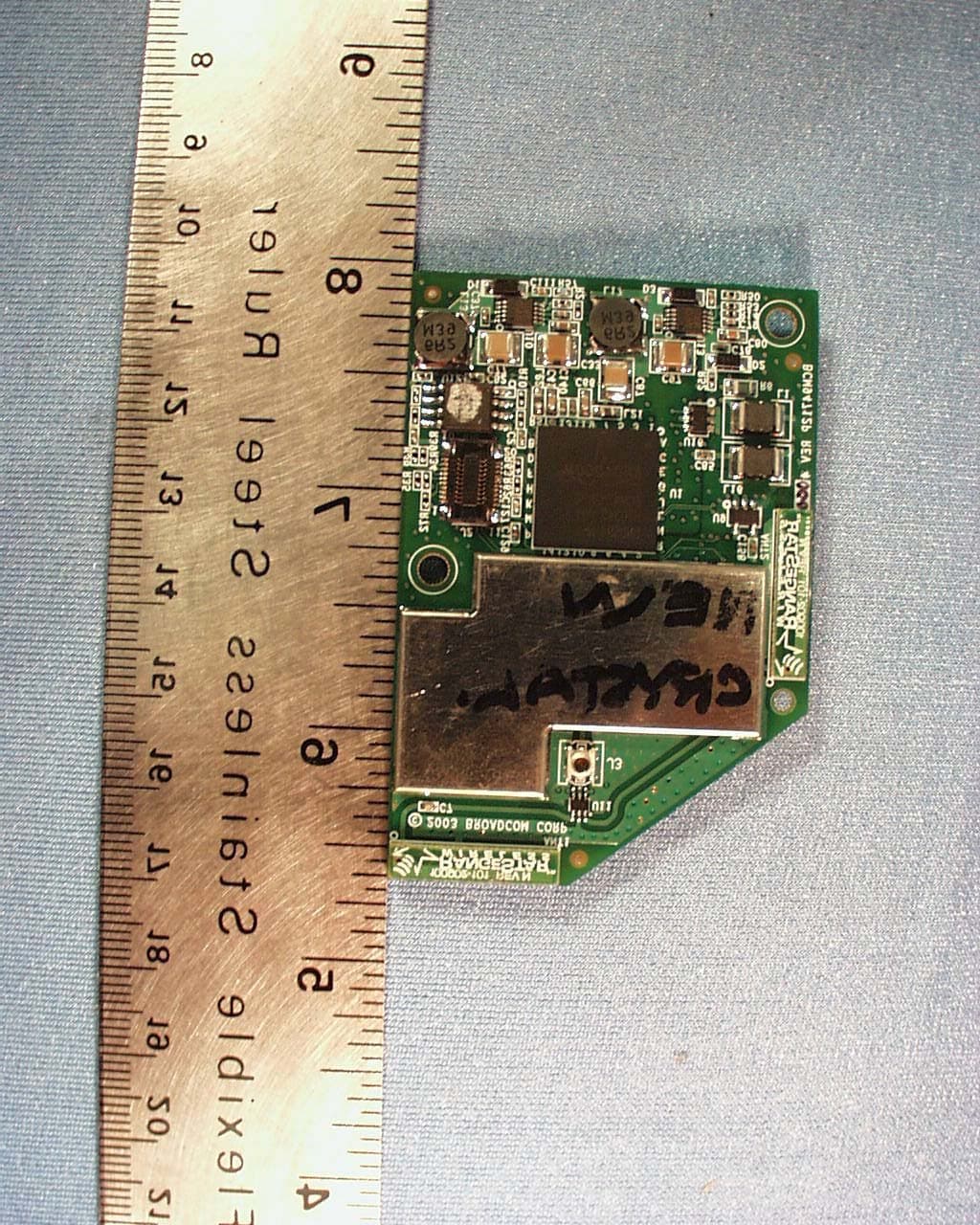

Hewlett Packard Company FCC ID: B94RSVLD0303 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 1.8V and 3.3V power regulators. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Integral pcb antenna. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device will be tested external to a PC in a standalone configuration, connected via USB cable. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format will be included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). SAR testing is not applicable. 20cm distance will be maintained during normal operation.

PROPOSED FCC ID LABEL AND LOCATION HEWLETT PACKARD COMPANY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: B94RSVLD0303 FCC ID LABEL LOCATION

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR HP WLAN USB PRINTER MODULE MODEL NUMBER: RSVLD0303 FCC ID: B94RSVLD0303 REPORT NUMBER: 03U2424-1 ISSUE DATE: JANUARY 20, 2004 Prepared for HEWLETT PACKARD COMPANY 3000 HANOVER STREET PALO ALTO, CA 94304 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 03U2424-1 DATE: JANUARY 20, 2003 EUT: HP WLAN USB Printer Module FCC ID: B94RSVLD0303 Page 2 of 87 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION..........................................................................................3 2. EUT DESCRIPTION...............................................................................................................4 3. TEST METHODOLOGY.........................................................................................................5 4. FACILITIES AND ACCREDITATION...................................................................................5 5. CALIBRATION AND UNCERTAINTY..................................................................................6 5.1. MEASURING INSTRUMENT CALIBRATION......................................................................6 5.2. MEASUREMENT UNCERTAINTY.......................................................................................6 5.3. TEST AND MEASUREMENT EQUIPMENT.........................................................................7 6. SETUP OF EQUIPMENT UNDER TEST................................................................................8 7. APPLICABLE LIMITS AND TEST RESULTS.....................................................................10 7.1. 6 dB BANDWIDTH...........................................................................................................10 7.2. 99% BANDWIDTH...........................................................................................................17 7.3. PEAK OUTPUT POWER..................................................................................................24 7.4. MAXIMUM PERMISSIBLE EXPOSURE............................................................................32 7.5. AVERAGE POWER..........................................................................................................35 7.6. PEAK POWER SPECTRAL DENSITY................................................................................36 7.7. CONDUCTED SPURIOUS EMISSIONS............................................................................43 7.8. RADIATED EMISSIONS...................................................................................................56 7.8.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS.............................................56 7.8.2. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ.......................................59 7.8.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz..........................................76 7.9. POWERLINE CONDUCTED EMISSIONS.........................................................................80 8. SETUP PHOTOS...................................................................................................................83 REPORT NO: 03U2424-1 DATE: JANUARY 20, 2003 EUT: HP WLAN USB Printer Module FCC ID: B94RSVLD0303 Page 3 of 87 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: HEWLETT PACKARD COMPANY 3000 HANOVER STREET PALO ALTO, CA 94304 USA EUT DESCRIPTION: HP WLAN USB Printer Module MODEL: RSVLD0303 DATE TESTED: DECEMBER 10 – 19, 2003 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: MIKE HECKROTTE VIEN TRANH CHIEF ENGINEER EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 03U2424-1 DATE: JANUARY 20, 2003 EUT: HP WLAN USB Printer Module FCC ID: B94RSVLD0303 Page 4 of 87 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The EUT is an 802.11b/g transceiver. It is intended to be used in Hewlett-Packard printers. The transmitter has a maximum peak conducted output power as follows: The radio utilizes a single integrated chip antenna, with a maximum gain of 0 dBi. Frequency BandModeOutput…

Text truncated - open the document above for the full version.

REPORT NO: 03U2424-1 DATE: JANUARY 20, 2003 EUT: HP WLAN USB Printer Module FCC ID: B94RSVLD0303 Page 83 of 87 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 03U2424-1 DATE: JANUARY 20, 2003 EUT: HP WLAN USB Printer Module FCC ID: B94RSVLD0303 Page 84 of 87 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 03U2424-1 DATE: JANUARY 20, 2003 EUT: HP WLAN USB Printer Module FCC ID: B94RSVLD0303 Page 85 of 87 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 03U2424-1 DATE: JANUARY 20, 2003 EUT: HP WLAN USB Printer Module FCC ID: B94RSVLD0303 Page 86 of 87 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 03U2424-1 DATE: JANUARY 20, 2003 EUT: HP WLAN USB Printer Module FCC ID: B94RSVLD0303 Page 87 of 87 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT LINE CONDUCTED BACK PHOTO
