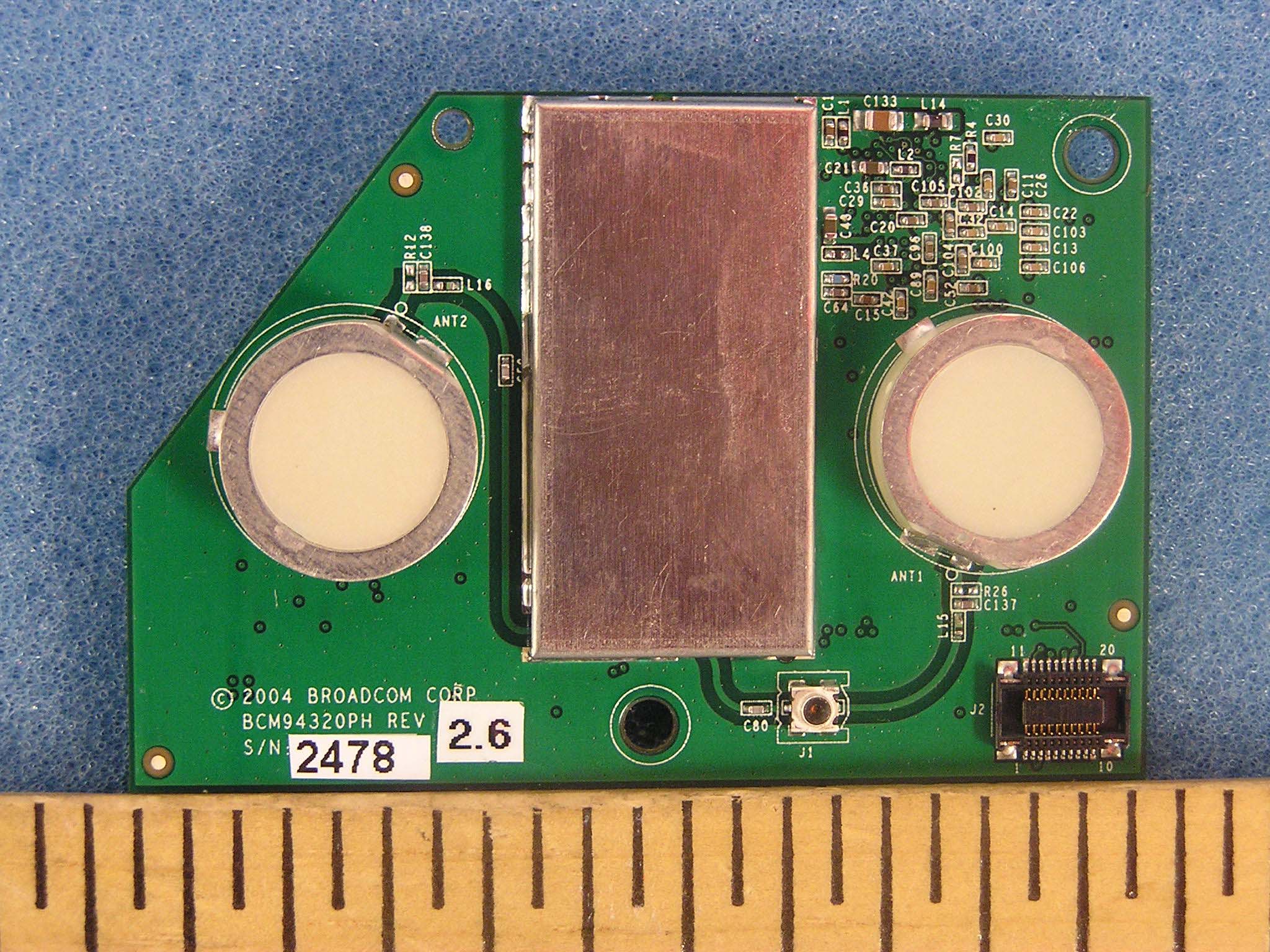

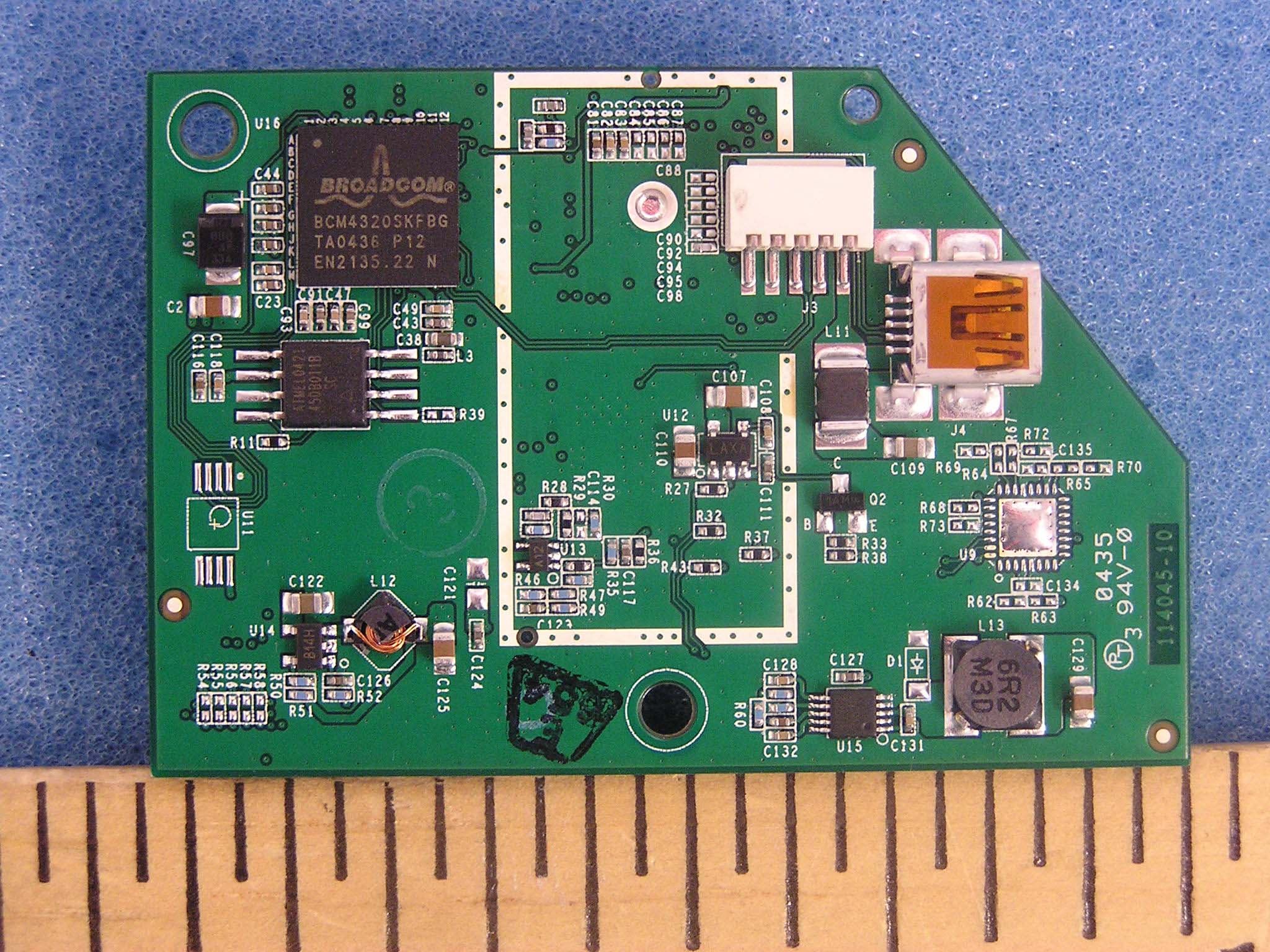

HP FCC ID: B94RSVLD0403 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 1.8V and 3.3V power regulators. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Integral pcb antenna. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested external to a PC in a standalone configuration, connected via USB cable. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format will be included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” and "Installation Guide" 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Mobile configuration. RF exposure is evaluated by MPE calculation.

1 Helen Zhao Subject:FW: answer: Hewlett Packard Company, FCC ID: B94RSVLD0403, Assessment NO.: AN04T4330, Notice#1 Follow Up Flag:Follow up Flag Status:Flagged -----Original Message----- From: Claire Hoque Sent: Tuesday, January 4, 2004 10:49 AM To: Helen Zhao Cc: Mike Kuo; Yan Zheng; Christine Vu; Jack He Subject: answer: Hewlett Packard Company, FCC ID: B94RSVLD0403, Assessment NO.: AN04T4330, Notice#1 Hi Helen, Here are the answers. Question #1: Only user manual of Broadcom 802.11g WLAN was provided in the filing. Since the device is seeking modular approval as an 802.11g WLAN USB Printer Module, please provide installation manual to show how to install the device into HP or HP authorized OEM printers. Please make sure the required RF exposure statements are included in the installation manual. <answer>pls see installation guide saved in F:\upload\AN04T4330\12-9 revised files. Question #2: Page 1 of "Theory of Operation" indicated "Maximum power output is limited to less than 100mW (20dBm) in the frequency range 2400 to 2483.5MHz.", also page 3 indicated that "Transmission Power Nominal: +16.5dBm average packet power at antenna connector", which do not agree with the test results in the test report. Please explain. <answer>pls see revised Theory of Operation saved in F:\upload\AN04T4330\12-9 revised files. Question #3: The Request for Modular Approval Letter indicated that "Item 3: Have its own power supply regulation - Internal 1.8V and 5V power regulators. Refer to Block diagram". However the block diagram does not have such information. Please revise the letter. <answer>pls see revised Modular Approval Letter and Block Diagram saved in F:\upload\AN04T4330\12-9 revised files. Question #4: Section 6 of the test report indicates that "There are two configurations for this device, USB 1.1 and USB 2.0." But the block diagram shows USB 2.0 device" only. Please explain. <answer>There are two diagrams in the report. Please refer to sectin 6.1 & 6.2 Quetstion #5: The Revision History in the test report indicates a change from USB1.0 to USB1.1 was made. However, several pages still mentioned USB1.0. Please address this inconsistent issue. <answer>pls see revised test report saved in F:\upload\AN04T4330\12-9 revised files. Thanks, Claire

PROPOSED FCC ID LABEL AND LOCATION FOR MODULE HEWLETT PACKARD COMPANY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: B94RSVLD0403 FCC ID LABEL LOCATION PROPOSED FCC ID LABEL FOR HOST DEVICE HEWLETT PACKARD COMPANY This device contains B94RSVLD0403

Venus Radio Free Space The following data is of the Venus radio board in free space. This is the latest version of the of the fully assembled board. 10/29/04 Orientation Antennas A B Azimuth {A} antenna {A} antenna {A} antenna {B} antenna {B} antenna {B} antenna Combined Max Value in Azimuth Elevation 1 {A} antenna {A} antenna {A} antenna {B} antenna {B} antenna {B} antenna Combined Max Value in Elevation 1 Elevation 2 {A} antenna {A} antenna {A} antenna {B} antenna {B} antenna {B} antenna Combined Max Value in Elevation 2

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR Wireless Print Server Module MODEL NUMBER: RSVLD-0403 FCC ID: B94RSVLD0403 REPORT NUMBER: 04U3067-1 REVISION B ISSUE DATE: NOVEMBER 16, 2004 Prepared for HEWLETT PACKARD COMPANY 3000 HANOVER STREET PALO ALTO, CALIFORNIA 94304 U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U3067-1 REVISION B DATE: NOVEMBER 16, 2004 EUT: Wireless Print Server Module FCC ID: B94RSVLD0403 Page 2 of 106 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Revision History Rev. Revisions Revised By B Change USB 1.0 to USB 1.1 D. Zhan REPORT NO: 04U3067-1 REVISION B DATE: NOVEMBER 16, 2004 EUT: Wireless Print Server Module FCC ID: B94RSVLD0403 Page 3 of 106 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT DECLARATION .................................................................................................... 4 2. EUT DESCRIPTION.......................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................. 6 4. FACILITIES AND ACCREDITATION .......................................................................................... 6 5. CALIBRATION AND UNCERTAINTY.......................................................................................... 7 5.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 7 5.2. MEASUREMENT UNCERTAINTY ............................................................................................... 7 5.3. TEST AND MEASUREMENT EQUIPMENT................................................................................ 8 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 9 6.1. USB 1.1 CONFIGURATION......................................................................................................... 9 6.2. USB 2.0 CONFIGURATION....................................................................................................... 11 7. APPLICABLE LIMITS AND TEST RESULTS ........................................................................... 13 7.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND ...................................................... 13 7.1.1. 6 dB BANDWIDTH ........................................................................................................... 13 7.1.2. 99% BANDWIDTH............................................................................................................ 20 7.1.3. PEAK OUTPUT POWER .................................................................................................. 27 7.1.4. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 35 7.1.5. AVERAGE POWER........................................................................................................... 38 7.1.6. PEAK POWER SPECTRAL DENSITY ............................................................................ 39 7.1.7. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 46 7.2. RADIATED EMISSIONS.............................................................................................................59 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 59 7.2.2. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND ............................. 62 7.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz WITH USB 1.1 CONFIGURATION............................................................................................................................ 80 7.2.4. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz WITH USB 2.0 CONFIGURATION............................................................................................................................ 84 7.3. POWERLINE CONDUCTED EMISSIONS ................................................................................ 88 8. SETUP PHOTOS .............................................................................................................................. 94 REPORT NO: 04U3067-1 REVISION B DATE: NOVEMBER 16, 2004 EUT: Wireless Print Server Module FCC ID: B94RSVLD0403 Page 4 of 106 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT DECLARATION COMPANY NAME: HEWLETT PACKARD COMPANY 3000 HANOVER ST. PALO ALTO, CA 94304 U.S.A EUT DESCRIPTION: Wireless Print Server Module MODEL: RSVLD-0403 DATE TESTED: OCTOBER 22 – NOVEMBER 02, 2004 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The te…
