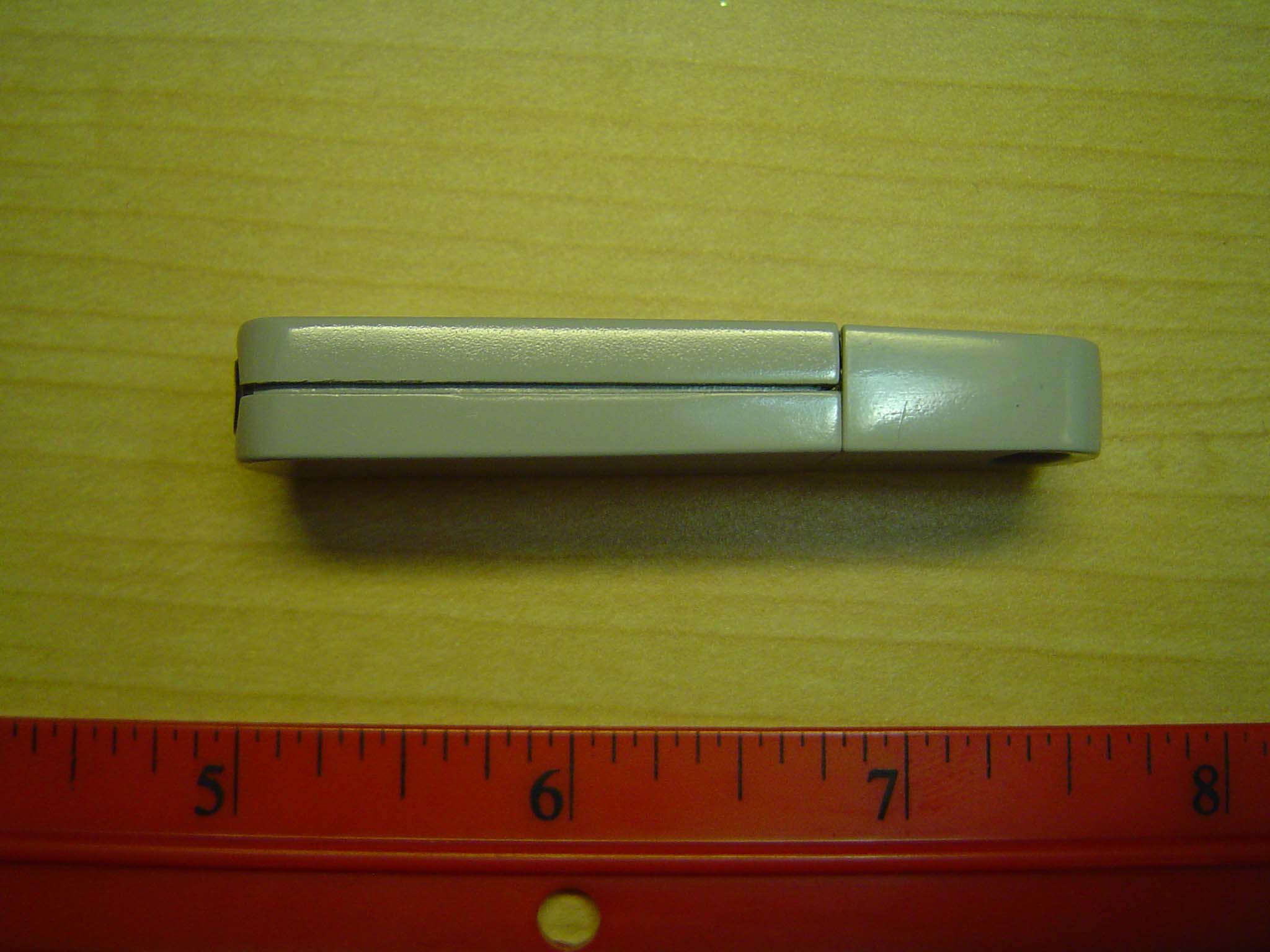

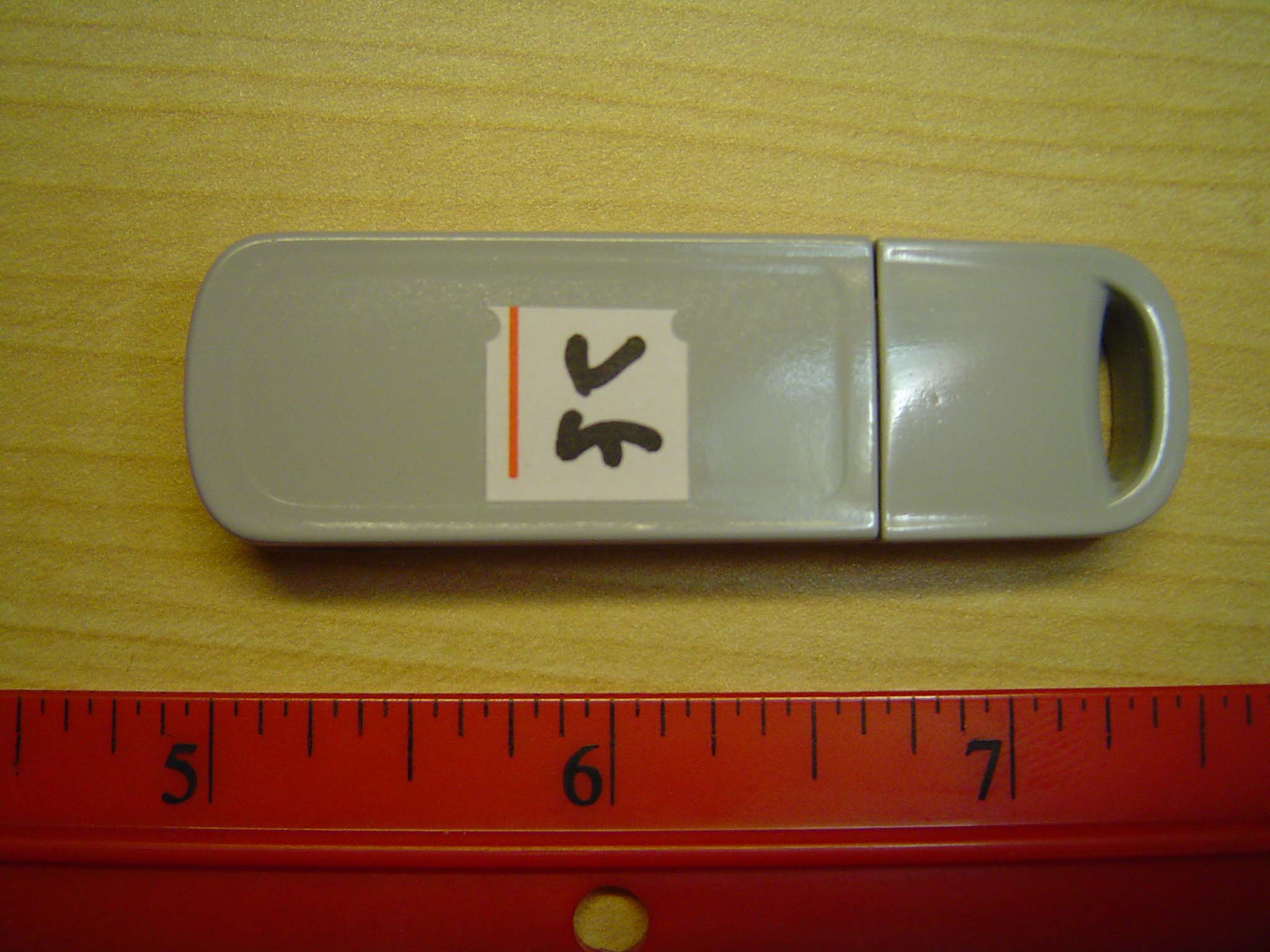

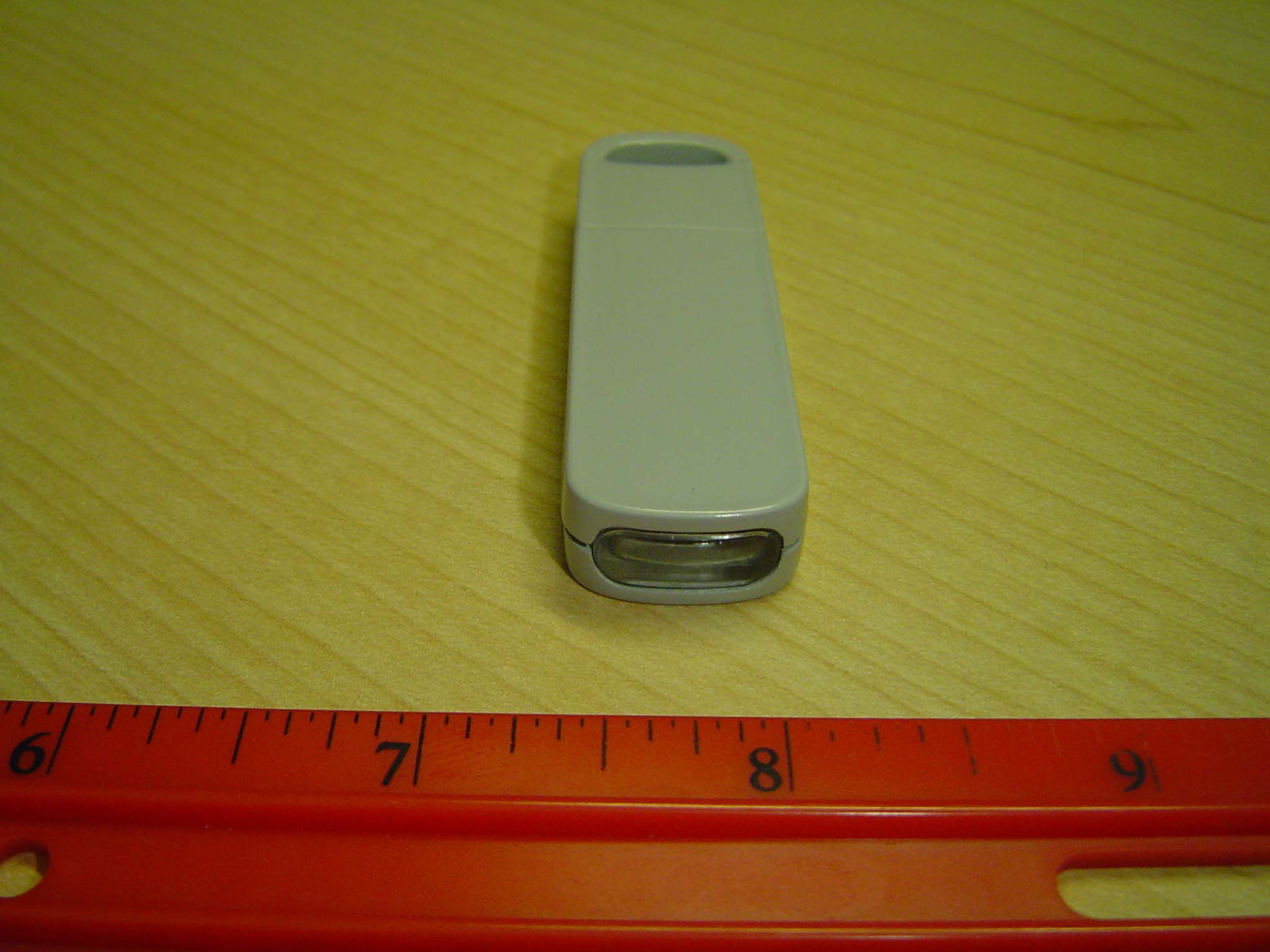

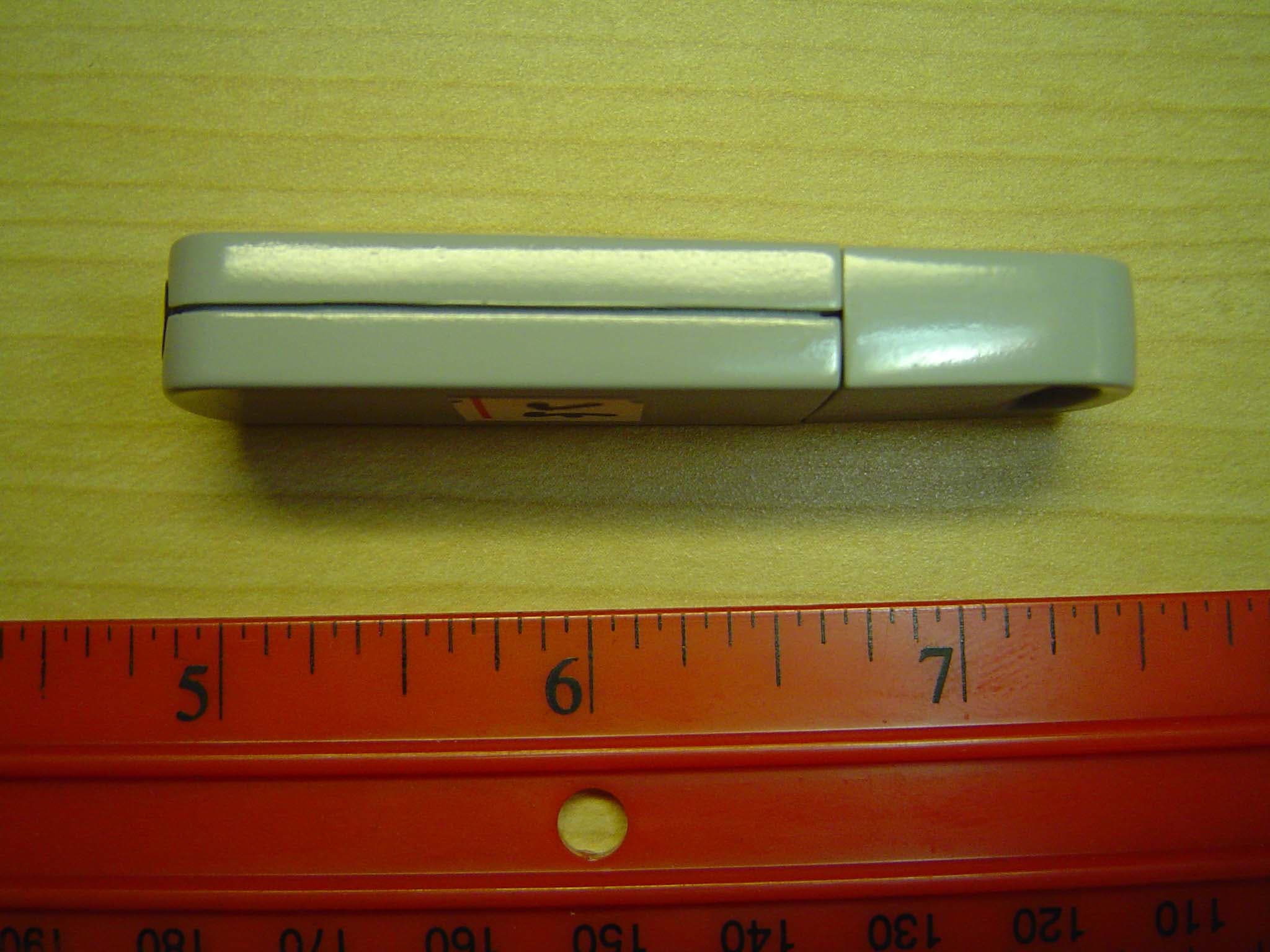

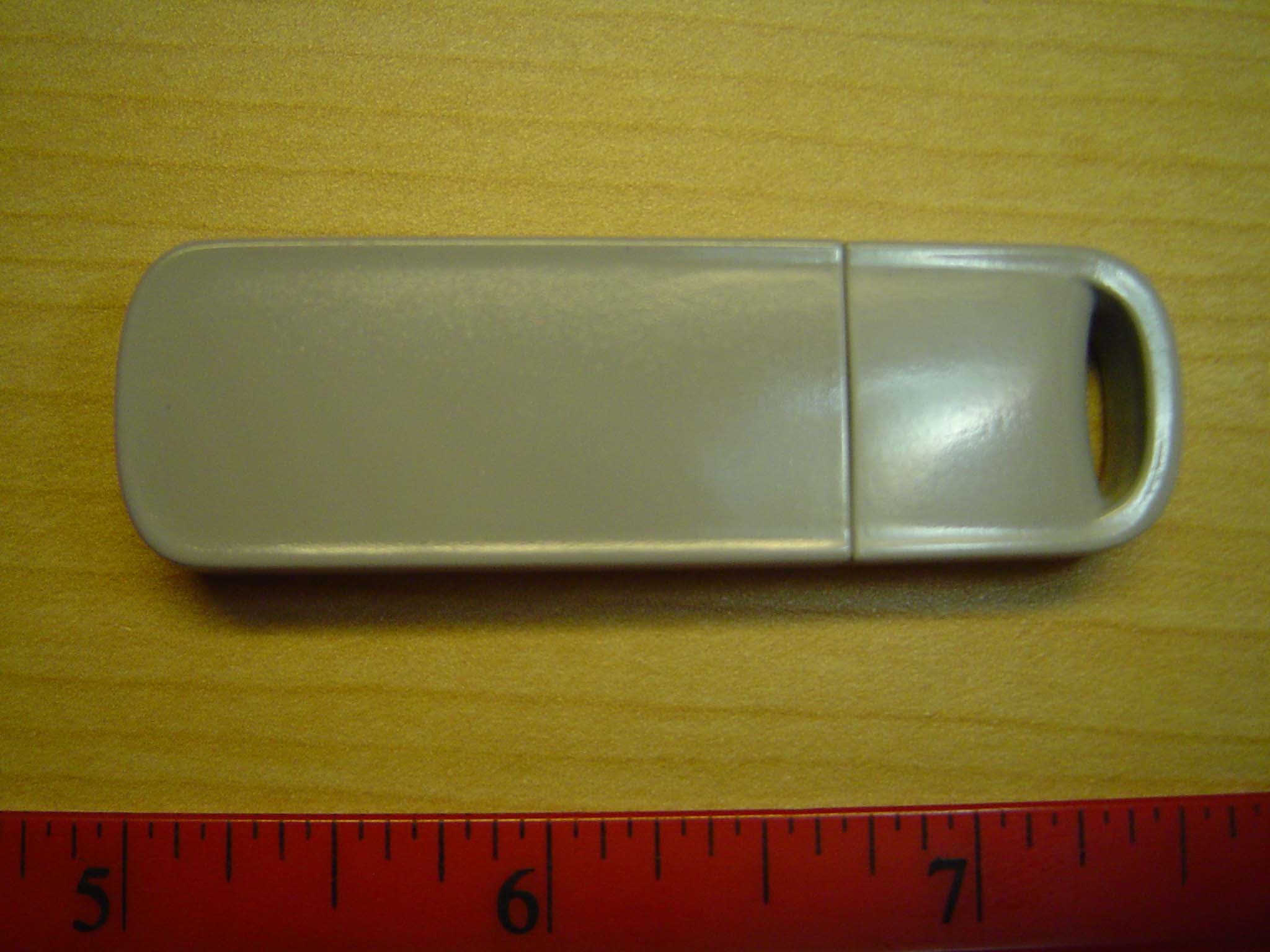

B94RSVLD0502Bluetooth Dongle

1 Quick Start Guide Bluetooth ® USB Adapter, RSVLD-0502 Thank you for purchasing a Broadcom Bluetooth USB Adapter. Before you begin to use the Bluetooth USB Adapter, you will require the following items: A computer with a USB port and one of the following operating systems: Microsoft ® Windows ® XP or Windows 2000. The Software Installation Compact Disc included with your Bluetooth USB Adapter. Getting Started with your Bluetooth USB Adapter Step 1: Installing the Software NOTE: This installation is required before you insert the adapter into the USB port of your computer. 1. Insert the Bluetooth USB Adapter installation compact disc (CD) into the CD-ROM or DVD drive of your computer. 2. If the Main Menu screen appears automatically, select Install software and click OK. If the Main Menu screen does not appear automatically, click Start, click Run, type x:\setup.exe (where x is the CD-ROM or DVD drive letter of your computer), and click OK. 3. Click Next, click Finish, and then restart your computer. 4. Right-click the Bluetooth icon in the taskbar notification area (system tray) and click Start Using Bluetooth. Follow the instructions provided by the Initial Bluetooth Configuration Wizard. 1. ENGLISH 2 Step 2: Inserting the Adapter Insert the Bluetooth USB Adapter into the USB port of your computer. If you started at Step 1: Installing the Software The Found New Hardware Wizard detects and installs the device. When the installation is finished, you are ready to begin using the Bluetooth features of this computer. If you skipped Step 1: Installing the Software, you are ready to begin using the Bluetooth features of this computer. NOTE: Before you begin, however, please review the Bluetooth USB Adapter User’s Guide. This document provides important information and instructions that will help you do the things you want to do with your Bluetooth enabled computer. Glossary Authentication A Bluetooth security feature that is used to verify identity; it requires a Bluetooth PIN Code from the remote device. Authorization A Yes-or-No Bluetooth security feature that requires operator intervention to avoid having the connection time out and fail. Bluetooth device Bluetooth enabled hardware such as a computer, printer, fax, mouse, keyboard, cell phone, headset, or PDA. Bluetooth PIN Code The alphanumeric string (up to 16 characters) that is typed to respond to a Bluetooth PIN Code Request. Also referred to as a Passkey. Bluetooth ® A short-range (9.14 meters/30 feet) networking protocol that allows enabled devices to automatically recognize each other. Bluetooth wireless technology allows quick and easy connectivity of Bluetooth enabled devices. Client Applications Software applications on this computer that allow this computer to use the Bluetooth services provided by remote Bluetooth devices. Link Key An internally generated unique security key (based on a Passkey, the Bluetooth Device Address, and an internally generated random number) that is exchanged by paired devices as proof of identity before a connection is established. Local Services Services that this computer provides to other Bluetooth devices. Paired Devices Bluetooth devices must be paired before they can connect. Paired devices share a unique Link Key, which they exchange each time they connect. Secure Connection A setting that requires a Passkey or Link Key each time you attempt to make a connection. All data exchanged over the Bluetooth connection is encrypted. Depending on other configuration options, authorization may also be required. ENGLISH Regulatory Statements for RSVLD-0502 USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Caution: Exposure to Radio Frequency Radiation. To comply with FCC RF exposure compliance requirements, this device must not be co-located or operating in conjunction with any other antenna or transmitter. Canada – Industry Canada (IC) This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.” L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that …

Text truncated - open the document above for the full version.

1 Mike Kuo From: Claire Hoque Sent: Wednesday, February 02, 2005 4:53 PM To: Mike Kuo Cc: Christine Vu; Jack He Subject: RE: answer: Hewlett Packard Company, FCC ID: B94RSVLD0502, Assessment NO.: AN05T4512, Notice#1 Attachments: Regulatory User guide_BCM92045DG revised.pdf Regulatory User guide_BCM92045... Hi Mike, HP has revised user's manual again per your instruction. Pls see the attachment. Thanks, Claire -----Original Message----- From: Mike Kuo Sent: Wednesday, February 02, 2005 4:31 PM To: Claire Hoque Cc: Thu Chan; Christine Vu; Jack He Subject: RE: answer: Hewlett Packard Company, FCC ID: B94RSVLD0502, Assessment NO.: AN05T4512, Notice#1 Hi Claire: As I indicated in my question #1, this device is considered as portable device so in ther revised user manual, the required 20 cm separation distance can not be maintained. Suggest statement : Caution: Exposure to Radio Frequency Radiation. To comply with FCC RF exposure compliance requirements, this device must not be co-located or operating in conjunction with any other antenna or transmitter. M.Kuo -----Original Message----- From: Claire Hoque Sent: Wednesday, February 02, 2005 4:08 PM To: Mike Kuo Cc: Thu Chan; Christine Vu; Jack He Subject: answer: Hewlett Packard Company, FCC ID: B94RSVLD0502, Assessment NO.: AN05T4512, Notice#1 Hi Mike, Pls see our answers. Question #1: Bluetooth Dongle when used with notebook computer, it is considered as portable device with less than 20 cm separation distance when the notebook computer is positioned in lap held operating condition. MPE estimate contains in the test report is not applicable to addres RF exposure for portable device. Please remove these sections. <answer>report is revised, pls see the attachment. 2 Question #2: User manual does nto contain information required per section 15.21 of FCC rules and does not contain informaiton to address RF exposure compliance and non-colocated restriction. Please submit revised user manual to address above requirements. <answer>pls see revised user's manual. Thanks, Claire

PROPOSED FCC ID LABEL AND LOCATION FOR MODULE HEWLETT PACKARD COMPANY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: B94RSVLD0502 FCC ID LABEL LOCATION

Microlink Communications Inc. CONFIDENTIAL 1 2005/1/25 MBT-1207 Antenna Test Report 1. Photographs 2. Measured return loss 22.12.22.32.42.52.62.72.82.93 Frequency, GHz 0 5 10 15 20 25 30 35 40 R e t u r n L o s s , d B x y ◎ z y z ◎ x y x ◎ z 2.36GHz 2.46GHz Microlink Communications Inc. CONFIDENTIAL 2 2005/1/25 3. Measured radiation patterns Antenna peak gain: 0.298 dBi @ 2.45GHz, xz-plane -90 0 90 180 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 z x -90 0 90 180 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 z y yz plane Etheta Ephi xz plane Etheta Ephi Microlink Communications Inc. CONFIDENTIAL 3 2005/1/25 -90 0 90 180 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 y x xy plane Etheta Ephi

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR BLUETOOTH DONGLE MODEL NUMBER: RSVLD-0502 FCC ID: B94RSVLD0502 REPORT NUMBER: 05U3207-1 REV. B ISSUE DATE: FEBRUARY 2, 2005 Prepared for HEWLETT-PACKARD COMPANY 3000 HANOVER STREET, PALO ALTO CA, 94304 USA. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 05U3207-1 DATE: FEBRUARY 2, 2005 EUT: BLUETOOTH DONGLE FCC ID: B94RSVLD0502 Page 2 of 121 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Revisions Revised By B Removed original sections 7.1.6 and 7.2.6 MAXIMUM PERMISINLE EXPOSURE Danielle Z. REPORT NO: 05U3207-1 DATE: FEBRUARY 2, 2005 EUT: BLUETOOTH DONGLE FCC ID: B94RSVLD0502 Page 3 of 121 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 5 2. TEST METHODOLOGY .................................................................................................................. 6 3. FACILITIES AND ACCREDITATION .......................................................................................... 6 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 6 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 6 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 6 5. EQUIPMENT UNDER TEST............................................................................................................7 5.1. DESCRIPTION OF EUT ..............................................................................................................7 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 8 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 8 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 8 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 9 6. TEST AND MEASUREMENT EQUIPMENT .............................................................................. 11 7. LIMITS AND RESULTS ................................................................................................................. 12 7.1. ANTENNA PORT CHANNEL TESTS FOR EUT WITH 8PSK MODULATION ........................ 12 7.1.1. 20 dB BANDWIDTH ......................................................................................................... 12 7.1.2. HOPPING FREQUENCY SEPARATION......................................................................... 16 7.1.3. NUMBER OF HOPPING CHANNELS ............................................................................. 18 7.1.4. AVERAGE TIME OF OCCUPANCY ............................................................................... 22 7.1.5. PEAK OUTPUT POWER .................................................................................................. 30 7.1.6. AVERAGE POWER........................................................................................................... 34 7.1.7. PEAK POWER SPECTRAL DENSITY ............................................................................ 35 7.1.8. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 39 7.2. ANTENNA PORT CHANNEL TESTS FOR EUT WITH GFSK MODUALTION........................ 48 7.2.1. 20 dB BANDWIDTH ......................................................................................................... 48 7.2.2. HOPPING FREQUENCY SEPARATION......................................................................... 52 7.2.3. NUMBER OF HOPPING CHANNELS ............................................................................. 54 7.2.4. AVERAGE TIME OF OCCUPANCY ............................................................................... 58 7.2.5. PEAK OUTPUT POWER .................................................................................................. 66 7.2.6. AVERAGE POWER........................................................................................................... 70 7.2.7. PEAK POWER SPECTRAL DENSITY ............................................................................ 71 7.2.8. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 75 7.3. RADIATED EMISSIONS.............................................................................................................84 7.3.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS................................................................84 7.3.2. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ WITH 8PSK MODULATION........87 7.3.3. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ WITH GFSK MODULATION.......96 REPORT NO: 05U3207-1 DATE: FEBRUARY 2, 2005 EUT: BLUETOOTH DONGLE FCC ID: B94RSVLD0502 Page 4 of 121 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. …

Text truncated - open the document above for the full version.

REPORT NO: 05U3207-1 DATE: JANUARY 25, 2005 EUT: BLUETOOTH DONGLE FCC ID: B94RSVLD0502 Page 123 of 127 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 05U3207-1 DATE: JANUARY 25, 2005 EUT: BLUETOOTH DONGLE FCC ID: B94RSVLD0502 Page 124 of 127 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 05U3207-1 DATE: JANUARY 25, 2005 EUT: BLUETOOTH DONGLE FCC ID: B94RSVLD0502 Page 125 of 127 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 05U3207-1 DATE: JANUARY 25, 2005 EUT: BLUETOOTH DONGLE FCC ID: B94RSVLD0502 Page 126 of 127 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 05U3207-1 DATE: JANUARY 25, 2005 EUT: BLUETOOTH DONGLE FCC ID: B94RSVLD0502 Page 127 of 127 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
