B94RSVLD0506802.11g Radio Module

Contents: Company 54g Wireless LAN (WLAN) User Manual 54g Wireless LAN (WLAN) User Manual Introduction Completing the Setup Utility Functions Specifications Regulatory Information Glossary Company Copyright Statement Company Trademark Statement. Microsoft® and Windows® are trademarks owned by Microsoft Corporation. All other trademarks are the property of their respective owners. file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/index.htm [1/30/03 10:11:15 PM] Introduction: Company 54g Wireless LAN (WLAN) User Manual Back to Contents Introduction: 54g Wireless LAN (WLAN) User Manual The 54g WLAN Solution Using the 54g WLAN Features and Requirements The 54g WLAN Solution The 54g WLAN solution accesses wireless local area networks (LANs), enables the sharing of a local printer and files with others in the network, accesses the Internet, and enables roaming about the office—wire-free. This wireless LAN solution is designed for both the home user and small businesses—and it is scalable so that users can be added and new network features can be enabled as networking needs grow. WEP is a security protocol for wireless local area networks (defined in IEEE Std 802.11, 1999 Edition) that encrypts data sent over radio waves. The use of the WEP key is optional and can be enabled or disabled. If the network being connecting to has enabled WEP, WEP must also be enabled in the network profile and the WEP key must be set to match the WEP key used by the network. Otherwise, it is impossible to connect to the network. Enterprise Users file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/intro.htm (1 of 3) [1/30/03 10:11:16 PM] Introduction: Company 54g Wireless LAN (WLAN) User Manual Obtain the following information from the network administrator: l Network names (SSID) of the specific wireless networks to connect to l WEP (Wired Equivalent Privacy) key information (if any) for the networks to connect to l For Microsoft® Windows® networking, the customer name and workgroup name l For a network account, a user name and password l An IP address (if not using a DHCP server) Using the Company 54g WLAN The 54g enabled device is an IEEE 802.11g based wireless LAN device. A LAN is composed of two or more computers that are connected to each other to share files or common equipment such as a printer or an Internet connection. A wireless LAN provides the same functionality of a wired network, but it eliminates the need to install networking cables and other networking equipment. Not only is a wireless LAN easier to deploy, but it also allows for roaming. Features and Requirements An IEEE 802.11 based wireless LAN includes the following features: l Support for IEEE 802.11g draft specification l Support for IEEE 802.11b standard l 2.4-GHz band operation l Network data rate of up to 54 Mbit/s l Wired Equivalent Privacy (WEP) encryption The Company 54g enabled device works with any Wi-Fi CERTIFIED® base station or wireless client adapter. file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/intro.htm (2 of 3) [1/30/03 10:11:16 PM] Introduction: Company 54g Wireless LAN (WLAN) User Manual Back to top Back to Contents Ccopyright and Trademark Information. file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/intro.htm (3 of 3) [1/30/03 10:11:16 PM] Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual Back to Contents Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual NOTE—Before starting, obtain the required network information from the network administrator or the wireless access point installer (see The Company 54g WLAN Solution in Introduction). Modes of Operation Modes of Operation A wireless LAN can be configured for two different modes of operation: infrastructure network and computer-to-computer (ad hoc) network. Whereas each mode has its advantages, one mode may be more appropriate than the other, depending on the location and type of network connection. Infrastructure Mode The key difference between the infrastructure type of network and an ad hoc network is that the infrastructure network includes a base station (host) computer that has a built-in wireless network adapter and is connected to a wireless access point (AP). This functionality allows computers on the infrastructure wireless LAN to access the resources and tools of the wired LAN, including Internet access, e-mail, file transfers, and printer sharing. Characteristics Networked computers communicate with each other through a dedicated AP. All data transmitted between the computers on this wireless LAN passes through the AP. Advantages l Extended range. The access point extends the range of the wireless LAN. Each computer can communicate with other computers equipped by wireless networks that are within the range of the access point. l Roaming. As the user moves around the home or office, the Company 54g enabled device determines the best access point to use to ensure continuous communication with the network. l Network connectivity. An access point can provide wireless LAN access to an existing wired network by bridging the two networks together. This gives users of the wireless LAN access to all the functions of a wired network—from file server access to e-mail and the Internet. Disadvantages Because the infrastructure mode offers more features, it requires additional components and setup time to deploy. file:///P|/User%20Manuals/HP%20XP%20WLAN%20Card/setup.htm (1 of 2 ) [1/30/03 10:11:18 PM] Completing the Setup: Company 54g Wireless LAN (WLAN) User Manual Requirements A base station computer having a wired connection to the Internet, a wireless network adapter, and a connection to an AP. Computer-to-Computer Mode A peer-to-peer (ad hoc) network is the easiest to deploy and is ideal for home use or in small offices. This mode allows the sharing of files with other employees, printing to a shared office printer, and access to the Internet through a shared modem. With ad hoc networking, however, the computer is only able to communicate wit…

Text truncated - open the document above for the full version.

HP FCC ID: B94RSVLD0506 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 1.8V and 2.5V power regulators. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Integral pcb antenna. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device will be tested external to a PC in a standalone configuration, connected via USB cable. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format will be included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Application is for mobile configurations. MPE calculation is supplied.

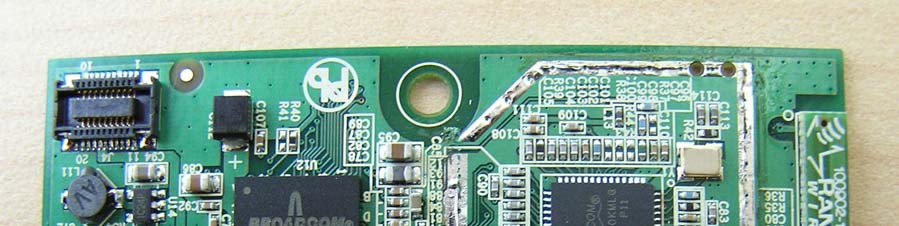

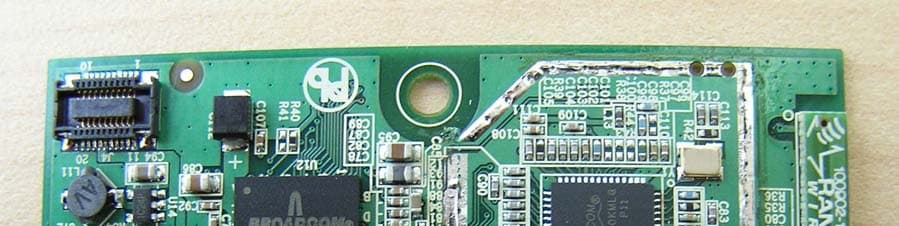

External Photos RSVLD-0506 EUT – Top view shielded External Photos RSVLD-0506 EUT – Top view Unshielded External Photos RSVLD-0506 EUT – Bottom view

Proposed Module Label Label Location: On the front of the card Proposed System Label Label Location: on the back of the host system Contains 802.11g USB Module, HP RSVLD-0506 0682 FCC ID: B94RSVLD0506 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 466F-RSVLD506 This Class B digital apparatus complies with Canadian ICES- 003. 802.11g USB Module HP RSVLD-0506 0682 FCC ID: B94RSVLD0506 IC: 466F-RSVLD506

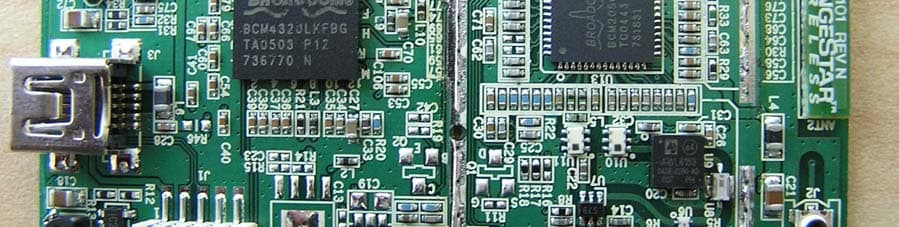

Internal Photos RSVLD-0506 EUT – Top view Unshielded Internal Photos RSVLD-0506 EUT – Bottom view

MPE Calculation model# RSVLD-0506 HUMAN EXPOSURE STATEMENT Calculations can be made to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the following FCC document: “OET Bulletin 65, Edition 97-01 - Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 (3) Where S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) or, S = EIRP/4πR 2 (4) Where EIRP = Equivalent Isotropically radiated power MPE WLAN 802.11b EIRP: 25.77dBm (377.578mW) Calculated at distance of 20cm Power density = 377.57 / (4 x pi x 20 2 ) = 0.075 mW/cm 2 Calculation for distance at which power density will be 1mW/cm 2 Distance = √ {377.57 / (4 x pi x 1)} = 5.48cm Limit: 1mW/cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_928FCC15.247_2005_rev1 FCC Part 15.247 for DSSS systems / CANADA RSS-210 EUT: WLAN Model: RSVLD-0506 FCC ID: B94RSVLD0506 IC ID: 466F-RSVLD506 CETECOM Inc. Test report no.: EMC_928FCC15.247_2005_rev1 Issue date: 2005-06-07 Page 2 (45) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: EMC_928FCC15.247_2005_rev1 Issue date: 2005-06-07 Page 3 (45) 1.3 Details of applicant Name : Hewlett Packard Company Street : 3000 Hanover Street City / Zip Code : Palo Alto, CA 94304 Country : USA Contact : Jim Henry (Regulatory Engineer) Telephone : 916 785 5417 Tele-fax : e-mail : [email protected] 1.4 Application details Date of receipt test item : 2005-05-17 Date of test : 2005-05-17/18/20/24, 2005-06-07 1.5 Test item Manufacturer : Applicant Model No. (EUT) : RSVLD-0506 Host : Dell Laptop Description : 802.11b/g radio module FCC ID : B94RSVLD0506 IC ID : 466F-RSVLD506 Additional information Frequency : 2412MHz – 2472MHz for 2.4GHz band Type of modulation : DSSS / OFDM (orthogonal frequency division multiplexing) Number of channels : 11 Antenna : PCB antenna Power supply : 5 VDC from Host Output power : 27.16dBm (519.99mW) conducted avg. power for 2.4GHz band Extreme temp. Tolerance : 0 o C to +70 o C 1.6 Test standards: FCC Part 15 §15.247 / CANADA RSS-210 CETECOM Inc. Test report no.: EMC_928FCC15.247_2005_rev1 Issue date: 2005-06-07 Page 4 (45) PROJECT OVERVIEW: This test report carries all measurements required as per FCC 15.247 on 802.11b/g radio module model# RSVLD-0506 tested as per DA001407 requirements for modular transmitter approval. Radio module was tested for spurious emissions in both DSSS & OFDM modes at different data rates (1, 2, 5.5, 6, 11, and 54) to ensure compliance of the whole device. Test report shows only worst-case test results. CETECOM Inc. Test report no.: EMC_928FCC15.247_2005_rev1 Issue date: 2005-06-07 Page 5 (45) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (Only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2005-06-08 EMC & Radio Lothar Schmidt (Technical Manager) Date Section Name Signature Responsible for test report and project leader: 2005-06-08 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature CETECOM Inc. Test report no.: EMC_928FCC15.247_2005_rev1 Issue date: 2005-06-07 Page 6 (45) 2.2 Test report TEST REPORT Test report no.: EMC_928FCC15.247_2005_rev1 FCC Part 15.247 for DSSS systems / CANADA RSS-210 CETECOM Inc. Test report no.: EMC_928FCC15.247_2005_rev1 Issue date: 2005-06-07 Page 7 (45) 2.3 Summary of test results The radiated measurements are performed in vertical and horizontal plane in the frequency range from 9 kHz to 25 GHz in semi-anechoic chambers. The EUT is positioned on a non-conductive support with a height of 0.80 m above a conductive ground plane that covers the whole chamber. The receiving antennas are conform with specifications ANSI C63.2-1996 clause 15 and ANSI C63.4-2003 clause 4.1.5. These antennas can be moved over the height range between 1.0 m and 4.0m in order to search for maximum field strength emitted from EUT. The measurement distances between EUT and receiving antennas are indicated in the test setups for the various frequency ranges. For each measurement, the EUT is rotated in all three axes until the maximum field strength is received. The wanted and unwanted emissions are received by spectrum analyzers where the detector modes and resolution bandwidths over various frequency ranges are set according to requirement ANSI C63-4- 2003 clause 4.2. Antennas are conforming to ANSI C63.2-1996 item 15. 9 kHz - 30 MHz: Quasi Peak measurement, 9 kHz Bandwidth, loop antenna. 30 MHz – 1GHz: Quasi Peak measurement, 120 KHz Bandwidth, biconilog antenna >1GHz: Average, RBW 1MHz, VBW 10 Hz, wave-guide horn All measurement settings are according to FCC 15.35, 15.205, 15.209, 15.247 and the “Measurement guidelines for DSSS systems”. CETECOM Inc. Test report no.: EMC_928FCC15.247_2005_rev1 Issue date: 2005-06-07 Page 8 (45) TEST REPORT REFERENCE LIST OF MEASUREMENTS PAGE SPECTRUM BANDWIDTH OF DSSS SYSTEM §15.247(a) (2) 9 MAXIMUM PEAK OUTPUT POWER § 15.247 (b) (3) 13 POWER SPECTRAL DENSITY §15.247 (e) 15 BAND EDGE COMPLIANCE §15.247 (c) 19 EMISSION LIMITATIONS § 15.247 (c) (1) 23 CONDUCTED EMISSIO…

Text truncated - open the document above for the full version.

Test setup – Radiated measurements with USB 1.1 Test setup – Radiated measurements with USB 2.0 Test setup conducted measurements Test setup AC line conduction.
