B94T77H4683GPP Long Term Evolution Cat3 PCI Express M.2 Module

Hewlett-Packard Company 1501 Page Mill Road Mail Stop 510101 Palo Alto, CA 94304 www.hp.com Walter Overcash Product Regulatory Engineer Telecom / Safety 281.514.2756 Tel [email protected] September 17, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request for FCC ID: B94T77H468 Dear Sirs: Pursuant to DA 04-1705 of the Commission’s Rules, we request short-term confidential treatment for the following information until April 1, 2014 in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos Test Setup Photos User’s Manual Internal Photo If you have any comments or questions, please feel free to contact me. Sincerely, Walter Overcash

Hewlett-Packard Company 1501 Page Mill Road Mail Stop 510101 Palo Alto, CA 94304 www.hp.com Walter Overcash Product Regulatory Engineer Telecom / Safety 281.514.2756 Tel [email protected] September 27, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request for FCC ID: B94T77H468 Dear Sirs: Pursuant to Sections 0.457 and 0.459 of the Commission’s rules, we request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Operational Description Parts List Tuneup Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to us and provide unjustified benefits to our competitors. We understand that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. If you have any comments or questions, please feel free to contact me. Sincerely, Walter Overcash

Hewlett-Packard Company 1501 Page Mill Road Mail Stop 510101 Palo Alto, CA 94304 www.hp.com Walter Overcash Product Regulatory Engineer Telecom / Safety 281.514.2756 Tel [email protected] September 17, 2013 Dear Sirs: Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. of Taiwan is authorized to open projects on Hewlett-Packard’s behalf for the purpose of radio assessment/certification under the following conditions: 1. This authorization is extended only to the Hewlett-Packard Regulatory Model T77H468, FCC ID: B94T77H468. A 2. This authorization is extended only for the following certifications/testing: FCC 3. All invoices for services rendered should be sent to Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. of Taiwan and not to Hewlett- Packard. Licenses and test reports generated on Hewlett-Packard’s behalf must be emailed or copied to my attention when completed. 4. No access should be granted to any existing Hewlett-Packard file or project information. 5. The certifications and test reports should note only Hewlett-Packard’s name and Regulatory Model. No other company or product identification should be noted on the certificates or test reports except as needed by the regulator. 6. The FCC certification must be applied for using the Short-Term Confidentiality program as described in FCC DA 04-1705 If you have any comments or questions, please feel free to contact me. Sincerely, Walter Overcash

Authorizationon Behalf of Hewlett-Packard Company For the US Federal Communications Commission Office of Engineering and TechnologyandOther FCC Programs and Offices 1. I, David P. Adams, am Canada/USA Technical Regulations Manager for Hewlett- Packard Company (“Hewlett-Packard”) and Applicant/Grantee Contact of Recordfor Hewlett- Packard together with its subsidiaries and affiliates worldwide (collectively, “HP”) for HP’s dealings withthe United States Federal Communications Commission (“”FCC”). I am duly authorized by HP to make this Authorization on HP’s behalf. 2. This Authorization will designate the person named below to act on my behalf and HP’s behalf as authorized agent and representative, until further notice, with the additional power to designate one or more third partyagents for HP withregard to particular matters and applications. All acts carried out and requests made by this named representativerelating to any matter before the FCC, including requests for confidentiality,shallhave the same effect as mine. Name:Walter Overcash Title:RegulatoryEngineer Address:Hewlett-Packard Company Mailstop 050807 11445 Compaq Center Drive W Houston, TX 77070 Telephone:281-514-2756 E-mail:[email protected] 3. Questionsabout the scope and effect ofthis Authorization should be addressed as follows: David P. Adams Canada/USA Region Technical Regulations Manager 1501 Page Mill Road, MS1229 Palo Alto, CA 94304-1126 650.857.4423 Telephone 650.857.4882 Fax [email protected] 4. I declare under penalty of perjury that the foregoing is true and correct, and that this Authorization was executed atPalo Alto, California, on the date indicated below my signature. ____________________________ Signature David P. Adams Canada/USA Technical Regulations Manager Hewlett-Packard Company _March 5, 2008______________ Date

FCC ID: B94T77H468 Report No.: RF130814E06 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch September 18, 2013 Dear Application Examiner, Hewlett-Packard Company, 3GPP Long Term Evolution Cat3 PCI Express M.2 Module, FCC ID: B94T77H468, would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip MDM9615. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is MDM9615. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

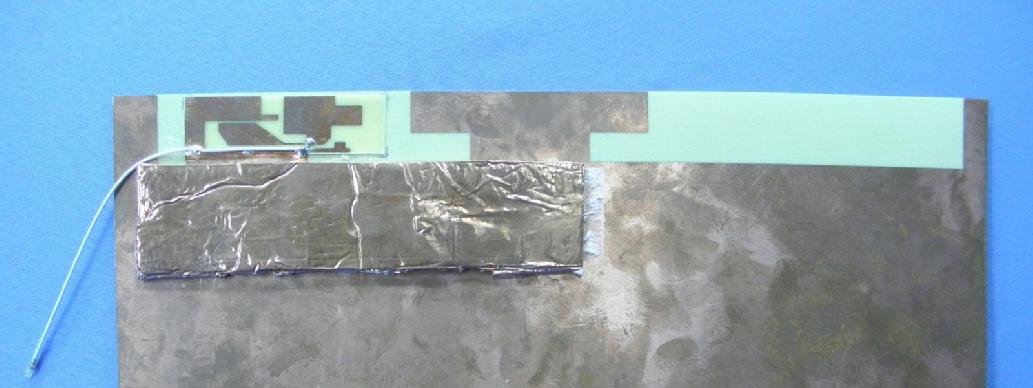

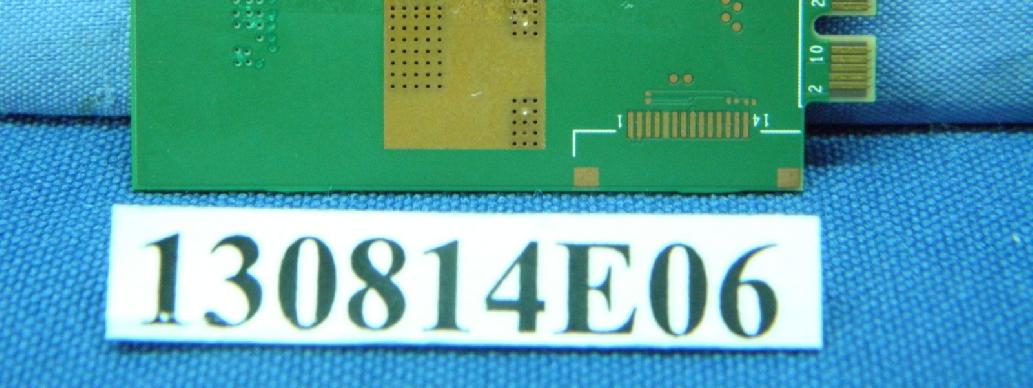

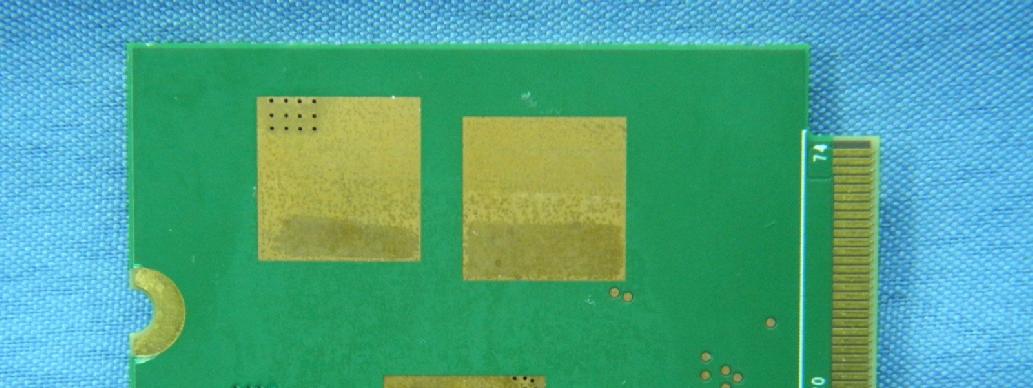

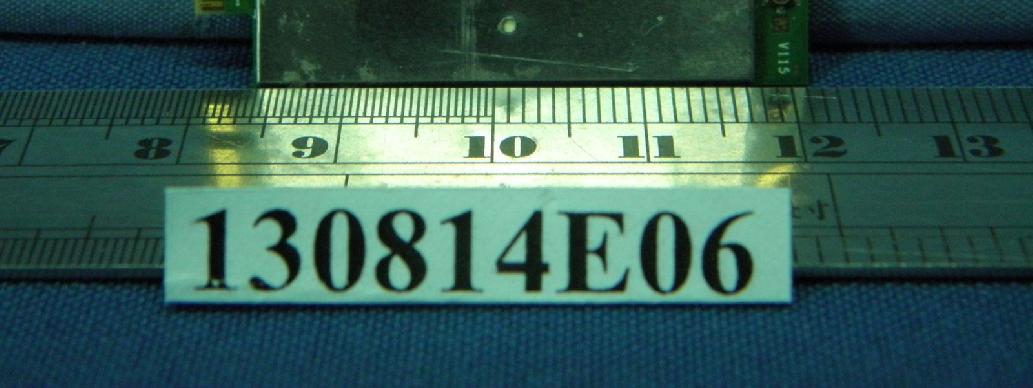

Report No.: 130814E06 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 130814E06 Page 3 Antenna 1 Report No.: 130814E06 Page 4 Antenna 2 Report No.: 130814E06 Page 5 Antenna 3

(Fig. 1) FCC ID: B94T77H468 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

03.09.24 yanfen Yanli v IMEI and MEID label 50# Mylar(embossing) T77H468.00 yanfen v 503.xxxxx.005 label stick position:shielding size:22mm*18mm SCALE:1:1 A MEID:xxxxxxxxyyyyyy Foxconn Model: T77H468 MO: MO-VVSS FCC ID: B94T77H468 IC: 2878D-T77H468 IMEI:xxxxxxxxyyyyyyz MEID:xxxxxxxxyyyyyy Foxconn Model: T77H468 MO: MO-VVSS FCC ID: B94T77H468 IC: 2878D-T77H468 IMEI:xxxxxxxxyyyyyyz SCALE:2:1 The 15th digit of IMEI = Check Sum, generate by FXN 3.Foxconn Model: T77H468 4.MO:MO-VVSS a.The first MO is the text b.The second MO is Foxconn MO,follow Foxconn standard. c.VV:the engineering version (refer to Foxconn label Rev column in the cover of the MFG document) d.SS:the version of A300/A400 product (refer to Doc Rev.in the cover of MFG document) 5.FCC ID: B94T77H468 6.IC: 2878D-T77H468 All of the font:Arial,3pt 1.MEID digital range (total 14 digital) : xxxxxxxxyyyyyy 1st-8th digits - HP TAC code(35933905) 9th-14th digits - Serial number(000000 - 999999) managed by FXN 2.IMEI(15 digits) = MEID(14 digits) + Check Sum(1digit): xxxxxxxxyyyyyyz IMEI(15 digits) = MEID(14 digits) + Check Sum(1digit) HP TAC code﹕xxxxxxxx Serial number﹕yyyyyy A.Barcode content:xxxxxxxxyyyyyy B.Barcode content:xxxxxxxxyyyyyyz Barcode 128 format Barcode height:3mm 一.Human readable： 二.Scannable： B 1.IMEI and MEID label MEID:xxxxxxxxyyyyyyFoxconn Model: T77H468 MO: MO-VVSSFCC ID: B94T77H468IC: 2878D-T77H468 IMEI:xxxxxxxxyyyyyyz 2.Tray ID label Foxconn PN: 503.00090.005, size: 45*8mm TFYWWSSSS Human readable: TFYWWSSSS Font:TRIUMVIRATE COND.(Print font) height:6pt Scannable: 1. Barcode type: code128 2. Barcode height: 2.96mm 3. Barcode content:TFYWWSSSS T---Tray F---location Y---the last digit of year WW---week SSSS---serial number, base 36. reset from 0001 every two week. 100mm 50mm M/O: XXXXXXXX Qty : XX Hon Hai P/N: REV: VVSS Carton ID: CIPPYWWXXXX Remark: A B C D A.XXXXXXXX: the Foxconn MO number B.Qty:XX XX:the quantity of product in carton Barcode content:the quantity of product in carton C.REV:VVSS VV:the engineering version(refer to Foxconn label Rev column in the cover of the MFG document) SS:the version ofA300/A400 product(refer to Doc Rev.in the cover of MFG document) D.CIPPYWWXXXX C:Carton I:location PP:Line Y:the last digit of year WW:week XXXX: serial number, base 36, reset from 0001 every two week 3.Carton label:P/N:503.00098.005 PIPPYWWXXXX P:Pallet I:Location PP:Line Y:the last digit of year WW:week XXXX:serial number, base 36, reset from 0001 every two week B.REV:VVSS VV:the engineering version(refer to Foxconn label Rev column in the cover of the MFG document) SS:the version ofA300/A400 product(refer to Doc Rev.in the cover of MFG document) P/N:T77H468.00 PIPPYWWXXXX REV:VVSS 4.Pallet label:P/N:503.00089.005 110mm 36m m T77H468.00 ndth *2 -4 characters will provide a unique serial number*為36進制 3.Unique Number Six numberic character(0-9)used to uniquely identify 2.Serial number: 01234 stnd 1 Character and Numbers 0-9 Letters A-O 2 Character And Any Number* Any letter* rd 3 Character And Any Number* Any letter* th 4 Character And Any Number* Any letter* 5 Character And Any Number* Any letter* 1 st CharacterYearCodes Year 2006200720082009201020112012Soon Code 6789012 2 nd CharacterMonthcodes Month JanuaryFebruaryMarchAprilMayJuneJulyAugustSeptemberOctoberNovemberDecember Code 123456789ABC 3 rd CharacterDayCodes Day 1 st 2 nd 3 rd 4 th 5 th 6 th 7 th 8 th 9 th 10 th 11 th 12 th 13 th 14 th 15 th 16 th 17 th 18 th 19 th Code 123456789ABCDEFGHIJ Day 20 th 21 st 22 nd 23 rd 24 th 25 th 26 th 27 th 28 th 29 th 30 th 31 st Code KLMNOPQRSTUV 1.Date code define 2013 2014 2015 3 4 5 5.Panel label 503.00039.015 (19.05*5mm) P:PCB label F:Foxconn location YMD:Year,month,day SSSSS:serial number（00000-zzzzz） Barcode:128 code, 2.54mm height, Font:Verdana,Bold,2pt PFYMDSSSSS Panel label(1pcs) paste on the front of the panel Attachment: LOCATIONLOCATIONNAME 0 1 2 3 4 5 6 7 8 9 A B C DFOR DUMMY E F G H I J K L M EASTAR N O P Q R S T U V Y Z Location Code Hsinchu Zhongshan Futian Tucheng Taiyoung Jingyang Guangchuan Taibiao Hongju Xinjin Hongkong Guolian Chongqing CBT Shanghai Longhua E5 database Longhua E5A database Longhua E6 database RESERVE RESERVE Nanning Huandian Longhua CBT RESERVE Longhua CPEI RMA Chongqing CPEI Shanghai RMA Shanghai CPEII Yantai(Sony Customer) Vietnam(Bac Ninh,CMB) Yantai(RTT Customer) Vietnam(Bac Giang) Vietnam(Bac Ninh,CPEII)

Report No.: 130814E06 Page 2

Report No.: SA130814E06 1 of 7 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA130814E06 MODEL NO.: T77H468 FCC ID: B94T77H468 RECEIVED: Aug. 14, 2013 TESTED: Sep. 11, 2013 ISSUED: Sep. 18, 2013 APPLICANT: Hewlett-Packard Company ADDRESS: 1501 Page Mill Road Palo Alto, CA 94304 United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA130814E06 2 of 7 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT ............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .......................... 6 Report No.: SA130814E06 3 of 7 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA130814E06 Original release Sep. 18, 2013 Report No.: SA130814E06 4 of 7 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: 3GPP Long Term Evolution Cat3 PCI Express M.2 Module BRAND NAME: FOXCONN MODEL NO.: T77H468 TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Hewlett-Packard Company TESTED DATE: Sep. 11, 2013 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: T77H468) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Sep. 18, 2013 ( Claire Kuan, Specialist ) APPROVED BY : , DATE:Sep. 18, 2013 ( May Chen, Manager ) Report No.: SA130814E06 5 of 7 Report Format Version 5.0.0 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 35cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA130814E06 6 of 7 Report Format Version 5.0.0 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For Part 22: MODULATION TYPE FREQUENCY BAND (MHz) MAX POWER (dBm) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) GPRS 836.6 32.80 1905.461 6.33 35 0.532 0.5577 WCDMA B5 826.4 24.30 269.153 6.33 35 0.075 0.5509 1xEVDO Rev.A 836.52 24.60 288.403 6.33 35 0.080 0.5577 Band5 1.4M 824.7 23.68 233.346 6.33 35 0.065 0.5498 Band5 3M 825.5 23.65 231.739 6.33 35 0.065 0.5503 Band5 5M 826.5 23.73 236.048 6.33 35 0.066 0.5510 Band5 10M 829 23.68 233.346 6.33 35 0.065 0.5527 Note: Limit of Power Density = F/1500 For Part 24: MODULATION TYPE FREQUENCY BAND (MHz) MAX POWER (dBm) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) GPRS 1909.8 29.90 977.237 4.97 35 0.199 1 WCDMA B2 1880 24.40 275.423 4.97 35 0.056 1 1xEVDO Rev.0 1880 24.00 251.189 4.97 35 0.051 1 LTE B2 1.4M 1880 23.63 230.675 4.97 35 0.047 1 LTE B2 3M 1880 23.69 233.884 4.97 35 0.048 1 LTE B2 5M 1880 23.71 234.963 4.97 35 0.048 1 LTE B2 10M 1855 23.54 225.944 4.97 35 0.046 1 LTE B2 15M 1857.5 23.29 213.304 4.97 35 0.044 1 LTE B2 20M 1860 23.41 219.280 4.97 35 0.045 1 LTE B25 1.4M 1850.7 23.68 233.346 4.97 35 0.048 1 LTE B25 3M 1851.5 23.65 231.739 4.97 35 0.047 1 LTE B25 5M 1852.2 23.73 236.048 4.97 35 0.048 1 LTE B25 10M 1855 23.68 233.346 4.97 35 0.048 1 LTE B25 15M 1857.5 23.68 233.346 4.97 35 0.048 1 LTE B…
