B94WM3945ABGIntel PRO/Wireless 3945ABG Network Connection

Intel(R) PRO/Wireless 3945ABG Network Connection User Guide With your wireless network card, you can access wireless networks, share files or printers, or even share your Internet connection. All of these features can be explored with a wireless network in your home or office. This wireless local area network (WLAN) solution is designed for both home and business use. Additional users and features can be added as your networking needs grow and change. Your Intel(R) PRO/Wireless 3945ABG Network Connection adapter is compatible with 802.11a, 802.11b and 802.11g wireless standards. Operating at 5 GHz or 2.4 GHz frequency at speeds of up to 54 Mbps you can now connect your computer to existing high-speed networks that use multiple access points within large or small environments. Your wireless adapter maintains automatic data rate control according to access point location to achieve the fastest possible connection. All of your wireless network connections are easily managed by Intel(R) PROSet/Wireless software. Profiles that are set up through the Intel PROSet/Wireless software provide enhanced security measures with 802.1x network authentication. NOTE: The software is compatible with the Intel(R) PRO/Wireless 3945BG Network Connection, Intel(R) PRO/Wireless 2915ABG Network Connection and the Intel(R) PRO/Wireless 2200BG Network Connection. Table of Contents l Use Intel PROSet/Wireless Software l Connect to a Network l Use Profiles l Set up Security l Troubleshooting l Administrator Tool l Glossary l Wireless Network Overview l Security Overview l Specifications l Customer Support l Safety and Regulatory Information l Warranty l Adapter Registration Information in this document is subject to change without notice. © 2004–2005 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124- 6497 USA The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel(R) is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. *Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. "Important Notice FOR ALL USERS OR DISTRIBUTORS!!!! Intel wireless LAN adapters are engineered, manufactured, tested, and quality checked to ensure that they meet all necessary local and governmental regulatory agency requirements for the regions that they are designated and/or marked to ship into. Since wireless LANs are generally unlicensed devices that share spectrum with radars, satellites, and other licensed and unlicensed devices, it is sometimes necessary to dynamically detect, avoid, and limit usage to avoid interference with these devices. In many instances Intel is required to provide test data to prove regional and local compliance to regional and governmental regulations before certification or approval to use the product is granted. Intel's wireless LAN's EEPROM, firmware, and software driver are designed to carefully control parameters that affect radio operation and to ensure electromagnetic compliance (EMC). These parameters include, without limitation, RF power, spectrum usage, channel scanning, and human exposure. For these reasons Intel cannot permit any manipulation by third parties of the software provided in binary format with the wireless WLAN adapters (e.g., the EEPROM and firmware). Furthermore, if you use any patches, utilities, or code with the Intel wireless LAN adapters that have been manipulated by an unauthorized party (i.e., patches, utilities, or code (including open source code modifications) which have not been validated by Intel), (i) you will be solely responsible for ensuring the regulatory compliance of the products, (ii) Intel will bear no liability, under any theory of liability for any issues associated with the modified products, including without limitation, claims under the warranty and/or issues arising from regulatory non-compliance, and (iii) Intel will not provide or be required to assist in providing support to any third parties for such modified products. Note: Many regulatory agencies consider Wireless LAN adapters to be "modules", and accordingly, condition system-level regulatory approval upon receipt and review of test data documenting that the antennas and system configuration do not cause the EMC and radio operation to be non-compliant." November 2005 Back to Contents Use Intel(R) PROSet/Wireless Software: Intel(R) PRO/Wireless 3945ABG Network Connection User Guide l Use Intel PROSet/Wireless as your Wireless Manager l Start Intel PROSet/Wireless l Start Intel PROSet/Wireless from the Taskbar m Taskbar Icons m Tool Tips and Desktop Alerts l Intel PROSet/Wireless Main Window m Wireless Networks List m Connection Status Icons m Network Properties m Connection Details m Profiles List l Intel PROSet/Wireless Menus l Tools Menu m Application Settings m Intel Wireless Troubleshooter m Administrator Tool l Advanced Menu m Adapter Settings m Advanced Statistics m Use Windows to Manage Wi-Fi l Profiles Menu m Manage Profiles m Manage Exclusions l Enable and Disable the Radio l Install and Uninstall the Software Use Intel PROSet/Wireless as your Wireless Manager Intel(R) PROSet/Wireless is used to setup, edit and manage network profiles to connect to a network. It also includes advanced settings such as power management and channel selection for setting up ad- hoc networks. If you use Microsof…

Text truncated - open the document above for the full version.

Hewlett-Packard Company 20555 SH 249 Mail Stop 060607 Houston, TX 77070-2698 www.hp.com Walter Overcash Product Regulatory Manager Telecom / Safety 281.514.2756 Tel 281.514.8029 Fax [email protected] November 22, 2005 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Authorizing Aegis Labs to act as our agent for preparation of applications Dear Sirs: Under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part 15 of the FCC Rules and Regulations, this is a letter of authorization to accept Aegis Labs as an Agent for Hewlett-Packard, 20555 SH 249, Houston, TX 77070, for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission limited to the following conditions: 1. This authorization is extended only to the Hewlett-Packard certification of the Intel Model WM3945ABG. 2. This authorization is extended only for FCC certification. 3. All invoices for services rendered should be sent to Aegis Labs Inc. and not to Hewlett-Packard. Licenses and test reports generated on Hewlett-Packard’s behalf must be emailed or copied to my attention when completed. 4. No access should be granted to any existing Hewlett-Packard file or project information. If you have any comments or questions, please feel free to contact me. Sincerely, Walter Overcash

AEGIS LABS, INC 22431 Antonio Parkway B160-417, Rancho Santa Margarita, CA 92688 949-459-7886 TEL 949-459-7869 FAX www.aegislabsinc.com TRANSMITTER MODULAR APPROVAL ATTESTATION November 29, 2005 Federal Communications Commission Re: Application Modular Approval Certification for FCC ID: B94WM3945ABG Gentlemen: The following attestation addresses the eight requirements to support modular approval as required by the FCC Public Notice DA00-1407 “Part 15 Unlicensed Modular Transmitter Approval” 1 The modular transmitter has its own RF shielding and does not rely upon the shielding provided by the device into which it is installed in order to comply with Part 15 limits. 2 The modular transmitter has buffered modulation/data inputs. All inputs to the modules are buffered through the radio circuitry. 3 The modular transmitter has its own power supply regulator. 4 The modular transmitter has an antenna that complies with section 15.203 and 15.204(c) of the FCC rules. It has a UFL type of connector at the transmitter end and is soldered to the antenna (depending on OEM configuration). Also the antenna will be internal in the OEM host equipment and inaccessible to the user. 5 The modular transmitter was tested outside of a host desktop computer using a PCI extender card. The PCI extender card allows the transmitter to be placed outside of the chassis of the host desktop computer. 6 The modular transmitter will be labeled with its own FCC ID. Also, the OEM host computer manufacturer will be informed to display a label referring to the enclosed module. The exterior label will read as follows: “Contains Transmitter Module FCC ID” or “Contains TXFCCID”. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. 8 The modular transmitter meets the MPE calculations of 47 CFR 1.1307(b)(1). If there are any additional questions or if further information is needed, please contact us at your earliest convenience at (949) 459-7886. Sincerely, Johnny Candelas Aegis Labs, Inc. Test Technician

November 29, 2005 American TCB 6731 Whittier Ave., Suite C110 McLean, VA 22101 Gentlemen: The attached documentation is provided in support of a formal submission to your organization for a modular approval of an intentional unlicensed transmitter. On behalf of our client, Aegis Labs has included an application for a Grant of Equipment Authorization pursuant to Subpart C of part 15 of FCC Rules (47 CFR) regarding intentional radiators. The data within the test report demonstrates the equipment was tested in a manner described under Part 2 and 15 of the Code of Federal Regulations. This is a modular approval of the Intel PRO/Wireless 3945ABG Network Connection (MN: WM3945ABG, FCC ID: B94WM3945ABG), which is a WLAN adapter (802.11a, 802.11b and 802.11g). It was tested externally to a computer chassis with a set of HP Altima and Jakarta 3.0 multi-band antennas continuously transmitting and receiving form the MAIN and AUX antenna ports. If there are any additional questions or if further information is needed, please contact us at your earliest convenience. Sincerely, Johnny Candelas Aegis Labs, Inc. Test Technician Enclosure (1 Emissions Test Report + Exhibits) AEGIS LABS, INC 22431 Antonio Parkway B160-417, Rancho Santa Margarita, CA 92688 949-459-7886 TEL 949-459-7869 FAX www.aegislabsinc.com

January 19, 2005 RE: Hewlett-Packard Company FCC ID: B94WM3945ABG Answers to the ATCB comments on the above referenced Application. 1. The manual provided appears to limit Intel’s responsibility in the case of modifications, but does not appear to explain to the user that their authority to operate voids their use of the equipment (15.21). Please update the manual as necessary. Refer to “HP Users Guide” exhibit. 2. The integrators manual should caution the installer/OEM that the user should not be provided any information on how to access/install/remove this device from the end host device. Please correct or show where this information is presented in the current manual. Refer to “HP Users Guide” exhibit. 3. Please explain the limit of 68 dBuV/m on pages 33 and 65 of the DTS report. This limit appears to be associated with the UNII limits, but for this device the 5 GHz upper band is being approved under DTS rules. Please review. Refer to “Test Report – FCC 15.247 – Rev. A” & “Test Report – RSS210 A8 – Rev. A” reports. New limits were added. 4. Page 38 of the DTS report show peak measurements at 2487 MHz which exceed avg limits and therefore should also show average results. Please review. Refer to “Test Report – FCC 15.247 – Rev. A” & “Test Report – RSS210 A8 – Rev. A” reports. An average measurement was added to the data. 5. Page 66 of the DTS report appears to show a typo in one of the readings. Please review. Refer to “Test Report – FCC 15.247 – Rev. A” & “Test Report – RSS210 A8 – Rev. A” reports. 6. Page 26 and 36 of the UNII report show peak measurements at 5353 MHz which exceed avg limits and therefore should also show average results. Please review. Refer to “Test Report – FCC 15.407 – Rev. A” & “Test Report – RSS210 6.2.2.q1 – Rev. A” report. An average measurement was added to the data. 7. PSD results appear to us video averaging and not power averaging for UNII. Please refer to attached public notice for correct procedures. Refer to “Test Report – FCC 15.407 – Rev. A” & “Test Report – RSS210 6.2.2.q1 – Rev. A” report. New plots were added. 10. The IC REL listing letter should be provided by the applicant since it will be under their name. Please provide a corrected IC REL listing letter. Refer to “Letter – IC Acknowledgment HP” exhibit. 11. Will the IC listing require the model to be listed as WM3945ABG (Ant 1) or similar as done in other application similar to this? Please confirm. Not for this original application but if any PCII are added those will continue as Ant1, Ant 2, etc. 12. Label does not appear to contain applicants name for IC per RSS-210, section 5.2 issue 1. Please correct. Refer to “System Label Artwork” & “System Label Artwork2” exhibits. 13. The RSS-210 report (RSS-210, A8, pg 14) for DTS mentions the use of an oscope for power measurements, while the values appear to be the same as the FCC using a power meter. Please review. Refer to “Test Report – RSS210 A8 – Rev. A” report. 14. The users manual does not appear to contain the following information according to RSS-210 Annex 9.5 (g): the maximum antenna gain permitted (for devices in the 5250-5350 MHz and 5470-5725 MHz bands) to comply with the e.i.r.p. limit Refer to “Canadian Notices” exhibit 15. Please explain compliance of the results shown on page 45 of the test report as the measurements are actually in Hz, not MHz and therefore appear to be erroneous. It is unsure how you related measurements in /Hz to /MHz. Refer to “Test Report –FCC 15.407 – Rev. A & Test Report – RSS 210 6.2.2.q1 – Rev. A” report. That was a typo should be /Hz not /MHz. 16. With the current PSD and power results in the IC report, the device appears not to meet the requirement of RSS-210, Issue 5, 6.2.2 (q1) (iv): Within the emission bandwidth, when the peak spectral density per MHz over any continuous transmission exceeds the average (10 Log 10 B) value by more than 3 dB, the permissible power spectral density shall be reduced by the excess amount. Please review. (i.e. my calculations show that at 5260 MHz power is 68 mW = 18.3 dBm. limit = 18.3 dBm – 10 log 17.6 + 3 = 8.8 dBm, while the measurement was shown to be 10.2 dBm). Refer to “Test Report –FCC 15.407 – Rev. A & Test Report – RSS 210 6.2.2.q1 – Rev. A” report. New plots were added.

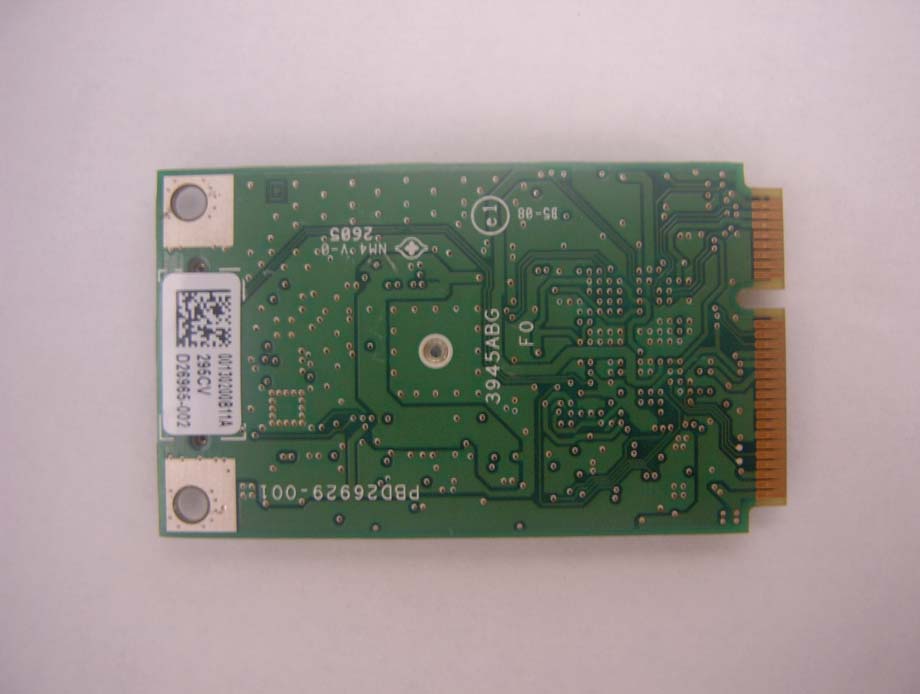

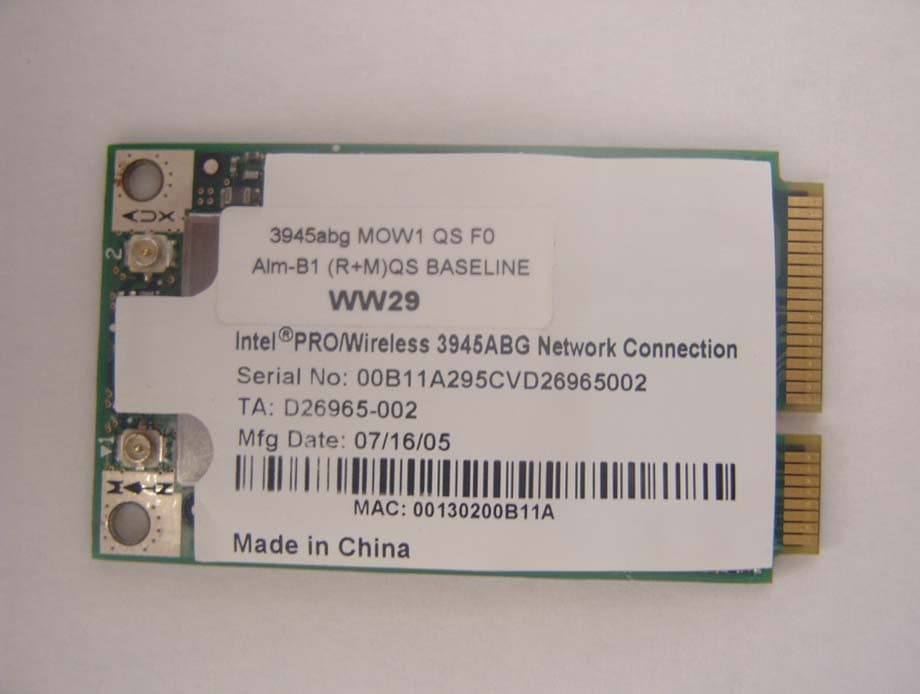

Top View Bottom View

Top View “Insulation removed” Bottom View “Insulation removed” Top View “Shielding removed”

MPE Calculations Systems operating under the provision of 47 CFR 1.1307(b)(1) shall be operated in a manor that ensures that the public is not exposed to radio frequency energy levels in excess of the FCC guidelines. The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user or nearby persons and can therefore be considered a mobile transmitter per 47 CFR 2.1091(b). The MPE calculation for this exposure is shown below. Using the Antennas with highest output power: The peak radiated output power (EIRP) is calculated as follows: Antenna Frequency (GHz) Power input to the antenna (P) (dBm) Power gain of the antenna (G) (dBi) EIRP (P+G) (dBm) EIRP Log -1(dBm/10) (mW) HP Altima 2.4 24.77 2.93 27.70 588.84 HP Altima 5 19.76 2.84 22.60 181.97 HP Jakarta 3.0 2.4 24.77 2.96 27.73 592.93 HP Jakarta 3.0 5 19.76 0.97 20.73 118.30 EIRP = P + G Where P = Power input to the antenna (mW). G = Power gain of the antenna (dBi) The numeric gain (G) of the antenna with a gain specified in dB is determined by: Antenna Frequency (GHz) Antenna Gain (G) (dBi) Numeric Antenna Gain Log -1(dBm/10) (dB) HP Altima 2.4 2.93 1.96 HP Altima 5 2.84 1.92 HP Jakarta 3.0 2.4 2.96 1.98 HP Jakarta 3.0 5 0.97 1.25 G = Log -1 (dB antenna gain/10) Power density at the specific separation: Antenna Frequency (GHz) Power input to the antenna (P) (mW) Numeric Power Gain of the Antenna (G) (dB) Maximum Power Spectral Density S=PG/(4R 2 π) (mW/cm 2 ) Maximum Power Spectral Density Limit (mW/cm 2 ) HP Altima 2.4 299.92 1.96 0.117 1.00 HP Altima 5 94.62 1.92 0.036 1.00 HP Jakarta 3.0 2.4 299.92 1.98 0.118 1.00 HP Jakarta 3.0 5 94.62 1.25 0.024 1.00 S = PG/(4R 2 π) Where S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW). G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The maximum permissible exposure (MPE) for the general population is 1mW/cm 2 . The power density at 20cm does not exceed the 1mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules.

Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 1/14 Regulatory WLAN Antenna Information Vendor Name Project Code OEM Hewlett-Packard Company Altima PA ODM Compal Corporation HBL20 Antenna Wistron Neweb Corporation EBC-C4 Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 2/14 Antenna Sample / Antenna Data Requirements for worldwide regulatory approval Section Description of Required OEM / ODM Antenna Information US / ICEU Japan Taiwan S.Korea 1A Part Number for Antenna only RequiredRequiredRequired Required Required 1B Antenna Manufacturer Name RequiredRequiredRequired Required Required 1C Description of Antenna Type RequiredN/A N/A N/A N/A 1D Part number of Antenna Assembly / cable impedance, length & diameter. RequiredDesiredDesired Desired Desired 1E Main & Aux antenna (Peak Gain W/ cable loss) RequiredRequiredRequired Required Required 1E OR 1F, 1G, 1H 1F Main & Aux antenna (Peak Gain only) RequiredRequiredRequired Required Required 1G VSWR of cable including connector RequiredRequiredRequired Required Required 1H Main & Aux antenna (Cable loss W/ connector) RequiredRequiredRequired Required Required 2 Dimensioned Photographs and Drawings of main & auxiliary antennas RequiredRequiredRequired Required Required 3 Radiation patterns of antennas loaded in the host platform. RequiredDesiredRequired N/A Required 4 Platform model name / number - correlated to antenna manufacturer and antenna part number RequiredRequiredDesired Required Desired 5 Photograph(s) or Drawings showing location of antennas in platform. (S. Korea requires photographs of antennas for approval submission). Taiwan requires pictures of each antenna type shown in the system. RequiredRequiredDesired Required (Photos) Required (Photos) 6 Mech. drawings / photos with dimensions of antenna locations and distance from end-user (For evaluation of SAR testing requirement). RequiredN/A N/A N/A N/A 7 Photograph(s) or Drawings showing the location of all antennas (WLAN, BT, other) and distance between those transmitting antennas. Information will be used to evaluate whether co-location testing is required. RequiredN/A N/A N/A N/A Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 3/14 Antenna Information Section 1. Antenna Assembly Specifications Antenna Assembly Summary: Section 2. Dimensioned Photos or Drawings of Antennas Include a dimensioned photo and dimensioned drawing of main antenna here. Main and Aux Antenna Dimensioned Drawing: Main antenna Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 4/14 Aux antenna Main and Aux Antenna Photo: Main antenna Aux antenna Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 5/14 Section 3. Radiation characteristics of antennae Loaded in Host Platform 2400-2500MHz radiation characteristic Main antenna: 2400 MHz Main antenna: 2450 MHz Main antenna: 2500 MHz Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 6/14 Auxiliary antenna: 2400 MHz Auxiliary antenna: 2450 MHz Auxiliary antenna: 2500 MHz 5150-5350 MHz radiation characteristic Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 7/14 Main antenna: 5150 MHz Main antenna: 5250 MHz Main antenna: 5350 MHz Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 8/14 Auxiliary antenna: 5150 MHz Auxiliary antenna: 5250 MHz Auxiliary antenna: 5350 MHz Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 9/14 5470-5725MHz radiation characteristic Main antenna: 5470 MHz Main antenna: 5647.5 MHz Main antenna: 5825 MHz Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 10/14 Auxiliary antenna: 5470 MHz Auxiliary antenna: 5647.5 MHz Auxiliary antenna: 5825 MHz Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 11/14 Section 4. Host Platform Information OEM / ODM Host platform: (XXXXXXX) platform correlated to antenna data Rating Label Photo: Module Location Photo: (if Singapore required) Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 12/14 Section 5. Antenna Host Platform Location Information Include a dimensioned photos or dimensioned drawings of main and auxiliary antenna placements. Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 13/14 Section 6. Antenna dimensional information for SAR evaluation Include a dimensioned photos or dimensioned drawings showing the distance (mm) between the transmit (main) antenna and the user (excluding hands, wrist, feet, and ankle) Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 14/14 Section 7. Diagram Example of Co-Location Antenna Separation Indicate distance between WLAN module antennas and Bluetooth/other radio antenna element. (Note: Due to the evolving rules regarding co-location, each platform will need to be reviewed on a case by case basis)

Doc.No.:3.8.05 Rev – 6.0 Regulatory WLAN Antenna Information 1/28 Regulatory WLAN Antenna Information (English Language Required for Intel Regulatory Review / Approval) (OEM/ODM or antenna vendor is required to complete this document with platform antenna information. Remove Intel references and make this your own document) Brand Name HPQ Model Name CT6 Antenna Vendor Foxconn Antenna Part Number □ Main Antenna: WDAN-Q1CT10F1 □ Aux Antenna: WDAN-Q1CT10F1 With WLAN Module □ WM3B2100 (Check Box) □ WM3B2200BG □ WM3B2915ABG x WM3945ABG Doc.No.:3.8.05 Rev – 6.0 Regulatory WLAN Antenna Information 2/28 Antenna Sample / Antenna Data Requirements for worldwide regulatory approval Section Description of Required OEM / ODM Antenna Information US / IC EU Japan Taiwan S.Korea 1A Part Number for Antenna only Required Required Required Required Required 1B Antenna Manufacturer Name Required Required Required Required Required 1C Description of Antenna Type Required N/A N/A N/A N/A 1D Part number of Antenna Assembly / cable impedance, length & diameter. Required Desired Desired Desired Desired 1E Main & Aux antenna (Peak Gain W/ cable loss) Required Required Required Required Required 1E OR 1F, 1G, 1H 1F Main & Aux antenna (Peak Gain only) Required Required Required Required Required 1G VSWR of cable including connector Required Required Required Required Required 1H Main & Aux antenna (Cable loss W/ connector) Required Required Required Required Required 2 Dimensioned Photographs and Drawings of main & auxiliary antennas Required Required Required Required Required 3 Radiation patterns of antennas loaded in the host platform. Required Desired Required N/A Required 4 Platform model name / number - correlated to antenna manufacturer and antenna part number Required Required Desired Required Desired 5 Photograph(s) or Drawings showing location of antennas in platform. (S. Korea requires photographs of antennas for approval submission). Taiwan requires pictures of each antenna type shown in the system. Required Required Desired Required (Photos) Required (Photos) 6 Mech. drawings / photos with dimensions of antenna locations and distance from end-user (For evaluation of SAR testing requirement). Required N/A N/A N/A N/A 7 Photograph(s) or Drawings showing the location of all antennas (WLAN, BT, other) and distance between those transmitting antennas. Information will be used to evaluate whether co-location testing is required. Required N/A N/A N/A N/A 8 Local representative contact information for LMA/ PARS process. Required N/A N/A N/A N/A Doc.No.:3.8.05 Rev – 6.0 Regulatory WLAN Antenna Information 3/28 Antenna Information Section 1. Antenna Assembly Specifications Antenna Assembly Summary: 1A Antenna Part Number 1B Manufacture 1C Antenna Type 1D Cable Assembly Part Number and Information 1E Peak Gain W/ Cable loss (dBi) 1F Peak Gain w/o Cable Loss (dBi) 1G VSWR 1H Cable Loss (dBi) 2400-2500MHz 2.96 dBi (peak) 2400-2500MHz 4.453 dBi (peak) 2400-2500MHz 2.0 max 2400-2500MHz -1.493dBi (peak) 4900-5350MHz 0.27 dBi (peak) 4900-5350MHz 2.520 dBi (peak) 4900-5350MHz 2.0 max 4900-5350MHz -2.25 dBi (peak) (P/N:WDAN- Q1CT10F1) Main antenna HON HAI PRECISION IND. CO.,LTD. PIFA (P/N: SGX0001) 50 ohm Coaxial. length: 550 mm diameter: 1.13mm Connector: SGX 5470-5875MHz 0.97 dBi (peak) 5470-5875MHz 3.297 dBi (peak) 5470-5875MHz 2.0 max 5470-5875MHz -2.327 dBi (peak) 2400-2500MHz 2.94 dBi (peak) 2400-2500MHz 4.827 dBi (peak) 2400-2500MHz 2.0 max 2400-2500MHz -1.887 dBi (peak) 4900-5350MHz -1.31 dBi (peak) 4900-5350MHz 1.534 dBi (peak) 4900-5350MHz 2.0 max 4900-5350MHz -2.844 dBi (peak) (P/N:WDAN- Q1CT10F1) Auxiliary antenna HON HAI PRECISION IND. CO.,LTD. PIFA (P/N: SGX0001) 50 ohm Coaxial. length: 695 mm diameter: 1.13mm Connector: SGX 5470-5875MHz 0.55 dBi (peak) 5470-5875MHz 3.491 dBi (peak) 5470-5875MHz 2.0 max 5470-5875MHz -2.941 dBi (peak) Antenna Peak Gain Table: Main antenna Aux Antenna Frequency (MHz) Horizontal (dBi) Vertical (dBi) Hori+Ver (dBi) Horizontal (dBi) Vertical (dBi) Hori+Ver (dBi) 2400 2.12 -0.82 2.96 1.98 -0.69 2.69 2450 1.95 -0.86 2.94 2.05 -1.53 2.9 2500 2.02 0.09 2.95 1.86 -1.81 2.94 4900 -3.63 -4.65 -1.98 -2.99 -4.82 -2.09 5125 -2.43 -3.81 -1.56 -3.02 -4.87 -1.88 5350 -1.56 -3.39 0.27 -2.09 -4.22 -1.31 5470 -1.71 -3.53 -0.04 -2.00 -3.75 -0.65 5725 -0.46 -2.5 0.41 -0.08 -0.25 0.55 5875 0.02 -0.78 0.97 -4.2 -0.25 0.53 z Antenna Peak Gain required being test in system basis. z 1E frame contend absolutely peak antenna gain include H/ V/ H+V. Doc.No.:3.8.05 Rev – 6.0 Regulatory WLAN Antenna Information 4/28 Section 2. Dimensioned Photos or Drawings of Antennas Include a dimensioned photo and dimensioned drawing of main antenna here. Main Antenna Dimensioned Drawing: Main Antenna Photo: Main Doc.No.:3.8.05 Rev – 6.0 Regulatory WLAN Antenna Information 5/28 Include a dimensioned photo and dimensioned drawing of aux antenna here. Aux Antenna Dimensioned Drawing: Aux Antenna Photo: Auxiliary Doc.No.:3.8.05 Rev – 6.0 Regulatory WLAN Antenna Information 6/28 Section 3. Radiation characteristics of antenna Loaded in Host Platform 2400-2500MHz radiation characteristic Main antenna: 2400 MHz Center Frequency 2400 MHz Horizontal (dBi) peak 2.12 Vertical (dBi) peak -0.82 Horz+Vert (dBi) peak 2.96 Doc.No.:3.8.05 Rev – 6.0 Regulatory WLAN Antenna Information 7/28 Main antenna: 2450 MHz Center Frequency 2450 MHz Horizontal (dBi) peak 1.95 Vertical (dBi) peak -0.86 Horz+Vert (dBi) peak 2.94 Doc.No.:3.8.05 Rev – 6.0 Regulatory WLAN Antenna Information 8/28 Main antenna: 2500 MHz Center Frequency 2500 MHz Horizontal (dBi) peak 2.02 Vertical (dBi) peak 0.09 Horz+Vert (dBi) peak 2.95 Doc.No.:3.8.05 Rev – 6.0 Regulatory WLAN Antenna Information 9/28 Auxiliary antenna: 2400 MHz Center Frequency 2400 MHz Horizontal (dBi) peak 1.98 Vertical (dBi) peak -0.69 Horz+Vert (dBi) peak 2.69 Doc.No.:3.8.05 Rev – 6.0 Regulatory WLAN Antenna Information 10/28 Auxiliary antenna: 2450 MHz Center Frequency 2450 MHz Horizontal (dBi) p…

Text truncated - open the document above for the full version.

Page 1 of 16 Report Number: INTEL-051105F FCC ID: B94WM3945ABG Modular Approval Test Report And Application for Grant of Equipment Authorization Pertaining To: Equipment Under Test FCC ID: Intel PRO/Wireless 3945ABG Network Connection, MN: WM3945ABG B94WM3945ABG Configuration 802.11a / 802.11b / 802.11g with a set of HP Altima & Jakarta 3.0 Antennas MEASUREMENTS PERFORMED IN ACCORDANCE WITH Regulatory Standard(s) 47 CFR Part 15, Subpart E Section 15.407 (UNII Devices) Test Method: ANSI C63.4: 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Certificate Number: 1111.01 APPLICANT: PREPARED BY: Hewlett-Packard Company Aegis Labs, Inc. 20555 SH 249 22431 Antonio Parkway B160-417 Mail Stop 060607 Rancho S. Margarita, CA 92688 Houston, TX 77070-2698 Contact(s): Mr. Walter Overcash Agent(s): Mr. Steve Kuiper Mr. Rick Candelas Mr. Johnny Candelas Test Report #: INTEL-051105F APPENDICES REPORT BODY A TOTAL PAGES PAGES 16 49 65 Test Report Revision: Rev. C The contents of this report shall not be reproduced except in full, without the written approval of Aegis Labs, Inc. Page 2 of 16 Report Number: INTEL-051105F FCC ID: B94WM3945ABG TABLE OF CONTENTS SECTION TITLE PAGE COVER SHEET.................................................................................... 01 TABLE OF CONTENTS............................................................................................... 02 1.0 CERTIFICATION OF TEST DATA............................................................................. 03 2.0 SUMMARY OF TEST RESULTS.............................................................. 04 3.0 ADMINISTRATIVE DATA AND TEST DESCRIPTION.......................................... 05 4.0 DESCRIPTION OF EUT....................................…
