FCC ID: B94XU800 1 USER MANUAL This is a copy of the manual page where the FCC statement is included : FCC ID: B94XU800

FCC ID: B94XU800 1 BLOCK DIAGRAM(S) OF EQUIPMENT 1.1 Clock list of KAYAK XU-800 product Crystal oscillators : Y124.576 MHz Y220 MHz Y332.768 KHz Y414.318 MHz Y540 MHz FCC ID: B94XU800 AGP PRO 4X 1GB/s Channel 0 HL8 Channel 1 Katmai Carmel MCH 544 mBGA FSB: 133 /100 MHz 2Way Coppermine Katmai Coppermine 5-PCI-32bit/33MHz Slots PCI-32/33MHz 3.2GB/s 1GB/s ICH 241 mBGA FWH SI/O LPC CS4280 Audio bridge 266MB/s MEC 4 Rimmsor8 Dimms. Audio CODEC AC97 link To floppy, // port, serial port,kbd&mouse port. To line-in, line-out, mic, midiconnectivity. A TA66, 2 channels. 66MB/s 2 USB ports P64H HL16 533MB/s SCSI bridge To SCSI connector PCI-64/66MHz

1 COVER LETTER HEWLETT PACKARD – KAYAK XU 800 FCC ID: B94XU800 October 28, 1999 This report concerns : Original Grant ___X____Class II change __________ Class B certification ___X____*Class A verification _______Class I change _______ Equipment type : Personal computer (Equipment code : JBC) Request issue of grant : ___Immediately upon completion of review ___Defer grant per 47 CFR 0.457(d)(1)(ii) until ____ date _____. Company Name agrees to notify the Commission by _____date_____ of the intended date of announcement of the product so that the grant can be issued on that date. Confidentiality of grant : ___Applicant requests the existence of this grant to be kept confidential until ____date____. The announcement of this product before this date via freedom of information would be detrimental to Company Name, and therefore must be considered a business secret. Public announcement of this product will not be made prior to this date. (Max. 60 days after grant issued). Limits used : (check one) CISPR 22 _______X___________ Part 15 __________________ Measurement procedure used is ANSI C63.4-1992 unless another is specified. Other test procedure : ____________________________________________________ Application for verificationApplicant for this device Prepared by : Pierre SELVA SMEE Actions Mesures ZI des Blanchisseries 38500 VOIRON – France Ph. : 33 4 76 65 76 50 Fax : 33 4 76 66 18 30 e-mail : [email protected] Denis DERSARKISSIAN HEWLETT PACKARD 5 Avenue R. CHANAS – EYBENS 38053 GRENOBLE CEDEX 9 – France Ph. : 33 4 76 14 17 24 Fax : 33 4 76 14 64 42 e-mail : [email protected] *Not to be filed with Equipment Authorization Branch of FCC unless requested Report format prepared by the Information Technology Industry Council (ITI) ESC-5 and reviewed by FCC staff in 1994 FCC ID: B94XU800

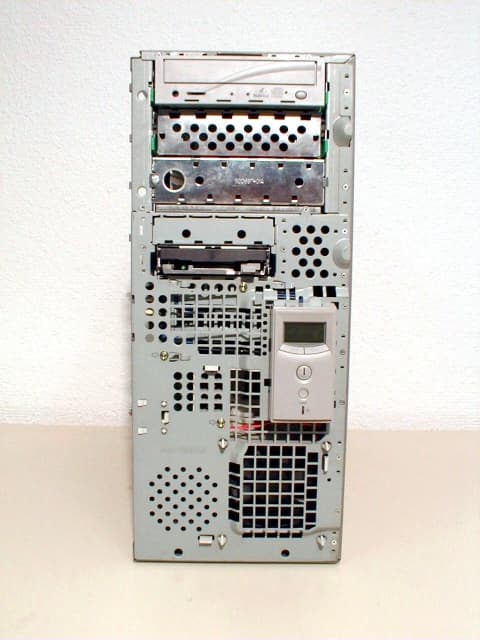

FCC ID: B94XU800 1 EXTERNAL PHOTOS OF TESTED EUT The following photo are attached : 1 - Front view 2 - Front view, without front bezel 3 - Rear view FCC ID: B94XU800 FRONT VIEW FCC ID: B94XU800 FRONT VIEW, Without front bezel FCC ID: B94XU800 REAR VIEW FCC ID: B94XU800

FCC ID: B94XU800 1 PRODUCT LABELING 1.1 FCC ID Label This is the copy of the Class B label stuck on the product 1.2 Location of label on EUT Label is stuck on the rear face of the product. FCCID marking and text

FCC ID: B94XU800 1 INTERNAL PHOTOS OF TESTED EUT The following photo are attached : 1 – Internal view, cover removed 2 – Internal view, cover removed, without air flow guide 3 – Internal view of enclosure, without boards 4 – Mother board, component side view 5 – Mother board, foil side view 6 – Power supply, top view 7 – Power supply, large view 8 – Power supply, inside view 9 – Power supply, inlet detailed view 10 – Power supply, component side view 11 – Power supply, main board foil side view 12 – Power supply, daughter board foil side view 13 – LAN card, component side view 14 – LAN card, foil side view 15 – SCSI card, component side view 16 – SCSI card, foil side view 17 – Video card, component side view 18 – Video board, foil side view 19 – Memory board, component side view 20 – Memory board, foil side view FCC ID: B94XU800 1 – Internal view, cover removed 2 – Internal view, cover removed, without air flow guide FCC ID: B94XU800 3 – Internal view of enclosure, without boards FCC ID: B94XU800 4 – Mother board, component side view FCC ID: B94XU800 5 – Mother board, foil side view FCC ID: B94XU800 6 – Power supply, top view 7 – Power supply, large view FCC ID: B94XU800 8 – Power supply, inside view 9 – Power supply, inlet detailed view FCC ID: B94XU800 10 – Power supply, component side view FCC ID: B94XU800 11 – Power supply, main board foil side view 12 – Power supply, daughter board foil side view FCC ID: B94XU800 13 – LAN card, component side view 14 – LAN card, foil side view FCC ID: B94XU800 15 – SCSI card, component side view 16 – SCSI card, foil side view FCC ID: B94XU800 17 – Video card, component side view 18 – Video board, foil side view FCC ID: B94XU800 19 – Memory board, component side view 20 – Memory board, foil side view FCC ID: B94XU800 FCC ID: B94XU800

FCC ID: B94XU800 1 GENERAL INFORMATION 1.1 Product description The HP KAYAK personal computer described in this report are all using the same printed board and differ only from processor type used. The HP KAYAK XU800 is a personal computer build in a E-ATX minitower. The mother board can accept up to two INTEL SLOT1 microprocessors, rated up to 667 Mhz. Main features are : MOTHERBOARD :
Intel slot1 coppermine 667-600-133-256, Katmai 533-133
2 way processing support
Intel Carmel base chipset + PCI64b
Memory : 2 RAMBUS channel (2x1.8GB/s), MEC connector for
MEC 4x Rimms RDRAM 800MHz, ECC (1GB max)
MEX 8x Dimms SDRAM 180MHz, ECC (2/4GB max)
2Mb flash memory for BIOS support(FWH)
Ultra I/O NS80364 / South bridge controller (ICH)
Sound based on PCI digital controller CSA4280 & AC97 Codec CS4297
Dual Ultra ATA-66 IDE Channel (2x66MB/s – 2x500MB/s)
Dual USB (12MB/s)
SCSI Ultra 2-160m / Fastraid interface on add on cards
External connectors : 2 serial, 1 parallel, PS/2 mouse, Audio (line In, Line Out, Mic In), Midi, 2 USB
HP NBA Bios
ACPI Hardware compliant (Suspend to Ram support)
Hardware monitoring (I2C) : CPU (μP, PLL, Chipset), memory, Lan, AGP Pro 50W
Full AGP4x slot, 1 x xPCI bus 32b-33MHz, 1 x PCI bus 64b-66MHz
Microsoft PC'98 & PC'99 compliant GRAPHIC :
AGP4x from 2D Business to Mid-Range 3D
Multimonitor Solution w Flat Panel support PACKAGE :
E-ATX MiniTower
3x 5.25" front shelves support
2x 3.5" front shelves support
2x 3.5" HDD internal shelves
3xPCI slots 32 bits/33MHz, 2x PCI slots 64bits/66MHz, No ISA
1x AGP Pro4x 50W
300W ATX power supply LAN :
10/100 BT with standard WOL on add on board MASS STORAGE :
HDD SCSI 9-18 GB (7200 rpm)
IDE 18GB, 7200 rpm
Floppy, DVD-ROM, CD-32X, CD-RW 1.2 Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. FCC ID: B94XU800 1.3 Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system (including inserted cards, which have grants) are : Trade Mark – Model Number (Serial number) FCC IDDescriptionCable description HEWLETT PACKARD KAYAK XU-800* (QP1#78) B94XU800Personal computerAll data cables are shielded Power cable unshielded HP D2846A (JP74001000) Doc. Of Conf.21" color monitorVideo cable shielded HP C4742-60101 (C990956103) Doc. Of Conf.KeyboardCable shielded HP C4736-60101 (LZA93024031) JNZ201213MouseCable shielded HP C2106A (3110S58792) B94C2106XSerial printerHP 24542G shielded serial cable HP C6410A (MY9761915T) Doc. Of Conf.Parallel printerHP 24542D shielded parallel cable HP C1520-10013 (GB00111817) B94TC152XXSCSI Tape 2000HP 5063-1214 shielded SCSI cable HP D8387A (no serial number) NAHeadphoneShielded cable INTEL VC76 (0045143) EDUYC76USB cameraShielded cable TELEX 700.373.000.A (no serial number) NAMicrophoneShielded cable *Equipment Under Test 1.4 Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-1992, CISPR22-1993/A1:1995 and EN55022:1994/A1:1995. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5 Test facility Tests have been performed on October 8, 1998. The test facility used to collect the radiated and conducted data is the SMEE Actions Mesures facility, located ZI des Blanchisseries, 38500 VOIRON, France. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-1992 in a letter dated August 04, 1999 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European union test lab accreditation organization), accreditation number 1-0844 as compliant with test site criteria and competence in EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged.

FCC ID: B94XU800 1 TEST REPORT 1.1 System test configuration 1.1.1 Justification In order to show the performance of the product for all possible configurations, each processor speed and processor type have been tested during pre-scans evaluation. The HP KAYAK XU800 with two Pentium III 667MHz processors has been identified as the worst case product during these pre-scans. Consequently, all tests results contained in this report are from the KAYAK XU800. The system was configured for testing in a typical fashion (as a customer would normally use it). THE Kayak XU800 is running at the maximum speed compatible with the processors selected. Since the highest speed selection was found to be the worst case, this mode was used to collect the included data. The system was pretested in all supported video resolution modes with two different high resolution video cards. The 3Dlabs (HP P/N 5064-9793) video card, connected on the AGP port, able to provide maximum video resolution up to 1600 x 1200 @ 85Hz refresh rate (non-interlaced) with true color has been identified as the worst case. Since this graphic mode was found to be the worst case, this mode was used to collect the included data. During pre-scans tests, a ClassB certified ultra VGA video card was tested in one of the PCI slots (Matrox millenium II card), but the worst case was observed with the 3Dlabs card plugged into the AGP port. Therefore the final qualification was completed with this card. Furthermore, one SCSI board from LSI Logic (Symbios SYM8952U/8953U) has been used with a SCSI device connected, and a LAN board from 3Com (3C905C-TX Etherlink 10/100 PCI) has also been used to simulate the current use of the final product. The USB port was loaded with a real device (INTEL Camera) during compliance testing. The audio ports were loaded with headphone, loudspeaker and microphone during compliance testing. According to FCC Part 15, Subpart A, paragraph 15.33, the upper frequency measurement range has been extended to 5GHz 1.1.2 EUT Exercise software The EUT exercise program (WINRFI under Windows NT4.0) used during radiated and conducted testing was designed to exercise the various system components in a manner similar to a typical use. The test software has been designed in order to exercise each part of the product involved in a typical use. 1.1.3 Special accessories As shown in Figure 3.1, all interfaces cables used for compliance testing are shielded as normally supplied. All these cables are normally recommended to be used with the product. 1.1.4 Equipment modifications No equipment modification has been necessary during testing to achieve compliance to Class B levels. The unit tested was a production unit. 1.1.5 Configuration of tested system. C2106A C6410A Monitor D2846A PC KAYAK XU800 Mouse Keyboard Headphone Webcam Tape Speaker μphone FCC ID: B94XU800 1.2 Conducted emission data 1.2.1 Test procedure The product has been tested according to ANSI C63.4-1992, CISPR22-1993/A1:1995 and EN55022:1994/A1:1995. The product has been tested with 120V / 60Hz power line voltage and compared to the CISPR22 Class B limits. Measurement bandwidth was 9KHz from 150 KHz to 30 MHz. Measurement was initially made with an HP-8591EM Spectrum Analyzer in peak mode. This was followed by a Quasi-Peak, i.e. CISPR measurement with the Rohde & Schwarz ESH3 receiver for any strong signal. If the average limit is met when using a Quasi-Peak detector, the EUT shall be deemed to meet both limits and measurement with the average detector is unnecessary. The Peak data are shown on the following plots. Quasi-Peak and Average measurements are detailed in a table with frequencies and levels measured. Interconnecting cables and equipment's were moved to position that maximized emission. A summary of the worst case emissions found in all test configurations and modes is shown on the following page. Test equipment : HP 8591EM Spectrum Analyzer Rhode & Schwarz ESH3 Receiver EMCO 3810/2SH LISN N°1 TELEMETER NNB-2/16L LISN N°2 FCC ID: B94XU800 1.2.2 Neutral conducted emission data on KAYAK XU-800 Freq.PeakQ-PeakQP limit QP delta AverageAVG Limit AVG Delta Num. [MHz][dBμV][dBμV][dBμV] [dBμV] [dBμV][dBμV] [dBμV] 10.17044.4934.6564.00 29.35 16.5854.00 37.42 20.20041.4339.2462.00 22.76 35.0952.00 16.91 32.92034.6833.1756.00 22.83 31.0046.00 15 48.49038.4237.0160.00 22.99 36.3550.00 13.65 FCC ID: B94XU800 1.2.3 Line conducted emission data on KAYAK XU-800 Freq.PeakQ-PeakQP limit QP delta AverageAVG Limit AVG Delta Num. [MHz][dBμV][dBμV][dBμV] [dBμV] [dBμV][dBμV] [dBμV] 10.17044.0033.4764.00 30.53 15.6954.00 38.31 20.20044.5843.1162.00 18.89 42.1252.00 9.88 32.92031.3528.7056.00 27.3 26.5546.00 19.45 48.49038.3336.6260.00 23.38 35.5050.00 14.5 FCC ID: B94XU800 1.3 RADIATED EMISSION DATA 1.3.1 Test Procedure The product has been tested according to ANSI C63.4-1992, CISPR 22-1993/A1:1995 and EN55022:1994/A1:1995. The product has been tested with 230V / 50Hz power line voltage, at a distance of 10 meters from the antenna and compared to the CISPR 22 Class B limits. Measurement bandwidth was 120 KHz from 30 MHz to 1 GHz and 1 MHz upon 1 GHz. Antenna height search was performed from 0.9m to 4m for both horizontal and vertical polarization. Continuous linear turntable azimuth search was performed with 360 degrees range. Interconnecting cables and equipment's were moved to position that maximized emission. A summary of the worst case emissions found in all test configurations and modes is shown on the following page. Test Equipment: HP-8574A E.M.I Receiver (HP-8568B Analyzer + HP-85650 Quasi-Peak adapter + HP-85685A RF Preselector). HP 8546A 9KHz - 6.5GHz EMI receiver EMCO 3104C Biconical Antenna & EMCO 3146 Log Periodic Antenna EMCO-1050, 6 meters height antenna mast & EMCO-1060, 3 meters diameter Turntable. EMCO 3115, 1GHz - 18GHz Horn Antenna 1.3.2 Radiated emission data Final result 30-1000 MHz Graph abstract - 30-1000MHz Frequency (MHz) QPeak Lmt (dBμV/m) QPeak (dBμV/m) QPeak-…

Text truncated - open the document above for the full version.

FCC ID: B94XU800 1 CONDUCTED AND RADIATED MEASUREMENT PHOTO 1.1 Conducted emission Front viewRear view Detailed view FCC ID: B94XU800 1.2 Radiated emission Front ViewRear view Detailed view FCC ID: B94XU800
