BCE-A210Jabra A-210

Universal Bluetooth adapter for mobile phones User manual Contents Jabra A210 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Phone compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.Charge the Jabra A210 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2.Pair (Connect) with your Bluetooth® headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 3.Adjust the settings to suit your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 4.Turning the Jabra A210 On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 5.Making or receiving a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 6.Experiencing problems? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 7.Need more help? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 8.Storage of the Jabra A210 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 9.Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 10. Certification and safety approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 1 English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 English Phone compatibility The Jabra A210 is compatible with most popular makes of non Bluetooth mobile phones that have a standard 2.5 mm headset jack. Thank you for purchasing the Jabra A210 Bluetooth ® Adapter. The Jabra A210 provides a wireless Bluetooth connection between your non Bluetooth mobile phone and your Jabra Bluetooth headset or speakerphone, so you can enjoy the comfort and convenience of hands-free communication with your mobile phone. Thank you 1 2 5 4 7 6 3 1On / off button 2Pairing stylus switch 3Stylus for activating the pairing button 43-position setting switch 5Blue light (LED) indicating on/off Jabra A210 Overview 6Red light (LED) indicating charging and low battery 7Belt clip Also included, Velcro for fixing the Jabra A210 to back of your mobile phone. BEFORE USING YOUR Jabra A210 BLUETOOTH ADAPTER Summary specification • Up to 8 hours talk time and 240 hours standby time • Allows call answer and end • Supports voice-dialling (subject to phone) • Range up to 33 feet (10 metres) • Bluetooth version 1.2 The Jabra A210 is designed to be simple to operate with a minimum of control buttons. Buttons on the Bluetooth adapter and your Jabra headset or speakerphone will provide alternative operations depending on the length of time they are pressed. Fig. 1 23 Instruction:Duration of press: TapPress briefly PressApprox: 1 second Press and hold5 seconds EnglishEnglish The Jabra A210 uses a rechargeable battery that must be charged fully before you use the adapter for the first time. 1.Use the AC adapter to charge the Jabra A210 from a power socket. ( See Fig.2).Only use a Jabra adapter to charge the Jabra A210 . 2.The red light (LED) will turn on when charging begins. After approximately 2 hours the red LED will turn off, indicating that charging is complete. NOTE:The red LED will flash when the battery is low. You can continue to use your Jabra A210 Bluetooth adapter whilst charging. You are now ready to “pair” the Jabra A210 with your Jabra Bluetooth headset or speakerphone. ( See Section 2) Charge the Jabra A210 1 Before you can get started, you will need to pair your Jabra A210 Bluetooth adapter with your headset or speakerphone. 1.Turn your Jabra A210 on with a press of the on/off button. The blue light (LED) shows a burst of flashes and thereafter continues to flash every 3 seconds. 2.Put your Jabra Bluetooth headset or speakerphone into pairing mode by following the instructions in its user guide. 3.Put your Jabra A210 into pairing mode by pressing the pairing stylus switch marked () with the stylus. When the blue LED turns solid blue the adapter is in pairing mode. 4.The pairing is complete when the blue LED flashes every 3 seconds. Pair (Connect) with your Bluetooth headset 2 To optimise the operation of the Jabra A210 with your mobile phone, adjust the “3-position setting switch” ( See Fig. 3). • Set the switch to position 1if you are using a Motorola phone. • Set the switch to position 3 for all other phone makes. • If you experience echo when using your phone, move the switch to position 2. • If you continue to hear echo turn down the volume on the headset. The headset does not have to be on to adjust the 3-position setting switch. Adjust the settings to suit your phone 3 USING YOUR Jabra A210 BLUETOOTH ADAPTER To use your Jabra A210 Bluetooth adapter, ensure it is switched on and plugged into the headset jack in your mobile phone. NOTE:For complete instructions on operating your Jabra headset, please refer to the headset’s user manual. 45 To turn the adapter on, press the on/off button. The blue light (LED) shows a burst of flashes and thereafter continues to flash every 3 seconds. To turn the adapter off, press and hold the on/off button for 5 seconds. NOTE:The blue LED will turn off after 5 minutes. To check if your Bluetooth adapter is on, just tap on the on/off button, and the blue LED will resume flashing. If the blue LED is not responding, the adapter is turned off. To save power, your Jabra A210 Bluetooth adapter goes automatically into standby mode one minute after usage. Turning the Jabra A210 On and Off 4 Fig. 2 Fig. 3 Engli…

Text truncated - open the document above for the full version.

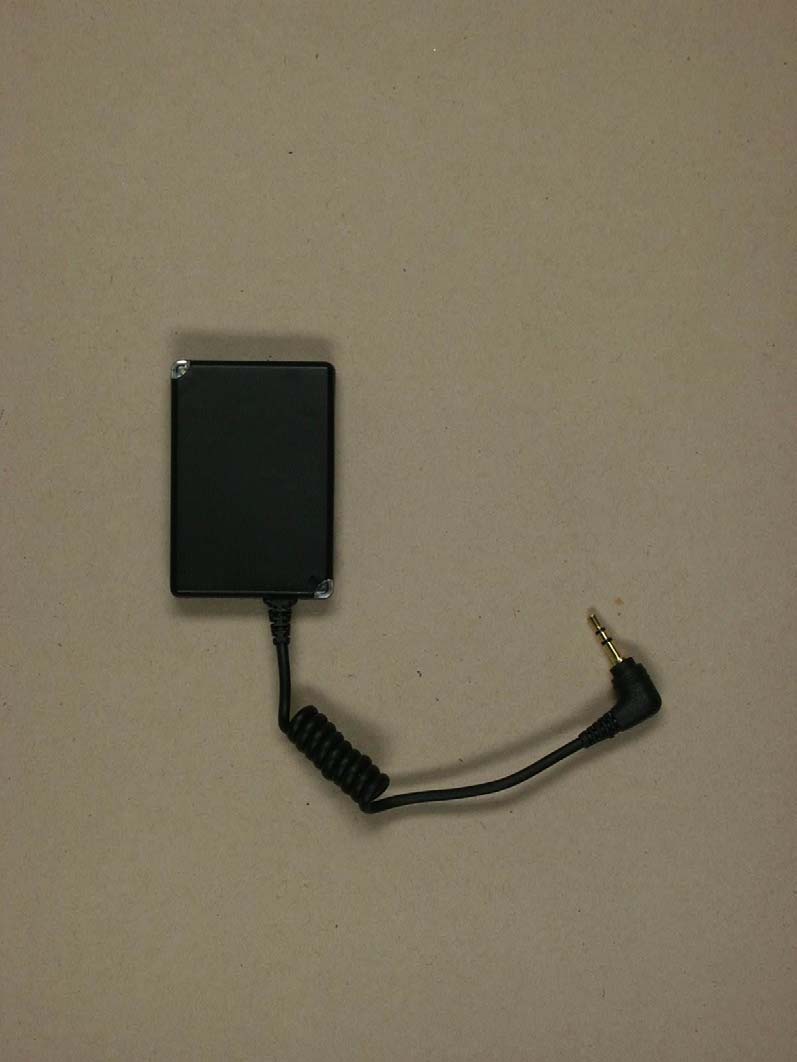

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8823-P-15 Page 1 of 11 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8823-P-15 Page 2 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8823-P-15 Page 3 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8823-P-15 Page 4 of 11

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8823-P-15 Page 5 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8823-P-15 Page 6 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8823-P-15 Page 7 of 11

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: BCE-A210 Test report no.: G0M20407-8823-P-15 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8823-P-15 Page 1 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8823-P-15 Page 2 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 24.08.2004 N. Kaspar Date ETS-Lab. Name Signature Technical responsibility for area of testing: 24.08.2004 Dr. Genz Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8823-P-15 Page 3 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : GN Netcom Street : Metalbuen 66 Town : DK-2750 Ballerup Country : Denmark Telephone : +45 7211 8762 Fax : +45 7211 8689 Contact : Mr. Jørn B. Rasmussen E-mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8823-P-15 Page 4 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 13.07.2004 Date of receipt of test item : 13.07.2004 Date of test : 13.07.2004 – 20.07.2004 1.5 Test item Description of test item : Bluetooth Headset Audio Gateway Type identification : Jabra A-210 Hardware version :Rev 2V2 Software version : 090BT12 Serial number : without Photos : See Appendix A Technical data Frequency band : 2.4GHz – 2.4835GHz Frequency ( ch A) : 2402 MHz Frequency (ch B) : 2441 MHz Frequency (ch C) : 2480 MHz Transmitter Vnom Power (ch A) : Conducted: 1.99 dBm Power (ch B) : Conducted: 1.82 dBm Power (ch C) : Conducted: 1.54 dBm Transmitter Vnom Vnom –15% Vnom +15% Power (ch A) : Radiated: 3.43 dBm Radiated: 3.22 dBm Radiated: 3.23dBm Power (ch B) : Radiated: 2.53 dBm Radiated: 2.47 dBm Radiated: 2.53 dBm Power (ch C) : Radiated: 0.46 dBm Radiated: 0.50 dBm Radiated: 0.18 dBm Power supply : 3,7 V DC Operating mode : duplex Type of modulation : FHSS Antenna type : Planar inverted F Type antenna Antenna gain : 0 dBi (typ.); +3 dBi (max) ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8823-P-15 Page 5 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Host device : none Classification : Fixed Device Mobile Device (Human Body distance > 20cm) Portable Device (Human Body distance < 20cm) Manufacturer: (if applicable) Name : Street : Town : Country : Additional information: The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. According to attached declaration of manufacturer this device don’t work in master inquiry mode. So we have only one frequency hopping system and the hopping sequence of the master inquiry mode is not very feed. ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8823-P-15 Page 6 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 3,7 V DC (120 V AC/DC Adaptor) Extreme conditions parameters: : test voltage - extreme min.: 102 max: 138 ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8823-P-15 Page 7 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 Test receiver ESHS 10 Rohde & Schwarz ETS 0002 Test receiver ESVP Rohde & Schwarz ETS 0003 Test receiver ESVS 10 Rohde & Schwarz ETS 0004 Spectrum and network analyzer FSMS 26 Roh…
