BCE-BT110BT110

Bluetooth headset User manual English Thank you . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1.Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 2.Using your Jabra BT110 headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3.Using your Jabra BT110 with the Jabra A210 Bluetooth adapter . . . . . . . . . 6 4.LED status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 5.Choosing wearing preference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 6.Troubleshooting and frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . 7 7.Need more help? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 8.Storage of the Jabra BT110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 9.Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 10. Certification and safety approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 11. Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 1 PART NUMBER 500-000452-00 English English 2 Thank you for purchasing the Jabra BT110 Bluetooth® Headset, we hope you will be totally delighted with its operation. The Jabra BT110 is a simple and easy way to enjoy hands-free use of your Bluetooth mobile phone. The Jabra BT110 is designed to be comfortable enough to be worn all day and will provide up to 15 hours of talk time on a single AAA battery. Please read the instruction manual to get started. Using a mobile phone while driving creates a distraction to the driver which may increase the likelihood of an accident. When using the phone while driving, keep conversations short and do not make notes or read documents. Before answering calls consider your circumstances. Pull off the road and park before making or answering calls when driving conditions require (e.g. bad weather, high traffic density, presence of children in the car, difficult junctions or manoeuvres.) Remember, driving comes first, not the call! Abide by local laws. Jabra BT110 Overview 4 3 2 5 1 1Answer / end button 2Yellow light (LED) indicating pairing and low battery 3Volume control 4Battery panel 5MiniGel™ Summary of features The Jabra BT110 is designed to be simple to operate with a minimum of control buttons. The answer/end button on the headset will provide alternative operations depending on the length of time it is pressed. • Up to 15 hours talk time on single AAA battery • Turns off automatically to lengthen battery life • Total weight including battery is only 26 grams • Range up to 10 metres (33 feet) • Bluetooth 1 (See glossary) version 1.2 • Headset and hands-free Bluetooth profiles 2 • Operational features: • Answer call • Call end • Supports voice-dialling (subject to phone) • Reject call Your Jabra BT110 is compatible with most Bluetooth mobile phones. You can check whether your phone has Bluetooth capability by visiting your phone manufacturer’s web site or Jabra’s website (www.jabra.com) BEFORE USING YOUR Jabra BT110 BLUETOOTH HEADSET Instruction:Duration of press: TapPress briefly PressApprox: 1 second Press and holdApprox: 5 seconds 1 2 1.Insert an AAA battery Open the battery compartment by sliding the battery panel off as shown in Fig. 2 Fig. 2 In order for your Jabra BT110 to function with your Bluetooth mobile phone, you need to establish a connection between the two devices: 3 English Thank you Drive safely ! Getting Started 1 Fig. 1 45 2.Pairing 3 The Jabra BT110 will always go into pairing mode whenever you insert / replace the battery. The yellow light will come on and remain on for approximately 5 minutes. During this time the headset can be paired 3 (connected) to your mobile phone. To exit this mode and resume normal use just tap the answer / end button. NOTE:It is only the first time you want to connect your BT110 with your mobile phone that you need to pair the two devices. 3.Set your Bluetooth phone to “discover” the Jabra BT110 Follow your phone’s instruction guide. This usually involves going to a “setup”, “connect”, or “Bluetooth” menu on your phoneand then selecting the option to “discover” a Bluetooth device*. ( See example from a Sony Ericsson T610 in Fig. 3) 4.Your phone will find the “Jabra BT110” The phone then asks if you want to pair with it. Confirm by pressing “yes” or “ok”. 5.Enter passkey or PIN 4 = 0000 (4 zeros), then press “yes” or “ok” 6.If pairing was successful The yellow light (LED) will briefly flash rapidly before turning off. 7.If pairing was unsuccessful The yellow light (LED) remains solid, and you’ll need to re-attempt pairing. After five minutes the solid yellow light will turn off automatically whether you have successfully paired or not. To re-activate pairing mode remove and re-insert the battery. * Phone-specific pairing instructions can be found online at www.jabra.com/fscs Fig. 3 You are now ready to use your Jabra BT110 headset. 1.To answer a call direct from your mobile phone Press the answer button on your phone’s keypad. You can subsequently transfer the call to your headset by a tap on the headset’s answer/end button. 2.To answer a call direct from your headset Tap once on the headset’s answer/end button. If you choose to take the call directly from the headset, the time for the call to transfer …

Text truncated - open the document above for the full version.

___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH BZT ETS CERTIFICATION GMBH Mr. Dieter Griep; Mr. Andreas Herrmann Storkower Str. 38c 15526 Reichenwalde b. Berlin GERMANY IHR ZEICHEN / YOUR REF. IHR SCHREIBEN / YOUR INFORM. UNSER ZEICHEN / OUR REF. DATUM / DATE am 2004-08-30 Subject: Application for TCB Certification Applicant: GN Netcom Equipment: Jabra BT110 FCC ID: BCE-BT110 Dear Sirs, Submitted herewith, on behalf of GN Netcom, is an application for certification under FCC Rule 22 and 24 of the following equipment: Jabra BT110 Attached are the 731Form, Confidentiality request letter, test report (TestRpt1=test data, TestRpt2=test plots), FCC ID label and label location information, test setup photographs, internal and external photographs, operational description, part’s list, block diagrams, schematics, tune procedure information, RF Exposure and user manual. In accordance with 0.459 of CFR 47 GN Netcom hereby requests confidentiality of all Block Diagrams and Circuit Diagrams (Schematics), Parts List and Operational Description (see attached Confidentiality Request Letter) for the subject application. Should you have any questions or comments concerning the above, please contact the following e-mail addresses: [email protected] Best Regards Axel Müller

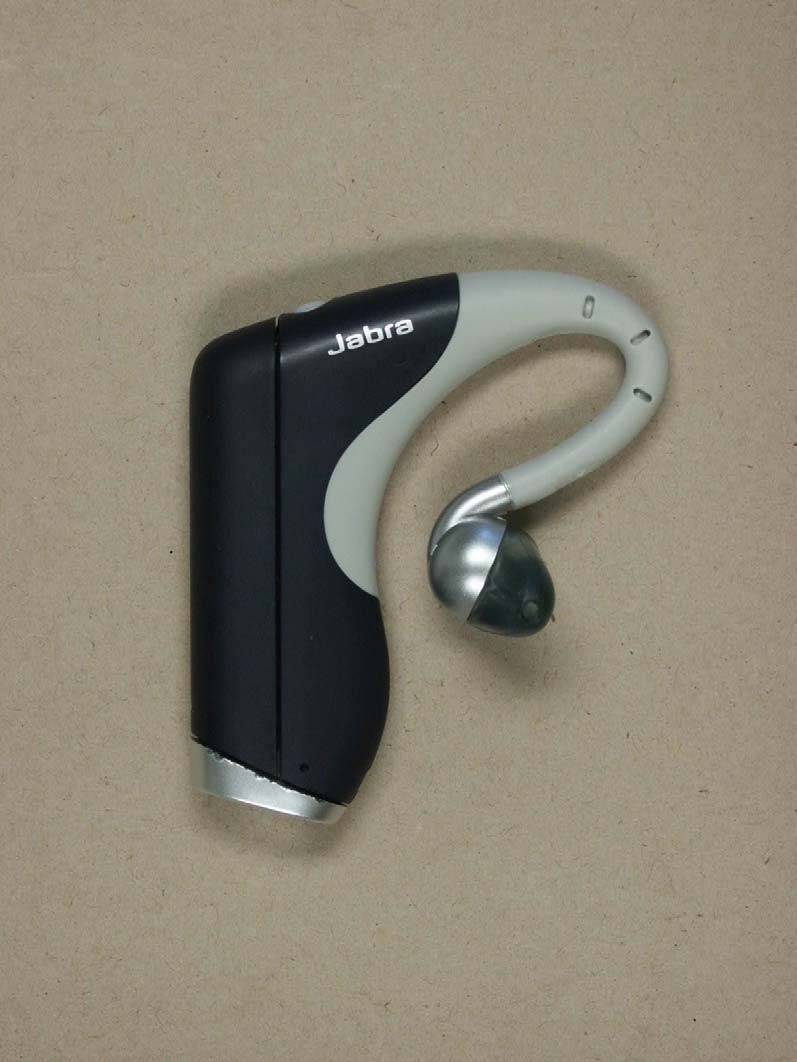

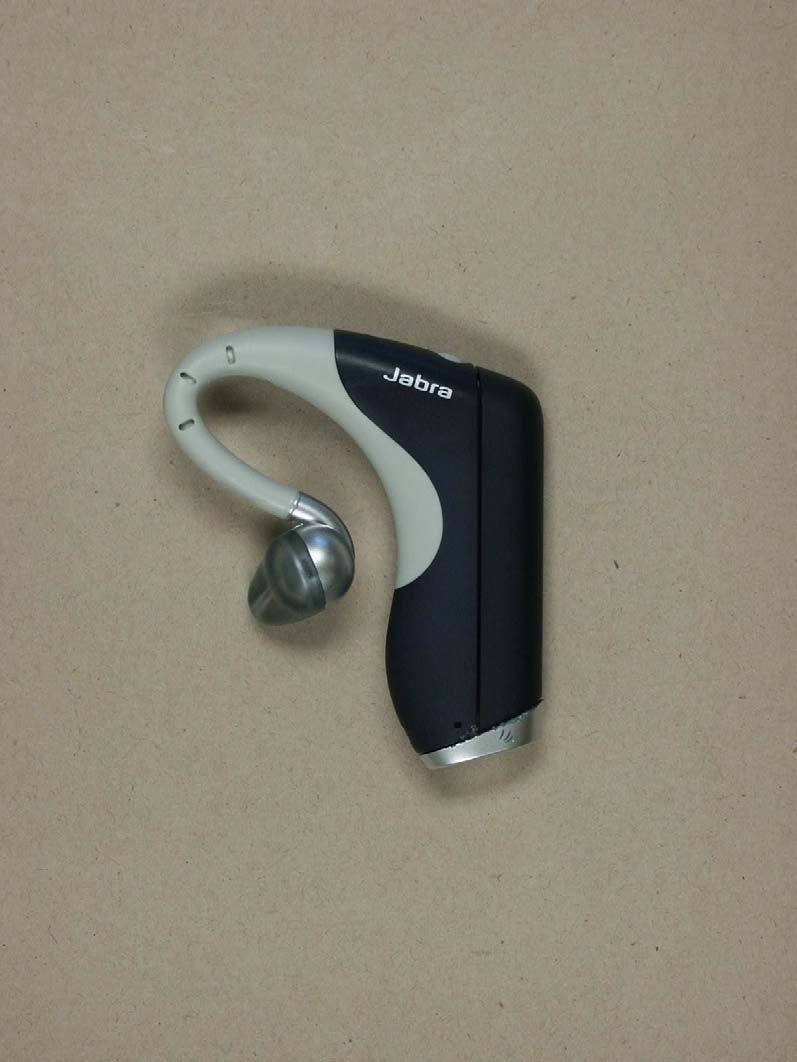

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8867-P-15 Page 1 of 7 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8867-P-15 Page 2 of 7 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8867-P-15 Page 3 of 7

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8867-P-15 Page 4 of 7 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8867-P-15 Page 5 of 7

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: BCE-BT110 Test report no.: G0M20407-8867-P-15 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8867-P-15 Page 1 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8867-P-15 Page 2 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 26.08.2004 N. Kaspar Date ETS-Lab. Name Signature Technical responsibility for area of testing: 26.08.2004 Dr. Genz Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8867-P-15 Page 3 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : GN Netcom Street : Metalbuen 66 Town : DK-2750 Ballerup Country : Denmark Telephone : +45 7211 8762 Fax : +45 7211 8689 Contact : Mr. Jørn B. Rasmussen E-mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8867-P-15 Page 4 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 26.07.2004 Date of receipt of test item : 26.07.2004 Date of test : 26.07.2004 – 29.07.2004 1.5 Test item Description of test item : Bluetooth Headset Type identification : Jabra BT110 Hardware version : Rev 1.0 Software version : 050A Serial number : without Photos : See Appendix A Technical data Frequency band : 2.4GHz – 2.4835GHz Frequency ( ch A) : 2402 MHz Frequency (ch B) : 2441 MHz Frequency (ch C) : 2480 MHz Transmitter Vnom Vnom Power (ch A) : Conducted: 3.02 dBm Radiated: 3.36 dBm Power (ch B) : Conducted: 3.18 dBm Radiated: 2.93 dBm Power (ch C) : Conducted: 2.93 dBm Radiated: 1.62 dBm Power supply : 1,2 V DC Operating mode : duplex Type of modulation : FHSS Antenna type : Planar inverted F Type antenna Antenna gain : 0 dBi (typ.); +3 dBi (max) ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8867-P-15 Page 5 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Host device : none Classification : Fixed Device Mobile Device (Human Body distance > 20cm) Portable Device (Human Body distance < 20cm) Manufacturer: (if applicable) Name : Street : Town : Country : Additional information: The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. According to attached declaration of manufacturer this device don’t work in master inquiry mode. So we have only one frequency hopping system and the hopping sequence of the master inquiry mode is not very feed. ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8867-P-15 Page 6 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 1,2 V DC Extreme conditions parameters: : test voltage - extreme min.: -- max: -- ETS Dr. Genz GmbH, Germany Registration number: G0M20407-8867-P-15 Page 7 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 Test receiver ESHS 10 Rohde & Schwarz ETS 0002 Test receiver ESVP Rohde & Schwarz ETS 0003 Test receiver ESVS 10 Rohde & Schwarz ETS 0004 Spectrum and network analyzer FSMS 26 Rohde & Schwarz ETS 0005 Test receiver SMV 11 MEB ETS 0006 Test receiver system SME 12 MEB ETS 0008 Antenna Loop antenna Siemens ETS 0009 Antenna ARA 2 MEB ETS 0010 Antenna Loop antenna MEB ETS 0011 Antenna van Veen/ Frame Rohde & S…
