Front Cover Back of Front Cover 1 Welcome to FreeSpeak Enjoy safe and secure mobile communications. With FreeSpeak, talk anywhere. Work, play, exercise, even drive. Experience complete freedom—everywhere! English..............1 Francais............17 Deutsch............18 Italiano.............19 Nederlands.......20 Expanol............21 Danish..............22 Finnish.............23 Swedisch..........24 Safety summary here 2 Safety Information u FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: u This device may not cause harmful interference. v This device must accept any interference received, including interference that may cause undesired operation. Table of Contents Welcome to FreeSpeak...................................................2 FCC Notice....................................................................2 Safety Information.........................................................2 What’s in this Package?.................................................4 What is FreeSpeak?.......................................................5 FreeSpeak Features and Specifications..........................6 Using FreeSpeak with a Mobile Phone...........................7 Using FreeSpeak with non-Bluetooth Phones.............12 Keeping FreeSpeak Operational..................................13 Storing FreeSpeak........................................................14 If You Need Help.........................................................15 3 q What’s in this Package? Your product package includes everything you need to start using FreeSpeak right away. Inside, you’ll find the following items: • One JABRA FreeSpeak headset with custom ear gels for your ears • One adapter unit that is also a charger and holder • Cable to connect the adapter unit to non-Bluetooth phones • The FreeSpeak User Guide 4 FreeSpeak is a Bluetooth− enabled headset for your mobile phone. It fits over your left or right ear and connects to your phone without a cable. The physical connection from FreeSpeak to your phone is radio waves. Bluetooth technology enables wireless connections. Devices interconnect using radio waves. Bluetooth devices operate in the 2.4 GHz spectrum— the same spectrum at which the microwave in your home operates. Stay in touch. Listen and talk on the phone using FreeSpeak wherever you are. While: • Driving, rest the phone on the passenger seat and keep your focus on driving. • Working, keep the phone out of the way. Leave it in your briefcase or desk draw. • Exercising, place the phone someplace nearby while sweating it out. What is FreeSpeak? 5 FreeSpeak Features Max. distance from phone............30 ft. Weight.......................................8 oz or 23g Battery (Lithium polymer): Talk time..................................3 hours Standby.................................96 hours Charge time...................1 to 2 hours Operationing environment..................... 6 uSpecifications Using FreeSpeak with a Mobile Phone Fast Start To get started right away, perform these steps: 1Charge the headset. 2Pair FreeSpeak to the phone. 3Place FreeSpeak over your left or right ear. 4Adjust speaker volume. 5Make the call. 7 FreeSpeak works with all Bluetooth-enabled phones. For the latest information regarding supported phones, access the Jabra web site at www.jabra.com. If you don’t have a Bluetooth-enabled phone, you can still use FreeSpeak. You will need to connect the adapter unit to the mobile phone before using the headset. For details, see Using FreeSpeak with non-Bluetooth Phones. y 8 Charging the Battery The first time you use FreeSpeak, you need to charge the battery. A full charge takes up to two hours. After you charge the battery, pair the headset with the phone, and then engage in conversations. To charge the battery 1Place the headset in the adapter unit. 2Connect the adapter unit to your AC connector. 3Plug the AC connector to the wall. Adapter unit also functions as a charger and holder Note: The built-in lifetime battery is not replaceable. If you experience problems with the battery, return FreeSpeak to the place of purchase. Pairing the headset with the mobile phone enables the phone to identify the headset as a device with which to communicate wirelessly. You need to individually pair the headset with all mobile phones you plan to use. Use the headset with one phone at a time. The pairing code assigned to your phone is fixed at 0000. The combination of unique idenfication assigned to the phone, along with the pairing code, secures your phone conversations. 9 Pairing FreeSpeak with a Mobile Phone To pair the headset 1Make sure the phone is ON/OFF? 2Press and hold WHAT BUTTON ON THE PHONE? for 10 seconds. 3Observe the following action on the headset’s LED: • The LED will glow steadily and then flash Off and then On. 4On the mobile phone, DO WHAT? Would be nice to show a picture of the the GUI here 10 Wearing FreeSpeak FreeSpeak fits on either ear. Simply rotate the ear gel to fit into your left or right ear. To wear the headset 1Hold the headset in your right or left hand. 2Place it over and behind the ear as shown in the illustration. 3Make any fine adjustments. Wear FreeSpeak on the left or right ear Rotate the ear gel to fit the way you want Note: You can change the ear gel by removing and replacing it with the new gel. Your package includes three ear gels. The notch on the ear gel and on the ear piece indicates proper alignment. 11 Use your mobile phone as usual. If your phone supports voice- activated dialing and voice recognition, FreeSpeak initiates calls when you speak into the microphone. Making the Call To make calls using the headset 1Speak the information into the headset’s microphone. 2Engage in conversations as usual. To end a call 1Use your phone’s features for ending a call. 2DO THEY TURN OFF FREESPEAK? Using FreeSpeak with Non-Bluetooth Phones Use FreeSpeak with non-Bluetooth mobile p…

Text truncated - open the document above for the full version.

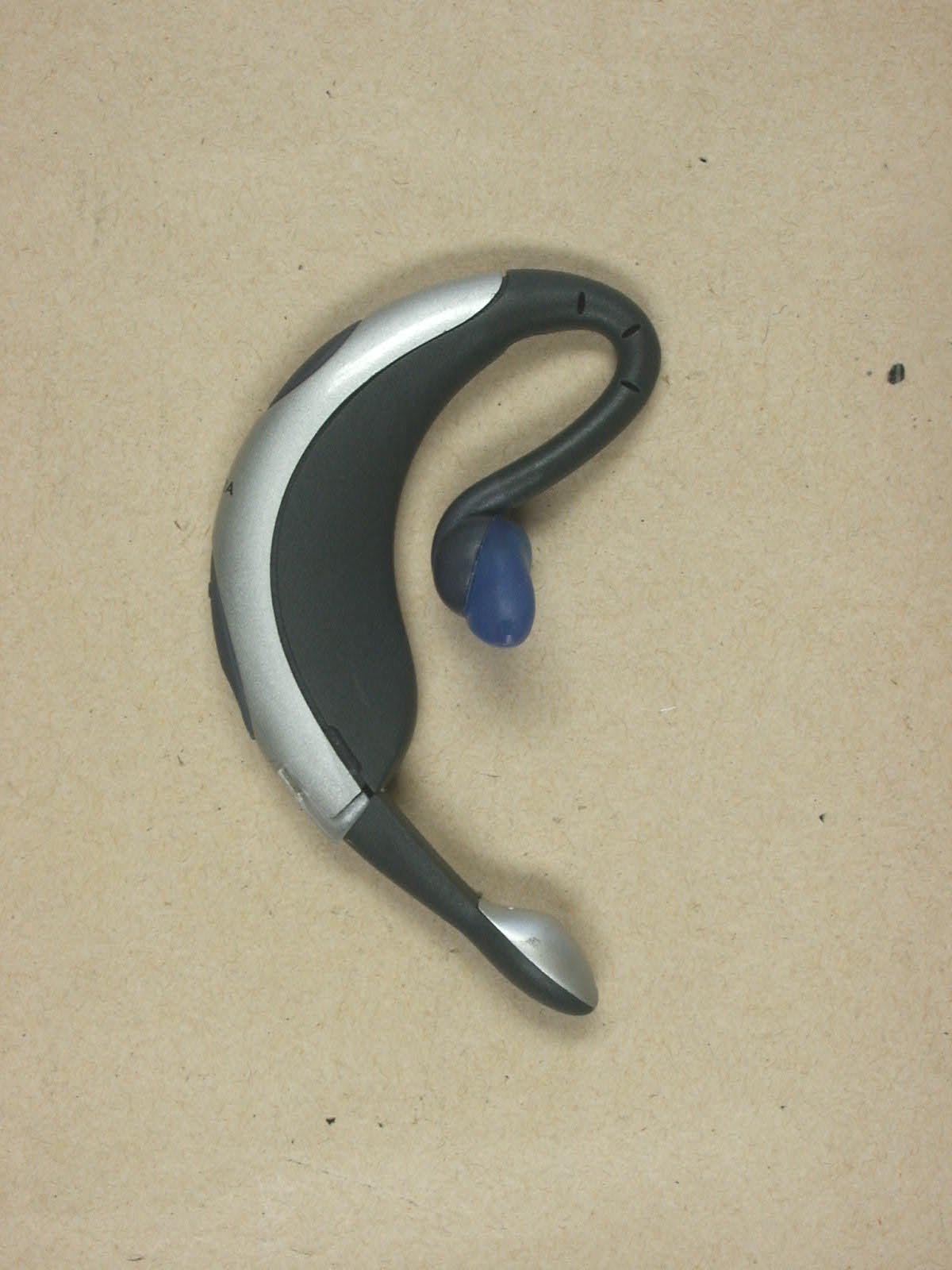

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20208-7017-T-47Page 1 of 15 Appendix A. Pictures Product package including FreeSpeak headset, AC-adapter unit and charger (holder) ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20208-7017-T-47Page 2 of 15 FreeSpeak headset and charger (holder) ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20208-7017-T-47Page 3 of 15 FreeSpeak headset ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20208-7017-T-47Page 4 of 15 FreeSpeak headset ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20208-7017-T-47Page 5 of 15 FreeSpeak headset ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20208-7017-T-47Page 6 of 15 charger (holder)
