BCE-BT500BT500

1 English English Thank you. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1. Charge your headset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2. Turn on your headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 3. Pair it with your phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 4. Wear it how you like it . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 5. How to.... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 6. What the lights mean. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 7. Using a Jabra Bluetooth adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 8. Troubleshooting & FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 9. Need more help? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 10. Taking care of your headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 11. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 12. Certification and safety approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 13. Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 2 English 3 English ! Thank you Thank you for purchasing the Jabra BT500 Bluetooth® Headset. We hope you enjoy it! This instruction manual will get you started and ready to make the most of your headset. Remember, driving comes first, not the call! Using a mobile phone while driving can distract you and increase the likelihood of an accident. If driving conditions demand it (such as bad weather, high traffic density, presence of children in the car, difficult road conditions), pull off the road and park before making or answering calls. Also, try to keep conversations short and do not make notes or read documents. Always drive safely and follow local laws. About your Jabra BT500 1. LED light • Indicates battery level (charging, low or charged) 2. Volume up (+), volume down (-);to mute, press both at once 3. Pairing button – press to put headset into pairing mode 4. Charging socket 5. Answer/end button • Press to turn headset on (blue flash burst indicates success) • Press and hold to turn headset off (blue flash burst indicates success) • Tap to answer or end a call 6. MiniGel™ – rotate 180° to fit left ear. 7. LED light • Indicates mode (pairing, active or standby) 1 What your headset can do Your Jabra BT500 lets you do all this: • Answer calls • End calls • Reject calls • Voice dialing (phone dependent) • Last number redialing • Call waiting • Put call on hold • Mute Specifications • Talk time up to 8 hours/standby time up to 240 hours • Rechargeable battery with charging option from AC power supply, PC via USB cable or car charger (not included) • Weight 19 grams • Operating range up to 33 feet (approx. 10 meters) • Headset and hands-free Bluetooth profiles • Bluetooth specification (see glossary) version 1.2 GETTING STARTED The Jabra BT500 is easy to operate. The answer/end button on the headset performs different functions depending on how long you press it. Charge your headset Make sure that your Jabra BT500 headset is fully charged before you start using it. Use the AC adaptor to charge from a power socket, or charge directly from your PC with the USB cable provided. Connect your headset as shown in fig. 2. When the LED is solid red, your headset is charging. When the LED is green, it is fully charged. 3 2 6 1 5 4 7 Instruction: Duration of press: Tap Press briefly Press Approx: 1 second Press and hold Approx: 5 seconds 4 English 5 English 6 5 4 2 3 Turn on your headset • Press the answer/end button to turn on your headset. • Press and hold the answer/end button to turn off your headset. Pair it with your phone Before you use your Jabra BT500, you need to pair it with your mobile phone. 1. Put the headset in pairing mode • Make sure the headset is on. • Press the pairing button marked . 2. Set your Bluetooth phone to ‘discover’ the Jabra BT500 Follow your phone’s instruction guide. This usually involves going to a ‘setup,’ ‘connect’ or ‘Bluetooth’ menu on your phone and selecting the option to ‘discover’ or ‘add’ a Bluetooth device.* (See example from a typical mobile phone in fig 4. ) 3. Your phone will find the Jabra BT500 Your phone then asks if you want to pair with it. Accept by pressing ‘Yes’ or ‘OK’ on the phone and confirm with the passkey or PIN = 0000 (4 zeros). Your phone will confirm when pairing is complete. In case of unsuccessful pairing, repeat steps 1 to 3. Wear it how you like it The Jabra BT500 is ready to wear on your right ear. If you prefer the left, gently rotate the MiniGel ™ ear piece 180°. See fig. 1. For optimal performance, wear the Jabra BT500 and your mobile phone on the same side of your body or within line of sight. In general, you will get better performance when there are no obstructions between your headset and your mobile phone. How to... Answer a call • Tap the answer/end button on your headset to answer a call. End a call • Tap the answer/end button to end an active call. Reject a call (dependent on your phone supporting this feature) • Press the answer/end button when the phone rings to reject an incoming call. Depending on your phone settings, the person who called you will either be…

Text truncated - open the document above for the full version.

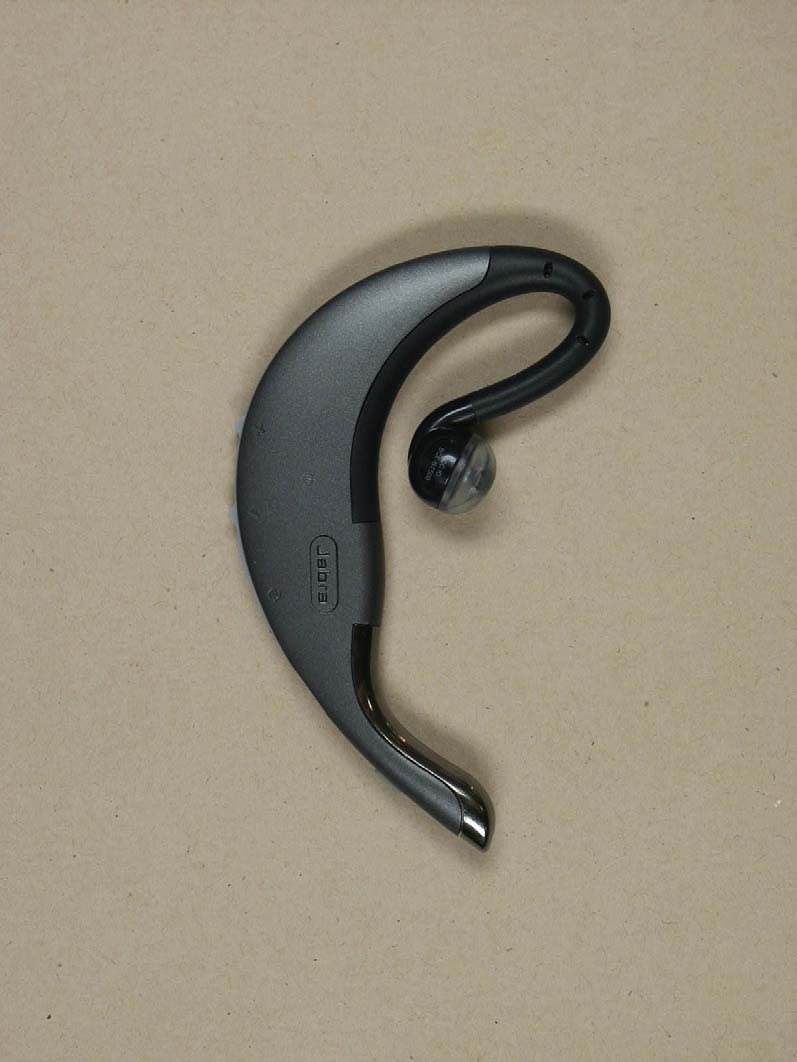

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9367-P-15 Page 1 of 10 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9367-P-15 Page 2 of 10

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9367-P-15 Page 3 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9367-P-15 Page 4 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9367-P-15 Page 5 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9367-P-15 Page 6 of 10

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: BCE-BT500 Test report no.: G0M20504-9367-P-15 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9367-P-15 Page 1 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 3.1 Peak output power 3.2 Equivalent isotropic radiated power 3.3 RF exposure radiated emission 3.4 Antenna requirement 3.5 Out of band radiated emission 3.6 Transmitter radiated emissions in restricted bands 3.7 Spurious emissions (tx) 3.8 Carrier frequency separation 3.9 Number of hopping frequency 3.10 Time of occupancy 3.11 20 dB bandwidth 3.12 Band-edge compliance of RF emissions 3.13 Conducted measurement at (AC) power line ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9367-P-15 Page 2 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 19.04.2005 D. Hoppe Date ETS-Lab. Name Signature Technical responsibility for area of testing: 19.04.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9367-P-15 Page 3 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR- REGISTRATION NUMBER: TTI-P-G 126/96 A CCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : GN Netcom A/S Street : Metalbuen 66 Town : DK-2750 Ballerup Country : Denmark Telephone : +45 72 11 86 86 Fax : +45 72 11 86 89 Contact : Mr. Jørn B. Rasmussen E-mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9367-P-15 Page 4 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 04.04.2005 Date of receipt of test item : 04.04.2005 Date of test : 04.04.2005 – 06.04.2005 1.5 Test item Description of test item : Jabra Headset BT500 Type identification : Jabra BT500 Serial number : without Photos : See Appendix A Technical data Frequency band : 2.4GHz – 2.4835GHz Frequency ( ch A) : 2402 MHz Frequency (ch B) : 2441 MHz Frequency (ch C) : 2480 MHz Transmitter Vnom Power (ch A) : Conducted: 2.93 dBm Power (ch B) : Conducted: 2.51 dBm Power (ch C) : Conducted: 1.82 dBm Power supply : 3.7 V DC (120 V AC/DC Adapter) Operating mode : duplex Type of modulation : FHSS Antenna type : Planar inverted F-Type antenna Antenna gain : 0 dBi (typ.) ; 3 dBi (max.) ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9367-P-15 Page 5 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Host device: none Classification : Fixed Device Mobile Device (Human Body distance > 20cm) Portable Device (Human Body distance < 20cm) Manufacturer: (if applicable) Name : Street : Town : Country : Additional information: The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9367-P-15 Page 6 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 3.7 V DC (120 V AC/DC Adapter) Extreme conditions parameters: : test voltage - extreme min.: -- V AC max: -- V AC ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9367-P-15 Page 7 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP Rohde & Schwarz ETS 0003 Diode power sensor NRV-Z2 Rohde & Schwarz ETS 0004 Spectrum and network analyzer FSMS 26 Rohde & Schwarz ETS 0005 Test receiver SM…
