BCE-BT800BT800

Bluetooth headset User manual English Thank you . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 1.Charge the Jabra BT800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2.Pair (connect) with your Bluetooth headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 3.Basic usage of your Jabra BT800 headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 4.Using the advanced features of Jabra BT800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 5.Using the Jabra BT800 with the Jabra A210 Bluetooth adapter . . . . . . . . . . . 8 6.Choosing wearing preference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 7.Troubleshooting and frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . 9 8.Need more help? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 9.Storage of the Jabra BT800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 10. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 11. Certification and safety approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 12. Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 PART NUMBER 81-00031 UM USA 1 English The Jabra BT800 is designed to be simple to operate with a minimum of control buttons. The answer and end buttons on the headset will provide alternative operations depending on the length of time they are pressed. Thank you for purchasing the Jabra BT800 Bluetooth® Headset, we hope you will be delighted with its operation. The special features such as the back lit display for showing caller ID, various ringing tones and call-vibrate make it easier and more fun to use your headset. Please read the instruction manual to get started and to make best use of the headset’s many features. Using a mobile phone while driving creates a distraction to the driver which may increase the likelihood of an accident. When using the phone while driving, keep conversations short and do not make notes or read documents. Before answering calls consider your circumstances. Pull off the road and park before making or answering calls when driving conditions require (e.g. bad weather, high traffic density, presence of children in the car, difficult junctions or manoeuvres.) Remember, driving comes first, not the call! Abide by local laws. 1 8 6 2 4 5 3 7 1Display shows caller ID, battery status etc. 2Answer button 3End & on/off button 4Jog wheel - volume and menu control 5Mute/menu button/blue LED 6Charging socket 7Pairing stylus switch 8Stylus for activating the pairing function BEFORE USING YOUR JABRA BT800 BLUETOOTH HEADSET Instruction:Duration of press: TapPress briefly PressApprox: 1 second Press and holdApprox: 5 seconds Fig. 1 • Operational features: • Answer call • Call waiting • End call • Put call on hold • Reject call • Mute • Last number redialling • Display caller ID • Automatic volume control • Ringing tones • Storage of phonebook • Call vibrate feature • Supports voice-dialling (subject to phone) • DSP (digital signal processing) for noise cancellation • Synchronise phonebook from the mobile phone (subject to phone) • Rechargeable battery with direct charging option from PC with USB cable • Up to 6 hours talk time and 200 hours standby time • Total weight including battery only 25 grams • Range up to 10 metres (33 feet) • Bluetooth 1 (see Glossary) version 1.2 • Headset and hands-free Bluetooth profiles 2 Your Jabra BT800 is compatible with most Bluetooth mobile phones. You can check whether your phone has Bluetooth capability by visiting your phone manufacturer’s web site or Jabra’s website (www.jabra.com) 23 English English Thank you Drive safely Jabra BT800 Overview ! Summary of features The operation of the basic features in the headset is very similar to your mobile phone. 1.To answer a call • You answer the call directly on the headset with a tap on the answer button • A simple tap on the headset’s answer button will capture and transfer the call to the headset 2.To end a call • A tap on the end button terminates the active call • You can also reject an incoming call directly from the headset. Press the end button and the call will be rejected. Depending on the phone settings, the person who called you will either be forwarded to your voice mail or hear a busy signal 3.To make a call • If you make a call from the mobile phone, the call will (subject to phone settings) be automatically transferred to the headset • Voice dialling is activated with a tap on the answer button. For further information about using this feature, please consult your phone’s user manual. You will get the best results if you record the voice-dialling tag through your headset • Activate last number redial with a press on the answer button on the headset Fig. 2 Use the AC adapter to charge the Jabra BT800 from a power socket. You can also charge the headset direct from your PC using the USB cable provided. The headset is connected to the AC adapter as shown in Fig. 2 Before you get started, you need to pair 3 the Jabra BT800 with your mobile phone. 1.Switch the Jabra BT800 on Turn on the headset by pressing the on/off button 2.Put the headset in pairing mode Put your headset in pairing mode with a press on the stylus switch marked ().Or put the headset in pairing mode from the display menu. – see Section 4 for detai…

Text truncated - open the document above for the full version.

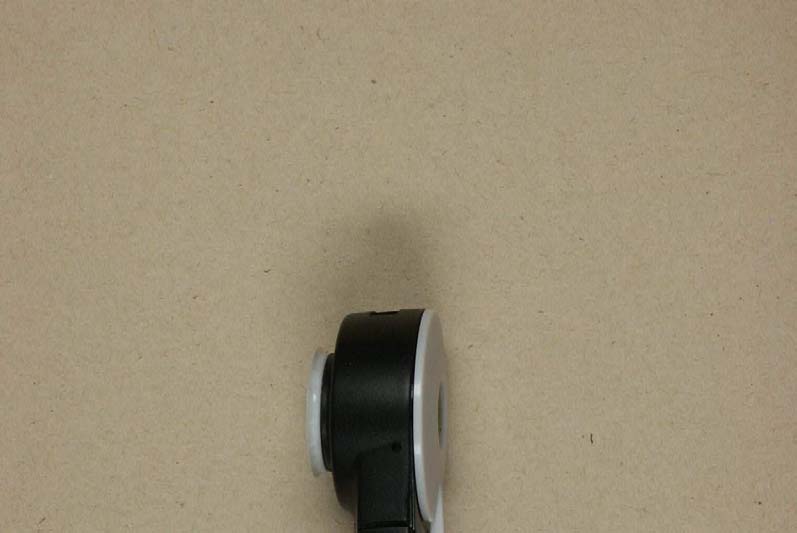

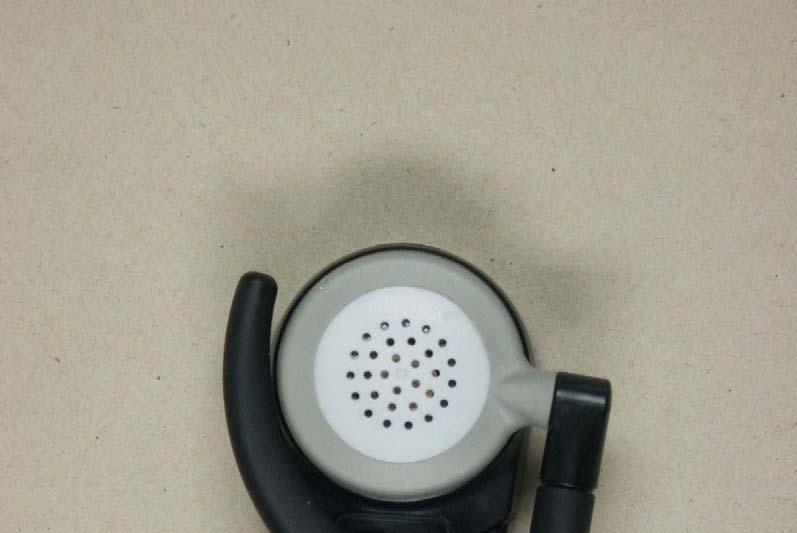

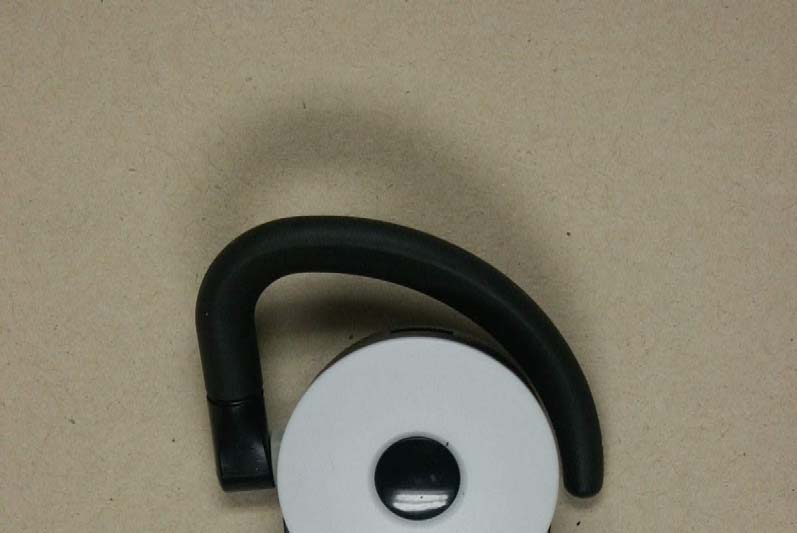

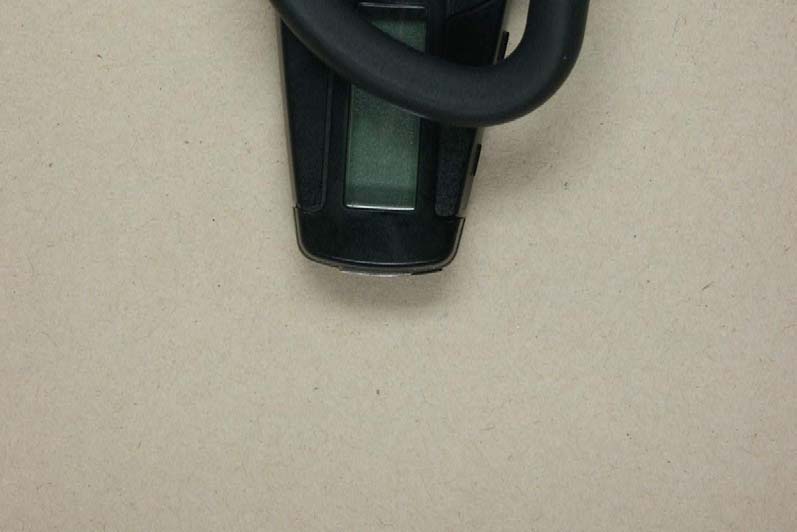

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20406-8769-P-15 Page 1 of 12 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20406-8769-P-15 Page 2 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20406-8769-P-15 Page 3 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20406-8769-P-15 Page 4 of 12
