BCE-BTE7Jabra BTE7 Bluetooth Headset

www.jabra.com/storm NEED MORE HELP? For all support go to jabra.com/support 81-03923 B GET STARTED IN UNDER jabra.com/storm JABRA STORM GET STARTED IN UNDER MINUTES 5 MADE IN CHINA MODEL: BTE7 FCC ID: BCE-BTE7 IC: 2386C-BTE7 © 2014 GN Netcom A/S (North America: GN Netcom US, Inc.). All rights reserved. Jabra ® is a registered trademark of GN Netcom A/S. All other trademarks included herein are the property of their respective owners. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom A/S is under license. (Design and specifications subject to change without notice). Declaration of Conformity can be found on www.jabra.com/CP/US/declarations-of-conformity ENGLISH .....................................1 FRANÇAIS ..................................5 ESPAÑOL ....................................9 PORTUGUÊS ...........................13 1 1 HOW TO CONNECT CONNECT TO MOBILE DEVICE 1. Turn the headset on (set the On/off switch to the On position). 2. Press and hold (3 secs) the Answer/end button until the Bluetooth indicator flashes blue. Pairing mode will be announced in the headset. 3. Wear the headset and follow the voice-guided pairing instructions to pair to your Bluetooth device. CONNECT TO MOBILE DEVICE (USING NFC) 1. Ensure that NFC is enabled on your mobile device. 2. Slowly slide the NFC zone of the headset against the NFC zone of the mobile device until a connection is confirmed. 2 ENGLISH 2 HOW TO WEAR The headset can be worn on the left or right ear. Simple rotate the speaker and twist the eargel to fit your ear. 3 DID YOU KNOW? The Jabra Assist app can help you locate your headset using GPS tracking. Download the Jabra Assist app for your Android TM or iOS device. Battery indicator Bluetooth indicator Answer/end button USB charging port On/off switch Volume up Volume down 3 HOW TO USE 4 On/offSlide the On/off switch Answer call Tap the Answer/end button, or say ‘ Ye s’ End callTap the Answer/end button Reject call Press and hold (1 sec) the Answer/end button, or say ‘No’ Redial last number Double-tap the Answer/end button when not on a call Activate voice dialing (e.g. Siri) Press and hold (1 sec) the Answer/ end button (when not on a call) Speaker volumeTap the Volume up/down buttons Mute/unmute Tap both the Volume up and Volume down buttons at the same time CHARGE THE HEADSET Pull open the charging cover to expose the USB charging port. It takes approx. 2 hours to fully charge the battery.

EN 81-03046 E WARNING! Permanent hearing loss may result from long-term exposure to sound at high volumes. Use as low a volume as possible. Headsets are capable of delivering sounds at loud volumes and high pitched tones. Under certain circumstances, exposure to such sounds can result in permanent hearing loss damage. The volume level may vary based on conditions such as the phone you are using, its reception and volume settings, and the environment. Avoid prolonged use of the headset at excessive sound pressure levels. Please read the safety guidelines below prior to using this headset. You can reduce the risk of hearing damage by following these safety guidelines: 1. Prior to using this product follow these steps • Before putting on the headset, turn the volume control to its lowest level; • Put the headset on; and then • Slowly adjust the volume control to a comfortable level. 2. During the use of this product • Keep the volume at the lowest level possible and avoid using the headset in noisy environments where you may be inclined to turn up the volume; • If increased volume is necessary, adjust the volume control slowly; • Ringing in the ears may indicate that the sound levels are too high; • If you experience discomfort or ringing in your ears, immediately discontinue using the headset and consult a physician; and • Stop using the headset if it causes great discomfort. With continued use at high volume, your ears may become accustomed to the sound level, which may result in permanent damage to your hearing without any noticeable discomfort. SAFETY INFORMATION! • Use of a headset will impair your ability to hear other sounds. Use caution while using your headset when you are engaging in any activity that requires your full attention. • If you have a pacemaker or other electrical medical devices, you should consult your physician before using this product. • This package contains small parts that may be hazardous to children and should be kept out of reach from children. This product is not a toy – never allow children to play with this product. Always store the product out of reach from children. The bags themselves or the many small parts they contain may cause choking if ingested. • Never try to dismantle the product yourself, or push objects of any kind into the products, as this may cause short circuits which could result in a fire or electric shock. • None of the components can be replaced or repaired by users. Only authorized dealers or service centers may open the product. If any parts of your product require replacement for any reason, including normal wear and tear or breakage, contact your dealer. • Avoid exposing your product to rain, moisture or other liquids to protect against damage to the product or injury to you. • If the product has ear tips, the ear tips should rest against, but not enter the ear canal. • Keep all products, cords, and cables away from operating machinery. • Observe all signs and instructions that require an electrical device or RF radio product to be switched off in designated areas such as hospitals, blasting areas, potentially explosive atmospheres, or aircrafts. • If the product overheats, if the product has been dropped or damaged, if the product has a damaged cord or plug, or if the product has been dropped in a liquid, discontinue use and contact GN Netcom, Inc. • Never mount or store the product over any airbag deployment area, as serious injury may result when an airbag deploys. • Do not use in areas where there are explosive hazards. • Dispose of the product according to local standards and regulations. Remember: Always drive safely, avoid distractions and follow local laws! Using the headset while operating a motor vehicle, motorcycle, watercraft or bicycle may be dangerous, and is illegal in some jurisdictions, just as use of this headset with both ears covered while driving is not permitted in certain jurisdictions. Check your local laws. Use caution while using your headset when you are engaging in any activity that requires your full attention. While engaging in any such activity, removing the headset from your ear or turning off your headset will keep you from being distracted, so as to avoid accident or injury. Do not take notes or read documents while driving. EN BUILT-IN BATTERY CARE: Please observe the following if the product contains a battery • Your product is powered by a rechargeable battery. • The full performance of a new battery is achieved only after two or three complete charge and discharge cycles. • The battery can be charged and discharged hundreds of times, but will eventually wear out. • Unplug the charger from the electrical plug and the product when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime. • If left unused, a fully charged battery will lose its charge over time. • Leaving the product in hot or cold places, such as in a closed car in the summer and winter conditions, will reduce the capacity and lifetime of the battery. • Always try to keep the battery between 15°C and 25°C (59°F and 77°F). A product with a hot or cold battery may not work temporarily, even when the battery is fully charged. Battery performance is particularly limited in temperatures well below freezing. Battery warning! • ”Caution” – The battery used in this product may present a risk of fire or chemical burn if mistreated. • Do not attempt to open the product or replace the battery. It is built-in and not changeable. Use of other batteries may present a risk of fire or explosion and the warranty will be terminated. • Only recharge your battery with the provided approved chargers designated for this product. • Dispose of batteries according to local regulations. Please recycle when possible. Do not dispose as household waste or in a fire as they may explode. • Batteries may explode if damaged. CHARGER CARE: Please observe the following if the product is supplied with a ch…

Text truncated - open the document above for the full version.

GN Netcom A/S Lautrupbjerg 7 P.O.Box 201 DK-2750 Ballerup Denmark Tel. +45 45 75 88 88 www.jabra.com  R&D TA Engineer  Direct +86 592 2634855  Mobile  E-mail [email protected]   A GN Great Nordic Company  Att.: Federal Communications Commission / Industry Canada RE.: Letter of agent authorization Hereby we GN Netcom A/S Lautrupbjerg 7, DK-2750 Ballerup, Denmark Telephone: +45 45 75 88 88 Authorizes Eurofins Product Service, Reichenwalde, Germany – Mrs. Sandra Henke to act on our behalf in all matters relating to application for equipment authorization of the product: Jabra BTE7 Bluetooth ® Headset FCC ID: BCE-BTE7 IC ID: 2386C-BTE7 in USA and Canada. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a). This agreement expires 6 months from the current date China 2014-04-16 Lily Zhuang ............................................................... .............................................. .......................................................................................................... (Place) (Date) (Name - print) [Company stamp] .................................................................................................... (Legally valid signature)

GN Netcom A/S Lautrupbjerg 7 DK-2750 Ballerup P.O. Box 99 Phone +45 4575 0000 Co. Reg. No. 15069511 www.jabra.com Att.: Federal Communications Commission RE.: Letter of authorization Hereby GN Netcom A/S authorize Lily Zhuang, Tammy D. Petersen and Tom Ringtved GN Netcom A/S Lautrupbjerg 7, DK-2750 Ballerup, Denmark Telephone: +45 45 75 88 88 to act on our behalf in all matters relating to application for equipment authorization of all our products with brand names: Jabra using the BCE grantee code in USA. Signed Ballerup, 2013-01-18 on behalf of GN Netcom A/S by: Name: Steen Kaiser Position: Manager, Product Certifications

GN Netcom A/S Lautrupbjerg 7 P.O.Box 201 DK-2750 Ballerup Denmark Tel. +45 45 75 88 88 www.jabra.com  R&D TA Engineer  Direct +86 592 2634855  Mobile  E-mail [email protected]   A GN Great Nordic Company  Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality RE: Jabra BTE7 FCC ID: BCE-BTE7 FCC Part 15 Certification Gentlemen, In accordance with §0.457 and §0.459 of CFR 47, GN Netcom A/S hereby requests confidentiality of Block Diagrams, Circuit Diagrams (Schematics), Parts List and Operational Description attached for the subject application. These documents contain detailed system and equipment description and related information about the product, which GN Netcom A/S considers to be proprietary, confidential, and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, GN Netcom A/S considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. China 2014-04-16 Lily Zhuang ............................................................... .............................................. .......................................................................................................... (Place) (Date) (Name - print) [Company stamp] .................................................................................................... (Legally valid signature)

GN Netcom A/S Lautrupbjerg 7 P.O.Box 201 DK-2750 Ballerup Denmark Tel. +45 45 75 88 88 www.jabra.com  R&D Certification Engineer, Global Product Certifications  Direct +45 45 75 91 86  Mobile  E-mail [email protected]   A GN Great Nordic Company  Applicant's declaration concerning Passive NFC Tag Federal Communications Commission / Industry Canada RE: Jabra BTE7 Bluetooth ® Headset FCC ID: BCE-BTE7 IC: 2386C-BTE7 Gentlemen, Herewith we GN Netcom declare that the Jabra BTE7 Bluetooth ® Headset operate with a passive tag (BAPT). According to following conditions set by the Federal Communications Commission for BAPT’s: - the device does not operate in a restricted band, - the BAPT is isolated from the battery, - the field strength level is comparable to regular passive tags, the BAPT is not certified individually. Date of issue: 2014-04-16 Place of issue: Ballerup, Denmark Lily Zhuang GN Netcom A/S

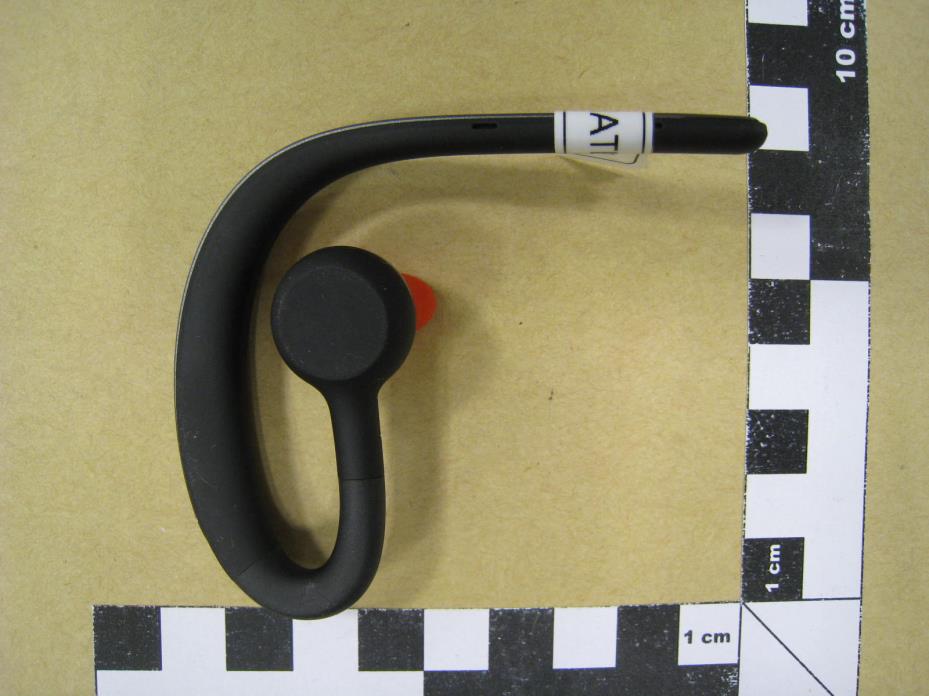

Test Report No.: G0M-1403-3710-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 128 1.1 Photos – Equipment External EUT TOP EUT BOTTOM Test Report No.: G0M-1403-3710-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 128 1.1 Photos – Equipment External EUT SIDE VIEW

(#2) 4 0.15 (#3) 4.56 0.05 (#7) 0.7 0.05 (#9) 0.7 0.05 (#8) 7.08 0.1 (#10) 1.78 0.05 (#1) 3.01 0.05 (#4) 5.74 0.05 (#5) 17.62 0.1 (#6) 18.65 0.15 ABCDEF 8 7 6 5 4 3 2 1 Date of Change:Description of Change: Responsible: 26-Mar-2014 3D drawing update,2D version update Frank Lin Matr. Spec: (See B.O.M.) 3D revision:Created by:Created on:Tool marking:Drawing Scale:Size: Matr. type: PC 1414 BFrank Lin 19-Feb-2014 . . 2:1 A4 GN PDM file: Object type: PART Approved by:Approved on:Units: Projection: 50-06940-WAVE2-EARBUD-RING ver:B.0 Mark Ye 20-Feb-2014 mm Description:Document No:Doc. Revision:Design Status:Page No: 50-07049-wave2-earbud-ring.drw50-07049B Prereleased 1 of 1 CONFIDENTIALITY NOTICE: Process control dimensions are marked: This document is the property of GN Netcom A/S and must be treated as confidential. The document must not be used, or disclosed to any third party, without written permission by GN Netcom A/S. Copyright © 2010 GN Netcom A/S. All rights reserved. IQC/OQC Characteristics for Evaluation: # 5 Cosmetic Standard: GSC.ST.00002 Part Marking.: GSC.PR.00102 Note: 1.All marked area should be covered by paintin, other area should be masked; 2.Painting spec and pad print refer to Agile informaiton; 3:post treatment flow:raw materila-->black base painting-->rubber painting -->pad print

GN Netcom A/S Lautrupbjerg 7 P.O.Box 201 DK-2750 Ballerup Denmark Tel. +45 45 75 88 88 www.jabra.com  R&D TA Engineer  Direct +86 592 2634855  Mobile  E-mail [email protected]   A GN Great Nordic Company  Applicant's declaration concerning User Manual Statements Federal Communications Commission & Industry Canada Re: application for Jabra BTE7 Bluetooth ® Headset FCC ID: BCE-BTE7 IC: 2386C-BTE7 Gentlemen, The North American version of the User Manual for the Jabra BTE7 Bluetooth ® Headset will include the following statements: 15. Certification and safety approvals FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Jabra (GN Netcom) will void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the  R&D TA Engineer  Direct +86 592 2634855  Mobile  E-mail [email protected]   A GN Great Nordic Company  following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device and its antenna must not be co-loaded or operating in conjunction with any other antenna or transmitter. Industry Canada Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The term “IC:” before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. Bluetooth The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Jabra is under license. Other trademarks and trade names are those of their respective owners. China 2014-04-16 Lily Zhuang ................................. .......................... ............................... (Place) (Date) (Name - print) (Legally valid signature) [Company stamp]

Test Report No.: G0M-1403-3710-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 128 1.2 Photos – Equipment internal PCB TOP PCB BOTTOM Test Report No.: G0M-1403-3710-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 128 PCB TOP CONDUCTED SAMPLE PCB BOTTOM CONDUCTED SAMPLE

GN Netcom A/S Lautrupbjerg 7 P.O.Box 201 DK-2750 Ballerup Denmark Tel. +45 45 75 88 88 www.jabra.com  R&D TA Engineer  Direct +86 592 2634855  Mobile  E-mail [email protected]   A GN Great Nordic Company  Antenna Declaration Federal Communications Commission / Industry Canada RE: Antenna Declaration Jabra BTE7 Bluetooth ® Headset FCC ID: BCE- BTE7 IC: 2386C-BTE7 Gentlemen, It's hereby declared that the Jabra BTE7 fulfils the FCC/IC requirements relating to the antenna type. The Jabra BTE7 conforms to FCC recommendation with internal antenna type: Monopole antenna Integrated as wire tracks, being a part of the PCB Total average gain of the antenna is -0.29 dBi (typ.). Frequency range is 2.402MHz to 2.480MHz Date of issue: 2014-04-16 Place of issue: Xiamen, China Lily Zhuang GN Netcom A/S

GN Netcom A/S Lautrupbjerg 7 P.O.Box 201 DK-2750 Ballerup Denmark Tel. +45 45 75 88 88 www.jabra.com  R&D TA Engineer  Direct +86 592 2634855  Mobile  E-mail [email protected]   A GN Great Nordic Company  Applicant's declaration concerning RF Exposure Federal Communications Commission Re:application for FCC ID: BCE-BTE7 - Jabra BTE7 Bluetooth ® Headset We hereby indicate that the product Jabra BTE7 Bluetooth ® Headset is considered to be a portable transmitter for General Population/Uncontrolled exposure. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. A safety statement will be integrated in the user’s manual to provide end-users with transmitter operating instructions for satisfying RF exposure compliance. As Jabra BTE7 is transmitting power 10 mW max, it is excluded from routine environmental evaluation for RF exposure as it does not fall under the product categories listed in Section 2.1093 of the FCC's Rules. Xiamen,China 2014-04-16 Lily Zhuang ................................. .......................... ............................... (Place) (Date) (Name - print) [Company stamp] .................................................................................................... (Legally valid signature)

Test Report No.: G0M-1403-3710-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 128 FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Frequency hopping systems operating within the 2400 – 2483.5 MHz band Report Reference No. ..................... : G0M-1403-3710-TFC247BT-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address ............................................. : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ..................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : GN Netcom A/S Address ............................................. : Lautrupbjerg 7 2750 Ballerup DENMARK Test specification: Standard ........................................... : 47 CFR Part 15C RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description Bluetooth headset Model No. BTE7 Additional Model(s) None Brand Name(s) Jabra Hardware version 28-04125 Firmware / Software version 020 FCC-ID: BCE-BTE7 IC: 2386C-BTE7 Test result Passed Test Report No.: G0M-1403-3710-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 128 Version History Version Issue Date Remarks Revised by 01 2014-04-25 Initial Release Test Report No.: G0M-1403-3710-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 128 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Photos – Equipment External 6 1.2 Photos – Equipment internal 7 1.3 Photos – Test setup 9 1.4 Supporting Equipment Used During Testing 10 1.5 Test Modes 11 1.6 Test Equipment Used During Testing 13 1.7 Sample emission level calculation 15 2 RESULT SUMMARY 16 3 TEST CONDITIONS AND RESULTS 17 3.1 Test Conditions and Results – Occupied Bandwidth 17 3.2 Test Conditions and Results – 20 dB Bandwidth 24 3.3 Test Conditions and Results – Number of hopping frequencies 34 3.4 Test Conditions and Results – Frequency hopping channel separation 38 3.5 Test Conditions and Results – Time of occupancy (Dwell Time) 40 3.6 Test Conditions and Results – Maximum peak conducted power 42 3.7 Test Conditions and Results – AC power line conducted emissions 44 3.8 Test Conditions and Results – Band edge compliance 47 3.9 Test Conditions and Results – Conducted spurious emissions 61 3.10 Test Conditions and Results – Transmitter radiated emissions 68 3.11 Test Conditions and Results – Receiver radiated emissions 71 ANNEX A Transmitter radiated spurious emissions 73 ANNEX B Receiver radiated spurious emissions 121 Test Report No.: G0M-1403-3710-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 128 1 Equipment (Test item) Description Description Bluetooth headset Model BTE7 Additional Model(s) None Brand Name(s) Jabra Serial number None Hardware version 28-04125 Software / Firmware version 020 FCC-ID BCE-BTE7 IC 2386C-BTE7 Equipment type End product Radio type Transceiver Radio technology Bluetooth Operating frequency range 2402 - 2480 MHz Assigned frequency band 2400 - 2483.5 MHz Main test frequencies F LOW 2402 MHz F MID 2441 MHz F HIGH 2480 MHz Spreading FHSS Modulations GFSK, PI/4-DQPSK, 8-PSK Number of channels 79 hopping channels at all Channel spacing 1 MHz Number of antennas 1 Antenna Type integrated Model PCB Manufacturer GN Netcom Gain 0 dBi Manufacturer GN Netcom A/S Lautrupbjerg 7 2750 Ballerup DENMARK Power supply V NOM 3.7 VDC (Lithium Battery) V MIN 3.2 VDC V MIN 4.2 VDC AC/DC-Adaptor Model N/A Vendor N/A Input N/A Output N/A Test Report No.: G0M-1403-3710-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 128 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments AE Bluetooth Tester R & S CBT Signaling *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Test Report No.: G0M-1403-3710-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 128 1.5 Test Modes Mode # Description DH5-Sngl General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping stopped (single hopping channel) Modulation = GFSK Packet type = DH5 Data rate = 1 Mbps Duty cycle = 77 % Power level = Maximum 2DH5-Sngl General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping stopped (single hopping channel) Modulation = π/4-DQPSK Packet type = 2DH5 Data rate = 2 Mbps Duty cycle = 77 % Power level = Maximum 3DH5-Sngl General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping stopped (single hopping channel) Modulation = 8-DPSK Packet type = 3DH5 Data rate = 3 Mbps Duty cycle = 77 % Power level = Maximum DH5-Hop General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping Modulation = GFSK Packet type = DH5 Data rate = 1 Mbps Duty cycle = 77 % Power level = Maximum Test Report No.: G0M-1403-3710-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 12 of 128 2DH5-Hop General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping Modulation = π/4-DQPSK Packet type = 2DH5 Data rate = 2 Mbps Duty cycle = 77 % Power level = Maximum 3DH5-Hop General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping Modulation = 8-DPSK Packet type = 3DH5 Data rate = 3 Mbps Duty cycle = 77 % Power level = Ma…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1403-3710-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 128 1.3 Photos – Test setup TESTSETUP RADIATED MEASUREMENTS TESTSETUP CONDUCTED MEASUREMENTS
