BCE-DC800Motorola DC800

motorola.com Bluetooth ® Tr a n s c e i v e r D R AFT 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola DC800 Bluetooth ® Transceiver. 1 Pairing Button. 2 Power Button. D R AFT 2 Transceiver Indicators Stereo Tr a n s c e i v e r Status LED Indicator Power OffOff Pairing ModeOn (Steady) Pairing Successful 10 rapid flashes Standby (No Music Playing) Flashes every 3-seconds (0.1 seconds ON, 2.9 seconds OFF) Standby (Music Playing) Flashes every 8-seconds (2.0 seconds ON, 6.0 seconds OFF) D R AFT 3 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) The use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. All other product or service names are the property of their respective owners. © Motorola, Inc., 2005. 6809489A95-O D R AFT 5 Contents Introduction. . . . . . . . . . . . . . . . . . . 12 Transceiver Controls . . . . . . . . . . . 14 Using Your Transceiver. . . . . . . . . . 17 Connecting To Your Home Audio System . . . . . . . . . . . . . . . . . . . . . 18 Pairing Your Transceiver with a Bluetooth Headset . . . . . . . . . . . . 23 Transceiver Features . . . . . . . . . . . 29 Transceiver Indicators . . . . . . . . . . 31 Export Law Assurances . . . . . . . . . 34 D R AFT 6 Safety Information Safety Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR DEVICE. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and D R AFT Safety Information 7 (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3). Electromagnetic Interference/Compatibility Note: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility. Facilities To avoid electromagnetic interference and/or compatibility conflicts, turn off your device in any facility where posted notices instruct you to do so. Hospitals or health care facilities may be using D R AFT 8 Safety Information equipment that is sensitive to external radio frequency (RF) energy. Aircraft When instructed to do so, turn off your device when on board an aircraft. Any use of a device must be in accordance with applicable regulations per airline crew instructions. Medical Devices Hearing Aids Some devices may interfere with some hearing aids. In the event of such interference, you may want to consult with your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately D R AFT Safety Information 9 shielded from RF energy. Your physician may be able to assist you in obtaining this information. Industry Canada Notice to Users Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. See Ref IC: RSS 210 Sec. 5.11. The term “IC:” before the certification/registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. See D R AFT 10 Safety Information Ref IC Self-Marking 6(f) and RSP-100 Sec. 4. FCC Notice to Users This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television D R AFT Safety Information 11 reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and the receiver. •Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. D R AFT 12 Introduction Introduction Your stereo Bluetooth ® transceiver connects to your home audio system turning it into a wireless music system! •Listen to music from your phone’s built-in MP3 player over your home audio system speakers •Play CDs on your home audio system and send the music wirelessly to your Motorola Bluetooth Stereo Headset •Use high power Bluetooth (Class 1) which allows you to roam around your house and even as far as 300 feet (10 meters) while listening to music D R AFT Introduction 13 • Play MP3’s from your home computer or laptop and listen to them over your home audio speakers using the M…

Text truncated - open the document above for the full version.

RTX Telecom A/S Strømmen 6 DK-9400 Nørresundby, Danmark Tel : +45 96 32 23 00 Fax : +45 96 32 23 10 CVR : DK 17 00 21 47 Web : www.rtx.dk E-mail : [email protected] Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 11-May-2005 Ref.: MIV To whom it may concern: We, the undersigned, hereby authorize Electronic Technology Systems Dr. Genz GmbH to act in our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by Electronic Technology Systems Dr. Genz GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862. Sincerely, Mads Iversen

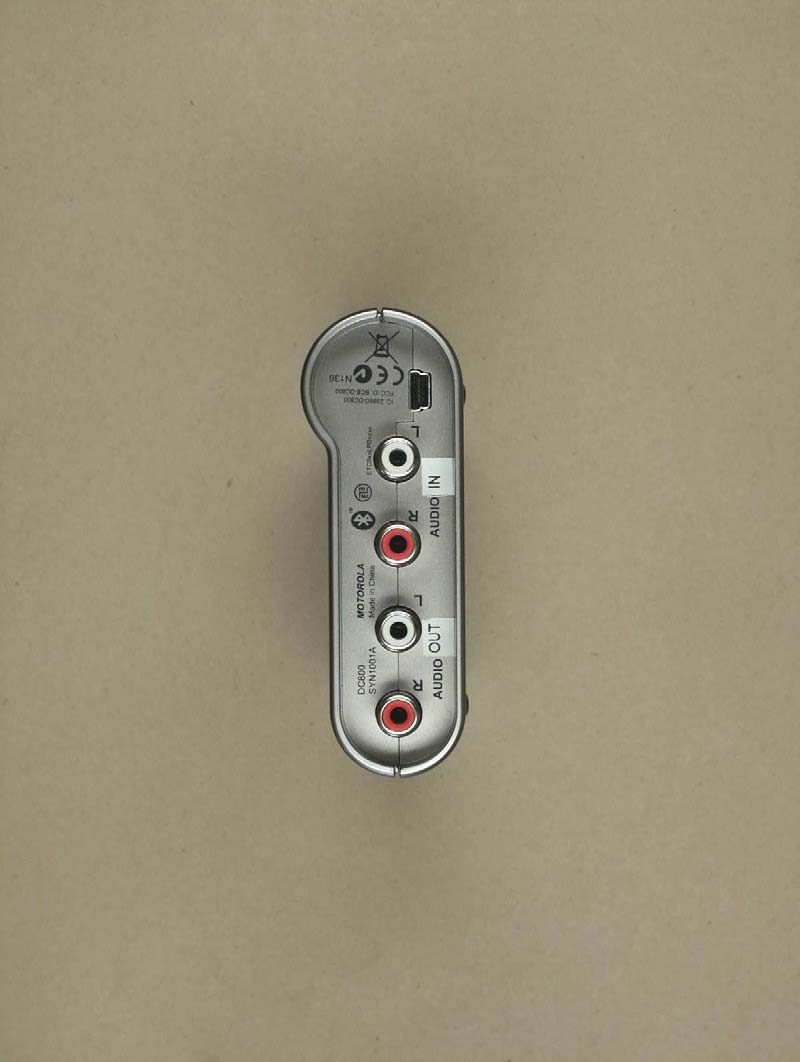

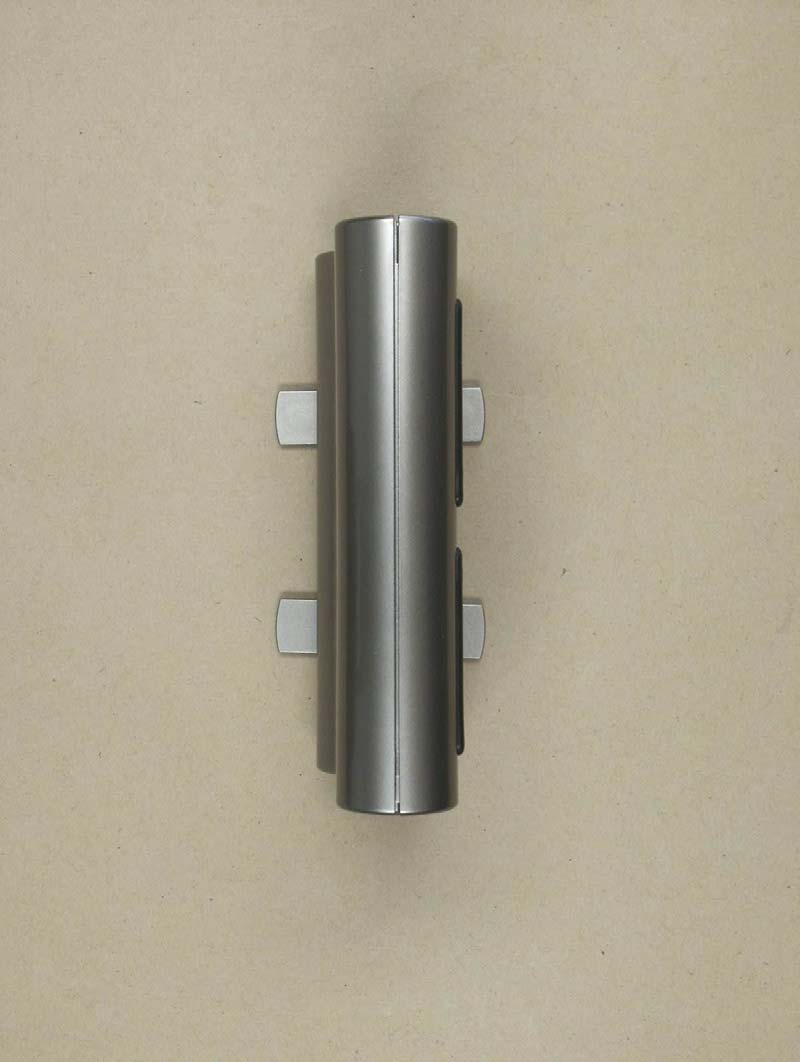

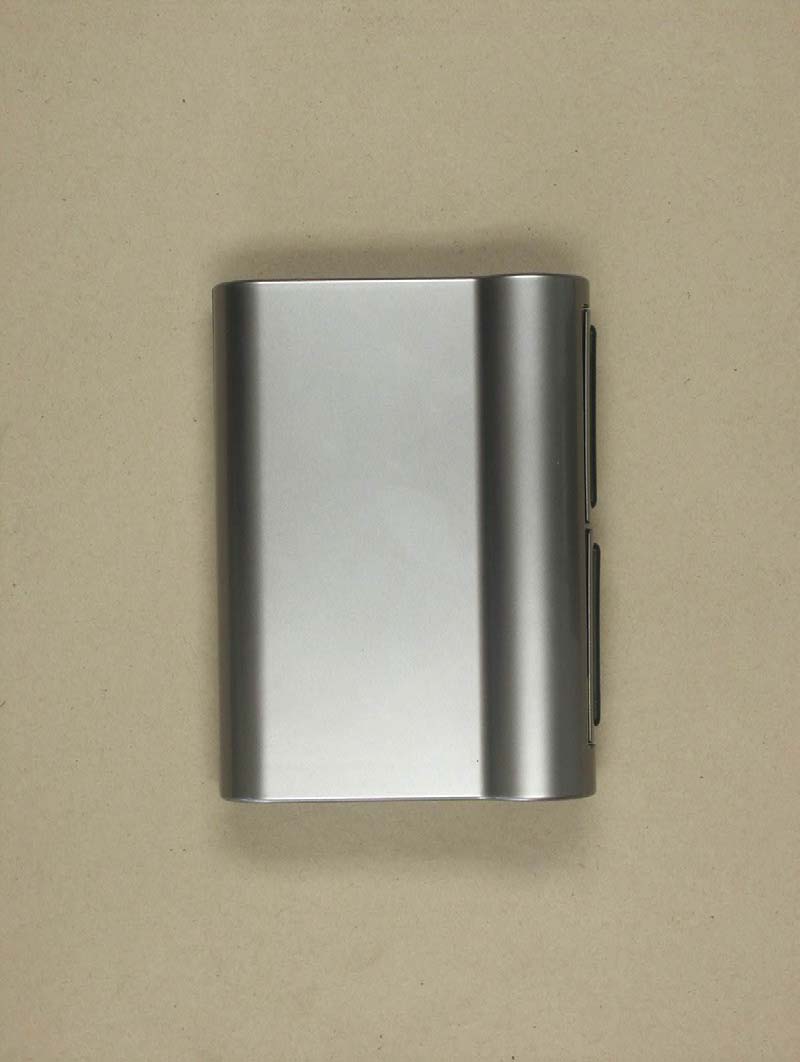

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 1 of 12 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 2 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 3 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 4 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 5 of 12

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 6 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 7 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 8 of 12

___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH RF Exposure Calculation Applicant: GN Netcom Inc. FCC ID: BCE-DC800 The internal / external antennas used for this portable transmitter must provide a separation distance of at least 2,5cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. A safety statement concerning minimum separation distances from enclosure of the Motorola DC800 will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate Max conducted power, Time of occupancy(dwell time), puls-train time can be drawn from the test report no. G0M20505-9466-P-15. Calculations name nature value log value conducducted power 25,53mW 14,07dBm max Antenna gain dBi 3,16 5,00dBi max Antenna gain dBd 2,02 3,05dBd EIRP 80,72mW 19,07 dBm calculated radiated peak power ERP 51,51mW 17,12 dBm Duty cycle correction = 10 log (dwell time / pulse-train time of 100 ms or less) radiated (EIRP) and conducted outputs to the threshold values, using source-based time-averaged power Time of occupancy (dwell time ) 2,91ms puls-train time 6,28ms duty cycle factor 46,34% -3,34 dB max source-based time-averaged power conducted power 11,83mW 10,73 dBm calculated radiated power EIRP 37,41mW 15,73 dBm measured radiated power EIRP mW dBm frequency 2400 MHz low threshold High threshold d<2,5 25mW d<20 375mW general population d>=2,5 50mW d<2,5 156,25mW d<20 937,5mW occupational d>=2,5 375mW Kurt Damm Head of Radio Communication

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: BCE-DC800 Test report no.: G0M20505-9466-P-15 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 1 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 3.1 Peak output power 3.2 Equivalent isotropic radiated power 3.3 RF exposure radiated emission 3.4 Antenna requirement 3.5 Out of band radiated emission 3.6 Transmitter radiated emissions in restricted bands 3.7 Spurious emissions (tx) 3.8 Carrier frequency separation 3.9 Number of hopping frequency 3.10 Time of occupancy 3.11 20 dB bandwidth 3.12 Band-edge compliance of RF emissions 3.13 Conducted measurement at (AC) power line ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 2 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 19.05.2005 D. Hoppe Date ETS-Lab. Name Signature Technical responsibility for area of testing: 19.05.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 3 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR- REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : Motorola Street : 600 N. Hwy 45 Town : Libertyville, IL 60048 Country : USA Telephone : +1 847 523 7121 Fax : +1 847 523 5322 Contact : Mr. Fred Zimbric E-mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 4 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 09.05.2005 Date of receipt of test item : 09.05.2005 Date of test : 09.05.2005 – 12.05.2005 1.5 Test item Description of test item : Bluetooth Stereo Gateway Type identification : Motorola DC800 Serial number : without Photos : See Appendix A Technical data Frequency band : 2.4GHz – 2.4835GHz Frequency ( ch A) : 2402 MHz Frequency (ch B) : 2441 MHz Frequency (ch C) : 2480 MHz Transmitter Vnom Vnom –15 % Vnom +15 % Power (ch A) : Conducted: 12.81 dBm Conducted: 12.89 dBm Conducted: 12.89 dBm Power (ch B) : Conducted: 13.46 dBm Conducted: 13.47 dBm Conducted: 13.43 dBm Power (ch C) : Conducted: 14.07 dBm Conducted: 14.10 dBm Conducted: 14.07 dBm Power supply : 5 V DC 120 V AC (AC/DC Adapter) Operating mode : duplex Type of modulation : FHSS Antenna type : Planar inverted F type antenna Antenna gain : +0 dBi (typ); +5 dBi (max) ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 5 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Host device : none Classification : Fixed Device Mobile Device (Human Body distance > 20cm) Portable Device (Human Body distance < 20cm) Manufacturer: (if applicable) Name : GN Netcom Street : Metalbuen 66 Town : DK-2750 Ballerup Country : Denmark Additional information: The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. According to attached declaration of manufacturer this device don’t work in master inquiry mode. So we have only one frequency hopping system and the hopping sequence of the master inquiry mode is not very fied. ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 6 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 5 V DC 120 V AC (AC/DC Adapter) Extreme conditions parameters: : test voltage - extreme min.: 102 V …

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 9 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 10 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 11 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20505-9466-P-15 Page 12 of 12
