BCE-GN6110GN6110

1 1552-099 Rev.A User guide Bedienungsanleitung Guide d’utilisation Manual del usuario Guia do utilizador Istruzioni d’uso Gebruikershandleiding Brugsanvisning Bruksanvisning Käyttöohje UK D F ES P I NL DK S FIN 2 xx xx xx xx xx xx xxx xxx xxx xxx xxx GN6110_contents_EU_21-10-03.indd 123-10-2003, 09:39:19 23 English – GN 6110 user guide This user guide provides you with information on setting up, using and maintaining your GN 6110. CONTENTS 1. Product information 1.1 GN 6110 – what’s in the box 1.2 Parts and signatures 2. Assembling your GN 6110 2.1 Setting up for desk telephone use Connecting cords Charging headset Clear dial tone adjustment 2.2 Setting up for mobile telephone use Pairing 3. Operating the GN 6110 3.1 Operation – with desk telephone 3.2 Operation – with mobile telephone 4. Additional functionality and features 4.1 Volume settings and functions 4.2 Wearing and wearing styles 4.3 Setting up your GN 1000 RHL (accessory) 4.4 Operation with your GN 1000 RHL (accessory) 4.5 Battery charging 4.6 Pairing your headset to the desk telephone 4.7 Reset 4.8 Audio and visual indicators 5. Frequently asked questions 6. Cleaning, safety and maintenance 1. Product information Congratulations on purchasing the GN 6110, which consists of a base and headset. The GN 6110 accepts calls from both your desk and mobile phone, letting you answer/make a call from either your desk or mobile phone via your headset. If using your headset for a call from your desk phone, an incoming call from your mobile phone will not be accepted by your headset. If using your headset for a call from your mobile phone, an incoming call from your desk phone will not be accepted by your headset. To fully benefi t from your GN 6110, follow the instructions in this user guide step by step. 1.1 GN 6110 – What’s in the box 1 GN 6110 headset, with built-in rechargeable battery 2 GN 6110 base (connectivity unit) 3 Connection cord for telephone connection 4 Power adapter with cord 5 Quick Set Up guide 6 User guide 7 Cord management strips 8 Headset travel charger (90-240 V) 3 4 6 5 7 8 2 1 GN6110_contents_EU_21-10-03.indd 2-323-10-2003, 09:39:20 45 1.2 GN 6110 – Parts and signatures 1 Power adapter socket 2 Telephone socket 3 Handset socket 4 Hook switch [AUX] socket (accessory) 5 Additional functionality port 6 Volume match dial 7 Microphone volume dial 8 Reset button 9 Clear dial tone termination switch 10 Base Multifunction Button (MFB) 11 Pairing indicator 12 Battery indicator 13 On-line indicator 14 Charging cradle 15 Headset release button 16 Headset boom arm 17 Earhook 18 Charging port 19 Speaker 20 Volume buttons 21 Headset Multifunction Button (MFB) 22 Microphone 23 Headset indicator 2. Assembling your GN 6110 First assemble your GN 6110 to work with your desk telephone, and then set it up to work with your mobile phone. The GN 6110 supports the GN 1000 Remote Handset Lifter for desk telephones as well as newer telephones with built-in electronic hook switches. See Section 4.3 for hook switch set up instructions and use. 2.1 Setting up for desk telephone use Connecting cords To set up your GN 6110, connect the cords by completing the following instructions: 1. Connect the power adapter cord to the socket marked 2 [A]. All of the base’s indicators will fl ash once when power is connected. 2. Unplug your telephone’s handset from the handset port on the bottom of your tele- phone and plug its cord into the base’s socket marked 0 . [C] 3. The blue colored cord will go from the blue socket on the base back to the now free hand- set port. [B]. 4. Place all cords into the base’s slots to ensure a fully functional product. [D] G F E D C B A AUX 2 1 16 12 10 17 6 22 3 4 14 11 7 8 15 19 21 18 20 23 13 5 9 AUX A B C D E AUX GN6110_contents_EU_21-10-03.indd 4-523-10-2003, 09:39:21 67 Note: For your convenience, you may also feed the telephone cord through the base’s right or left slot, depending if your desk telephone is positioned to the right or left of the base. 5. Use the cord management strips to fasten and organise the cords. [E] Charging headset Before using your headset, charge it for a minimum of two hours. You may charge the headset by placing it in the base or with the travel charger cord. During initial (and subsequent) charging, you may con- tinue to use your desk telephone as normal. See Section 4.5 for full details on charging batteries and the battery charge level indication. Pairing of headset to the desk telephone and verifying pairing The headset and the base in their original product box have been factory-paired to ensure proper functioning of your GN 6110. You do not need to pair these two devices, and you may now proceed to the Clear dial tone adjustment section. If original pairing is lost (by resetting the base, changing your headset or changing your base), you will have to pair your headset to the base again. You may also verify pairing between the headset and base at any point (except during telephone conversations). See Section 4.6 for these instructions. Clear dial tone adjustment Desk telephones operate on a range of standards. In order for your GN 6110 to work with your desk telephone and to hear a clear, crisp dial tone, you must set the correct dial tone setting. Consult the inside back cover of this user guide for the most common telephone models and settings. Complete the following instructions to set the correct dial tone adjustment: 1. Open the compartment cover on the bottom of the base and locate the termination switch [A]. 2. Put on your headset and press the base’s Multifunction but- ton. An audible tone will shortly be heard. 3. Lift the telephone’s handset from the cradle and listen for a dial tone in your headset. 4. If there is no dial tone or it is not clear, stepwise slide the termination switch through all 7 settings (along the A-G range), listening for the clearest possible dial tone. If the dial tone is just as clear in position A as in position G, leave the switch in position A. …

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH - ETS - STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Tel: 033631 888 000 FAX: 033631 888660 BZT ETS CERTIFICATION GMBH Mr. Dieter Griep / Mr. Andreas Herrmann Storkower Str. 38c 15526 Reichenwalde b. Berlin GERMANY IHR ZEICHEN / YOUR REF. IHR SCHREIBEN / YOUR INFORM. UNSER ZEICHEN / OUR REF. DATUM / DATE am 21-11-2003 Subject: Application for TCB Certification Applicant: GN Netcom Equipment: GN6110 FCC ID: BCE-GN6110 Dear Sirs, Submitted herewith, on behalf of GN Netcom, is an application for certification under FCC Rule 15 of the following equipment: FCC ID: BCE-GN6110 Attached are the 731Form, Confidentiality request letter, test report (TestRpt1=test data, TestRpt2=test plots), RF Exposure (SAR Measurement Report), FCC ID label and label location information, test setup photographs, internal and external photographs, operational description, part’s list, block diagrams, schematics and user manual. In accordance with 0.459 of CFR 47 GN Netcom hereby requests confidentiality of all Block Diagrams, Circuit Diagrams (Schematics), Parts List and Operational Description (see attached Confidentiality Request Letter) for the subject application. Should you have any questions or comments concerning the above, please contact the following e-mail addresses: [email protected] and [email protected] Best Regards Electronic Technology Systems Dr. Genz GmbH Storkower Strasse 38c 15526 Reichenwalde bei Berlin German y Axel Müller ___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974

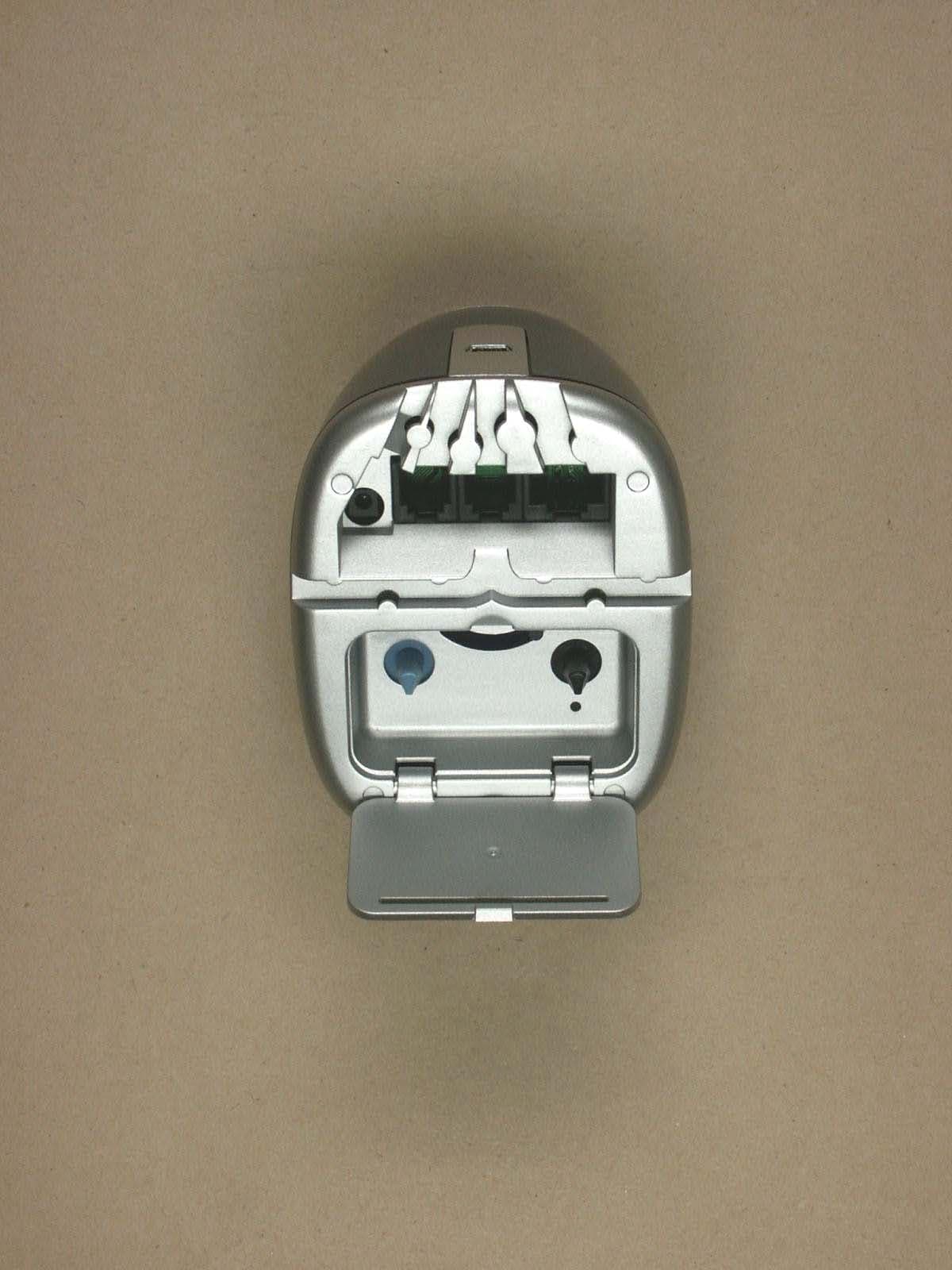

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 1 of 14 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 2 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 3 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 4 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 5 of 14

Actual label for USA GN 6110 Label location

LISTED ITE E210538 FCC ID: BCE-GN6110 FCC: 1LSTXNANGN6110 IC: 2386-GN6110

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 6 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 7 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 8 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 9 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 10 of 14

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: BCE-GN6110 Test report no.: G0M20310-8275-P-15 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 1 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4General Test Procedure 3Test Results ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 2 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Futhermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample posseses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 06.11.2003N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 06.11.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 3 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITED Certificate Number 1983-01 1.3Details of approval holder Name: GN Netcom A/S Street: Metalbuen 66, P.O.Box 201 Town: DK-2750 Ballerup Country: Denmark Telephone: +45 7211 8686 Fax: +45 7211 8689 Contact: Mr. Jørn B. Rasmussen Telephone: +45 7211 8686 E-mail: [email protected] ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 4 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 27.10.2003 Date of receipt of test item: 27.10.2003 Date of test: 27.10.2003-30.10.2003 1.5Test item Description of test item:Bluetooth audio gateway Type identification: GN6110CU Serial number: without Photos: See Appendix A Technical data Frequency band: 2.4GHz – 2.4835GHz Frequency ( ch A): 2402 MHz Frequency (ch B): 2441 MHz Frequency (ch C): 2480 MHz TransmitterUnom Power (ch A): Conducted: 0,97 dBm Power (ch B): Conducted: 1,29 dBm Power (ch C): Conducted: 1,85 dBm Vnom Vnom –15 % Vnom +15 % Power (chA) : Radiated: 2,10 dBmRadiated: 2,09 dBmRadiated: 2,16 dBm Power (ch B) : Radiated: -0,59 dBmRadiated: -0,53 dBmRadiated: -0,55 dBm Power (ch C) : Radiated: 0,38 dBmRadiated: 0,57 dBmRadiated: 0,37 dBm Power supply : 7,5 V DC (120 V AC/DC Adaptor) Operating mode: duplex Type of modulation: FHSS Antenna gain: 0 dBi ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 5 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Manufacturer: (if applicable) Name: Street: Town: Country: Additional information:The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronisation procedure and other parameters are determined by Bluetooth Core Specification. ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 6 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests  performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa Details of power supply: 7,5 V DC(120 V AC/DC Adaptor) Extrem conditions parameters:: test voltage - extrememin.:102 V max: 138 V ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 7 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Measurement device:Type:Manufacturer: ETS 0001Test receiverESHS 10Rohde&Schwarz ETS 0002Test receiverESVPRohde&Schwarz ETS 0003Test receiverESVS 10Rohde&Schwarz ETS 0004Spektrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005Test receiverSMV 11MEB ETS 0006Test receiver systemSME 12MEB ETS 0007Spectrum analyzerPSA-65AAvcom ETS 0008AntennaLoop antennaSiemens ETS 0009AntennaLoop antennaMEB ETS 0010AntennaLoop antennaMEB ETS 0011Antennavan Veen/ FrameETS ETS 0012AntennaHK 116Rohde&Schwarz ETS 0013AntennaHL 223Rohde&Schwarz ETS 0014AntennaHL 025Rohde&Schwarz ETS 0015AntennaHL 025Rohde&Schwarz ETS 0016AntennaVHAPSchwarzbeck ETS 0017AntennaVHAPSchwarzbeck ETS 0018AntennaUHAPSchwarzbeck ETS 0019AntennaUHAPSchwarzbeck ETS 0020Anten…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 11 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 12 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 13 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20310-8275-P-15Page 14 of 14
