BCE-GN9300USGN9300 UPCS Handset

For more information and technical specifications see Guide for additional functions: • Additional settings via the LCD display • Conference calls • Wearing styles • Audio/visual indicators • Trouble shooting • GN 1000 remote handset lifter • Installation on phones with headset port Pour plus d`information et specifications techniques voir Guide des fonctions additionelles: • Réglages complémentaires via l’afficheur LCD • Conférence téléphonique • Comment porter le micro-casque • Indicateurs sonores et voyants • Dépannage • Levier de décroché à distance GN 1000 • Installation sur les téléphones dotés d’un connecteur “micro-casque” Para más informacíon y especifica- ciones técnicas, consulte la Guía adicionales: • Opciones adicionales disponibles en la pantalla LCD • Llamadas de conferencia • Modelos de sujeción • Indicadores de audio y visuales • Solución de problemas • Descolgador remoto GN 1000 • Instalación en teléfonos con puerto para microcasco 81-00105 A©2005 GN Netcom • All rights reserved. www.gnnetcom.com GN Netcom (UK) Ltd. Sales office Runnymede House 96/97 High Street, Egham Surrey TW20 9HG United Kingdom Tel: + 44 (0) 1784 220140 Fax: + 44 (0) 1784 220141 www.gnnetcom.com GN Netcom S.A. Parc d’Activités du Pas du Lac 10, Avenue Ampère 78180 Montigny le Bretonneux France Tel: +33 1 30 58 30 31 Fax: +33 1 30 45 22 75 www.gnnetcom.fr GN Netcom Ibérica S.A Avda. de España, 97 - 13 28230 Las Rozas (Madrid) Spain Tel: +34 91 639 80 64 Fax: +34 91 638 90 71 www.gnnetcom.es GN Netcom, Inc. 77 Northeastern Boulevard Nashua, NH 03062 USA Tel: (800) 826 4656 Tel: +1 603 598 1100 Fax: +1 603 598 1122 www.gnnetcom.com/US/EN GN Netcom, Inc. 77 Northeastern Boulevard Nashua, NH 03062 USA Tel: (800) 826 4656 Tel: +1 603 598 1100 Fax: +1 603 598 1122 www.gnnetcom.com/US/EN GN Netcom, Inc. 77 Northeastern Boulevard Nashua, NH 03062 USA Tel: (800) 826 4656 Tel: +1 603 598 1100 Fax: +1 603 598 1122 www.gnnetcom.com/US/EN Page 1 Page 16 GN 9350 English Guide for basic set-up and use Français Guide d’installation et d’utilisation abrégé Español Guía de configuración y uso básicos ' , * + ) - ( '& / . Overview headset 1 Description micro-casque [1] Micro [2] Perche micro (télescopique) [3] Voyant “en ligne” [4] Réglage volume et fonction Secret [5] Touche Conversation [6] Ecouteur [7] Batterie supplémentaire [8] Serre-tête [9] Contour d’oreille [10] Contour de nuque Note : vous trouverez une description détaillée des boutons et des fonctions dans le Guide des fonctions additionnelles, chapitre 7. Overview headset [1] Microphone [2] Boom arm (extendable) [3] Link indicator [4] Volume control with mute switch [5] Talk button [6] Speaker [7] Battery pack, extra [8] Headband [9] Earhook [10] Neckband Note: for detailed information about but- tons and functions, please see Guide for additional functions chapter 7. Descripción del microcasco [1] Micrófono [2] Varilla (extensible) [3] Indicador de conexión [4] Control del volumen y conmutador de silencio “mute” [5] Botón de conversación [6] Receptor [7] Paquete adicional de baterías [8] Diadema [9] Gancho para la oreja [10] Sujeción en el cuello Nota: para obtener más información sobre botones y funciones, consulte el capítulo 7 de la Guía de funciones adicionales. | English | Français | Español Descripción microcasco Description micro-casque Page 2 Page 3 11 31 30 29 24 26 27 28 25 12 17 19 13 16 21 20 18 23 22 14 15 Overview base Description de la base Descripción de la base 2 Description de la base [11] Couvercle [12] Berceau de charge du micro-casque [13] Chargeur supplémentaire [14] Réglage de la tonalité [15] Afficheur LCD [16] Port cordon téléphonique [17] Port combiné [18] Port adaptateur secteur [19] Port USB [20] Port indicateur “en ligne” (OLI) [21] Port AUX [22] Touche de couplage [23] Menu de l’afficheur LCD [24] Chargeur batterie [25] Touche mode USB (avec voyant). [26] Voyant Secret [27] Voyant de batterie (4 diodes) [28] Touche mode Téléphone (avec voyant) [29] Cordon adaptateur secteur [30] Cordon USB [31] Cordon téléphonique Descripión de la ase [11] Base [12] Cargador del microcasco [13] Cargador para batería adicional [14] Regulador de tono [15] Pantalla LCD [16] Puerto del cable del teléfono [17] Puerto del microteléfono [18] Toma alimentador [19] Puerto USB [20] Puerto de indicador de “en línea” (OLI) [21] Puerto auxiliar para descolgador GN 1000 [22] Botón de emparejamiento [23] Control de pantalla LCD [24] Torre de carga [25] Botón de modo USB (con indicador) [26] Indicador de silencio “mute” [27] Indicador de batería (4 diodos) [28] Botón de modo telefónico (con indicador) [29] Cable de alimentación de CA [30] Cable del conector USB [31] Cable de teléfono Overview base [11] Base cover [12] Headset charge facility [13] Extra battery charge facility [14] Clear dial tone switch [15] LCD display [16] Telephone cord port [17] Handset port [18] A/C power adapter port [19] USB port [20] Online indicator port (OLI) [21] AUX port [22] Pairing button [23] LCD display control [24] Charge tower [25] USB mode button (with indicator) [26] Mute indicator [27] Battery indicator (4 diodes) [28] Telephone mode button (with indicator) [29] A/C power cord [30] USB connector cord [31] Telephone cord | English | Français | Español Page 4 Page 5 3.1 3.2 3.3 3.4-3.5 3.6-3.7 Setting up Installation Configuración | If your telephone has a separate headset port, please refer to the “Guide for ad- ditional functions” for setting up and using this port. | Si votre téléphone possède un connecteur micro-casque, consultez le Guide des fonctions additionnelles. | Si su teléfono dis- pone de un puerto para microcascos independiente, consulte la ”Guía de funciones adicionales” para configurar utilizar este puerto. 3 | See Guide for additional func- tions for setting up with remote handset lifter functionality and an external OLI. | Voir Guide des fonctions addi- tionnelles pour l’installation avec le levier de dé- croché à distance et un accessoire OLI externe. | …

Text truncated - open the document above for the full version.

Date: 26-Sep-2005 AragornUS DECT Compliance File: US DECT Compliance.docRef.: JTPPage: 1 of 4 This document and the information contained is property of RTX Telecom A/S, Denmark, and should be regarded as confidential. Unauthorized copying is not allowed. The information in this document is believed to be correct at the time of writing. RTX Telecom A/S reserves the right at any time to change said content, circuitry and specifications. UPCS / US-DECT Compliance GN9300 The RTX Telecom DECT implementation is according to mandatory requirements in ETSI EN 300 175-1 to EN 300 175-8 and EN 301 406. With reference to FCC part 15 (released on November 5, 2004) following sections are already fulfilled by DECT standard or have been changed to meet FCC requirements (marked new): Section 15.319(c) Transmit power has been reduced compared to DECT in order to meet this requirement (new). Section 15.319(d) Transmit power has been reduced compared to DECT in order to meet this requirement (new). Section 15.319(e) Antenna gain is below 3dBi. Section 15.319(f) According to DECT the devices already stop transmission in case of no data to transmit or in case of internal failure. Section 15.323(a) In the band 1920 – 1930 MHz, 5 channels are defined. The defined center frequencies are: 1921.536, 1923.264, 1924.992, 1926.720 and 1928.448MHz (new). Section 15.323(c)(1) Frame length is 10ms. The portable part monitors the combined spectrum and time slot one frame just before initiating any transmission. Both receive and transmit slot will be monitored (new). Section 15.323(c)(2) Monitoring threshold is 30dB above thermal noise (new). Section 15.323(c)(3) A duplex connection on a frequency and timeslot pair is kept for maximum 8 hours (new). Section 15.323(c)(4) According to DECT when establishing a duplex connection, the initialing transmission from PP must be acknowledged by FP within 10ms. During an established duplex connection system identity is transmitted by both PP and FP at regular intervals. If system identity is not received within a period of 5 seconds by either party, transmission is stopped. A simplex connection (dummy bearer) will stay on a frequency and timeslot for maximum 30 seconds (new). Date: 26-Sep-2005 AragornUS DECT Compliance File: US DECT Compliance.docRef.: JTPPage: 2 of 4 This document and the information contained is property of RTX Telecom A/S, Denmark, and should be regarded as confidential. Unauthorized copying is not allowed. The information in this document is believed to be correct at the time of writing. RTX Telecom A/S reserves the right at any time to change said content, circuitry and specifications. Section 15.323(c)(5) The DECT system defines 12 duplex channels on each frequency, i.e. 60 duplex channels are available in the system. In order for the base station to reach frequency lock in timeslots on separate frequency channels the system must have blind slots. This halves the amount of actual channels, but the blind slots should still count as duplex channels (ANSI-C63.17-1998 draft 1.1 chapter 7.3.1.1 line 25 to 32) hereby enabling the upper monitoring threshold level. All channels (frequency / timeslot combinations) are monitored within 10 seconds. Channels with lowest level below 50dB above the thermal noise may be accessed provided that signal level has not increased 10ms before initial transmission (new). RSSI monitoring resolution is better that 6dB. Both FP and PP only contains one RF transmitter, hence occupied bandwidth are always well below 6MHz. Section 15.323(c)(6) According to DECT another channel is selected. Section 15.323(c)(7) The RSSI monitoring system has a reaction time of less than 35usec. Section 15.323(c)(8) The same antenna is used for RSSI monitoring, receiving and transmission. Section 15.323(c)(9) There is provision for reduction of transmit power. Maximum power is fixed in the low-cost variant set and menu driven in the high-end set. PP reduces transmit power when maximum power is not needed (based on RSSI monitoring). Section 15.323(c)(10) The PP (initiating device) monitors both intended receive and transmit timeslots (new). If the FP (responding device) can decode data correctly (no CRC errors), it responds immediately (after 5ms) in the receiving timeslot of the PP. Section 15.323(c)(11) Provision is not utilized (no connection setup on dummy bearer). Section 15.323(c)(12) Not used. Section 15.323(d) According to DECT. Check RF measurements. Section 15.323(e) Already according to DECT. Section 15.323(f) Date: 26-Sep-2005 AragornUS DECT Compliance File: US DECT Compliance.docRef.: JTPPage: 3 of 4 This document and the information contained is property of RTX Telecom A/S, Denmark, and should be regarded as confidential. Unauthorized copying is not allowed. The information in this document is believed to be correct at the time of writing. RTX Telecom A/S reserves the right at any time to change said content, circuitry and specifications. According to DECT. Check RF measurements. GN9300 Time/Spectrum access. The GN9300 utilizes both single and double slot in compliance with EN 300 175-2. According slot allocations are illustrated in Figure 1a and Figure 1b. For single slot see figure 1a. It is possible to set up connection in slot 0,2,4,6,8 and 10. The single slot connection is used for 8 kHz audio. When a PP sets up a single slot connection it reacts as a 60 duplex system and enables the upper monitoring threshold level. For double slot see Figure1b. It is possible to setup connection in slot 0, 4 and 8. The double slot connection is used for data communication. When a PP sets up a double slot connection it reacts as a 30 duplex system and enables the lower monitoring threshold level. 2301234567891011121314151617181920212223 2301234567891011121314151617181920212223 11121314151617181920212223 RTX FP-TX FP-RX 01234 PP-RX PP-TX Duplex Frame n Frame n+1Frame n-1 FP-RX Blindslot Transmit/ Receive slot FP-TX One beacon in any of these timeslots pr.…

Text truncated - open the document above for the full version.

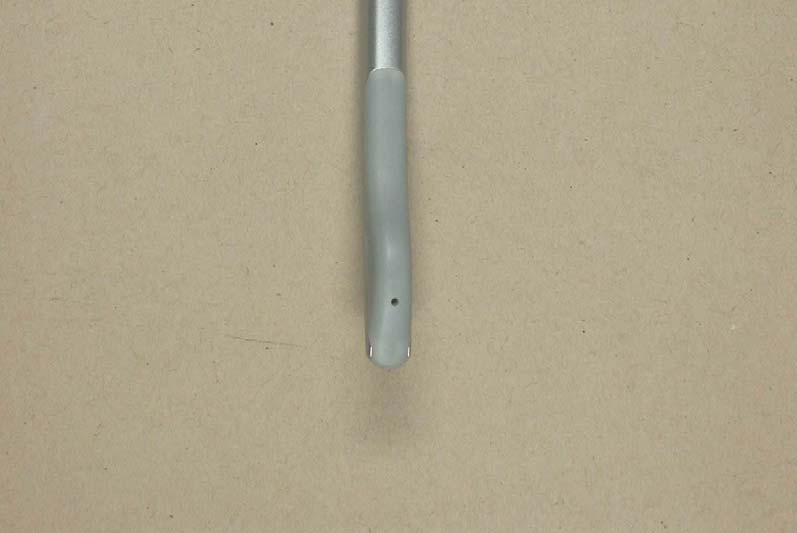

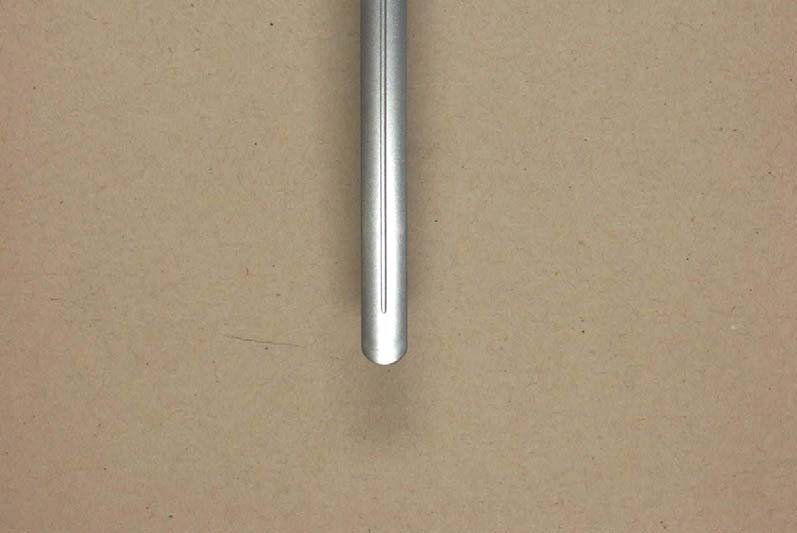

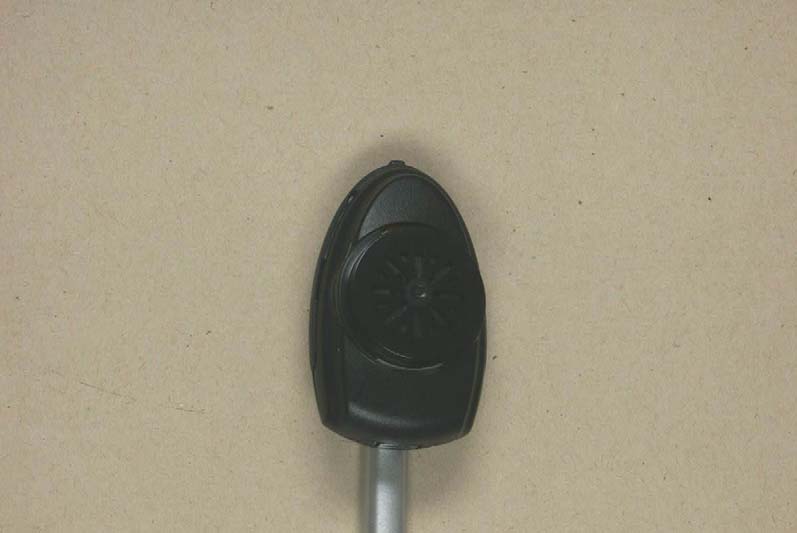

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G0M20509-9850-C-3 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 1 of 5 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G0M20509-9850-C-3 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 2 of 5

GN9300 label placement, headset (PP). GN9300 label placement, base station (FP).

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G0M20509-9850-C-3 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 3 of 5 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G0M20509-9850-C-3 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 4 of 5

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G0M20509-9850-S-2 SAR ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20509-9850-S-2 Page 1 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Dr. Genz GmbH, Germany Registration number: G0M20509-9850-S-2 Page 2 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 20.10.2005 M. Cersovsky Date ETS-Lab. Name Signature Technical responsibility for area of testing: 20.10.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20509-9850-S-2 Page 3 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : GN Netcom A/S Street : Metalbuen 66 Town : DK-2750 Ballerup Country : Denmark Telephone : +45 7211 8653 Fax : +45 7211 8749 Contact : Mr. Jan Hildebrand E-Mail : [email protected] 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G0M20509-9850-S-2 Page 4 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5 Application details Date of receipt of application : 26.09.2005 Date of receipt of test item : 26.09.2005 Date of test : 27.09.2005 1.6 Test item FCC ID : BCE-GN9300US Description of test item : GN9300 UPCS Type identification : GN9300 Serial number : without; Identical prototype Device category : PCB (Licensed Base Station) Technical data TX Frequency range : 1920 - 1930 MHz RX Frequency range : 1920 - 1930 MHz Max. Conducted RF output power : PCS 1900 / 15,77 dBm (37,76 mW) Power supply : 2.4 V DC battery Antenna Tx : integral Antenna RX : integral Additional information : Tx and Rx. antenna are the same. 1.7 Test Results Max. SAR Measurement : 0.00574 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003, December 2003. ETS Dr. Genz GmbH, Germany Registration number: G0M20509-9850-S-2 Page 5 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8 Test standards Standards : - IEEE Std. 1528-2003, December 2003 FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 2 Technical test 2.1 Summary of test results Applicable Configuration Handset (Head) Handset (Body) Headset (Head) X Body Worn Equipment EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Other variables that may play a substantial role in possible biological effects are those that characterize the environment (e.g. ambient temperature, air velocity, relative humidity, and body insulation) and those that characterize the individual (e.g. age, gender, activity level,…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC PART 15 for Isochronous UPCS devices FCC ID: BCE-GN9300US Test report no.: G0M20509-9850-C-4 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, Germany Registration number: G0M20509-9850-C-4 Page 1 of 58 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 TECHNICAL TEST 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Examinations and Test Procedures 2.4.1 Coordination with fixed microwave service, FCC 15.307 (b) 2.4.2 Reference to Subpart B, FCC 15.309 (b) 2.4.3 Labeling requirements, FCC 15.311,15.19(a)(3) 2.4.4 Conducted limits AC Power line, FCC 15.315 , 15.207 2.4.5 Antenna requirement, FCC 15.317, 15.203 2.4.6 Modulation techniques, FCC 15.319 (b) 2.4.7 Emission band width, FCC 15.323 (a); FCC 15.31 (e) 2.4.8 Peak Transmit Power, FCC 15.319 (c) 2.4.9 Power spectral density, FCC 15.319 (d) 2.4.10 Directional gain of the antenna, FCC 15.319 (e) 2.4.11 Automatic discontinuation of transmission, FCC 15.319 (f) 2.4.12 Radio frequency radiation exposure, FCC 15.319 (i) 2.4.13 Monitoring threshold; Least interfered channel; FCC 15.323 (c)(2); (c)(5) (c)(9) 2.4.14 Monitoring of intended transmit window and maximum reaction time, FCC 15.323 (c)(1) 2.4.15 Monitoring band width, FCC 15.323 (c)(7) 2.4.16 Random waiting interval, FCC 15.323 (c)(6) 2.4.17 Duration of transmission, FCC 15.323 (c)(3) 2.4.18 Connection acknowledgement, Unacknowledged transmissions, FCC 15.323 (c)(4) 2.4.19 Selected channel confirmation, Power accuracy, Segment occupancy; FCC 15.323 (c)(5) 2.4.20 Monitoring antenna, FCC 15.323 (c)(8) 2.4.21 Duplex connections, FCC 15.323 (c)(10) 2.4.22 Alternative monitoring interval for co-located devices, FCC 15.323 (c)(11) 2.4.23 Fair access to spectrum related to (c)(10) and (c)(11), FCC 15.323 (c)(12) 2.4.24 Emissions inside and outside the sub-band, FCC 15.323 (d) 2.4.25 Frame period, FCC 323 (e) 2.4.26 Frequency stability, FCC 323 (f) ETS Dr. Genz GmbH, Germany Registration number: G0M20509-9850-C-4 Page 2 of 58 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 3 RESULTS OF EXAMINATIONS AND TESTS 3.1 Coordination with fixed microwave service, FCC 15.307 (b) 3.2 Reference to Subpart B, FCC 15.309 (b) 3.3 Labeling requirements, FCC 15.311, 15.19(a)(3) 3.4 Conducted limits AC Power line, FCC 15.315 , 15.207 3.5 Antenna requirement, FCC 15.317, 15.203 3.6 Modulation techniques, FCC 15.319 (b) 3.7 Emission band width, FCC 15.323 (a) 3.8 Peak Transmit Power, FCC 15.319 (c); FCC 15.31 (e) 3.9 Power spectral density, FCC 15.319 (d) 3.10 Directional gain of the antenna, FCC 15.319 (e) 3.11 Automatic discontinuation of transmission, FCC 15.319 (f) 3.12 Radio frequency radiation exposure, FCC 15.319 (i) 3.13 Monitoring threshold , FCC 15.323 (c)(2); (c)(9) 3.14 Monitoring of intended transmit window and maximum reaction time, FCC 15.323 (c)(1) 3.15 Monitoring band width, FCC 15.323 (c)(7) 3.16 Random waiting interval, FCC 15.323 (c)(6) 3.17 Duration of transmission, FCC 15.323 (c)(3) 3.18 Connection acknowledgement, Unacknowledged transmissions FCC 15.323 (c)(4) 3.19 Selected channel confirmation, Power accuracy, Segment occupancy; FCC 15.323 (c)(5) 3.20 Monitoring antenna, FCC 15.323 (c)(8) 3.21 Duplex connections, FCC 15.323 (c)(10) 3.22 Alternative monitoring interval for co-located devices, FCC 15.323 (c)(11) 3.23 Fair access to spectrum related to (c)(10) and (c)(11), FCC 15.323 (c)(12) 3.24 Emissions inside and outside the sub-band, FCC 15.323 (d) 3.25 Frame period, FCC 323 (e) 3.26 Frequency stability, FCC 323 (f) ETS Dr. Genz GmbH, Germany Registration number: G0M20509-9850-C-4 Page 3 of 58 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interoperate with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration are performed, for certification by FCC. This report is related to FCC Part 15 D applied to UPCS devices of which technology is derived from DECT standard. Tester: 18.10.2005 W. Treffke Date ETS-Lab. Name Signature Technical responsibility for area of testing: 18.10.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20509-9850-C-4 Page 4 of 58 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Tel…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC PART 15 for Isochronous UPCS devices FCC ID: BCE-GN9300US Test report no.: G0M20509-9850-C-3 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, Germany Registration number: G0M20509-9850-C-3 Page 1 of 58 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 TECHNICAL TEST 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Examinations and Test Procedures 2.4.1 Coordination with fixed microwave service, FCC 15.307 (b) 2.4.2 Reference to Subpart B, FCC 15.309 (b) 2.4.3 Labeling requirements, FCC 15.311,15.19(a)(3) 2.4.4 Conducted limits AC Power line, FCC 15.315 , 15.207 2.4.5 Antenna requirement, FCC 15.317, 15.203 2.4.6 Modulation techniques, FCC 15.319 (b) 2.4.7 Emission band width, FCC 15.323 (a); FCC 15.31 (e) 2.4.8 Peak Transmit Power, FCC 15.319 (c) 2.4.9 Power spectral density, FCC 15.319 (d) 2.4.10 Directional gain of the antenna, FCC 15.319 (e) 2.4.11 Automatic discontinuation of transmission, FCC 15.319 (f) 2.4.12 Radio frequency radiation exposure, FCC 15.319 (i) 2.4.13 Monitoring threshold; Least interfered channel; FCC 15.323 (c)(2); (c)(5) (c)(9) 2.4.14 Monitoring of intended transmit window and maximum reaction time, FCC 15.323 (c)(1) 2.4.15 Monitoring band width, FCC 15.323 (c)(7) 2.4.16 Random waiting interval, FCC 15.323 (c)(6) 2.4.17 Duration of transmission, FCC 15.323 (c)(3) 2.4.18 Connection acknowledgement, Unacknowledged transmissions, FCC 15.323 (c)(4) 2.4.19 Selected channel confirmation, Power accuracy, Segment occupancy; FCC 15.323 (c)(5) 2.4.20 Monitoring antenna, FCC 15.323 (c)(8) 2.4.21 Duplex connections, FCC 15.323 (c)(10) 2.4.22 Alternative monitoring interval for co-located devices, FCC 15.323 (c)(11) 2.4.23 Fair access to spectrum related to (c)(10) and (c)(11), FCC 15.323 (c)(12) 2.4.24 Emissions inside and outside the sub-band, FCC 15.323 (d) 2.4.25 Frame period, FCC 323 (e) 2.4.26 Frequency stability, FCC 323 (f) ETS Dr. Genz GmbH, Germany Registration number: G0M20509-9850-C-3 Page 2 of 58 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 3 RESULTS OF EXAMINATIONS AND TESTS 3.1 Coordination with fixed microwave service, FCC 15.307 (b) 3.2 Reference to Subpart B, FCC 15.309 (b) 3.3 Labeling requirements, FCC 15.311, 15.19(a)(3) 3.4 Conducted limits AC Power line, FCC 15.315 , 15.207 3.5 Antenna requirement, FCC 15.317, 15.203 3.6 Modulation techniques, FCC 15.319 (b) 3.7 Emission band width, FCC 15.323 (a) 3.8 Peak Transmit Power, FCC 15.319 (c); FCC 15.31 (e) 3.9 Power spectral density, FCC 15.319 (d) 3.10 Directional gain of the antenna, FCC 15.319 (e) 3.11 Automatic discontinuation of transmission, FCC 15.319 (f) 3.12 Radio frequency radiation exposure, FCC 15.319 (i) 3.13 Monitoring threshold , FCC 15.323 (c)(2); (c)(9) 3.14 Monitoring of intended transmit window and maximum reaction time, FCC 15.323 (c)(1) 3.15 Monitoring band width, FCC 15.323 (c)(7) 3.16 Random waiting interval, FCC 15.323 (c)(6) 3.17 Duration of transmission, FCC 15.323 (c)(3) 3.18 Connection acknowledgement, Unacknowledged transmissions FCC 15.323 (c)(4) 3.19 Selected channel confirmation, Power accuracy, Segment occupancy; FCC 15.323 (c)(5) 3.20 Monitoring antenna, FCC 15.323 (c)(8) 3.21 Duplex connections, FCC 15.323 (c)(10) 3.22 Alternative monitoring interval for co-located devices, FCC 15.323 (c)(11) 3.23 Fair access to spectrum related to (c)(10) and (c)(11), FCC 15.323 (c)(12) 3.24 Emissions inside and outside the sub-band, FCC 15.323 (d) 3.25 Frame period, FCC 323 (e) 3.26 Frequency stability, FCC 323 (f) ETS Dr. Genz GmbH, Germany Registration number: G0M20509-9850-C-3 Page 3 of 58 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interoperate with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Specific Conditions: Usage of the hereunder…

Text truncated - open the document above for the full version.
