BCE-GNELLIPSE24UGN Ellipse

1555-859 rev. C User guide ENG 1 Bedienungsanleitung D 8 Guide d’utilisation F 15 Manual del usuario ES 22 Guia do utilizador P 29 Istruzioni d’uso I 36 Gebruikersshandleiding NL 43 Brugsanvisning DK 50 Bruksanvisning SE 56 Käyttöohje FIN 62 Technical Data 68 ABC DE F G IV III I II V VI VII VIII English GN Ellipse – Box contents A Base unit I Microphone volume control II Telephone termination switch III On-line indicator IV Battery charging indicator B Headset stand C Remote unit V On-line indicator VI Volume control VII Mute button VIII Link button D Stand E Power adaptor F Remote unit battery G Cord with modular plugs 1 2 Assembling the GN Ellipse 1. Disconnect handset cord from telephone and connect it to socket marked 0 at the bottom of base unit (A). Connect cord with modular plugs (G) to handset socket marked 0 on the telephone and to socket marked 1 at the bottom of the base unit. Connect power unit adaptor (E) to socket marked 2 at the bottom of base unit, and then to a power socket. Switch on power. 2. Mount base unit on stand (D) by turning clockwise until secure. The three cords can extend from the front or back of the base unit as you wish. Mount the headset stand (B) on top of the base unit. 3. Insert battery (F) at rear of remote unit (C) by sliding into place until it clicks. 4. Connect headset to bottom of remote unit using the Quick-Disconnect connector. 5. Insert remote unit into base unit. Both sides of base unit can be used. The battery charging indicator (IV) on base unit will light up. This side will be referred to as the front of the base unit. Before setting up GN Ellipse to your telephone 6. The battery for the remote unit is not charged when delivered. Place remote unit with battery in base unit for at least 1 hour before making the adjustments below. It takes 3 hours to fully charge the battery. Note: If your telephone has volume control, set the volume in the middle position. 3 Checking the system 7. Switch on the headset connection by pressing the link button (VIII) on the remote unit. The on-line indicator (III) on front of base unit will light up and the on-line indicator (V) on top of remote unit starts flashing. The system is now working. If the lights are off, the system is in handset mode. Press the link button (VIII) once to switch to headset mode. If the on-line indicator does not flash, recheck assembly from Step 1. Setting up GN Ellipse to your telephone Do not use the Link button during the set-up. Lift of the handset manually (or, if available on your telephone, press the headset button). 8. Put on your headset. 9. Lift the handset of the telephone manually (or, if avail - able on your telephone, press the headset button) and listen for a dial tone in your headset. 10. If there is no dial tone, adjust the telephone termination switch (II) at the rear of base unit. Move from A to G until the dial tone is clear. If the dial tone is just as clear in position A as in G, leave switch in position A. Adjusting microphone volume 11. Put on your headset. Lift the handset of the telephone manually (or, if available on your telephone, press the headset button) and listen for a dial tone in your headset. 12. Call someone and ask the person to help you evaluate the volume of your voice. 13. Adjust the microphone volume control (I) from 1 to 8 by talking in the headset in each position. When the person you are talking to finds the sound level good, you have the correct setting. If the best setting is 7 or 8, you may have to move the telephone termination switch (A-G) to G. Functions on the remote unit Adjusting the volume 14. To turn up or reduce volume in your headset, press successively towards + or – on the volume control (VI) on the remote unit. When the volume reaches maximum or minimum, you will hear a signal in your headset (see Technical Data). 4 Muting the microphone 15. To talk without your caller hearing you, press the mute button (VII) on the remote unit. You are still able to hear your caller. When the microphone is muted, you will hear a signal every 15 seconds in your headset (see Technical Data). Answering calls with the remote unit 16. When you are not at your desk, you can answer incoming calls with the remote unit, if you have installed the GN 1000 RHL supplied by GN Netcom on your telephone. 17. When you receive an incoming call, the remote unit will buzz and the GN 1000 RHL sends a ring tone to your headset (see Technical Data). Press the red link button (VIII) on the remote unit. The GN 1000 RHL will lift the handset from your telephone and connect your call. To hang up, press the link button (VIII) again. Headset/handset switch 18. You can switch between headset and handset by pressing the link button (VIII) on the remote unit. The on-line indicators (III and V) will light up when the system is in headset mode and turn off when in handset mode. Adjusting the buzzer setting 19. You can choose between four different buzzer settings: 1 Max volume 2 Medium volume 3 Minimum volume 4 Buzzer muted To adjust the buzzer, the system must be in handset mode (see step 18). Press simultaneously the upper and lower part of the volume button (VI) and the mute button (VII) at the same time to enter buzzer setting mode. The on-line indicator on the remote unit will light up. Press the upper or lower part of the volume button (VI) to go trough the four available buzzer settings. To leave the buzzer setting mode, stop pressing the buttons when the desired setting has been reached. Within 5 sec - onds, the setting will be stored and the on-line indicator will switch off. Making or receiving calls with the GN Ellipse To fully experience the freedom of a cordless headset, remove the remote unit from the base unit and clip it to your belt or put it in your pocket. You can now move freely up to 150 meters away from the base unit, depending on the environment in your office building. If you move out of transmission range, GN Ellipse lets you know by means of a si…

Text truncated - open the document above for the full version.

1555-859 rev. C User guide ENG 1 Bedienungsanleitung D 8 Guide d’utilisation F 15 Manual del usuario ES 22 Guia do utilizador P 29 Istruzioni d’uso I 36 Gebruikersshandleiding NL 43 Brugsanvisning DK 50 Bruksanvisning SE 56 Käyttöohje FIN 62 Technical Data 68 68 English – Technical Data Power supply: 7,5 V DC 500 mA. Batteries: NiMH (nickel-metal-hydride), 3.6 V 500 mAH. Capacity when fully charged and on-line: min. 12 hours continuous use, without recharging. Capacity when fully charged and off-line: min. 80 hours without recharging. Charging: 3 hours to completely charge a discharged battery. The battery will be charged untill fully charged for as long as it is in charging slot. The battery cannot be overcharged. Life expectancy ranges from 500- 1000 charge/discharge cycles. Transmission/receiving system: According to the DECT standard; 120 digital voice duplex channels: 10 frequency channels with 12 logical channels. Frequency: 1.88 - 1.90 GHz. Transmit power: Max. 250 mW. Range: 15 - 150 meters (depending on the environment). Electro-acoustical data: Reception: AGC controlled volume control -7 to +11 dBPa in 6 steps, each 3 dB. Input voltage min. 10 mV rms, 1kHz. Pos. 1 M-LO Pos. 2 M-HI Pos. 3 E-LS Pos. 4 E-STD Pos. 5 E-HS Pos. 6 E-XHS Pos. 7 CC-LC / Line I Pos. 8 CC-STD / Line II Out at 1 Pa using Profile 00- type 1.6mV / – 56 dBV 2.8 mV / – 51 dBV 7 mV / – 43 dBV 15 mV / – 36 dBV 20 mV / – 34 dBV 35 mV / – 29 dBV 118 mV – 19 dBV 178 mV – 16 dBV In carbon mode the sensitivities are related to a 50-ohm load, others to 1000-ohm. Terminations, plugs and interfaces: Pos. APos. BPos. CPos. DPos. EPos. FPos. G Termination and system selection m-r-r-mr-m-m-rm-m-r-rr-r-m-mm-r-m-rr-m-r-mm-r-r-m carbon mode only All settings are polarity independent. Two 4 pin modular plugs for connection to headset and telephone. DC plug: Diameter 2.4 mm, hole: 0.8 mm. Auxiliary device control (External hook switch device): 8 pin modular plug. Supply; V+: Pin 7, Vground: Pin 2. Output control: Optocoupler; open collector: pin 3, emitter: pin 4. Input signal: Optocoupler LED: Anode: pin 5, cathode: pin 6. Systems user signalling: Visual indications: On-line connection: On base unit: On-line LED illuminated, and flashing at incoming receive signal On remote unit: On-line LED flashing Charging: On base unit: Charge LED illuminated during charging 69 External environment: Operating temperature range: 10°- 40° Celcius Operating humidity range: +5 % RH - +95 % RH Signal sounds: Approvals: GN Ellipse is CE marked according to the provisions of the EMC Directive (89/336/EEC with changes) and the TTE Directive (91/263/EEC with changes) ������������������ ��������������� �������������������������������� ��������������� ��������������� ��������������� ��������������� ��������������� ��������������� ��������������� ��������������� ��������������� ��������������� ��������������� ���������������������������������������� ������������������������������������������������������������������������������ ���������������� ����������� ����������������������������� ������������� ������������� ��������������� ���������������� ������������ ������������������ ��������������� ����� ������������� ��������������� �������������� ����������� �������������� �������������� ������������ ������������� 70 For more information and technical specifications: www.gnnetcom.com GN Netcom, Inc. 77 Northeastern Boulevard Nashua, NH 03062 USA Tel: 1-800-826-4656 Tel: 1-603-598-1100 Fax: 1-603-598-1122 81-00071 C English3 Français7 Español11 North American Declaration & Warranty Déclarations et garantie pour les Etats-Unis, le Canada et l ́Amérique Latine 2 3 English USA Declaration USA FCC part 15 For wireless products and telephones FCC Notice to Users/Product Statements This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Users are not permitted to make changes or modify the device in any way. WARNING:Changes or modifications not expressly approved by GN Netcom will void the user’s authority to operate the equipment. Applies to wireless products only Note: This equipment has been tested and found to comply with the lim- its for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harm- ful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television re- ception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Applies for wireless products with base station only The user must place the base at least 8” (20cm) or more from any per- sonnel and must not be co-loaded or operating in conjunction with any other antenna or transmitter in order to comply with FCC RF exposure requirements. ACTA Required Customer Information For Telephones This equipment complies with Part 68 of the FCC Rules and the require- ments adopted by ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:1LSW4000BGN7170 (see list at the end of this statement). If re- quested, this number must …

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 1 of 13 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 2 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 3 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 4 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 5 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 6 of 13

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-2 Page 1 of 10 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-2 Page 2 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-2 Page 3 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-2 Page 4 of 10

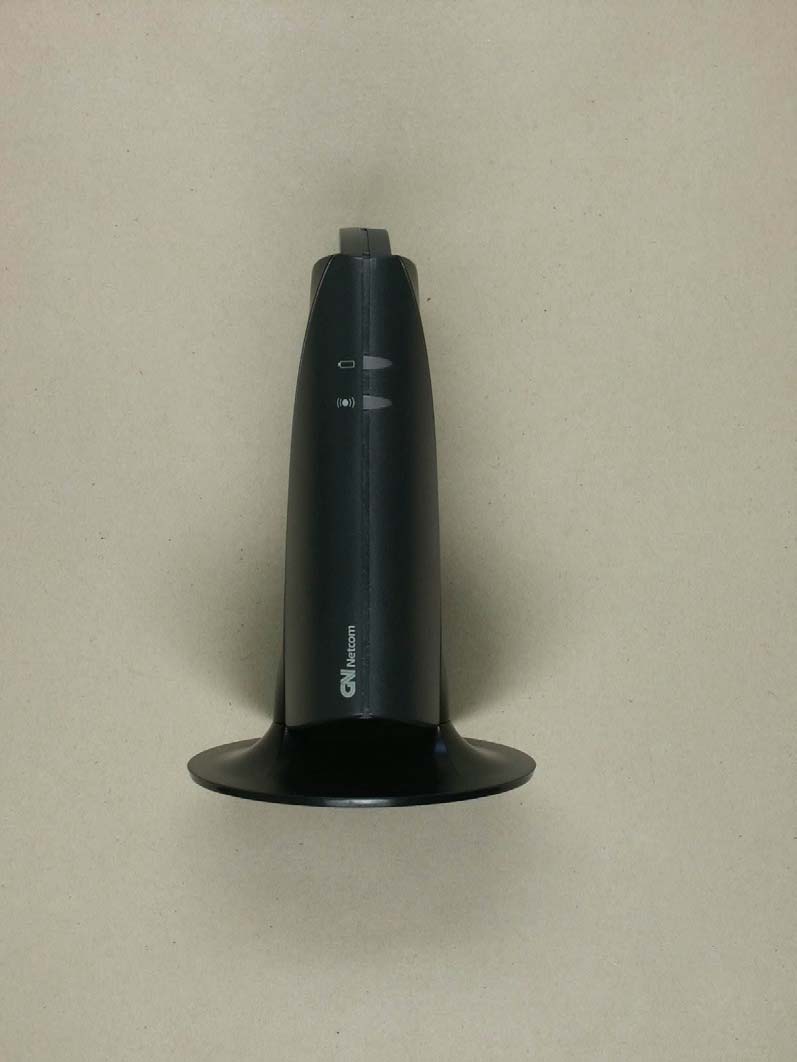

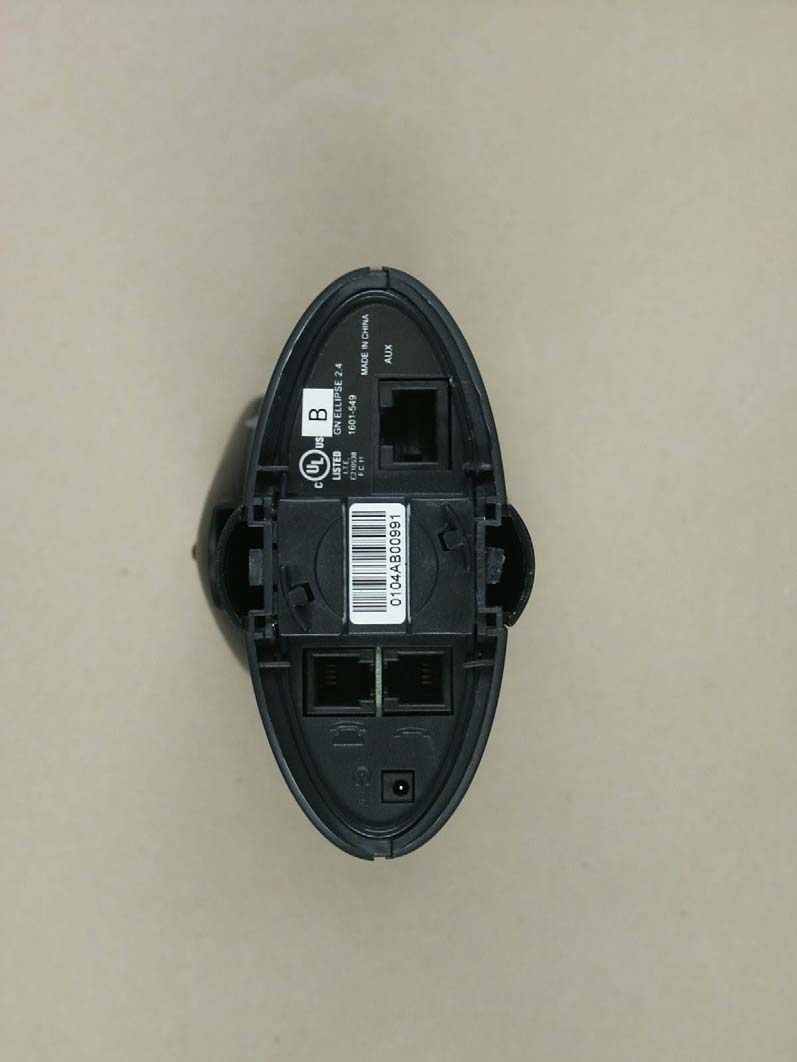

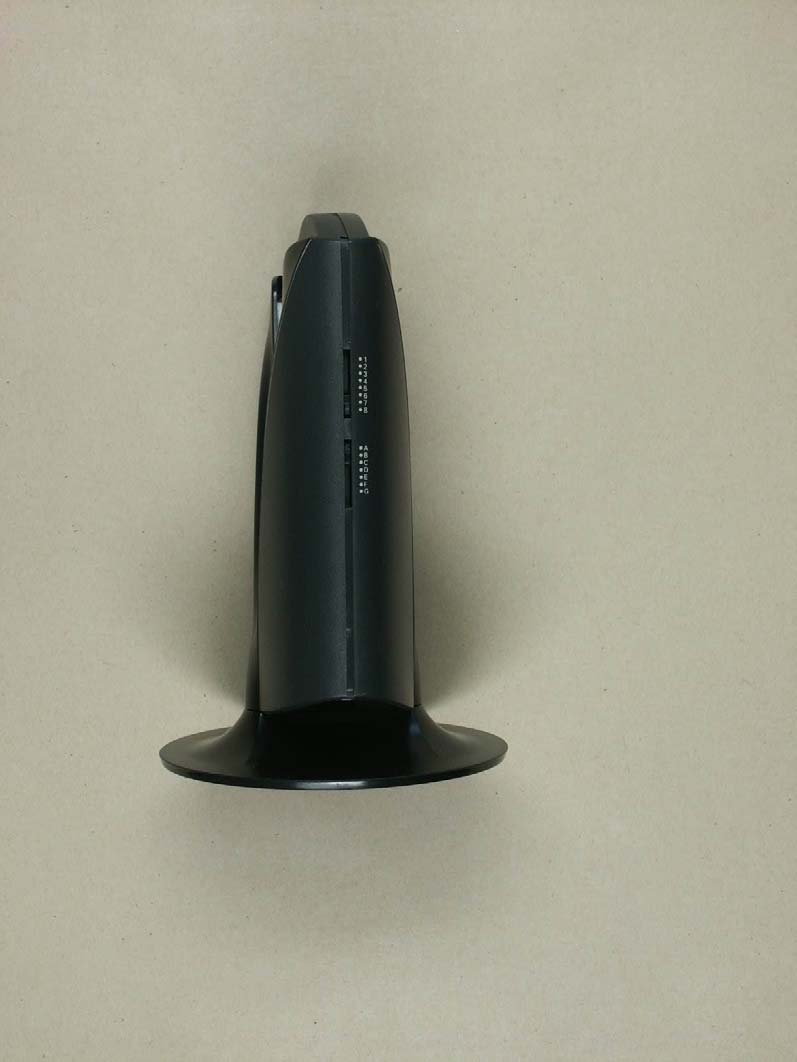

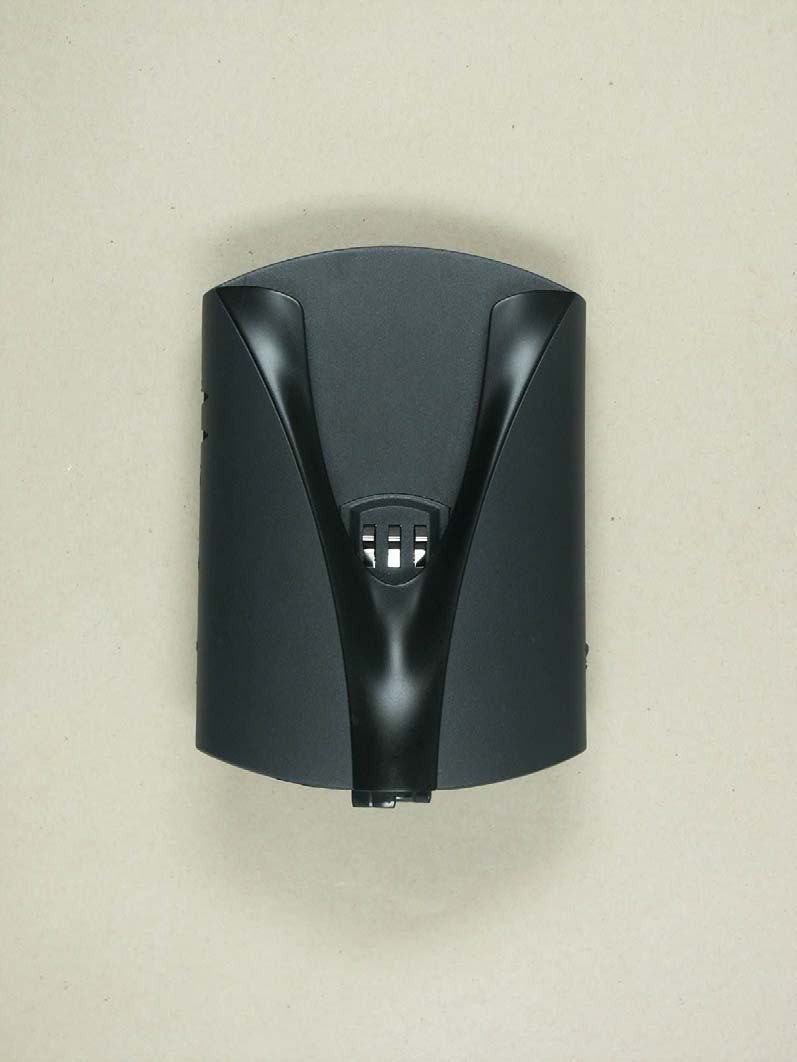

Labels and label locations for the GN product known as FCC ID: BCE-GNELLIPSE24U The labels on the pictures are not the actual label which will be placed on the product. The pictures only show the placement of the labels. The actual labels can be seen at the right. Placement of labels: Actual labels: Figur 1: Ellipse base unit (bottom) Figur 2: Ellipse remote unit – (behind battery) Figur 3: Ellipse Battery – (backside) Unchanged

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 7 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 8 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 9 of 13

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-2 Page 5 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-2 Page 6 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-2 Page 7 of 10

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G0M20503-9332-S-8 SAR ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-S-8 Page 1 of 23 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-S-8 Page 2 of 23 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 12.04.2005 Date ETS-Lab. Name Signature Technical responsibility for area of testing: 12.04.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-S-8 Page 3 of 23 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR- REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : GN Netcom A/S Street : Metalbuen 66 Town : DK-2750 Ballerup Country : Denmark Telephone : +45 72 11 86 86 Fax : +45 72 11 86 89 Contact : Mr. Jørn B. Rasmussen E-Mail : [email protected] 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-S-8 Page 4 of 23 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5 Application details Date of receipt of application : 11.03.2005 Date of receipt of test item : 11.03.2005 Date of test : 30.03.2005 - 31.03.2005 1.6 Test item FCC ID : BCE-GNELLIPSE24U Description of test item : Cordless Headset Type identification : GN Ellipse Serial number : without; Identical prototype Device category : DSS (Part 15 Spread Spectrum Transmitter) Technical data TX / RX Frequency range : 2400,0 - 2483,5 MHz Tested Frequency Ch.0 : 2401,92 MHz Ch.47 : 2441,66 MHz Ch.94 : 2481,41 MHz Max. Conducted RF output power : 22,46 dBm / (176,2 mW) Power supply : 3,6 V DC rechargeable battery Antenna Tx : integral Antenna RX : integral Additional information : Tx and Rx. antenna are the same. 1.7 Test Results Max. SAR Measurement : 0.06 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003, December 2003. ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-S-8 Page 5 of 23 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8 Test standards Standards : - IEEE Std. 1528-2003, December 2003 FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 2 Technical test 2.1 Summary of test results Applicable Configuration Handset (Head) Handset (Body) Headset (Head) Body Worn Equipment X EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Other variables that may play a substantial role in possible biological effects are those that characterize the environment (e.g. ambient temperature, air velocity, relative humidity, and body insulation…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: BCE-GNELLIPSE24U Test report no.: G0M20503-9332-C-1 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 1 of 36 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 3.1 Peak output power 3.2 Equivalent isotropic radiated power 3.3 RF exposure radiated emission 3.4 Antenna requirement 3.5 Out of band radiated emission 3.6 Transmitter radiated emissions in restricted bands 3.7 Spurious emissions (tx) 3.8 Carrier frequency separation 3.9 Number of hopping frequency 3.10 Time of occupancy 3.11 20 dB bandwidth 3.12 Band-edge compliance of RF emissions 3.13 Conducted measurement at (AC) power line ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 2 of 36 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 04.04.2005 D. Hoppe Date ETS-Lab. Name Signature Technical responsibility for area of testing: 04.04.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 3 of 36 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR- REGISTRATION NUMBER: TTI-P-G 126/96 A CCREDITED COMPETENT BODY DAR- REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY:BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number: 1983-01 1.3 Details of approval holder Name : GN Netcom A/S Street : Metalbuen 66 Town : DK-2750 Ballerup Country : Denmark Telephone : +45 72 11 86 86 Fax : +45 72 11 86 89 Contact : Mr. Jørn B. Rasmussen Telephone : +45 72 11 86 86 E-mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 4 of 36 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 11.03.2005 Date of receipt of test item : 11.03.2005 Date of test : 11.03.2005 – 23.03.2005 1.5 Test item Description of test item : Cordless Headset Base station Type identification : GN Ellipse Serial number : Test model without serial number. Photos : See annex Technical data Frequency band : 2.4 GHz – 2.4835 GHz Frequency ( ch A) : 2401 MHz Frequency (ch B) : 2441 MHz Frequency (ch C) : 2482 MHz Transmitter Vnom Power (ch A) : Conducted: 22.08 dBm Power (ch B) : Conducted: 22.14 dBm Power (ch C) : Conducted: 21.95 dBm Vnom Antenna 1 Vmax Antenna 1 Vmin Antenna 1 Power (chA) : Radiated: 18.18 dBm Radiated: 17.70 dBm Radiated: 17.92 dBm Power (ch B) : Radiated: 18.51 dBm Radiated: 19.08 dBm Radiated: 18.86 dBm Power (ch C) : Radiated: 19.64 dBm Radiated: 19.44 dBm Radiated: 19.26 dBm Vnom Antenna 2 Vmax Antenna 2 Vmin Antenna 2 Power (chA) : Radiated: 17.87 dBm Radiated: 17.69 dBm Radiated: 17.57 dBm Power (ch B) : Radiated: 18.26 dBm Radiated: 18.66 dBm Radiated: 18.79 dBm Power (ch C) : Radiated: 19.66 dBm Radiated: 19.82 dBm Radiated: 19.51 dBm ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 5 of 36 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Antenna 1 : Inverted F antenna, soldered into the PCB Antenna 2 : Inverted F antenna, soldered into the PCB Antenna gain : < 2 dBi (manufacturer declaration) Power supply : 120 V AC Operating mode : duplex Type of modulation : FHSS Manufacturer: (if applicable) Name : Street : Town : Country : Additional information: none ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 6 of 36 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 120 V AC Extreme conditions parameters: : test voltage - extreme min : 102 V , AC max: 138 V , AC ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-1 Page 7 of 36 ELECTRONIC TECHNOLOGY SYSTEMS D…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: BCE-GNELLIPSE24U Test report no.: G0M20503-9332-C-2 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-2 Page 1 of 37 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 3.1 Peak output power 3.2 Equivalent isotropic radiated power 3.3 RF exposure radiated emission 3.4 Antenna requirement 3.5 Out of band radiated emission 3.6 Transmitter radiated emissions in restricted bands 3.7 Spurious emissions (tx) 3.8 Carrier frequency separation 3.9 Number of hopping frequency 3.10 Time of occupancy 3.11 20 dB bandwidth 3.12 Band-edge compliance of RF emissions 3.13 Conducted measurement at (AC) power line ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-2 Page 2 of 37 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 04.04.2005 D. Hoppe Date ETS-Lab. Name Signature Technical responsibility for area of testing: 04.04.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C-2 Page 3 of 37 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR- REGISTRATION NUMBER: TTI-P-G 126/96 A CCREDITED COMPETENT BODY DAR- REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY:BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number: 1983-01 1.3 Details of approval holder Name : GN Netcom A/S Street : Metalbuen 66 Town : DK-2750 Ballerup Country : Denmark Telephone : +45 72 11 86 86 Fax : +45 72 11 86 89 Contact : Mr. Jørn B. Rasmussen Telephone : +45 72 11 86 86 E-mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20503-9332-C…
