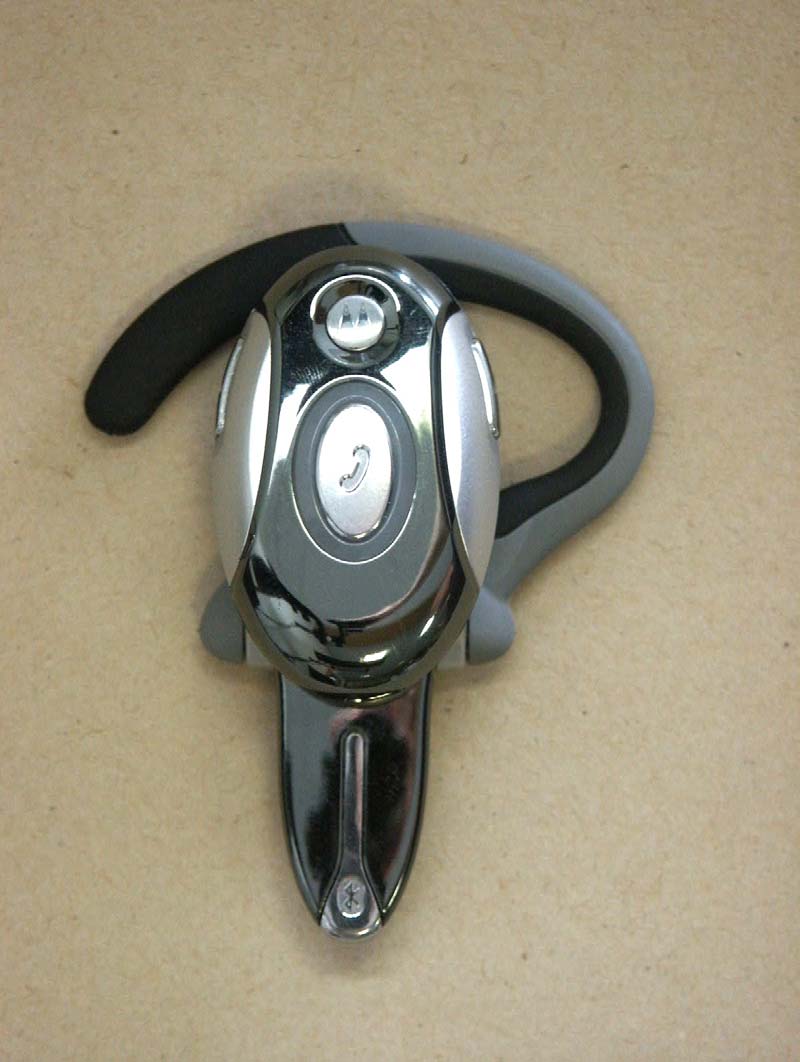

BCE-H700H700 BT Headset

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. All other product or service names are the property of their respective owners. © Motorola, Inc. 2005. Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com 1-877-MOTOBLU 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) Guide Number: 6809495A68-O H700 Bluetooth® Handsfree Headset 2 1 3 3 4 Before using this product, read the Important Safety and Legal Information pamphlet and follow its instructions. TROUBLESHOOTING My phone doesn't find my headset. Make sure the indicator light on your headset is on (lit in blue) and steady when your phone is searching for devices (see step 3). My headset worked before but now it's not working. Make sure your phone is on and the Bluetooth feature is turned on in your phone (see step 2). If the Bluetooth feature was turned off or was turned on only temporarily, you may need to restart the Bluetooth feature (see step 2) and pair your phone and headset again (see step 3). Support. If you need more help, contact us at 1- 877-MOTOBLU. FOR DETAILS ABOUT YOUR HANDSFREE DEVICE See the user’s guide or visit us at www.hellomoto.com/bluetooth and click Support. For help, contact us at 1- 877-MOTOBLU or visit us at www.hellomoto.com Take a moment before you get started to familiarize yourself with your new H700 Headset. BEFORE YOU BEGIN Get Connected in 4 Quick Steps 1 - CHARGE 2 - START BLUETOOTH FEATURE 3 - PAIR 4 - TEST AND USE Volume Buttons Boom Multi-Color Indicator Light Call Button CHARGE Your Headset's Battery Plug the Motorola charger into the end of the headset. The indicator light turns red when the battery is charging. It may take up to 1 minute for the indicator light to turn on. When the headset's battery is fully charged (about 2 hours), the indicator light turns green. Disconnect the charger. 1 2 Note: Headset is not functional while charging. START BLUETOOTH FEATURE Your Phone Press (Menu) > Settings > Connection > Bluetooth Link > Setup. Scroll to Power. Select Change. Scroll to On. Press Select to turn on the Bluetooth feature. The Bluetooth feature remains on until you turn the feature off. Note: These steps are for most Motorola phones. For other phones, see your phone's user's guide. 1 2 3 4 5 Your phone's Bluetooth feature is off by default. To use your headset, you must turn on the Bluetooth feature in your phone. For most Motorola phones: M( PAIR Your Headset Before you can use your headset, you must pair (link) it with your phone. Step A - PUT THE HEADSET IN PAIRING MODE Ensure the headset is turned off (indicator light not blinking and headset boom is closed). Press and hold the Call E button. After about 4 or 5 seconds, the indicator light becomes steadily lit in magenta. Release the Call E button and immediately open the headset boom. The indicator light remains steadily lit in magenta. If the indicator light is flashing in blue or not steadily lit when opening the headset boom, repeat steps 1 through 3 on this page. 1 2 3 PAIR CONTINUED Your Phone Step B - SET YOUR PHONE TO LOOK FOR YOUR HEADSET 3 4 5 1 2 For most Motorola phones: On your Motorola phone, press (Menu) > Settings > Connection > Bluetooth Link > Handsfree > Look for Devices. The phone lists Bluetooth devices it finds. Select Motorola H700. Select OK or Yes to pair your headset with your phone. Enter the passkey: 0000 Select OK. When your headset successfully pairs with your phone, the indicator light changes from steadily lit to flashing blue. Note: These steps are for most Motorola phones. For other phones, see your phone's user's guide. M( TEST AND USE Your phone and headset are now paired and ready to make and receive calls. To make a call: Open the headset boom and place the headset over your ear. On your phone, dial the number you want to call and press the SEND key. If your phone and headset are successfully paired, you will hear ringing on the headset. After you have successfully paired your phone and headset, you don't need to repeat these steps. For daily use, ensure that your headset is turned ON and that your phone's Bluetooth feature is ON. To save battery power, turn OFF the headset when you don't use it for an extended time. 1 2 3 Microphone Speaker (on reverse side) USING YOUR H700 See Features and Functions Guide on the reverse side for information on using your H700. DRAFT DRAFT IMPORTANT: Be sure to first follow the Quick Start Guide on the reverse side to complete initial setup of your H700. IMPORTANT: Be sure to first follow the Quick Start Guide on the reverse side to complete initial setup of your H700. H700 Bluetooth® Handsfree Headset TURNING ON AND OFF To turn your headset on, open the headset boom. The indicator light flashes blue. To turn your headset off, close the headset boom. The indicator light will turn off. To conserve battery power, turn off your headset when you don't plan to use it for a while. Multi-Color Indicator Light WEARING THE HEADSET Open the headset boom, then open the earhook (45° from the headset). Loop the earhook over your ear. Press the headset to your ear. Point the headset boom towards your mouth. 1 2 3 4 CHANGING VOLUME BUTTON ORIENTATION You can also change the orientation of the volume buttons on your headset. Turn the headset power off. Press the Call E button until the indicator light becomes steadily lit in magenta, then press the Volume button you want to assign as the "volume up" button. 1 2 Volume Buttons Call Button MAKING CALLS Note: Your H700 supports both Handsfree and Headset Profiles. Accessing call functions depends upon which profile your phone s…

Text truncated - open the document above for the full version.

motorola.com Important Safety and Legal Information > 2 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) The use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc., 2005. Manual Number: 6809494A55-O 3 The information contained in Motorola's user's guides is believed to be correct at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice. The contents of Motorola’s user manuals are provided “as is.” Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability, or contents of this document. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software 4 contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Contents 5 Contents Safety Information . . . . . . . . . . . . . . 6 Warranty . . . . . . . . . . . . . . . . . . . . . 11 Export Law Assurances . . . . . . . . . 22 Wireless Phone Safety Tips . . . . . . 23 6 Safety Information Safety and General Information Safety Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR DEVICE. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3). Safety Information 7 Electromagnetic Interference/Compatibility Note: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility. Facilities To avoid electromagnetic interference and/or compatibility conflicts, turn off your device in any facility where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy. Aircraft When instructed to do so, turn off your device when on board an aircraft. Any use of a device must be in accordance with applicable regulations per airline crew instructions. 8 Safety Information Medical Devices Hearing Aids Some devices may interfere with some hearing aids. In the event of such interference, you may want to consult with your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. Industry Canada Notice to Users Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device Ref IC RSS 210 Sec. 5.11. The term “IC:” before the Safety Information 9 certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. See Ref IC Self-Marking 6(f) and RSP-100 Sec. 4. FCC Notice to Users This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be 10 Safety Information determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and the receiver. •Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for he…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9683-P-15 Page 1 of 7 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9683-P-15 Page 2 of 7

H700 SYN1311 Made in China FCC ID: BCE-H700 IC ID: 2386C-H700 N136 83-00202 REV. (B) 2005-07-20 MOTOROLA XXXXXXXXXX SCALE 1:1 H700 SYN1311 Made in China FCC ID: BCE-H700 IC ID: 2386C-H700 N136 MOTOROLA XXXXXXXXXX SCALE 2:1

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9683-P-15 Page 3 of 7 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9683-P-15 Page 4 of 7

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: BCE-H700 Test report no.: G0M20507-9683-P-15 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9683-P-15 Page 1 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 3.1 Peak output power 3.2 Equivalent isotropic radiated power 3.3 RF exposure radiated emission 3.4 Antenna requirement 3.5 Out of band radiated emission 3.6 Transmitter radiated emissions in restricted bands 3.7 Spurious emissions (tx) 3.8 Carrier frequency separation 3.9 Number of hopping frequency 3.10 Time of occupancy 3.11 20 dB bandwidth 3.12 Band-edge compliance of RF emissions 3.13 Conducted measurement at (AC) power line ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9683-P-15 Page 2 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 03.08.2005 D. Hoppe Date ETS-Lab. Name Signature Technical responsibility for area of testing: 03.08.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9683-P-15 Page 3 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR- REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : GN Netcom Street : Metalbuen 66 Town : DK-2750 Ballerup Country : Denmark Telephone : +45 7211 8762 Fax : +45 7211 8689 Contact : Mr. Jørn B. Rasmussen E-mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9683-P-15 Page 4 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 25.07.2005 Date of receipt of test item : 25.07.2005 Date of test : 25.07.2005 – 27.07.2005 1.5 Test item Description of test item : Bluetooth Headset Type identification : Motorola H700 Serial number : without Photos : See Appendix A Technical data Frequency band : 24GHz – 2.4835 GHz Frequency (ch A) : 2402 MHz Frequency (ch B) : 2441 MHz Frequency (ch C) : 2480 MHz Transmitter Vnom Power (ch A) : Conducted: 2.08 dBm Power (ch B) : Conducted: 2.73 dBm Power (ch C) : Conducted: 2.87 dBm Power supply : 3.7 V DC 120 V AC (AC/DC Adapter) Operating mode : duplex Type of modulation : FHSS Antenna type : Planar inverted F type antenna Antenna gain : 0 dBi (typ) 3 dB (max) ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9683-P-15 Page 5 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Host device : none Classification : Fixed Device Mobile Device (Human Body distance > 20cm) Portable Device (Human Body distance < 20cm) Manufacturer: (if applicable) Name : GN Netcom Street : Metalbuen 66 Town : DK-2750 Ballerup Country : Denmark Additional information: The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9683-P-15 Page 6 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 3.7 V DC 120 V AC (AC/DC Adapter) Extreme conditions parameters: : test voltage - extreme min.: -- V (Vnom – 15%) max: -- V (Vnom + 15%) ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9683-P-15 Page 7 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP Rohde & Schwarz ETS 0003 Diode power sensor NRV-Z2 Rohde & Schwarz ETS 0004 Spectrum and network…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9683-P-15 Page 5 of 7 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9683-P-15 Page 6 of 7 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9683-P-15 Page 7 of 7
