BCE-HFS210AJabra HFS210 Bluetooth Speakerphone

jabra.com/solematemini JABRA SOLEMATE MINI GET STARTED IN UNDER MINUTES 5 81-03848 B NEED MORE HELP? For all support go to jabra.com/support jabra.com/solematemini QUICK START DOWNLOADS CONTACT SUPPORTTROUBLESHOOTING FAQ VIDEOS 1-2-3 Declaration of Conformity can be found on www.jabra.com/CP/US/declarations-of-conformity © 2013 GN Netcom A/S (North America: GN Netcom US, Inc.). All rights reserved. Jabra ® is a registered trademark of GN Netcom A/S. All other trademarks included herein are the property of their respective owners. The Bluetooth ® word mark and logos are owned by the Blue- tooth SIG, Inc. and any use of such marks by GN Netcom A/S is under license. (Design and specifications subject to change without notice). ENGLISH .....................................1 FRANÇAIS ..................................5 ESPAÑOL ....................................9 PORTUGUÊS ............................13 MADE IN CHINA MODEL: HFS210 FCC ID: BCE-HFS210A IC: 2386C-HFS210 . . . 21 ENGLISH 1 CONNECT Connect to just about anything on the planet (no exaggeration). Bluetooth® Almost everything has Bluetooth! 1. Press and hold (4 secs) the Answer/End button until pairing mode is announced, and the Bluetooth light flashes. Release the button. 2. Follow the voice-guided pairing instructions. 3.5 mm Jack Connector Does your music device or PC have somewhere to plug in headphones? Good. Connect quickly and easily to it. NFC NFC Connect with a simple touch. 1. Ensure that NFC is enabled on your mobile device. 2. Locate and gently tap the NFC zone on the mobile device against the NFC zone on the Jabra Solemate Mini. NFC zone 43 2 DISCOVER DID YOU KNOW? The Solemate Mini's sole keeps it from bouncing around when you blast your music! NFC USB charging port Microphone 3.5 mm jack connector On/Off NFC zone Volume up Volume down 3.5 mm audio cable (under the sole) Answer/End (battery status) FUNCTIONACTION Speaker volumeTap the Volume up or Volume down button Answer/end callTap the Answer/End button Reject callDouble-tap the Answer/End button Redial last numberDouble-tap the Answer/End button Battery status Tap the Answer/End button when not on a call to hear the battery status Mute/un-mute microphone Press and hold (1 sec) the Volume up and Volume down buttons at the same time To charge: connect the supplied USB cable to your phone's USB charger, or connect to your PC. It takes approx. 3 hours to fully charge. . . . 65 FRANÇAIS NFC Connectez-vous avec un simple toucher. 1. Assurez-vous que la fonction NFC est activée sur votre périphérique mobile. 2. Repérez et tapez doucement la zone NFC de l'appareil mobile contre la zone NFC du Solemate Mini de Jabra. Zone NFC 1 BRANCHEZ Se branche à presque tout sur la planète (sans exagération). Bluetooth MD Presque tous les appareils fonctionnent avec Bluetooth! 1. Appuyez et maintenez appuyé (4 secondes) le bouton Réponse/fin jusqu’à ce que le mode d’appariement soit annoncé, et que le voyant lumineux Bluetooth clignote. Relâchez le bouton. 2. Suivez les instructions vocales d’appariement. Prise de 3,5 mm Votre lecteur de musique ou ordinateur a-t-il un endroit pour brancher un casque? Bien. Branchez-vous rapidement et facilement. NFC 87 NFC 2 DÉCOUVREZ FONCTIONACTION Volume du haut-parleur Appuyez brièvement sur le bouton Augmenter le volume ou Réduire le volume Répondre/mettre fin à un appel Appuyez brièvement sur le bouton Réponse/fin Refuser un appelAppuyez brièvement deux fois sur le bouton Réponse/fin Recomposer le dernier numéro Appuyez brièvement deux fois sur le bouton Réponse/fin État de la pile Appuyez brièvement sur le bouton Réponse/fin lorsque vous n'êtes pas sur un appel pour entendre le niveau de la pile Activer ou désactiver le mode de discrétion du microphone Appuyez simultanément et maintenez appuyé (1 seconde) sur les boutons Augmenter le volume et Réduire le volume simultanément Pour charger : branchez le câble USB fourni au chargeur USB de votre téléphone, ou branchez à votre ordinateur. Une charge complète de la pile s’effectue en environ 3 heures. SAVIEZ-VOUS? La semelle du Solemate Mini l'empêche de rebondir quand vous faites exploser votre musique! Port de charge USB Microphone Prise de 3,5 mm Marche/arrêt Zone NFC Augmenter le volume Réduire le volume Câble audio de 3,5 mm (sous la semelle) Réponse/fin (niveau de la pile) 109 ESPAÑOL 1 CONÉCTESE Conéctese a casi cualquier cosa en el planeta (y no es una exageración). Bluetooth® ¡Casi todo tiene Bluetooth! 1. Presione y mantenga presionado (4 segundos) el botón Responder/Finalizar hasta que se anuncie el modo de sincronización y parpadee la luz azul de Bluetooth. Suelte el botón. 2. Siga las instrucciones por voz para sincronizarlo. Conector de 3,5 mm ¿Tiene su dispositivo de música o PC un lugar para conectar los auriculares? Bien. Conéctelo rápida y fácilmente. NFC Conéctese con un simple toque. 1. Cerciórese de que NFC esté activo en su dispositivo móvil. 2. Localice y toque suavemente la zona NFC en el dispositivo móvil contra la zona NFC en el Jabra Solemate Mini. Zona NFC . . . NFC 1211 NFC 2 DESCUBRA FUNCIÓNACCIÓN Volumen del altavozPulse el botón de Volumen + o Volumen - Responder/Finalizar llamadas Pulse el botón Responder/Finalizar Rechazar llamadasPulse dos veces el botón Responder/Finalizar Volver a marcar el último número Pulse dos veces el botón Responder/Finalizar Estado de la batería Pulse el botón Responder/Finalizar cuando no esté en una llamada para escuchar el estado de la batería Silenciar/activar micrófono Mantenga presionado (1 segundo) el botón de volumen + y el de volumen - simultáneamente Para cargarlo: conecte el cable USB provisto al cargador USB de su teléfono o conéctelo a su PC. Lleva aproximadamente 3 horas cargarlo por completo. ¿SABÍA QUE...? La base del Solemate Mini evita que rebote cuando escucha música a todo volumen! Puerto de carga USB Micrófono Conector de 3,5 mm Encendido/ Apagado Zona NFC Volumen + Volumen - Cable para audio de 3,5 mm (debajo de la base…

Text truncated - open the document above for the full version.

WARNING! NORTH AMERICA Permanent hearing loss may result from long-term exposure to sound at high volumes. Use as low a volume as possible. Speakers are capable of delivering sounds at loud volumes and high pitched tones. Under certain circumstances, exposure to such sounds can result in permanent hearing loss damage. The volume level may vary based on conditions such as the radio you are using and volume settings. Avoid prolonged use of the speaker at excessive sound pressure levels. Please read the Safety Guidelines below prior to using the speaker. You Can Reduce the Risk of Hearing Damage by Following These Safety Guidelines During the Use of the Product: • Turn the volume control to its lowest level, when connecting the speaker and then • Slowly adjust the volume control to a comfortable level. • Keep the volume at the lowest level possible; • If increased volume is necessary, adjust the volume control slowly; and • If you experience discomfort or ringing in your ears, immediately discontinue using the speaker. With continued use at a high volume, your ears may become accustomed to the sound level, which may result in permanent damage to your hearing without any noticeable discomfort. SAFETY INFORMATION! • Use of a speaker will impair your ability to hear other sounds. Use caution while using your speaker when you are engaging in any activity that requires your full attention. WIRElESS AND CORDED SPEAkERS • If you have a pacemaker or other electrical medical devices, you should consult your physician before using the product. • This package contains small parts that may be hazardous to children and should be kept out of reach of children at all times. The product is not a toy – never allow children to play with the product.The bags themselves or the many small parts they contain may cause choking if ingested. • Never try to dismantle the product yourself, or push objects of any kind into the product, as this may cause short circuits which could result in a fire or electric shock. • None of the components can be replaced or repaired by users. Only authorized dealers or service centers may open the product. If any parts of your product require replacement for any reason, including normal wear and tear or breakage, contact your dealer. • Avoid exposing your product to rain, moisture or other liquids to protect against damage to the product or injury to you. • If the product overheats, if the product has been dropped or damaged, if the product has a damaged cord or plug, or if the product has been dropped in a liquid, discontinue use and contact GN Netcom, Inc. • Never mount or store the product over any airbag deployment area, as serious injury may result when an airbag deploys. • Do not use in areas where there are explosive hazards. • Observe all signs and instructions that require an electrical device or RF radio product to be switched off in designated areas such as hospitals or aircrafts. • Dispose of the product according to local standards and regulations. Remember: Always drive safely, avoid distractions and follow local laws! Use of the speaker while operating a motor vehicle may be regulated by local laws. Check with your local authorities. Use caution while using your speaker when you are engaging in any activity that requires your full attention. While engaging in any such activity turning off your speaker will keep you from being distracted, so as to avoid accident or injury. Do not take notes or read documents while driving. BUIlT-IN BATTERY CARE: Please observe the following if the product contains a battery • Your product is powered by a rechargeable battery. The full performance of a new battery is achieved only after two or three complete charge and discharge cycles. • The battery can be charged and discharged hundreds of times, but will eventually wear out. • Unplug the USB cable from the PC and the product when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime. • If left unused, a fully charged battery will lose its charge over time. • Leaving the product in hot or cold places, such as in a closed car in the summer and winter conditions, will reduce the capacity and lifetime of the battery. • Always try to keep the battery between 0°C and 45°C (32°F and 113°F). A product with a hot or cold battery may not work temporarily, even when the battery is fully charged. Battery performance is particularly limited in temperatures well below freezing. Battery warning! • ”Caution” – The battery used in the product may present a risk of fire or chemical burn if mistreated. • Unless otherwise specified in the user manual or quick start guide the battery in your product can not be removed or replaced by the user. Any attempt to do so is risky and may result in damage of the product. Use of other batteries may present a risk of fire or explosion and the warranty will be terminated. • Only recharge your battery with the provided approved USB cable designated for this product. • Dispose of batteries according to local regulations. Please recycle when possible. • Do not dispose the battery as household waste or in a fire as it may explode. • Batteries may explode if damaged. CHARGING CARE: • Do not attempt to charge your speaker with anything other than the USB cable provided. The use of any other types may damage or destroy the speaker and could be dangerous. Use of other chargers may invalidate any approval or warranty. • For availability of approved enhancements, please check with your dealer. • Charge the product according to the instructions supplied online. Important: Please refer to the user manual for a description of the charging status indicator lights. Some speakers cannot be used while charging. Charger warning! • When you disconnect the USB cable or any enhancement, grasp and pull the plug, not the cord. • Never use a USB cable that is damaged. • Avoid charging your speaker in extremely high or low temper…

Text truncated - open the document above for the full version.

GN Netcom A/S Lautrupbjerg 7 DK-2750 Ballerup P.O. Box 99 Phone +45 4575 0000 Co. Reg. No. 15069511 www.jabra.com Att.: Federal Communications Commission RE.: Letter of authorization Hereby GN Netcom A/S authorize Lily Zhuang, Tammy D. Petersen and Tom Ringtved GN Netcom A/S Lautrupbjerg 7, DK-2750 Ballerup, Denmark Telephone: +45 45 75 88 88 to act on our behalf in all matters relating to application for equipment authorization of all our products with brand names: Jabra using the BCE grantee code in USA. Signed Ballerup, 2013-01-18 on behalf of GN Netcom A/S by: Name: Steen Kaiser Position: Manager, Product Certifications

GN Netcom A/S Lautrupbjerg 7 P.O.Box 201 DK-2750 Ballerup Denmark Tel. +45 45 75 88 88 www.jabra.com  R&D Product Certifications  Direct  Mobile  E-mail   A GN Great Nordic Company  Att.: Federal Communications Commission / Industry Canada RE.: Letter of agent authorization Hereby we GN Netcom A/S Lautrupbjerg 7, DK-2750 Ballerup, Denmark Telephone: +45 45 75 88 88 authorize Eurofins Product Service, Germany – Mrs. Sandra Henke - to act on our behalf in all matters relating to application for equipment authorization of the product: Jabra HFS210 Bluetooth ® Speakerphone FCC ID: BCE-HFS210A IC: 2386C-HFS210 in USA and Canada. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a). This agreement expires 6 months from the current date Date of issue: 2014-08-04 Place of issue: Ballerup, Denmark Lily Zhuang GN Netcom A/S Global Product Certifications

GN Netcom A/S Lautrupbjerg 7 P.O.Box 201 DK-2750 Ballerup Denmark Tel. +45 45 75 88 88 www.jabra.com  R&D Certification Engineer  Direct +86 592 2634855  Mobile  E-mail [email protected]   A GN Great Nordic Company  Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality RE: Jabra HFS210 FCC ID: BCE-HFS210A FCC Part 15 Certification Gentlemen, In accordance with 0.459 and 0.457 of CFR 47, GN Netcom A/S hereby requests confidentiality of Block Diagrams, Circuit Diagrams (Schematics), Parts List and Operational Description attached for the subject application. These documents contain detailed system and equipment description and related information about the product, which GN Netcom A/S considers to be proprietary, confidential, and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, GN Netcom A/S considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Date of issue: 2014-08-06 Place of issue: Ballerup, Denmark Lily Zhuang GN Netcom A/S Global Product Certifications

GN Netcom A/S Lautrupbjerg 7 P.O.Box 201 DK-2750 Ballerup Denmark Tel. +45 45 75 88 88 www.jabra.com  R&D Global Product Certifications  Direct +86 592 2634855  Mobile  E-mail [email protected]   A GN Great Nordic Company  Applicant's declaration concerning Passive NFC Tag Federal Communications Commission / Industry Canada RE: Declaration concerning Passive NFC Tag HFS210 Bluetooth ® Speakerphone FCC ID: BCE-HFS210A IC: 2386C-HFS210 Gentlemen, Herewith we GN Netcom declare that the Jabra HFS210 Bluetooth ® Speakerphone operate with a passive tag (BAPT). According to following conditions set by the Federal Communications Commission for BAPT’s: - the device does not operate in a restricted band, - the BAPT is isolated from the battery, - the field strength level is comparable to regular passive tags, the BAPT is not certified individually. Date of issue: 2014-08-06 Place of issue: Ballerup, Denmark Lily Zhuang GN Netcom A/S

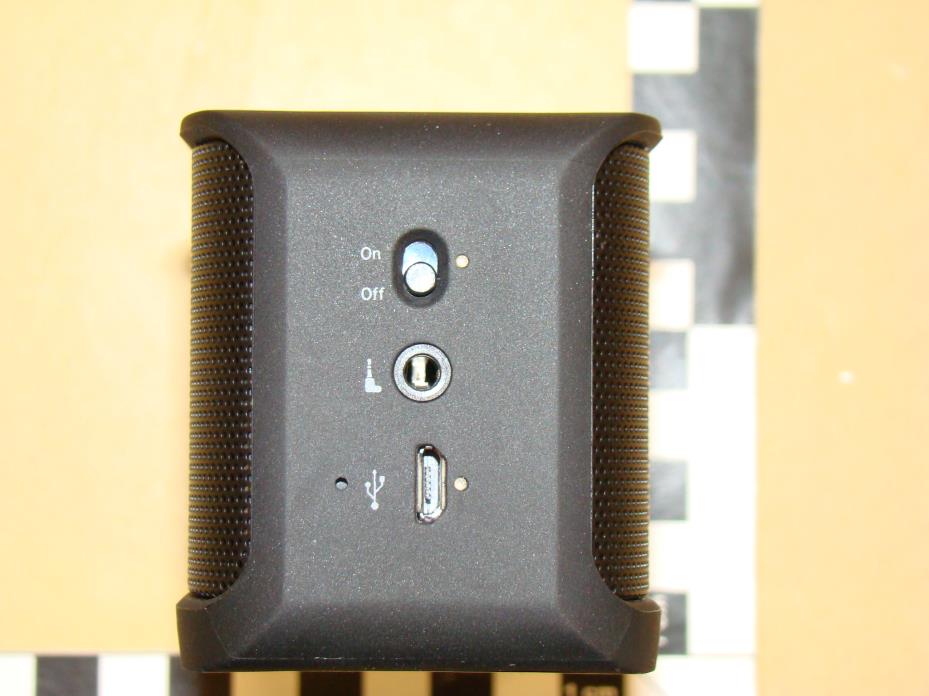

Test Report No.: G0M-1407-4031-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 119 1.1 Photos – Equipment External EUT TOP EUT BOTTOM Test Report No.: G0M-1407-4031-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 119 EUT SIDE VIEW EUT FRONT

Jabra SOLEMATE MINI Model: HFS210 IC: 2386C-HFS210 FCC ID: BCE-HFS210A CMIIT ID: 2013DJ9107 Rated Input: DC 5V 1000mA Made in China MISP-CMM-GNM-HFS210 006-000179

GN Netcom A/S Lautrupbjerg 7 P.O.Box 201 DK-2750 Ballerup Denmark Tel. +45 45 75 88 88 www.jabra.com  R&D Product Certifications   Direct  Mobile  E-mail   A GN Great Nordic Company  Applicant's declaration concerning User Manual Statements Federal Communications Commission & Industry Canada Re: application for Jabra HFS210 Bluetooth ® Speakerphone FCC ID: BCE-HFS210A IC: 2386C-HFS210 Gentlemen, The North American version of the User Manual for the Jarba HFS210 Bluetooth ® Speakerphone will include the following statements: FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Jabra (GN Netcom) will void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that  R&D Product Certifications  Direct  Mobile  E-mail   A GN Great Nordic Company  interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The term “IC:” before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment as per RSS-102 issue 2. Date of issue: 2014-08-06 Place of issue: Ballerup, Denmark Lily Zhuang GN Netcom A/S Global Product Certifications

Test Report No.: G0M-1407-4031-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 119 1.2 Photos – Equipment internal PCB TOP PCB BOTTOM

Test Report No.: G0M-1407-4031-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 12 RF-EXPOSURE ASSESSMENT REPORT FCC 47 CFR Part 2.1093 Industry Canada RSS-102 RF-Exposure evaluation of portable equipment Report Reference No. ..................... : G0M-1407-4031-TFC093PE-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address............................................. : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ..................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : GN Netcom A/S Address............................................. : Lautrupbjerg 7 2750 Ballerup DENMARK Test specification: Standard ........................................... : 47 CFR 1.1310 / 47 CFR 2.1091 / 47 CFR 2.1093 OET Bulletin 65:1997 KDB 447498 D01 v05r01:2013-05-28 RSS-102, Issue 4:2010 Safety Code 6:2009 Equipment under test (EUT): Product description Bluetooth Speakerphone Model No. HFS210 Additional Model(s) None Brand Name(s) Jabra Hardware version V25 Firmware / Software version V3.3.0 FCC-ID: BCE-HFS201A IC: 2386C-HFS210 Test result Passed Test Report No.: G0M-1407-4031-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 12 Version History Version Issue Date Remarks Revised by 01 2014-08-26 Initial Release Test Report No.: G0M-1407-4031-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 12 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Reference Documents 6 1.2 Radiation Sources 7 2 RESULT SUMMARY 8 3 RF-EXPOSURE CLASSIFICATIONS 9 4 ASSESSMENT 10 4.1 SAR Exemption Assessment –FCC KDB447498 / RSS-102 10 Test Report No.: G0M-1407-4031-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 12 1 Equipment (Test item) Description Description Bluetooth Speakerphone Model HFS210 Additional Model(s) None Brand Name(s) Jabra Serial number None Hardware version V25 Software / Firmware version V3.3.0 FCC-ID BCE-HFS201A IC 2386C-HFS210 Equipment type End product Test Report No.: G0M-1407-4031-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 12 1.1 Reference Documents Document type Document No. Issued by Date FCC 15.247 test report G0M-1407-4031-TFC247BT-V01 Eurofins Product Service GmbH 2014-08-26 Test Report No.: G0M-1407-4031-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 12 1.2 Radiation Sources Mode # Description Bluetooth Frequency range [MHz] 2402 – 2480 Channels 79 Modulations GFSK / π/4-DQPSK / 8-DPSK Maximum conducted power [dBm] 7.13 Maximum transmission duty cycle [%] 77 Test Report No.: G0M-1407-4031-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 12 2 Result Summary FCC 47 CFR Part 2.1093, KDB447498, IC RSS-102 Product Specific Standard Section Requirement Result Remarks 47 CFR 2.1093 KDB447498 SAR evaluation exemption : Bluetooth PASS minimum separation distance 5 mm 47 CFR 2.1093 KDB447498 SAR evaluation exemption : Bluetooth LE PASS minimum separation distance 5 mm RSS-102 2.5.1 SAR evaluation exemption : Bluetooth PASS RSS-102 2.5.1 SAR evaluation exemption : Bluetooth LE PASS Remarks: Test Report No.: G0M-1407-4031-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 12 3 RF-Exposure Classifications Device Types Fixed A fixed device is defined as a device physically secured at one fixed location and cannot be easily re-located. Mobile A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. (47 CFR 2.1091) Portable A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. (47 CFR 2.1093) Exposure Categories Occupational / Controlled Limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. General population / uncontrolled Exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Test Report No.: G0M-1407-4031-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 12 4 Assessment 4.1 SAR Exemption Assessment –FCC KDB447498 / RSS-102 Low Power Exclusion acc. to FCC KDB447498 / IC RSS-102 Verdict: PASS Assessment according to reference Reference Method KDB447498 & 2.1093 / RSS-102 & Safety Code 6 Device type portable Exposure category General population FCC/IC SAR Limits Region Occupational SAR values [W/kg] General public SAR values [W/kg] Whole-body SAR averaging mass = entire body 0.4 0.08 Partial-body SAR averaging mass = 1g 8.0 1.6 Hands, Wrists, Feet and Ankles SAR averaging mass = 10g 20 4 FCC SAR test exclusion Excerpt from KDB 447498: Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general …

Text truncated - open the document above for the full version.

GN Netcom A/S Lautrupbjerg 7 P.O.Box 201 DK-2750 Ballerup Denmark Tel. +45 45 75 88 88 www.jabra.com  R&D Product Certifications  Direct  Mobile  E-mail   A GN Great Nordic Company  Applicant's declaration concerning RF Exposure Federal Communications Commission Re: application for FCC ID: BCE-HFS210A We hereby indicate that the product Jabra HFS210 Bluetooth ® Speakerphone is considered to be a portable transmitter for General Population/Uncontrolled exposure. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. A safety statement will be integrated in the user’s manual to provide end-users with transmitter operating instructions for satisfying RF exposure compliance. As Jabra HFS210 is transmitting max. 10 mW, it is excluded from routine environmental evaluation for RF exposure as it does not fall under the product categories listed in Section 2.1093 of the FCC's Rules. Date of issue: 2014-08-06 Place of issue: Ballerup, Denmark Lily Zhuang GN Netcom A/S Global Product Certifications

Test Report No.: G0M-1407-4031-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 119 FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Frequency hopping systems operating within the 2400 – 2483.5 MHz band Report Reference No. ..................... : G0M-1407-4031-TFC247BT-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address ............................................. : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ..................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : GN Netcom A/S Address ............................................. : Lautrupbjerg 7 2750 Ballerup DENMARK Test specification: Standard ........................................... : 47 CFR Part 15C RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description Bluetooth Speakerphone Model No. HFS210 Additional Model(s) None Brand Name(s) Jabra Hardware version V25 Firmware / Software version V3.3.0 FCC-ID: BCE-HFS201A IC: 2386C-HFS210 Test result Passed Test Report No.: G0M-1407-4031-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 119 Version History Version Issue Date Remarks Revised by 01 2014-08-26 Initial Release Test Report No.: G0M-1407-4031-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 119 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Photos – Equipment External 6 1.2 Photos – Equipment internal 8 1.3 Photos – Test setup 9 1.4 Supporting Equipment Used During Testing 10 1.5 Test Modes 11 1.6 Test Equipment Used During Testing 13 1.7 Sample emission level calculation 15 2 RESULT SUMMARY 16 3 TEST CONDITIONS AND RESULTS 17 3.1 Test Conditions and Results – Occupied Bandwidth 17 3.2 Test Conditions and Results – 20 dB Bandwidth 24 3.3 Test Conditions and Results – Number of hopping frequencies 34 3.4 Test Conditions and Results – Frequency hopping channel separation 38 3.5 Test Conditions and Results – Time of occupancy (Dwell Time) 40 3.6 Test Conditions and Results – Maximum peak conducted power 42 3.7 Test Conditions and Results – AC power line conducted emissions 44 3.8 Test Conditions and Results – Band edge compliance 47 3.9 Test Conditions and Results – Conducted spurious emissions 61 3.10 Test Conditions and Results – Transmitter radiated emissions 68 3.11 Test Conditions and Results – Receiver radiated emissions 70 ANNEX A Transmitter radiated spurious emissions 72 ANNEX B Receiver radiated spurious emissions 112 Test Report No.: G0M-1407-4031-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 119 1 Equipment (Test item) Description Description Bluetooth Speakerphone Model HFS210 Additional Model(s) None Brand Name(s) Jabra Serial number None Hardware version V25 Software / Firmware version V3.3.0 FCC-ID BCE-HFS201A IC 2386C-HFS210 Equipment type End product Radio type Transceiver Radio technology Bluetooth Operating fr…

Text truncated - open the document above for the full version.
