BCE-HHB600HHB600

right page (11) of Bluetooth Headset multi, A30880-N7401-A100-1-SP19 (18. December 2003, © Siemens AG 2001, L:\Mobil\Bluetooth-Headset\en\Bluetooth_Headset_en.fm Headset PTT Bluetooth™ (en)11 Headset PTT Bluetooth™ (en) Safety precautions Information for parents Please read the operating instructions and safety precautions carefully before use. Explain the content to your children and the hazards associated with using the Bluetooth™ Headset. Remember to comply with legal requirements and local restrictions when using the Bluetooth™ Headset. For example in aeroplanes, petrol sta- tions, hospitals or while driving. Mobile phones can inter- fere with the functioning of medical devices such as hearing aids or pacemak- ers. Maintain a minimum distance of 20 cm between the Bluetooth™ Headset and a pace- maker. When using the Bluetooth™ Headset hold it to the ear which is fur- ther away from the pace- maker. For more informa- tion consult your doctor. The earpiece can be removed. Caution! Small parts like this could be swallowed by young chil- dren. The main voltage (V) specified on the power supply unit must not be exceeded. Otherwise the charging device may be destroyed. Do not throw the device onto an open fire. Only use original Siemens charging devices and bat- teries (100 % mercury- free). Otherwise you risk serious damage to health and property. The battery could explode, for instance. The Bluetooth™ Headset must not be opened. Only changing the battery (100 % mercury-free) is permissible. You must not open the battery under any circumstances. Any other changes to this device are strictly prohib- ited and will invalidate the operating licence. © Siemens AG 2001, L:\Mobil\Bluetooth-Headset\en\Bluetooth_Headset_en.fm left page (12) of Bluetooth Headset multi, A30880-N7401-A100-1-SP19 (18. December 2003, Headset PTT Bluetooth™ (en) 12 Important: Dispose of used batteries and Bluetooth™ Headsets according to the legal reg- ulations. The Bluetooth™ Headset can interfere with the operation of nearby TVs, radios or PCs. Use only Siemens original accessories. In this way you will avoid possible health risks and damage to the product and ensure compliance with all rele- vant provisions. Improper use will invalidate the guar- antee! Note In some countries there may be restrictions on the use of Bluetooth™ devices. Please check with the rele- vant authorities. right page (13) of Bluetooth Headset multi, A30880-N7401-A100-1-SP19 (18. December 2003, © Siemens AG 2001, L:\Mobil\Bluetooth-Headset\en\Bluetooth_Headset_en.fm Headset PTT Bluetooth™ (en)13 Headset overview PTT key (Push-To-Talk key) Press briefly: to activate voice dialling or to accept a call. Hold down: to end a call. Mute key Switches the microphone to mute Volume rocker switch Ò key. Press for: louder Ó key. Press for: quieter Ear hook Charging socket Loudspeaker with earpiece LED Indicates different states of the headset (p. 14) On/Off switch Microphone Charging socket © Siemens AG 2001, L:\Mobil\Bluetooth-Headset\en\Bluetooth_Headset_en.fm left page (14) of Bluetooth Headset multi, A30880-N7401-A100-1-SP19 (18. December 2003, Headset PTT Bluetooth™ (en) 14 Meaning of the LED display The light emitting diode (LED) indicates the different states of the headset: Adjusting the headset To ensure your Bluetooth™ headset rests comfortably on your ear, you can reposition the ear hook so the headset can be worn on either ear. 1. Pull the ear hook off back- wards. 2. Turn the ear hook and care- fully push it back into posi- tion: • for the right ear: • for the left ear: Note The colour of the LED depends on the charge status. When it is: • RED the battery is empty, and • GREEN there is sufficient battery power. Steady GREEN Indicates end of charg- ing process. Steady RED Battery charging. Flashes RED x3 Battery empty. Constant illumination During registration. Flashes x5 Registration com- pleted successfully. Flashes x5 The headset has been reset to the default set- tings. Flashes slowly The headset is ready for operation Flashes rapidly • Incoming call or • During a call Off Headset switched off. right page (15) of Bluetooth Headset multi, A30880-N7401-A100-1-SP19 (18. December 2003, © Siemens AG 2001, L:\Mobil\Bluetooth-Headset\en\Bluetooth_Headset_en.fm Headset PTT Bluetooth™ (en)15 Wearing the headset correctly Wear the Bluetooth™ headset as shown in the diagram. The microphone should always point towards your mouth. What is Bluetooth? Bluetooth™ is a short-range radio connection. It enables wireless communication between various terminals equipped with Bluetooth™. The Bluetooth™ headset will only work in conjunction with a Bluetooth™-enabled mobile phone capable of supporting the headset profile, such as the Sie- mens S65 or the XX. The hands- free profile is preferred. Please read the notes on Bluetooth™ connections in the user guide for your mobile phone as the con- trols and display messages differ between phones. Every Bluetooth™ device has a unique address and name. This ensures that it communicates with the right partner. The secu- rity concept is based on a pass- word that the two devices exchange when they first regis- ter (p. 16). Getting started Before you can use the Blue- tooth™ headset you need to: • charge the headset, and • register the headset with the mobile phone. Charging the Bluetooth headset As supplied, the battery is not yet fully charged. To charge the headset you will need the charging device included in the scope of delivery. If an ECA-500* charging adapter is used the headset can also be charged with a Siemens Traveler Charger ETC-500/510* or Sie- mens Car Charger Plus ECC- 600*. * These products are available from the range of original Sie- mens accessories. © Siemens AG 2001, L:\Mobil\Bluetooth-Headset\en\Bluetooth_Headset_en.fm left page (16) of Bluetooth Headset multi, A30880-N7401-A100-1-SP19 (18. December 2003, Headset PTT Bluetooth™ (en) 16 . 1. Insert the charging device connector o into the headset n as…

Text truncated - open the document above for the full version.

- 2 - FCC Notice to Users This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Siemens will void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. IC Notice to Users Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The term "IC:" before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that industry Canada approved the equipment

__________________________________________________________________________________ ETSHandelsregister:Bankverbindung: Electronic Technology Systems Dr. Genz GmbHAmtsgericht Frankfurt/Oder HRB 5151Sparkasse Oder-Spree Storkower Strasse 38cGeschäftsführung: Dr. Dietmar GenzBLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert KasparKto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH - ETS - STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Tel: 033631 888 000 FAX: 033631 888660 BZT ETS Certification GmbH Storkower Str. 38c 15526 Reichenwalde b. Berlin GERMANY IHR ZEICHEN / YOUR REF.IHR SCHREIBEN / YOUR INFORM.UNSER ZEICHEN / OUR REF. DATUM / DATE 26.02.2004 Subject:Application for Certification GN Netcom Inc. FCC ID: BCE-HHB600 Dear Sirs, Submitted herewith, on behalf of GN Netcom Inc. is an application for certification of the following 2.4 GHz Bluetooth headset: FCC ID: BCE-HHB600 A SAR test has been carried out for the headset. Attached are the 731 form, authorization letter, confidentiality request letter, technical description, test report ( TestRpt1 = test data and TestRpt2 = test plots ), RFExp, FCC ID label and label location information, test setup photographs, internal and external photographs, operational description, part’s list, block diagram, schematics and the user manual. In accordance with 0.459 of CFR 47 GN Netcom Inc. hereby requests confidentiality of all Technical Specifications, Block Diagrams, Circuit diagrams, Circuit Description, Part lists, and Operational description attached for the subject application (see Confidentiality request letter). Please review the report and documents and submit them to the FCC for Certification as a single application. Should you have any questions or comments concerning the above, please contact the undersigned. Best Regards Axel Müller Electronic Technology Systems Dr. Genz GmbH Storkower Str. 38c 15526 Reichenwalde Germany P.: +49 33631 888 523 F.: +49 33631 888 680 E.: [email protected]

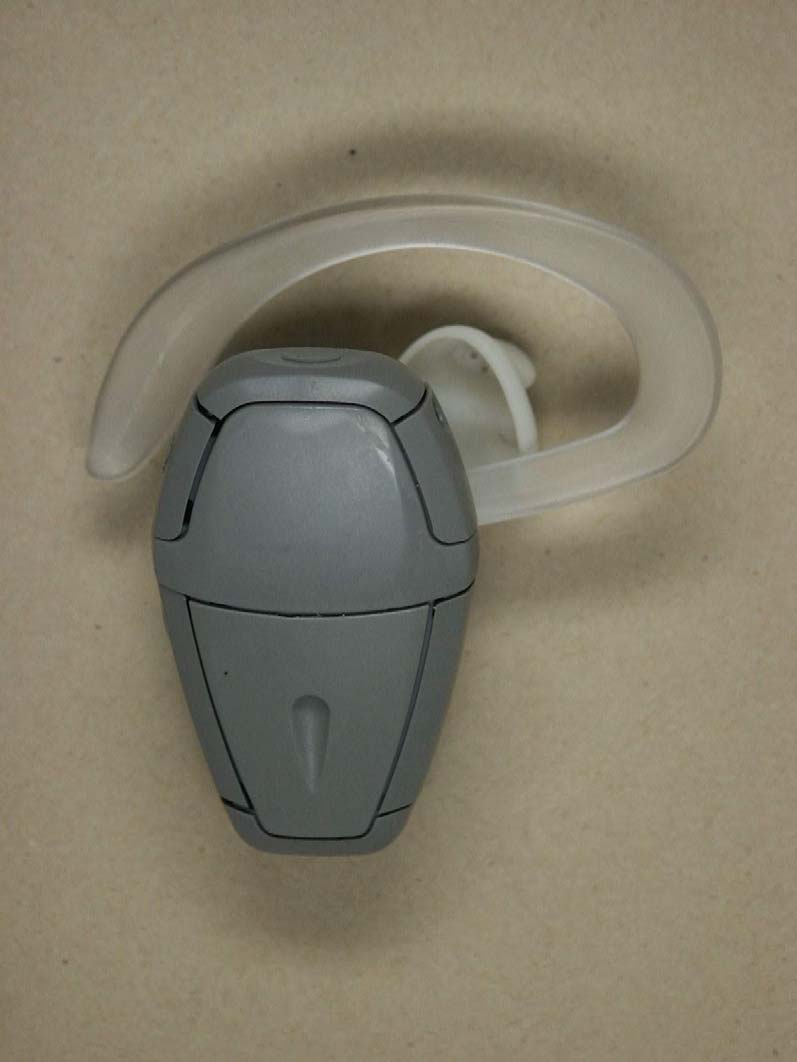

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 1 of 9 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 2 of 9

Location of FCC ID.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 3 of 9 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 4 of 9 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 5 of 9 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 6 of 9

Document: Viper PCB BOM Revision: 2A2A* Author(s): J. P. Hanuscheck Date: 17-12-2003 Approved: Henrik Norgreen ECO no.: Part no.: 1591-749 Page: 1/4 Remarks: *(Revision is refering to layout + schematic revision ) GNN Part Pcs. Reference Description Value Tol. Type Max. Rating Case Height Vendor Part No. Remark Alternate Vendor Alternate Part No. 2123-819 1U1 BlueCore 2 Flash 6x6 1.8V 3.0V 1.9V 3.7V TFBGA-84 1.20 CSR BC215159A RF-Critical 2123-349 1 U2 Linear Voltage Regulator 3V, 150 mA ... LDO 9V SOT23-5 1.30 ON Semicond. MC78PC30NTR Torex XC6209A30Mx 2123-829 1 U3 Voltage Detector 3V 12V SC-82AB 1.10 ON Semicond. NCP304LSQ30T1 2123-839 1U4 DC-DC Step-down Converter 1.8V PWM / PFM 7V SOT23-5 1.45 TI TPS62202DBV RF-Critical Maxim MAX1921EUT 2123-849 1U5 Li-Ion Charge Management IC 4.2V 1.0% bq TINY 18V S-PDSO-N10 1.00 TI bq24010DRC 2123-859 1U6 Single 3-input AND gate 6.5V SC70-6 1.10 TI SN74LVC1G11 2123-899 1U7 Balanced RF-filter 50R Balun & BPF 500 mW LFB 312G45SWx 1.00 Murata LFB312G45SW 1A626 RF-Critical 2910-079 1 X1 16 MHz Crystal, 13pF 16MHz 10 pp m FSR, 60R 100 uW 4.0x2.5 mm 0.70 Toyocom TSX-10A RF-Critical NDK NX4025DA 2755-699 3 C1 C12 C18 Cer. Capacitor 5p6 0.25 p F COG 50V 0402c 0.55 Murata GRM1555C1H5R6CZ01 RF-Critical Semco CL05C5R6CBNx 2751-509 2 C2 C19 Cer. Capacitor 15p 5% COG 50V 0402c 0.55 Murata GRM1555C1H150JZ01 RF-Critical Semco CL05C150JBNx 2751-049 6 C3 C4 C15 C33 C34 C35 Cer. Capacitor 100n 10% X5R 10V 0402c 0.60 Murata GRM155R61A104KA01 Semco CL05A104KPNx 2751-009 3 C5 C9 C13 Cer. Capacitor 10p 5% COG 50V 0402c 0.55 Murata GRM1555C1H100JZ01 RF-Critical Semco CL05C100JBNx 2753-339 4 C6 C7 C11 C17 Cer. Capacitor 33n 10% X7R 10V 0402c 0.60 Murata GRM155R71A333KA01 Semco CL05B333KPNx GNN Part Pcs. Reference Description Value Tol. Type Max. Rating Case Height Vendor Part No. Remark Alternate Vendor Alternate Part No. 2752-239 2 C8 C16 Cer. Capacitor 22n 10% X7R 16V 0402c 0.60 Murata GRM155R71C223KA01 Semco CL05B223KONx 2751-039 7 C10 C14 C20 C25 C26 C30 C32 Cer. Capacitor 10n 10% X7R 25V 0402c 0.60 Murata GRM155R71E103KA01 Semco CL05B103KANx 2741-059 2 C21 C24 Cer. Capacitor 1u 10% X5R 10V 0603c 0.90 Murata GRM188R61A105KA61 Semco CL10A105KPNx 2753-399 1 C22 Cer. Capacitor 3p3 0.25pF COG 50V 0402c 0.55 Murata GRM1555C1H3R3CZ01 RF-Critical Semco CL05C3R3CBNx 2751-079 1 C23 Cer. Capacitor 10p 0.25pF COG 50V 0402C 0.55 Murata GRM1555C1H100CZ01 RF-Critical Semco CL05C100CBNx 2751-069 3 C27 C28 C29 Cer. Capacitor 10u 10% X5R 6.3V 0805c 1.35 Murata GRM21BR60J106KE19 Semco CL21A106KQNx 2730-009 1 C31 Jumper, max. 50 mohm 0R0 ... FILMJ ... 0402c 0.40 Rohm MCR01MZSJ000 Semco RC1005x000CS 2751-899 2 C36 C37 Cer. Capacitor 1p8 0.25pF COG 50V 0402c 0.55 Murata GRM1555C1H1R8CZ01 RF-Critical Semco CL05C1R8CBNx 2183-169 1 D1 LED: RED GREEN 1.7V 2.1V CM BRPG1211C 0.50 Seoul SSC-YGHR411-H Stanley BRPG1211C 2180-179 1 D4 Zener diode 11V 5% 250 mW SOT-23 1.10 Philips BZX84-C11 2180-189 1 D5 Zener diode 5.1V 5% 250 mW SOT-23 1.10 Philips BZX84-C5V1 2181-219 1 D6 Schottky barrier diode (double) 200 mW SOT323 1.10 Philips BAT54AW TBD. 0 L1 L2 NM ... ... ... 0402l 0.45 2211-249 3 L3 L7 L8 Ceramic Coil, ESR=0.35 ohm 10n 5% MLCC 300 mA 0402l 0.60 Murata LQG15HN10NJ02 RF-Critical Semco CIH05T10NJNx 2211-209 1 L4 Power Choke, ESR=0.3 ohm 10u 10% WFC 450 mA 1210l 2.20 Murata LQH32CN100K33 RF-Critical 2211-079 2 L5 L6 Ceramic Coil, ESR=0.50 ohm 3n9 0.1nH FILM C 170 mA 0402l 0.45 Murata LQP15MN3N9B02 RF-Critical 2132-269 2 Q1 Q3 NPN general purpose transistor NPN SOT323 1.10 Philips BC847CW 2132-279 1 Q2 P-ch. Enh. FET, RDSon=550 mohm PEFET SOT323 1.10 Infineon BSS209PW Critical for talktime! 2731-849 9 R1 R13 R15 R16 R18 R19 R20 R21 R24 Film resistor 180K 5% FILM R 1/16 W 0402 0.40 Rohm MCR01MZSJ182 Semco RC1005J184CS GNN Part Pcs. Reference Description Value Tol. Type Max. Rating Case Height Vendor Part No. Remark Alternate Vendor Alternate Part No. 2735-609 2 R2 R4 Film resistor 56R 1% FILM R 1/16 W 0402 0.40 Rohm MCR01MZSF0560 Semco RC1005F560CS 2731-029 2 R3 R8 Film resistor 1K0 5% FILM R 1/16 W 0402 0.40 Rohm MCR01MZSJ102 Semco RC1005J102CS 2731-019 2 R5 R6 Film resistor 100R 1% FILM R 1/16 W 0402 0.40 Rohm MCR01MZSF1000 Semco RC1005F101CS 2730-009 1 R7 Jumper, max. 50 mohm 0R0 ... FILMJ ... 0402 0.40 Rohm MCR01MZSJ000 Semco RC1005x000CS 2733-359 1 R9 Film resistor 330K 5% FILM R 1/16 W 0402 0.40 Rohm MCR01MZSJ334 Semco RC1005J334CS 0 R10 R22 NM 0402 0.40 ... 2731-819 2 R11 R12 Film resistor 180R 1% FILM R 1/16 W 0402 0.40 Rohm MCR01MZSF1800 Semco RC1005F181CS 2711-339 1 R14 PTC Fuse ... PTCF 60V, 40A 1812 0.81 Bourns MF-MSMD014-2 2738-229 2 R17 R25 Film resistor 8k2 5% FILM R 1/16 W 0402 0.40 Rohm MCR01MZSJ822 Semco RC1005J822CS 0 R23 N.M. 0402 0.40 ... 2730-309 1 R26 Film resistor 1 Meg 5% FILM R 50V 0402 0.40 Rohm MCR01MZSJ105 Semco RC1005J105CS 2732-309 1 R27 Film resistor 2R2 1% FILM R 1/16 W 0402 0.40 Rohm MCR01MZSF0220 Semco RC1005F2R2CS 0220-289 1 SW1 Vertical Slideswitch, 2-positions, 1.5 mm button SSSS820101 Alps SSSS820101 Mech-Critical! 0220-299 4 SW2 SW3 SW4 SW5 Tactswitch, sideactuated 2.5N SKRELGE010 Alps SKRELGE010 Mech-Critical! 0 K1 K2 K5 PADS pad x2_r0.8x1.4 ... 0 K4 NM, 2-pole PCB connector pad x2_r0.8x1.4 (JST) (02SUR-32S) 0221-179 1 K6 DC-Jack Plug 2.6mm 010196MB Suyin 010196MB Mech-Critical! SUM: 88 Abbreviations:Balun Balanced to Unbalanced coupler MLCC MultiLayer Ceramic Coil BPF Band Pass Filter LDO Low (voltage) Drop-Out COG Low temp. coeff. Ceramic cap. Similar to NP0. PEFET P-channel Enhancement FET ESR Equivalent Serial Resistance PTCF Pos. Temp. Coeff. Fuse FILMC Film Coil PFM Pulse Frequency Modulation FILMJ Film Jumper PWM Pulse Width Modulation FILMR Film Resistor WFC Wounded Ferrite Coil FSR Fundamental Serial Resonance

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G0M20401-8490-S-2 SAR ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-S-2Page 1 of 23 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4 Manufacturer 1.5Application details 1.6Test item 1.7Test results 1.8Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Definitions 2.5Measurement system description 2.6Test system specification 2.7Measurement procedure 2.8Reference points 2.9Test positions 2.10Measurement uncertainty 3Tissue and system verification 3.1Tissue verification 3.2System verification 4Test Results 5References 6Appendix ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-S-2Page 2 of 23 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 29.01.2004N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 29.01.2004Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-S-2Page 3 of 23 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax: +49 33631 888 660 1.2.2Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3Details of approval holder Name: Siemens AG Street: Haidenauplatz 1 Town: 81667 München Country: Germany Telephone: +49 89 722 61588 Fax: +49 89 722 49274 Contact: Herr Jens Knapmeyer E-Mail: [email protected] 1.4Manufacturer: (if applicable) Name: GN Netcom A/S Street: Metalbuen 66, P.O.Box 201 Town: DK-2750 Ballerup Country: Denmark ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-S-2Page 4 of 23 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5Application details Date of receipt of application: 19.01.2004 Date of receipt of test item: 19.01.2004 Date of test: 23.01.2004 1.6Test item FCC ID: BCE-HHB600 Description of test item:Bluetooth Headset Classic Type identification: Siemens HHB-600 Serial number: without;Identical prototype Device category: DSS (Part 15 Spread Spectrum Transmitter) Technical data TX Frequency range: 2402,0 -2480,0 MHz RX Frequency range: 2402,0 -2480,0 MHz Max. Radiated RF output power: -0.25 dBm (944 μW) Power supply : 3,7 V DC Antenna Tx: integral Antenna RX: integral Additional information: Tx and Rx. antenna are the same. 1.7Test Results Max. SAR Measurement: 0.110 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 2002). ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-S-2Page 5 of 23 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8Test standards Standards: - IEEE Std. 1528-200X (Draft 6.5, January 2002) FCC Rule Part(s): - FCC OET Bulletin 65, Supplement C, Edition 01-01 2Technical test 2.1Summary of test results Applicable Configuration Handset (Head) Handset (Body) Headset (Head)X Body Worn Equipment EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Other variables that may play a substantial role in possible biological effects are those that characterize the environment (e.g. ambient temperature, air velocity, relative humidity, and body insulation) and those that characterize the individual (e.g. age, gender…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: BCE-HHB600 Test report no.: G0M20401-8490-P-15 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 1 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4General Test Procedure 3Test Results ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 2 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 09.01.2004D. Hoppe DateETS-Lab.NameSignature Technical responsibility for area of testing: 09.01.2004Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 3 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITED Certificate Number 1983-01 1.3Details of approval holder Name: Siemens AG Street: Haidenauplatz 1 Town: 81667 München Country: Germany Telephone: +49 89 722 61588 Fax: +49 89 722 49274 Contact: Herr Jens Knapmeyer E-mail: [email protected] ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 4 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 19.01.2004 Date of receipt of test item: 19.01.2004 Date of test: 19.01.2004 – 21.01.2004 1.5Test item Description of test item:Bluetooth Headset Classic Type identification: Siemens HHB-600 Hardware version: DVT2 Software version: 00.23.04 Serial number: without Photos: See Appendix A Technical data Frequency band: 2.4GHz – 2.4835GHz Frequency ( ch A): 2402 MHz Frequency (ch B): 2441 MHz Frequency (ch C): 2480 MHz TransmitterVnom Power (ch A): Conducted: -2,37 dBm Power (ch B): Conducted: -2,14 dBm Power (ch C): Conducted: -2,04 dBm TransmitterVnomVnom –15%Vnom +15% Power (ch A): Radiated: 1,97 dBmRadiated: -1,21 dBmRadiated: 1,36dBm Power (ch B): Radiated: -0,06 dBmRadiated: -0,32 dBmRadiated: -0,19 dBm Power (ch C): Radiated: -0,40 dBmRadiated: -0,91 dBmRadiated: -0,75 dBm Power supply : 3,7 DC 120 V AC/DC Adapter Operating mode: duplex Type of modulation: FHSS Antenna type: integral Inverted F type antenna Antenna gain: 0dBi (type); +3 dBi (max.) ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 5 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Host device: none Classification: Fixed Device Mobile Device (Human Body distance > 20cm) Portable Device (Human Body distance < 20cm) Manufacturer: (if applicable) Name: GN Netcom A/S Street: Metalbuen 66, P.O.Box 201 Town: DK-2750 Ballerup Country: Denmark Additional information:The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 6 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests  performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa Details of power supply: 3,7 DC (120 V AC/DC Adaptor) Extreme conditions parameters:: test voltage - extrememin.:102 V max: 138 V ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 7 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Measurement device:Type:Manufacturer: ETS 0001Test receiverESHS 10Rohde&Schwarz ETS 0002Test receiverESVPRohde&Schwarz ETS 0003Test receiverESVS 10Rohde&Schwarz ETS 0004Spectrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005Test receiverSMV 11MEB ETS 0006Test receiver systemSME 12MEB ETS 0007Spectrum analyzerPSA-65AAvcom ETS 0008AntennaLoop antennaSiemens ETS 0009AntennaLoop antennaMEB ETS 0010AntennaLoop antennaMEB ETS 0011Ante…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 7 of 9 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 8 of 9 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20401-8490-P-15Page 9 of 9
