BCE-OTE20Jabra OTE20 Bluetooth Headset

81-03955 C NEED MORE HELP? For all support go to jabra.com/support jabra.com/sportpulsewireless QUICK START DOWNLOADS CONTACT SUPPORTTROUBLESHOOTING FAQ VIDEOS 1-2-3 jabra.com/sportpulsewireless JABRA SPORT PULSE WIRELESS GET STARTED IN UNDER MINUTES 5 MADE IN CHINA MODEL: OTE20 FCC ID: BCE-OTE20 IC: 2386C-OTE20 © 2014 GN Netcom A/S (North America: GN Netcom US, Inc.). All rights reserved. Jabra ® is a registered trademark of GN Netcom A/S. All other trademarks included herein are the property of their respective owners. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom A/S is under license. (Design and specifications subject to change without notice). Declaration of Conformity can be found on www.jabra.com/CP/US/declarations-of-conformity ENGLISH .....................................1 FRANÇAIS ..................................5 ESPAÑOL ....................................9 PORTUGUÊS ...........................13 1 1 HOW TO WEAR WEARING THE EARWINGS Select your preferred EarWing style and gently pull the EarWing onto each earphone. The EarWing should fit into the ridge of your ear. DID YOU KNOW! You can watch how-to-wear videos on jabra.com/sportpulsewireless It is important that the earphones are fitted correctly to enable accurate heartrate detection. The fit should feel tight and secure. View the fitting guide on the Jabra Sport Life app to find the right size of eargel and EarWings. SELECT EARGEL SIZE For the optimal audio experience, select the eargel size that fits your ear. 2 ENGLISH USING THE FITCLIP The FitClip can secure the earphones cable behind your neck in three different ways. 3 FitClip (optional wearing style) CONNECT WITH A BLUETOOTH® DEVICE 1. Turn off the earphones. 2. Press and hold the Multi-function button until the indicator light flashes blue, and then release the button. Pairing mode will be announced. 3. Follow the voice-guided pairing instructions to pair to your Bluetooth device. CONNECT WITH AN NFC DEVICE 1. Enable NFC on your mobile device. 2. Slowly slide the NFC zone on the earphones (back side of the control box) directly against the NFC zone of your mobile device until a connection is confirmed. To disconnect, repeat the process. 2 HOW TO CONNECT NFC zone 4 3 HOW TO USE CHARGING Gently pull back the EarWing on the right earphone to expose the Micro-USB charging port. It takes approx. 2.5 hours to fully charge the battery. Volume up Multi-function button Volume down Indicator light Heartrate monitor FitClip (optional wearing style) Micro-USB charging port (remove EarWing) Sports button Microphone 5 CALLS AND MUSIC Turn on/off Press and hold (5 sec) the Multi-function button until the indicator light flashes Play/pause musicTap the Multi-function button Answer/end callTap the Multi-function button Reject callDouble-tap the Multi-function button Redial last number When not on a call, double-tap the Multi-function button Adjust volumeTap the Volume up or Volume down button Skip track Press and hold (2 secs) the Volume up or Volume down button Mute Tap both the Volume up and Volume down buttons at the same time Battery status Tap the Volume up or Volume down button, when not on a call or listening to music 6 BEFORE WORKOUT Open Sport appTap the Sports button Start workoutPress and hold (1 sec) the Sports button DURING WORKOUT Pause/resume workout Press and hold (1 sec) the Sports button Listen to on-the-go status update Tap the Sports button Disable/enable on-the-go status updates Double-tap the Sports button 7 1 COMMENT LE PORTER PORTER LES ADAPTATEURS INTRA-AURICULAIRES Sélectionnez le style d'adaptateurs intra-auriculaires de votre choix et placez-les sans forcer sur chaque écouteur. Installez les adaptateurs intra-auriculaires dans le pli à l'intérieur de votre oreille. LE SAVIEZ-VOUS? Des vidéos vous expliquent comment les porter sur jabra.com/sportpulsewireless Les écouteurs doivent être correctement installés pour une bonne détection des fréquences cardiaques. Ils doivent être suffisamment serrés. Lisez le guide d'installation sur l'application Jabra Sport Life pour trouver la taille exacte de l'oreillette et des adaptateurs intra-auriculaires. SÉLECTIONNER UNE TAILLE D'OREILLETTE Pour une expérience audio optimale, sélectionnez la taille de l'oreillette qui convient à votre oreille. 8 FRANÇAIS UTILISATION DE L'ATTACHE D'ENTRAÎNEMENT L'attache d'entraînement fixe le câble des écouteurs derrière le cou de trois manières différentes. 9 SE CONNECTER À UN PÉRIPHÉRIQUE BLUETOOTH MD 1. Éteignez les écouteurs. 2. Tenez le bouton multifonctions appuyé jusqu'à ce que le voyant lumineux clignote en bleu, puis relâchez le bouton. Le mode d'appariement sera annoncé. 3. Suivez les instructions vocales d'appariement pour apparier votre périphérique Bluetooth. SE CONNECTER À UN PÉRIPHÉRIQUE NFC 1. Activez la zone NFC sur votre périphérique mobile. 2. Glissez graduellement la zone NFC sur les écouteurs (arrière du boîtier de commande) contre la zone NFC de votre périphérique mobile jusqu'à ce qu'une connexion soit confirmée. Pour débrancher, recommencez le processus. 2 COMMENT LE CONNECTER Zone NFC 10 3 COMMENT L'UTILISER CHARGE Poussez vers l'arrière sans forcer l'adaptateur intra-auriculaire pour mettre en évidence le port de charge micro-USB. Une charge complète s'effectue en environ 2,5 heures. Augmenter le volume Bouton Multifonctions Réduire le volume Voyant lumineux Moniteur de fréquence cardiaque Attache d'entraînement (facultative) Port de charge micro-USB (retrait de l'adaptateur intra-auriculaire) Bouton Sports Microphone 11 APPELS ET MUSIQUE Allumer/éteindre Maintenez le bouton Multifonctions appuyé (5 secondes) jusqu'à ce que le voyant clignote Lecture/pause de la musique Appuyez brièvement sur le bouton Multifonctions Répondre/fin d'appel Appuyez brièvement sur le bouton Multifonctions Refuser un appel Appuyez brièvement deux fois sur le bouton Multifonctions Recomposer le dernier numéro Appu…

Text truncated - open the document above for the full version.

GN Netcom A/S Lautrupbjerg 7 P.O.Box 201 DK-2750 Ballerup Denmark Tel. +45 45 75 88 88 www.jabra.com  R&D Product Certifications   Direct  Mobile  E-mail   A GN Great Nordic Company  Applicant's declaration concerning User Manual Statements Federal Communications Commission & Industry Canada Re: application for OTE20 Bluetooth ® Headset FCC ID: BCE-OTE20 IC: 2386C-OTE20 Gentlemen, The North American version of the User Manual for the OTE20 Bluetooth ® headset will include the following statements: FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Jabra (GN Netcom) will void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that  R&D Product Certifications  Direct  Mobile  E-mail   A GN Great Nordic Company  interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The term “IC:” before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment as per RSS-102 issue 2. Date of issue: 2014-07-04 Place of issue: Ballerup, Denmark Tom Ringtved GN Netcom A/S Global Product Certifications

GN Netcom A/S Lautrupbjerg 7 P.O.Box 201 DK-2750 Ballerup Denmark Tel. +45 45 75 88 88 www.jabra.com  R&D Global Product Certifications  Direct +45 45 75 91 86  Mobile  E-mail [email protected]   A GN Great Nordic Company  Applicant's declaration concerning Passive NFC Tag Federal Communications Commission / Industry Canada RE: Antenna Declaration OTE20 Bluetooth ® Headset FCC ID: BCE-OTE20 IC: 2386C-OTE20 Gentlemen, Herewith we GN Netcom declare that the OTE20 Bluetooth ® Headset operate with a passive tag (BAPT). According to following conditions set by the Federal Communications Commission for BAPT’s: - the device does not operate in a restricted band, - the BAPT is isolated from the battery, - the field strength level is comparable to regular passive tags, the BAPT is not certified individually. Date of issue: 2014-0716 Place of issue: Ballerup, Denmark Tom Ringtved GN Netcom A/S

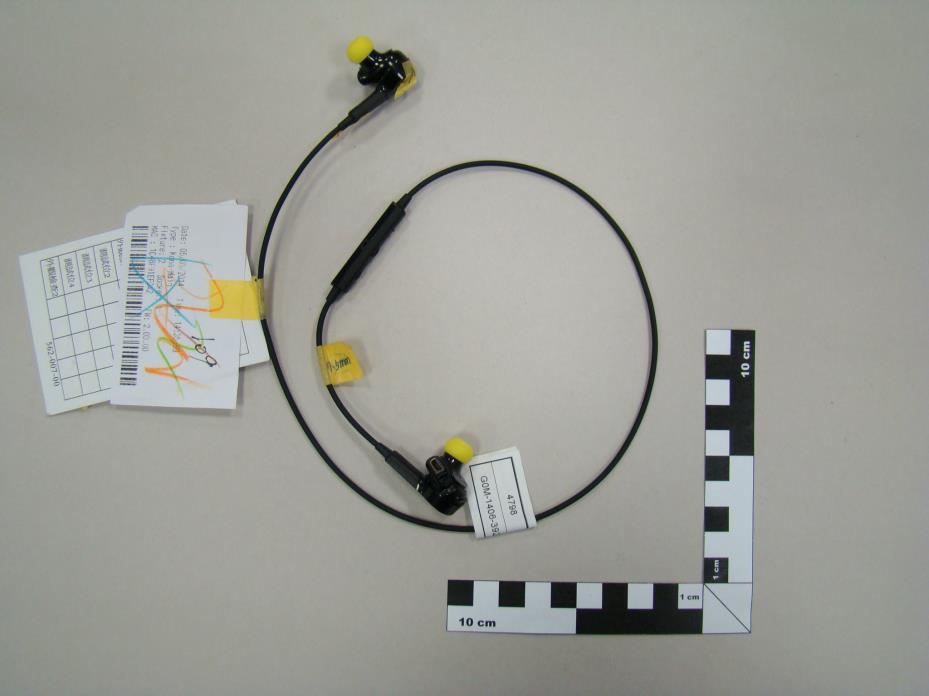

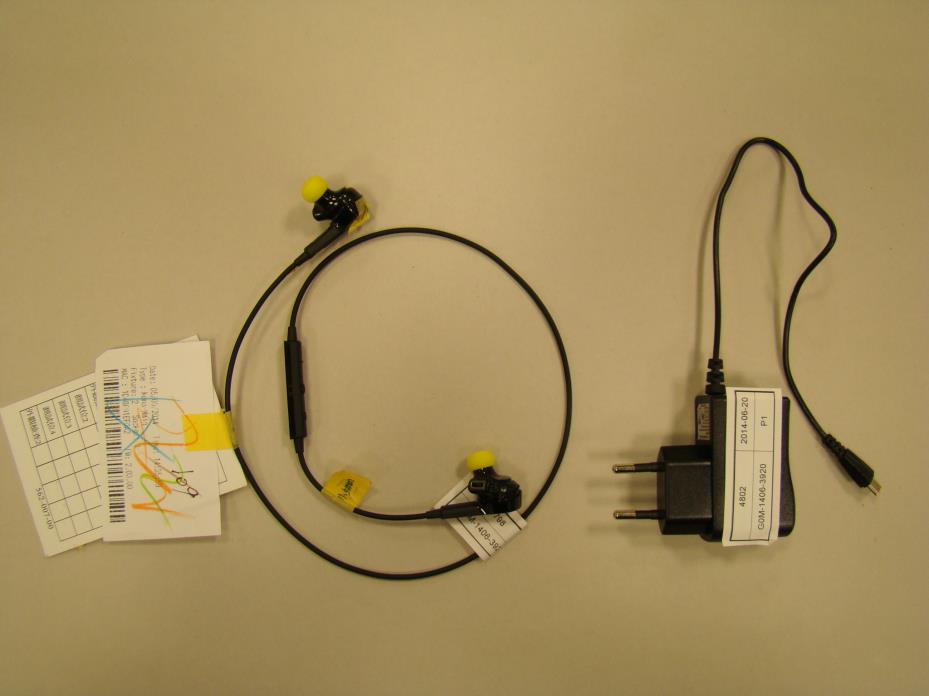

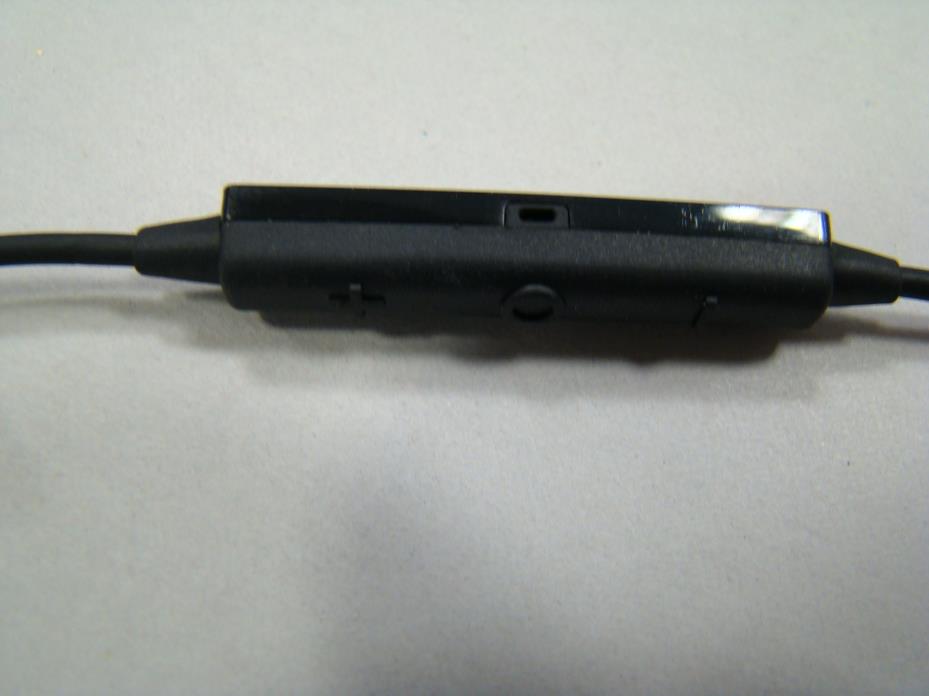

Test Report No.: G0M-1406-3920-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 82 1.1 Photos – Equipment External EUT + Charger EUT Test Report No.: G0M-1406-3920-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 82 EUT Headset EUT Multi-function button

(#1) 8.04 0.2 (#2) 4.07 0.2 (#3) 1.34 0.2 8 7 6 5 4 3 2 1 ABCDEFGH CONFIDENTIALITY NOTICE: Process control dimensions are marked: This document is the property of GN Netcom A/S and must be treated as confidential. The document must not be used, or disclosed to any third party, without written permission by GN Netcom A/S. Copyright © 2010 GN Netcom A/S. All rights reserved. IQC/OQC Characteristics for Evaluation: # 1 Date of Change:Description of Change: Responsible: 26-Apr-2014Andy Luo Pre-released the new drawing Matr. Spec: (See B.O.M.) 3D revision:Created by:Created on:Tool marking:Drawing Scale:Size: Matr. type: PC/ABS Andy Luo 23-Apr-2014 . 5:1 A3 GN PDM file: Object type: PART Approved by:Approved on:Units: Projection: 50-06887_KONA_LEFT-REARCOVER ver:D.3 Ola L H 23-Apr-2014 mm Description:Document No:Doc. Revision:Design Status:Page No: Left rear housing TA logo placement50-05277A Design 1 of 1 Cosmetic Standard: GSC.ST.00002 Part Marking.: GSC.PR.00102 Artwork Scale 5:1 SCALE 2:1

Test Report No.: G0M-1406-3920-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 82 1.2 Photos – Equipment internal EUT PCB ́s TOP EUT PCB ́s BOTTOM

Test Report No.: G0M-1406-3920-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 13 RF-EXPOSURE ASSESSMENT REPORT FCC 47 CFR Part 2.1093 Industry Canada RSS-102 RF-Exposure evaluation of portable equipment Report Reference No. ..................... : G0M-1406-3920-TFC093PE-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address............................................. : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ..................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : GN Netcom A/S Address............................................. : Lautrupbjerg 7 2750 Ballerup DENMARK Test specification: Standard ........................................... : 47 CFR 1.1310 / 47 CFR 2.1091 / 47 CFR 2.1093 OET Bulletin 65:1997 KDB 447498 D01 v05r01:2013-05-28 RSS-102, Issue 4:2010 Safety Code 6:2009 Equipment under test (EUT): Product description Bluetooth headset Model No. OTE20 Additional Model(s) None Brand Name(s) Jabra Hardware version 28-03918 Firmware / Software version 2-10 FCC-ID: BCE-OTE20 IC: 2386C-OTE20 Test result Passed Test Report No.: G0M-1406-3920-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 13 Version History Version Issue Date Remarks Revised by 01 2014-07-02 Initial Release Test Report No.: G0M-1406-3920-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 13 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Reference Documents 6 1.2 Radiation Sources 7 2 RESULT SUMMARY 8 3 RF-EXPOSURE CLASSIFICATIONS 9 4 ASSESSMENT 10 4.1 SAR Exemption Assessment –FCC KDB447498 / RSS-102 10 Test Report No.: G0M-1406-3920-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 13 1 Equipment (Test item) Description Description Bluetooth headset Model OTE20 Additional Model(s) None Brand Name(s) Jabra Serial number None Hardware version 28-03918 Software / Firmware version 2-10 FCC-ID BCE-OTE20 IC 2386C-OTE20 Equipment type Radio module Test Report No.: G0M-1406-3920-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 13 1.1 Reference Documents Document type Document No. Issued by Date FCC 15.247 Bluetooth test report G0M-1406-3920-TFC247BT-V01 Eurofins Product Service GmbH 2014-07-02 FCC 15.247 Bluetooth LE test report G0M-1406-3920-TFC247BL-V01 Eurofins Product Service GmbH 2014-07-02 Test Report No.: G0M-1406-3920-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 13 1.2 Radiation Sources Mode # Description Bluetooth Frequency range [MHz] 2402 – 2480 Channels 79 Modulations GFSK / π/4-DQPSK / 8-DPSK Maximum conducted power [dBm] 6.73 Maximum transmission duty cycle [%] 100 Bluetooth LE Frequency range [MHz] 2402 – 2480 Channels 40 Modulations GFSK Maximum conducted power [dBm] 7.49 Maximum transmission duty cycle [%] 100 Test Report No.: G0M-1406-3920-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 13 2 Result Summary FCC 47 CFR Part 2.1093, KDB447498, IC RSS-102 Product Specific Standard Section Requirement Result Remarks 47 CFR 2.1093 KDB447498 SAR evaluation exemption : Bluetooth PASS 47 CFR 2.1093 KDB447498 SAR evaluation exemption : Bluetooth LE PASS RSS-102 2.5.1 SAR evaluation exemption : Bluetooth PASS RSS-102 2.5.1 SAR evaluation exemption : Bluetooth LE PASS Remarks: Test Report No.: G0M-1406-3920-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 13 3 RF-Exposure Classifications Device Types Fixed A fixed device is defined as a device physically secured at one fixed location and cannot be easily re-located. Mobile A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. (47 CFR 2.1091) Portable A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. (47 CFR 2.1093) Exposure Categories Occupational / Controlled Limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. General population / uncontrolled Exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Test Report No.: G0M-1406-3920-TFC093PE-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 13 4 Assessment 4.1 SAR Exemption Assessment –FCC KDB447498 / RSS-102 Low Power Exclusion acc. to FCC KDB447498 / IC RSS-102 Verdict: PASS Assessment according to reference Reference Method KDB447498 & 2.1093 / RSS-102 & Safety Code 6 Device type portable Exposure category General population FCC/IC SAR Limits Region Occupational SAR values [W/kg] General public SAR values [W/kg] Whole-body SAR averaging mass = entire body 0.4 0.08 Partial-body SAR averaging mass = 1g 8.0 1.6 Hands, Wrists, Feet and Ankles SAR averaging mass = 10g 20 4 FCC SAR…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1406-3920-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 82 FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Digital transmission systems operating within the 2400 – 2483.5 MHz band Report Reference No. ..................... : G0M-1406-3920-TFC247BL-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address ............................................. : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ..................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : GN Netcom A/S Address ............................................. : Lautrupbjerg 7 2750 Ballerup DENMARK Test specification: Standard ........................................... : 47 CFR Part 15C KDB Publication No. 558074 RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description Bluetooth headset Model No. OTE20 Additional Model(s) None Brand Name(s) Jabra Hardware version 28-03918 Firmware / Software version 2-10 FCC-ID: BCE-OTE20 IC: 2386C-OTE20 Test result Passed Test Report No.: G0M-1406-3920-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 82 Version History Version Issue Date Remarks Revised by 01 2014-07-02 Initial Release Test Report No.: G0M-1406-3920-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 82 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Photos – Equipment External 6 1.2 Photos – Equipment internal 8 1.3 Photos – Test setup 9 1.4 Supporting Equipment Used During Testing 10 1.5 Test Modes 11 1.6 Test Equipment Used During Testing 12 1.7 Sample emission level calculation 14 2 RESULT SUMMARY 15 3 TEST CONDITIONS AND RESULTS 16 3.1 Test Conditions and Results – Occupied Bandwidth 16 3.2 Test Conditions and Results – 6 dB Bandwidth 20 3.3 Test Conditions and Results – Maximum peak conducted power 24 3.4 Test Conditions and Results – Power spectral density 26 3.5 Test Conditions and Results – AC power line conducted emissions 27 3.6 Test Conditions and Results – Band edge compliance 30 3.7 Test Conditions and Results – Conducted spurious emissions 33 3.8 Test Conditions and Results – Transmitter radiated emissions 37 3.9 Test Conditions and Results – Receiver radiated emissions 39 ANNEX A Transmitter radiated spurious emissions 41 ANNEX B Receiver radiated spurious emissions 75 Test Report No.: G0M-1406-3920-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 82 1 Equipment (Test item) Description Description Bluetooth headset Model OTE20 Additional Model(s) None Brand Name(s) Jabra Serial number None Hardware version 28-03918 Software / Firmware version 2-10 FCC-ID BCE-OTE20 IC 2386C-OTE20 Equipment type End product Radio type Transceiver Radio technology Bluetooth 4.0 Low Energy Operating frequency range 2402 - 2480 MHz Assigned frequency band 2400 - 2483.5 MHz Main test frequencies F LOW 2402 MHz F MID 2440 MHz F HIGH 2480 MHz Spreading Frequency Hopping Modulations GFSK Number of channels 40 Channel spacing 2MHz Number of antennas 1 Antenna Type integrated Model - Manufacturer GN Netcom Gain 3.1 dBi Manufacturer GN Netcom A/S Lautrupbjerg 7 2750 Ballerup DENMARK Power supply V NOM 3.7 VDC V MIN 3.2 VDC V MAX 4.2 VDC AC/DC-Adaptor Model SSA-5W-05 EU 050060F Vendor SIL Switching Adapter Input 100-240V ~ 50/60Hz 0.2A Output 5.0V DC 800mA Test Report No.: G0M-1406-3920-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 82 1.1 Photos – Equipment External EUT + Charger EUT Test Report No.: G0M-1406-3920-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 82 EUT Headset EUT Multi-function button Test Report No.: G0M-1406-3920-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 82 1.2 Photos – Equipment internal EUT PCB ́s TOP EUT PCB ́s BOTTOM Test Report No.: G0M-1406-3920-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 82 1.3 Photos – Test setup Radiated spurious emission Test Report No.: G0M-1406-3920-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 82 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments AE Laptop Samsung NP-X20I AE : Auxiliary/Associated Equipment Test Report No.: G0M-1406-3920-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 82 1.5 Test Modes Mode # Description Transmit General conditions: EUT powered by internal battery. Radio conditions: Mode = standalone transmit Spreading = Hopping stopped (single hopping channel) Modulation = GFSK Data rate = 1 Mbps Bandwidth = 2 MHz Duty cycle = 100 % Power level = Maximum Receive General conditions: EUT powered by internal battery. Radio conditions: Mode = standalone receive (scan mode) Spreading = On Modulation = GFSK AC-Powerline General conditions: EUT powered by commercial Laptop Radio conditions: Mode = Transmit Spreading = On Test Report No.: G0M-1406-3920-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 12 of 82 1.6 Test Equipment Used During Testing Measurement Software Description Manufacturer Name Version EMC Test Software Dare Instruments Radimation 2014.1.15 Occupied Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum analyzer R&S FSW43 EF00896 2014-02 2015-02 6dB Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum analyzer R&S FSW43 EF00896 2014-02 2015-02 Maximum peak c…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1406-3920-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 31 1.3 Photos – Test setup Test Setup : Radiated Emissions Test Setup : Conducted Emissions
