BCE-PHS004WJabra PHS004W Bluetooth speakerphone

GN Netcom A/S Lautrupbjerg 7 P.O.Box 201 DK-2750 Ballerup Denmark Tel. +45 45 75 88 88 www.jabra.com  R&D Global Product Certifications  Direct  Mobile  E-mail   A GN Great Nordic Company  Applicant's declaration concerning User Manual Statements Federal Communications Commission & Industry Canada Re: application for Jabra PHS004W Bluetooth ® speakerphone FCC ID: BCE-PHS004W IC: 2386C-PHS004W Gentlemen, The North American version of the User Manual for the Jabra PHS004W Bluetooth ® speakerphone will include the following statements: 15. Certification and safety approvals FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Jabra (GN Netcom) will void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the  R&D Global product Certifications  Direct  Mobile  E-mail   A GN Great Nordic Company  following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device and its antenna must not be co-loaded or operating in conjunction with any other antenna or transmitter. Industry Canada CAN ICES-3 (B)/NMB-3(B) This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The term “IC:” before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Le terme "IC:" devant le numéro de certification / d'enregistrement signifie que l'enregistrement a été effectué sur la base d'une déclaration de conformité indiquant que les spécifications techniques d'Industrie Canada ont été respectées. Cela ne signifie pas qu'Industrie Canada a approuvé l'équipement. Date of issue: 2015-09-10 Place of issue: Ballerup, Denmark Tom Ringtved GN Netcom A/S

GN Netcom A/S Lautrupbjerg 7 DK-2750 Ballerup P.O. Box 99 Phone +45 4575 0000 Co. Reg. No. 15069511 www.jabra.com Att.: Federal Communications Commission RE.: Letter of authorization Hereby GN Netcom A/S authorize Lily Zhuang, Tammy D. Petersen and Tom Ringtved GN Netcom A/S Lautrupbjerg 7, DK-2750 Ballerup, Denmark Telephone: +45 45 75 88 88 to act on our behalf in all matters relating to application for equipment authorization of all our products with brand names: Jabra using the BCE grantee code in USA. Signed Ballerup, 2013-01-18 on behalf of GN Netcom A/S by: Name: Steen Kaiser Position: Manager, Product Certifications

 Global Quality Product Certifications  Direct   Mobile  E-mail   A GN Great Nordic Company  GN Netcom A/S Lautrupbjerg 7 P.O.Box 201 DK-2750 Ballerup Denmark Tel. +45 45 75 88 88 www.gn.com www.jabra.com Request for Confidentiality Date: _2015-09-10 Subject: Confidentiality Request for: FCC ID: BCE-PHS004W / IC: 2386C-PHS004W Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 6.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term PermanentUser’s Manual GN Netcom Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 60 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Tom Ringtved Global Product Certifications

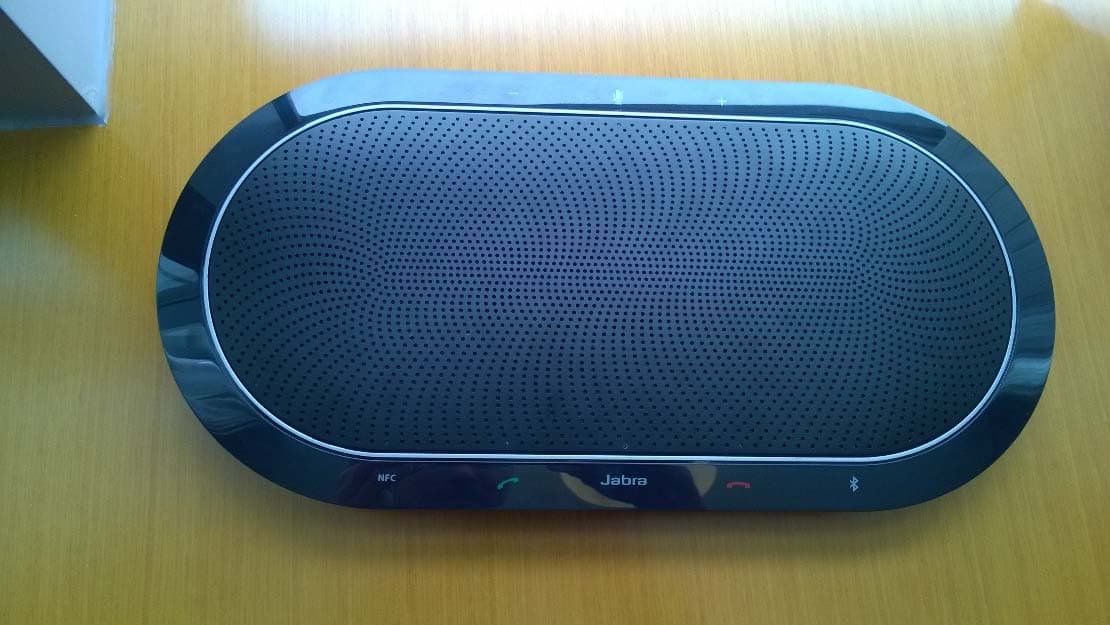

PHS004W ‐ Speak 810 external photos

Date of Change:Description of Change: Responsible: initials Matr. Spec: (See B.O.M.) Issued by:Issued:Drawing Scale:Size: Matr. type: D 2:1 A4 GN PDM file: Object type: PART Approved by:Approved on:Units: Projection: dd-Mmm-yyyy mm Description:Document No:Doc. Revision:Design Status:Page No: Unit Label Spec., SPK 8101 of 1 CONFIDENTIALITY NOTICE: Process control dimensions are marked: This document is the property of GN Netcom A/S and must be treated as confidential. The document must not be used, or disclosed to any third party, without written permission by GN Netcom A/S. Copyright © 2010 GN Netcom A/S. All rights reserved. IQC/OQC Characteristics for Evaluation: # Cosmetic Standard: GSC.ST.00002 Part Marking.: GSC.PR.00102 Type approval Marks: - WEE mark 5mm high, - CE mark 5mm high, - Japanese mark 5mm high (#1)62.5 (#5)R2 83-03492Released ECAI 25.08.15 View only - use layout le for print.2:1 view ±0.2 (#2)55.5 ±0.2 (#3)13.5 ±0.2 (#4)23.2 ±0.2 ±0.05 MSIP-CMM- GNM-PHS004W CCAH14LP0170T3 CMIIT ID: 2015DJ3083 FCC ID: BCE-PHS004WIC: 2386C-PHS004W Jabra SPEAK 810 I.T.E. E210538 006-000332 S&E Facestock: Polyester Label specication: Surface: Matt e Rear side adhesive: Acrylic, permanent, to t ABS plastic parts Thickness: 0.1mm +/-0.05 Prin ted subjects: Use CE marking (min 5mm high )as ref er ence to ensure right size Prin ted symetric to centr e axis Always use layout le (1:1) as input Background: 0/0/0/100 (CMYK) - or 100% Black Prin ted items: grey, 5/0/0/45 (CMYK) - or PMS430C Finished label must be RoHS compliant Finished label must be UL PJDQ2 compliant. UL No:MH13600 Input(输入): 12V 2.5A 蓝牙扬声器 Model: PHS004W Made in China 中国制造 型号

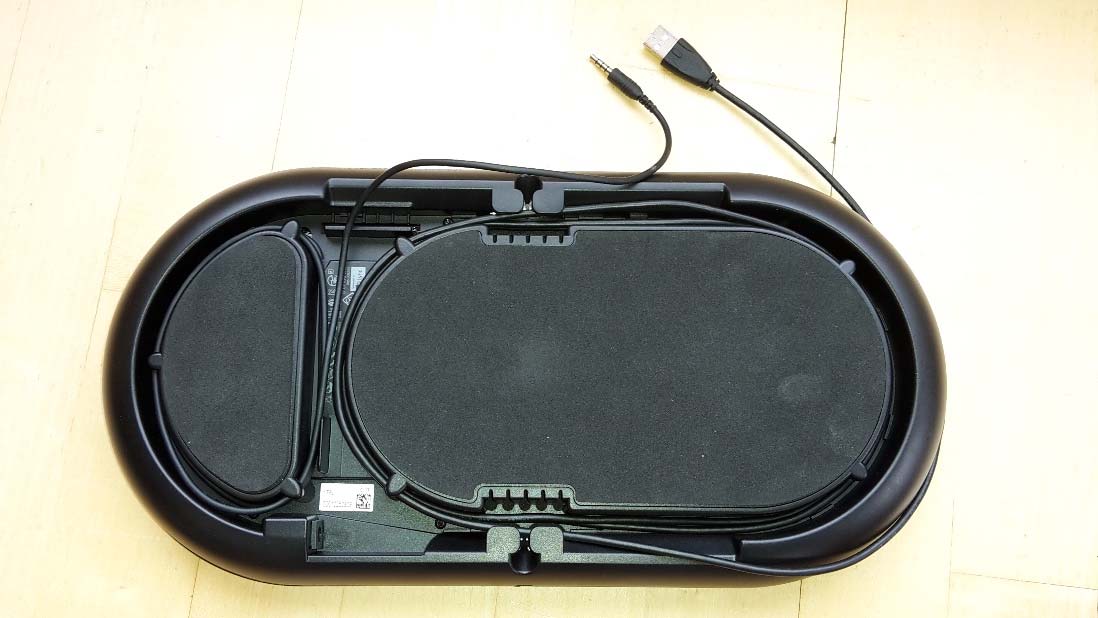

PHS004W ‐ Speak 810 internal photos

RF EXPOSURE EVALUATION FCC ID: BCE‐PHS00W The maximum peak RF output power is 6.45 mW (GFSK modulation). In the case of GFSK modulation the peak RF output power is virtual identical to average RF output power. KDB 447498 D01 General RF Exposure Guidance v05r02, section 4.3.1 1) provides the following equation for proving that a device may be excluded from stand‐alone SAR tests (1 gram SAR test exclusion threshold): ሻሻܹ݉ሺ ݁ܿ݊ܽݎ݈݁݋ݐ ݌ݑെ݁݊ݑݐ ݃݊݅݀ݑ݈ܿ݊݅ ݈݄݁݊݊ܽܿ ݂݋ ݎ݁ݓ݋݌ ݉ݑ݉݅ݔܽ݉ሺ ݁ܿ݊ܽݐݏ݅݀ ݊݋݅ݐܽݎܽ݌݁ݏ ݐݏ݁ݐ ݉ݑ݉݅݊݅݉ሺ ሺ ݉݉ ሻ ሻ ൈ ඥ ݂ ሺ ݖܪܩ ሻ ൑3.0 • f (GHz) is the RF channel transmit frequency in GHz; • Power and distance are rounded to the nearest mW and mm before calculation; • The result is rounded to one decimal place for comparison; • 3.0 is referred to as the numeric threshold. Maximum RF output power of channel: 6.45 mW at 2480 MHz. For a worst‐case prediction it is assumed that this maximum RF output power may occur at 2500 MHz. This device is intended to be worn in the ear which implies a minimum test separation distance of less than 5 mm. The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 of KDB 447498 D01 General RF Exposure Guidance v05r02 is applied to determine SAR test exclusion. ሻܹ݉ ሺ7 ሻ݉݉ ሺ5 ൈ √ 2.5ൌ2.2൑3.0 The above calculation based on standard Bluetooth headset, however as being a speakerphone this product is indended to be used at distance > 20 cm from the user, hence the device with FCC ID: BCE‐ PHS004W may be excluded from standalone SAR tests in all types of use

Final Report on Jabra SPEAK 810 PHS004W FCC ID BCE-PHS004W IC: 2386C-PHS004W MDE_GNNET_1509_FCCb_rev1 acc. Title 47 CFR chapter I part 15 subpart C Report Reference: September 16, 2015Date: Test Laboratory: 7layers GmbH Borsigstraße 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7layers GmbH Registergericht registered in: Borsigstraße 11 Düsseldorf, HRB 75554 40880 Ratingen, Germany Geschäftsführer / USt-IdNr VAT No.: T +49 (0) 2102 749 0 Managing Director: DE203159652 F +49 (0) 2102 749 350 Dr. Harald Ansorge TAX No. 147/5869/0385 www.7layers.com A Bureau Veritas Group Company Reference: MDE_GNNET_1509_FCCb_rev1 acc. Title 47 CFR chapter I part 15 subpart C 2.2 Detailed Description of OUT Samples Sample : ab01 OUT IdentifierJabra SPEAK 810 Sample Descriptionradiated sample Serial No.Alpha 1 219 HW Status28-04370 SW Status0-0-26 Date of Receipt2015/06/01 Low VoltageLow Temp.11.4 V-10 °C High Temp.High Voltage12.6 V55 °C Normal Temp.Nominal Voltage12 V25 °C Parameter List: ValueParameter Description Parameter for Scope FCC_v2 Antenna Gain2,06 (dBi) Frequency_high2480 (MHz) Frequency_low2402 (MHz) Frequency_mid2441 (MHz) Sample : ac01 OUT IdentifierJabra SPEAK 810 Sample Descriptionconducted sample Serial No.Alpha 1 314 HW Status28-04370 SW Status0-0-26 Date of Receipt2015/06/01 Low VoltageLow Temp.11.4 V-10 °C High Temp.High Voltage12.6 V55 °C Normal Temp.Nominal Voltage12 V25 °C Parameter List: ValueParameter Description Parameter for Scope FCC_v2 Antenna Gain2.06 (dBi) Frequency_high2480 (MHz) Frequency_low2402 (MHz) Frequency_mid2441 (MHz) Page 4 of 79 Reference: MDE_GNNET_1509_FCCb_rev1 acc. Title 47 CFR chapter I part 15 subpart C 2.3 OUT Features Features for OUT: Jabra SPEAK 810 Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 ACThe OUT is powered by or connected to AC Mains BTEUT supports Bluetooth data rate of 1 Mbps with GFSK modulation in the band 2400 MHz - 2483.5 MHz BTLESupport of Bluetooth Low Energy EDR2EUT supports Bluetooth using data rate of 2 Mbps with PI/4 DQPSK modulation in the band 2400 MHz - 2483.5 MHz EDR3EUT supports Bluetooth using data rate of 3 Mbps with 8DPSK modulation in the band 2400 MHz - 2483.5 MHz IantIntegral Antenna: permanent fixed antenna, which may be built-in, designed as an indispensable part of the equipment TantCtemporary antenna connector, which may be only built-in for testing, designed as an example part of the equipment 2.4 Auxiliary Equipment AE No.Serial No.SW StatusHW StatusDescriptionType Designation AE AE06CHERRY RS 6000 USB ON G 0000273 2P28Keyboard AE AE04FUJITSU13300281BModel: PJW1942NA AC Adapter AE AE03FUJITSU LIFEBOOK E Series E781 DSCK013817Laptop AE AE05Logitech M-BT58HC60915A2XCPC Mouse AE AE01Phihong PSAA30R- 120 P151301251A1Switching Power Supply AE AE02SAMSUNG S22B350H 0166H4MC40232 8Y Monitor Page 5 of 79 Reference: MDE_GNNET_1509_FCCb_rev1 acc. Title 47 CFR chapter I part 15 subpart C 2.5 Setups used for Testing For each setup a relation is given to determine if and which samples and auxiliary equipment is used. The left side list all OUT samples and the right side lists all auxiliary equipment for the given setup. Sample No.Sample DescriptionAE No.AE Description Setup No. List of OUT samplesList of auxiliary equipment S01_AC01 (conducted setup) AE AE06Keyboardac01conducted sampleSample: AE AE04AC Adapter AE AE03Laptop AE AE05PC Mouse AE AE01Switching Power Supply AE AE02Monitor S02_AB01 (radiated setup) AE AE01Switching Power Supplyab01radiated sampleSample: 3Results 3.1 General Available at the test laboratory. The results of the inspection are described on the following pages, where 'Conformity' or 'Passed' means that the certification criteria were verified and that the tested device is conform to the applied standard. In cases where 'Declaration' is printed, the required documents are available in the manufacturers product documentation. In cases where 'not applicable' is printed, the test case requirements are not relevant to the specific equipment implementation. Documentation of tested devices: Interpretation of the test results: 1. This report contains the abbreviated information content pertaining to services rendered. Supporting documentation not included herein is maintained and available at the laboratory. 2. All tests are performed under environmental conditions within the requirements of the specifications. Environmental conditions are available at the laboratory. 3. This test report covers only the normal Bluetooth functionality of this device. Bluetooth low energy is reported separatly. 3. This report is revision of MDE_GNNET_1509_FCCb. Corresponding revision table can be found in the Annex. Note: Page 6 of 79 Reference: MDE_GNNET_1509_FCCb_rev1 acc. Title 47 CFR chapter I part 15 subpart C 3.2 List of the Applicable Body (Body for Scope: FCC_v2) DesignationDescription Subpart C - Intentional Radiators; 15.247 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. FCC47CFRChIPART15c247RADIO FREQUENCY DEVICES 3.3 List of Test Specification Test Specification:FCC part 2 and 15 Version10-1-13 Edition Title:PART 2 - GENERAL RULES AND REGULATIONS PART 15 - RADIO FREQUENCY DEVICES Page 7 of 79 Reference: MDE_GNNET_1509_FCCb_rev1 acc. Title 47 CFR chapter I part 15 subpart C 3.4 Summary Test Case Identifier / Name SetupDate of TestResultTest (condition)Ref. Lab 15c.1 Conducted emissions (AC power line) §15.207 15c.1; Mode = transmit2015/06/24S02_AB01Lab 1Passed 15c.2 Spurious radiated emissions §15.247 (d), §15.35 (b), §15.209 15c.2; Frequency = 2402 - 2480, Mode = BT transmit using GFSK/PSK Modulation, Maximum Output Power 2015/06/06S02_AB01Lab 2Passed 15c.3 Occupied bandwidth §15.247 (a) (1) 15c.3; Frequency = 2402, Mode = BT transmit using 1 Mbps with GFSK modulation 2015/09/16S01_AC01Lab 3Pas…
