JABRA SP100 USER MANUAL F O R B L U E T O O T H ® M O B I L E P H O N E S 1 English 1.Check for phone compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2.Charging the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 3.Replacing the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 4.“Pair“ (Connect) with your Bluetooth ®mobile phone . . . . . . . . . . . . . . . . . . . . 4 5.Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 6.Ending a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 7.Answering a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 8.Muting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 9.Call-waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 10. Night driving mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 11. Office mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 12. Choosing speakerphone placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 13. Enhanced features (for Bluetooth mobile phones with hands-free profile) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 14. Status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 15. Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 16. Storage of the JABRA SP100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 17. Need more help? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 18. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 19. Certification and safety approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 20. Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 English 23 Thank you for purchasing a JABRA SP100, the most versatile Bluetooth speakerphone on the market. JABRA has become the market leader in hands-free communication products through the innovation and performance of our products. The JABRA SP100 is designed to perform superbly in any location – in the car, the home or the office. Thank you Several studies have shown that cell phone usage while driving creates a distraction to the driver which may increase the likelihood of an accident. This distraction potential is not eliminated by the use of a hands-free phone. Hands-free phones have not been shown to be safer than hand-held phones with respect to driver distraction. When using the phone while driving, keep conversations short and resist any temptation to make notes or read documents. Before answering calls consider your circumstances. Pull off the road and park before making or answering calls when driving conditions require (e.g. bad weather, high traffic density, presence of children in the car, difficult junctions or maneuvers.) Remember, driving comes first, not the call! Abide by local laws. Please check if the state and local laws where you live restrict the use of mobile phones while driving. It is the owner's responsibility to use this product in compliance with the laws of the place where you live. Drive safely 1 8 2 4 5 6 7 10 3 9 1Power Switch 2Power Indicator Light (Green/Red) 3Indicator Light (Blue/Yellow) 4Multi-function Button 5Volume Control 6Mute Button 7Microphone Boom 8Headset Jack 9Charging Socket 10Speaker JABRA SP100 Overview Check for phone compatibility 1 BEFORE USING YOUR SPEAKERPHONE The JABRA SP100 is compatible with most Bluetooth 1 (seeGlossary) mobile phones. You can check whether your phone has Bluetooth capability by visiting your phone manufacturer’s web site or JABRA’s web site (www.jabra.com) which has complete information on compatibility. The JABRA SP100 comes complete with two 1.2-volt (AA) rechargeable batteries that must be fully charged before you use the speakerphone for the first time. 1.Remove the back cover from the speakerphone using a screwdriver and insert both rechargeable batteries into their individual battery compartments as indicated. Re-attach the back cover to the speakerphone. (See Fig. 1) 2.Plug the adapter jack into the speakerphone and the AC adapter or the vehicle power charger into a power socket . (See Fig. 2) Charging the batteries 2 ! English English Fig. 1 Fig. 2 5 English 4 English 3.The green light will turn on when charging begins. After approximately 2 hours the green light will go out indicating that the JABRA SP100 is fully charged. 4.Unplug the AC adapter or the vehicle power charger from the speakerphone. 5.You are now ready to “pair” the JABRA SP100 with your mobile phone. (See Section 4) WARNING:Using another AC adapter other than the one provided may damage or destroy the speakerphone. We recommend that you use the rechargeable batteries supplied but you can use other brands. If you choose to use non-rechargeable batteries* DO NOT use the AC adapter or the vehicle power charger…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20402-8536-P-15Page 1 of 12 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20402-8536-P-15Page 2 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20402-8536-P-15Page 3 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20402-8536-P-15Page 4 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20402-8536-P-15Page 5 of 12

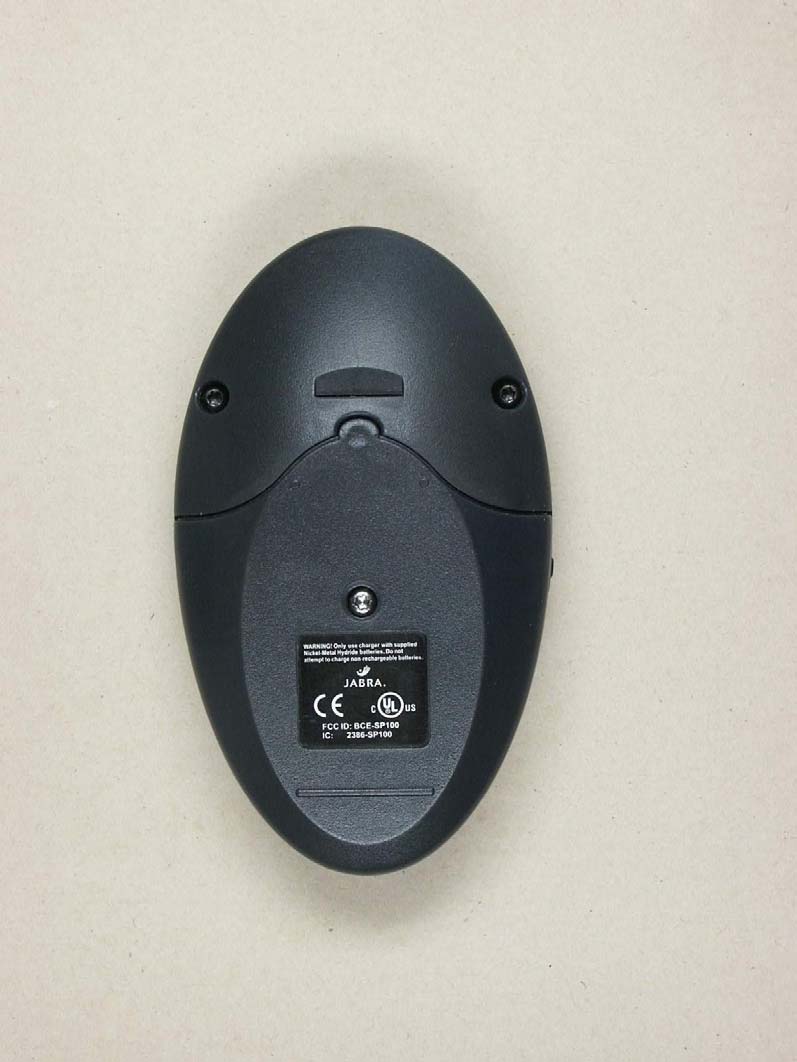

Jabra SP100 Label location 2004-05-13/JBR

Jabra SP100 Product label 2004-05-14/JBR

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20402-8536-P-15Page 6 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20402-8536-P-15Page 7 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20402-8536-P-15Page 8 of 12

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: BCE-SP100 Test report no.: G0M20402-8536-P-15 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20402-8536-P-15Page 1 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4General Test Procedure 3Test Results ETS Dr. Genz GmbH, GermanyRegistration number: G0M20402-8536-P-15Page 2 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 07.05.2004N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 07.05.2004Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20402-8536-P-15Page 3 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITED Certificate Number 1983-01 1.3Details of approval holder Name: GN Netcom Street: Metalbuen 66 Town: DK-2750 Ballerup Country: Denmark Telephone: +45 7211 8686 Fax: +45 7211 8689 Contact: Mr. Jørn B. Rasmussen E-mail: [email protected] ETS Dr. Genz GmbH, GermanyRegistration number: G0M20402-8536-P-15Page 4 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 18.02.2004 Date of receipt of test item: 18.02.2004 Date of test: 16.03.2004 – 22.03.2004 1.5Test item Description of test item:Jabra Speaker Phone SP100 Type identification: SP100 Hardware version: 0.3 Software version: OD Serial number: without Photos: See Appendix A Technical data Frequency band: 2.4GHz – 2.4835GHz Frequency ( ch A): 2.402 GHz Frequency (ch B): 2.441 GHz Frequency (ch C): 2.480 GHz TransmitterVnom Vnom Power (ch A): Conducted: -0.90 dBmRadiated: -3.66 dBm Power (ch B): Conducted: -1.56 dBmRadiated: -3.35 dBm Power (ch C): Conducted: -2.63 dBmRadiated: -5.17 dBm Power supply : 2.4 V DC Operating mode: duplex Type of modulation: FHSS Antenna type: Planar inverted F type antenna Antenna gain : -3.0 dBi ETS Dr. Genz GmbH, GermanyRegistration number: G0M20402-8536-P-15Page 5 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Host device: none Classification: Fixed Device Mobile Device (Human Body distance > 20cm) Portable Device (Human Body distance < 20cm) Manufacturer: (if applicable) Name: Street: Town: Country: Additional information:The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. According to attached declaration of manufacturer this device don’t work in master inquiry mode. So we have only one frequency hopping system and the hopping sequence of the master inquiry mode is not very feed. ETS Dr. Genz GmbH, GermanyRegistration number: G0M20402-8536-P-15Page 6 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests  performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa Details of power supply: 2.4 V DC (120 V AC/DC Adaptor) Extreme conditions parameters:: test voltage - extrememin.:-- V max: -- V ETS Dr. Genz GmbH, GermanyRegistration number: G0M20402-8536-P-15Page 7 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Measurement device:Type:Manufacturer: ETS 0001Test receiverESHS 10Rohde&Schwarz ETS 0002Test receiverESVPRohde&Schwarz ETS 0003Test receiverESVS 10Rohde&Schwarz ETS 0004Spectrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005Test receiverSMV 11MEB ETS 0006Test receiver systemSME 12MEB ETS 0007Spectrum analyzerPSA-65AAvcom ETS 0008AntennaLoop antennaSiemens ETS 0009AntennaLoop antennaMEB ETS 0010AntennaLoop antennaMEB ETS 0011Antennavan Veen/ FrameETS ETS 0012AntennaHK 116Rohde&Schwarz ETS 0013AntennaHL 223Rohde&Schwarz ET…
