BD6ADIX-BSUPCS Base Station

ENGINEERING BULLETIN Iwatsu America, Inc. has used its best effort to ensure that the information in this bulletin was accurate at the time of printing. Iwatsu America, Inc. makes no warranty of any kind, expressed or implied, with regard to the contents of this bulletin. This information is subject to change without notice. Iwatsu America Inc. Engineering DepartmentFAX: 1-972-929-8919 8100 Jetstar DriveCustomer Service: 1-800-866-6342 Irving, TX 75063WEB: http://www.iwatsu.com TEL: 1-800-955-8581EMAIL: [email protected] December 20, 2000EBA-2000-28 DRAFT ADIX Software Version 7.00 Installation Guide and Feature Description Contents: Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -2 ADIX Software Version 7.00 Features Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3 Redirected Number Routing - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3 Ome gatrek Wireless System Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 Ome gatrek Wireless System Features Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15 Re quired Components and Part Numbers - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21 Component Description - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23 IX-4CSUB-3 Station Card - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23 IX-BS5 Base Station - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -27 IX-PS6 Portable Station - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -30 IX-BSREP Repeaters - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 31 IX-PSBP Lithium Ion Batter y - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 32 IX-PSCG Batter y Charger - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 33 IX-PSMK Ome gatrek Site Measurement Kit - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 34 System Planning and Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 35 Cell Planning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 35 S ystem Capacity - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 38 Determinin g IX-4CSUB-3 Position in the ADIX - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40 Wirin g Planning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 44 Environmental and Structural Conditions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 47 Software Setup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 48 Groundin g Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 62 Confi guring the IX-4CSUB-3 Card - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 67 Confi guring the IX-BS5 Base Station - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 69 Confi guring the IX-BSREP Repeater - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 71 IX-PS6 Portable Station Confi guration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 73 Ome gatrek System Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 74 IX-PS6 Portable Station Batter y Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 83 Troubleshootin g and Setup Verification - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 84 Database Programming Guide - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 87 Engineering Bulletin EBA-2000-28 DRAFT 2 of 105 ADIX Software Version 7.00 Installation Guide and Feature Description Introduction Note: Before you begin to install and program ADIX Software Version 7.00, make sure to read this bulletin for installation instructions, new features and enhancements, and other important information. This document includes information about the following added features: •Redirected Number Routing •Omegatrek Wireless System •Features and Operations · A description of each system feature. •Component Description and Specifications · A description of each piece of system hard- ware. •System Plannin g and Installation · Installation instructions and procedures. This document also contains a Database Programming Guide, which is a detailed description of the ADIX/Ome gatrek programming database. Engineering Bulletin EBA-2000-28 DRAFT 3 of 105 ADIX Software Version 7.00 Installation Guide and Feature Description ADIX Software Version 7.00 Features Overview Redirected Number Routing Overview Some telephone companies provide Redirecting Number Identification (RNI) in their Setup messa ge. The Redirected Number is the directory number of forwarding party. This number is used by answerin g services to determine where the call was forwarded from. This allows the customer to ID the call with out havin g to purchase DID numbers for each client. The ADIX uses the RNI for routin g instead of the Called Party Number (DNIS) by setting an option in Class 04 Item 70. Conditions 1. This feature is used by both BRI and PRI lines. If two RNIs are contained in the Setup…

Text truncated - open the document above for the full version.

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 3 of 80 Exhibit 2 Exhibit 2: Attestation Statements Attestation Statement The technical data supplied with this application to determine compliance of the device described below with the requirements of FCC PART 15.247, Subpart D, is hereby duly certified. - Applicant: Iwatsu America, Inc. 430 Commerce Blvd. Carlstadt, NJ 07072 - Manufacturers: Iwatsu Electric Company, Ltd. 7-41 Kugayama, 1 Chome Suginami-ku, Tokyo 168-8501 Japan Iwatsu (Malaysia) SDN. BHD. Kawasan Perusahaan Tuanku Jaafar 71450 Sg. Gadut, Seremban, Negeri Sembilan, Malaysia - Trade Name: OMEGATREK - Model Number: IX-BS5 - FCC ID Number: BD6ADIX-BS On this 8 th day of December 2000, I, individually, and for Communication Certification Laboratory, certify that the statements made in this application are true, complete, and correct to the best of my knowledge, and are made in good faith. COMMUNICATION CERTIFICATION LABORATORY Checked by: William S. Hurst, P.E. Vice President Tested by: Roger J. Midgley EMC Engineering Manager

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 79 of 80 Exhibit 13 Exhibit 13: Cover Letters December 8, 2000 FEDERAL COMMUNICATIONS COMMISSION Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Enclosed is the documentation for a UPCS base station transmitter operating under FCC Part 15, Subpart D. This application was certified by Communication Certification Laboratory (CCL) under the TCB (Scope A3) program. The applicant, model number and FCC ID are listed below: Applicant: Iwatsu America, Inc. Model: IX-BS5 FCC ID: BD6ADIX-BS Please let me know if I can be of further assistance. Sincerely yours, COMMUNICATION CERTIFICATION LABORATORY Joseph W. Jackson V.P. Marketing COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 80 of 80 Exhibit 13 Request for Confidentiality

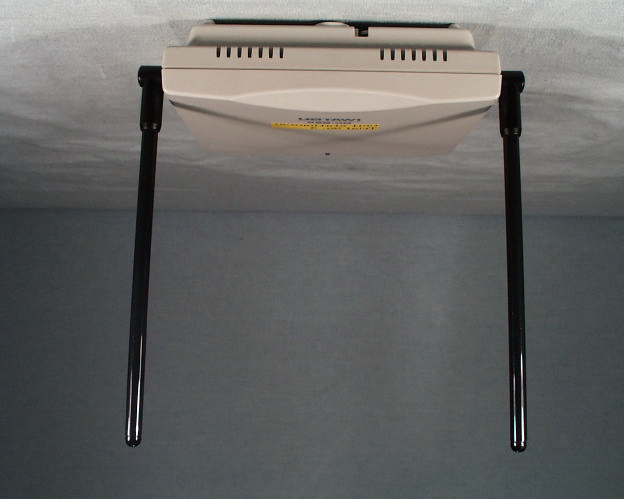

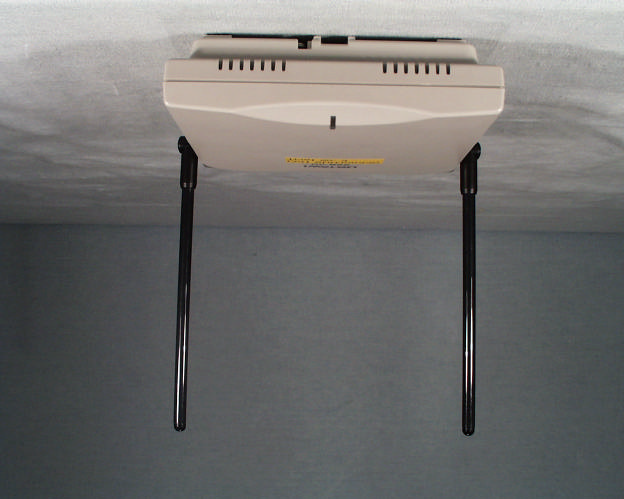

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 4 of 80 Exhibit 3 Exhibit 3: Photographs of Overall Appearance Front View of the IX-BS5 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 5 of 80 Exhibit 3 Back View of the IX-BS5 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 6 of 80 Exhibit 3 Top View of the IX-BS5 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 7 of 80 Exhibit 3 Bottom View of the IX-BS5

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 1 of 80 Exhibit 1 Exhibit 1: FCC ID Label Equipment Identification Label In accordance with the requirements of Sections 15.19 (a)(3), 15.311, 2.925 and 2.926 of the FCC Rules, the following information will be permanently affixed to the Iwatsu America, Inc. Model IX-BS5. Shown below are the label and a sketch showing where the label will be placed on the base station. Label COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 2 of 80 Exhibit 1 Sketch showing label placement

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 70 of 80 Exhibit 9 Exhibit 9: Internal Photographs Inside View of the IX-BS5 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 71 of 80 Exhibit 9 Component side (with RF cans) COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 72 of 80 Exhibit 9 Component side (without RF cans) COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 73 of 80 Exhibit 9 Component side (without RF cans and static protection) COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 74 of 80 Exhibit 9 Solder side

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 77 of 80 Exhibit 12 Exhibit 12: Operational Description § 15.203 Antenna Requirements The IX-BS5 uses two Dipole antennas that connect to the main board via coax cable using special connectors. The same type as specified by the manufacturer can only replace these antennas; therefore, it meets the requirements of this section. The IX-BS5 contains two antennas for diversity purposes, only one antenna transmits during normal operation. § 15.307 Coordination with fixed microwave service Enclosed on the following page is the UTAM affidavit stating compliance to this section. COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 78 of 80 Exhibit 12 UTAM Affidavit

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 76 of 80 Exhibit 11 Exhibit 11: RF Exposure/Environmental Evaluation Section 15.319 (i) Requirement: Unlicensed PCS devices are subject to the radiofrequency radiation exposure requirements specified in § 1.1307(b), 2.1091 and 2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a “general population/uncontrolled” environment. Applications for equipment authorization of devices operating under this section must contain a statement confirming compliance with these requirements for both fundamental emissions and unwanted emissions. Technical information showing the basis for this statement must be submitted to the Commission upon request. Demonstration of Compliance: The IX-BS5 is classified as a mobile device, which is installed so that a minimum separation distance of 20 centimeters is maintained between the transmitter’s radiating structure and the body of the user or nearby persons, and the ERP of the IX-BS5 is less than 3 watts. Therefore, the IX-BS5 is categorically excluded from routine environmental evaluation for RF exposure as per § 2.1091(c). The installation manual contains the following statement to instruct the installer that the 20 centimeter separation distance must be maintained in order to comply with the RF exposure requirement. Warning: Note to installers: In order to comply with the FCC RF exposure requirements the base station must be installed with a minimum separation distance of 20 cm from the antennas to the user or nearby persons. The base station contains two antennas for diversity purposes, only one antenna transmits during normal operation.

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 10 of 80 Exhibit 6 Exhibit 6: Test Report TEST REPORT FROM: COMMUNICATION CERTIFICATION LABORATORY 1940 W. Alexander Street Salt Lake City, Utah 84119-2039 Type of Report: Certification TEST OF: IX-BS5 FCC ID: BD6ADIX-BS To Part 15 Subpart D of the FCC Rules and Regulations Test Report Serial No: 73-7349 Applicant: Iwatsu America, Inc. 430 Commerce Blvd. Carlstadt, NJ 07072 Date(s) of Test: November 6 - 10, 2000 Issue Date: November 30, 2000 Equipment Receipt Date: November 6, 2000 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 11 of 80 Exhibit 6 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to evaluate the device described below with the requirements of FCC Part 15, Subpart D. Specific identifying information for the device tested is given below. - Applicant: Iwatsu America, Inc. 430 Commerce Blvd. Carlstadt, NJ 07072 - Manufacturers: Iwatsu Electric Company, Ltd. 7-41 Kugayama, 1 Chome Suginami-ku, Tokyo 168-8501 Japan Iwatsu (Malaysia) SDN. BHD. Kawasan Perusahaan Tuanku Jaafar 71450 Sg. Gadut, Seremban, Negeri Sembilan, Malaysia - Trade Name: OMEGATREK - Model Number: IX-BS5 - FCC ID Number: BD6ADIX-BS On this 8 th day of December 2000, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. COMMUNICATION CERTIFICATION LABORATORY Checked by: William S. Hurst, P.E. Vice President Tested by: Roger J. Midgley EMC Engineering Manager COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 12 of 80 Exhibit 6 SECTION 1 GENERAL INFORMATION 1.1 Product Description The IX-BS5 is the base station portion of a wireless telephone system. The system consists of a controller, base station and wireless handset. The base station is hard wired to the controller. The controller is a card that is inserted into an Iwatsu PBX to provide all of the PBX functions to the wireless handset. This application is for the base station, which is identified by FCC ID: BD6ADIX-BS. The handset, which is identified by FCC ID: BD6ADIX-PS is contained in a separate application and is being submitted concurrently with this application. 1.2 Test Specification The IX-BS5 is an Isochronous device that operates in the 1920-1930 MHz sub-band; therefore the IX-BS5 is subject to the provisions of FCC Part 15, Subpart D. Unlicensed Personal Communications Service Devices. 1.3 Test Methods & Procedures The IX-BS5 was tested in accordance with ANSI C63.17- 1998. COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 13 of 80 Exhibit 6 SECTION 2. SUMMARY OF TEST RESULTS: 2.1 Summary of Tests: FCC Section Description Report Section ANSI C63.17 Section Result 15.307 Affidavit from UTAM, Inc. certifying participation in UTAM, Inc. 3.2.1 N/A Complies 15.309 Cross Reference to Subpart B 3.2.2 6.1.6.3 Complies 15.311 Labelling Requirements 3.2.3 N/A Complies 15.315 AC power line conducted limits 3.2.4 N/A Complies 15.317 Antenna requirement 3.2.5 N/A Complies 15.319 (a) Frequency of operation 3.2.6 N/A Complies 15.319 (b) Modulation technique 3.2.7 6.1.4 Complies 15.319 (c) Peak transmit power and emission bandwidth 3.2.8 6.1.2 Complies 15.319 (d) Power spectral density 3.2.9 6.1.5 Complies 15.319 (e) Directional gain of antenna 3.2.10 N/A Complies 15.319 (f) Automatic discontinuance of transmission 3.2.11 N/A Complies 15.319 (i) IEEE C95.1-1991 and IEEE C95.3- 1991 3.2.12 N/A Complies COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 14 of 80 Exhibit 6 FCC Section Description Report Section ANSI C63.17 Section Result 15.323 (a) Channel allocation 3.2.13 N/A Complies 15.323 (b) Channel packing 3.2.14 8.1.2 Complies 15.232 (c) Time and Spectrum monitoring 3.2.15 Sections 7 and 8 Complies 15.323 (c)(1) Transmit window monitoring 3.2.16 7.3.2.2 7.5 Complies 15.323 (c)(2) Monitoring threshold 3.2.17 7.3.2.1 Complies 15.323 (c)(3) Transmission duration 3.2.18 N/A Complies 15.323 (c)(4) Acknowledgments 3.2.19 8.2.1 8.1.3 Complies 15.323 (c)(5) Least interfered channel 3.2.20 7.3.2.1, 7.3.2.2 8.2.1 Complies 15.323 (c)(6) Random waiting interval 3.2.21 8.1.3 8.2.1 Complies 15.323 (c)(7) Threshold monitoring bandwidth, Threshold monitoring reaction time 3.2.22 7.4 7.5 Complies 15.323 (c)(8) Threshold monitoring antenna 3.2.23 N/A Complies 15.323 (c)(9) Monitoring threshold relaxation 3.2.24 N/A Complies 15.323 (c)(10) Duplex connections 3.2.25 8.2.3 Complies COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 15 of 80 Exhibit 6 FCC Section Description Report Section ANSI C63.17 Section Result 15.323 (c)(11) Alternative monitoring interval 3.2.26 8.2.4 Complies 15.323 (c)(12) Limitation on use of Section (c)(10) or (c)(11) 3.2.27 N/A Complies 15.323 (d) Spurious emissions 3.2.28 6.1.6 Complies 15.323 (e) Frame repetition stability / frame period and jitter 3.2.29 6.2.3 6.2.4 Complies 15.323 (f) Frequency stability 3.2.30 6.2.2 Complies COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 16 of 80 Exhibit 6 SECTION 3. MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS: 3.1 General Comments This section contains the test results only. Details of the test methods used, etc., can be found in Appendix A of this report. 3.2 Test Results 3.2.1 Coordination with fixed microwave service § 15.307 Measurement Data: The affidavit from UTAM, Inc. is enclosed in Exhibit 12. 3.2.2 Cross Reference to Subpart B § 15.309 The requirements of Subpart D apply only to the radio transmitter contained in the PCS device. Other aspects of the operation of a PCS device may be subject to requirements contained elsewhere in this Chapter. In particular, a PCS device that includes digital circuit…

Text truncated - open the document above for the full version.

COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 67 of 80 Exhibit 7 Exhibit 7: Test Set-Up Photographs Front View of Worst Case Radiated and Line Conducted Emissions Test Set-up COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-7349 FCC ID: BD6ADIX-BS Page 68 of 80 Exhibit 7 Back View of Worst Case Radiated and Line Conducted Emissions Test Set-up
