BKMAE-7122WN7122BEP

1 Wireless LAN Unit 取扱説明書................................. 2 User's Guide ................................ 8 Guide de l'utilisateur ...................14 Bedienungsanleitung...................20 Manuale dell'utente....................26 Manual de usuario...................... 32 Manual do Utilizador.................. 38 Gebruikershandleiding................44 Brugerhåndbog............................50 Käyttäjän opas............................56 Brukerhåndbok............................62 Bruksanvisning.............................68 Uživatelská příručka....................74 Használati útmutató ...................80 Przewodnik użytkownika ........... 86 Εγχειρίδιο χρήσης...................... 92 Kullanım Kılavuzu........................98 Руководство пользователя.....104 Пайдаланушы нұсқаулығы... 112 Guia de l'usuari. .........................120 Priročnik za uporabnika ........... 126 使用说明书............................. 132 使用說明書............................. 138 사용 설명서.................... 144 Model: WN7122BEP 2 Safety Instructions Thank you very much for purchasing this product. Read this document carefully to use this unit safely and correctly. To allow you to solve any unknown points quickly, keep this information close to hand. If any points are unclear, contact your local dealer or the nearest address provided in the "User's Guide" supplied with your projector. So that you can use the product safely and correctly, symbols are applied in the documentation and on the product to indicate possible harm to the user or to others and the risk of damage to property. The indications and their meaning are as follows. Make sure you understand them properly before reading the guide. Warning This symbol indicates information that, if ignored, could possibly result in death or personal injury due to incorrect handling. Caution This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling. Warning May exert electromagnetic interference on, and cause malfunction of, cardiac pacemakers. Before using this unit, check that there is no one in the vicinity using a cardiac pacemaker. May exert electromagnetic interference on, and cause malfunction of, sensitive medical equipment. Before using this unit, check that there is no sensitive medical equipment in the vicinity. Use of this unit on aircraft may be restricted in some countries. Before using this unit, check that use of this unit is not restricted on the aircraft. 3 EN Precautions Notes on Handling and Storage Do not store in locations with high temperatures or high humidity. It may in particular be damaged or deformed if left in a vehicle with the windows shut, or placed in locations with unusually high temperatures for extended periods such as in direct sunlight. Do not get it wet. This may cause malfunctions to occur. Do not use near microwave ovens. Wireless communication may be interrupted by electromagnetic interference generated by microwave ovens. Do not drop it, subject it to shocks, or place heavy objects on it. Frequency Precautions The frequency band for this unit is 2.4 GHz. This frequency range is the same frequency bandwidth as industrial, scientific, and medical devices such as microwave ovens and mobile unit identification (RF‐ID) systems (licensed premises radio stations and unlicensed specified low‐power radio stations) used in factory production lines. Before using this unit, check that there are no radio stations for mobile unit identification or specified low‐power radio station premises nearby. In the event that this unit should interfere electromagnetically with the premises of a radio station used for mobile unit recognition, cease use immediately and stop generating the electromagnetic field. Contact your local dealer or the nearest address provided in the "Support and Service Guide" supplied with the projector if this unit interferes electromagnetically with a special low‐power radio station used for mobile unit identification or causes similar problems. Caution This unit should only be used for Epson projectors. If it is installed on another device such as a computer, it may result in computer failure, damage, or malfunctions. Do not disassemble or remodel this unit. This may result in burns. This unit is only for indoor use. To comply with RF exposure compliance requirements, a distance of at least 20 cm must be maintained at all times between the antenna of this unit and people in the vicinity. 4 Wireless Telegraphy Act Regulations The following acts are prohibited by the Wireless Telegraphy Act. Modifying and disassembling (including the antenna) Removing the label of conformance International Travel Precautions Wireless devices are designed to conform to the channel and frequency limits of the country they are intended to be used in. This unit is based on the specifications of the country of sale. If this unit is used outside the country of sale, check with a local dealer for more information. Notes on Security when Using Wireless LAN (Important information on customer rights (maintaining privacy)) The advantage of using a wireless LAN over a LAN cable is that, because information is exchanged using radio signals, you can easily connect to the network if you are within range of the radio signals. A disadvantage of this is that within a certain range, the electromagnetic signals can pass through barriers such as walls, so that if security countermeasures are not implemented in some way, problems such as the following may occur. Communicated data can be intercepted A third party may be able to receive wireless transmissions without authorization, and they could obtain personal information from these transmissions such as IDs, passwords, or credit card numbers, or they could intercept the contents of personal e‐mail messages. Unauthorized access to the network A third party could access an individual or intra‐compa…

Text truncated - open the document above for the full version.

本製品を正しく使用するために、はじめにマニュアルをお読みください。お読みになった後は、大 切に保管してくだ さい。 無線通信機能は、自動ドア、火災報知器などの自動制御機器の近くで使用しないでください。電波が機器 に影響を 及ぼしたり、誤動作による事故の原因となるおそれがあります。 この 機器の使用周波数帯では、電子レンジ等の産業・科学・医療用機器のほか工場の製造ライン等で使用されてい る移動体識別用の構内無線 局（免許を要する無線局 ）及び特定小電力無線局（免許を要しない無線局）並びにアマ チュア無線局（免許を要する無線局） が運用されています。 1. この 機器を使用する前に、近くで移動体識別用の構内無線局及び特定小電力無線局並びにアマチュア無線局 が運用されていないことを確認して下さい。 2. 万一、この機器から移動体識別用の構内無線局に対して有害な電波干渉の事例が発生した場合には、速やかに 使用周波数を変 更するか又は電波の発射を停止した上、弊社インフォメーションセンタ ーにご連絡頂き、混信回避 のための処置等（例えば、パーティションの設置など）についてご相談して下さい。 3. その他、この機器から移動体識別用の特定小電力無線局あるいはアマチュア無線局に対して有害な電波干渉 の事例が発生した場合など何かお困りのことが起きたときは、弊社インフォメーションセンターへお問い合わせ下 さい。 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司，商號或使用者均不得擅自變更頻率，加大功率或變更 原 設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無 干 擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業， 科學及醫療用電 波輻射性電機設備之干擾。 避免電波干擾、 本器材禁止於屋外使用

Page No. : 28 Module Approval Request Letter Subject: Module Approval Date: 2015/3/10 FCC ID: BKMAE-7122 Dear Reviewer, We, Sporton International Inc., are authorized by SEIKO EPSON CORPORATION to have their state-of-the-art WN7122BEP approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in CFR47 Part 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip MT7603U. 3. The requirement of power supply regulation: The part number of the power regulator is IT7861TS. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

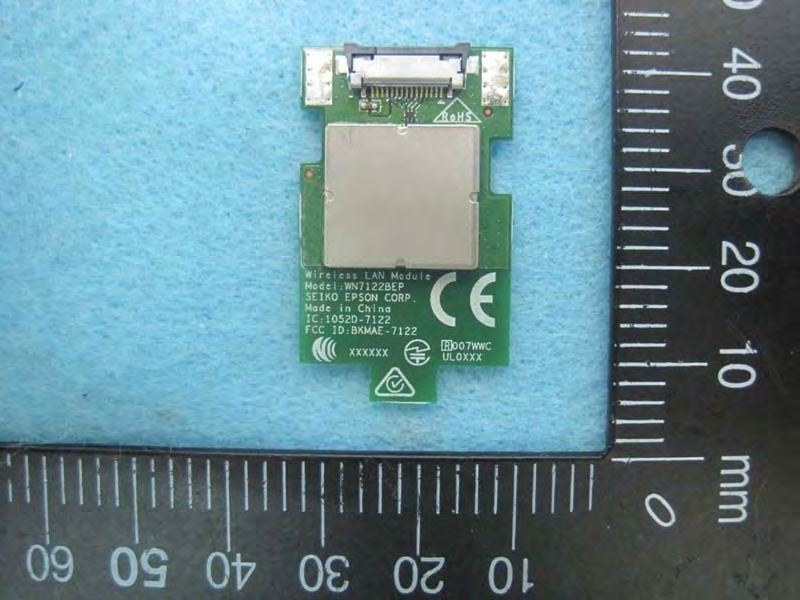

Report No.:510764 SPORTON International Inc. PAGE NUMBER : A1 OF A1 TEL : 886-3-327-3456 FAX : 886-3-327-0973 APPENDIX A. Photographs of EUT

IC:1052D-7122 SEIKO EPSON CORP. Wireless LAN Module Model: WN7122BEP Made in China CCAF15LPXXXXXX MSIP-CRI- Layout plan of certification marks for P2dash Epson, Arcadyan, Elsena and MediaTek Related persons only SEIKO EPSON Corporation12th/Feb./2015 (x4) Rev.0.6 Printing color : White (Not RGB color) RoHS CMIITID:XXXXYYZZZZ PRO I ECK EKL - ER-7122 0026ABXXXXXX 216718700 Bar-code label with S/N, P/N FCC ID: BKMAE-7122 14172220005JR01 14172220005JR01 Arcadyan P/N by silk print (color: white) (character color: black) Positioning marks (four corners) (color: white) Bar-code Information = MAC address (S/N) number only SEIKO EPSON CORP. Wireless LAN Module Model: WN7122BEP Printing color : White (Not RGB color) RoHS Silk print on PCB (color: white) The additional label will be adjusted by these two lines. The additional label for P2dash. (character color: black) Stick here. 1. Starter version : Three certification marks and numbers are displayed by the additional label. 2. Permanent version : All certification marks and numbers are displayed on PCB. Component side Soldering side is same as the permanent one. Soldering side (common)Component side Avoid a hole PCB UL logo is here. (by PCB venfor) 007WWCUL0XXX CCAF15LPXXXXXX CMIITID:XXXXYYZZZZ 007WWCUL0XXX Keep 0.5mm or larger clearance from the edge This edge is cut not to hide the CE mark. Label Location

Report No.:510764 SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-3-327-3456 FAX : 886-3-327-0973 APPENDIX A. Photographs of EUT Report No.:510764 SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.:510764 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-3-327-3456 FAX : 886-3-327-0973

Report No.: FR510764 FCC ID: BKMAE-7122 Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR510764 FCC ID: BKMAE-7122 Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR510764 FCC ID: BKMAE-7122 Page No. : C3 of C3 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure Antenna Type : Printed Antenna Conducted Power for IEEE 802.11b: 19.42 dBm The maximum combined Average Output Power Distance (m) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 0.32 1.0765 19.4232 87.5638 0.018762 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company SEIKO EPSON CORPORATION Applicant Address 3-3-5 Owa Suwa-shi Nagano-Ken 392-8502, Japan FCC ID BKMAE-7122 Manufacturer’s company Arcadyan Technology Corporation Manufacturer Address No.8, Sec.2, Guangfu Rd.,Hsinchu, 30071 Taiwan Product Name WN7122BEP Brand Name EPSON Model No. WN7122BEP Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Jan. 14, 2015 Final Test Date Feb. 11, 2015 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2013, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r02 and KDB 662911 D01 v02r01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR510764 Report Format Version: Rev. 01 Page No. : i of ii FCC ID: BKMAE-7122 Issued Date : Mar. 06, 2015 Table of Contents 1. VERIFICATION OF COMPLIANCE ....................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................8 3.9. EUT Operation during Test ...................................................................................................................................................................8 3.10. Duty Cycle ..........................................................................................................................................................................................8 3.11. Test Configurations .............................................................................................................................................................................9 4. TEST RESULT ................................................................................................................................................... 12 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................12 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................16 4.3. Power Spectral Density Measurement ..............................................................................................................................................18 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................24 4.5. Radiated Emissions Measurement ....................................................................................................................................................30 4.6. Emissions Measurement ....................................................................................................................................................................46 4.7. Antenna Requirements .....................................................................................................................................................................60 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 61 6. MEASUREMENT UNCERTAINTY.......................................................................................................................... 63 APPENDIX A. PHOTOGRAPHS OF EUT.............................................................................…

Text truncated - open the document above for the full version.

Report No.: FR510764 FCC ID: BKMAE-7122 Page No. : B1 of B8 Appendix B. Test Photos Report No.: FR510764 FCC ID: BKMAE-7122 Page No. : B2 of B8 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR510764 FCC ID: BKMAE-7122 Page No. : B3 of B8 CLOSE-UP VIEW Report No.: FR510764 FCC ID: BKMAE-7122 Page No. : B4 of B8 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR510764 FCC ID: BKMAE-7122 Page No. : B5 of B8 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR510764 FCC ID: BKMAE-7122 Page No. : B6 of B8 CLOSE-UP VIEW Report No.: FR510764 FCC ID: BKMAE-7122 Page No. : B7 of B8 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR510764 FCC ID: BKMAE-7122 Page No. : B8 of B8 CLOSE-UP VIEW
